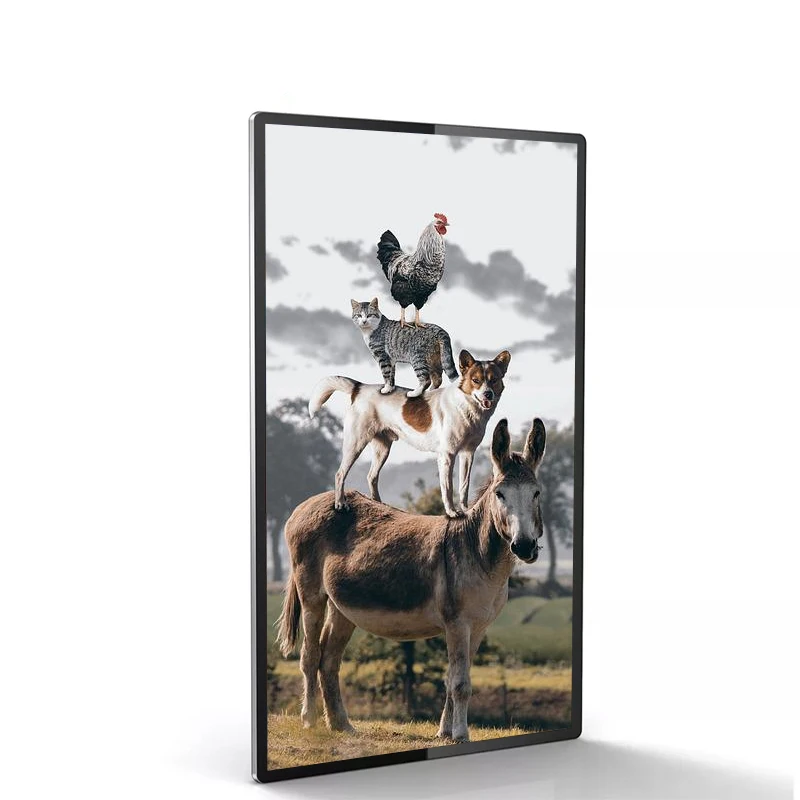

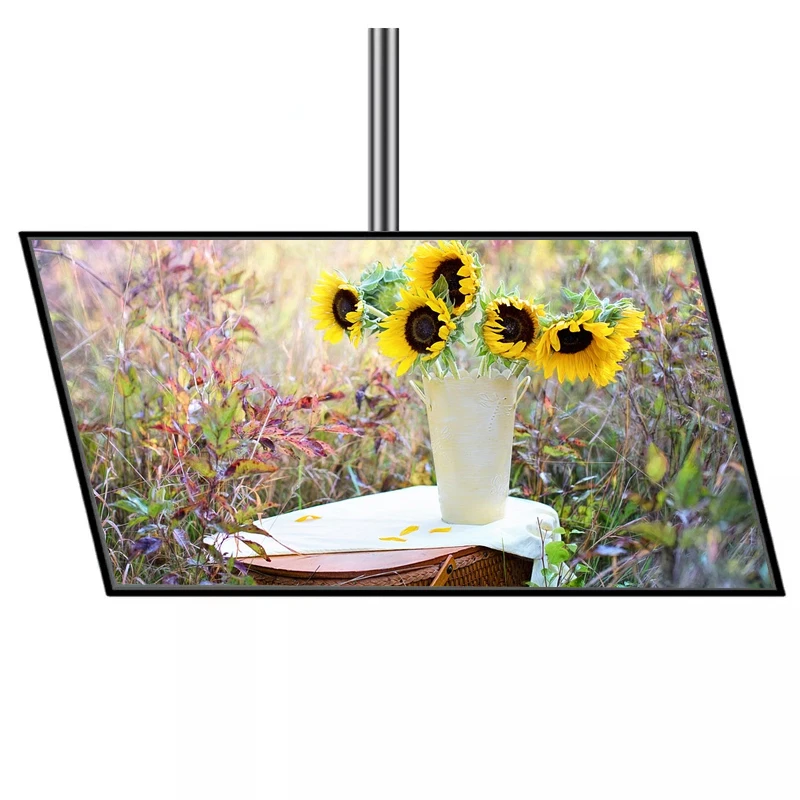

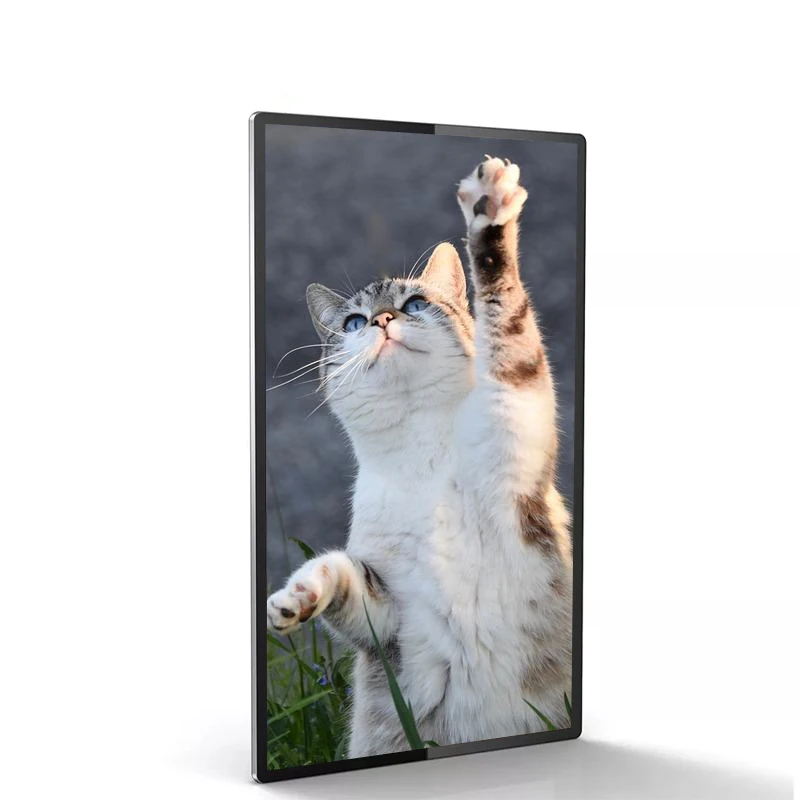

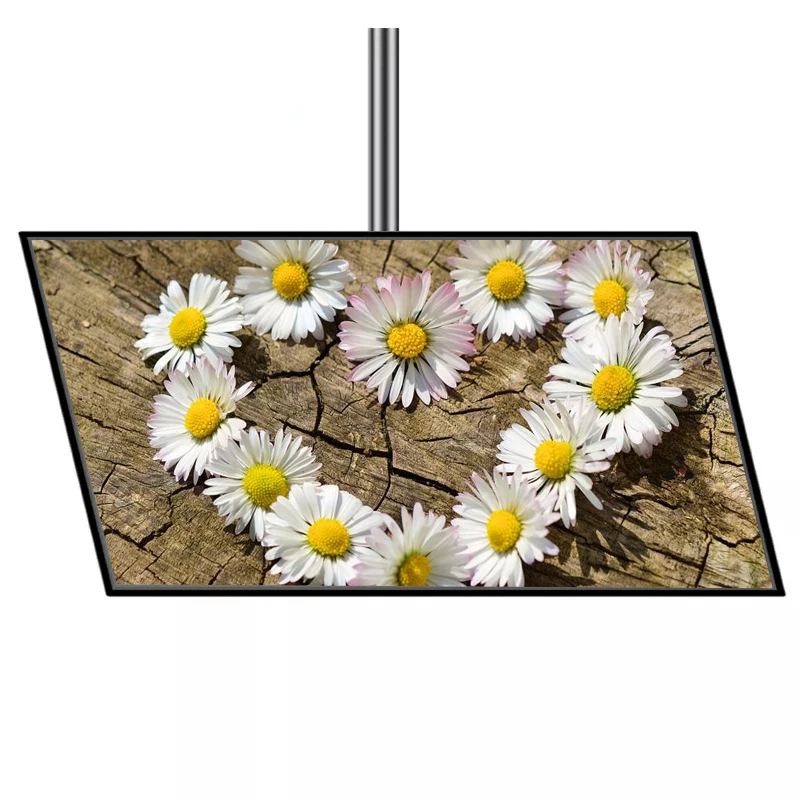

Custom Size 15.6 inch digital signage and displays liquid crystal advertising screen for Ad player
- Category: >>>
- Supplier: Shenzhen Chestnuter Technology Co. Ltd.
Share on (1600564307707):
Product Overview
Description
Custom Size 15.6 inch digital signage and displays liquid crystal advertising screen for Ad player
Panel specifications | ||||||
Size | 10.1 Inch | 12.1 Inch | 15.6 Inch | |||
Panel Backlight | TFT-LCD | TFT-LCD | TFT-LCD | |||
Model No | CAD101BNA | CAD121BNA | CAD156BNA | |||
Machine outline size ( L*W*T/mm) | 259.5*177.5*20 mm | 315(L) x 250.2(W) x 16.5(T) mm | 379.9(L) x 235.6(W) x 17(T) mm | |||
Display Panel | 12.1'' AUO A Grade LCD panel | 12.1'' CHIMEI A Grade LCD panel | 15.6'' BOE A Grade LCD panel | |||
Frame Material | Aluminium frame, tempered glass & cold-rolled sheet body | |||||
Net Weight ( kg/unit) | 2 | 4 | 6 | |||
Gross weight (kg/unit) | 4 | 6 | 8 | |||
Volume weight (kg/unit) | 6 | 8 | 10 | |||
Resolution | 1,024 x 600 | 1,024 x 768 | 1,366 x768 | |||
Brightness | 250 cd/㎡ | 250 cd/㎡ | 350 cd/㎡ | |||
Response Time | 8ms | 8ms | 8ms | |||
Contrast | 700:1 | 700:1 | 800:1 | |||
Aspect Ratio | 16:9 | 16:9 | 16:9 | |||
Viewing Angle | 178°(H)/178°(V) | 178°(H)/178°(V) | 178°(H)/178°(V) | |||
Life Time | 50,000 hours | 50,000 hours | 50,000 hours | |||
Working Hours | 24/7 | 24/7 | 24/7 | |||
Display Color | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | |||

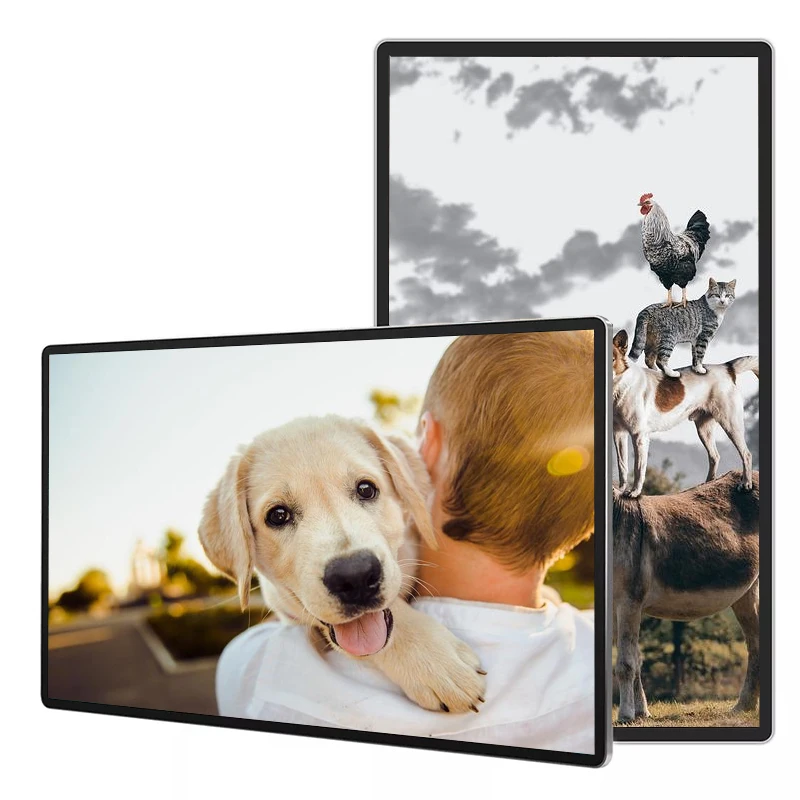

Orientation | Landscape or Portrait | Landscape or Portrait | Landscape or Portrait | |||
Machine color | black/silver | black/silver | black/silver | |||
Surface Treatment | Powder Coated | Powder Coated | Powder Coated | |||
Installation method | wall-mounted | wall-mounted | wall-mounted | |||
Interface | ||||||
HDMI input | 1 | 1 | 1 | |||
USB2.0 input | 2 | 2 | 2 | |||
Speaker | 2x10W | 2x10W | 2x10W | |||
OSD display( screen menu display) | ||||||
Menu language | English(default, multi-language support) | |||||
Others | ||||||
Voltage | AC110-240V(50Ghz~60Ghz) | AC110-240V(50Ghz~60Ghz) | AC110-240V(50Ghz~60Ghz) | |||
Ingress Protection Rating | IP20 | IP20 | IP20 | |||
Operating temperature | 0℃~50℃ | 0℃~50℃ | 0℃~50℃ | |||
Storage Temperature | -10 ~ 60°C | -10 ~ 60°C | -10 ~ 60°C | |||
Working Humidity | 20 ~ 80% | 20 ~ 80% | 20 ~ 80% | |||
Storage Humidity | 5 ~ 95% | 5 ~ 95% | 5 ~ 95% | |||
Product Description
Related Products

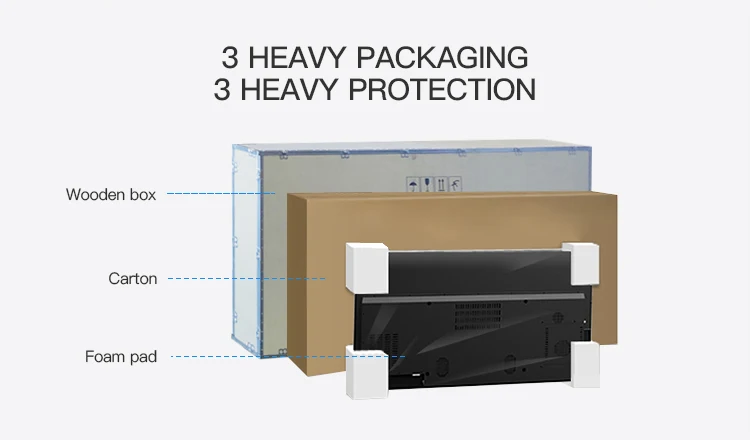

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
