3M 651S Hot melt adhesive Tape Bonding film Double sided tape
- Category: >>>
- Supplier: Shenzhen Richeng Electronic Matrial Co. Ltd.
Share on (1600564314445):
Product Overview
Description

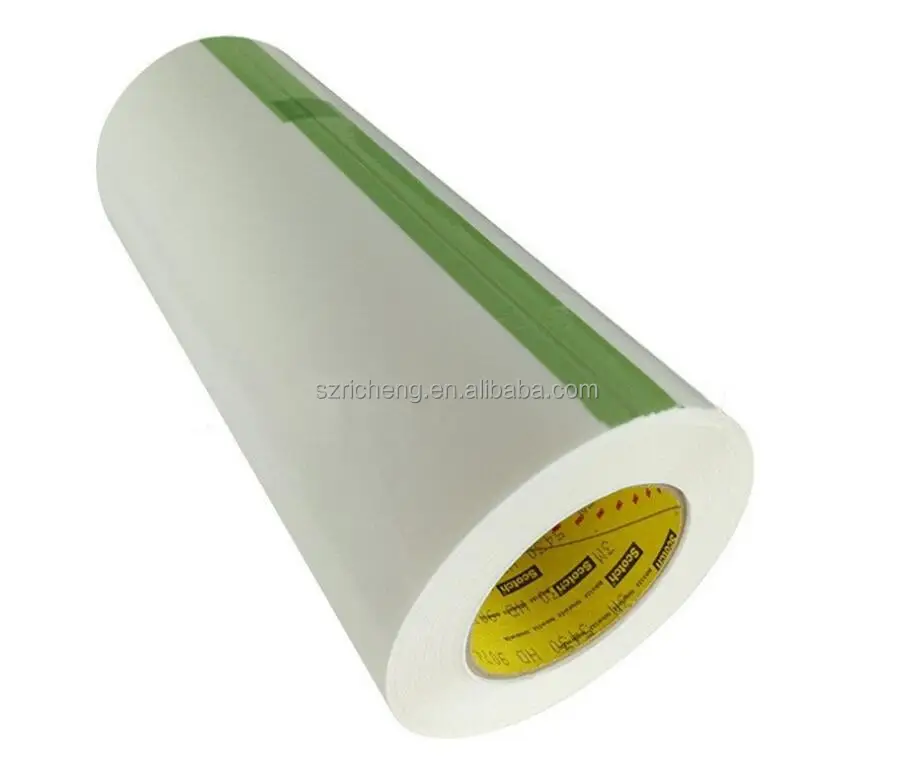

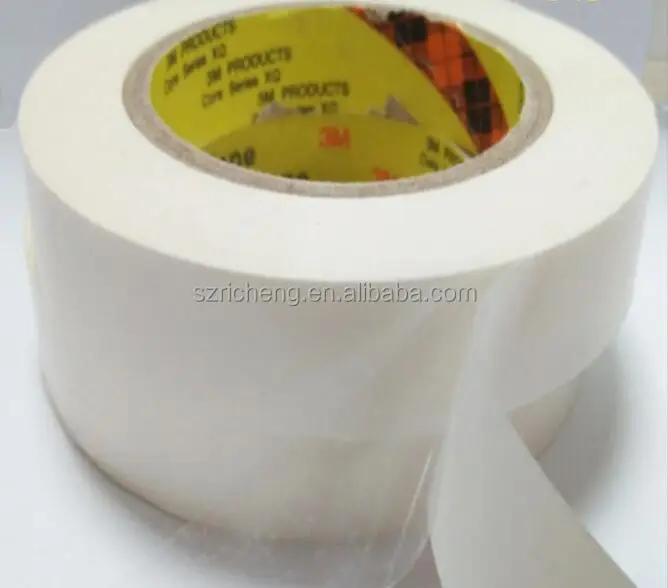

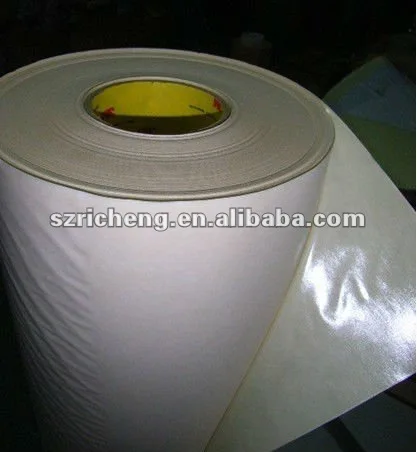

3M 651S Hot melt adhesive Tape
Bonding film Double sided tape
Quick detail
3m bonding film polyester hot melt adhesive tape 3M615S
base resin: Polyester
color: Translucent/Tan
thickness:0.15mm
Short-term temperature resistance :180°c
Product Description

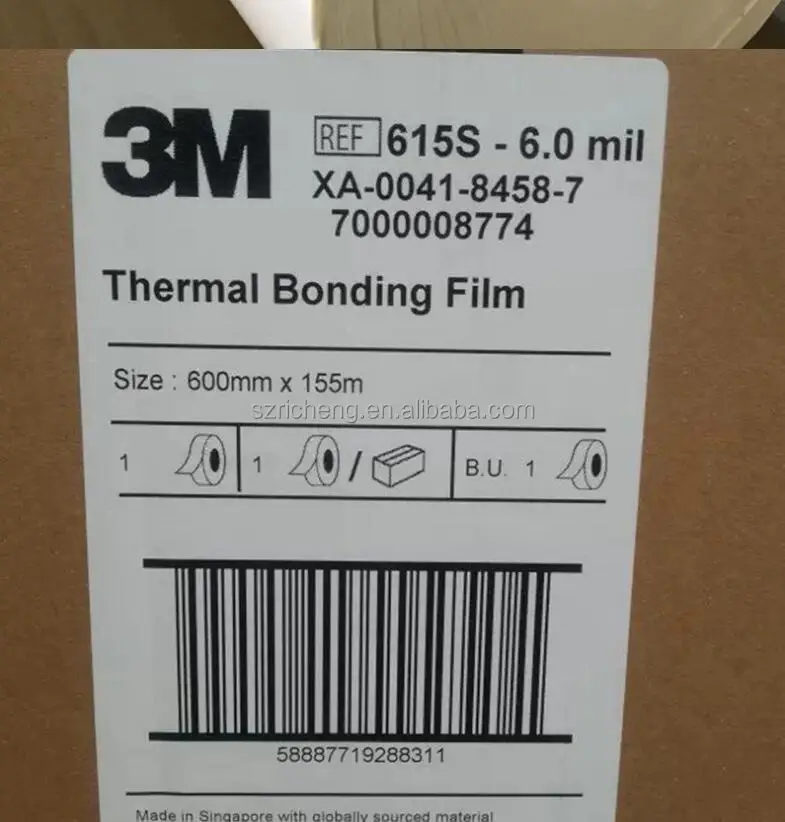

3M™ Bonding Film 615S is a flexible, light colored, thermoplastic adhesive bonding film which exhibits good adhesion to a variety of substrates. The bonding film is removable from the release coated paper liner.
Key Features
1. Can be die-cut
2. 100% solids
3. Consistent, uniform adhesive thickness
4. Excellent adhesion to many substrates
5. Quick fixturing/holding strength
Application Equipment Suggestions
Note: Appropriate application equipment can enhance bonding film performance. We suggest the following equipment for
the user’s evaluation in light of the user’s particular purpose and method of application.
The type of application equipment used to bond 3M™ Bonding Film 615 will depend on the application involved and on
the type of equipment available for the user. Thin films and flexible substrates can be bonded using a heated roll laminator
where heat and pressure can be varied to suit the application. Larger, thicker substrates can be bonded using a heated static
press or, in some cases, an autoclave. For applications where a shaped adhesive is to be transferred to a flat or threedimensional
part, a hot shoe or thermode method may be appropriate.
Product Description
Company Information
Model summary list:
Shenzhen Richeng company provide 3M products as follows:
3M VHB Tape: 4905,4910,4914,4920,4930,4932,4945,4950,4951,4952,4955,4959,4926,4936,4941,4943,4956,4991,4919,4929,4949,5915,5925,5952,5962,RP16,RP25,RP32,RP45…
3M Foam Tape:
1600T,1600TG,4004,4008,4026,4032,4052,4056,4465,4466,4604,4611,4965,4212,4215,4314,4218,4229,4314,5604,5608,5611,GT7108,GT7102,GT7106,GT7110,GT7112,GT7198,GT6012,CIP66,CP5108,CP5112,4929,GT7130
3M Double side tape:
9075,9080A,9080HL,9448A,9448AB,9448HKB,9448HK,9088,9888T,9415PC,9425HT,467MP,468MP,9079,9077,950,9471,9471LE,9472,9472LE,9473PC,9453LE,9671LE,9672LE,93020LE,9629PC,9460PC,9485PC,9157B,9183,850,850,8005,9492MP,9731,55260,55261,55236,55256,55257,55258,55230H
3M Conductivity tape:
8805,8810,8815,8820,8904, CN-3190, 9709S,
3M Electrical Tape:
3M27,69,44,1350F-1,1350F-2,J20,#23,#33,#35,#70,#88,1200,1500,1600,2228,28CT,2166,130c,471,5421,5423
3M Stoch tape:
610 665,810,811,2090,3903,3939,6969,425,427,1181,1183…
3M Masking tape and Fiber tape:
401,232,233+,244,250,2142,2214,410M,616,893,897,898,8898,8915,
3M Bumpon feet:
SJ5382,SJ5302,SJ5303,SJ5007,SJ5008,SJ5009,SJ5017,SJ5008,SJ5306,SJ5012,SJ5312,SJ5514,SJ5023,SJ5523,SJ5076,SJ5908,SJ5616,SJ5808,SJ5816,SJ5832,SJ5632…
3M Daul lock:
SJ3526, SJ3527, SJ3571, SJ3572,SJ3440,SJ3441,SJ3550,SJ3551,SJ3552,SJ4570,SJ3560,SJ3540,SJ3741/5408,SJ3741/5430
Dual Lock List
3M Dual Lock Reclosable Fasteners
Shenzhen Richeng Electronic Material Co.,Ltd. stock list below.
| Item | Size | Stem | Color | Adhesive |
| SJ3550 | 19mm,25.4mm,50.8mm,152mm width | 250 | Black | White Acrylic |
| SJ3551 | 19mm,25.4mm,50.8mm,152mm width | 400 | Black | White Acrylic |
| SJ3552 | 25.4mm*45.7M(1"*50Y) | 170 | Black | White Acrylic |
| SJ3540 | 25.4mm*45.7M,50.8mm*45.7M | 250 | Black | Rubber |
| SJ3541 | 25.4mm*45.7M(1"*50Y) | 400 | Black | Rubber |
| SJ3542 | 25.4mm*45.7M(1"*50Y) | 400 | Black | Rubber |
| SJ3560 | 25.4mm,50.8mm,152mm width | 250 | Clear | Clear Acrylic |
| SJ3561 | 25.4mm*45.7M(1"*50Y) | 400 | Clear | Clear Acrylic |
| SJ3440 | 25.4mm*45.7M(1"*50Y) | 250 | Black | None |
| SJ3440 | 152mm*45.7M(6"*50Y) | 250 | Black | None |
| SJ3441 | 25.4mm*45.7M(1"*50Y) | 400 | Black | None |
| SJ4570 | 25.4mm*45.7M(1"*50Y) | Low/thin | Clear | Clear Acrylic |
| SJ4570 | 50.8mm*45.7M(2"*50Y) | Low/thin | Clear | Clear Acrylic |
| SJ4570 | 152mm*45.7M(6"*50Y) | Low/thin | Clear | Clear Acrylic |
| SJ4575 | 25.4mm*45.7M(1"*50Y) | Low/thin | Black | Clear Acrylic |
| SJ4575 | 152mm*45.7M(6"*50Y) | Low/thin | Black | Clear Acrylic |
| SJ4580 | 25.4mm*45.7M(1"*50Y) | Low/thin | Clear | Liner Red |
3M Hook and Loop Reclosable Fasteners
Shenzhen Richeng Electronic usually keep the stock item below.
| Item | Size | Type | Color | Adhesive |
| SJ3526 | 25.4mm*45.7M(1"*50Y) | Hook | Black | Rubber |
| SJ3526 | 101.6mm*45.7M(4"*50Y) | Hook | Black | Rubber |
| SJ3526 | 25.4mm*45.7M(1"*50Y) | Hook | White | Rubber |
| SJ3527 | 5.4mm*45.7M(1"*50Y) | Loop | Black | Rubber |
| SJ3527 | 25.4mm*45.7M(1"*50Y) | Loop | White | Rubber |
| SJ3571 | Black 25.4mm*45.7M(1"*50Y) | Loop | White | Rubber |
| SJ3571 | Black 50.8mm*45.7M(2"*50Y) | Loop | White | Rubber |
| SJ3572 | Black 25.4mm*45.7M(1"*50Y) | Hook | White | Rubber |
| SJ3572 | Black 50.8mm*45.7M(2"*50Y) | Hook | White | Rubber |
| Other Item can order, but now stock | ||||
3M Dual Lock Fastener(For car)
Shenzhen Richeng Electronic Keep stock item below, usally for car use.
| Item | Size | Stem | Color | Adhesive |
| SJ3741/5408 | 0.8mm thickness 152MM*50m(6"*50m) | 400 | Black | Gray |
| SJ3741/5430 | 3.0mm thickness 152MM*50m(6"*50m) | 400 | Black | Gray |
| SJ3780/5408 | 0.8mm thickness 152MM*50m(6"*50m) | 250 | Black | Gray |
