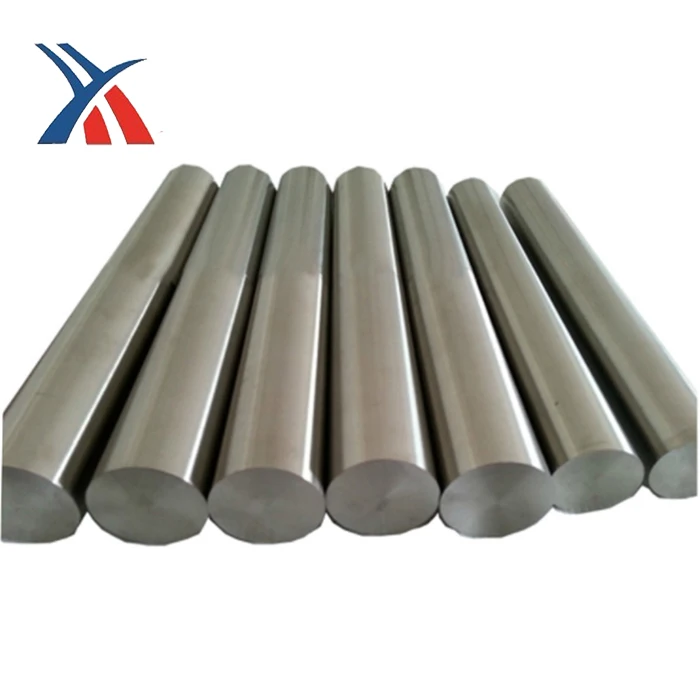

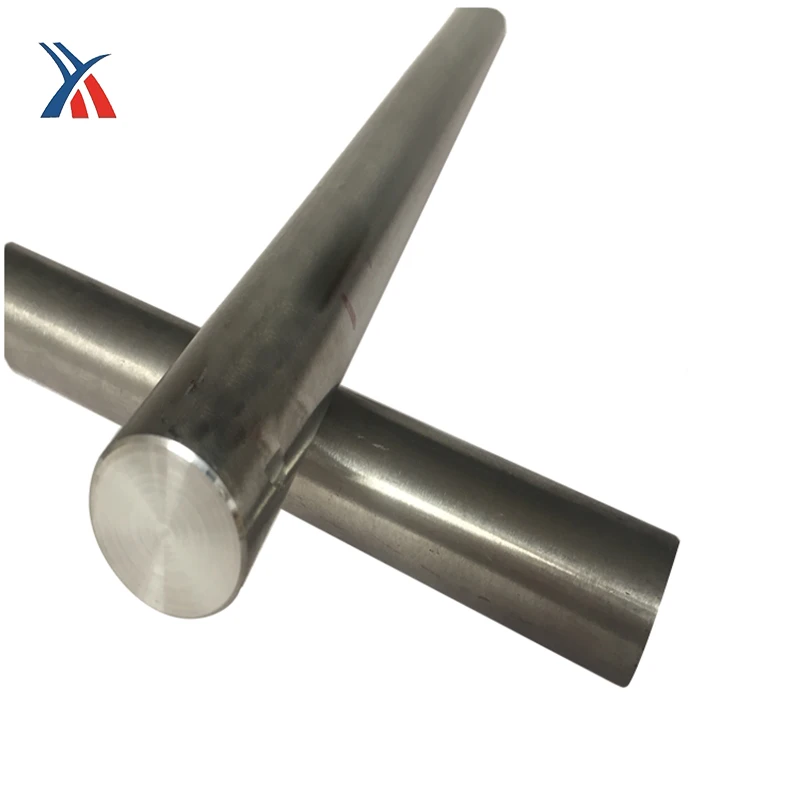

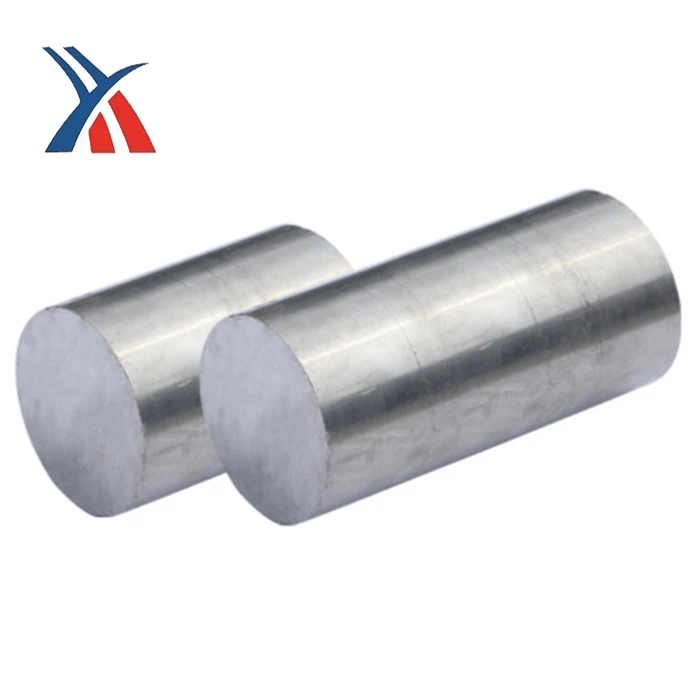

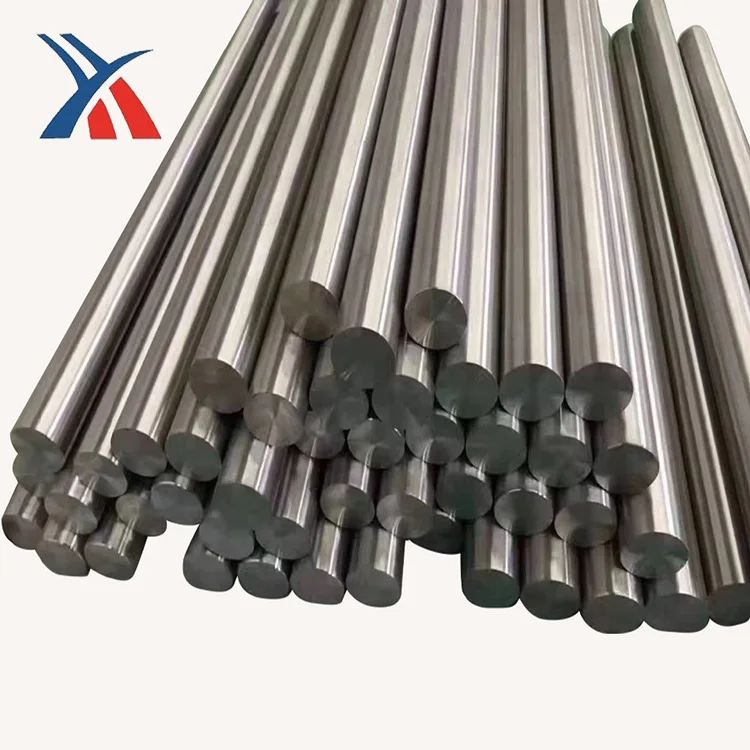

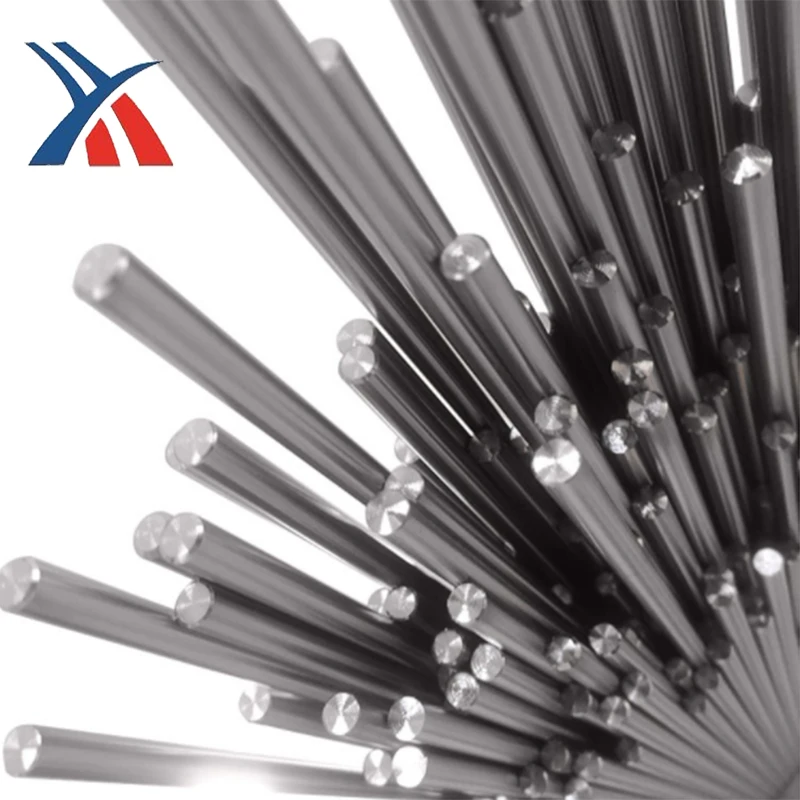

Baoji Haoyu Produces Customizable Titanium and Titanium Alloy Rods
- Category: >>>
- Supplier: Baoji Haoyu Metal Material Co. Ltd.
Share on (1600564322780):
Product Overview
Description
Titanium main feature
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Chemical Propeties | ||||||||||||||||
Grade | Fe | O | AI | V | Pd | Mo | Ni | Ti | ||||||||
Gr1 | 0.2 | 0.18 | / | / | / | / | / | Balance | ||||||||
Gr2 | 0.3 | 0.25 | / | / | / | / | / | Balance | ||||||||
Gr5 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | Balance | ||||||||
Gr7 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | Balance | ||||||||
Gr9 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | Balance | ||||||||
Gr12 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | Balance | ||||||||
Mechanical Properties(>%) | ||||||||
Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | ||||||
ksi | MPa | Min | ||||||
Ksi | Mpa | |||||||
1 | 35 | 240 | 25 | 170 | ||||
2 | 50 | 345 | 40 | 275 | ||||
7 | 50 | 345 | 40 | 275 | ||||
9 | 90 | 620 | 70 | 483 | ||||
12 | 70 | 483 | 50 | 345 | ||||
1.Are u a manufacturer or just trading company？

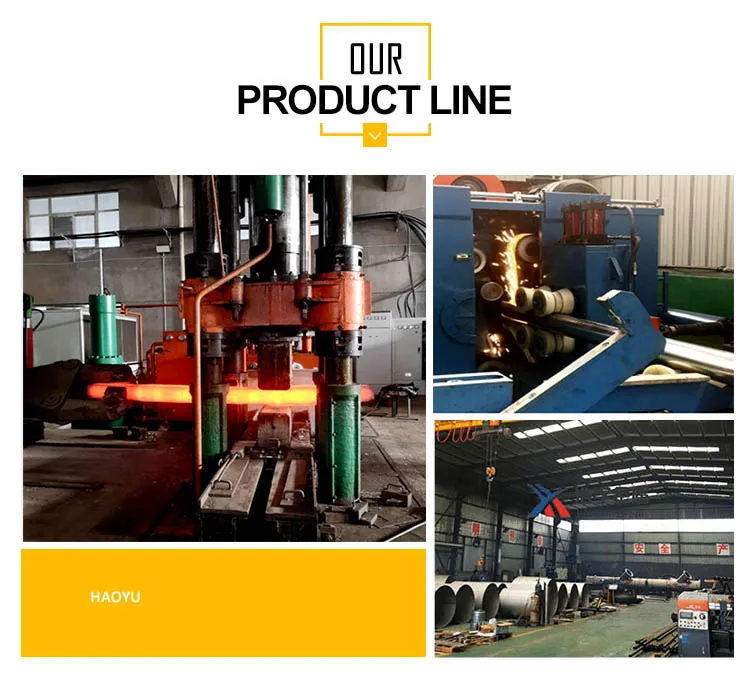

A:Our company is specialized in designing, manufacturing and supplying titanium materials.2.How to ensure the quality of your products？
A:We have a series of tests to ensure the quality of the product,such as DPI,PMI,RT,Hardness test,Bending test,Hydrostatic etc.
3.We would like to know how you will pack the product?
A:Our packing is as follows:
➢IPPC standard wooden case
➢Wrap pipe, fittings, and flange with plastic bag
➢Put sponge cushion at the bottom of the wooden case
➢Put goods in the case and cushion the surrounding to assure the goods unmovable in the case
➢Nail the case, stick the tags, marks or required logos on the case
➢Special package upon request
4.We need below information to quote for you:
A:1) Product name
2) Standard
3) Material Grade (chemical composition)
4) Dimension
5) Quantity
6) The diawing for special parts
