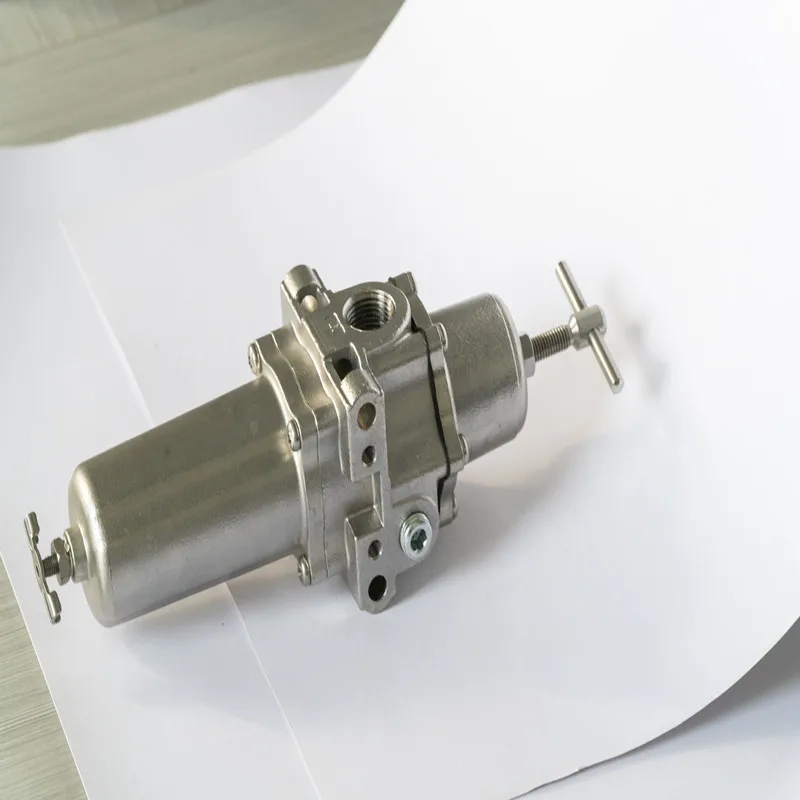

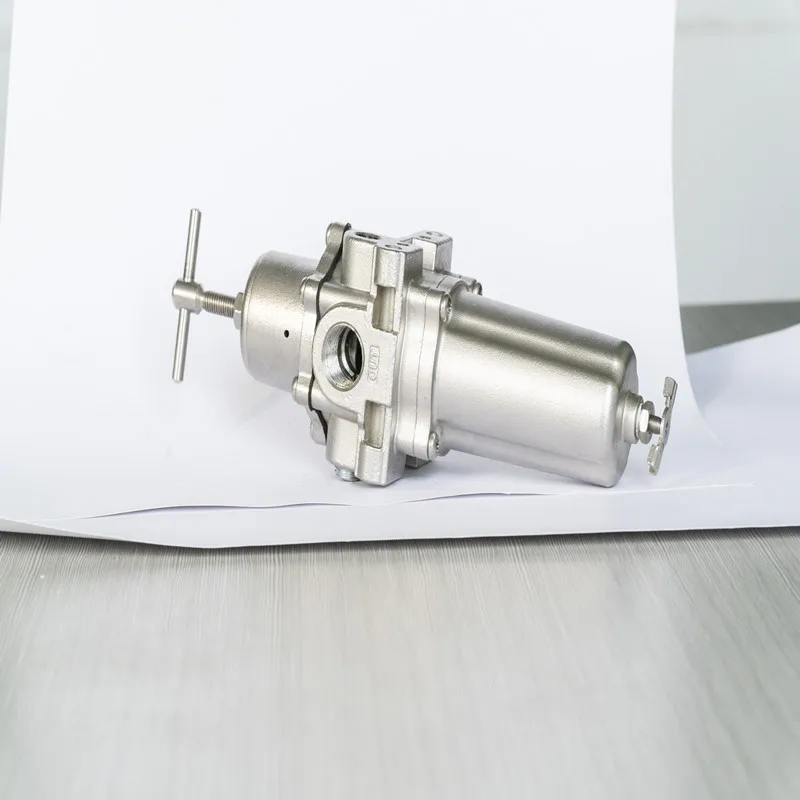

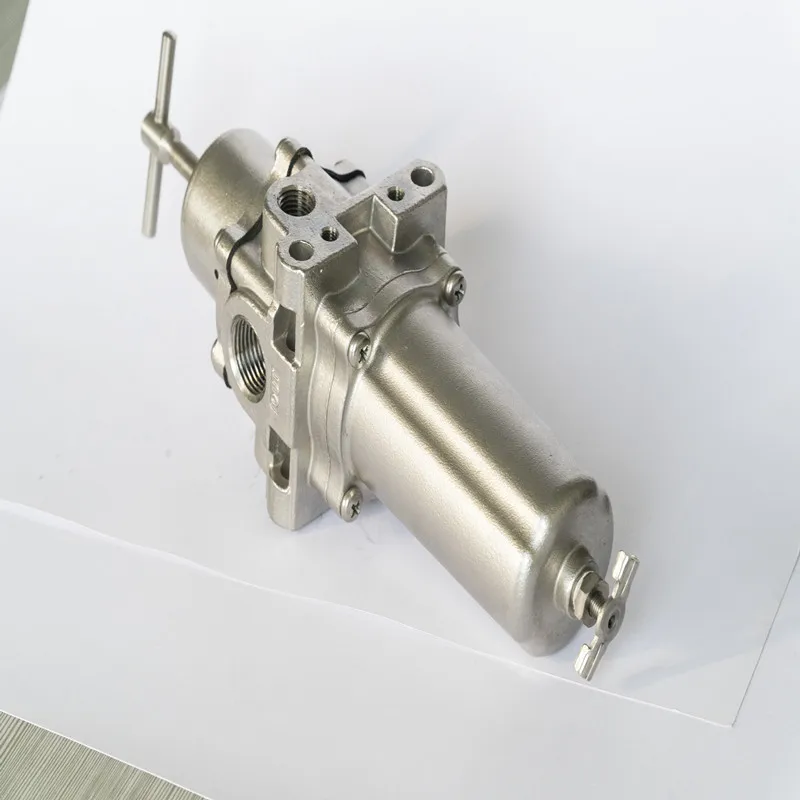

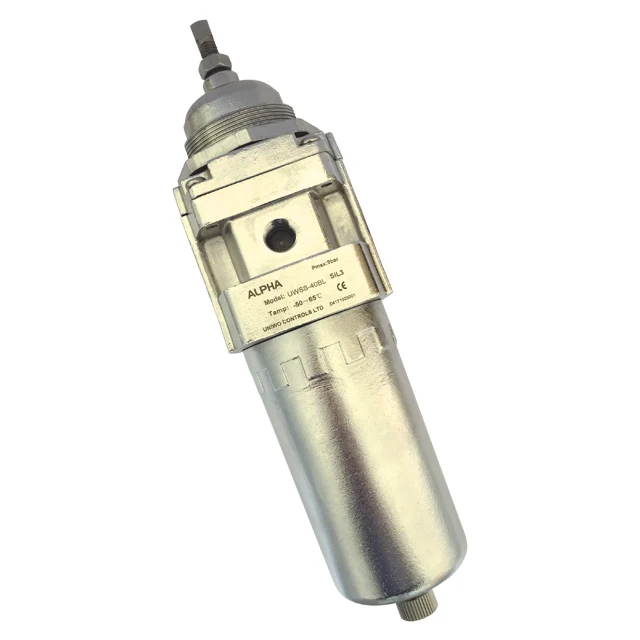

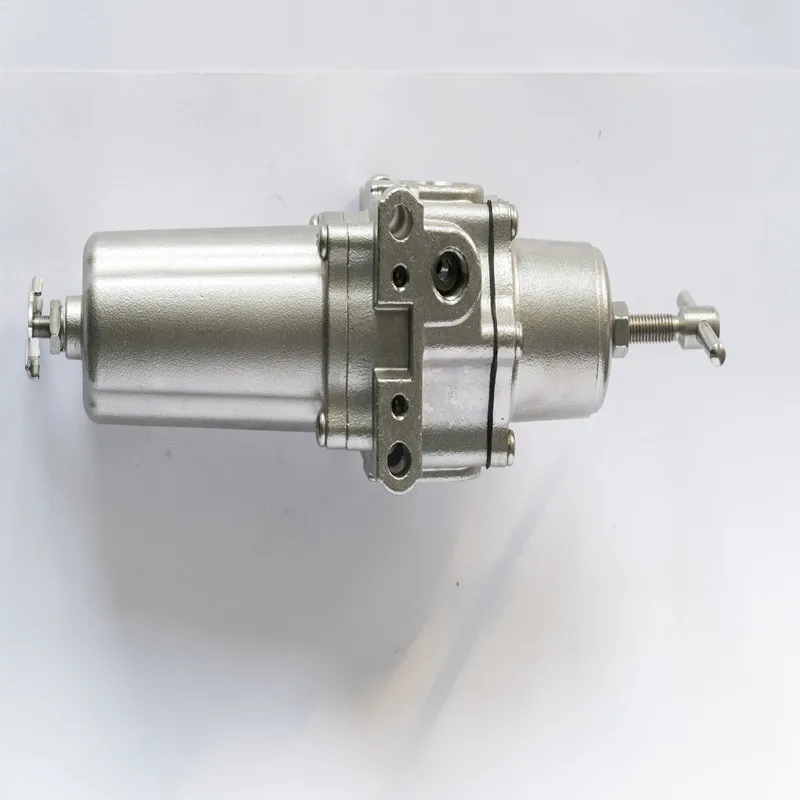

Professional design NR series aluminum alloy filter pressure regulating valve
- Category: >>>
- Supplier: Alpha Industrial Equipment (Shandong) Co. Ltd.
Share on (1600564326865):
Product Overview
Description
Product Overview
Product features
●Air filter regulator combines by filter and regulator,also named air pressure regulator-fier.
●For filter part,it can filter dust,rust and condensate in the compressed air.The filter features new whirtwind blade design,with high water diversion eficiency.In addition,it is ftted with a water discharge device.
●Patent design of the rlling diaphragm, so that the output pressure into a perfect curve characteristics, with the locator use, so that more stable and reliable locator.

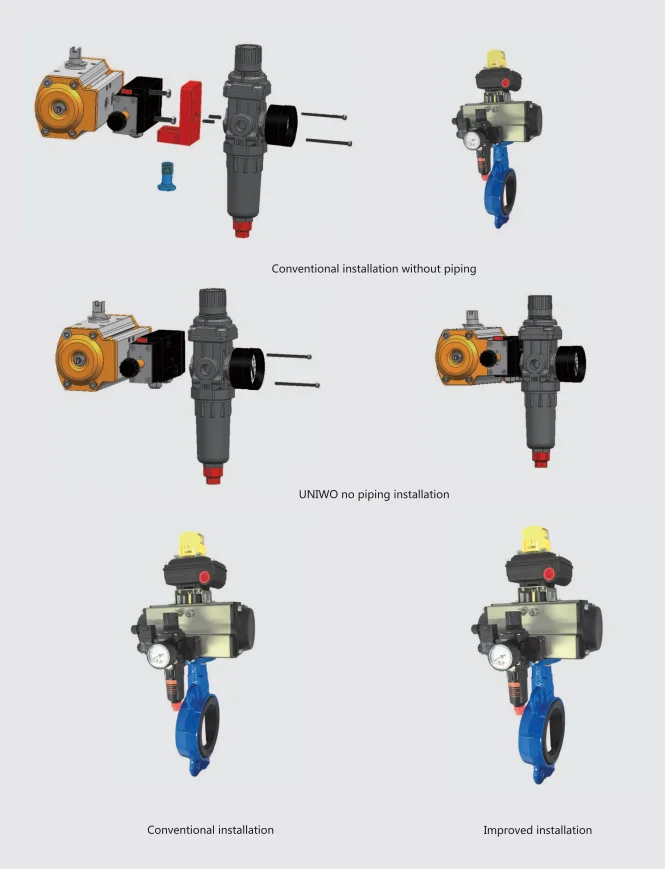

●A variety of insallation methods, easy to install.
●Low-temperature products can be used under 50"C.
●Air filter regulator combines by filter and regulator,also named air pressure regulator-fier.
●For filter part,it can filter dust,rust and condensate in the compressed air.The filter features new whirtwind blade design,with high water diversion eficiency.In addition,it is ftted with a water discharge device.
●Patent design of the rlling diaphragm, so that the output pressure into a perfect curve characteristics, with the locator use, so that more stable and reliable locator.
●A variety of insallation methods, easy to install.
●Low-temperature products can be used under 50"C.
Specifications
Product number：NR | ||||||
Conduit Entry | Regulating Range | Material | Ambient Temp | |||
G1/4 | 0-35PSI | Aluminium alloy | -25℃~60℃ | |||
NPT1/4 | 0-60PSI | 316L | -20℃~120℃ | |||
G3/8 | 0-125PSI | Ceram | -50℃~70℃ | |||
NPT3/8 | ||||||
G1/2 | ||||||
NPT1/2 | ||||||
G3/4 | ||||||
NPT3/4 | ||||||
G1” | ||||||
NPT1” | ||||||
Arguments | ||||||

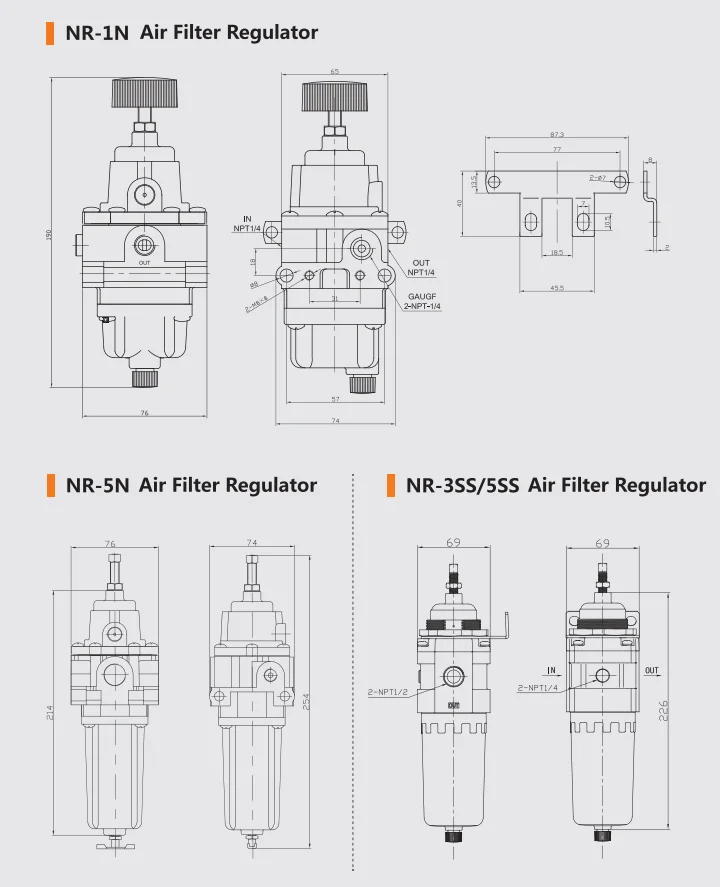

Model | NR1 / 2 | NR3 / 4 / 5 / 6 | NR7 / 8 / 9 / 0 | |||
Port size | G1/4 NPT1/4 | NPT3/8 G3/8 G1/2 NPT1/2 | G3/4 G1” NPT3/4 NPT1” | |||
Ensured pressure resistance | 1.5Mpa （15kgf/cm2) | 1.5Mpa （15kgf/cm2) | 1.5Mpa （15kgf/cm2) | |||
Maximum supply pressure | 1.0Mpa （15kgf/cm2) | 1.0Mpa （15kgf/cm2) | 1.0Mpa （15kgf/cm2) | |||
Temperatu | -50℃~70℃ | -50℃~70℃ | -50℃~70℃ | |||
Filter precision | 5μm | 5μm | 5μm | |||
Material | Aluminum/316 | Aluminum/316 | Aluminum/316 | |||
Flow capacity | 800L/min | 2000L/min 2500L/min | 7900L/min 8100L/min | |||
Output pressure ranges | 0-35PSI、0-60PSI、0-125PSI | 0.05Mpa~0.8Mpa(0.5~8kgf/cm2) | 0.05Mpa~0.8Mpa(0.5~8kgf/cm2) | |||
Valve type | With overflow | With overflow | With overflow | |||
Product number：NB | ||||||||
Conduit Entry | Regulating Range | Material | Ambient Temp | Drainage Way | ||||
G1/4 | 0-125PSI | Aluminium alloy | -25℃~60℃ | Automatic drain | ||||
NPT1/4 | 316L | -20℃~120℃ | Gas drainage | |||||
Ceram | -50℃~70℃ | Manual drainage | ||||||
Arguments | ||
Model | NB1 / 2 /NN1 / 2 | |
Port size | G1/4 NPT1/4 | |
Ensured pressure resistance | 1.5Mpa （15kgf/cm2) | |
Maximum supply pressure | 1.0Mpa （15kgf/cm2) | |
Temperatu | -50℃~70℃/-25℃~60℃/-20℃~120℃ | |
Filter precision | 5μm | |
Material | Aluminum/316 | |
Flow capacity | 600L/min | |
Output pressure ranges | 0-35PSI、0-60PSI、0-125PSI | |
Valve type | With overflow | |
