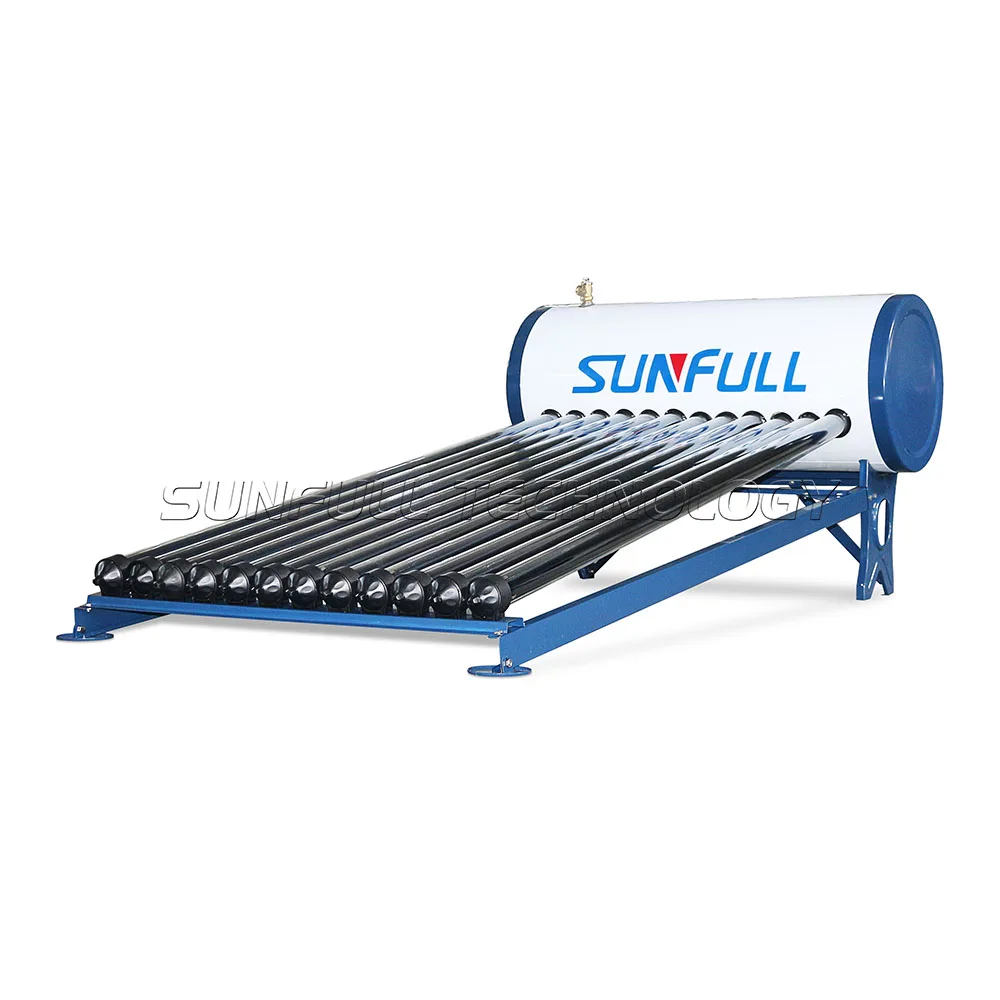

Pre Heating Pressurized Stainless Steel Solar Water Heaters System Made In China
- Category: >>>
- Supplier: Haining Sunfull Technology Co. Ltd.
Share on (1600564330038):
Product Overview
Description
Product Details

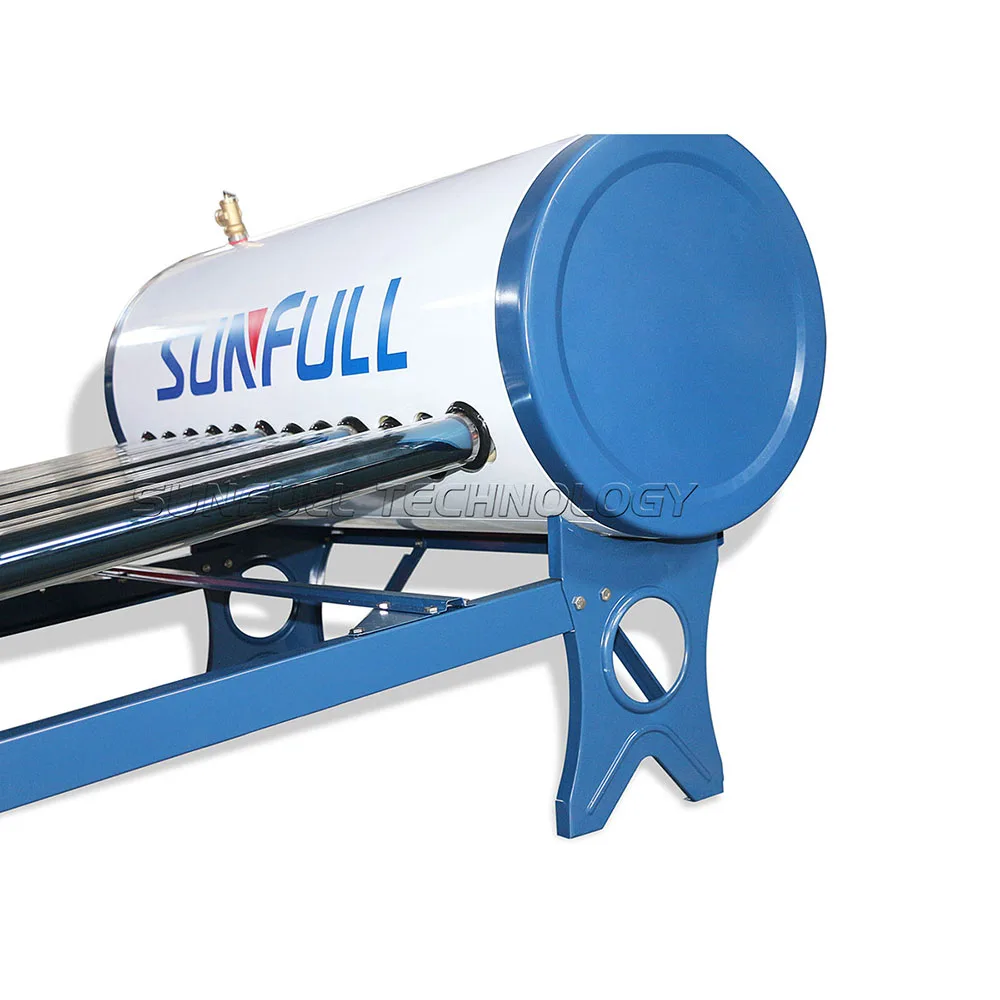

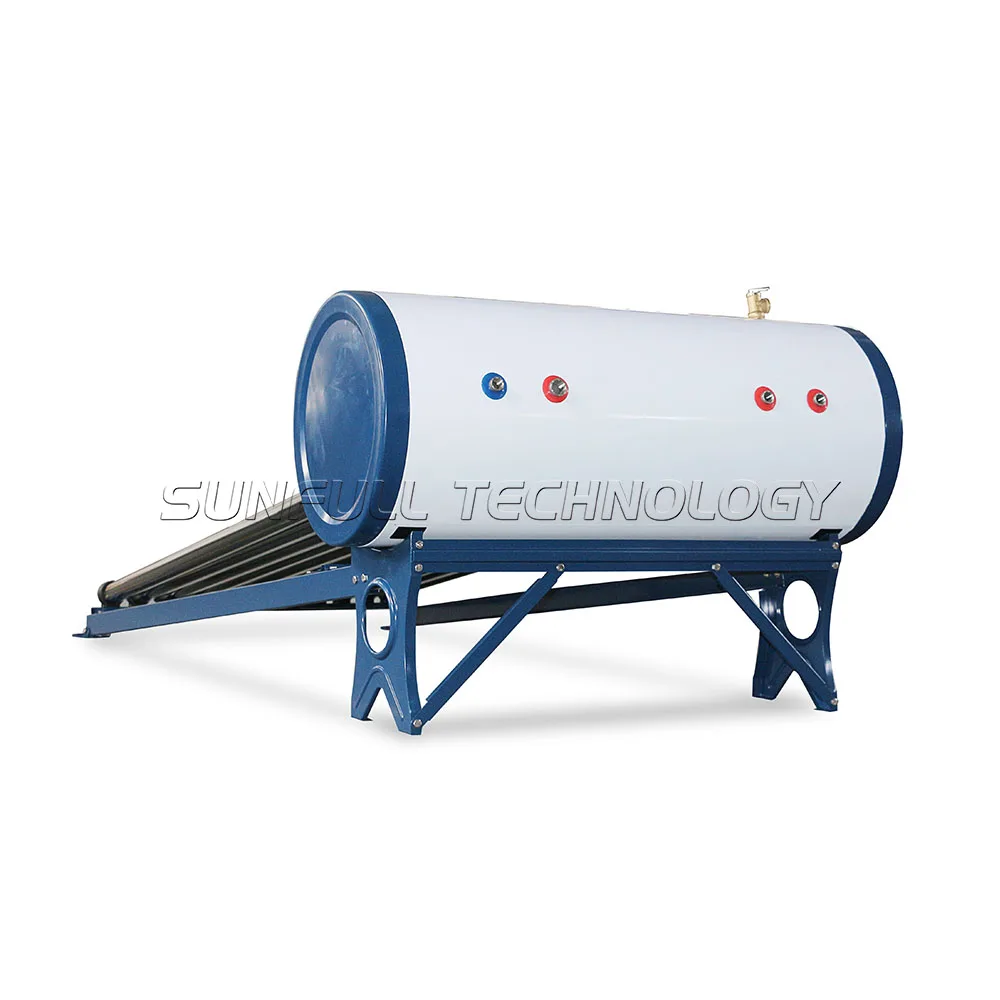

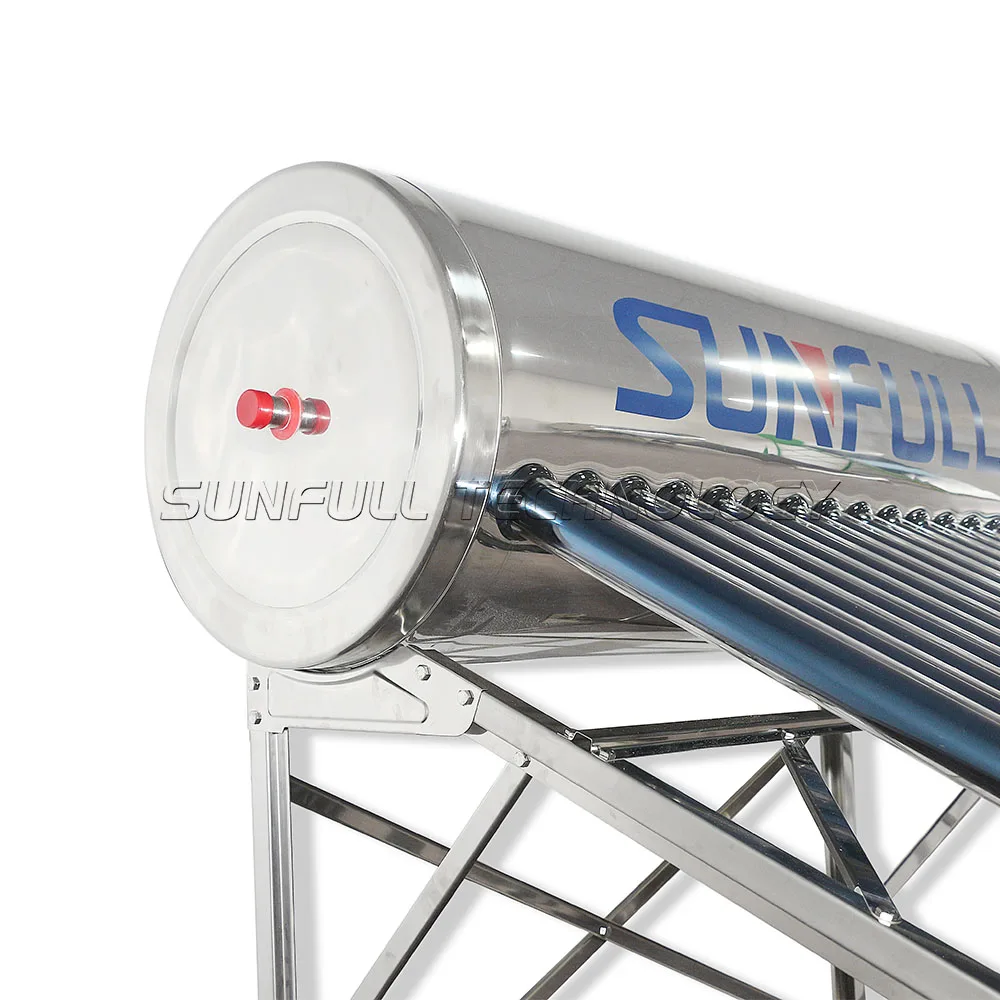

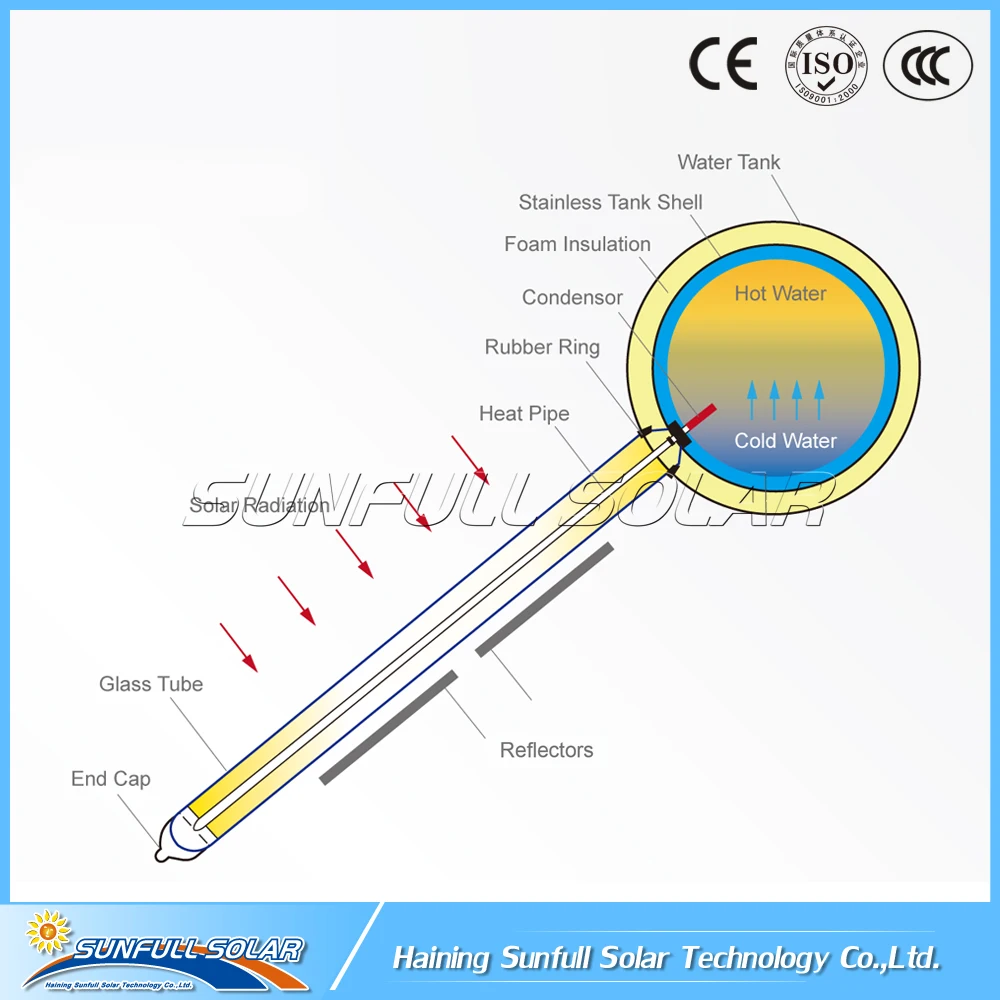

Pressurized heat pipe vaccum tube stainless steel solar water heater

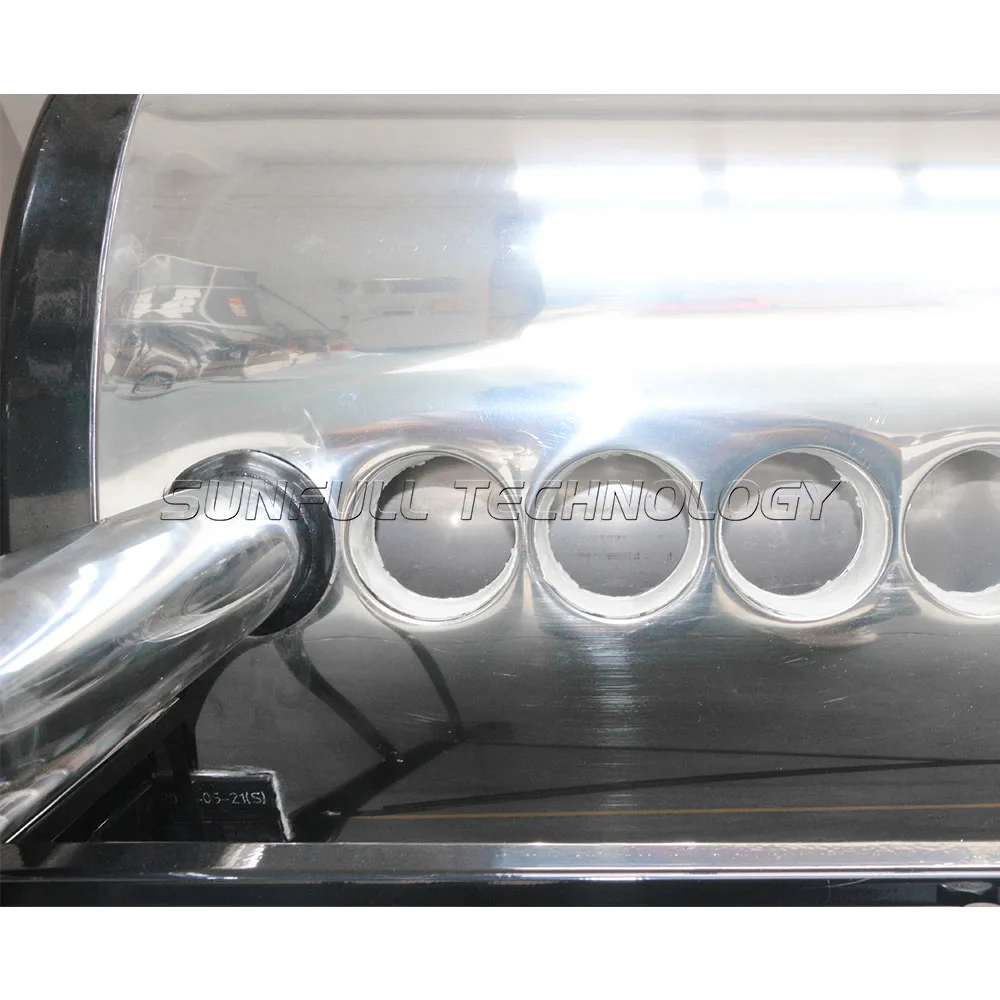

Inner tank material: Stainless steel SUS304-2B, 1.2mm thickness (SUS316 is available)
Outer tank material: Stainless steel 201( SUS304-2B, Galvanized steel is available)
Tank insulation: High density polyurethane foaming, 50,55,60mm thickness
Inner tank diameter:380mm, Outer tank diameter:480mm.

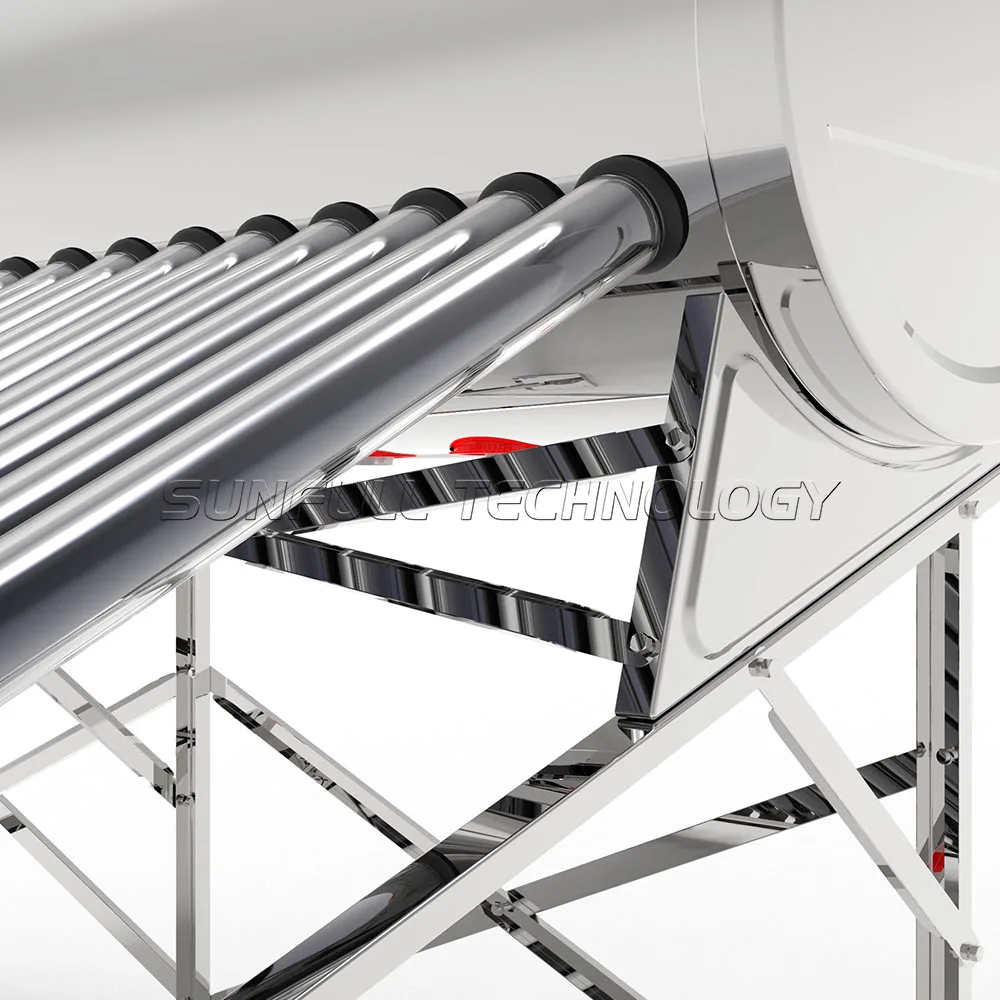

Bracket: Stainless steel 201, have several types for choose( Aluminum alloy, galvanized steel is available)
Bracket angle: 15°(20°,25°,27°,30°,35°,38°,45° all available.)

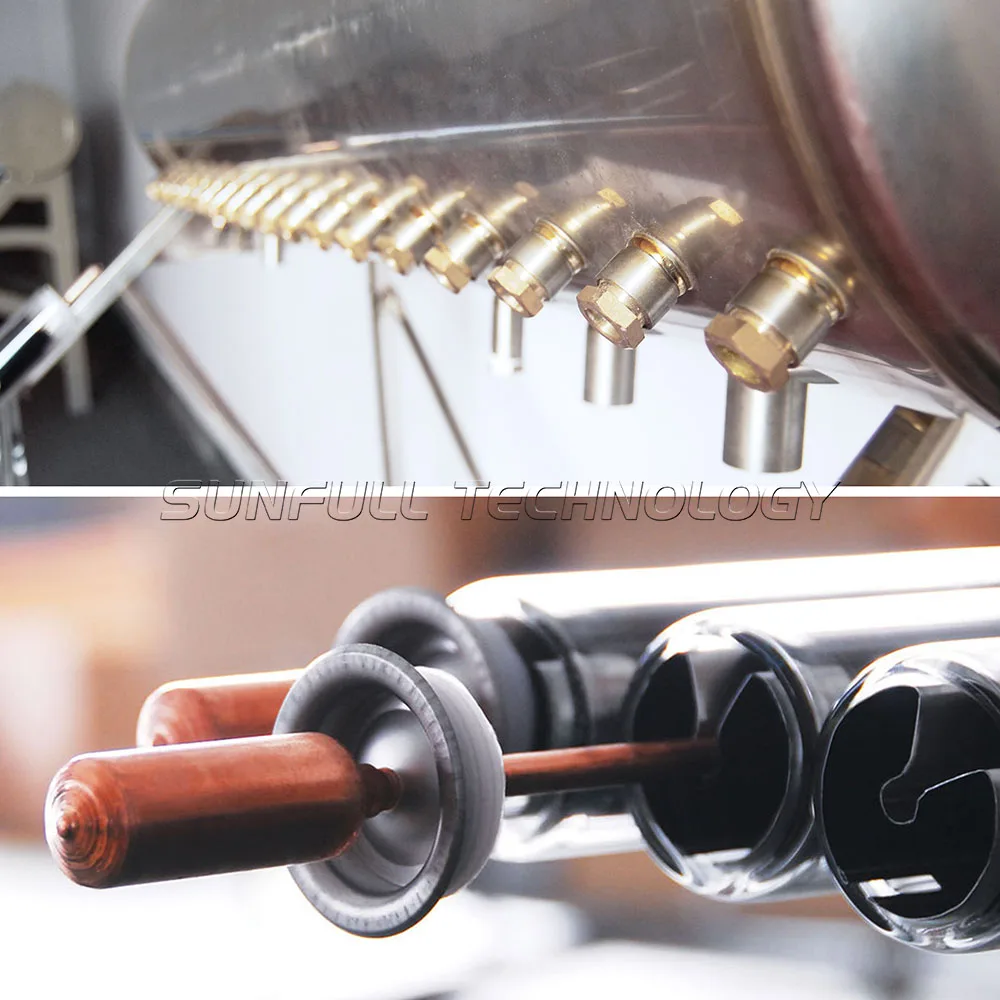

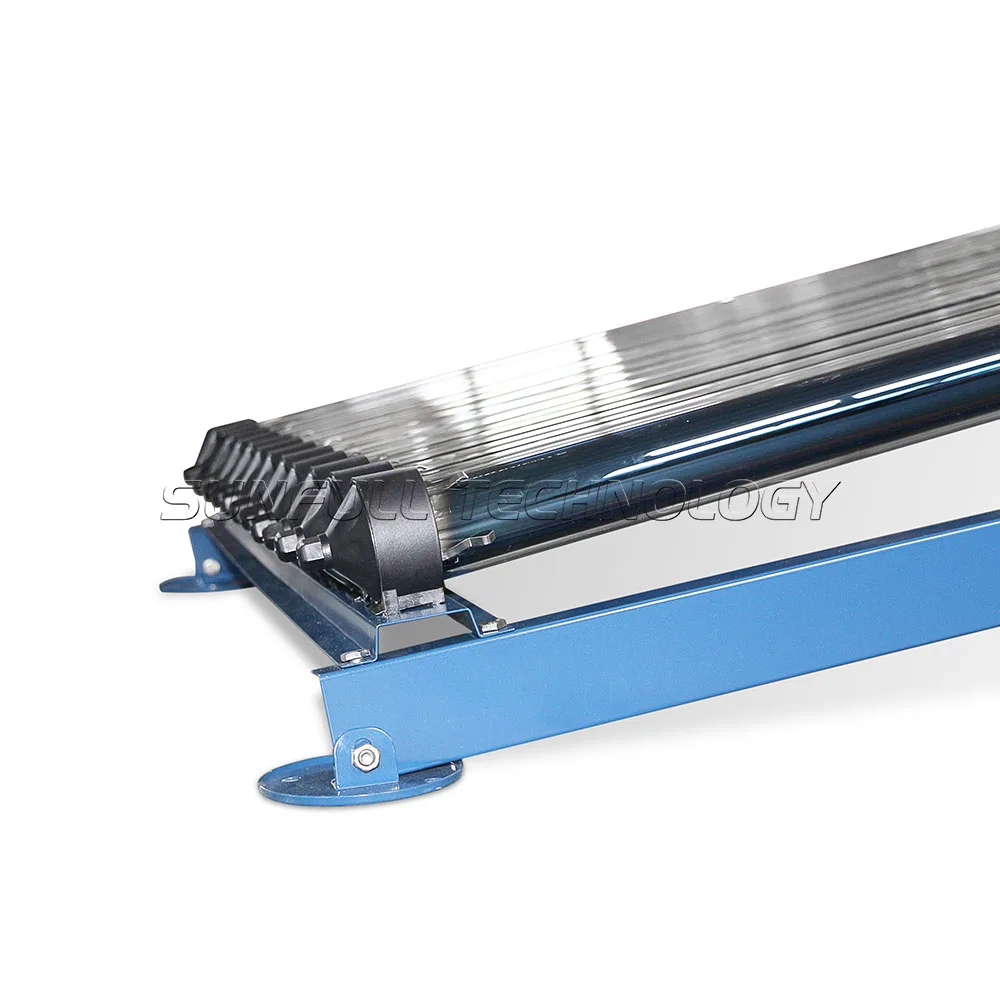

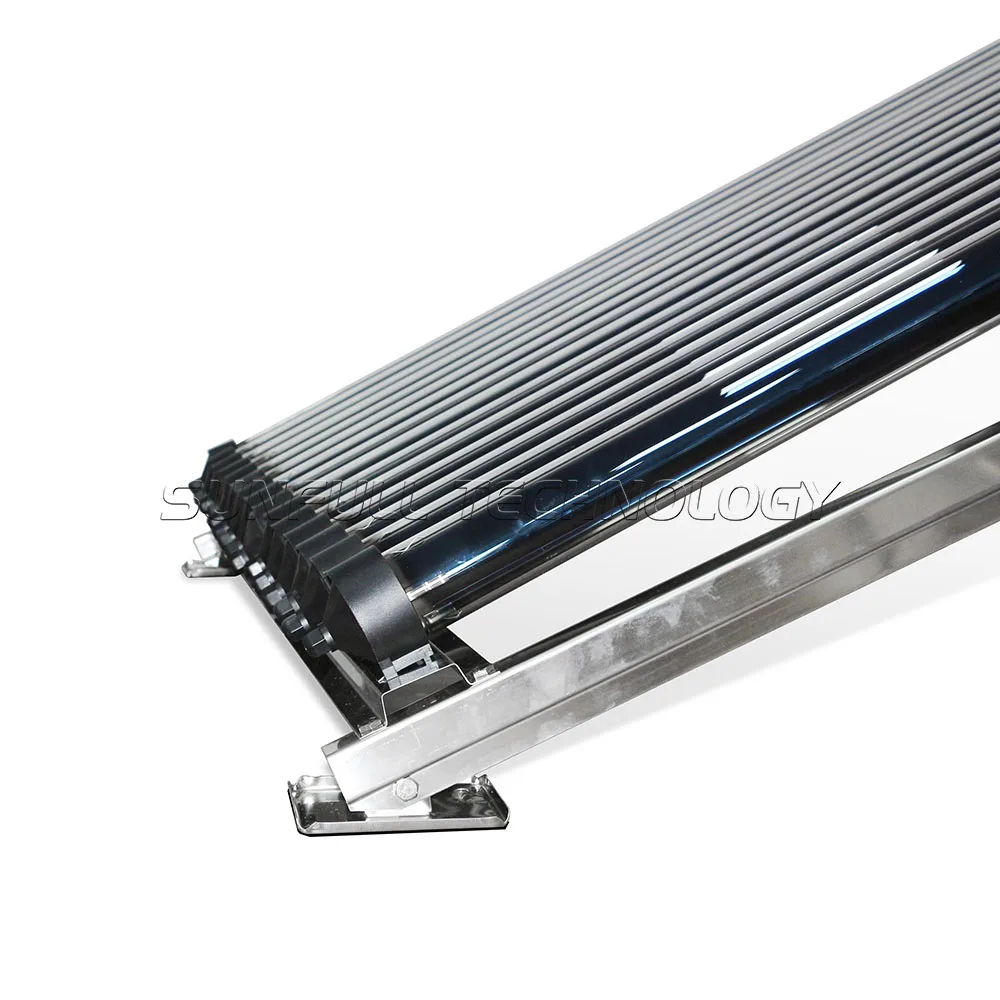

Vacuum tube: 58*1800mm three target heat pipe vacum tubes

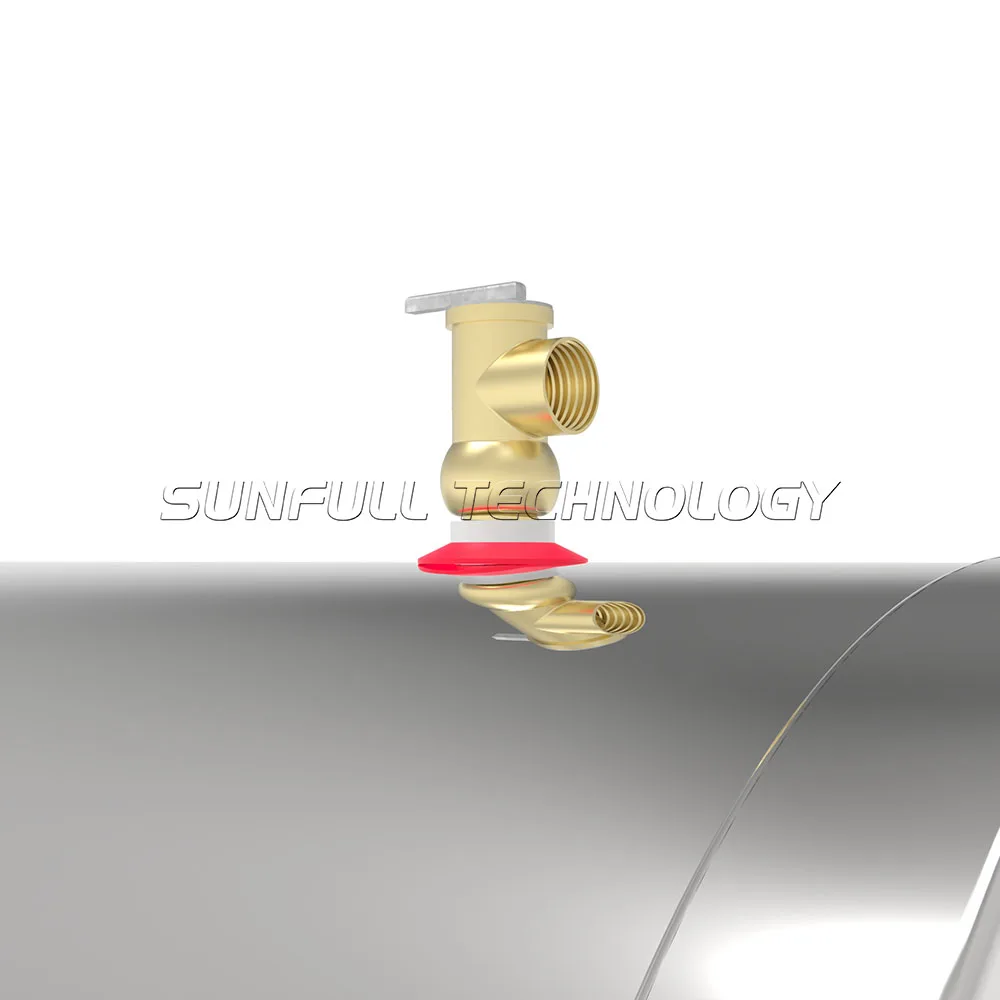

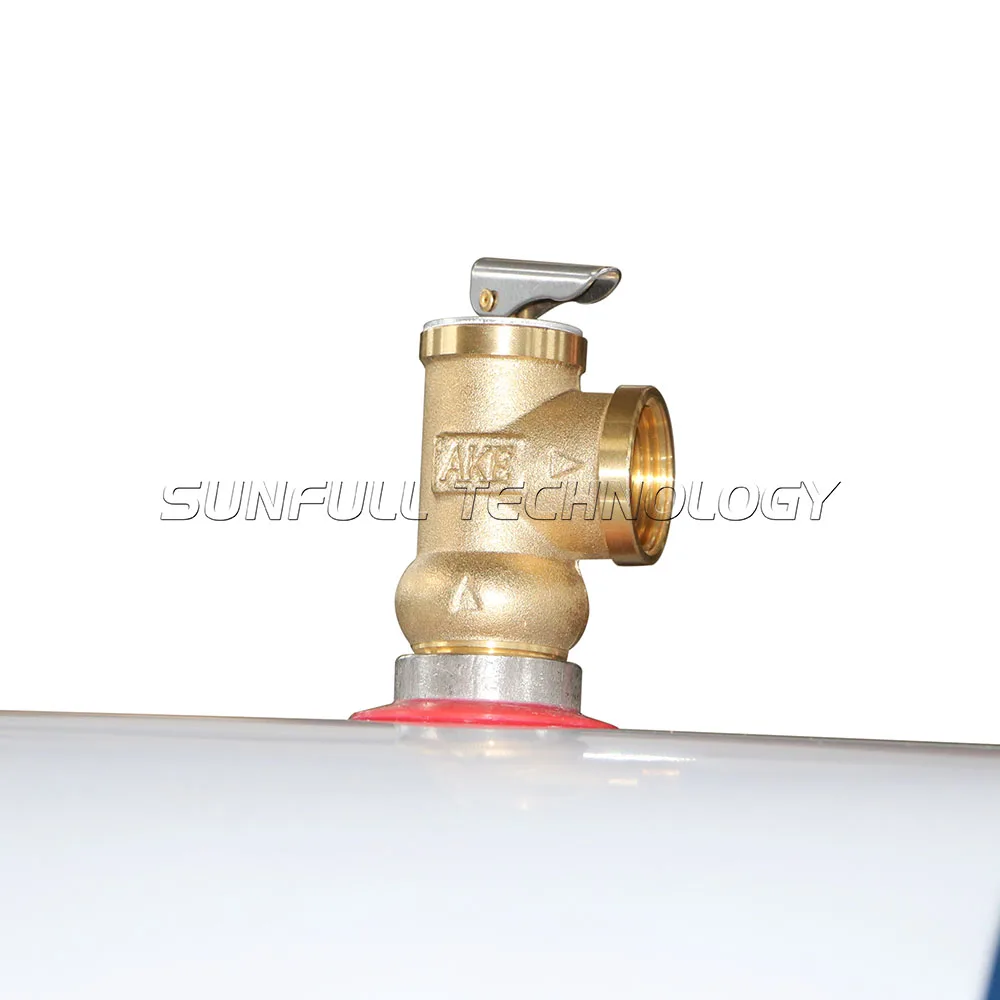

Include safty valve, check valve and Magnisium bar
Daily efficiency: ≥55% (≥42% in winter)
Working pressure: 6Bar; Anti freeze: -40 °C.
We can design and produce according customers request(Have our own designer and research & development center)
MOQ: a 20'GP container
Delivery period: 7-15 days
Outer tank material: Stainless steel 201( SUS304-2B, Galvanized steel is available)
Tank insulation: High density polyurethane foaming, 50,55,60mm thickness
Inner tank diameter:380mm, Outer tank diameter:480mm.
Bracket: Stainless steel 201, have several types for choose( Aluminum alloy, galvanized steel is available)
Bracket angle: 15°(20°,25°,27°,30°,35°,38°,45° all available.)
Vacuum tube: 58*1800mm three target heat pipe vacum tubes
Include safty valve, check valve and Magnisium bar
Daily efficiency: ≥55% (≥42% in winter)
Working pressure: 6Bar; Anti freeze: -40 °C.
We can design and produce according customers request(Have our own designer and research & development center)
MOQ: a 20'GP container
Delivery period: 7-15 days
WATER STORAGE TANKS | ||
Material of out inner tank | Food grade stainless steel 304-2B ,0.5mm thickness | |
Material of out tank | SUS201 , 0.31mm thickness | |
Tank insulating layer | PUF Insulation 50/55/60 mm thickness with high density. | |
Welding: | Argon arc welding | |
Water tank Diameter | 360/460mm ,460/480mm for option | |
EVACUATED VACUUM TUBES | ||
Tube structure | All-glass double deck co-axial structure | |
Glass material | High borosilicate 3.3 glass | |
Outer tube diameter and glass thickness | Ø58±0.7mm; Glass thickness 1.6±0.15mm | |
Inner tube diameter and glass thickness | Ø47±0.7mm; Glass thickness 1.6±0.15mm | |
Tube size | 58*1800mm | |
Resistant Hail | ≤25mm | |
Useful life | 15 years | |
BRACKET | ||
Bracket: | Stainless Steel 201. structure | |
Bracket angle: | 22, 38, 45 optional, pitched roof, flat roof optional. | |
Fastening pieces: | Stainless Steel Nut Bolt. | |
Features of Solar Water Heater：
(1). Cheap and reliable solution, Simple structures, Easy installation.
(2). High efficiency of heating,water heated by sun light directly.
(3). Operated without any power supplying.
(4). Electric heater can be used as back-up in rainy days.
(5). Hot water can be used directly, or can be used as a pre-heated.
(6). Water flow in the vacuum tubes and is operated when confined.
(7). Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
(8). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
(2). High efficiency of heating,water heated by sun light directly.
(3). Operated without any power supplying.
(4). Electric heater can be used as back-up in rainy days.
(5). Hot water can be used directly, or can be used as a pre-heated.
(6). Water flow in the vacuum tubes and is operated when confined.
(7). Tank is equipped with electric water heater setting, automatic temperature controller(optional ).
(8). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team,
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality+Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team,
you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.
