LANBOO 19mm 3A 3v 5v 12v Metal Alumina Black Self Locking or Momentary 1NO1NC IP67 Waterproof Push Button Switch
- Category: >>>
- Supplier: Lanboo Intelligent Technology Co. Ltd.
Share on (1600564334547):
Product Overview
Description
Product Description

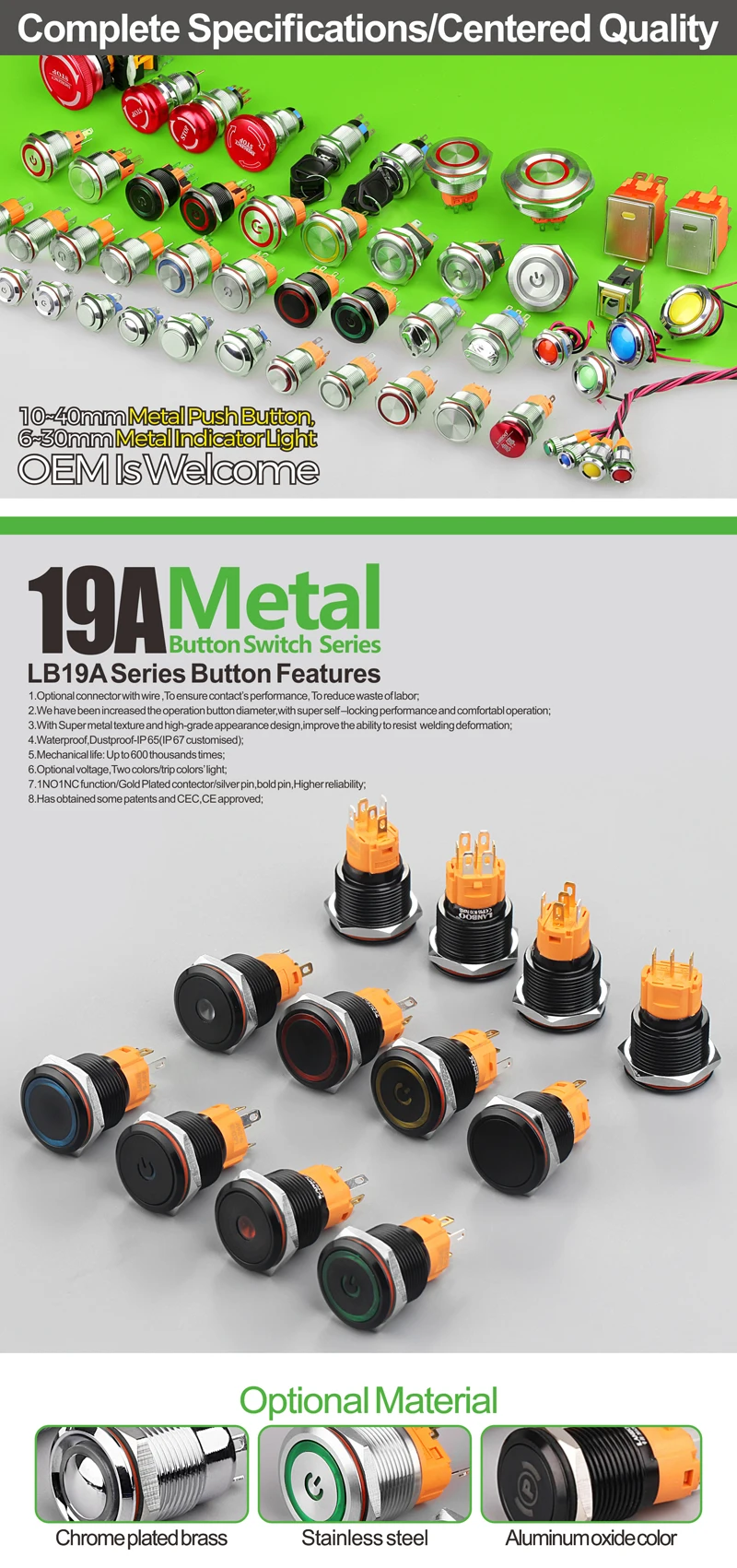

1. 3A metal push button switch

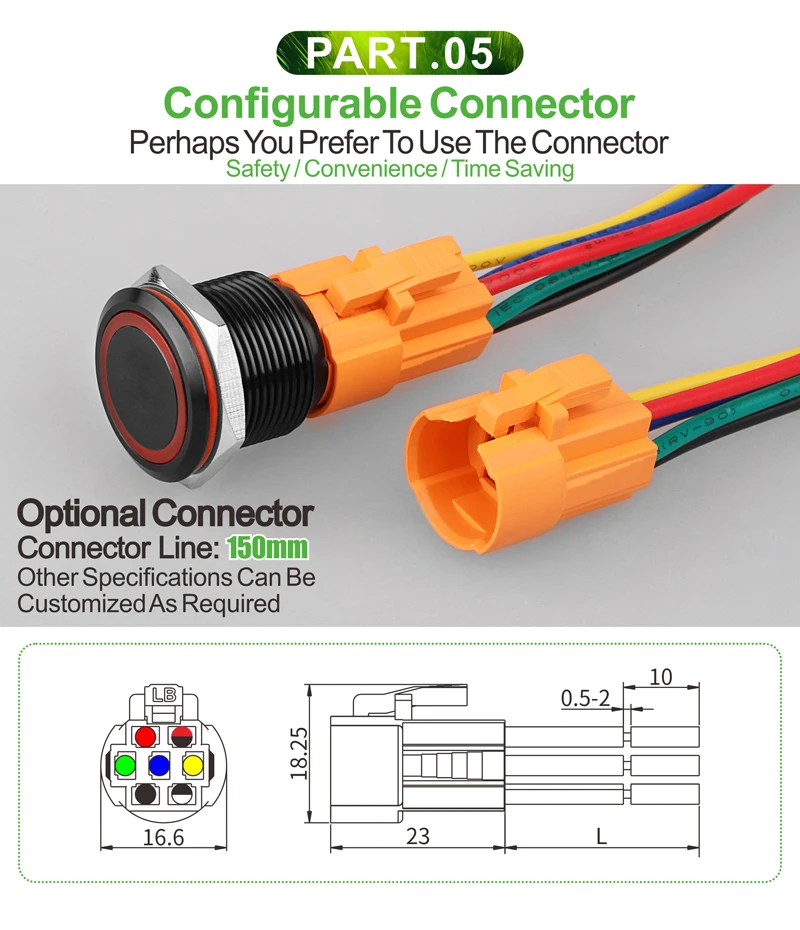

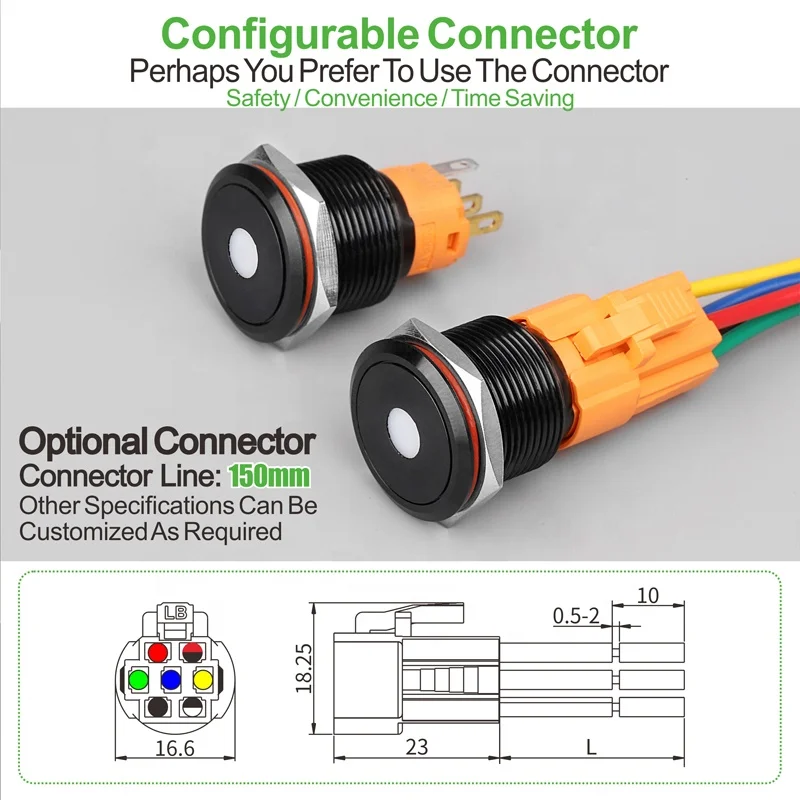

2. Optional connector,To ensure contact performance,reduce waste of labor;
3. With concave design,operation is more convenient;
4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5. Waterproof and dustproof grade up to IP67;
6. Mechanical life: up to 600,000times,it can work at -30℃~80℃;

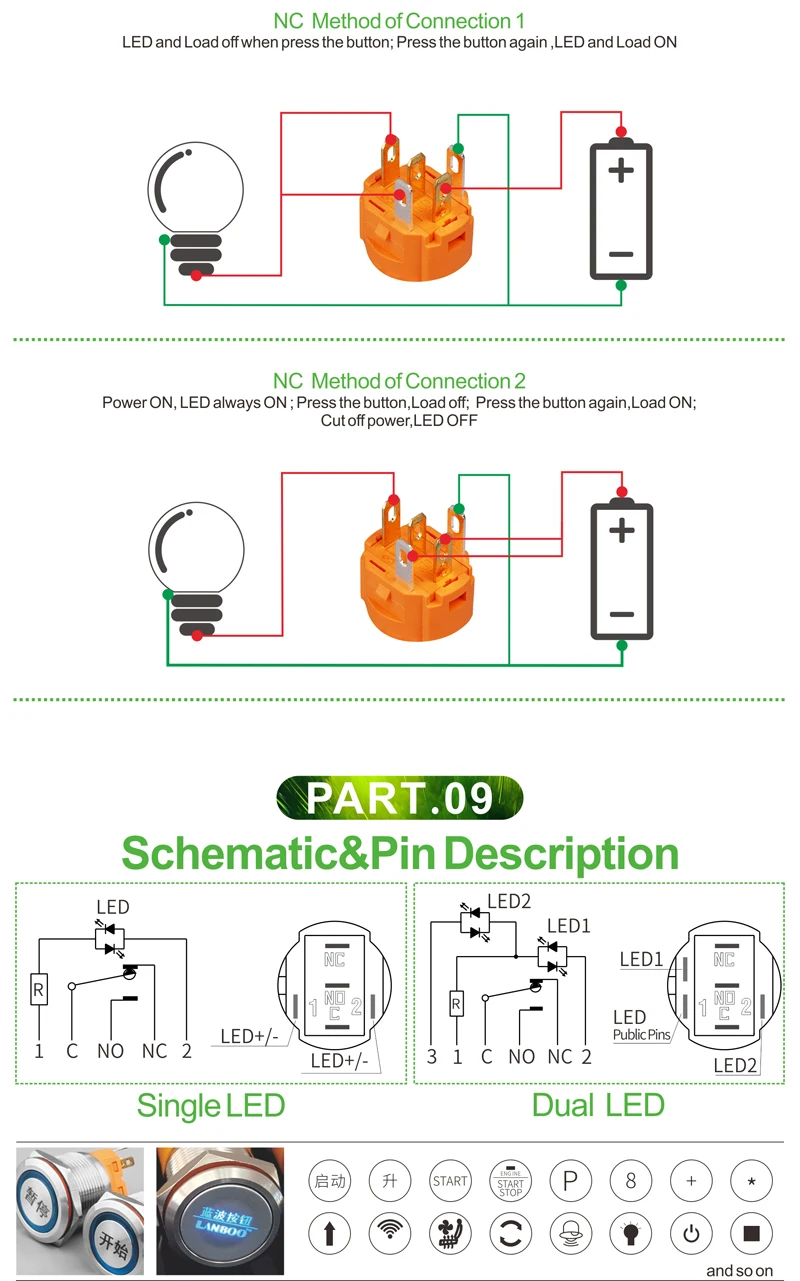

7. 1NO1NC function
8. It has applied of many patents ,CCC,CE approved;

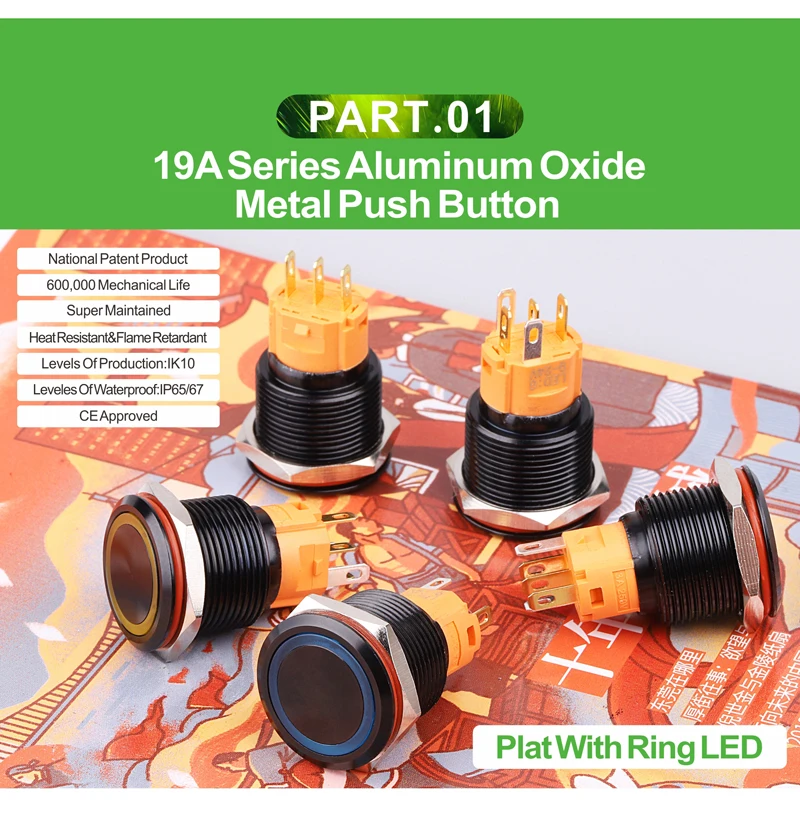

9. 19mm Aluminum Oxide CE ROHS reset illuminated self lock waterproof push button switch latching
Technology Parameter
| Model Description | |
| Model NO. | LB-19A Black button switch |

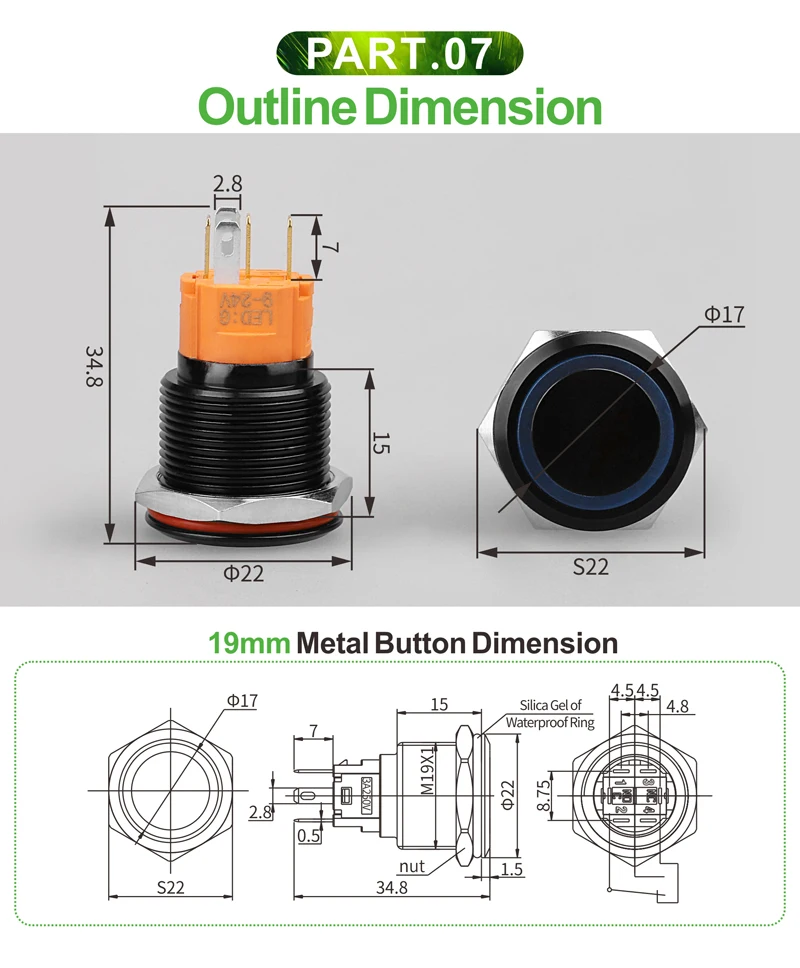

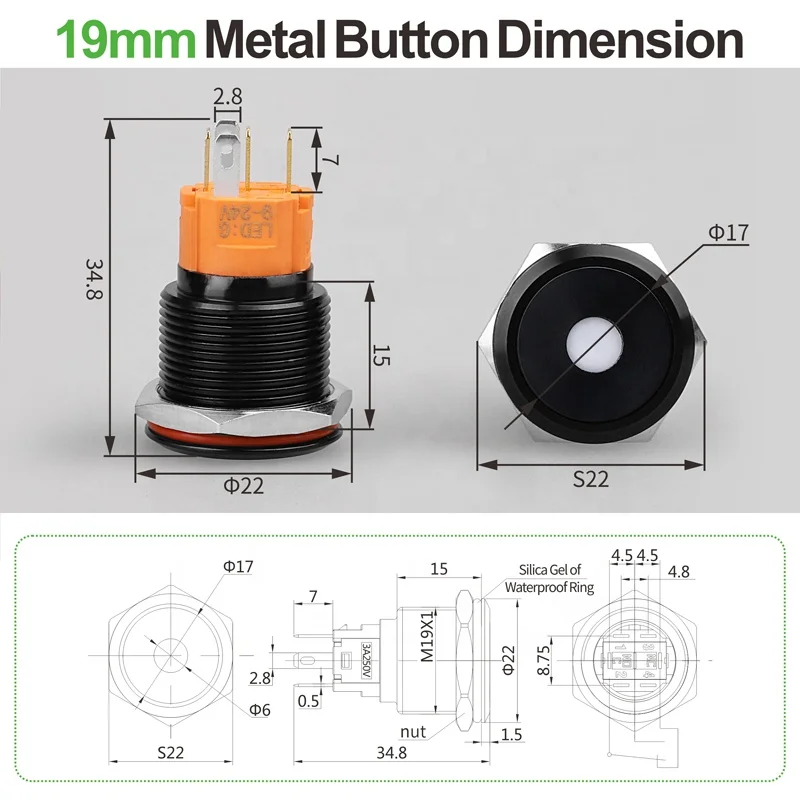

| Mounting diameter | 19MM |

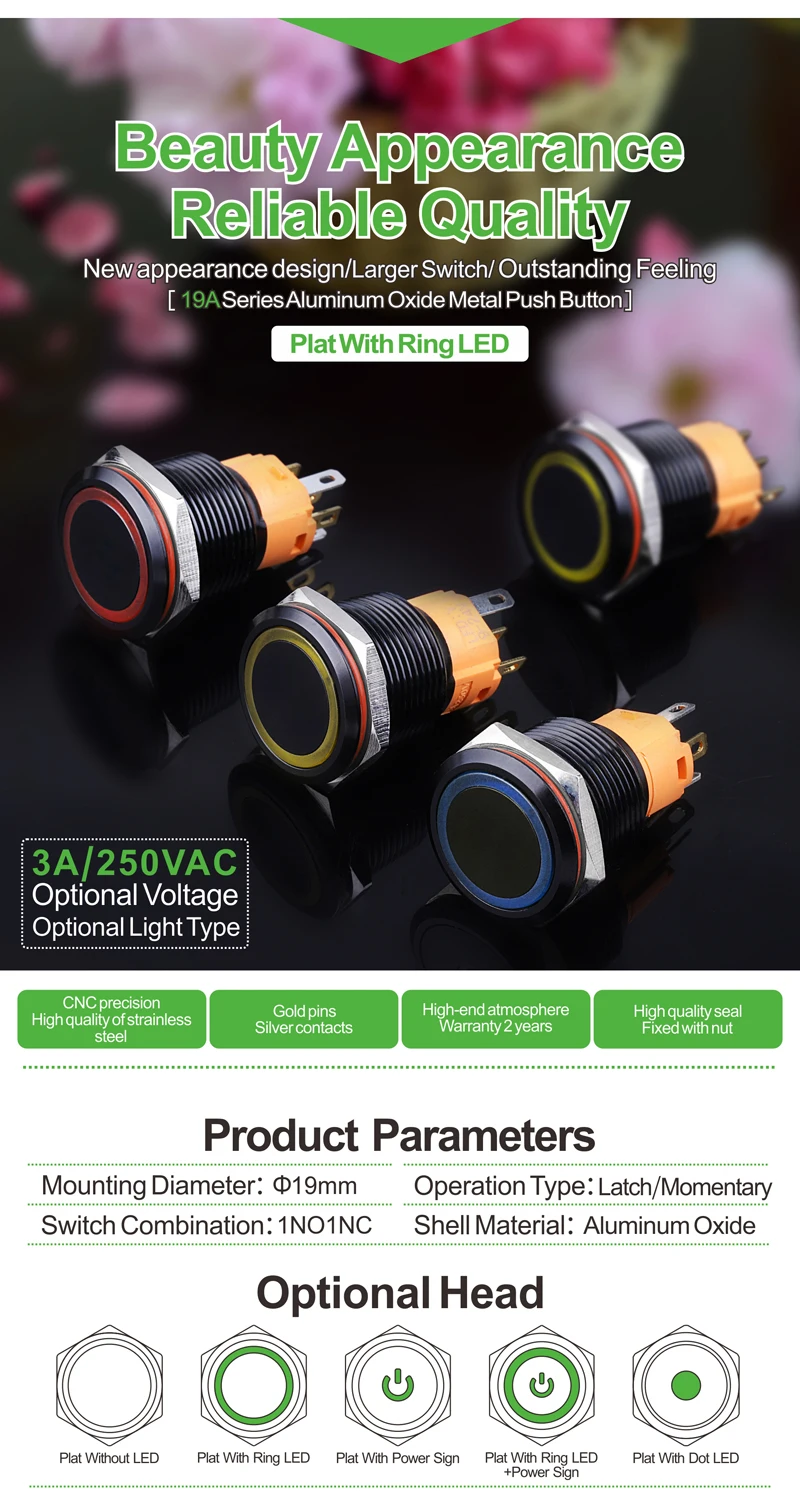

| Head shape | Flat Head / High Head |
| Switch Combination | 1NO1NC |
| Operation type | Momentary/ latching |

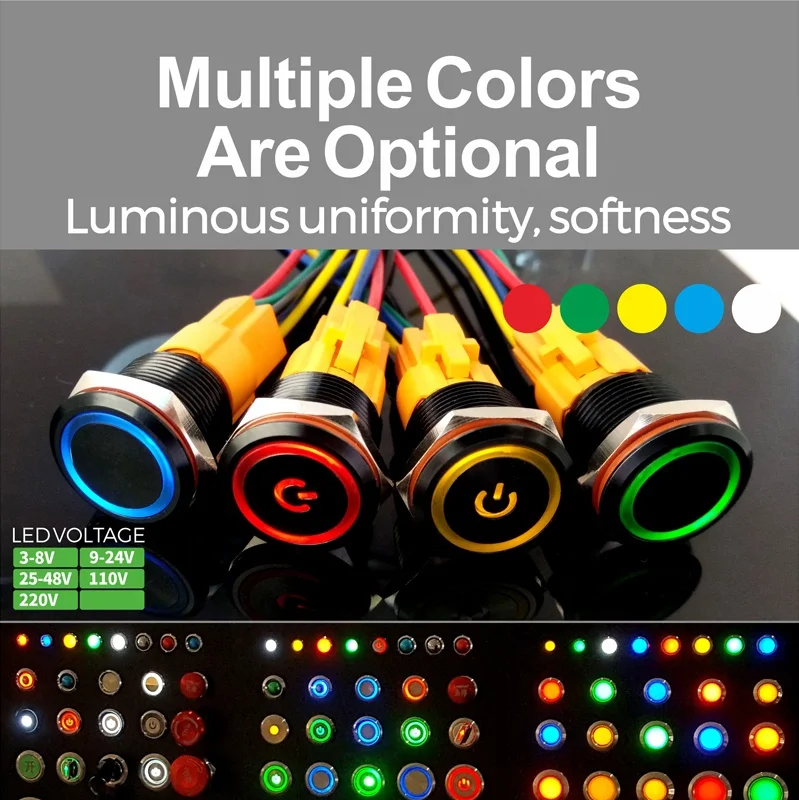

| Illuminating type | Annular,power symbol,dot |
| Illuminating color | red,green,blue,yellow,orange,white,purple,pink |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless steel,aluminum oxide,copper plating |
The Others Parameters | |||
Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.1mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 4N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤11mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |

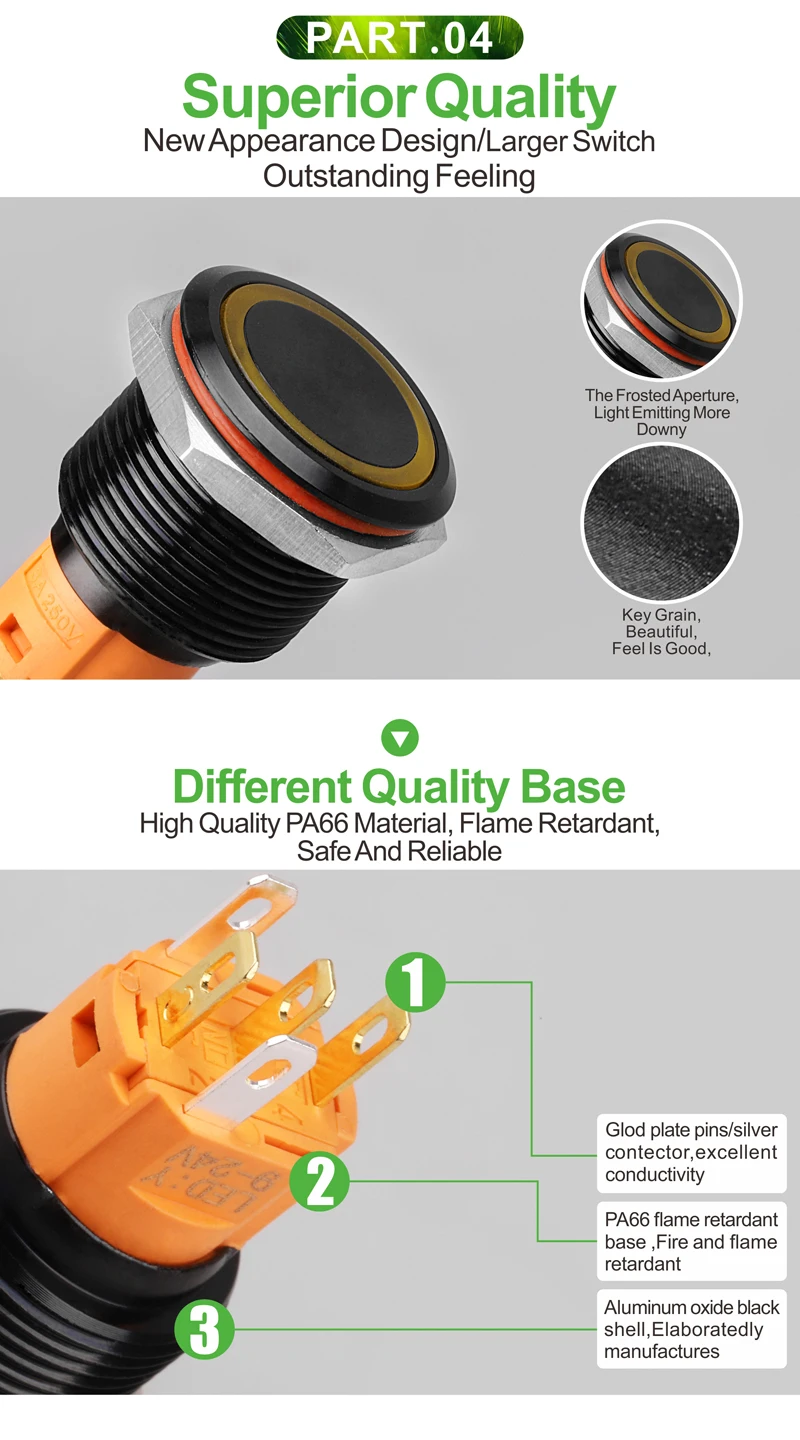

| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/Aluminum Oxide/Copper plate / According to the request |
| Protection Levels | IK10 | Diffuser | Environmental protection PC |
| Electrical Life | Rated:2A250VAC- 100,000 times | Nut | Nickel brass |
| Rated:5A250VAC-50,000 times | Base Seat | PA66 | |
| Rated:8A250VAC-20,000 times | Bottom Seat | ||
| Reated:10A250VAC- 20,000 times | Insert seat | ||

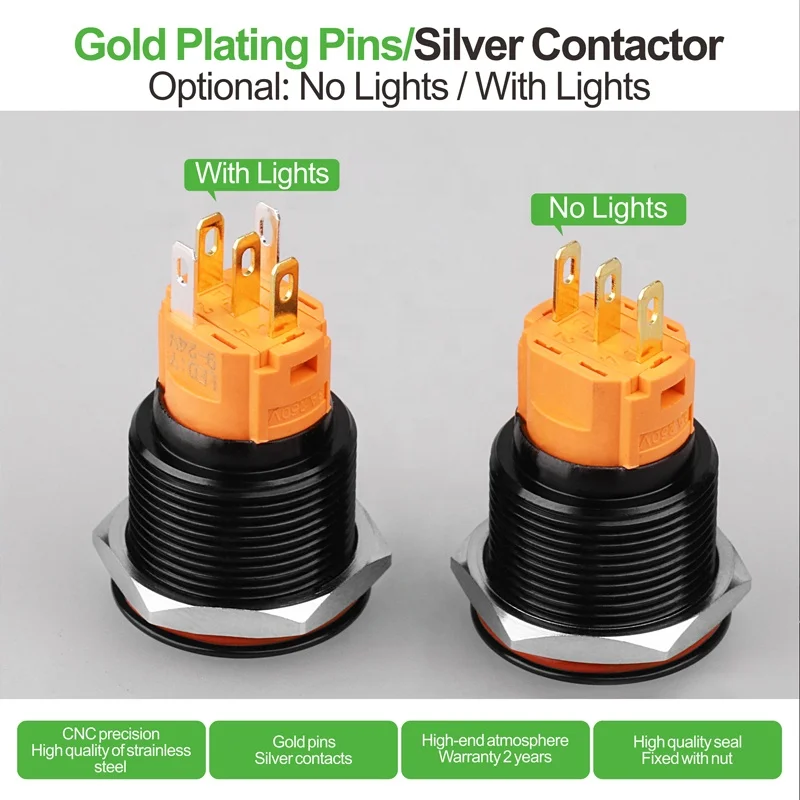

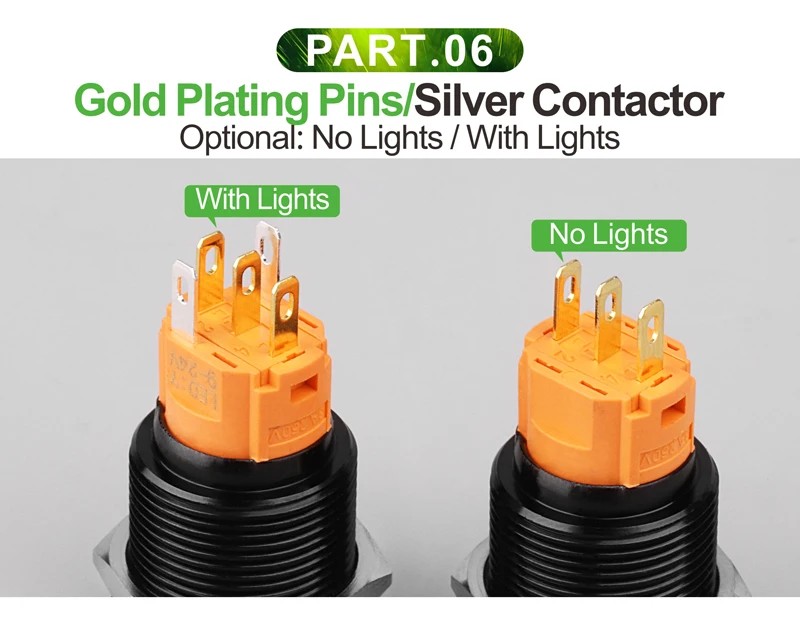

| Mechanical Life | Momentary-500,000 times | Pins | H65 / H65 Silver Plated / Gold |
| Latching-300,000 times | Contact | Environment-friendly Silver Contact | |
| Waterproof | IP67 | Spring | Imported steel wire |
Switch Rated Load | |||||
| Project | Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 5A | ||||
| Rated Voltage | DC12V | DC24V | DC36V | AC220V | |
| Rated Current | Nonreactive Load | 3 | 2 | 2 | 3 |
| Inductive Load | 1 | 0.5 | 0.5 | 0.5 | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |
