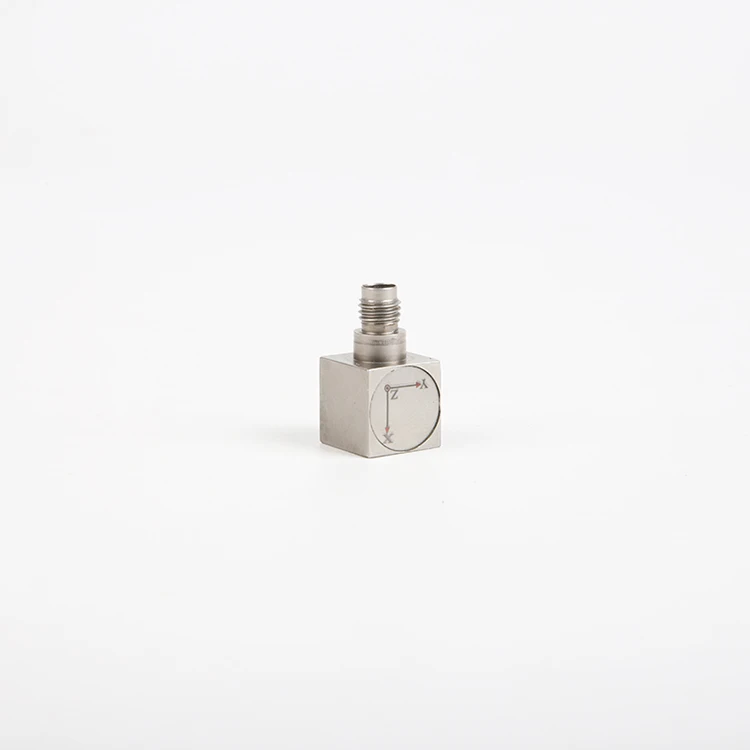

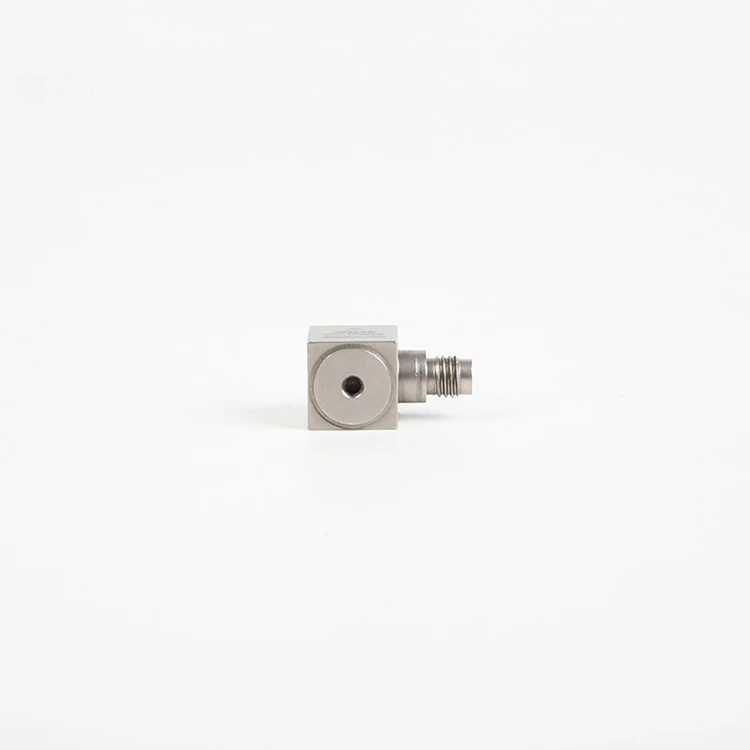

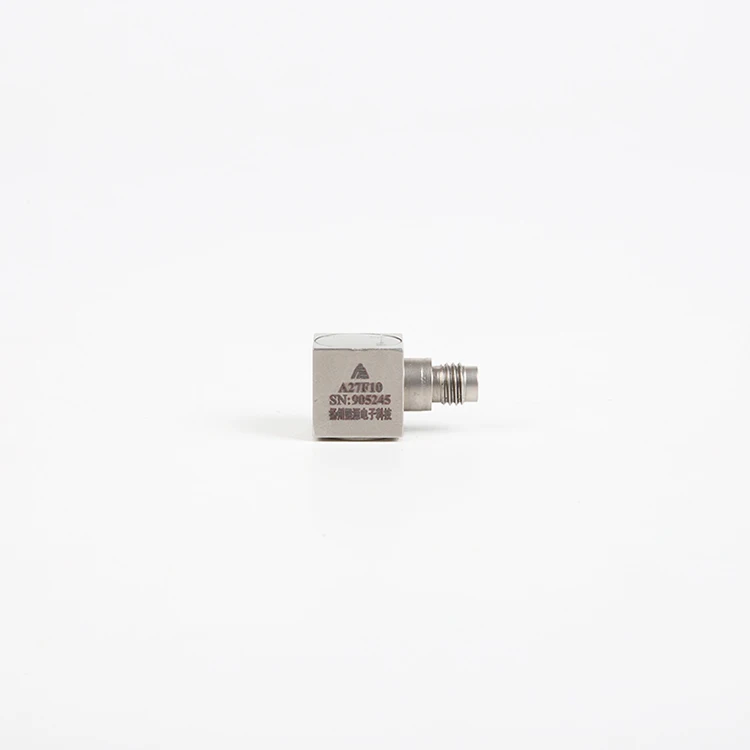

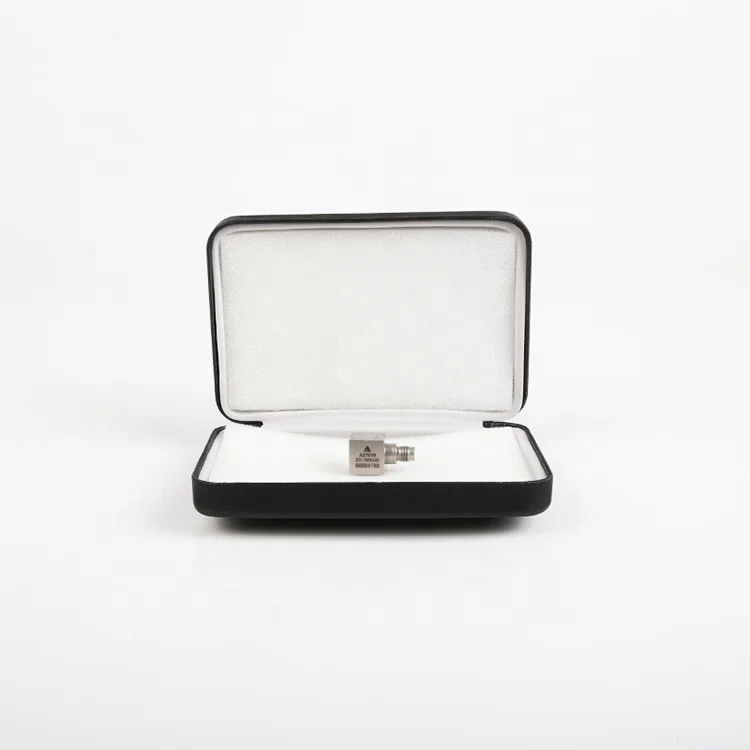

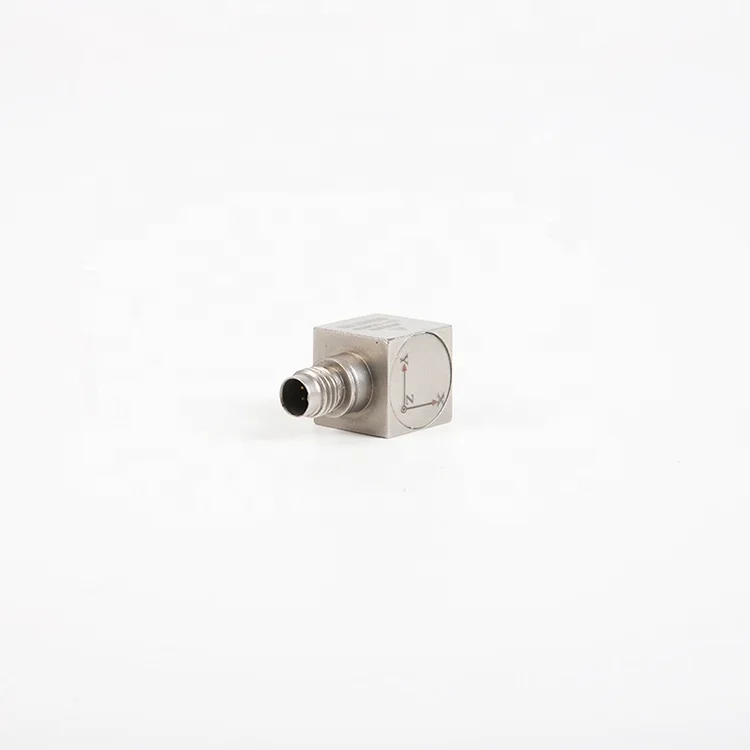

A27F10 IEPE 500g Sensitivity 10mV/g Micro Accelerometer Voltage Acceleration Vibration Sensor Price
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600564364059):
Product Overview
Description
Product Description
A27F10 IEPE 500g Sensitivity 10mV/g Micro Accelerometer Voltage Acceleration Vibration Sensor Price
Characteristic:
The series of industrial acceleration sensors are stainless steel shell, laser welding sealing, shell insulation, waterproof, dust-proof, oil-proof design, suitable for industrial sites in a variety of.
It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.
Advantages:
It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.
Advantages:
built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.
Product
Size
Temperature Curve
Frequency Response Curve
Features | Unit | A271F10 | A271F20 | A27FO5 | A27F10 | A27F20 | A27F50 | A27F100 |
Measuring range (peak) | g | ±500 | ±250 | ±1000 | ±500 | ±250 | ±100 | ±50 |
Sensitivity(25℃) | mV/g(Hz) | 10 | 20 | 5 | 10 | 20 | 50 | 100 |
Frequency response (± 1dB) | Hz | 1-5,000 | 1-5,000 | 1-5,000 | 1-5,000 | 1-5,000 | 1-5,000 | 0.5-5,000 |
Mounting resonance frequency | Hz | ≥15,000 | ≥15,000 | ≥15,000 | ≥15,000 | ≥15,000 | ≥15,000 | ≥15,000 |
Transyerse sensitivity | % | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
Excitation voltage | VDC(constant current source) | 18-28 | 18-28 | 18-28 | 18-28 | 18-28 | 18-28 | 18-28 |
Constant current source excitation ( mA ) | mA | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 | 2-10 |
Output impedance | Ω | <100 | <100 | <100 | <100 | <100 | <100 | <100 |
Ful scale output (peak) | V | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
Noise | μV | <50 | <50 | <50 | <50 | <50 | <50 | <50 |
Bias voltage | V | +9~+13 | +9~+13 | +9~+13 | +9~+13 | +9~+13 | +9~+13 | +9~+13 |
Operating temperature | ℃ | -40~+120 | -40~+120 | -40~+120 | -40~+120 | -40~+120 | -40~+120 | -40~+120 |
Shock limit (peak) | g | ±2000 | ±2000 | ±2000 | ±2000 | ±2000 | ±1000 | ±1000 |
Structure and piezo material | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | Shear/PZT-5 | |
Outine dimension | mm | 10.5 cube(See dimension diagram 1) | 10.5 cube(See dimension diagram 1) | 10.5 cube(See dimension diagram 1) | 10.5 cube(See dimension diagram 1) | 10.5 cube(See dimension diagram 1) | 10.5 cube(See dimension diagram 1) | 10.5 cube(See dimension diagram 1) |
Housing material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | |
Electrical onnector | 1/4-28 4-Pin | 1/4-28 4-Pin | 1/4-28 4-Pin | 1/4-28 4-Pin | 1/4-28 4-Pin | 1/4-28 4-Pin | 1/4-28 4-Pin | |
Mounting method | Viscid | Viscid | M3 | M3 | M3 | M5 | M5 | |
Weight | g | ~8.5 | ~8.5 | ~12 | ~12 | ~12 | ~18 | ~18 |
Mounting bolts | / | / | M3 to M5 | M3 to M5 | M3 to M5 | M5 | M5 | |
Cable | D04-5M | D04-5M | D04-5M | D04-5M | D04-5M | D04-5M | D04-5M |
