IEPE Industrial Vibration Piezoelectric Accelerometer Sensor Used For Vibration Measurement of Rotating Machinery Or Equipment
- Category: >>>
- Supplier: Chengdu Liangzhuo Technology Co. Ltd.
Share on (1600564364178):
Product Overview
Description
Product Description
Piezoelectric Accelerometer Sensor
Fetures
● Embedded precision integrated circuit, low impedance output.
● Unidirectional output, can measure the Z direction.
● Isolation and floating, industrial site monitoring, strong anti-interference performance.
Specification
Physics Properties | Structural Style | Cutting |
Shell Material | 304 Stainless Steel | |
Installation | M5 | |

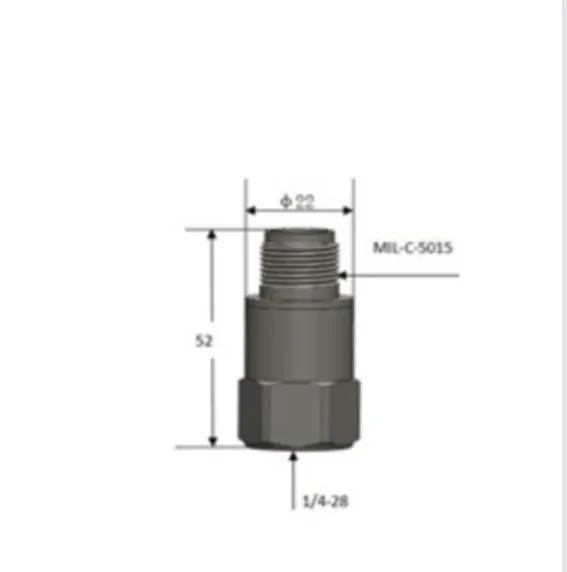

Weight / Size | 80g / Φ22x52mm | |
Power parameters | Range | ±50g |
Sensitivity | 10.33mV/ms-2 | |
Frequency Response（±1dB） | 0.5-9KHz | |
Mounting Resonant Frequency | ≥30KHz | |
Transverse Sensitivity Ratio | ≤5% | |
Output | 5015 two-core socket | |
Shock limit | 500g | |
Maximum output signal | ±5V | |
Bias voltage | +11-+13V | |
Noise | ＜50uV | |
Temperature Range | -40~+120℃ | |
Shock Limit | ±2000g | |
Operating Voltage | ±18-28V(DC) | |
Constant Current | 2-10mA | |
Output Impedance | ＜100Ω | |
Screw bolt | 1/4-28 |

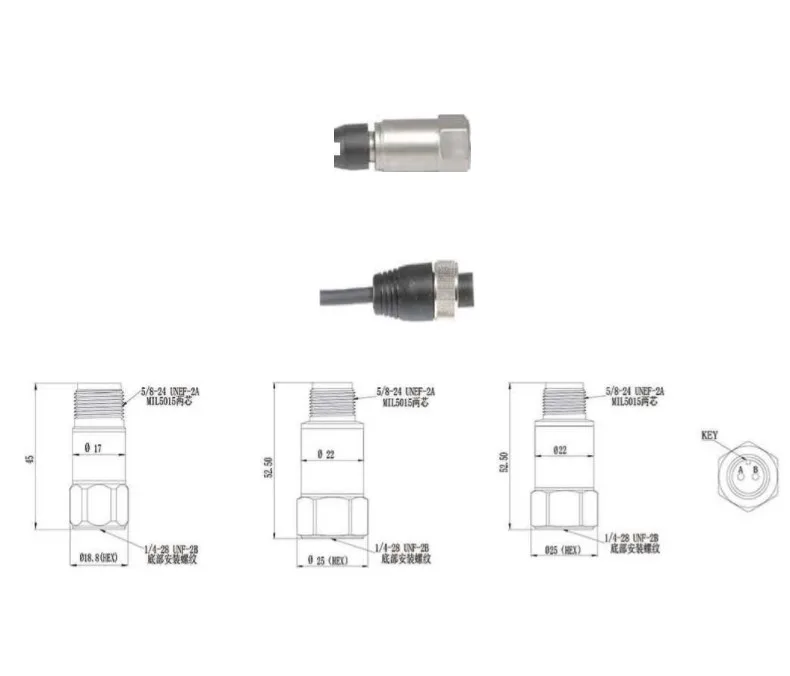

Details Images

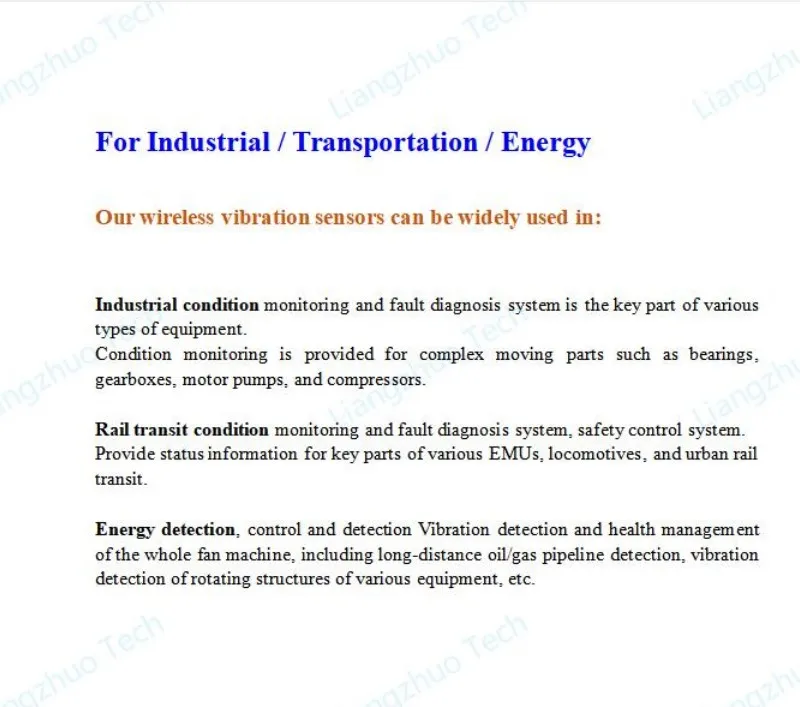

Application

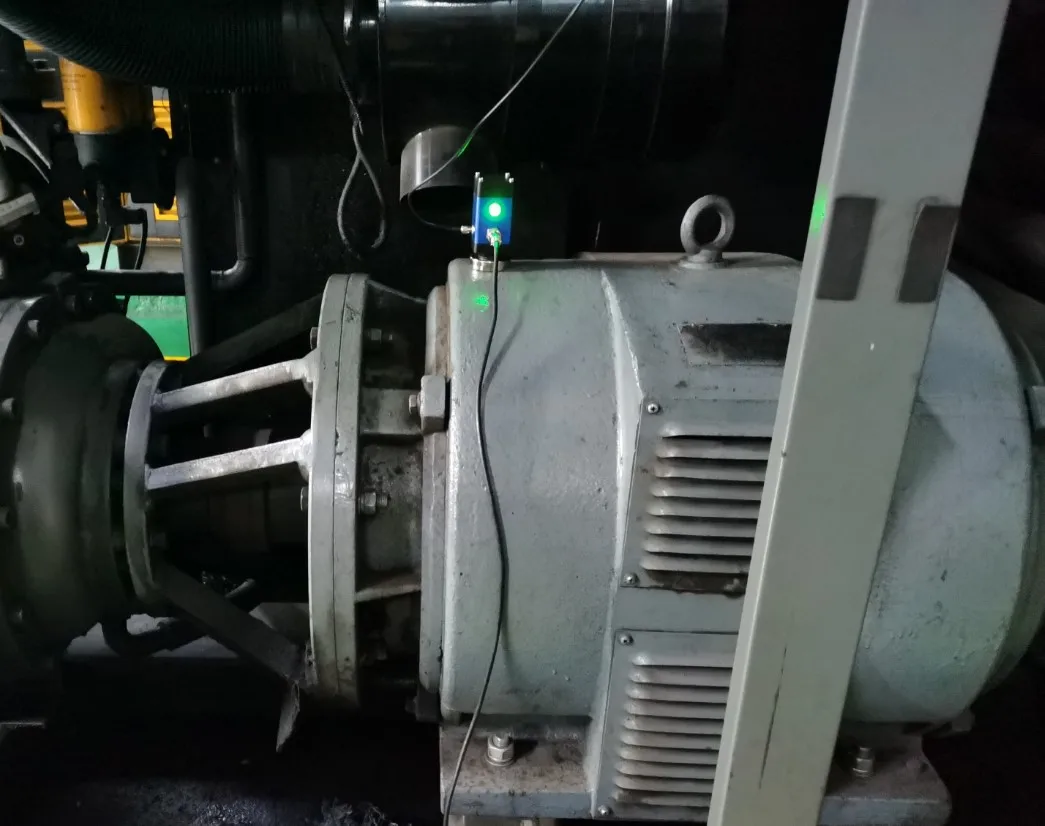

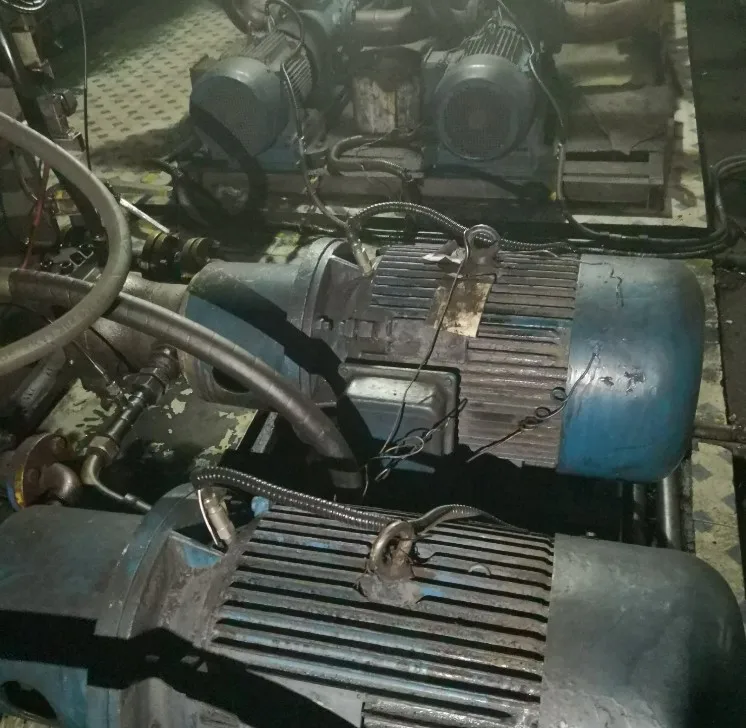

Industrial vibration acceleration sensor is an industrial vibration acceleration sensor with top output, which is used for vibration measurement of various rotating machinery or reciprocating equipment, such as the main shaft bearings of fans, fans, pumps, motors, machines, compressors, etc.

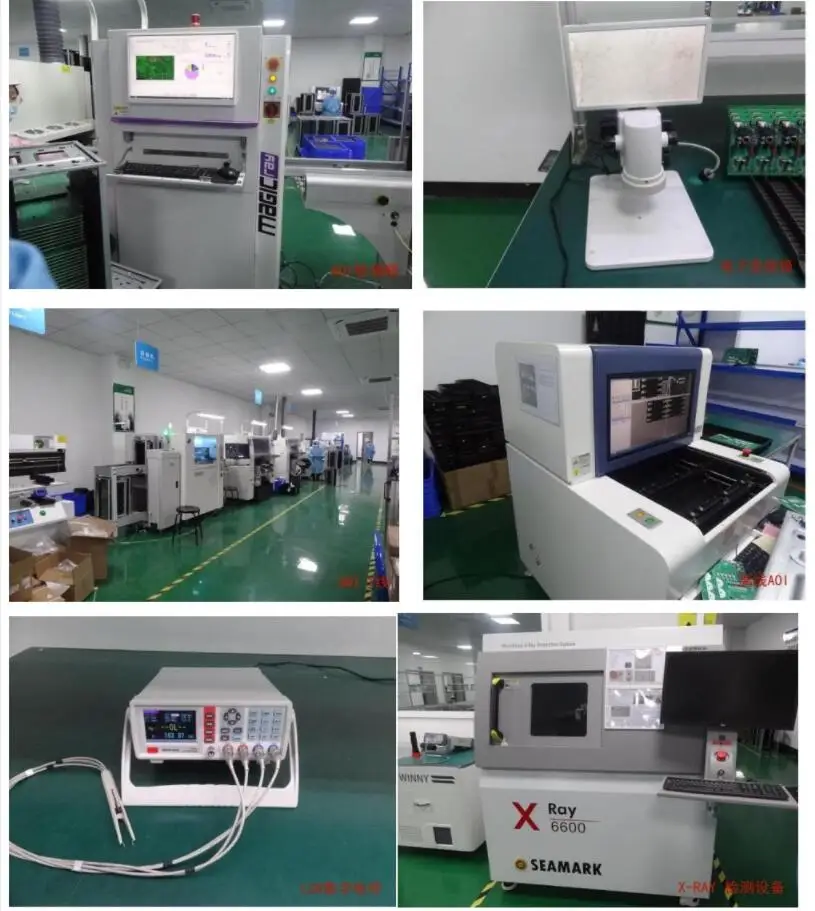

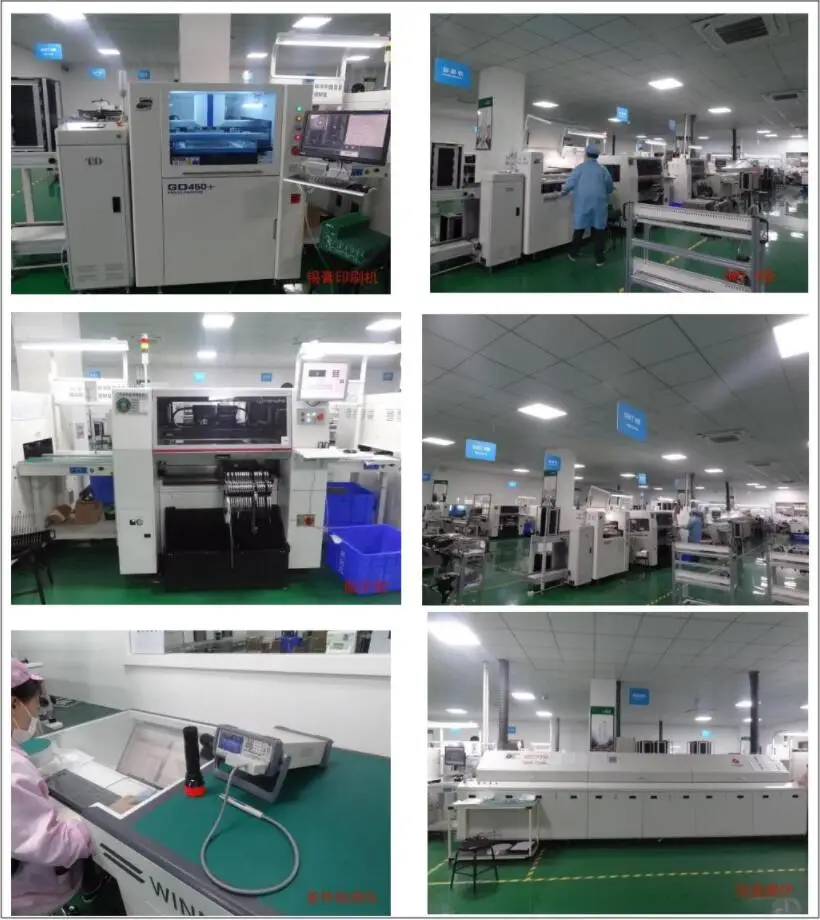

Company Profile

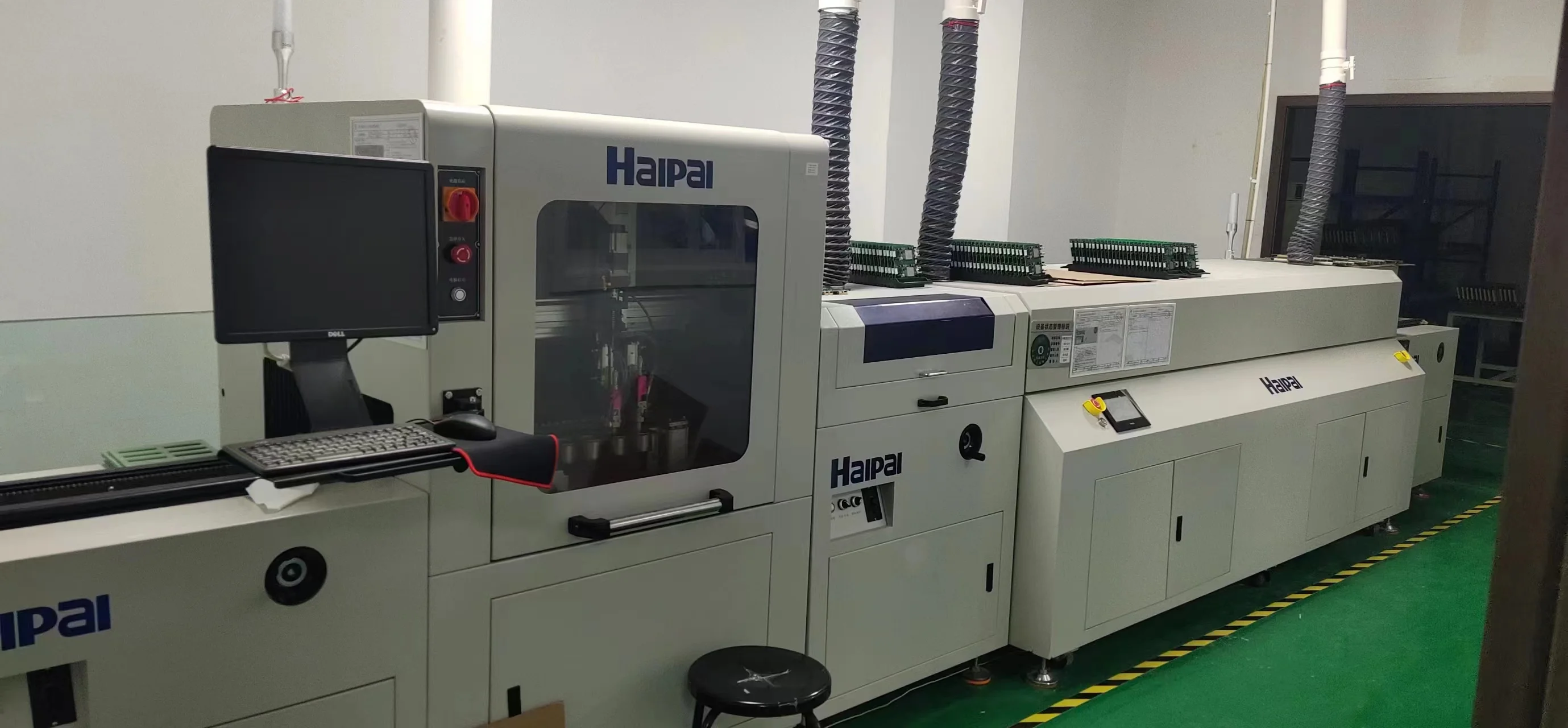

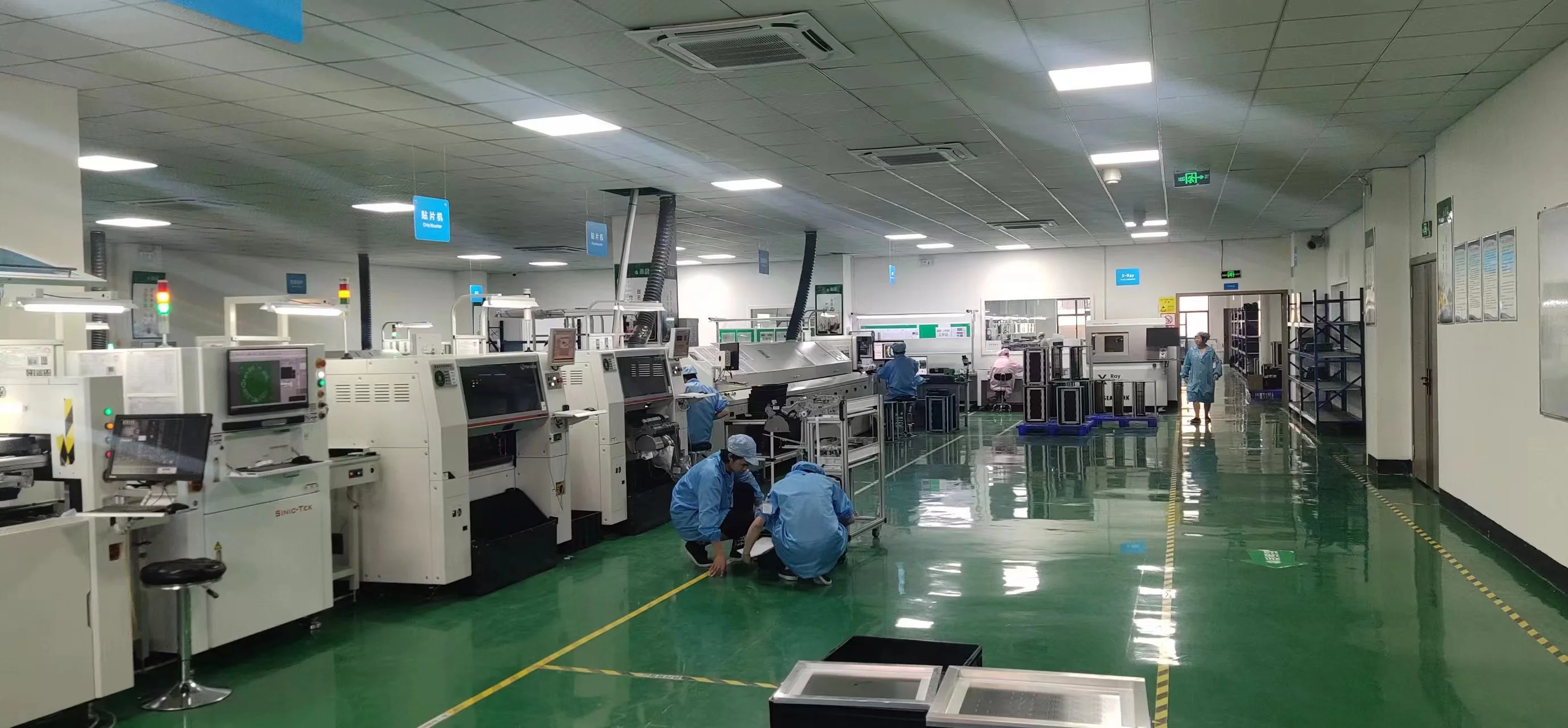

Chengdu Liangzhuo Technology Co., Ltd. is a manufacturer and exporter specializing in the development and production of sensors.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Certifications
FAQ
Q: What are the three axes of the vibration sensor?
A: Refers to the vibration data in three different directions. Some customers misunderstand that the three axes refer to
acceleration, velocity, and amplitude, and this understanding is wrong.
Q: Why do you want to measure the data in the three-axis direction of the rotating equipment?
A: It can comprehensively and accurately understand the motion state of the equipment, and realize the fault early warning of the
equipment in different axes (X, Y, Z).
Q: Why monitor the acceleration, velocity, amplitude of the equipment?
A: 1. Amplitude, the position and friction of the equipment can be known, which is convenient for people to identify the vibration
state and find the vibration source.
2. Speed, which reflects the fatigue stress on the related structure of the equipment, which is an important reason for the
failure of rotating equipment.
3. Acceleration, which measures the speed of the equipment in space, reflects the comprehensive action of various forces inside the equipment and the abnormal vibration state.
A: Refers to the vibration data in three different directions. Some customers misunderstand that the three axes refer to
acceleration, velocity, and amplitude, and this understanding is wrong.
Q: Why do you want to measure the data in the three-axis direction of the rotating equipment?
A: It can comprehensively and accurately understand the motion state of the equipment, and realize the fault early warning of the
equipment in different axes (X, Y, Z).
Q: Why monitor the acceleration, velocity, amplitude of the equipment?
A: 1. Amplitude, the position and friction of the equipment can be known, which is convenient for people to identify the vibration
state and find the vibration source.
2. Speed, which reflects the fatigue stress on the related structure of the equipment, which is an important reason for the
failure of rotating equipment.
3. Acceleration, which measures the speed of the equipment in space, reflects the comprehensive action of various forces inside the equipment and the abnormal vibration state.
