MP301 Multiparameter NH4 NO3 CL F pH ORP EC Turbidity Do Water Quality Check Meter Multimeter Monitoring Sensors Analyzer
- Category: >>>
- Supplier: Fuzhou Probest Intelligent Technology Co. Ltd.
Share on (1600564370718):
Product Overview
Description
MP301 Multiparameter NH4+ NO3+CL+F pH ORP EC Turbidity Do Water Quality Check Meter Multimeter Monitoring Sensors Analyzer
Product Description
| Power Supply | 12V | Measuring Temp. | 0~50℃ (non-freezing) |
| Power Dissipation | 3W | Storage Temp. | -15~55℃ |

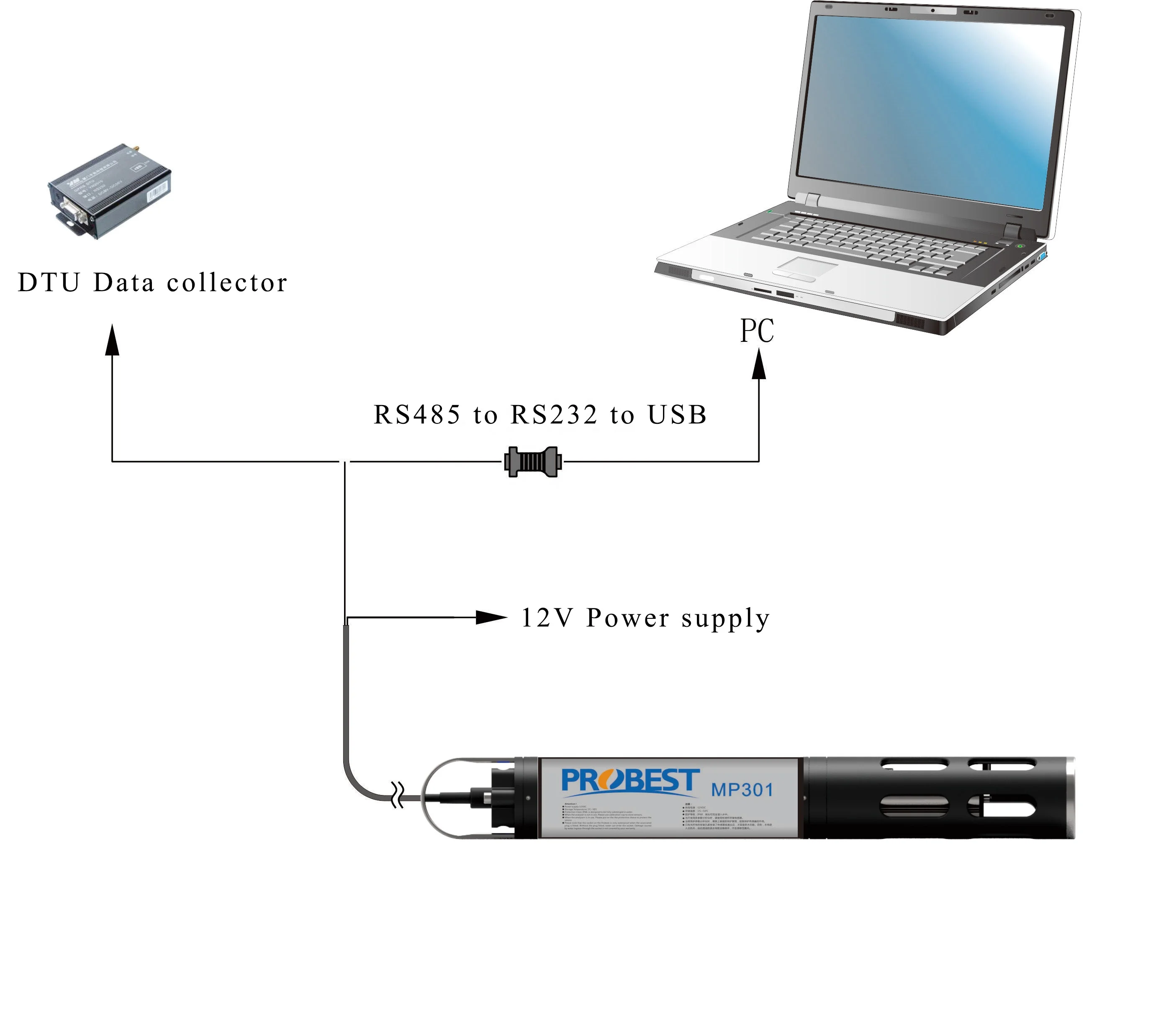

| Communication | MODBUS RS485 | Protection Class | IP68 |

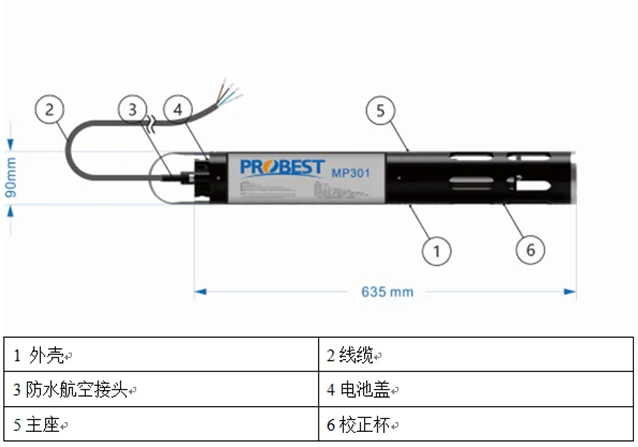

| Size (mm) | Diameter 90*Length 600 | Weight | 3KG |

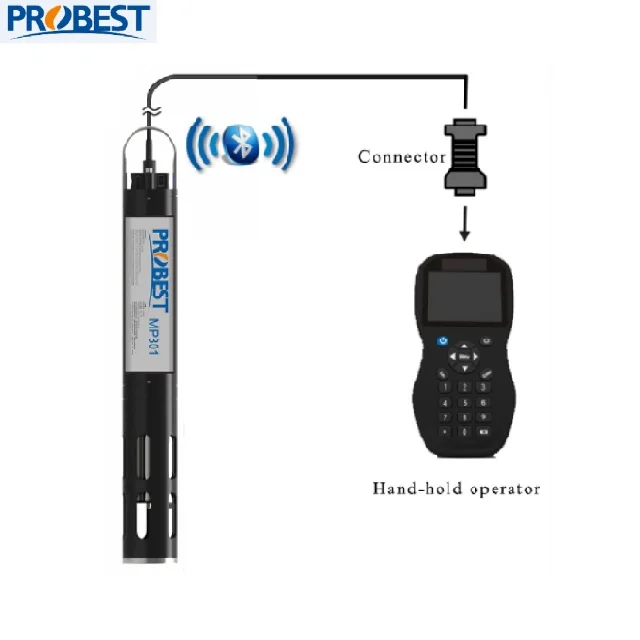

| Optional Controller | HDC-100A hand portable operator meter (with blue tooth function,could without PC) Or PC directly | ||
| Depth (Pressure) | Principle | Pressure-sensitive Method |
| Range | 0-61m | |
| Resolution | 2cm | |
| Accuracy | ±0.3% | |
| Temperature | Principle | Thermistor method |
| Range | 0℃~50℃ | |
| Resolution | 0.01℃ | |
| Accuracy | ±0.1℃ | |
| pH sensor | Principle | Glass electrode method |
| Range | 0-14 pH | |
| Resolution | 0.01 pH | |
| Accuracy | ±0.1 pH | |
| ORP Sensor | Principle | Glass electrode method |
| Range | -1000mV ~+1000mV | |
| Resolution | 0.01mV | |
| Accuracy | ±0.1mV | |
| Conductivity sensor | Principle | A pair of platinum gauze electrode |
| Range | 1us/cm-2000 us/cm(K=1) | |
| 100us/cm-100ms/cm(K=10.0) | ||
| Resolution | 0.1us/cm~0.01ms/cm(Depending on the range) | |
| Accuracy | ±3% | |
| Turbidity sensor | Principle | Light scattering method |
| Range | 0-1000NTU | |
| Resolution | 0.1NTU | |
| Accuracy | ± 5% | |
| DO Probe | Principle | Fluorescence |
| Range | 0 -20 mg/L;0-20 ppm;0-200% | |
| Resolution | 0.1%/0.01mg/l | |
| Accuracy | ± 0.1mg/L<8mg/l | |
| ± 0.2mg/L>8mg/l | ||
| Chlorophyll sensor | Principle | Fluorescence |
| Range | 0-500 ug/L | |
| Resolution | 0.1 ug/L | |
| Accuracy | ±5% | |
| Blue-green algae sensor | Principle | Fluorescence |
| Range | 100-300,000cells/mL | |
| Resolution | 20 cells/mL | |
| Accuracy | ±5% | |
| Salinity Probe | Principle | Converted by conductivity |
| Range | 0~1ppt (K=1.0) | |
| 0~70ppt(K=10.0) | ||
| Resolution | 0.001ppt~0.01ppt Depending on range | |
| Accuracy | ±3% | |
| Ammonia nitrogen Sensor | Principle | Ion selection |
| Range | 0.1~100mg/L-N | |
| Resolution | 0.01mg/L-N | |
| Accuracy | ±10% or ±2mg/L | |
| Nitrate nitrogen Sensor | Principle | Ion selection |
| Range | 0.1~100mg/L-N | |
| Resolution | 0.01mg/L-N | |
| Accuracy | ±10% or ±2mg/L | |
| Chloride Sensor | Principle | Ion selection |
| Range | 0.5~1000mg/L | |
| Resolution | 0.01~1mg/L | |
| Accuracy | ±10% or ±2mg/L | |
| Fluoride Sensor | Principle | Ion selection |
| Range | 0.5~1000mg/L | |
| Resolution | 0.01~1mg/L | |
| Accuracy | ±10% or ±2mg/L | |
Suggested Backup spare parts for freshwater | MP301-PH-FW: pH Sensor; MP301-CE-0: EC sensor (K=1.0) MP301-CE-1: EC sensor (K=10.0) MP301-ORP-FW : ORP Sensor MP301-DO-CAP: Fluorescence Cap PGP-301: Rubber scraper | |
Suggested Backup spare parts for sea water | MP301-PH-SW: pH Sensor; MP301-CE-1: EC sensor (K=10.0) MP301-ORP-FW : ORP Sensor MP301-DO-CAP: Fluorescence Cap PGP-301: Rubber scraper | |
Features:
1.Optional self-cleaning system to get accurate data for a long time.
2. Can see and collect data in real time used with platform software.Calibrate and record 49,000 times test data(Can record 6 to 16 probes’ data a time ),can simply be connected with the existing network for a simple combination
3. Equipped with all kinds of lengths of extension cables. These cables support internal and external stretch and 20 kg of bearing..
4. Simple and quick to replace the electrode at sight
5. Power Save, Can flexibly set the sampling interval time, optimize the work/sleep time
6. Sensor power supply positive and negative reverse connection protection
7. Sensor RS485 A/B terminal is connected to the power supply protection
Applications:
1.Multi-Parameter water quality monitoring of rivers, lakes, and reservoirs.
2. Water quality analysis of drinking water source.
3. Water quality analyzer of groundwater.
4. Water quality testing of seawater.
5. Portable water analysis easy use for lab, for Laboratory, inspection & calibration
