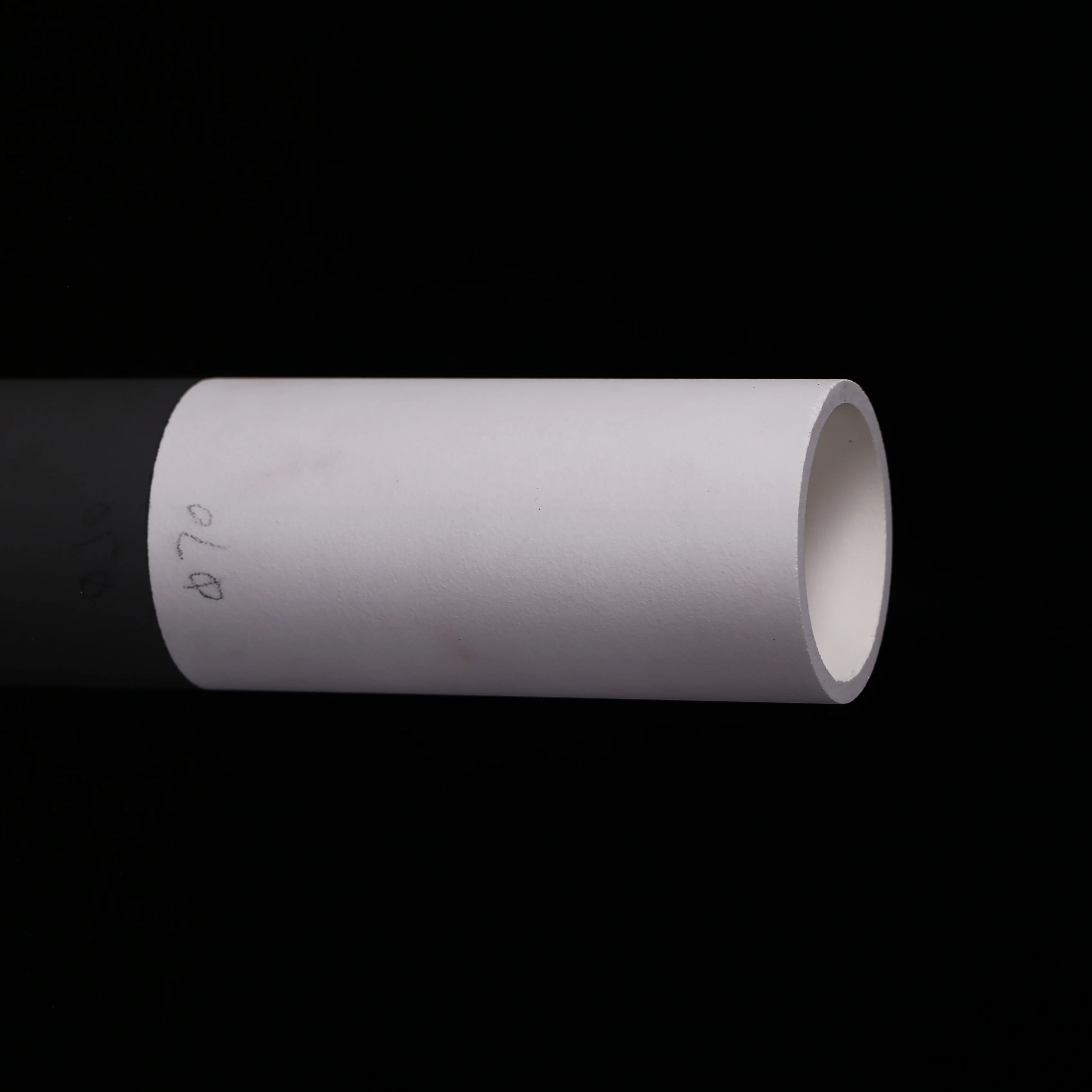

Factory Price Refractory Large Diameter Alumina Ceramic Roller Ceramic Tube Pipe for Furnace Kiln
- Category: >>>
- Supplier: Jiangsu Fist Special Ceramic Co. Ltd.
Share on (1600564374673):
Product Overview
Description

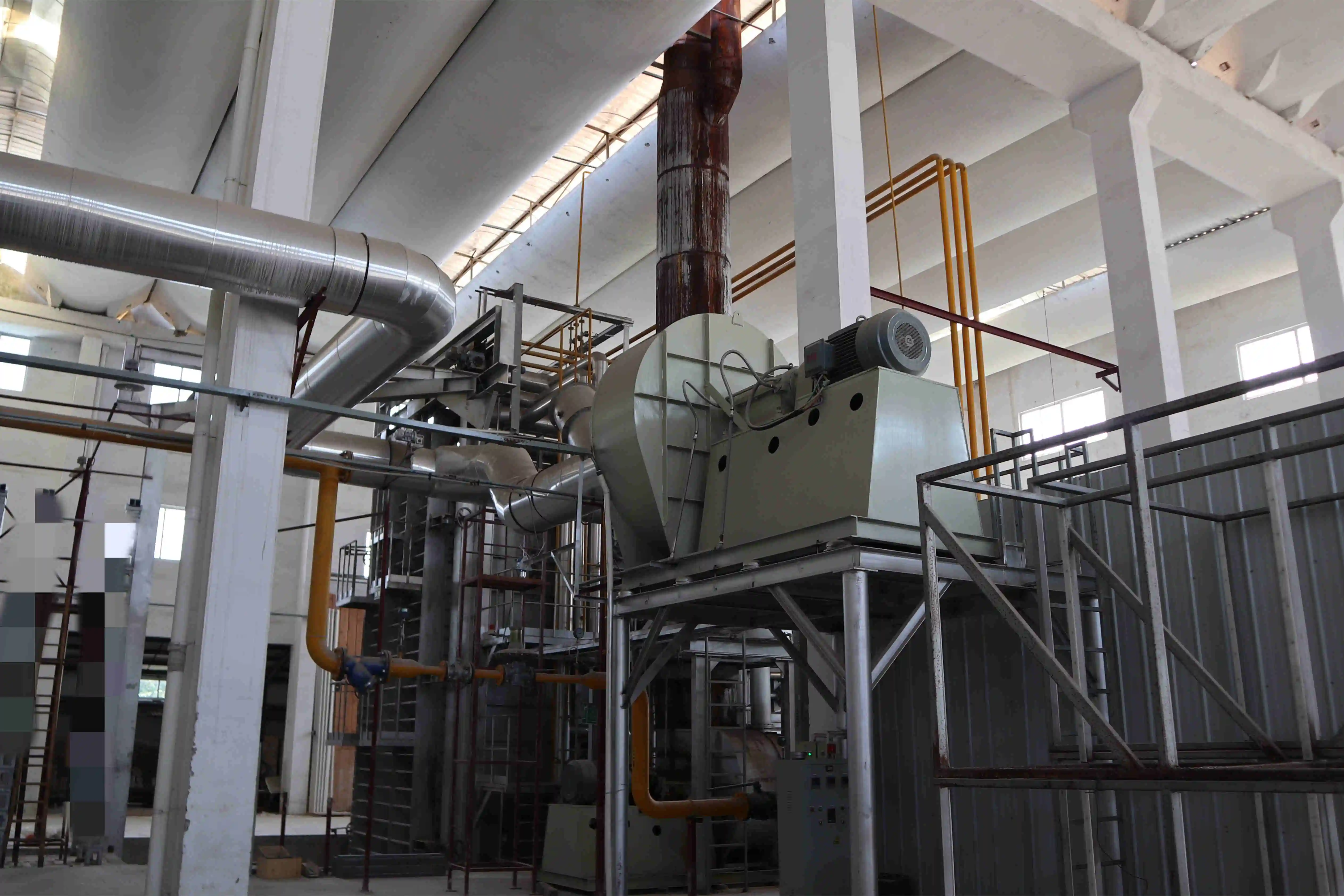

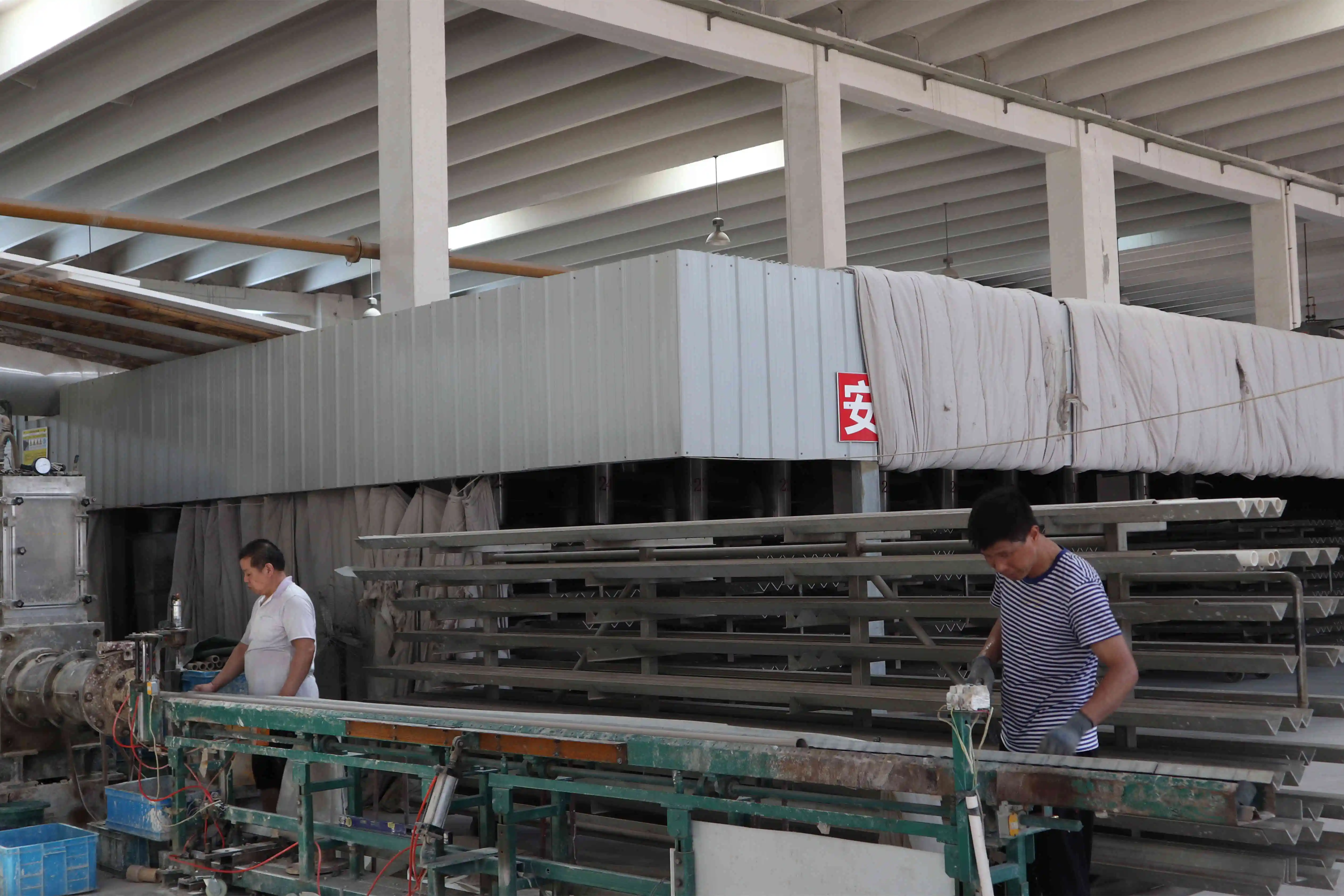

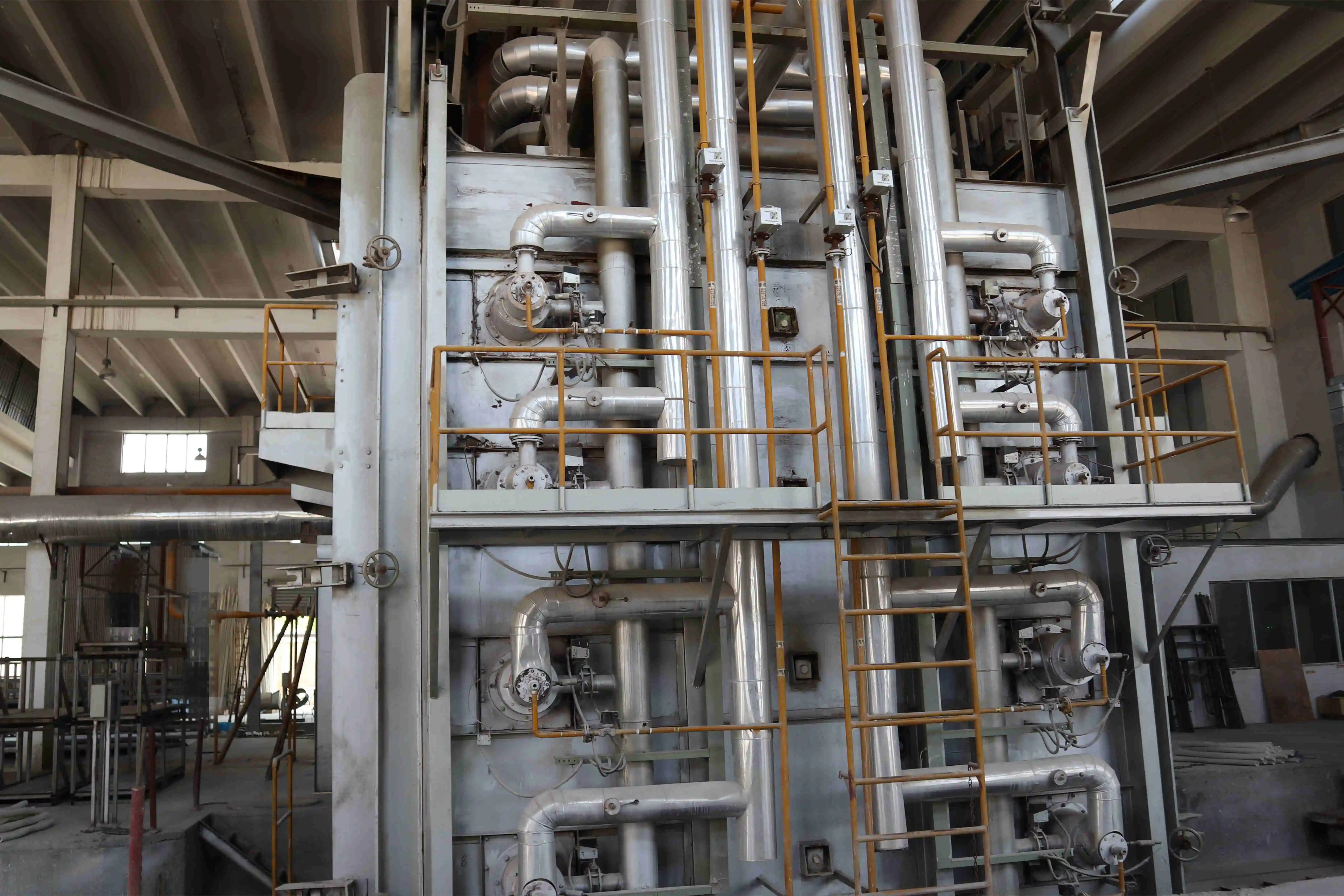

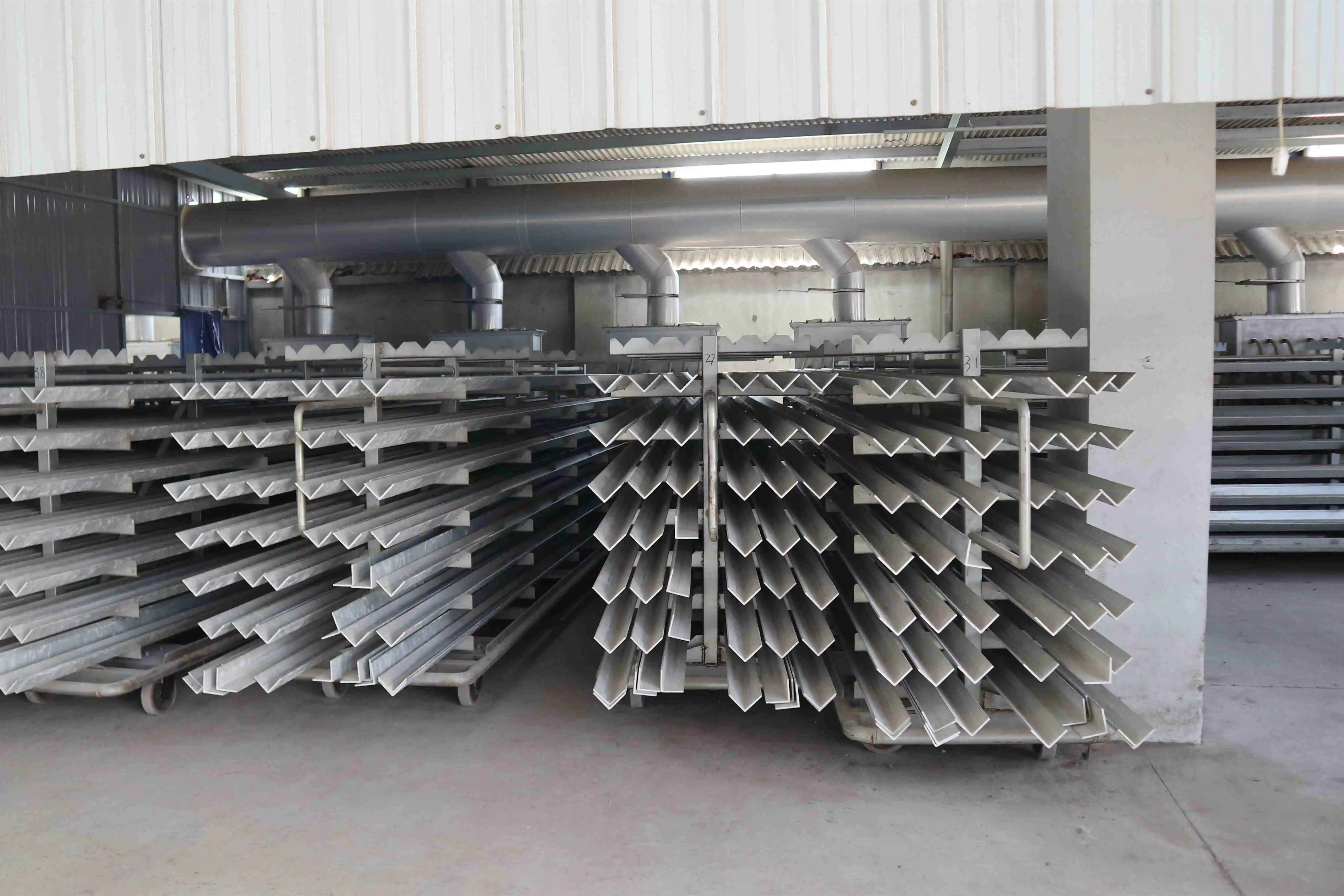

Workshop& Equipments
Products Description
Introduction：

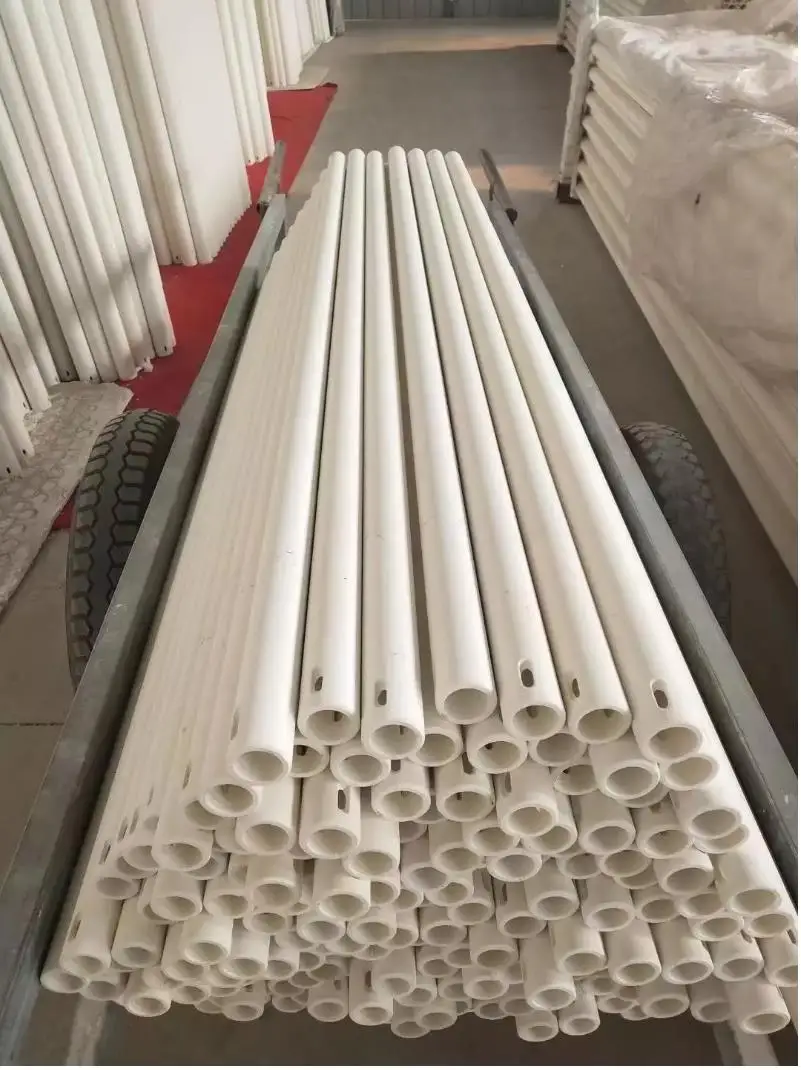

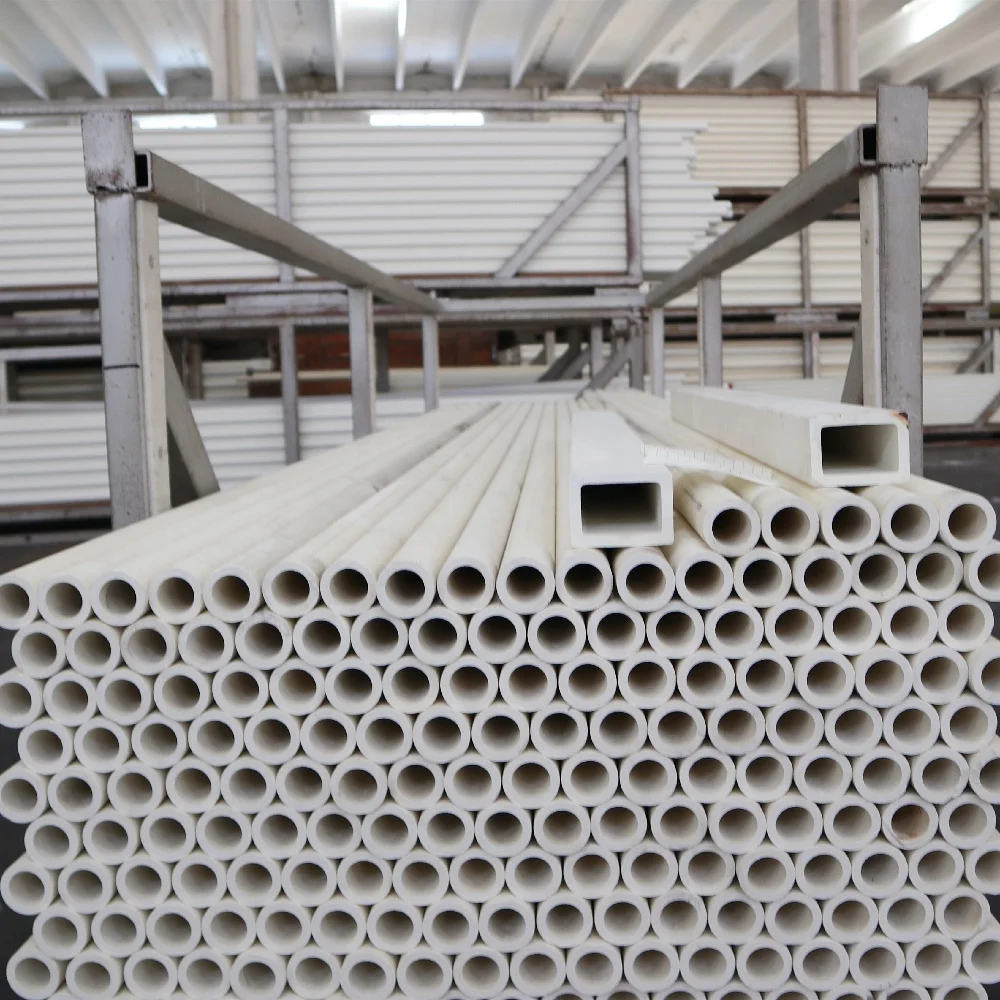

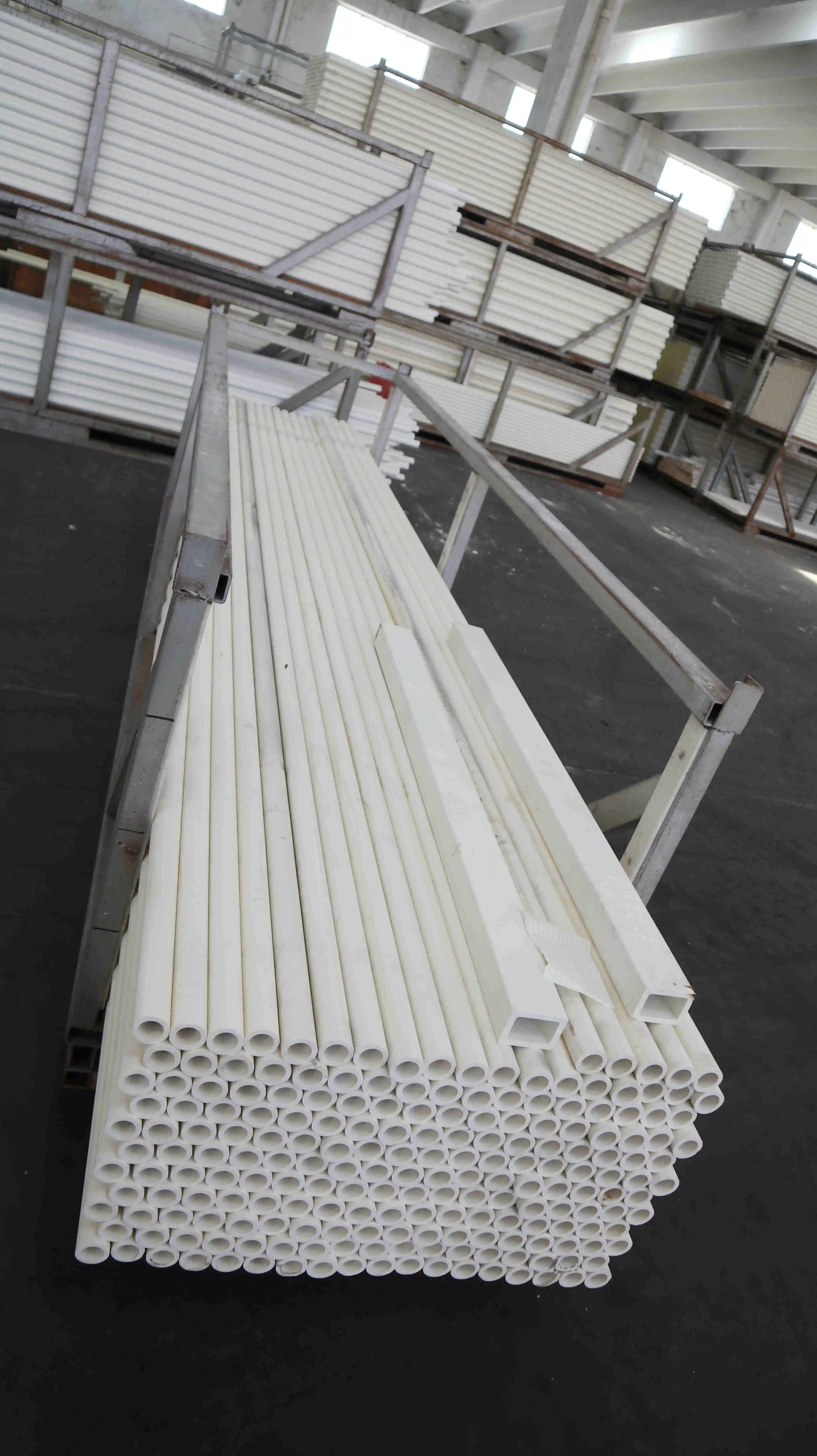

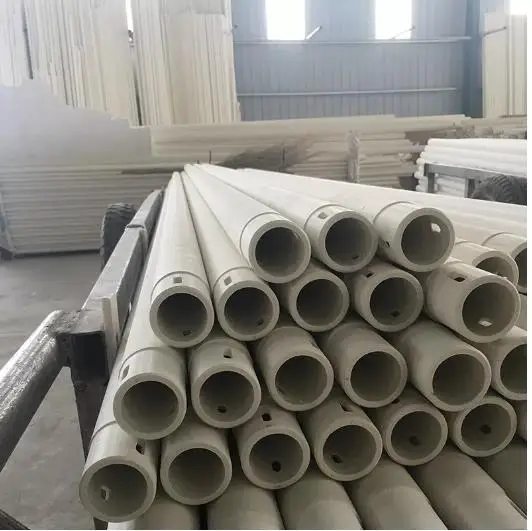

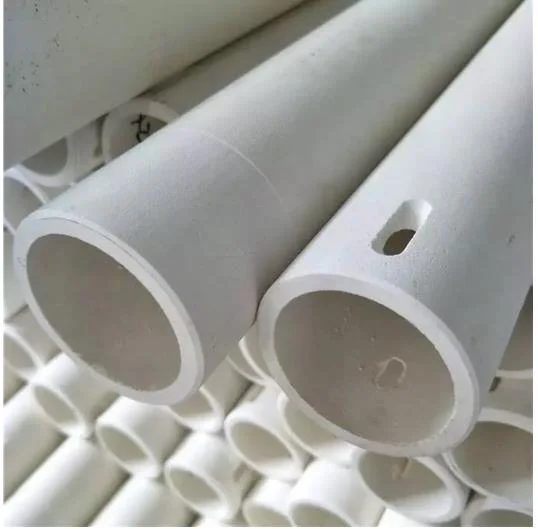

Ceramic roller is a kind of refractory material in roller kiln, as the role of bearing and transmission in the furnace. Ceramic rollers project is a key component of modern industrial track kilns, and can transmit and bear ceramic products at temperatures of up to 1400 °C. Alumina ceramic roller is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramics are generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.
Product name：Ceramic Roller
Material: Al2O3, SiO2
Color：White, Ivory

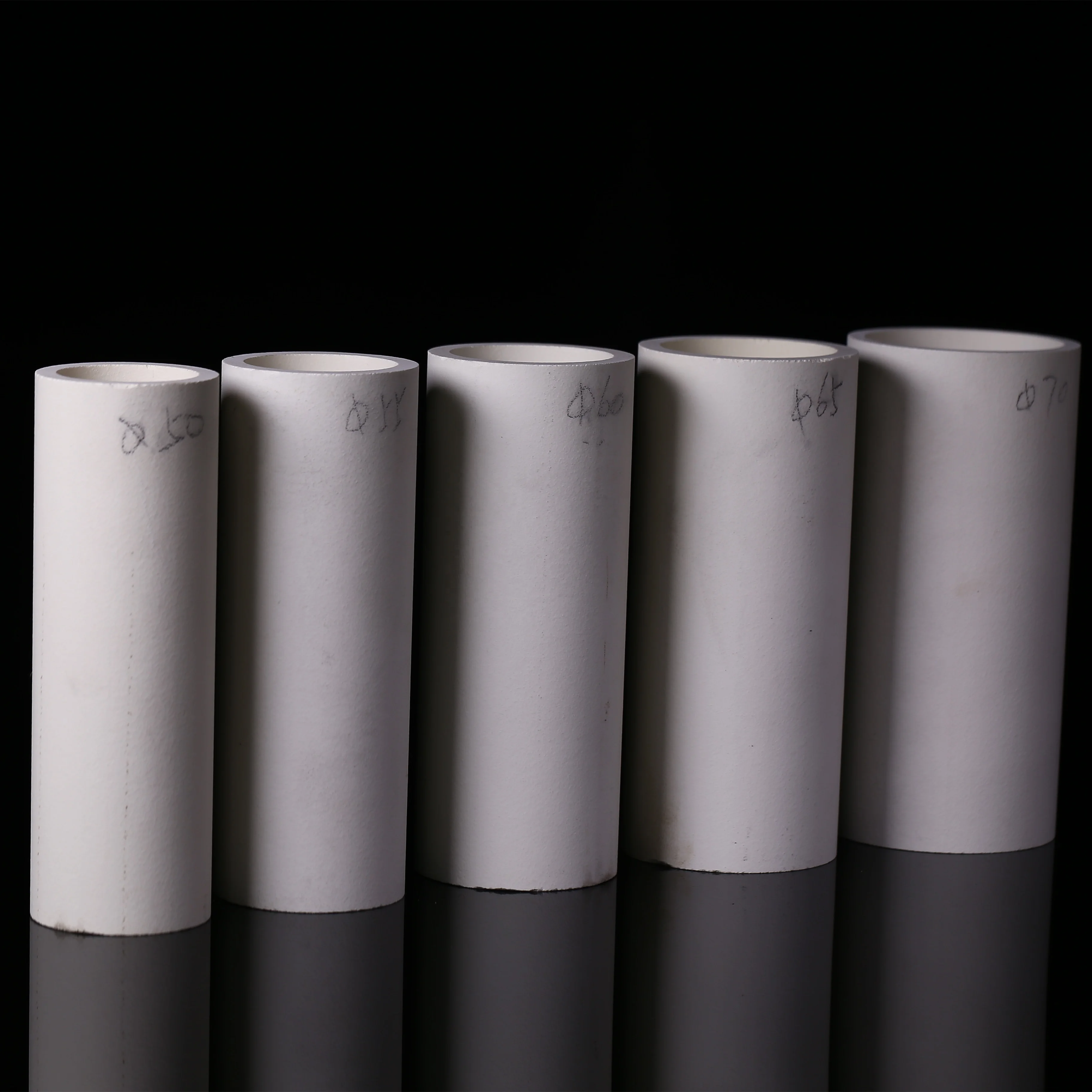

Size：Customized
Features：
1.Excellent high temperature strength
2.Good heat and cold resistance
3.Outstanding corrosion resistance
4.The quality of long-term stability
Material: Al2O3, SiO2
Color：White, Ivory
Size：Customized
Features：
1.Excellent high temperature strength
2.Good heat and cold resistance
3.Outstanding corrosion resistance
4.The quality of long-term stability
5.Excellent thermal shock resistance
Application:
Alumina ceramic roller has good high temperature resistance, hardness and carrying capacity is very strong, Alumina ceramic roller is widely used in high temperature furnace. It can be used to fire wall tile, glazed floor tile, sanitary ware and so on.
1.Furnace of floor tiles and vitrified tiles
2.the cooling section of roller kiln
3.wide-body kiln
4.exterior wall tile, glazed tile and interior wall tile
5.wide-body kilns and the firing of heavy products
1.Furnace of floor tiles and vitrified tiles
2.the cooling section of roller kiln
3.wide-body kiln
4.exterior wall tile, glazed tile and interior wall tile
5.wide-body kilns and the firing of heavy products

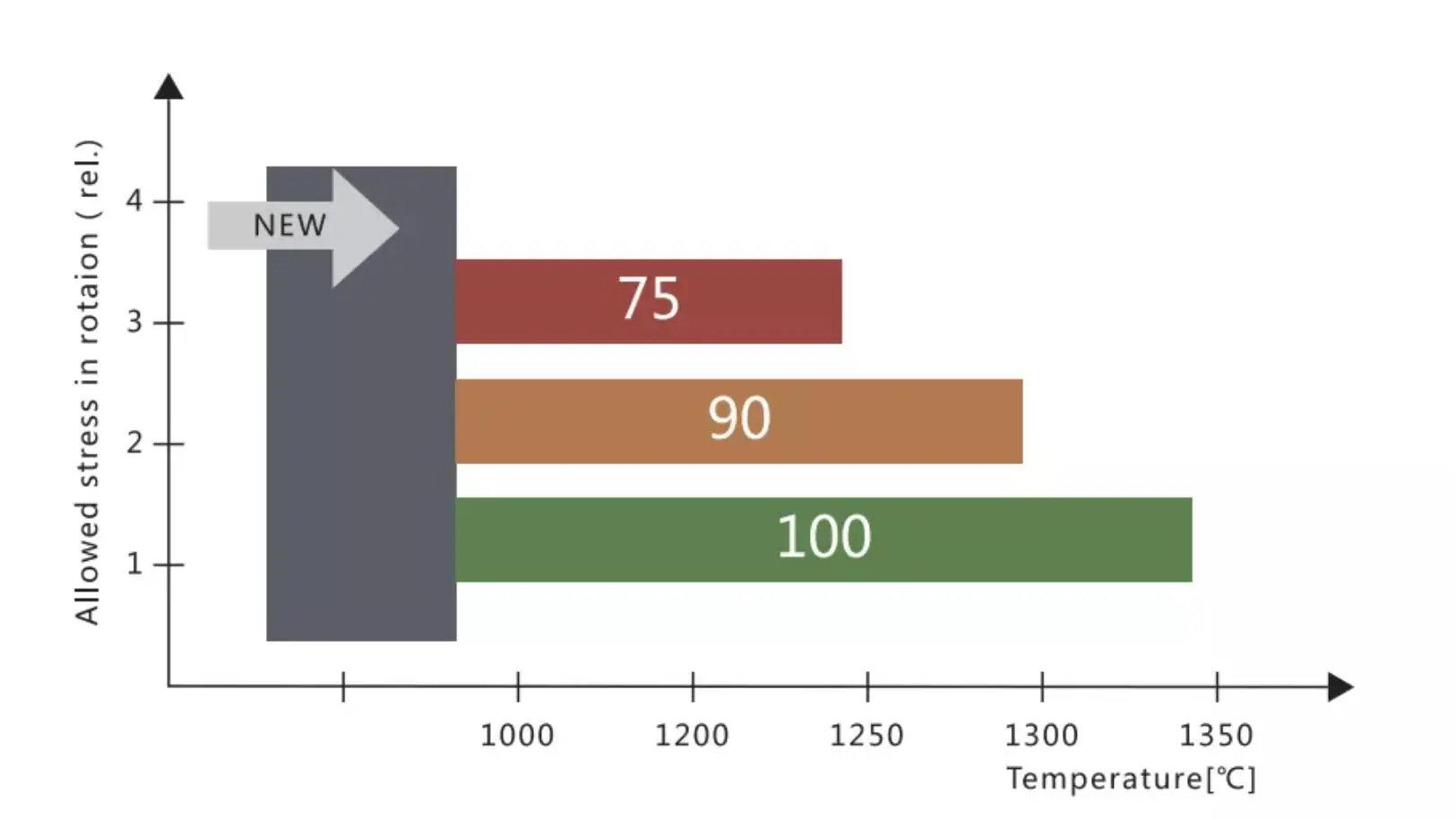

Product types and Applications
♦HM75 is the main product of inner wall brick and vitrified brick.
♦HM90: Higher application temperature, higher loading ability, excellent thermal shock and eroding resistance stability. Your first choice for high quality exterior wall tile, glazed tile and interior wall tile.
♦HM100: Higher strength than MHR90, excellent thermal shock resistance. Especially it is the first choice for the wide-body kilns and the firing of heavy products.
♦HM90: Higher application temperature, higher loading ability, excellent thermal shock and eroding resistance stability. Your first choice for high quality exterior wall tile, glazed tile and interior wall tile.
♦HM100: Higher strength than MHR90, excellent thermal shock resistance. Especially it is the first choice for the wide-body kilns and the firing of heavy products.
Physical properties of ceramic roller | ||||||||
Unit | HM100 | HM90 | HM75 | |||||
Al2O3 content | % | 76-78 | 75-77 | 78-80 | ||||
Density | g/cm3 | 2.8-3.0 | 2.7-2.9 | 2.5-2.6 | ||||
Water absorption | % | 5-7 | 5-7 | 8-9 | ||||
PT flexural strength | mpa | 65-75 | 60-70 | 50-60 | ||||
Thermal expansion （20-1000°C） | 10^-6/°C | 6 | 6 | 6 | ||||
Modulus of elasticity | Gpa | 95 | 90 | 80 | ||||
Maximum use temperature | °C | 1350 | 1350 | 1300 | ||||

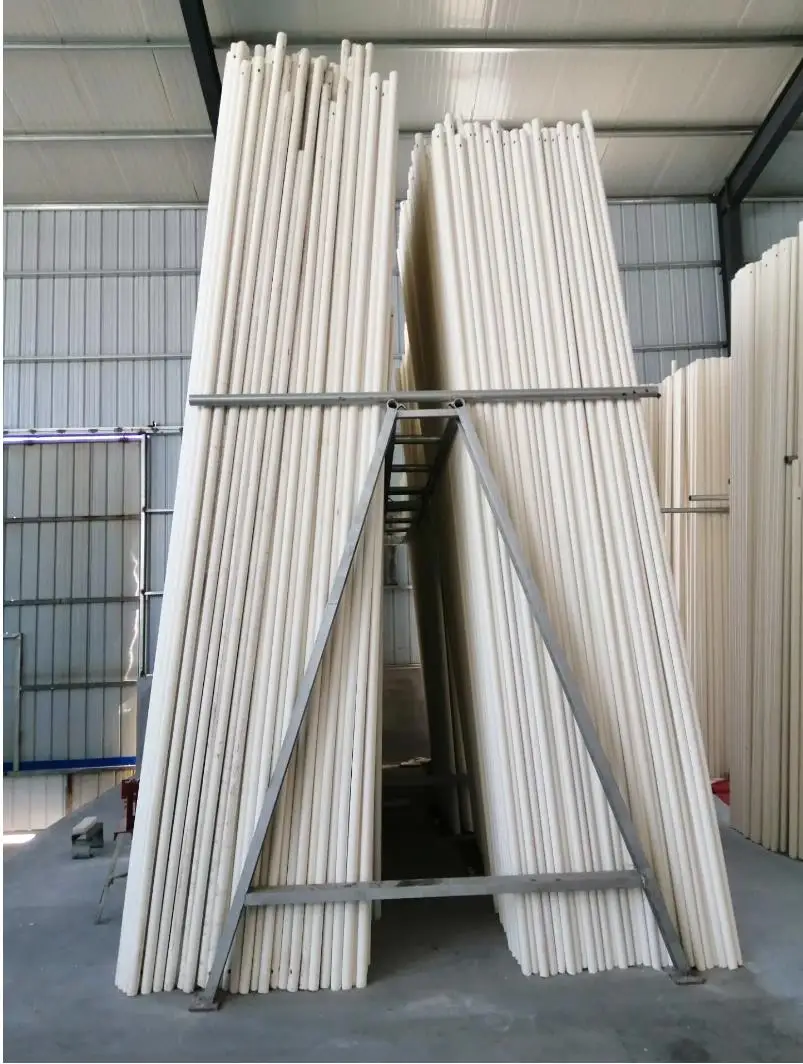

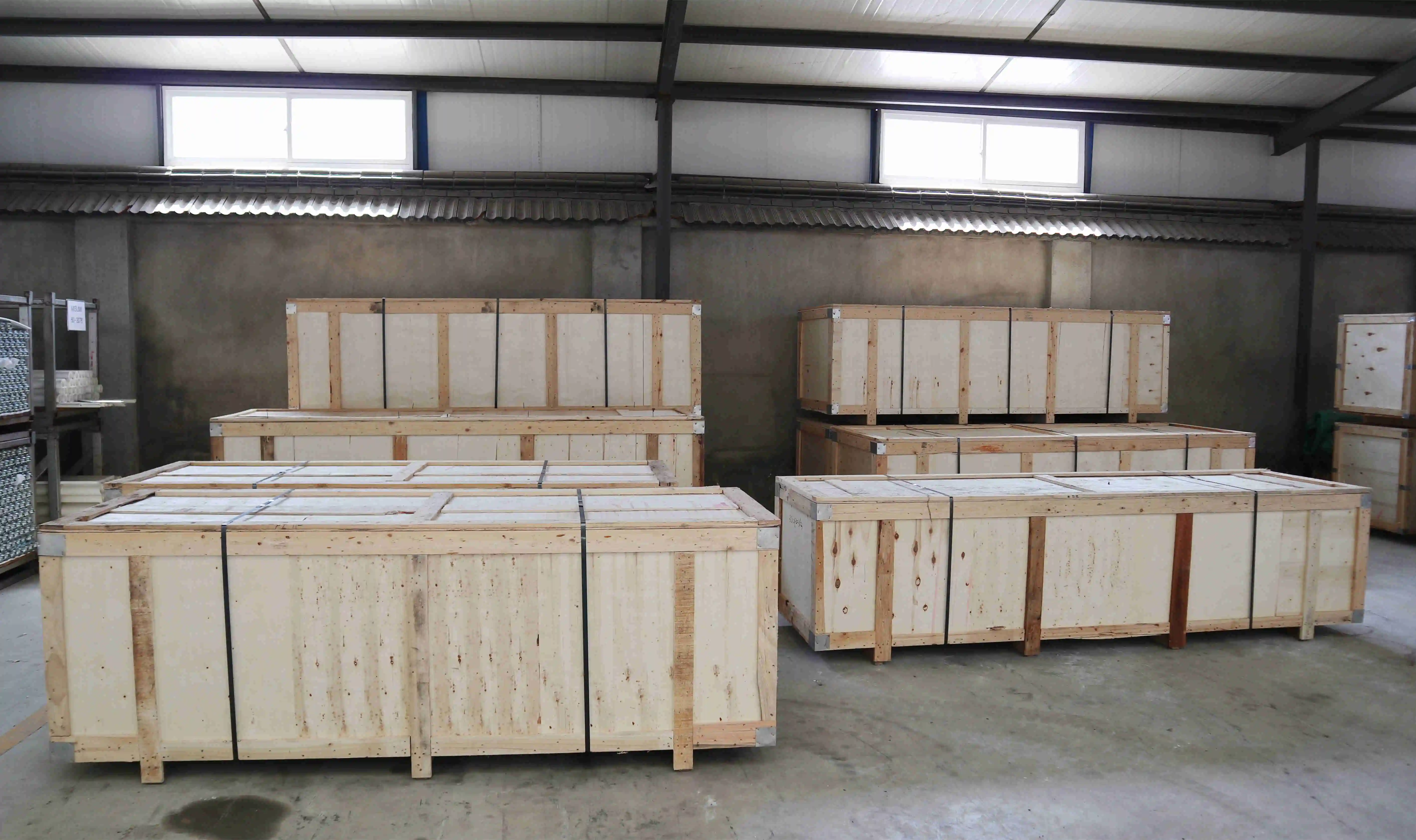

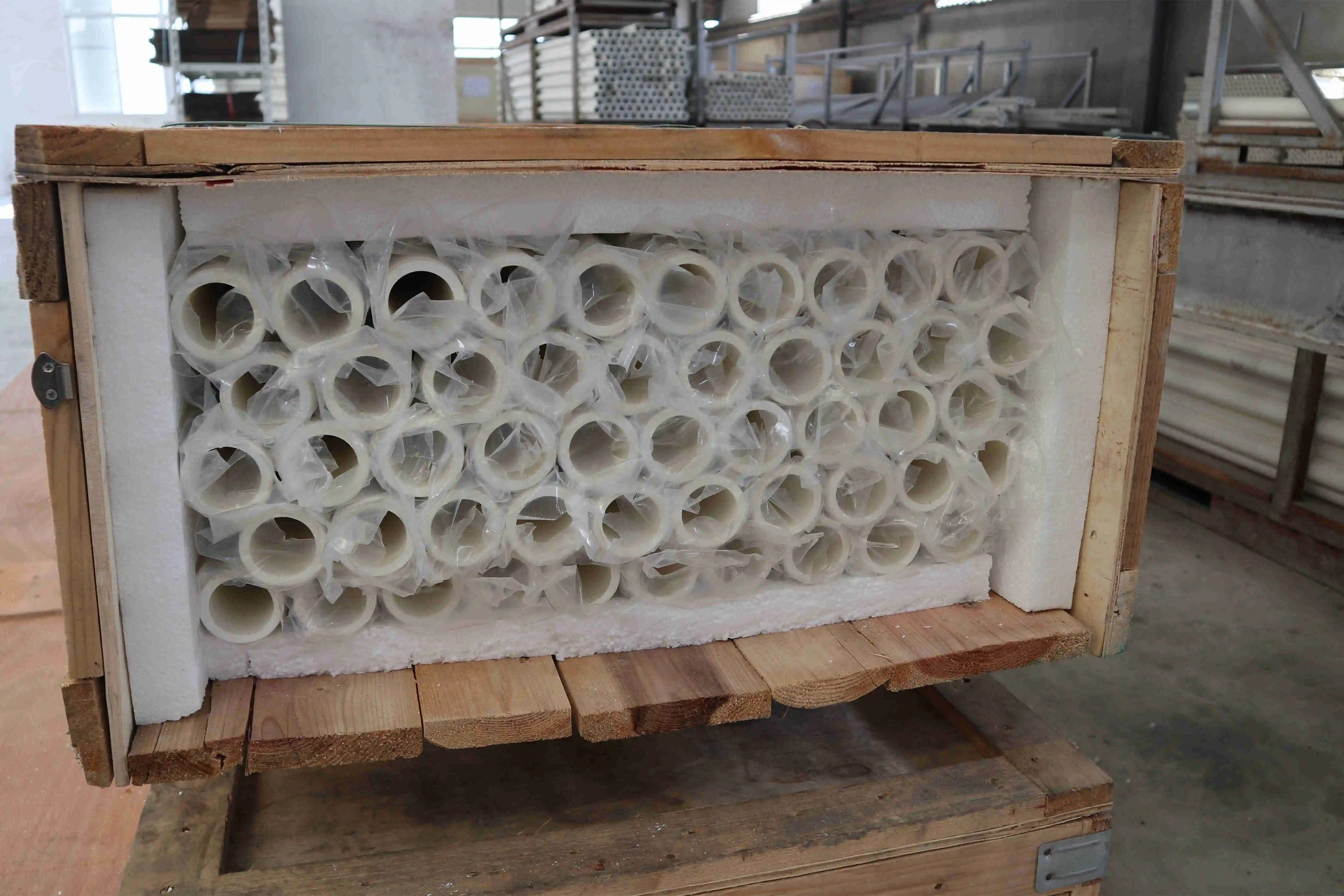

Packing
Company Introduction
Yixing City is the famous pottery capital in China. Most of Chinese ceramic industry is in Yixing. Jiangsu Fist Special Ceramic Co., Ltd is located in Yixing, established in 2016. We are also one of Alibaba's certified high-quality suppliers.
Superiorgeographical location and mature industrial chain of ceramic, we are a manufacturer specialized in developing, producing and selling ceramic materials and products which meet the market demand. We can provide professional OEM & ODM service. Our main products are alumina ceramic, zirconia ceramic, steatite ceramic, cordierite ceramic, mullite ceramic, electronic ceramic, industrial ceramic, daily ceramics, etc. With good quality, reasonable prices and stylish designs, our products are extensively used in machinery, textiles, electronics, automotive, plumbing, seal, humidification, new light source, household appliances, electric heating, solar power and other industries. Good quality and experience service win many customers including domestic and foreign. We warmly welcome new and old customers from all walks of life in the whole world to contact us for future business relationships to achieve mutual success!
Certifications
Our Service
1. We support OEM and ODM； |
2. We have professional R & D team and technical support； |
3. We provide real-time logistics update information； |
4. We have professional QC team to check the quality before delivery; |
5. Our customer service will be online 24 hours a day. |
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock or customeriziation, it is according to quantity.
Q: How about the payment terms?
A: T/T or L/C are okay. We can negotiate.
Q: How can you get quotation?
A: Please kindly send me your drawing with technical requirement and demand quantity.
If you don't have the drawing,please kindly courier samples to us.We will quote our best price as soon as possible.
Q: How about the shipping&package?
A: The package usually includes bubble wrap, carton, pallent, wooden case, etc. The shipping mode includes express, air and sea transportation. Both we can negotiate and choose the best way.
