Fully automatic bouffant cap making machine with packing

Share on:

Price:$31,500.00 - $46,000.00
Price in USD:Details


Product Overview


Product Description


      This machine, making use of ultrasound power, is specially designed to make nonwoven bouffant cap,

the size of cap is set according to customer's requirement.


\tMaterial frame is equipped with horizontal adjusting platform to assure the correct position of material supply;

\tThe middle part of non-woven material is folded by the machine;

\tElastic material is brought to steady traction by tensioner during conveying elastic material;

\tAutomatic Counter is applied;

\tThree Sets of Ultrasonic Units are applied;

\tAutomatically controlled by converter;

\tLength Deviation: -1~2mm;

\tMax Width Deviation:-1~1mm;

\tThe max deviation between the welding position at the two ends and centre of the total distance is 1.5 mm.


\tElectric Source: Single phase 220V 50HZ

\tOverall Dimension (mm): 3400LX900WX1500H

\tUltrasonic System: 20Kx1400W(3sets)

\tCapacity: 60~80pc/min

\tSize of Nonwoven: 12-22g/m2

\tcap size: any size is ok,normal we do18,19,20,21,23inch(change size need to change some parts)

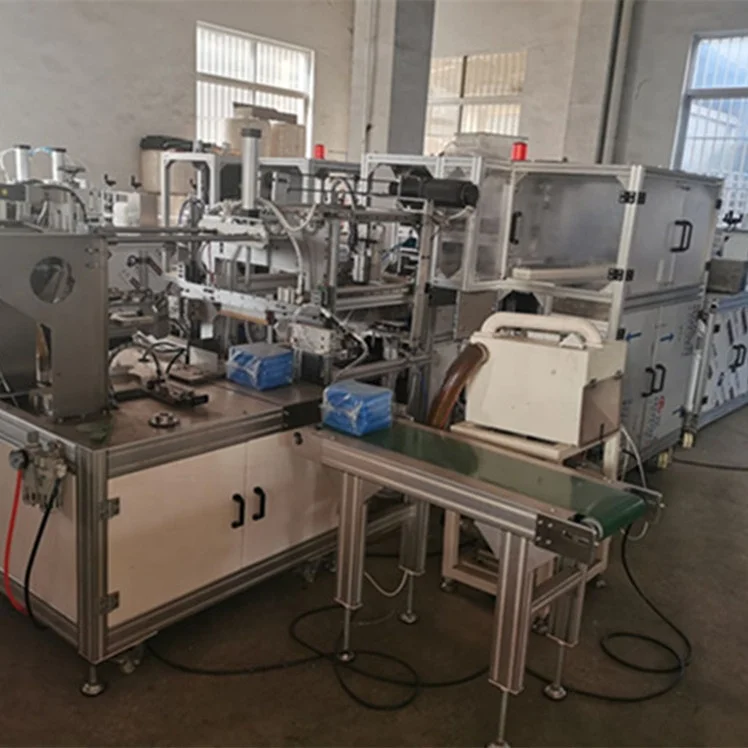

Detailed Images

Packing & Delivery

Inside package:PE Film
Outside package:wooden package

Our Service

1.Professinoal peson reply your questions

2.One year warranty for you

3.Perfect and careful after-sale service

4.Fast delivery for you

5.24 hours on-line service for you

6.Engineers are available for oversea after-service


1. Q: What is your after-sales service?

A: Our after-sales service is first class. Our guarantee is one year and we can send to you freely if there is any spare part broken because of our reason. Our engineers can also go to your factory to install machines and train your workers.

2. Q: How does your factory do regarding quality control?

A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.

3.Q: How long is the warranty period ?

A: ONE year.

4.Q:How long is your delivery time?

A:One year

5.. Q: What is the terms of payment you accept?

A: We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance upon get the copy of B/L at sight
