Hongke BFAG 500 220V AC Cooler Duct Extractor Industrial Exhaust Vent Wall Colling Extraction Fan
- Category: >>>
- Supplier: Zhejiang Hongke Electromechanical Co. Ltd.
Share on (1600564397477):
Product Overview
Description
Specification
item | value |
Type | Axial Flow Fan |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
Customized support | OEM, ODM |
Electric Current Type | AC |
Mounting | Ceiling Fan |
Blade Material | Cast Iron |
Place of Origin | China |
Zhejiang | |
Brand Name | Hongke |
Voltage | 220V |
Warranty | 1 Year |
After-sales Service Provided | Video technical support |
Voltage can be | 220V/380V |
Power | 250W |
Transport Package | Cartons |
After-sales Service Provided | Video technical support |
Protect level | IP55 |
type | Explosion-proof Exhaust Fan |
Current type | AC |
Product Description

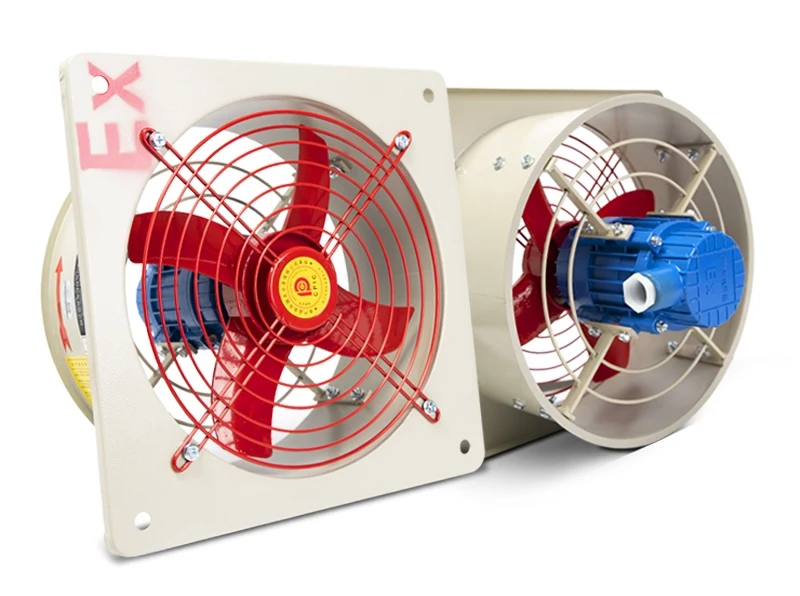

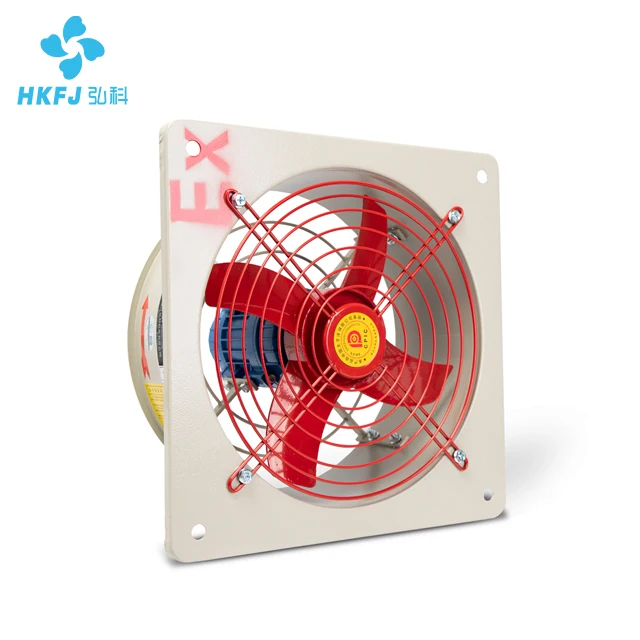

BFAG Explosion Proof Exhaust Fan
The BFAG explosion-proof exhaust fan(hereinafter referred to as the exhaust fan) is produced accordance with the requirements of GB3836.1 Equipment for Explosive atmosphere Part 1: General Requirements"and GB3836.2" Electrical Equipment for explosive Atmosphere Part2: Explosion-ProofType 'd'. The explosion-proof sign is ExdllBT4, which is applicable in the environment of explosion-proof gas of class IIB T4 group and below.
Cart online steel shell
The surface is smooth and flat High temperature paint

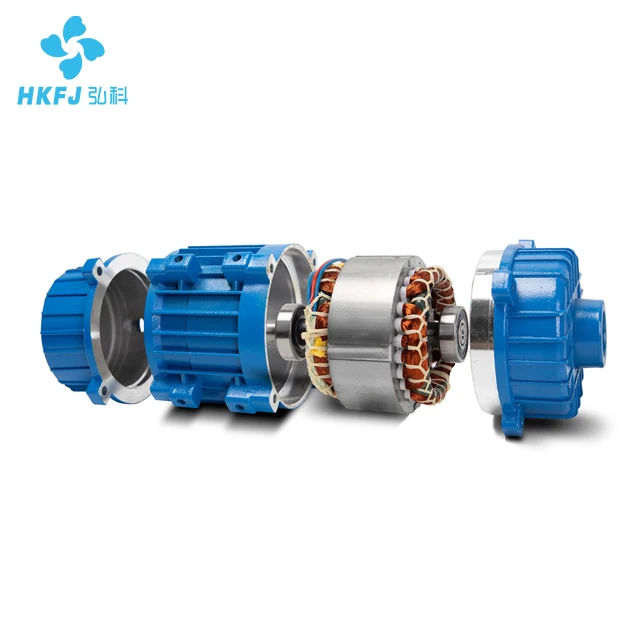

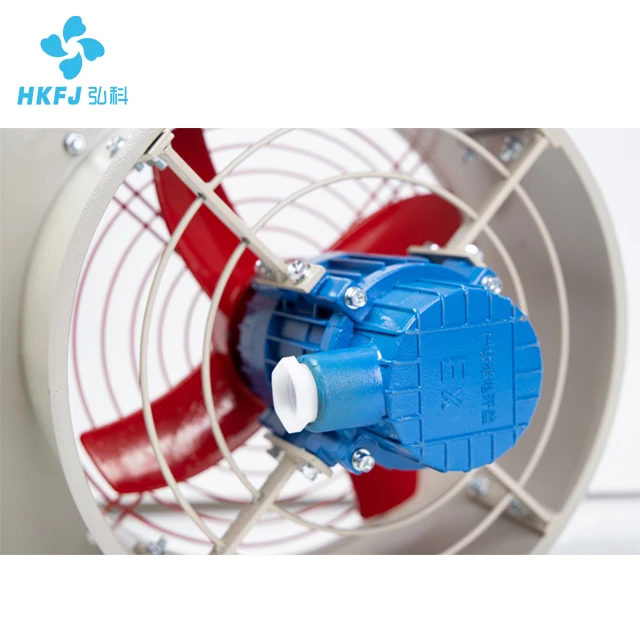

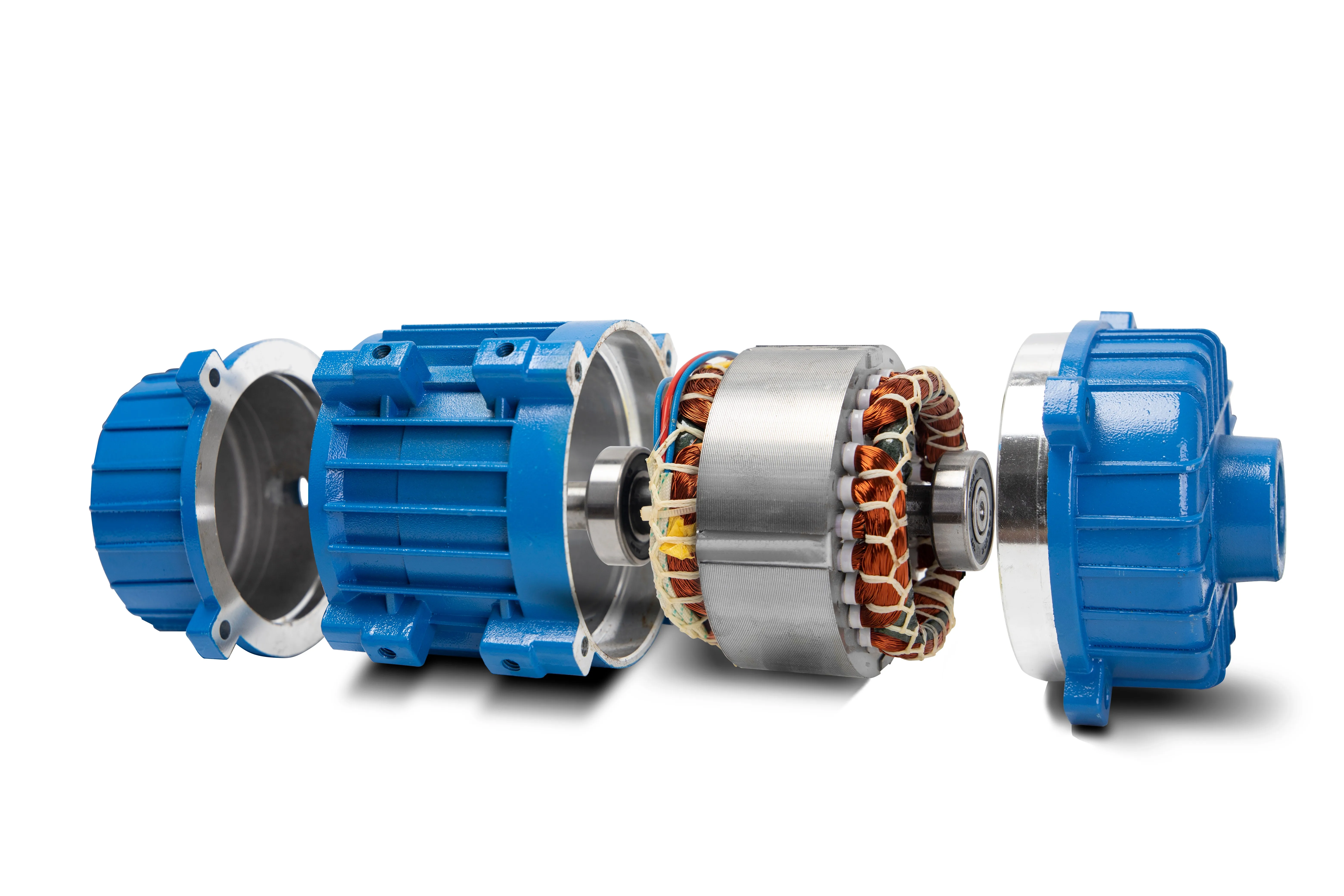

Explosion-proof motors
Pure copper coil, strong sealing, enough power to ensure the air output of the fan blade

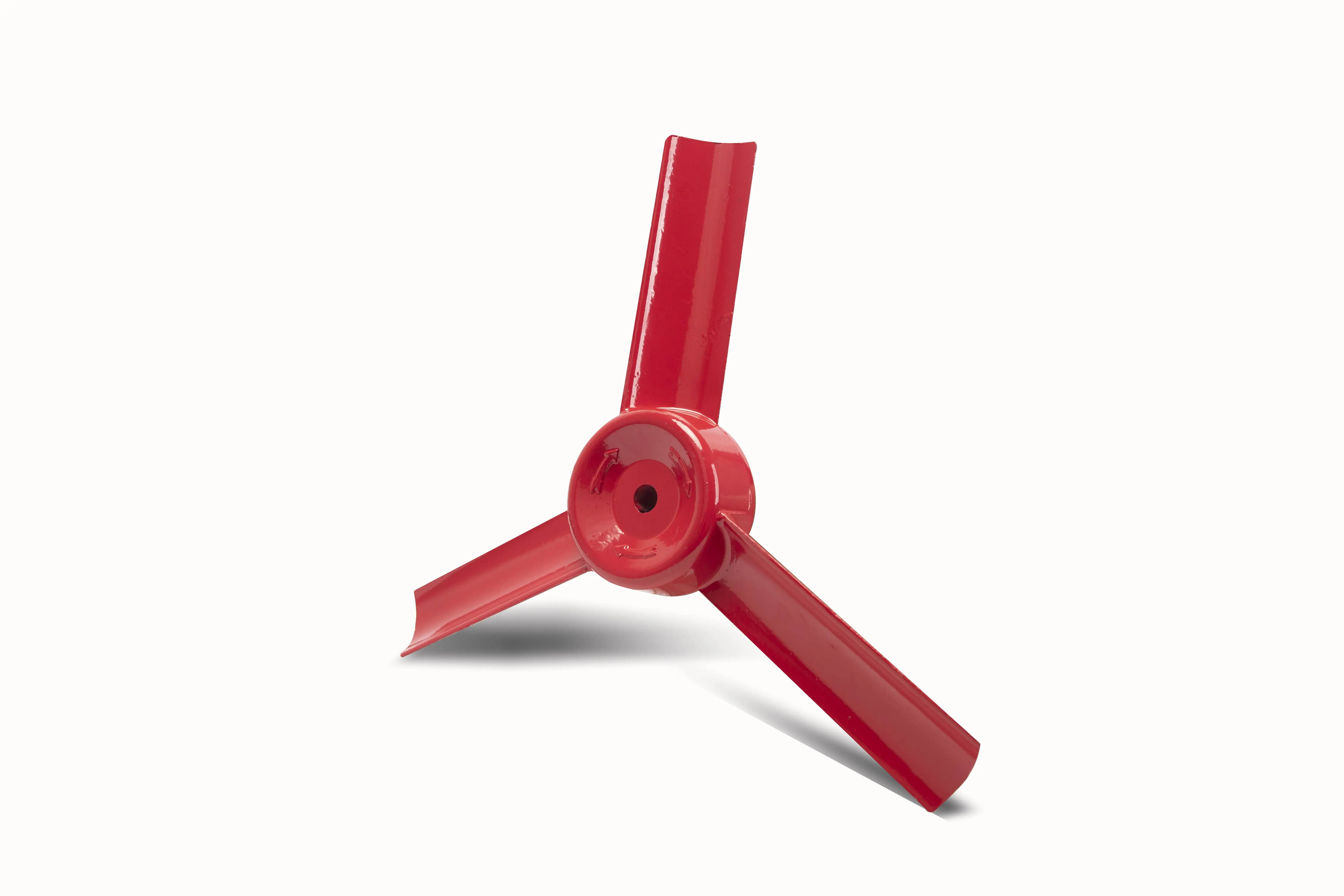

Cast aluminum fan blade
Fan blades run smoothly, large air volume and low noise

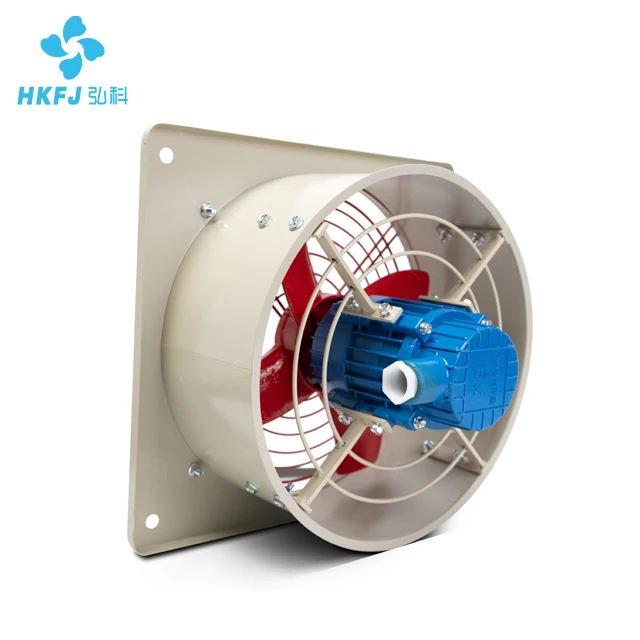

Product details

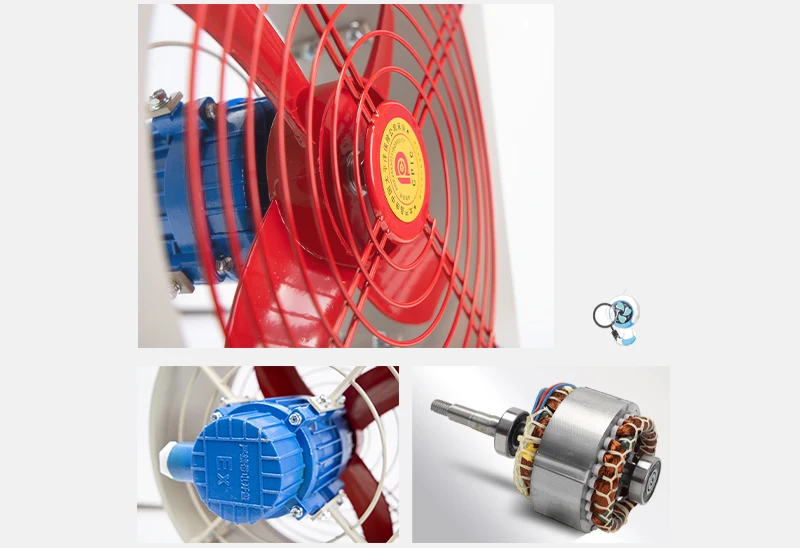

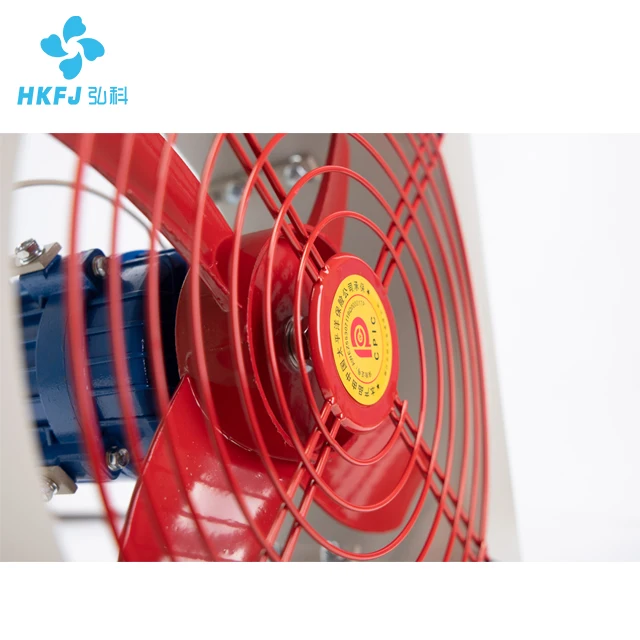

9mm safety net cover, pure copper core wire, cast aluminum explosion-proof motor

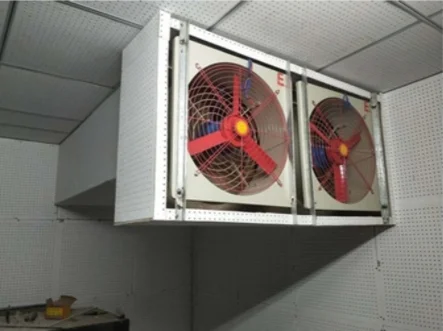

Scenes to be used
BRAG flame-proof type ventilating fan,beautiful appearance,convenient installation
Product Paramenters
Model | Voltage (V) | Diameter of impeller | Power (W) | Spindle speed (r/min) | Angle (°) | Flow (m3/h) | Inlet thread (G) | Wire outer diameter (Φmm) |
BFAG-300 | 220V/380V | 300 | 0.12 | 1450 | 25 | 2280 | 3/4 | 10~14 |
BFAG-400 | 220V/380V | 400 | 0.18 | 1450 | 20 | 2280 | 3/4 | 10~14 |
BFAG-500 | 220V/380V | 500 | 0.25 | 1450 | 20 | 5700 | 3/4 | 10~14 |
BFAG-600 | 220V/380V | 600 | 0.37 | 1450 | 20 | 8700 | 3/4 | 10~14 |

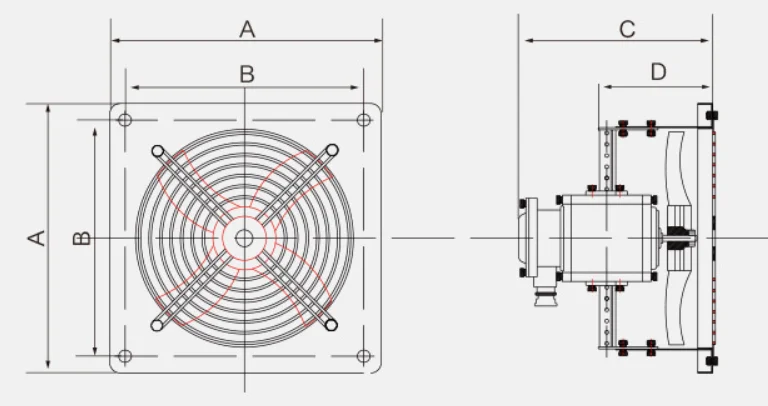

Specification | A | B | C | Φ | Mounting holes |
BFAG-300 | 370 | 320 | 250 | 150 | 4-Φ13 |
BFAG-400 | 470 | 420 | 250 | 150 | 4-Φ13 |
BFAG-500 | 570 | 520 | 280 | 210 | 4-Φ13 |
BFAG-600 | 670 | 607 | 280 | 210 | 4-Φ13 |
