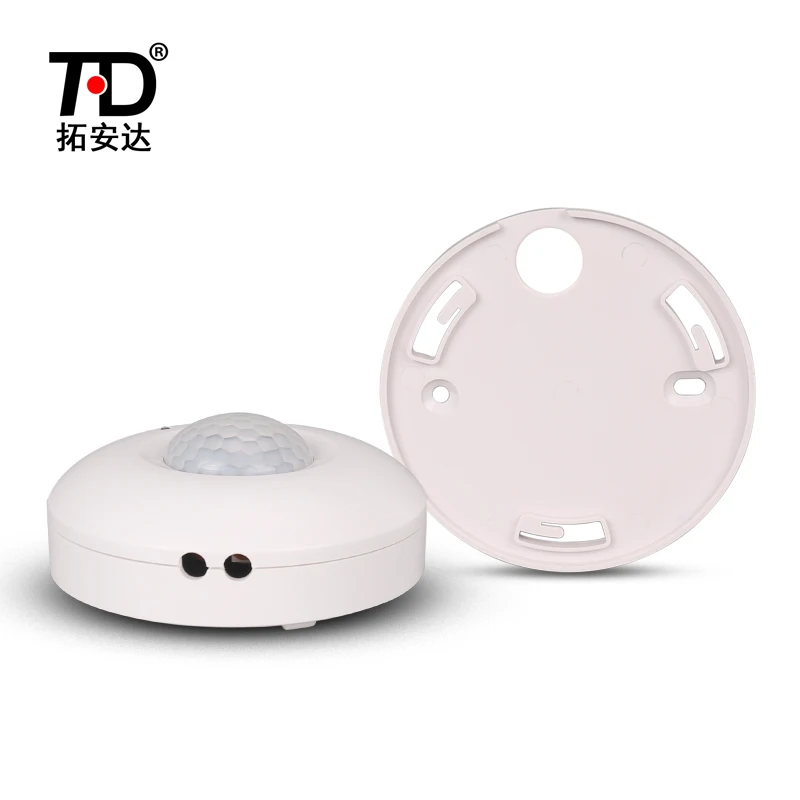

Indoor Toilet light motion sensor light sensor switch delay time 16s 360s (adjustable) PIR Motion led motion sensor
- Category: >>>
- Supplier: Shenzhen Tuoanda Electronics Co. Ltd.
Share on (1600564402799):
Product Overview
Description
Recommend Products
Specification
PIR Motion Sensor detector Switch

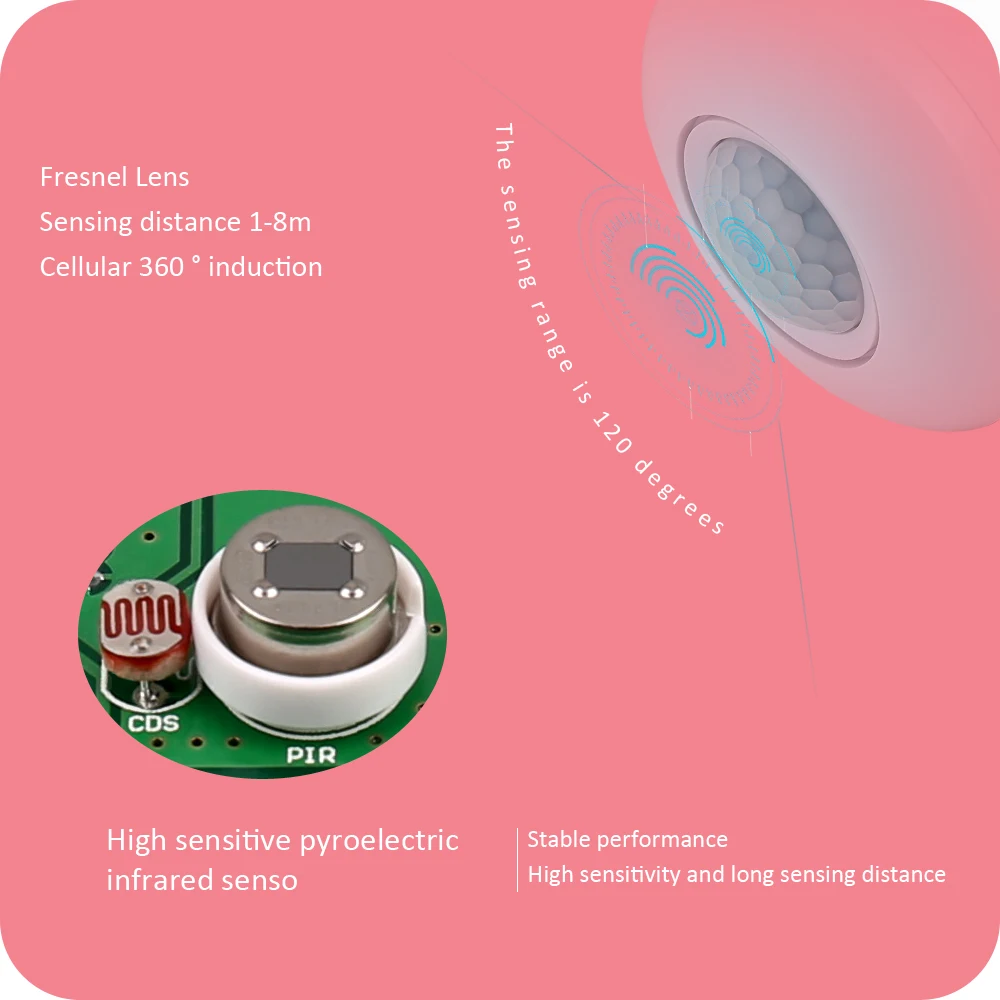

The Passive Infrared Sensor (PIR) sensor is used for motion detection. It is often referred to using "PIR", "Pyroelectric",
"Passive Infrared" . The module has an on-board pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It is used to sense the movement of people, animals, or other objects. They are commonly used in burglar alarms and automatically-activated lighting systems.
Applications:
"Passive Infrared" . The module has an on-board pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It is used to sense the movement of people, animals, or other objects. They are commonly used in burglar alarms and automatically-activated lighting systems.
Applications:
Automatic lighting hallways, corridors, bathrooms, basements, warehouses, garages, and other places, automatic ventilation exhaustfan and other electrical appliances (incandescent, fluorescent, buzzer, automatic doors, electric fans, dryers and automatic washing machine) especially for use in businesses, hotels, shopping malls, warehouses, sensitive areas or security zones and alarm systems. Can also be used for security purposes.
Spec
1. Rated voltage: □220VAC (50Hz) □ 12VDC □24VDC
2. Ambient temperature: -20°C-+50C
3. Self-consumption: <0.3W

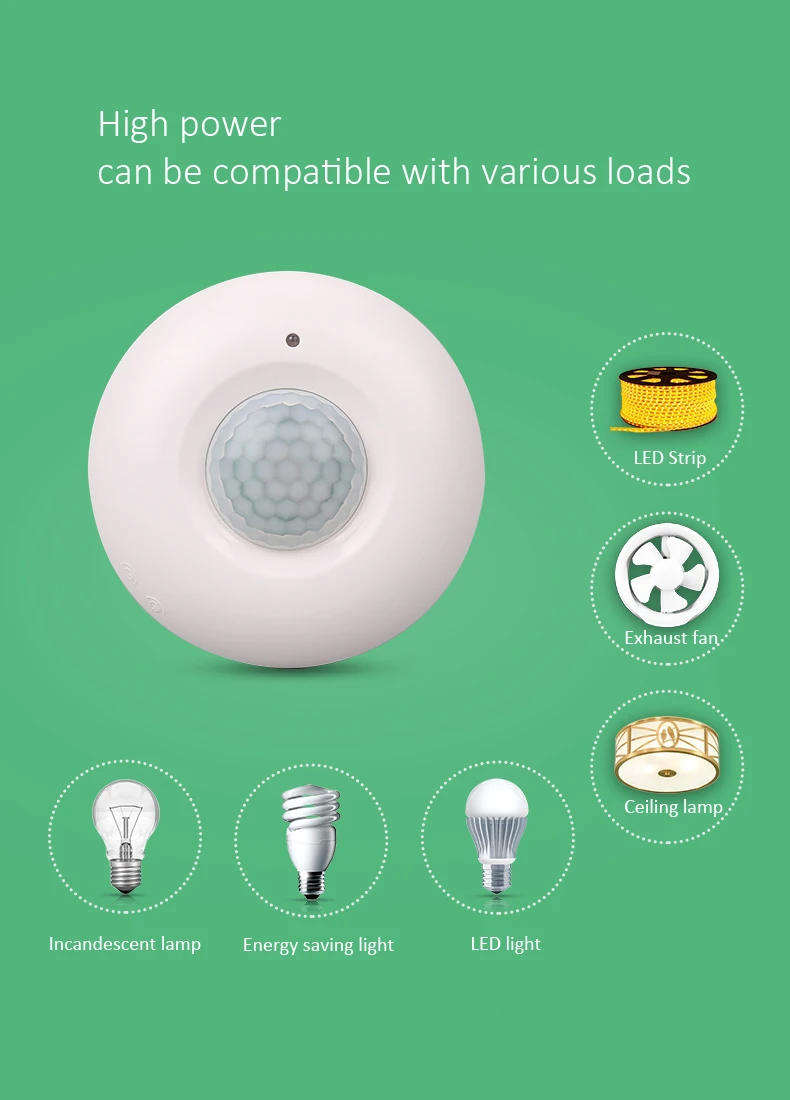

4. Load type: incandescent lamps, exhaust fans; various lamps and electrical appliances
5. Load type: Note: Since the starting current of the LED lamp switching power supply is very large at the moment of turning on, it is not recommended to connect in parallel
Install multiple lamps, otherwise it is easy to cause the relay contacts to burn and stick and cannot be released, causing the lamps to stay on.
(If you need to control multiple lamps, the power needs to be reduced by half, it is recommended to have less than 4 lamps)
□ TAD-T820A bipolar: control incandescent lamp≤2000W; energy saving lamp≤1000W; LED lamp≤400W

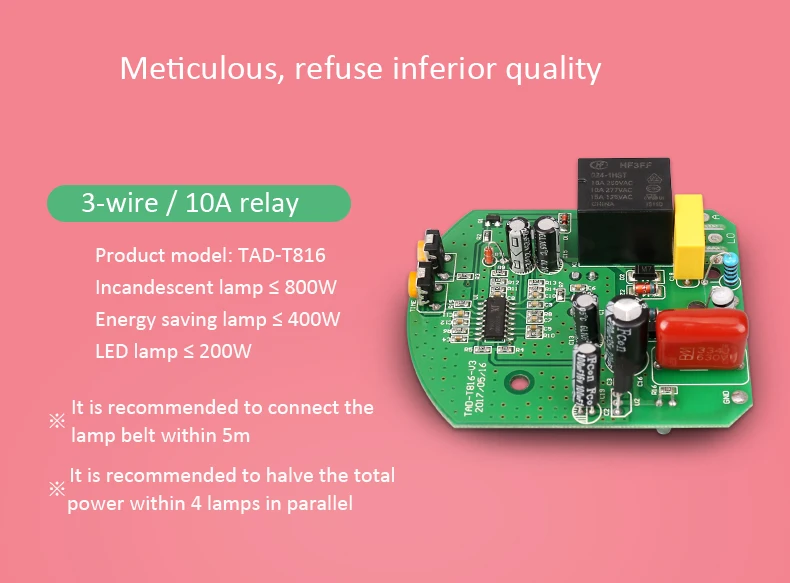

.Port TAD-T816 bipolar: control incandescent lamp≤1000W; energy saving lamp≤400W; LED lamp≤200W
□ TAD-T816R unipolar: control incandescent lamp≤200W; energy saving lamp 5-100W; LED lamp 5-50W
□ TAD-T816-12VDC bipolar: resistive load≤80W, inductive load≤40W.
□ TAD-T816-24VDC bipolar: resistive load≤200W, inductive load≤80W.
6. Output form: positive output (normally off, induction on)
7. Light control range (adjustable): 5Lux-500Lux±20% (factory setting is 5LUX±20%)
8. Delay closing time (adjustable): 16-350 seconds ± 30% (factory setting is 16 seconds ± 30%)

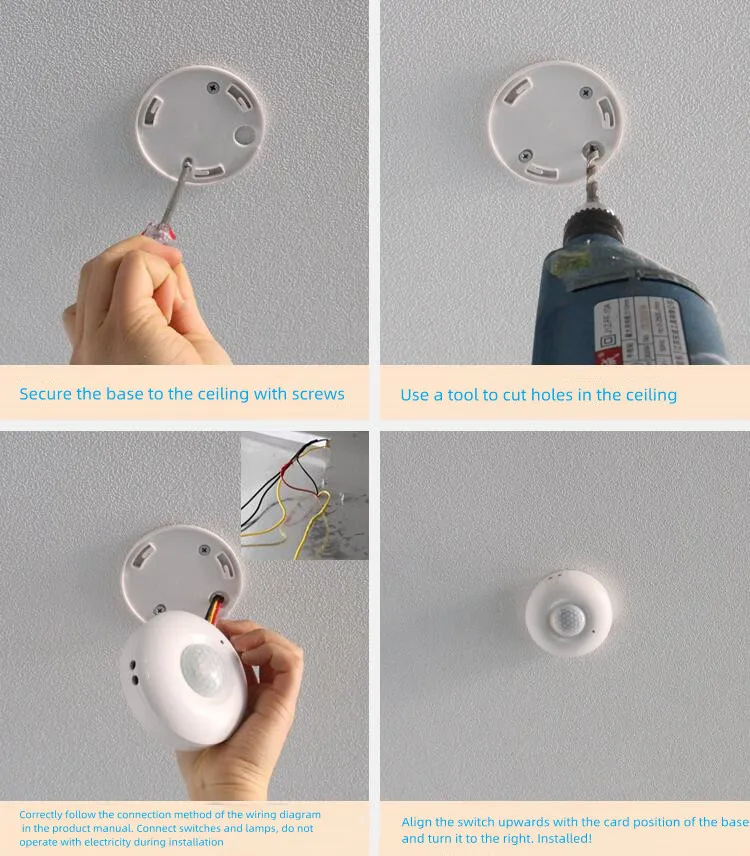

9. Induction range Diagram: (When the wall is installed, the height from the ground is about 1.5m; when the ceiling is installed, the height from the ground is 2-4 meters)
10. Induction distance: 5-12 meters from the front (≤24°)
2. Ambient temperature: -20°C-+50C
3. Self-consumption: <0.3W
4. Load type: incandescent lamps, exhaust fans; various lamps and electrical appliances
5. Load type: Note: Since the starting current of the LED lamp switching power supply is very large at the moment of turning on, it is not recommended to connect in parallel
Install multiple lamps, otherwise it is easy to cause the relay contacts to burn and stick and cannot be released, causing the lamps to stay on.
(If you need to control multiple lamps, the power needs to be reduced by half, it is recommended to have less than 4 lamps)
□ TAD-T820A bipolar: control incandescent lamp≤2000W; energy saving lamp≤1000W; LED lamp≤400W
.Port TAD-T816 bipolar: control incandescent lamp≤1000W; energy saving lamp≤400W; LED lamp≤200W
□ TAD-T816R unipolar: control incandescent lamp≤200W; energy saving lamp 5-100W; LED lamp 5-50W
□ TAD-T816-12VDC bipolar: resistive load≤80W, inductive load≤40W.
□ TAD-T816-24VDC bipolar: resistive load≤200W, inductive load≤80W.
6. Output form: positive output (normally off, induction on)
7. Light control range (adjustable): 5Lux-500Lux±20% (factory setting is 5LUX±20%)
8. Delay closing time (adjustable): 16-350 seconds ± 30% (factory setting is 16 seconds ± 30%)
9. Induction range Diagram: (When the wall is installed, the height from the ground is about 1.5m; when the ceiling is installed, the height from the ground is 2-4 meters)
10. Induction distance: 5-12 meters from the front (≤24°)
