NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod Casing Pipe Drill Pipe
- Category: >>>
- Supplier: Dongying Oilman Machinery Equipment Co. Ltd.
Share on (1600564413380):
Product Overview
Description
NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod Casing Pipe Drill Pipe
Product Description
WireLine Drill Rods are designed for drilling boreholes for solid minerals at an angle from 90º to 45º in monolithic weakly fissured and fissured rocks
Geological steel pipe-entire length thermal treatment, NC lathe with former cutters
Material:30CrMnSiA or 45MnMoB or XJY850 or BG850
Basic info:
Certification: ISO9001
Price: Negotiable
Model No: AQ BQ NQ HQ PQ
Usage: Wireline drilling
Size:1.5m/3m
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
MOQ: 1 PC
Drill Rod Technical Specification:
Q series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
Spec. | Unit | BQ | NQ | HQ | PQ |
OD/ID | mm | 55.6/46 | 71/60 | 89/77.8 | 114.3/101.6 |
Thickness | mm | 4.8 | 5.5 | 5.6 | 6.35 |
Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
thread length | mm | 44.45 | 44.45 | 44.45 | 63.5 |
thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
thread tooth angle | . | 29 | 29 | 29 | 29 |
tensile resistance(A series) | kn | 400 | 530 | 510 | 565 |
tensile resistance(B series) | kn | 450 | 615 | 625 | 660 |
bore depth | m | 1200 | 1000 | 900 | 800 |

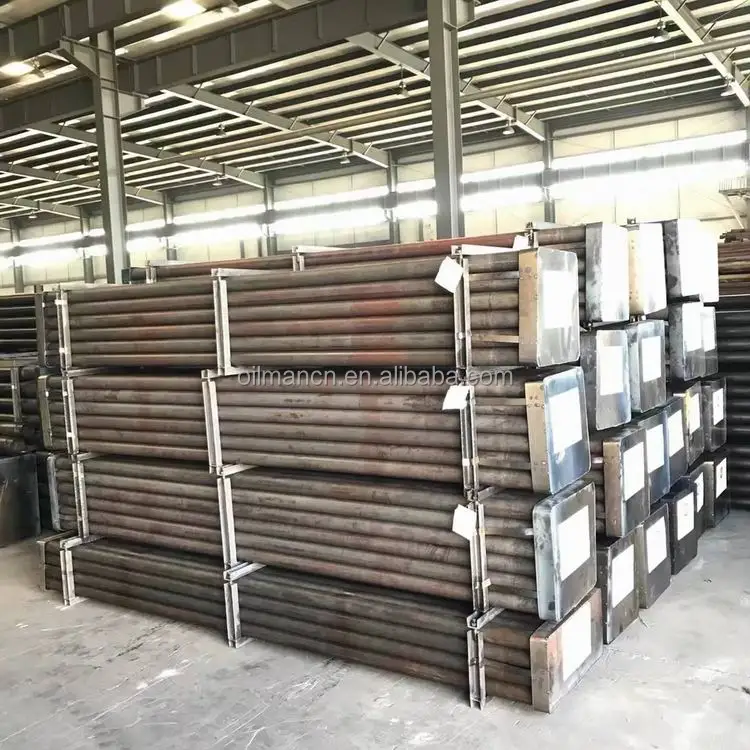

Products Show
NQ HQ PQ BQ NW HW PW Wireline Hardened Drill Rod Casing Pipe Drill Pipe
Packaging & Shipping
Packing: in bundles..
Delivery time: Stock or depending on quantity
Delivery: By truck, train, sea
