3 In 1 Multifunction Beauty Machine IPL RF Nd Yag Dioden 808 Alexandrite Diode Laser Hair Removal
- Category: >>>
- Supplier: Beijing Stelle Laser Technology Co. Ltd.
Share on (1600564426026):
Product Overview
Description
MULTIFUNCTIONAL LASER OPT SHR IPL LASER HAIR REMOVAL SKIN TREATMENT
Short Description:
Short Description: Multifunctional Laser Treatment Laser Multifunction opt shr ipl RF Laser Hair Removal ipl Skin Treatment System. Intelligent high power Diode laser + nd yag laser +E-light 3 in 1 multi-functional laser machine. It has 10 functions all in 1 machine! Laser hair removal Acne treatment Photo rejuvenation Skin whitening Spider vein treatment Pigmentation treatment Tattoo removal Carbon peeling Wrinkle removal Body lifting. Very advanced technology! Other company can only do IPL+ Other Handles machine, but we can do DIODE + Other Handles machine.
Most advanced 3 in 1 Laser.
With 1 machine, it covers 10 functions!
-Laser hair removal -Acne treatment -Photo rejuvenation -Skin whitening -Spider vein treatment -Pigmentation treatment -Tattoo removal -Carbon peeling -Wrinkle removal -Body lifting Multifunction Diode Laser(with AH BH CH handles for yoru chooice)+ND YAG+IPL Specification
Specification | Diode Laser AH | Diode Laser BH | Diode Laser CH | IPL/SSR/SHR/E-light | Nd:Yag Laser | |
Power supply | 2200W | 2400W-3000w | 2000W-3000w | 2000W | 500W | |
Laser power | 500W | 800w-1200w | 800w-1200w | / | 15W | |
Energy/max | 1-166J/cm2 | Big Spot:1-100J/cm2;Small Spot:1-166J/cm2 | Big Spot:90J;Middle Tip:80J;Nose Tip:48J | 1-50J/cm2 | 1000mJ | |
Wavelength | 808nm or Triple Wave | 808nm or Triple Wave | 808nm or Triple Wave | 480/530/590/640/690-1200nm | 532/1064/1320nm | |
Spot size | 15*15mm+25*25mm | 30*15mm+15*10mm | 30*15mm+15*15mm+Φ 8mm | 15*50mm(12*30mm optional) | 6mm | |
Pulse duration | 10-400ms | 10-400ms | 10-400ms | 1-12ms | 10ns-20ns | |
Pulse interval | / | / | / | / | / | |
Frequency | 1-10Hz | |||||
Cooling Level | 1-5 level | |||||
Cooling System | Air + Water + Wind + TEC + Sapphire sking contact cooling | |||||
Operation | 12”TFT True Color Touch Screen | |||||
Electrical input | 90-130V, 50/60HZ or 200-260V, 50HZ | |||||

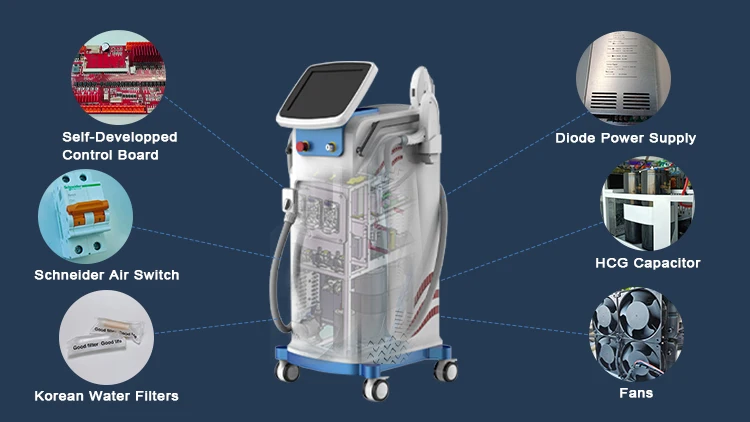

Machine Details
Independent power supply for each system. This well ensures each system has strong and stable energy. Inside structure is very reasonable and every line is clear. All the spare parts are fixed to metal shelf.* 2000W power supply for diode laser system * 2000W power supply for E-light (IPL SHR E-light) system * 500W power supply for ND yag laser system * 100W power supply for RF system.
Spare parts we use
* UK lamp, US laser bars * 8L big water tank with water level monitor * 2 Korea imported water filters * Schneider brand switch * 4 Japan imported big fans + 2 big radiators * Latest brushless DC water pump with lift 15m * Pulse water switch to monitor water flow * Stainless steel board between connector and internal
Handle Details
Diode Laser Handle: 20 Million Shots, US Coherent Laser Source
Both 808nm and Triple Wave available
We offer 3 treatment tips for this 3rd generational intelligent diode laser handle:
*Body Tip: with super big spot size 15*30mm, greatly improved the treatment efficiency and shorten the treatment time. *Facial Tip: with 15*15mm spot size, considered to be the most classical size for facial area treatment, such as face hair removal and lip hair removal. *Nose Tip: with 8mm diameter small spot size, this tip makes nose hair removal possible for many men and women who is bothering by the nose hair.
Latest 3rd generation intelligent diode laser handle with below features:
* 3D smart tips, intelligent recognition * 360° super cooling, truly painless * 3 in 1 spot sizes, covers all areas treatment * Big LED screen, easy operation * Handle inbuilt sensor, detecting real time handle tempreture and output energy. Most advanced and unique diode system in the market!
ND Yag Laser Handle : 3 Million Shots, UK Lamp
* Super long life of 3 million shots, at least 5-10 times longer than others! * UK xenon lamp + Φ6 rod * Big and round spot size, very uniform energy output
We offer 3 tips to cover all customer needs.
532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color 1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color. 1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal.
E-light Handle : Super 1 Million Shots, UK Lamp
* UK imported xenon lamp * TWO EXTRA Korea imported water filters * Unbelievable lifespan of 1,000,000 shots, at least 5 times longer than others! We offer 5 filters for this Elight handle. So that this handle can cover all below functions: 480nm~1200nm: acne treatment 530nm~1200nm: skin rejuvenation 590nm~1200nm: skin whitening, pigment treatment, spider vein treatment 640nm~1200nm: hair removal for fair to yellow skin 690nm~1200nm: hair removal for dark skin
Working Theory
Laser hair removal is a safe and effective procedure. Diode Laser uses a concentrated beam of light (laser) to treat unwanted hair. The diode laser targets the pigmentation in the hair follicle. This damage inhibits or delays future hair growth. Using light selective absorption, the laser has 2 performance on target and surrounding areas. The heat and energy work on the follicle, destroying the areas where produce the hair. The surrounding tissue will not be harmed. We need multiple treatments for laser hair removal because hair growth has a cycle. The hair stems from the follicle will lose its course texture after every treatment. Meanwhile, hair growth speed becomes slower.
The theoretical basis for laser treatment of skin pigmentation and laser beauty is the ”selective photothermolysis” theory proposed by Dr. Anderson RR. and Parrish JA. in the United States in 1983. Selective photothermolysis is the selective absorption of laser energy by certain specific tissue components, and the heat generated by thermal effects destroys these specific tissue components. The body’s own immune and metabolic systems can absorb and eliminate these damaged tissue debris to achieve the goal of treating pigmented diseases. Instantly emit laser energy to efficiently crush the chromophore of the diseased tissue. A part of the (epidermal) chromophore is fragmented and excreted from the epidermis. A part of the chromophore (under the epidermis) is broken into small particles that can be engulfed by macrophages. After phagocyte digestion, it is finally excreted through the lymphatic circulation, and the chromophore of the diseased tissue will gradually decrease until it disappears, while the surrounding normal tissue is not damaged.
E-light technology is a perfect combination of light energy and radio frequency energy. The core technology has three main points: radio frequency + light energy + surface cooling. The skin’s selective absorption of light energy causes the impedance difference between the target tissue and normal skin. When the light energy intensity is low, the target tissue’s absorption of radio frequency energy is strengthened, which greatly eliminates the possibility of excessive light energy heating. It causes side effects and improves the comfort of customers. The treatment depth of traditional IPL equipment is only 4mm under the skin, and the E-light technology can reach 15mm, which greatly increases the treatment range.

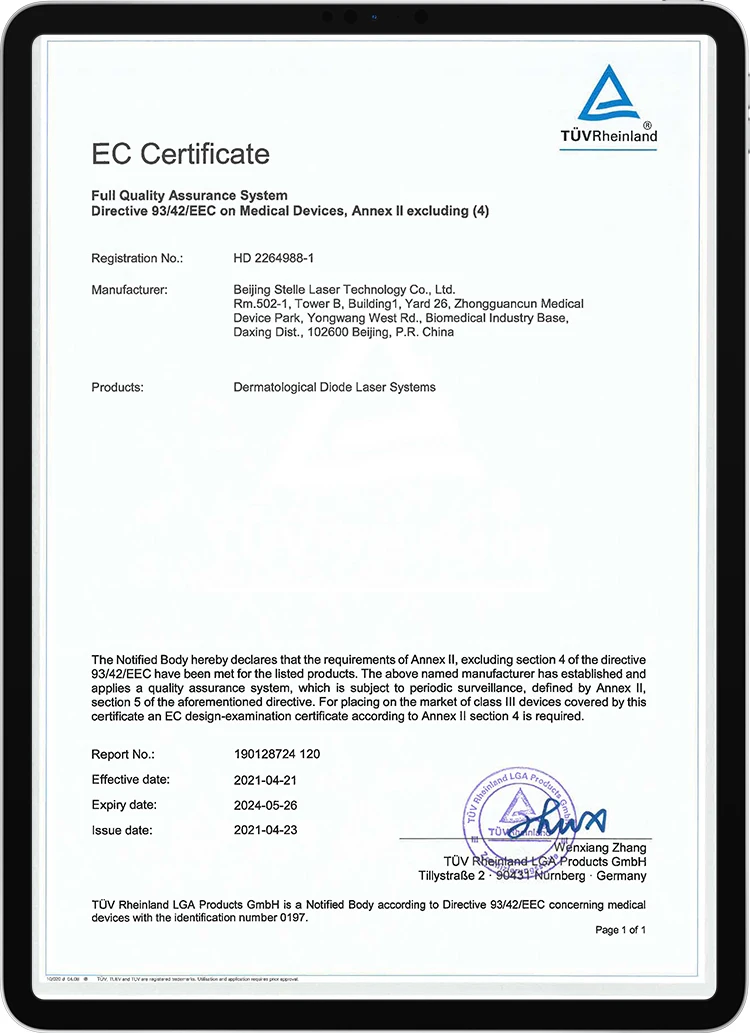

TUV Medical CE and ISO13485
The 2 most strict and hard to get certificates double inspect and ensure machine quality and factory control. In whole China, no more than 10 companies who have Medical CE.
Feedback
Company Profile
Beijing Stelle Laser Technology Co Ltd is the leading beauty machine manufacturer from China which established in 2010. Our products cover full range beauty equipment such as Diode laser 808nm, q switch ND Yag laser, IPL SHR E-light and multifunctional beauty machine combining above handles. In China, we are first factory to start combine diode laser handle with other handle, we open the market, because it is hard to combine diode laser handle with other handles, before 2020, only our factory can do diode laser 2in1, diode laser 3in1, diode laser 4in1. Now China market a few company can do diode laser 2in1, such as diode+ND Yag, diode+IPL, BUT THEY CAN’T DO DIODE 3IN1 machine, such as diode+ND Yag+IPL, THEY ALSO CAN’T DO DIODE 4IN1 LASER , such as diode+ND Yag+E-light+RF machine and we can do it about 11 years ago, they can only do it in 2020, their machine quality is not stable, machine quality not high, after-sale problem is high, but we already developed many years, now our machine is stable and high quality, no after-sale problem. We are very professional production diode laser machine. We have three different diode laser handles. We have 300w 500W 600W 800W 1000W 1200W 1400W 1600W. We have portable diode laser 808nm + IPL and diode laser 808nm+ ND Yag , VERTICAL diode + IPL+laser 980nm and diode + ND Yag+laser 980nm, and diode + ND Yag + E-light+laser 980nm, and diode + ND Yag + E-light+RF+laser 980nm,only our factory can do it in China
