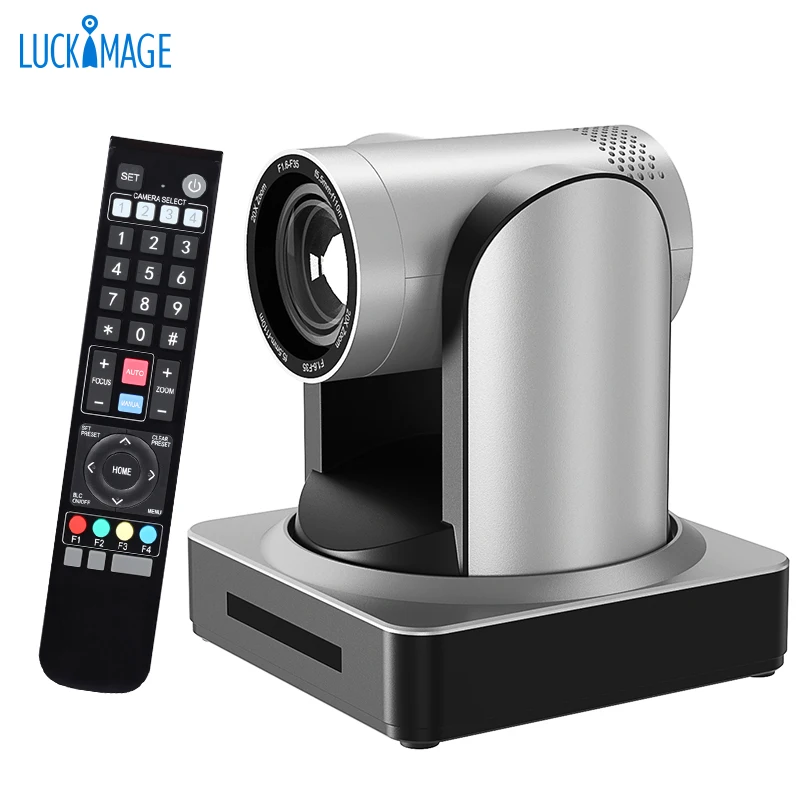

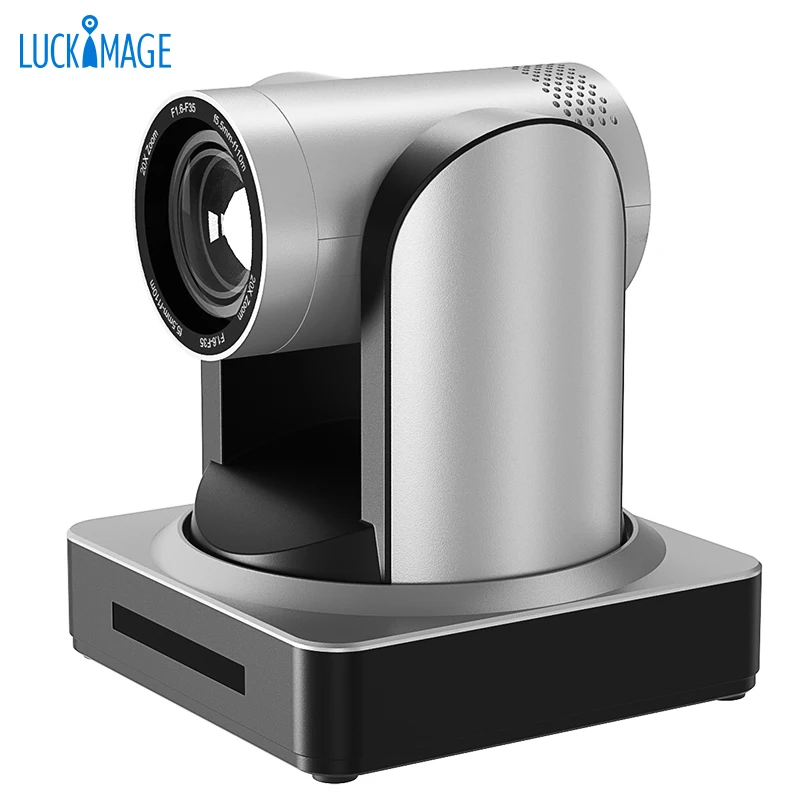

Luckimage 30X 20x optical Zoom Video Conference System PTZ camera 4k HDI USB video conference ptz
- Category: >>>
- Supplier: Shenzhen Anywii Electronics Technology Co. Ltd.
Share on (1600564431802):
Product Overview
Description
Specification
Parameter/Model | HC730UH-20 | HC730SH-30 | ||
Camera and lens parameters | ||||
Image sensor | 1/2.8 inch high quality CMOS sensor | |||
Effective pixels | 2.07 million, 16:9 | |||
Video Signal | HDMI/SDI/HDBaseT Interface Video Format: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 USB3.0 interface video format USB3.0: 1920×1080P60/50/30/25; 1280×720P60/50/30/25; 960×540P30; 640×360P30; 640×480P30; 352×288P30; 800×600P30; USB3.0 is compatible with USB2.0: 960×540P30; 640×360P30; 1280×720P10/15; 720×576P50; 720×480P60; 640×480P30; 352×288P30; 800×600P30; USB2.0 interface video format 176×144/320×240/320×180/352×288/640×480/720×480/720×576/640×360/800×600/960×540/ 1024×576/1024×768/1280×720/ 1920×1080P30/25/20/15/10/5 | |||

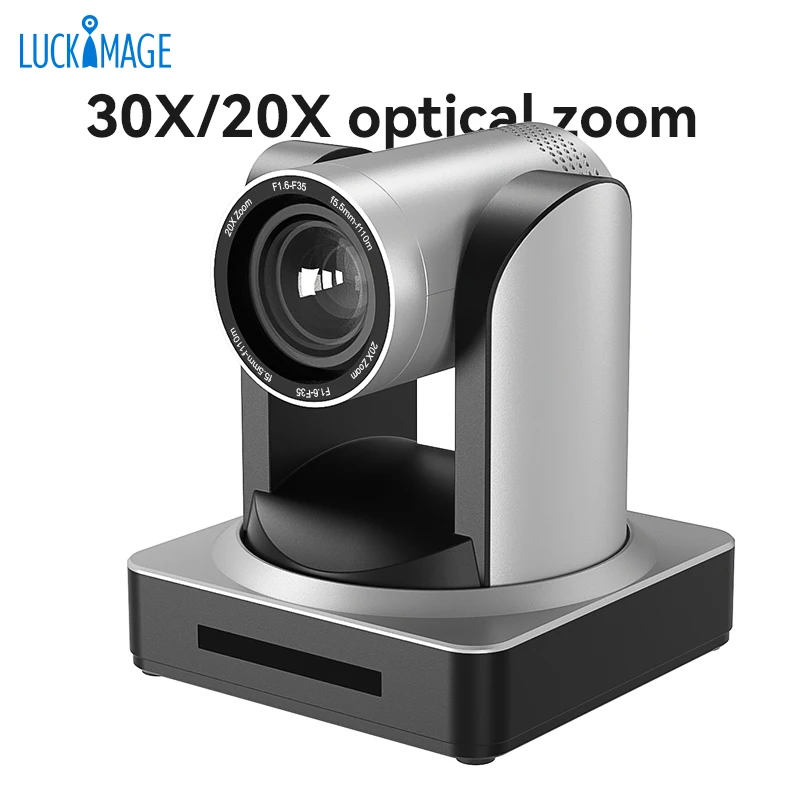

Lens optical zoom | 20x optical zoom f=5.5～110mm | 30x optical zoom f=4.3～129mm | ||
Viewing angle | 3.3° (narrow angle) 54.7° (wide angle) | 2.34° (narrow angle) 65.1°(Wide angle) | ||
Aperture Factor | F1.6 – F3.5 | F1.6 ～ F4.7 | ||
Digital zoom | 10x | |||
Minimum Illumination | 0.5Lux(F1.8, AGC ON) | |||
Digital Noise Reduction | 2D﹠3D Digital Noise Reduction | |||
White Balance | Auto/Manual/One Push White Balance /3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | |||
Focus | Auto/Manual/One key focus | |||
Aperture | Auto/Manual | |||
Electronic Shutter | Auto/Manual | |||
Backlight Compensation | On/Off | |||
Dynamic Range | Off/Dynamic Level Adjustment | |||
Video Adjustment | Brightness, Hue, Saturation, Contrast, Sharpness, Black and White Mode, Gamma Curve | |||
Signal-to-noise ratio | >55dB | |||
Interface function performance | ||
Model interface | HC730SH model: SDI, HDMI, LAN, RS232 (loop through), RS485, A-IN, NDI (optional) HC730UH model: USB2.0, USB3.0, HDMI, LAN, RS232(input) | |
Video output interface | HDMI, SDI, LAN, USB3.0, USB2.0 | |
Image code stream | Dual code stream output | |
Video compression format | H.264+, H.264 | |
Audio input interface | A-IN: two-channel 3.5mm line input | |
Audio compression format | AAC, MP3, G.711A | |
Network interface | 100M network port (10/100BASE-TX) 5GWiFi (optional) | |
Network protocol | RTSP, RTMP, ONVIF, GB/T28181; support network VISCA control protocol; Support remote upgrade, remote restart, remote reset | |
Control interface | RS232 (loop through), RS485 | |
Control Protocol | Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400 | |
Power interface | HEC3800 power socket (DC12V) 2pin waterproof aviation head power socket (RF model) | |
Power adapter | input AC110V-AC220V output DC12V/1.5A | |
Input voltage | DC12V±10% | |
Input current | 1A (max) | |
Power consumption | 12W (maximum) | |
PTZ parameters | ||
Horizontal rotation | -170°～+170° | |
Tilt rotation | -30°～+90° | |
Horizontal control speed | 0.1 ~ 60°/sec | |
Pitch control speed | 0.1～30°/sec | |
Preset Speed | Pan: 60°/sec, Tilt: 30°/sec | |
The number of preset positions | The user can set up to 255 preset positions (10 remote control) | |
Product Description
30X optical zoom & 1080P 60fps
Excellent Image Quality
Excellent Image Quality
30x optical zoom with accurate, smooth. With 1/2.8-inch 2.07 megapixel high quality image sensor, maximum resolution up to 1920x1080, and output frame rate up to 60 fps. Holding the details while the effect is more realistic.
30X optical zoom & 1080P 60fps
30x optical zoom with accurate, smooth. With 1/2.8-inch 2.07 megapixel high quality image sensor, maximum resolution up to 1920x1080, and output frame rate up to 60 fps. Holding the details while the effect is more realistic.
Meticulous Image Processing
Adopting ISP technology, 3A automatic image processing (auto-focus, auto-exposure, and auto-white balance), delivers Brilliantly

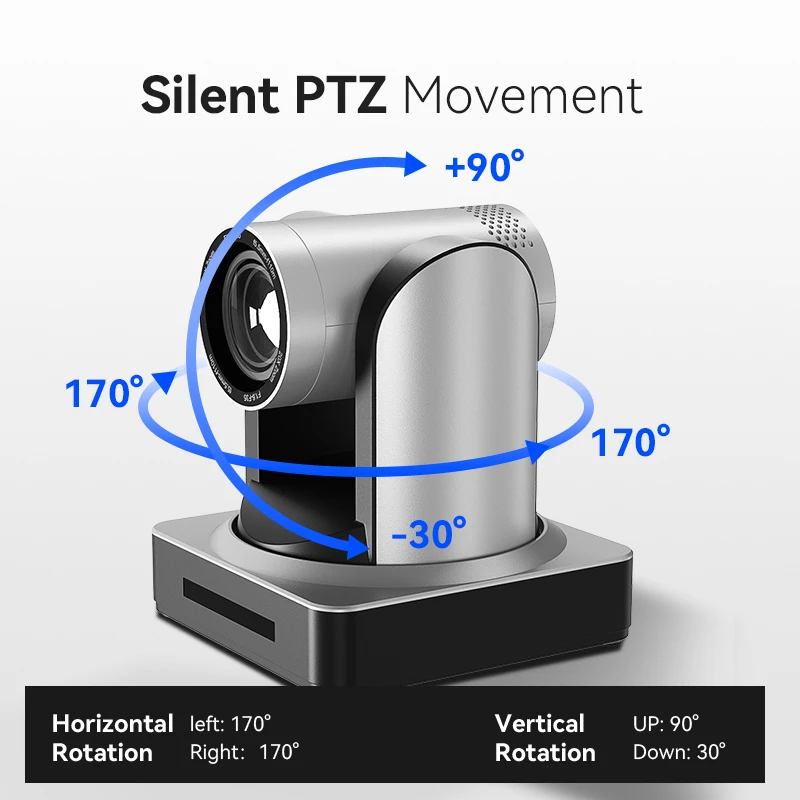

Silent PTZ Movement
Adopt high precision motor drive controller to ensure the smooth operation of the head and no noise.Pan/Tilt Rotation ±170°,-30°～+90° Pan/Tilt Speed: adjustable Preset Speed: 1~10 adjustable

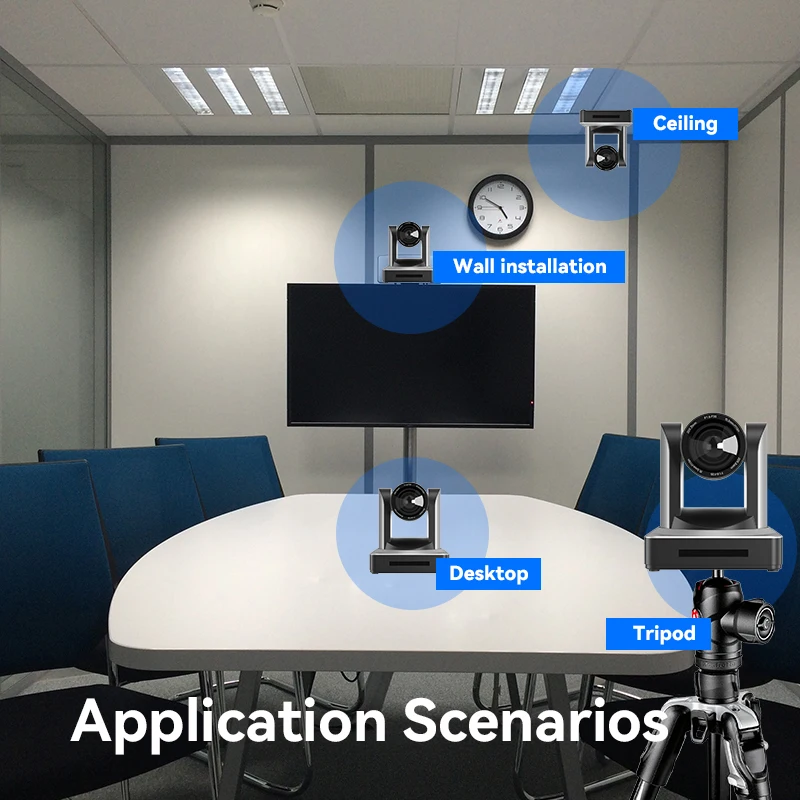

Application Scenarios
The versatility of installation also allows the product to be used perfectly and appropriately in different places.

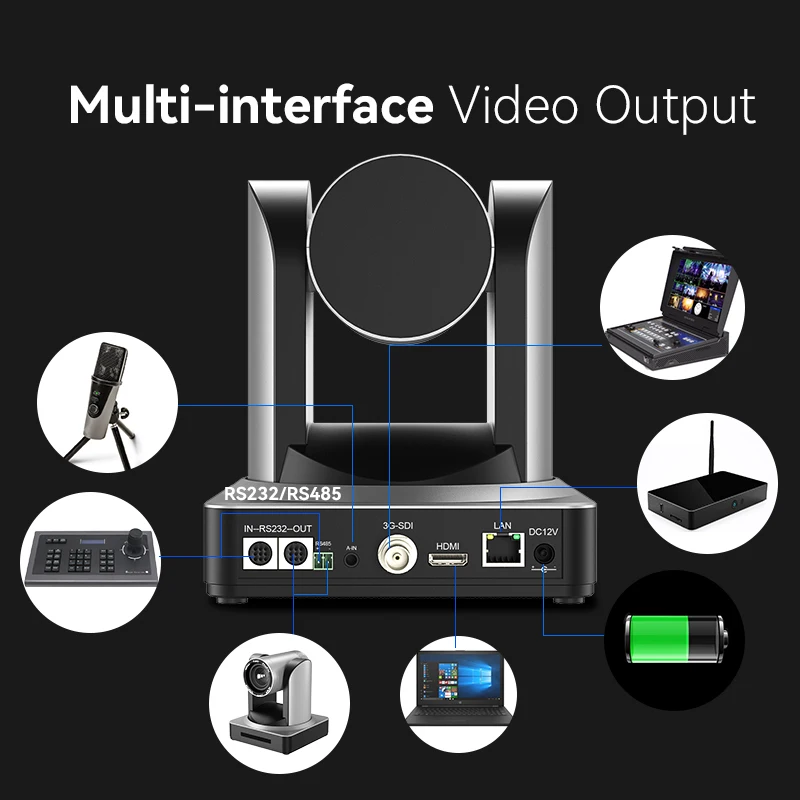

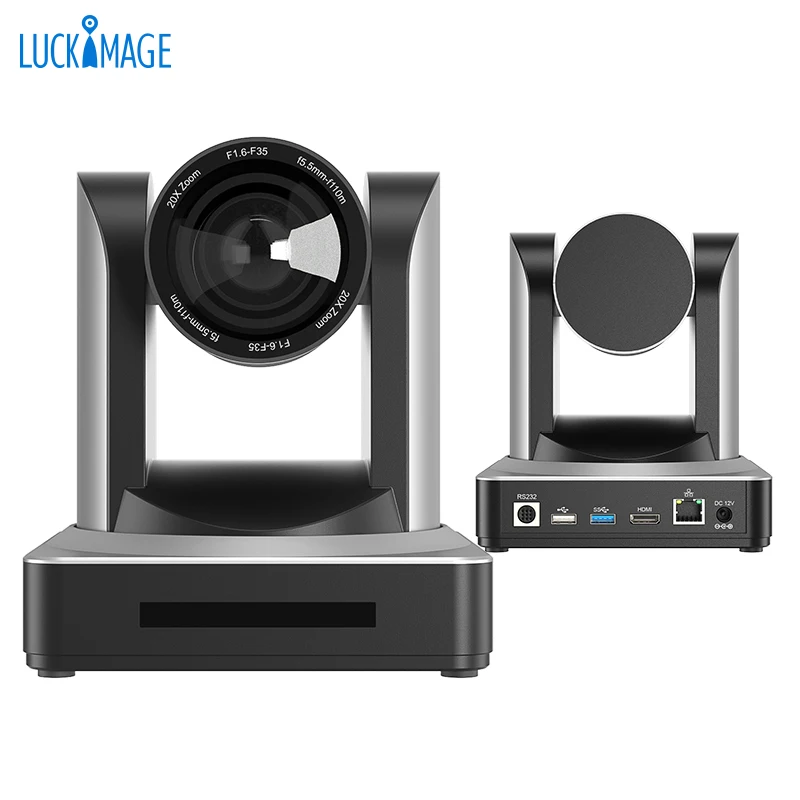

Multi-interface Video Output
3G-SDI, HDMI and USB Video Output Simultaneously，meet most scenario applications.

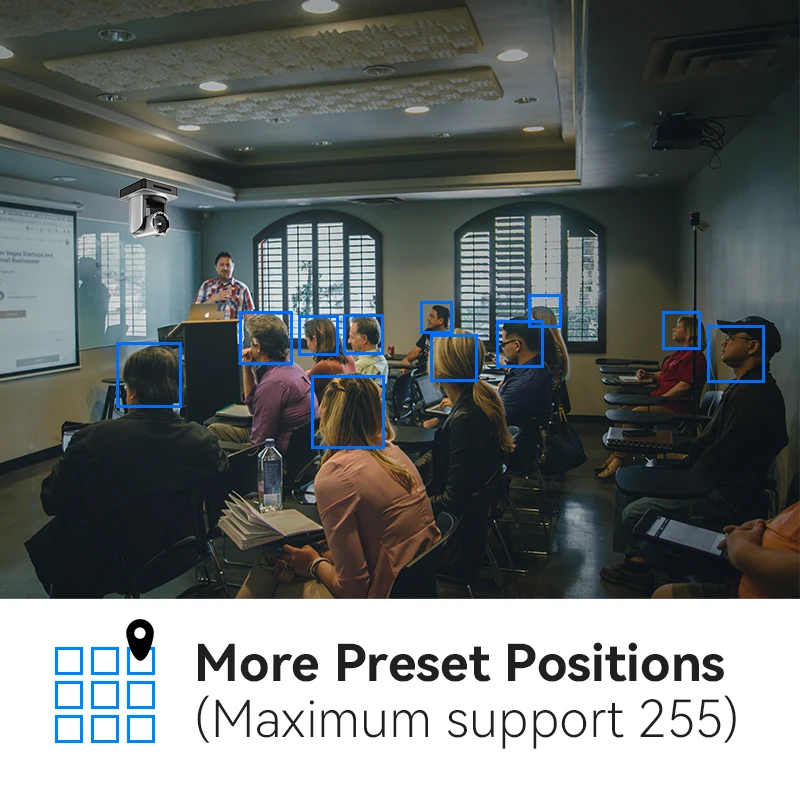

More preset positions

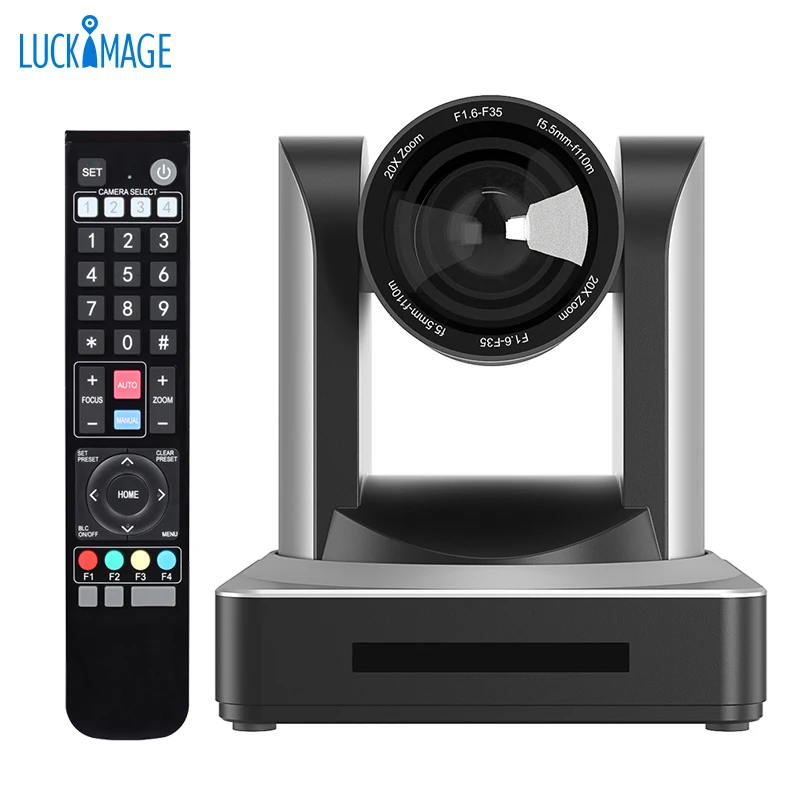

The remote control can be preset to 10 positions.Maximum support 255
Powerful Compatibility
Compatible with most conference video software. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 camera control, and image switch.

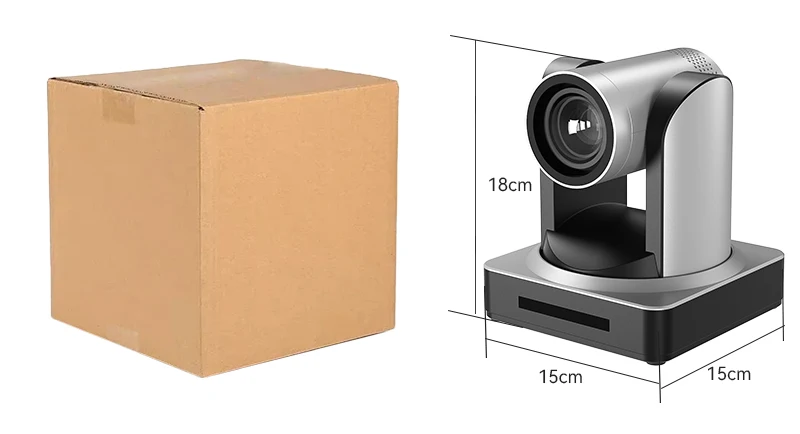

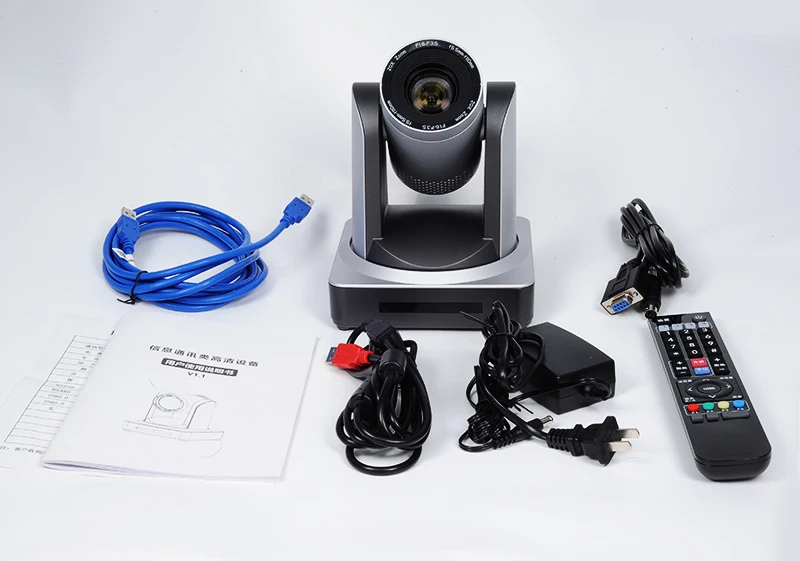

Packing & Delivery
