Price:$5.50 - $10.00

Quantity:


Product Overview

Description







Kaitao optics can provide lenses made of optical glass materials (such as K9, BK7, B270, etc.) for visible spectrum band applications, as well as lenses made of optical crystal materials (such as zinc selenide, zinc sulfide, calcium fluoride, fused quartz, etc.) for near-infrared / infrared / ultraviolet spectrum band applications. Lens products are widely used in optical imaging, laser detection, optical communications, life sciences, optical lighting and other related fields. Kaitao optics has a large number of standard lenses in stock, which can be supplied from stock, and can also customize various optical lenses for you according to your application needs.

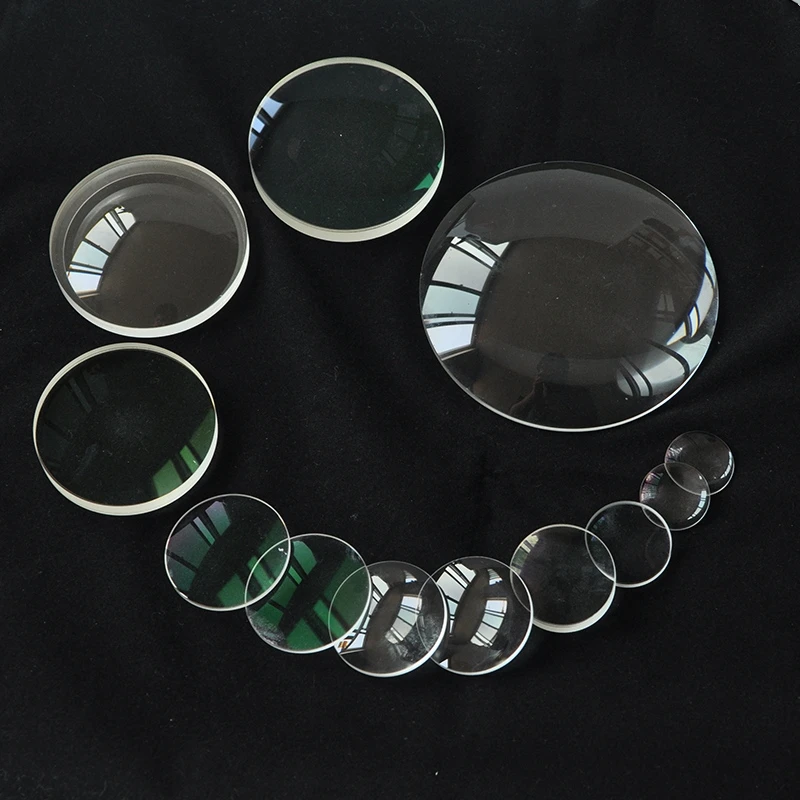

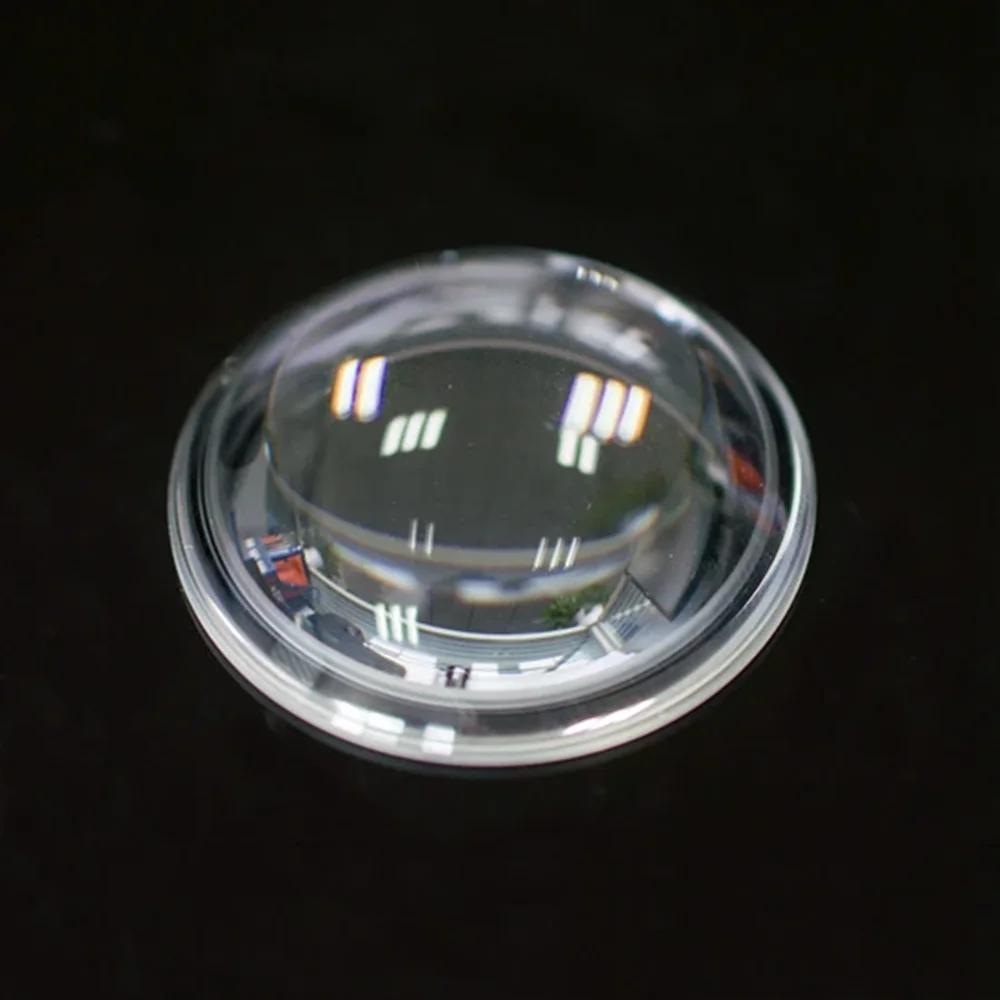

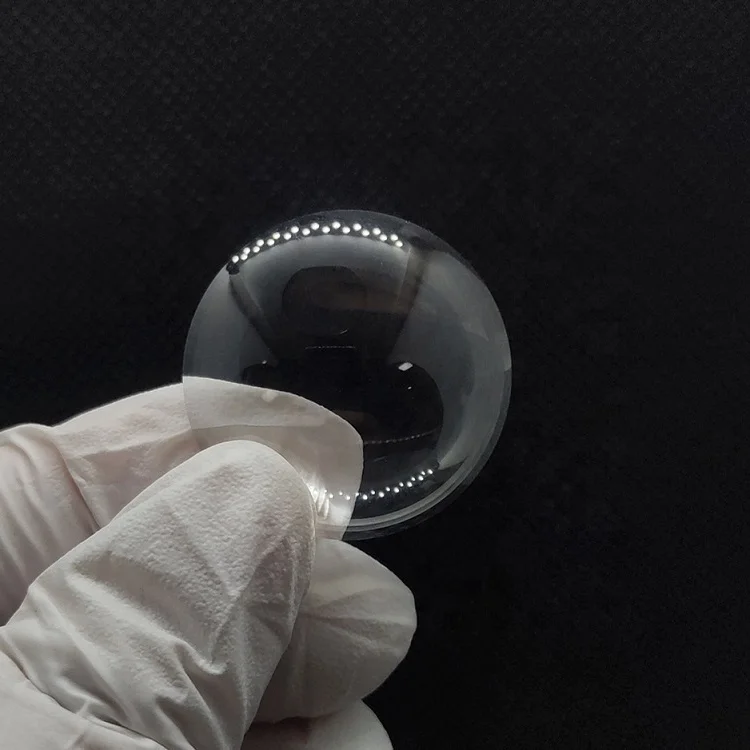

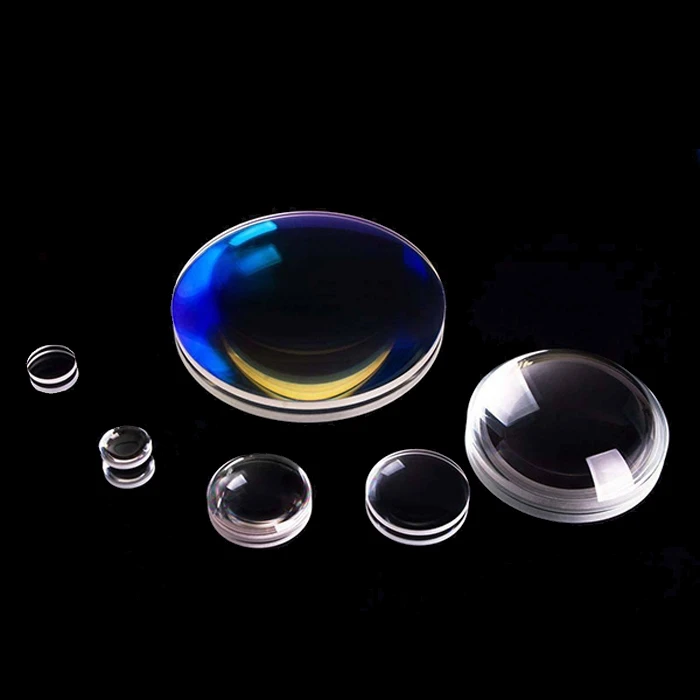

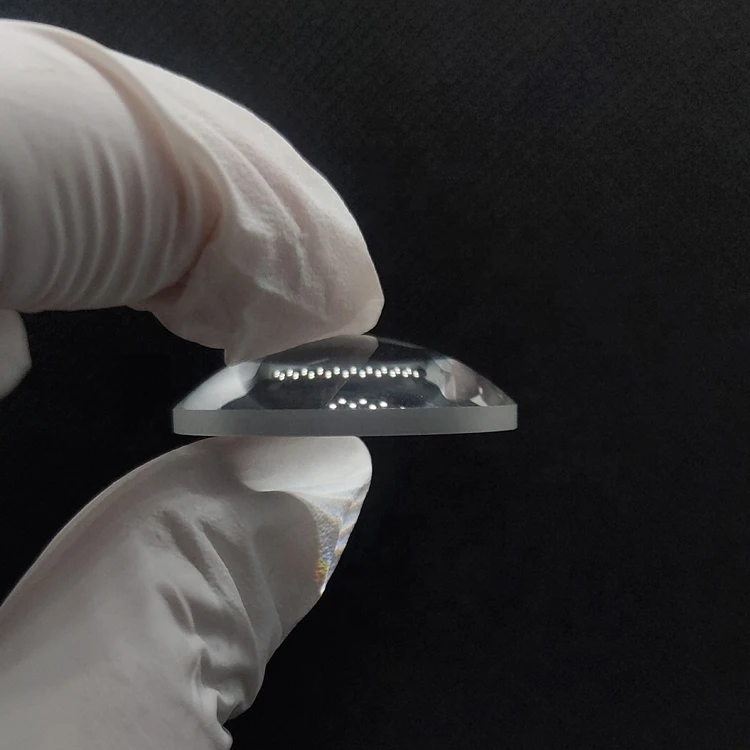

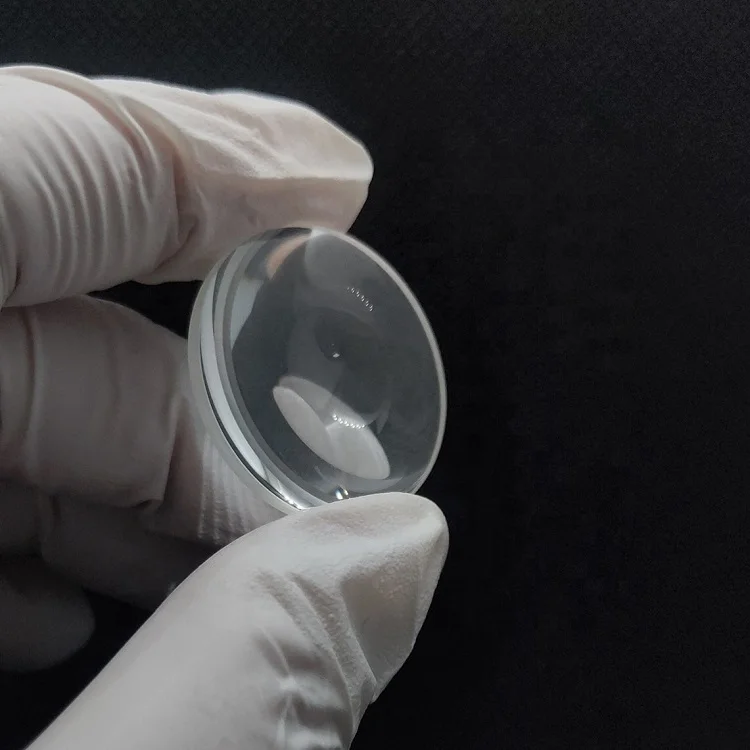

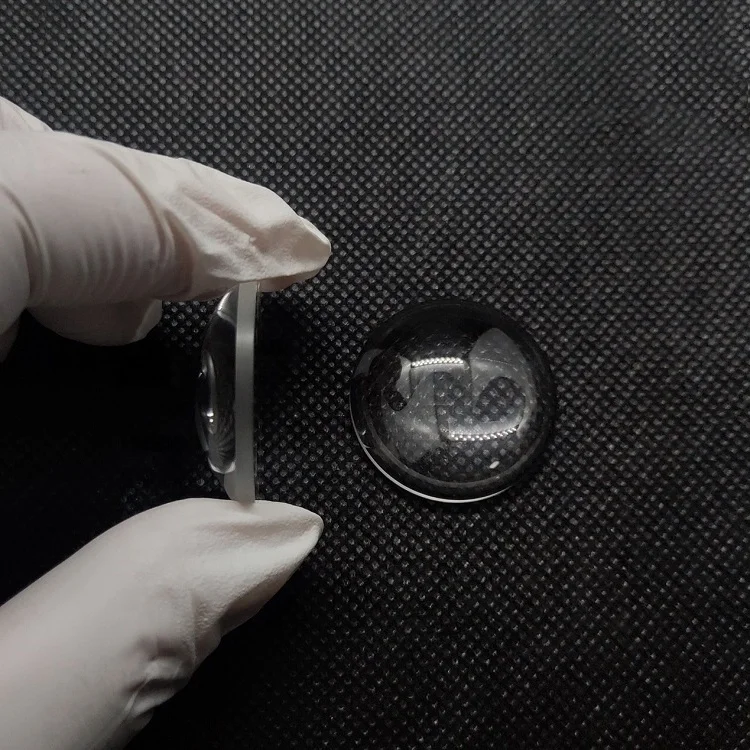

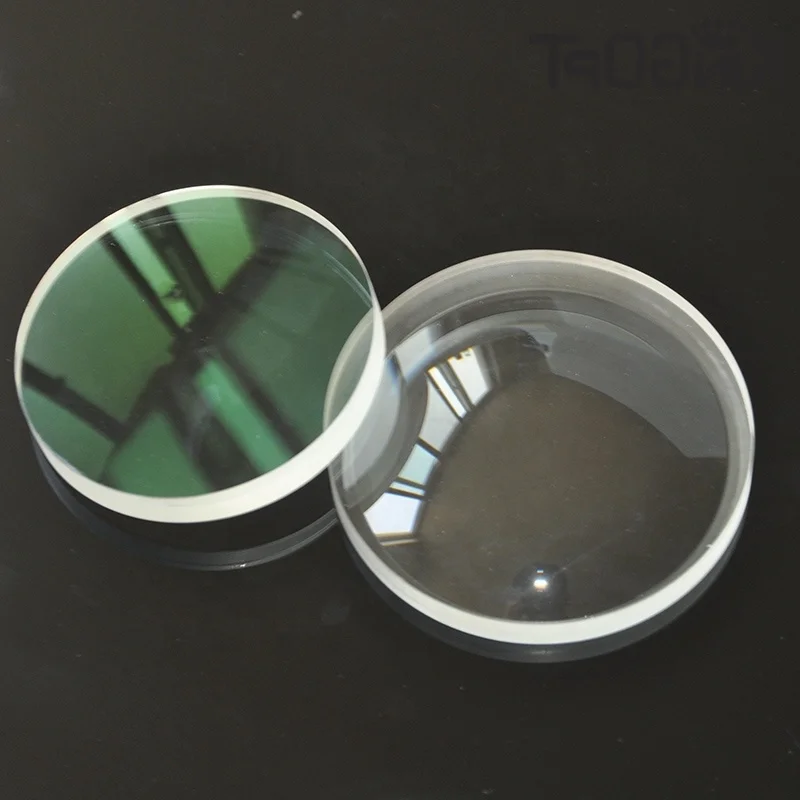

K9 Plano convex (PCX) lens is a plano convex lens based on K9 optical glass.

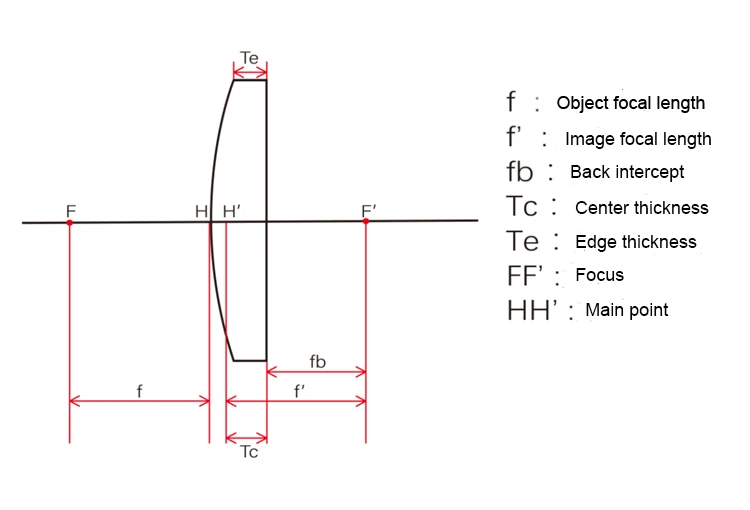

K9 optical glass is an optical material with excellent wide spectral transmission. It has high transmittance to light at the wavelength of 350nm-2000nm, high hardness, can withstand a variety of physical and chemical stimuli, and low content of bubbles and impurities. Therefore, it is often used as the substrate of various optical elements. K9 flat convex lens will focus the light into a point. Its characteristic is that the focal length is positive, one side is plane, and the other side is convex. It is often used for aiming and focusing monochromatic light sources. When in use, the convex surface is facing the incident light. K9 planoconvex lens combined with other lenses can be used for beam shaping, beam collimation, beam expansion, beam contraction and other different applications.

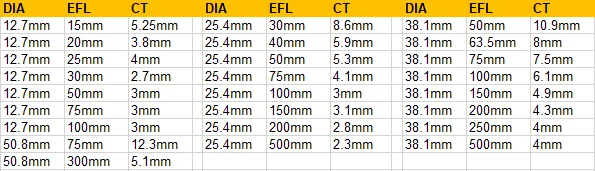

Kaitao optics provides K9 flat convex lens lenses of various sizes and focal lengths, which can be supplied from stock. At the same time, coated and uncoated products are available. Broadband antireflection film can be used in VIS (visible light) band, NIR (near infrared) band and SWIR (short wave near infrared) band to meet various applications in different bands under different scenes.


Material
K9 / BK7 / quartz / JGS1
Design Wavelength
587.6nm
Diameter Tolerance
+0.0/-0.1mm
Center Thickness Tolerance
±0.2
Surface Accuracy
λ/4 @632.8nm
Focal Length Tolerance
±2%
Centering Tolerance
3 arcmin
Surface Quality
40/20-60/40
Bevel
0.2X45°
Coating
NO/AR/AF
























Workshop environment





Workshop
New membrane system design, IAD Hard Coating, Cleanroom-furification roduction environment, High precision test equipment testing.






Inspection
Advanced testing equipment and methods are important guarantee for the production of high-precision products.





Production workshop
Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the
product process to ensure product quality, and reduce losses and reduce costs!




Packing Details : carton packaging
Delivery Details : 3-15 days after ordering








High quality
Passed the ISO9001:2015 quality system authentication and ISO14001:2015 quality system authentication.







Favorable Comment
High quality can be customized according to customer needs




Favorable Comment
Products are sold globally, provide one-stop shopping for optical lenses, and are well received by users





Favorable Comment
Strict quality control, professional instrument testing




Q: Are you trading company or manufacturer ?
A: We are factory.


Q: Where is your factory located ?
A:1st Floor, Building A,No. 18, Zone B, Dashuitian Industry Zone, Guanlan, Longhua District Shenzhen Guangdong China


Q: What's the material of your products ?
A: K9 / JGS1 / JGS2 / Quartz /Optical Glass


Q: If i place an order now ,how long would it be before i got delivery ?
Depending on the number of orders, the normal time of 3-15 days, the specific time can contact us directly


Q. How do you package the product?
A: Generally speaking, we put the goods in a neutral white box and a brown carton. Can be packaged according to your needs, you need to contact us in advance
