Product Overview
Description
Product Description
Charge and discharge voltage range | 5-106v | |
Charge and discharge current range | 0-50a | |
Power input - AC single-phase AC 220V, frequency range | 40-60hz. | |
Battery input - DC input voltage | 10-60vdc | |
Host operation mode | touch screen | |
Display screen | 7-inch TFT LCD, resistive touch screen, resolution 1024x600 | |
Data communication | rs485x1 | |
Internal data storage | 128Mbit | |
Voltage measurement accuracy | ± 0.5% FS + 0.1V maximum range 100V | |
Current measurement accuracy | ± 1% FS + 0.1A, maximum range 200A | |
Group voltage display accuracy | 0.01V | |
Group current display accuracy | 0.1A | |
Discharge current control accuracy | ± 1% FS | |
host protection trigger shutdown protection | Over temperature, over-current and out of control current | |
Emergency stop actuator | air switch | |
Reverse connection protection support | Power failure of abnormal protection power line and main cable | |
Overtemperature protection | resistance box overtemperature 85 ℃; Radiator overtemperature 75 ℃ | |
Alarm prompt | LCD + buzzer | |
Safety test—Voltage withstand test | ||
AC input housing | 2200vdc 1min AC input housing | |
DC input output | 2200vdc 1min DC input housing | |
Heat dissipation | forced air cooling | |
Temperature | ||
operating temperature range | -5~50 ℃ | |
Storage temperature | -40~70 ℃ | |
Humidity relative humidity | 0~90% (40 ± 2 ℃) | |
Altitude | rated altitude: 2000 meters | |
Product Overview

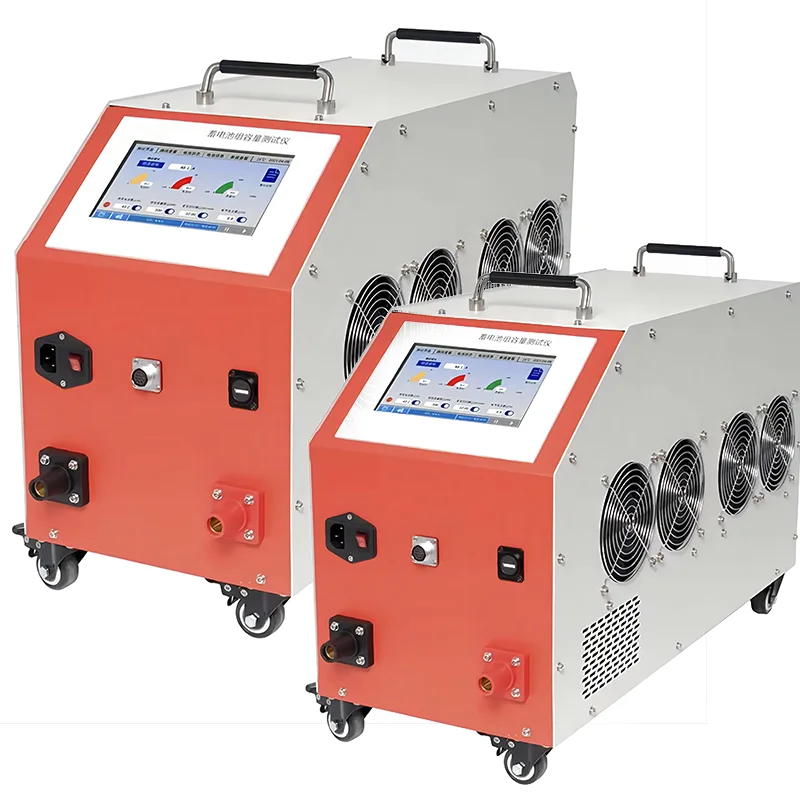

Battery charge and discharge tester is a test equipment integrating constant current discharge, intelligent charging and charge and discharge cycle of battery, which is used for regular battery pack detection and backward battery re living. It is used in telecommunication, base station, electric power and other departments. It is also suitable for the testing and cycle activation of traction battery packs of various types of forklifts, golf carts and trains.
Order | quantity | Product Name | remarks |
1 | 1 | Battery discharge tester host | |
2 | 1 | USB drive | 16G |

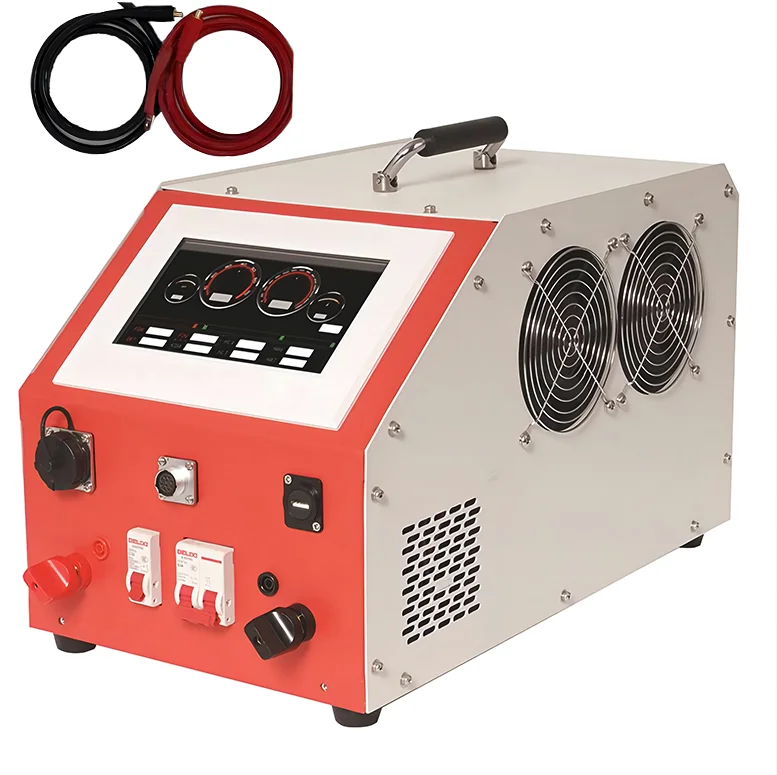

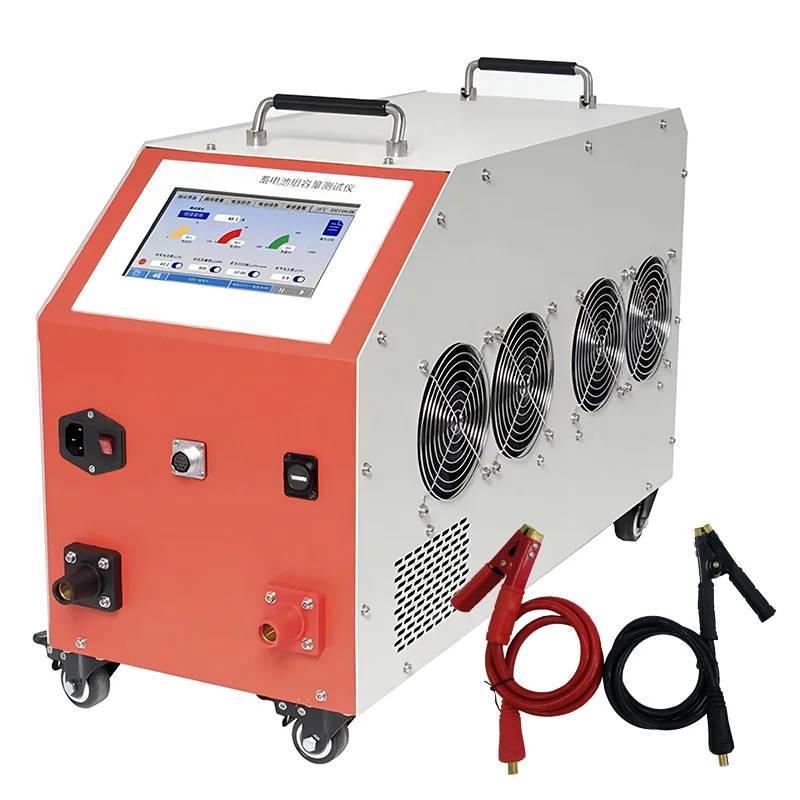

3 | 2 | Discharge test cable | One red and one black |
4 | 1 | AC220V power line | |
5 | / | Monomer monitoring module | 2v/6v/12v universal, optional according to demand |
6 | 1 | instructions | |
7 | 1 | Aluminum alloy packing box | |
8 | 1 | instructions | |
9 | 1 | warranty card | |
10 | 1 | certificate |
Products Features
The product uses a customized nickel chromium alloy resistor as the load source. Low resistance value; It can realize higher current discharge, and the customized appearance makes the power density higher. high-precision; The accuracy can be controlled within ± 0.001 Ω, and it can be used as a load source to stabilize the discharge process. Low temperature coefficient; It is less affected by the temperature coefficient and has strong adaptability to the environment. Withstand current shock; It has strong current resistance, can quickly respond to the impact of large current, and the discharge process is reliable.
Intelligent chip control. The discharge process is intelligently controlled and automatically adjusted to follow the voltage drop of the battery to ensure constant current discharge. The voltage of a single battery is collected in real time and displayed in a curve way, which is convenient for evaluation and analysis. At the same time, the battery voltage state is intelligently analyzed and evaluated. Intelligently calculate the conversion between discharge capacity and discharge hour rate to realize the effect of battery capacity state evaluation. Various threshold values can be set for intelligent judgment.

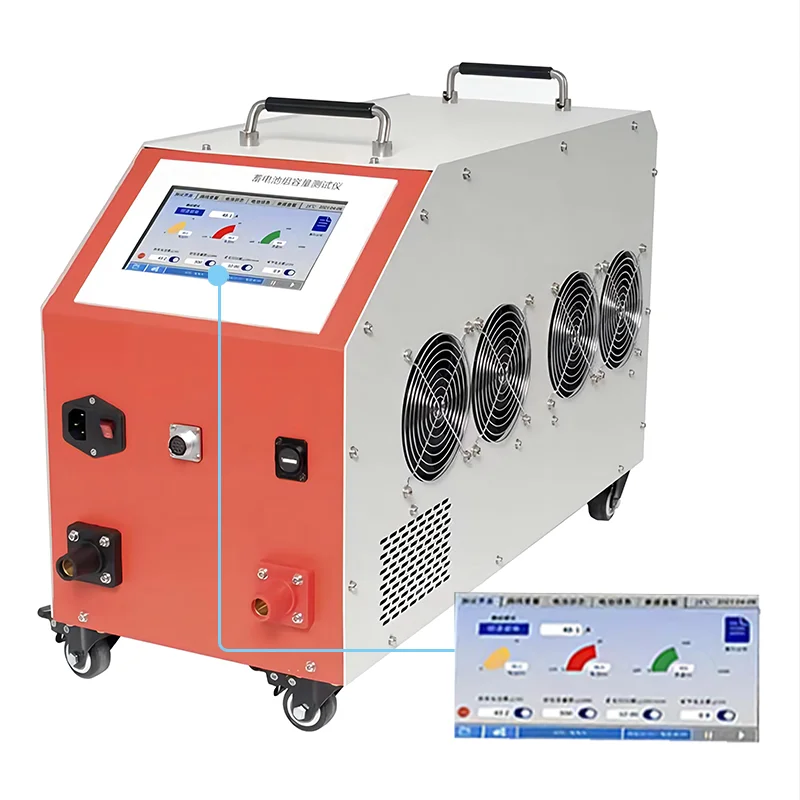

7-inch large LCD touch screen: it adopts a large-size touch screen with a resolution of 1024x600, which can be clicked directly on the screen, which is simple and clear. Strong anti-interference ability.

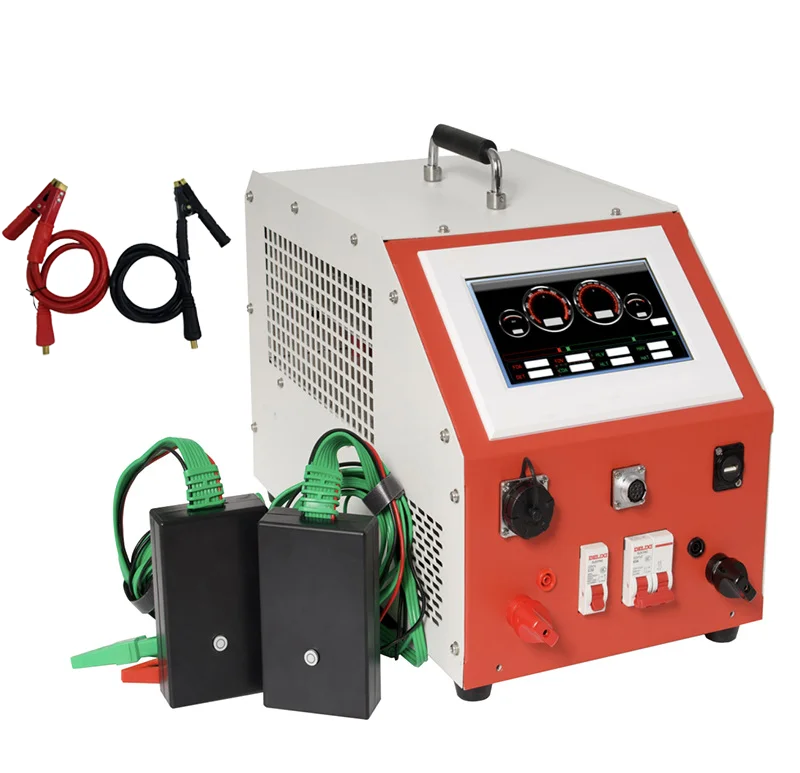

Lora wireless monomer monitoring module (optional): compatible with 2v/6v/12v monomer voltage monitoring. Each wireless monitoring module can monitor six units at the same time. Compared with the method of monitoring the voltage of one unit per module, the number of modules that need to be configured is only 1/6 (48V requires only four monitoring modules), which makes the wiring operation of wireless modules easier.
In the process of battery charging and discharging, the voltage of each cell is detected and displayed in real time: the change track of the voltage histogram of each cell is displayed on the host screen, which supports the display of data tables, and can automatically display the cells with the highest and lowest voltage in real time to help you quickly analyze the trend of cell change.
Check the charge discharge curve: you can review the voltage and current curve of the battery pack during the discharge process.
Data transfer: the host is configured with U-disk data transfer, and the data analysis software can analyze the data and support report generation.
Intelligent chip control. The discharge process is intelligently controlled and automatically adjusted to follow the voltage drop of the battery to ensure constant current discharge. The voltage of a single battery is collected in real time and displayed in a curve way, which is convenient for evaluation and analysis. At the same time, the battery voltage state is intelligently analyzed and evaluated. Intelligently calculate the conversion between discharge capacity and discharge hour rate to realize the effect of battery capacity state evaluation. Various threshold values can be set for intelligent judgment.
7-inch large LCD touch screen: it adopts a large-size touch screen with a resolution of 1024x600, which can be clicked directly on the screen, which is simple and clear. Strong anti-interference ability.
Lora wireless monomer monitoring module (optional): compatible with 2v/6v/12v monomer voltage monitoring. Each wireless monitoring module can monitor six units at the same time. Compared with the method of monitoring the voltage of one unit per module, the number of modules that need to be configured is only 1/6 (48V requires only four monitoring modules), which makes the wiring operation of wireless modules easier.
In the process of battery charging and discharging, the voltage of each cell is detected and displayed in real time: the change track of the voltage histogram of each cell is displayed on the host screen, which supports the display of data tables, and can automatically display the cells with the highest and lowest voltage in real time to help you quickly analyze the trend of cell change.
Check the charge discharge curve: you can review the voltage and current curve of the battery pack during the discharge process.
Data transfer: the host is configured with U-disk data transfer, and the data analysis software can analyze the data and support report generation.
Company Profile
Certifications
Product packaging
FAQ
1. How is our product? We are manufacturer, so preferential price and high quality can guarantee. 2. How soon to get price? Usually provide within 6 hours once receiving inquiry. If you are very urgent, please call us then we will do in priority. 3. Whal is your terms of delivery? EXW,FOB, CFR, CIF, ect. Pls select your most conveient and cost effective. 4. When there is difficulty in using ? We will first provide equipment operation manual, operation video, or provide training through remote video call. Ifnecessary, engineers will serve on door. 5. What about the leading time for production? That depends on order qty and product item. For normal items, usually within 3 working days. Delivery time is determined by the logistics , generally is 5-7 days. 6.How to send? For most of our customers, we provide door-to-door service. You only to through import customs clearance proceduresand pay the import tariff. 7. How is packing and will the goods be damaged? We will pack standard export packing for everyequipment, so far there is no damage yet, pls no worry. |
