GPS location gateway support MQTT HTTP LET 4G Cellular WiFi Ethernet upload data to cloud BLE 5.0 Long Range Gateway

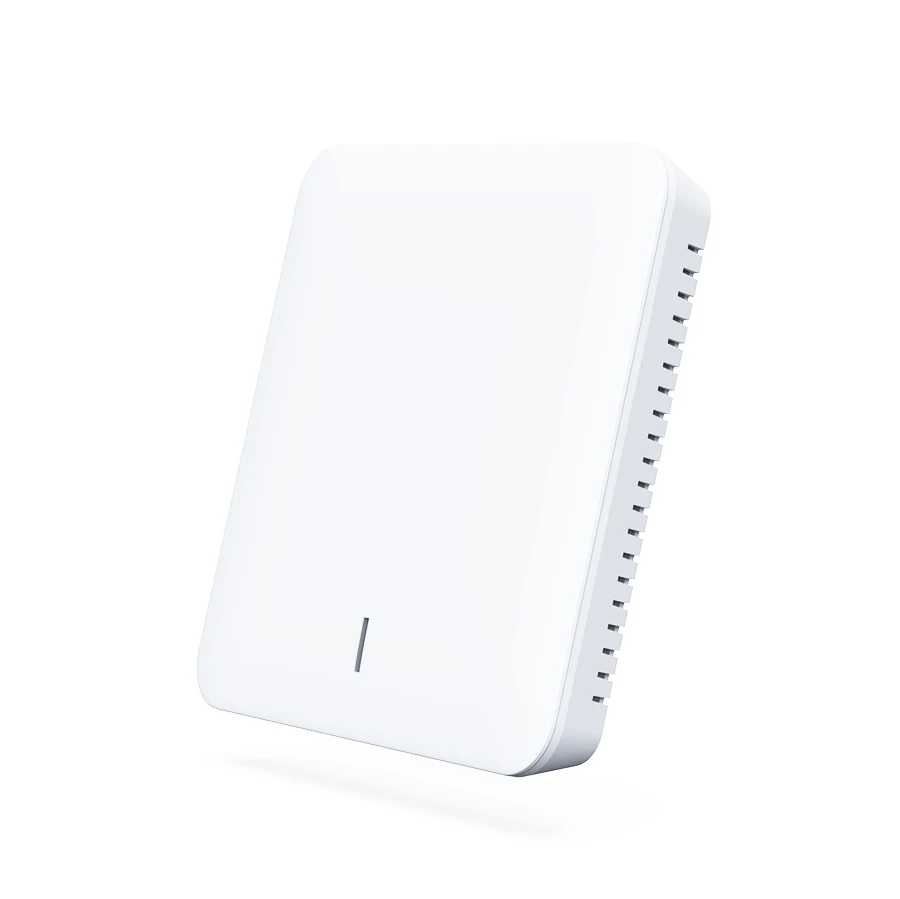

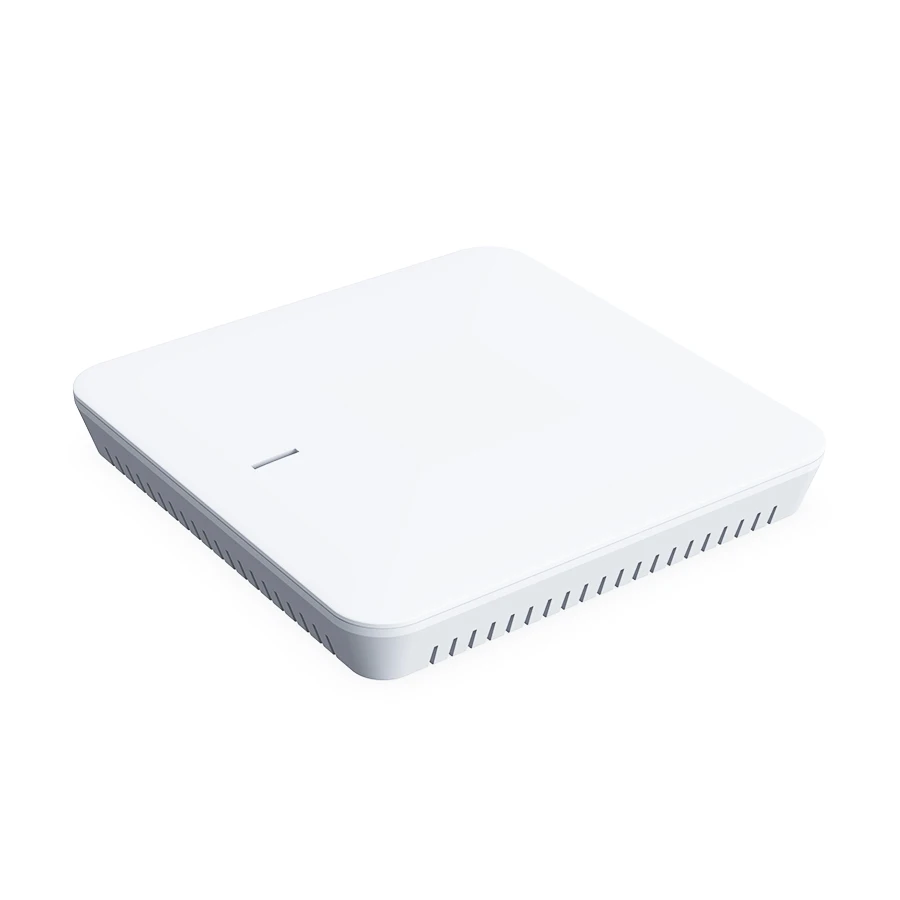

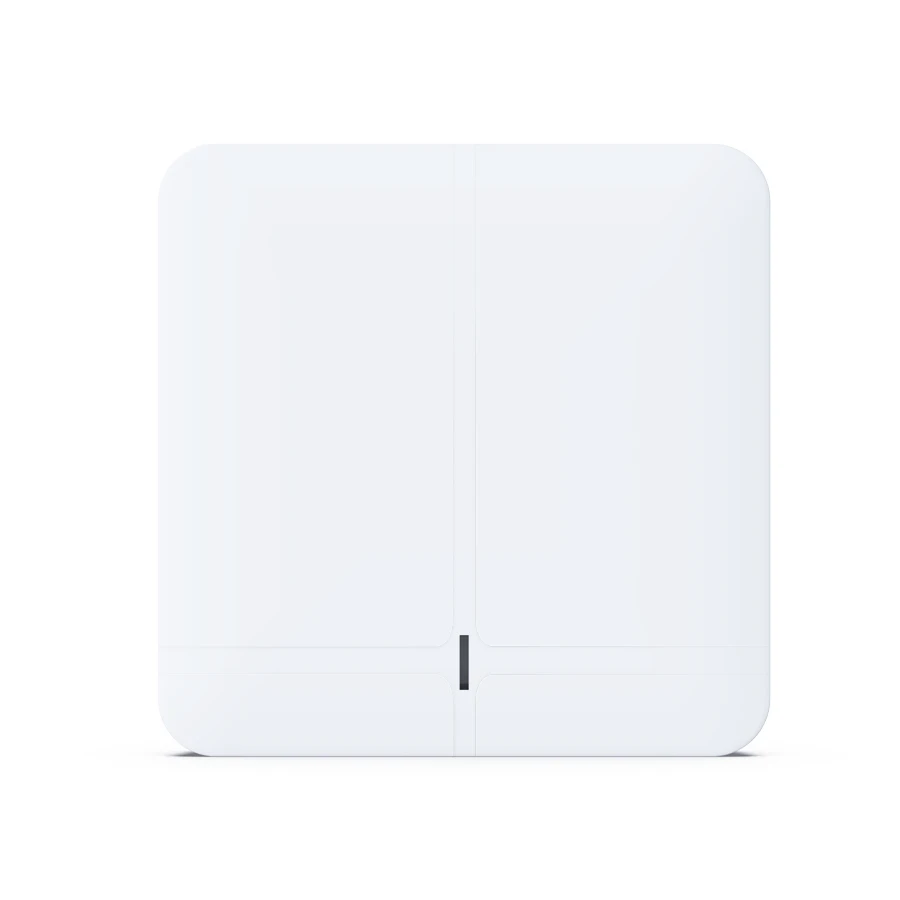

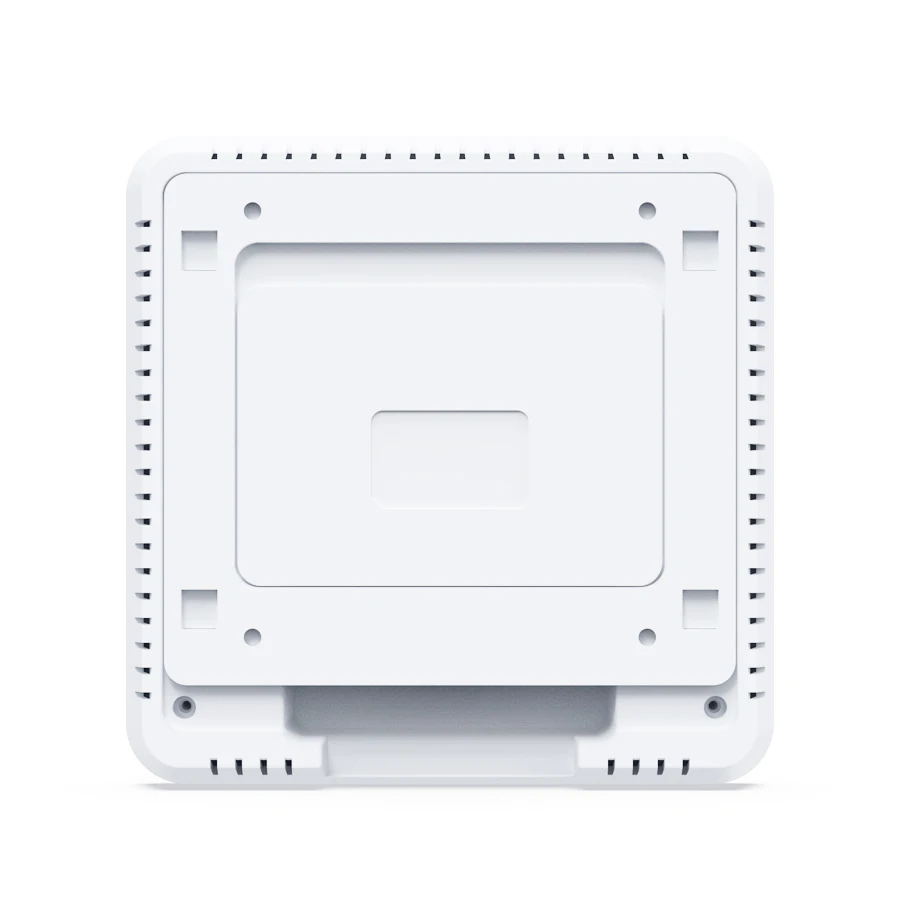

KG02 Gateway
● Support Wi-Fi / Ethernet / Cellular● Support iBeacon/Eddystone/Kensor and other BLE device
● Support HTTP/HTTPS, MQTT/TLS MQTT
● Powerful network diagnostics
● Hardware level WatchDog, ensure 24-hours full time data upload
● Optional 4G LTE module & GPS module
● Web portal for configuration
● CE/FCC certified
Manufacturing Technique
Description
KG02 KBeacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG02 gateway support cellular (3G/4G), WiFi, or Ethernet network connection. It can be powered by DC 5V, or POE (802.3af).
KG02 KBeacon gateway is mainly used for communicating with devices with BLE function, and uploading device data to the cloud, or download cloud data to device. KG02 gateway support cellular (3G/4G), WiFi, or Ethernet network connection. It can be powered by DC 5V, or POE (802.3af).
It support BLE 5.0/4.2/4.1/4.0 and newer, e.g. BLE sensor, iBeacon/Eddystone beacon, smart wristband, smart heart rate band.
General Specification

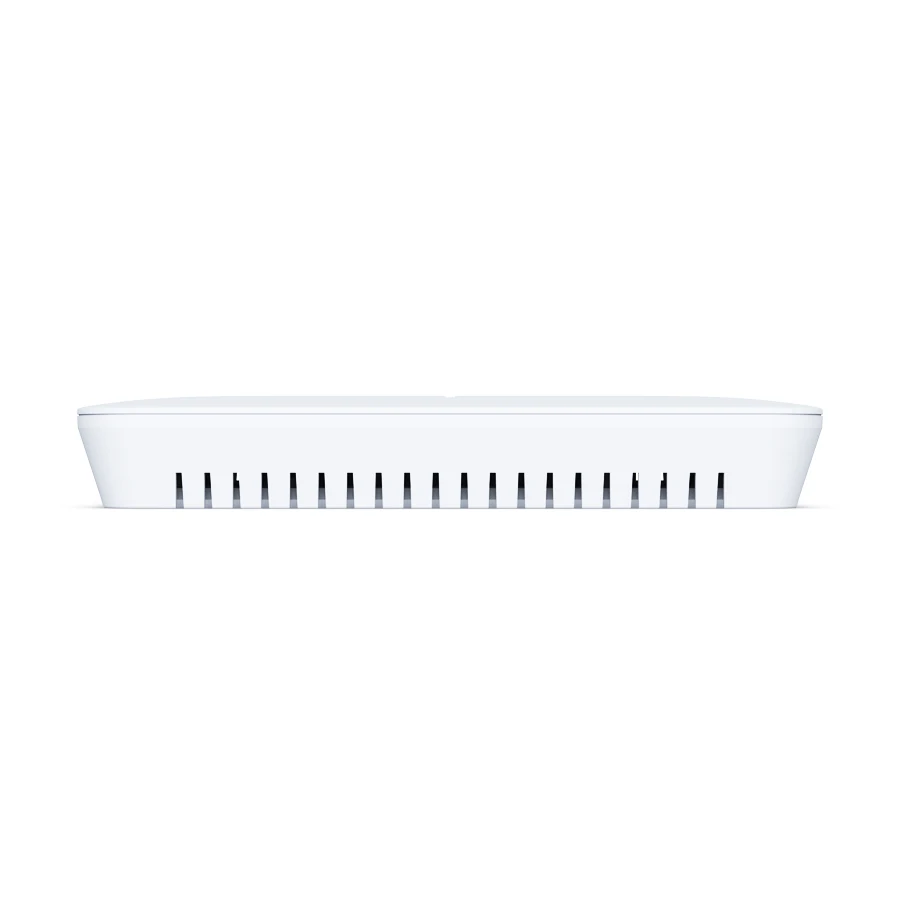

● Slim design
● Input: DC 5V/1A, micro-USB
● 3af/at POE DC standard
● Supports HTTP/MQTT over SSL
● Build-in NTP support
● Supports firmware update Over-the Air
● Operating temperature:-25°C ~65°C
● Input: DC 5V/1A, micro-USB
● 3af/at POE DC standard
● Supports HTTP/MQTT over SSL
● Build-in NTP support
● Supports firmware update Over-the Air
● Operating temperature:-25°C ~65°C
BLE Specification
● Support BLE4.2 and BLE5.0
● With a power amplifier and LNA
● 3dBi high-accuracy antenna
● Scanning capability > 220 device per seconds
● >150meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data/send command)
● With a power amplifier and LNA
● 3dBi high-accuracy antenna
● Scanning capability > 220 device per seconds
● >150meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data/send command)
Wi-Fi Specification
● Update to 300Mbps
● Supports WPA/WPA2, 802.1x enterprise EAP
● 3dBi high-accuracy antenna
● 100meters in open space
● 2T2R 2.4G frequency band
● Web portal UI configuration
● Supports WPA/WPA2, 802.1x enterprise EAP
● 3dBi high-accuracy antenna
● 100meters in open space
● 2T2R 2.4G frequency band
● Web portal UI configuration
Product Paramenters

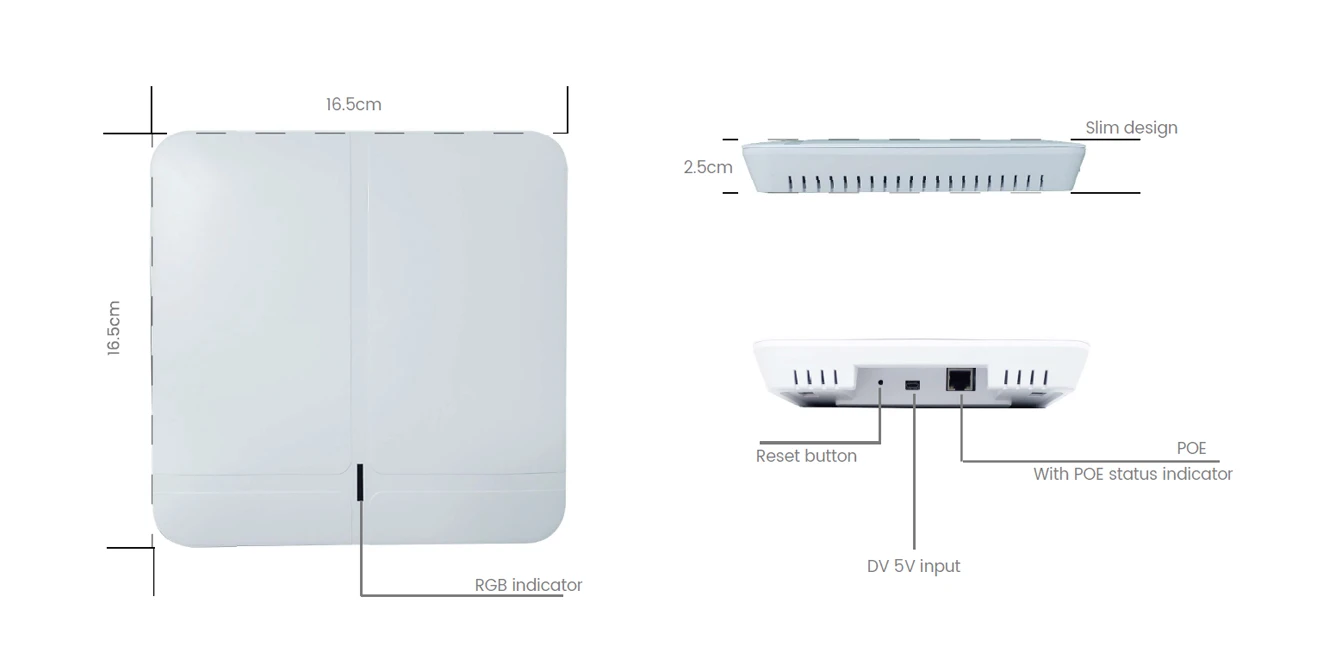

Size | 165mm*165mm*25mm | Weight | 270g | ||
Material | Industry use plastic | Transmitting Protocol | HTTPS MQTT | ||
Scanning Ability | >220 beacons per second | Waterproof | N/A | ||
Indicator | RGB LED indicator | BLE Chipset | nRF528 series | ||
Wireless Distance | BLE4.0/BLE4.1/BLE4.2/BLE5.0 up to 300m (The working distance will be effected by surrounding environment) | ||||
Transmitting way | Cellular (USB dongle for 3G/4G), ETH RJ45, WiFI, WIFI Hoppen | ||||
Working Temp. | 20°C ~+70°C | Storage Temp. | 10°C ~+25°C, ≤65%RH | ||
Products Usage

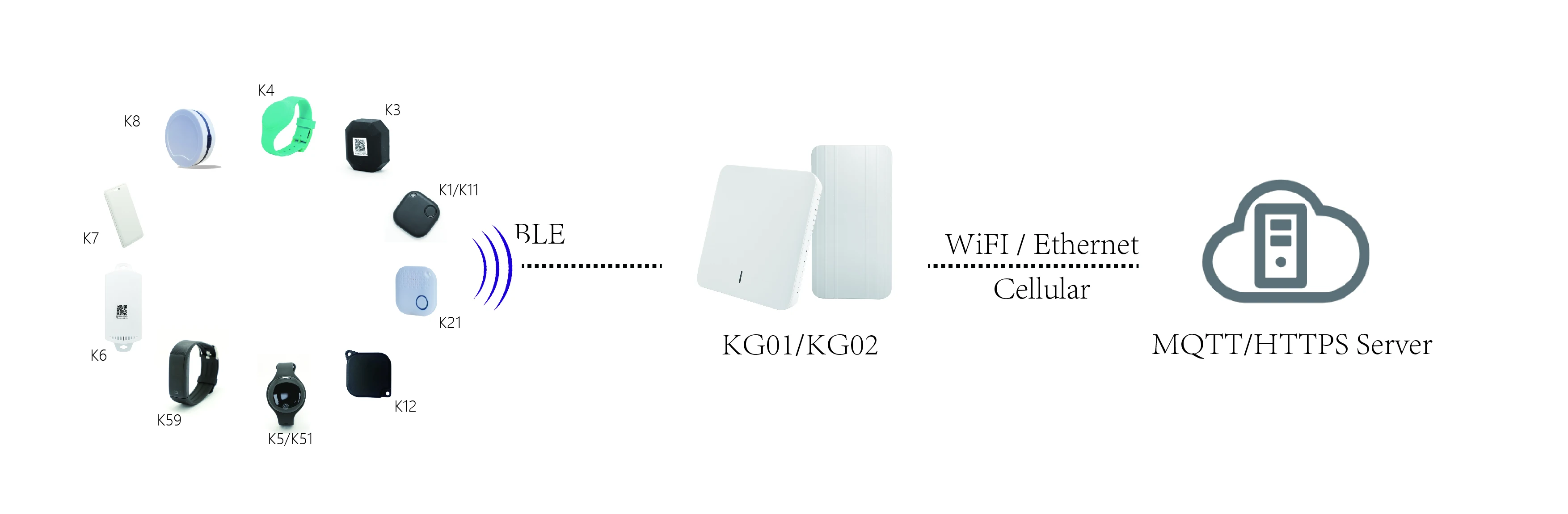

How It Works
KGateway can detect, collect and upload the data of ble 5.0 in range, including iBeacon, Eddystone as well as custom format, which support BLE prococol. The gateway upload data to cloud via HTTPS/MQTT, it support the AWS, Azure and etc IoT cloud.
KGateway can detect, collect and upload the data of ble 5.0 in range, including iBeacon, Eddystone as well as custom format, which support BLE prococol. The gateway upload data to cloud via HTTPS/MQTT, it support the AWS, Azure and etc IoT cloud.
K1：asset management
K21: beacon with beep
K3: IP67 waterproof with accelerometers sensor
K4: Children's Bracelet beacon
U1: USB type beacon
K21: beacon with beep
K3: IP67 waterproof with accelerometers sensor
K4: Children's Bracelet beacon
U1: USB type beacon
K5：Wristband Beacon, support vibration, rechargeable
K6：Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon
K6：Temperature & humidity sensor
K7: Credit card beacon with RFID
K8: Mounting Beacon, with accelerometer sensor
K9: Ultra-long battery life Beacon
Application

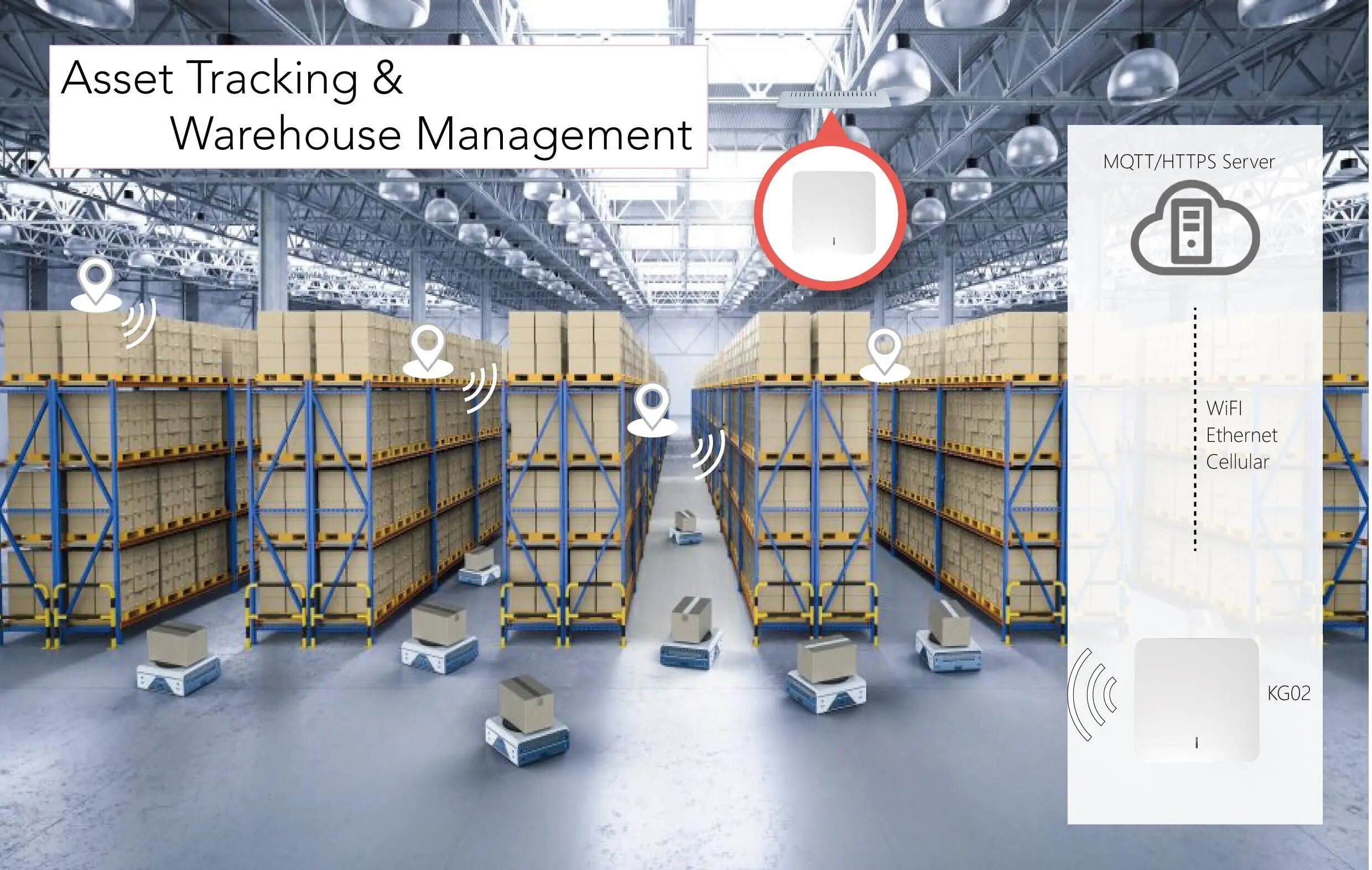

iBeacon/Eddystone/BLE tag receiverAsset tracking

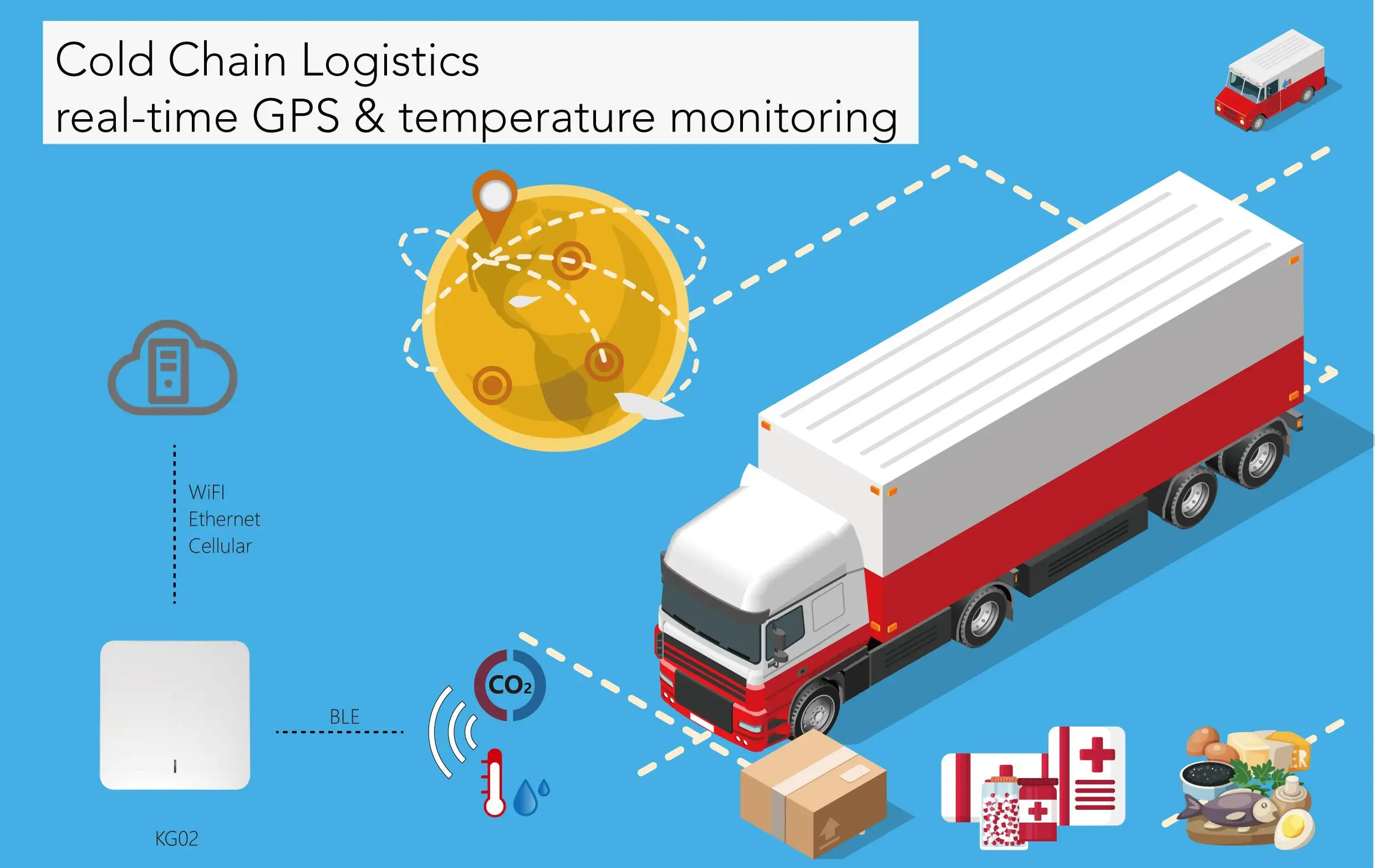

Temperature&humidity tracking and monitoring
Advertisement
Indoor navigation & mapping
Industrial automation
Trade Show management
Temperature&humidity tracking and monitoring
Advertisement
Indoor navigation & mapping
Industrial automation
Trade Show management
