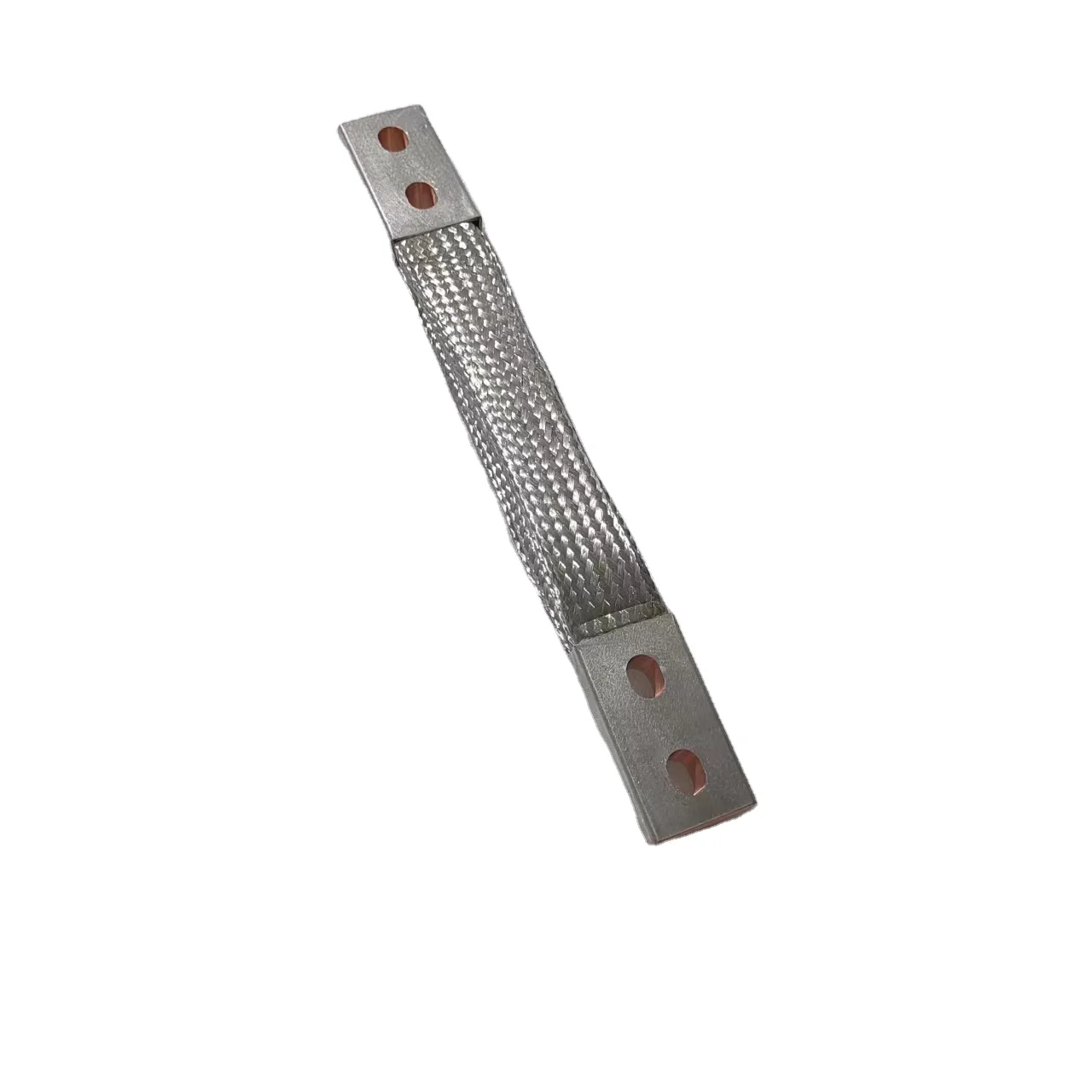

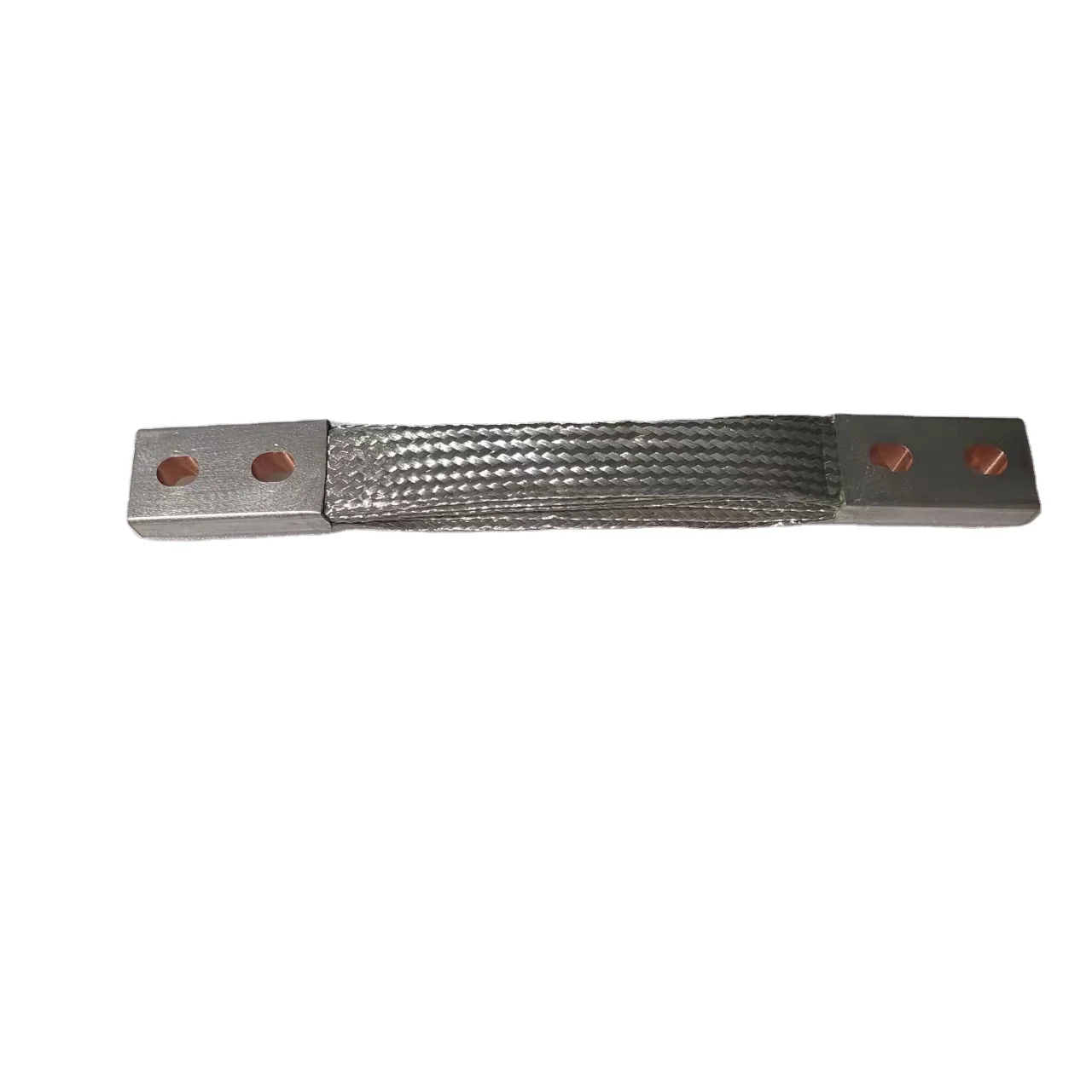

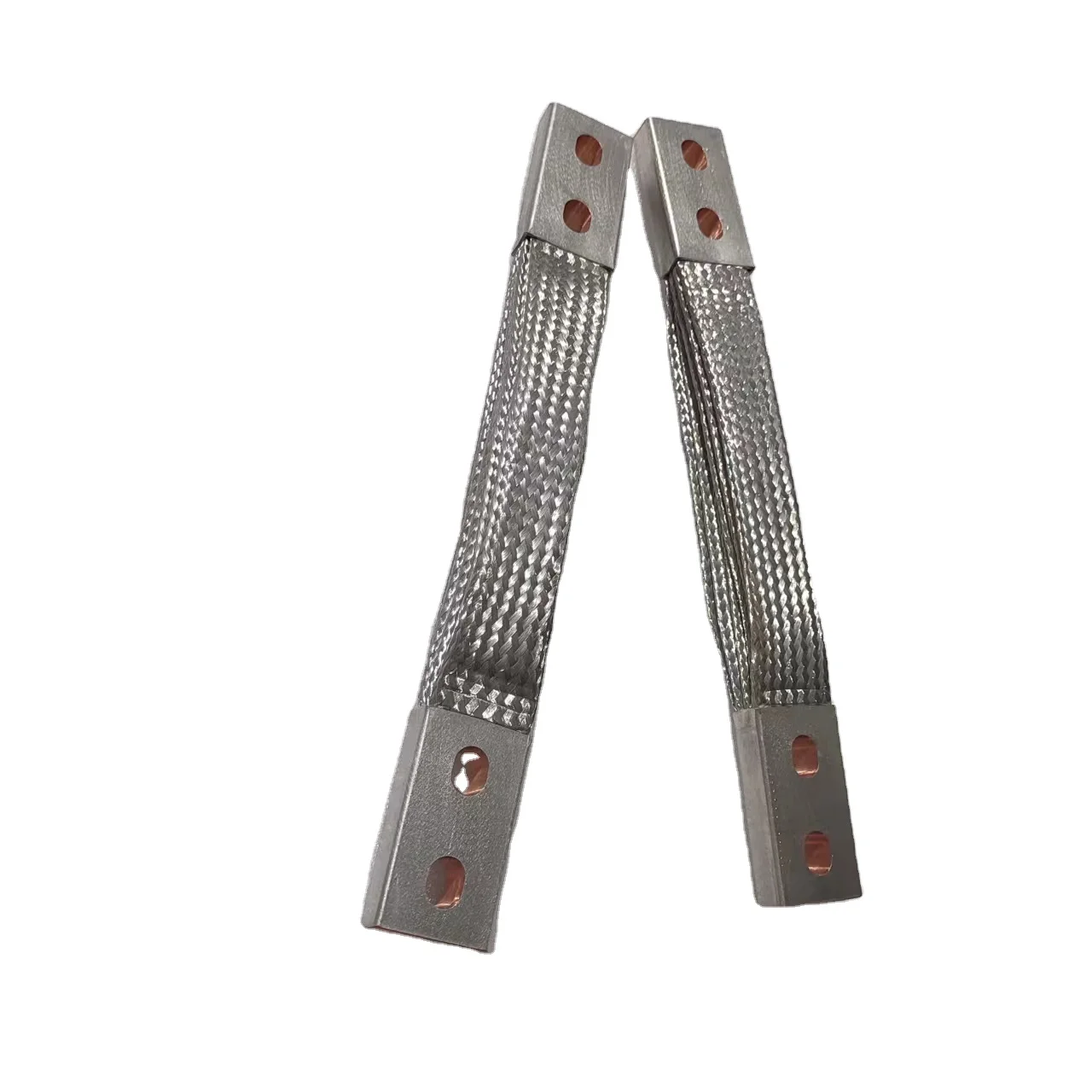

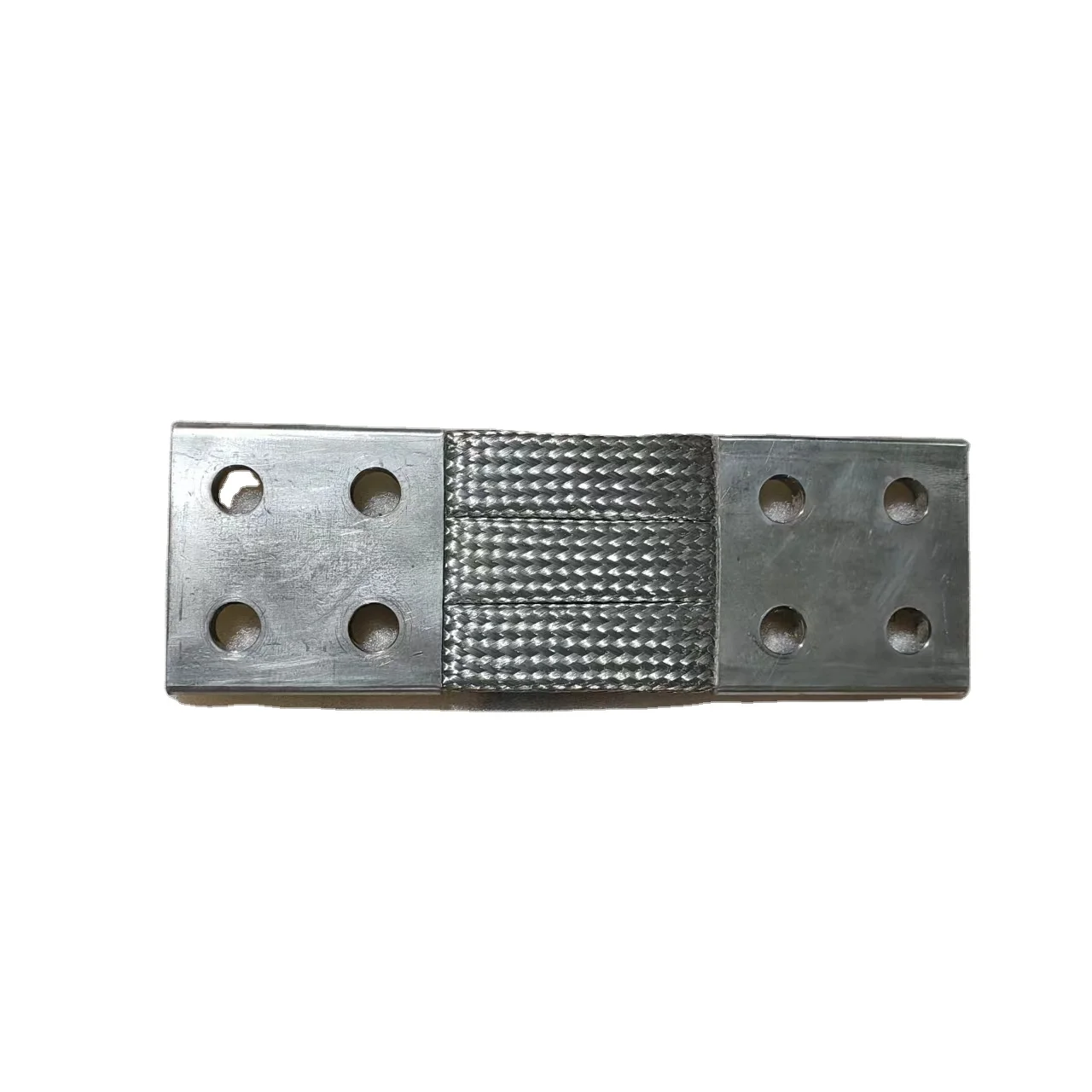

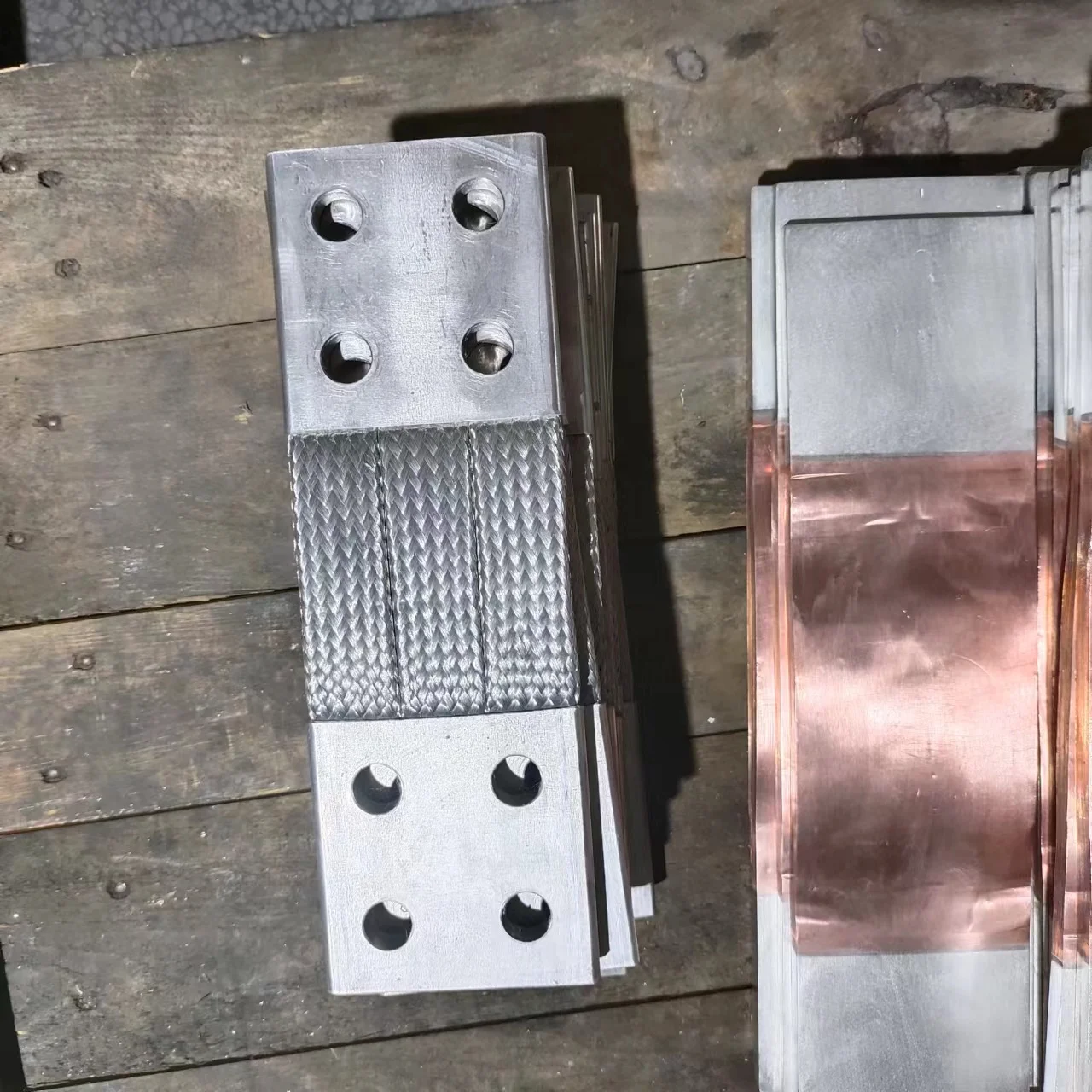

High quality braided copper wire shunt flexible copper braid flat copper strap

Product Overview

Description

flexible stranded copper busbar stranded flexible connector

Adopt bare copper wire or tinned braided copper wire (twisted wire), which is formed by cold pressing. The contact surface can be tinned or silver plated according to customers’ requirements.

Single wire diameter

0.20mm: Standard products.

 0. 10mm: Can be processed according to customers’ requirements.



Technical Parameters

 Width, length, cross-sectional area and drilling are not included in the table below and can be processed according to customer requirements.
 The allowable current capacity is for reference. This value is related to the installation and use conditions of the soft connectors.











 See the table below.

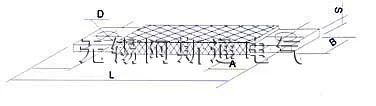

Bare copper Wire	Tinned copper wire	Section mm2	A mm	B mm	S mm	L mm	Holes Diameter mm	End drilling	Current capacity A
CRS 100	CSS 100	100	40	40	5	200	13	W1	480
CRS 150	CSS 150	150	40	40	7	250	13	W1	590
CRS 200	CSS 200	200	50	50	7	350	13	W1	760
CRS 250	CSS 250	250	50	50	9	350	13	W1	910
CRS 300	CSS 300	300	100	50	10	400	13	W2	950
CRS 400	CSS 400	400	100	50	12	400	13	W2	1020
CRS 500	CSS 500	500	100	50	16	400	13	W2	1300
CRS 600	CSS 600	600	100	60	16	400	13	W2	1500
CRS 800	CSS 800	800	80	80	16	400	13	W4	1700
CRS 1000	CSS 1000	1000	100	100	17	450	13	W5	1900
CRS 1200	CSS 1200	1200	120	120	17	450	13	W7	2150
CRS 1500	CSS 1500	1500	According to customers’ requirements
CRS 2000	CSS 2000	2000



The bare copper wire or tin plated copper wire braid (stranded wire) is made by cold pressing. The contact surface can be tinned or silver plated according to customer requirements.
Single line diameter 0.20mm: standard product.
0.10mm: it can be processed according to customer's requirements.
technical parameter
See table below.
The width, length, sectional area and borehole are not included in the following table, and can be processed according to customer requirements.
The allowable carrying capacity is the reference value. This value is related to the installation and use conditions of the soft connection.
