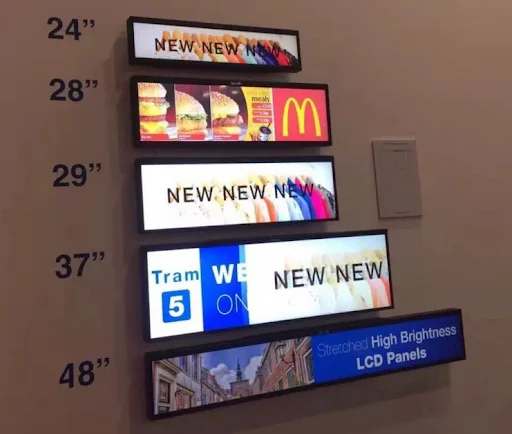

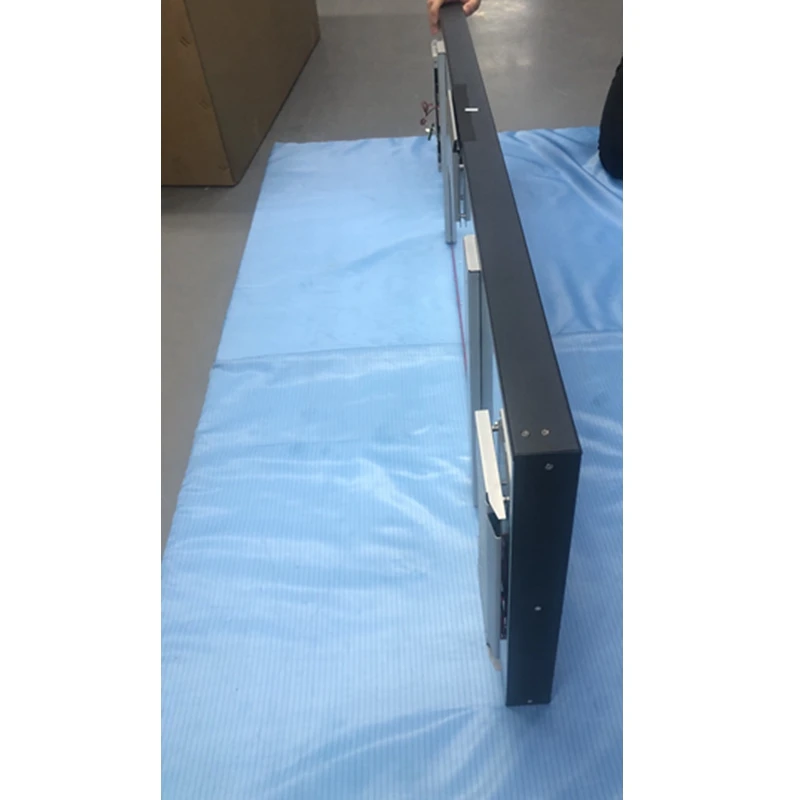

29inch factory price Led driver board ELED slim design strip screen panel
- Category: >>>
- Supplier: Shenzhen Fengshi Technology Co. Ltd.
Share on (1600564795726):
Product Overview
Description
Parameter
Item | 24'' high brightness LCD panel |
Model | FS240-E10-T |
Screen Size | 24 inches |
Display Area | 597.88*112.1mm |
Outline Dimenssion | 612.7*132.1*8.4mm |
Panel Type | High brightness LCD with WLED |
Configuration | RGB Vertical Stripe |
Resolution | 1920*1080pixel |
Brightness | 300-1500nits |
Aspect Ratio | 16:9 |
Constrast Ratio | 3000:1 (Typ.) (TM) |
Response Time | 20/5ms (Typ.)(Tr/Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥20 |
Driver Elements | a-Si TFT-LCD |
Surface Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Display Color | 16.7M 72% (CIE1931) |
Display Mode | MVA, Normally Black, Transmissive |
Interface Type | 30 pins LVDS (2 ch, 8-bit) , Connector |
Input Voltage | DC12V |
Power | 36.2W |
Weight | 1.21kg |
Backlit Lifetime | 50000hrs |
Operating Temp. | 0°- 60°C |
Storage Temp. | -20°- 60°C |
Features
Product Description
Small Size: 15inch to 27inch

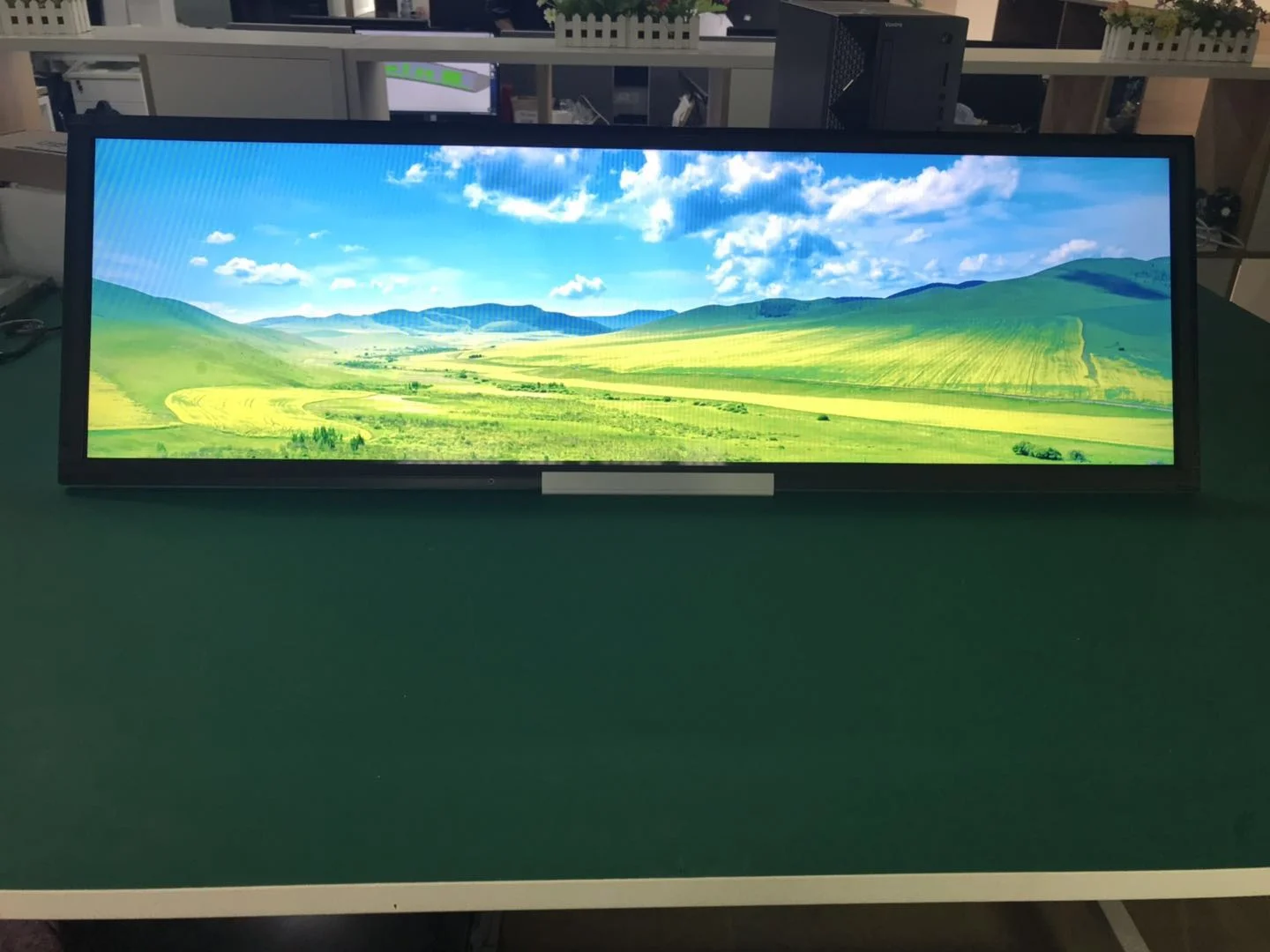

Front：Normally black

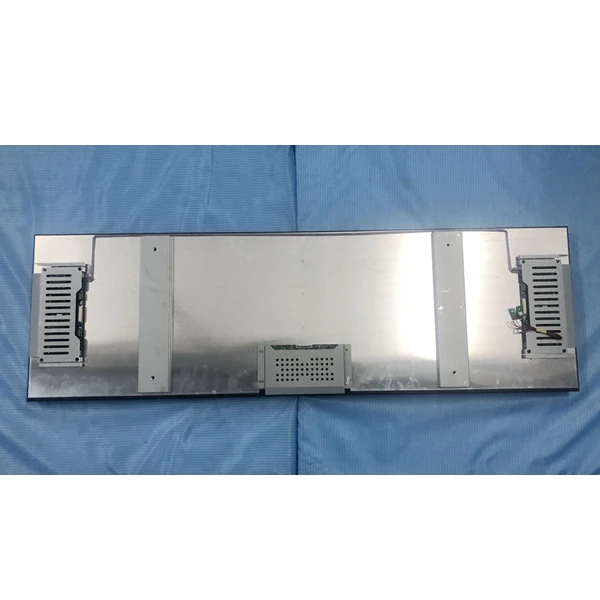

Back Side:LCD panel+Led driver board+auto dimming sensor+power cable if necessary

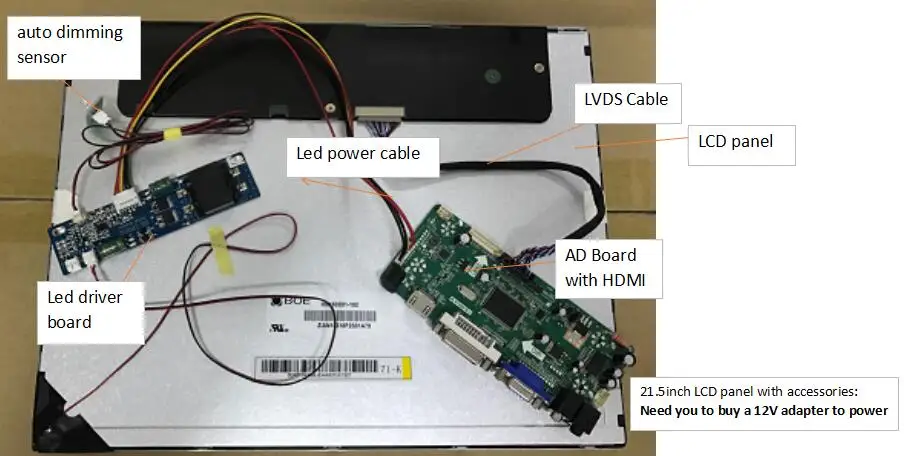

How to connect the Wires?-Small Size LCD Panel with Accessories(21.5inch lcd panel for example)
1.LCD panel with accessories: 15inch ,17inch,18.5inch,19inch,21.5inch(Brightness 500nit to 1500nit) 2.The 15inch lcd panel can be made up to 2000nit 3.23.8inch/27inch lcd panel can be assembled to open frame LCD panel.

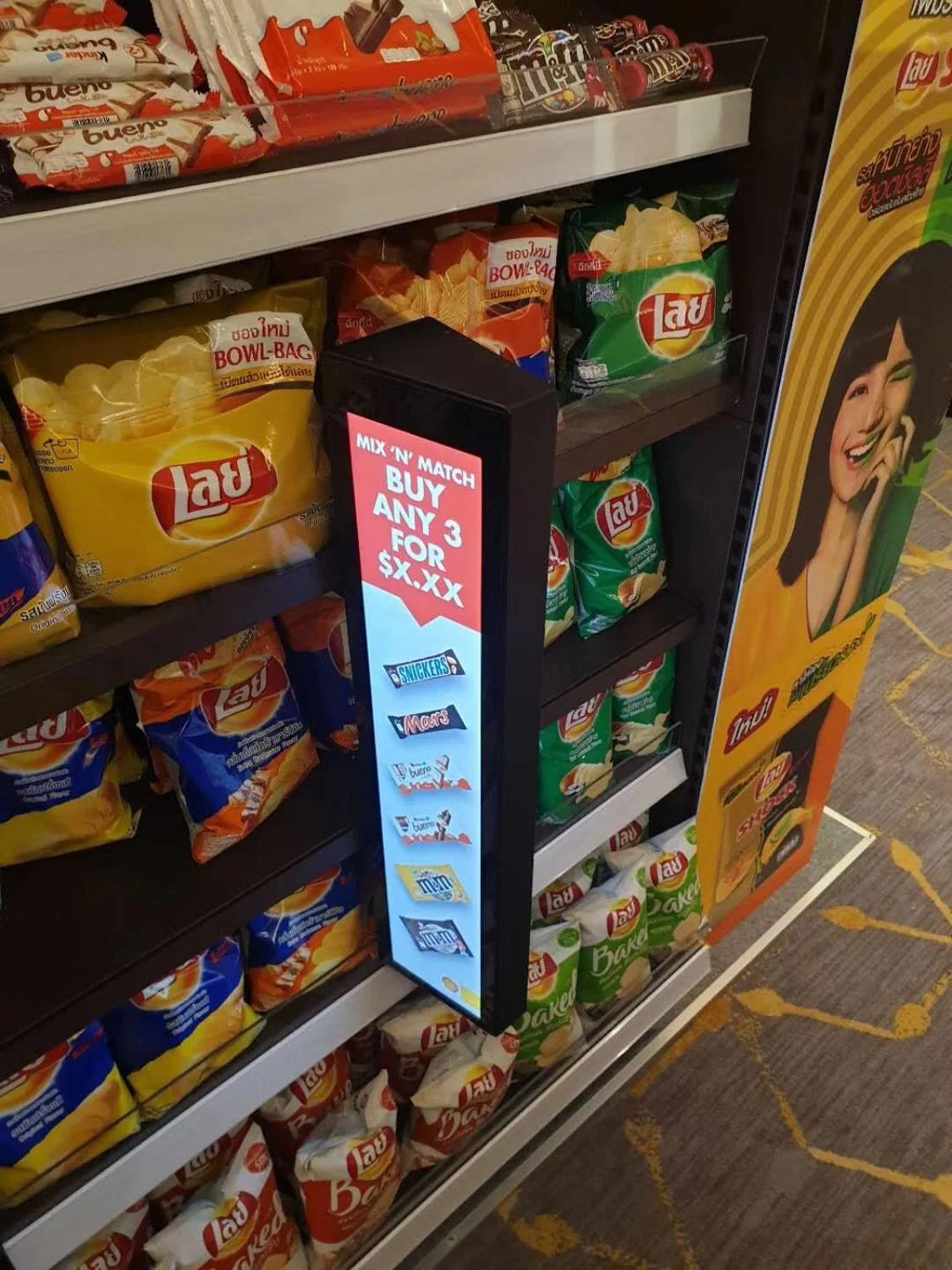

Applications
Packaging and shipment
Normally 10 pcs per carton
Can be palletized
Wooden pacakge if necessary
1. Freight door to door/Freight to nearest airport
2.Sea shipping is optional for safe transportation
Factory workshop
Shenzhen Fengshi Technology Co.,Ltd. Is a high-tech enterpris specializing in the research and development of high brightness LCD modules.Has more than 10 years of experience in the design of LED high-brightness LCD modules and application experience of outdoor LCD displays.

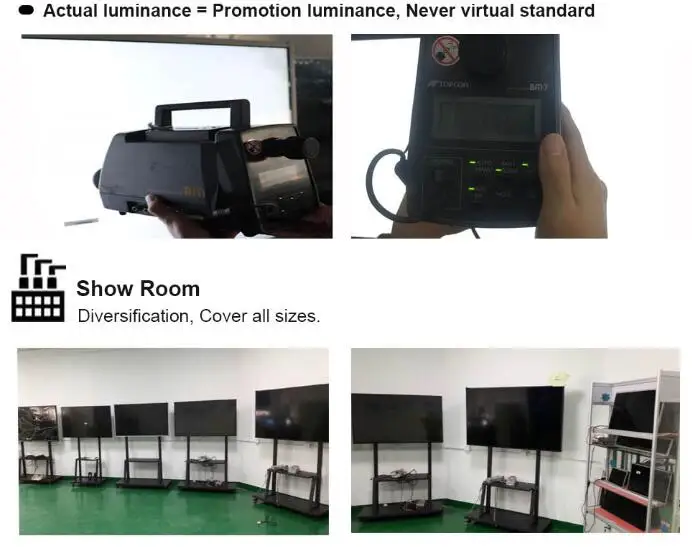

With our own 10,000-class dust-free workshop(equipped with shower and cargo shower room),professional optical transmittant tester,color brightness meter Topcon BM-7,electrical safety integration tester,vibration test bench and so on.
Now we have 15”-98”LCD panel with brightness of 500-5000nits.We offering OEM/ODM service according to the size and brightness of customers’ needs.Special launch 4K high brightness LCD panel,ultra high brightness LCD panel.
Fengshi technology independently designed the full metal structure of the high brightness LCM with good thermal
conductivity,straight edge structure and better brightneuniformity.Combined with a new generation ofhigh brightness and energy-saving backlight modules.Our products have been exported to more than 60 countries and regions in the world.
conductivity,straight edge structure and better brightneuniformity.Combined with a new generation ofhigh brightness and energy-saving backlight modules.Our products have been exported to more than 60 countries and regions in the world.
Contact FengShi
Sunlight Readable Open Frame LCD
Retail Window Shop LCD Digital Signage
Outdoor All Weather-proof LCD Digital Signage
Retail Window Shop LCD Digital Signage
Outdoor All Weather-proof LCD Digital Signage
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2000 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: OEM/ODM are available based on your requirements.
B:In order to support different customers, we are able to supply:
(1) Bare LCD pane: panel with LVDS interface
(2) Open frame LCD monitor: Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)
A: We are a professional manufacturer specialized in LCD panel/LCM since 2000 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: OEM/ODM are available based on your requirements.
B:In order to support different customers, we are able to supply:
(1) Bare LCD pane: panel with LVDS interface
(2) Open frame LCD monitor: Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)
(3) Complete monitor: Panel+PSU+AD board+network board(optional)+fan system+temperature control board+housing
(4)Complete outdoor digital signage: customized. eg: touch function, optical bonding, IP55/IP65 etc.
4. Q: What brand of screen do you use?
A: Original LG/SAMSUNG/AUO screen, we can guarantee each display will pass through strict quality inspection.
5.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
6.Q: When will you delivery?
A: High brightness outdoor lcd panel sample order shipped in 3days, bulk order shipped within 2 weeks.
(4)Complete outdoor digital signage: customized. eg: touch function, optical bonding, IP55/IP65 etc.
4. Q: What brand of screen do you use?
A: Original LG/SAMSUNG/AUO screen, we can guarantee each display will pass through strict quality inspection.
5.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
6.Q: When will you delivery?
A: High brightness outdoor lcd panel sample order shipped in 3days, bulk order shipped within 2 weeks.
