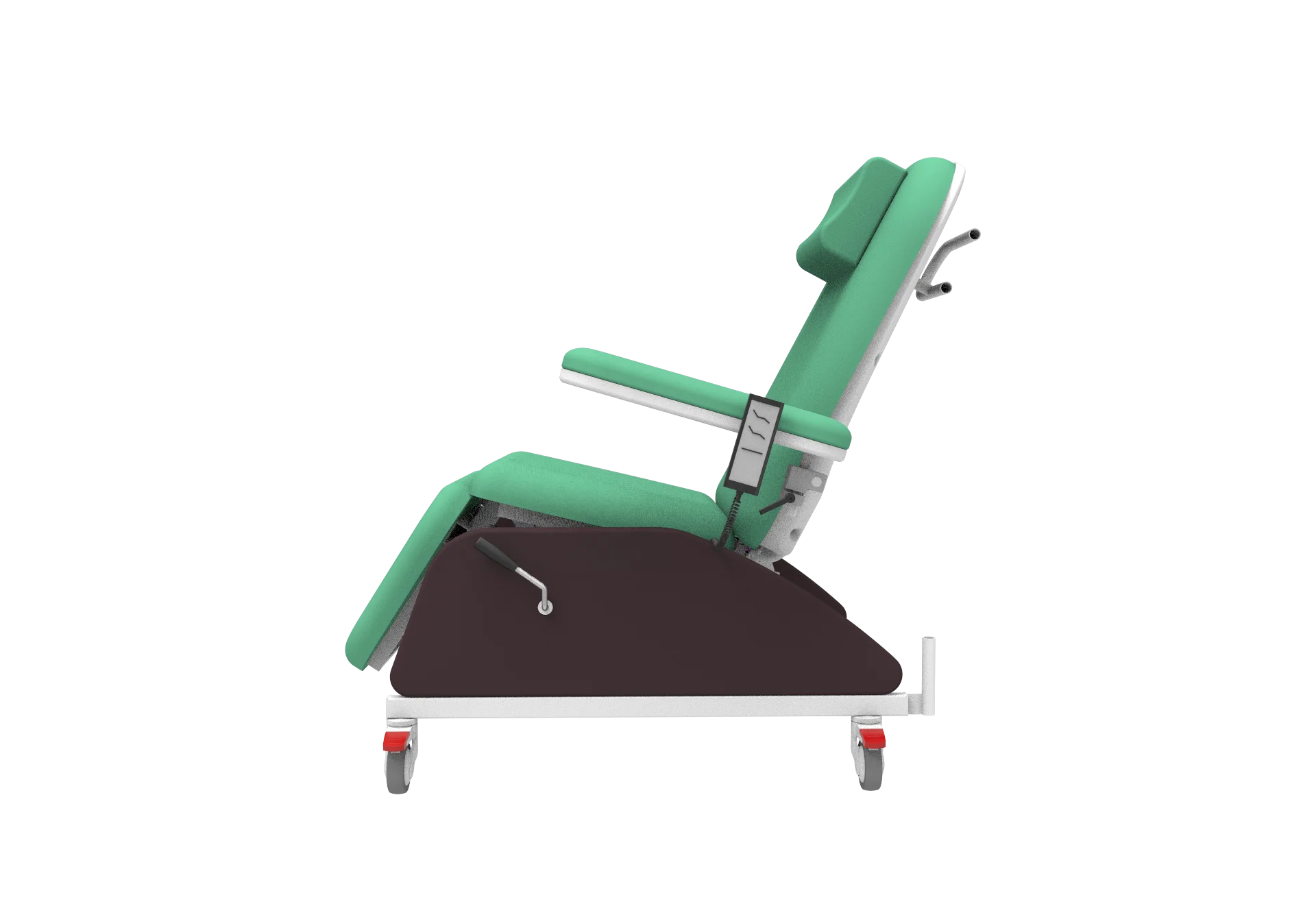

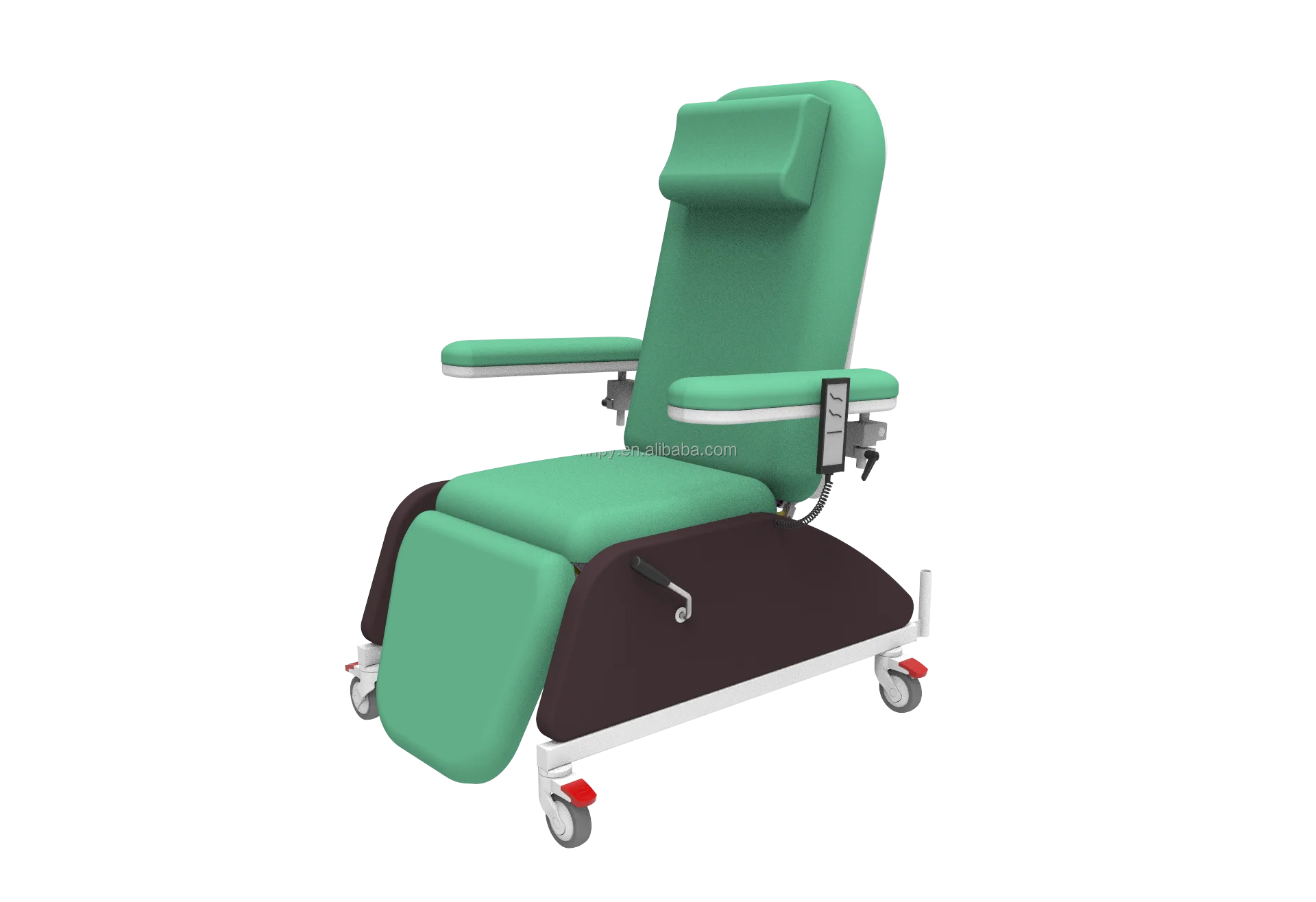

Electric hemodialysis chair Clinic Chair

Product Overview

Description

therapy recliner chair: PY-YD-211



Ø  Multi-position adjustment, using high-performance imported silent push rod motor, easily adjust the backrest and legrest.

Ø  The buttons of hand control is simple, intuitive and easy to operate.

Ø  International brand silent 24V dc push rod motor, work stably, safe and reliable.

Ø  Long - term continuous working system.

Ø  10 years of life design, reduce the cost of maintenance and replacement.

Ø  Ultra-low energy consumption, using less than 0.12 degrees per day.

Ø  The chair cushion is made of high-density sponge, the elasticity is moderate, sitting and lying for a long time will not cause postural strain; PVC leather is durable, luxurious and comfortable.

Ø  Retractable, foldable footrest provide patients comfort during dialysis.

Ø  Adjustable armrest is designed to provide the best dialysis position for patients.



1. Descriptions

• Whole chair with steel frame provide strong bearing capability, safe working load up to 240kg.


• High density(45D)polyurethane foam for mattress with moderate elasticity and durability provides additional comfort for patients having to sit for long periods.


• Soft upholstery makes of breathable PVC material, is waterproof, fire retardant, anti-corrosion, easily clean & disinfection.


• Four upholstery colors to choose from. Warm & light colors of upholstery contribute to patient's mental well-being.


• Medical motors allow for adjusting positions.


• Mute medical castors of diameter 100mm with separate brakes.


• The detachable headrest pillow can be adjusted according to the height of each patient.


• Several OPTIONAL accessories: Paper roll holder, Over-bed Table.




Specification

Model	PY-YD-211
Total Length	1980 mm±20mm
Total Width including armrests	920 mm±20mm
Seat Width	600 mm±20mm
Backrest length	870 mm±20mm
Seat length	530mm±20mm
Legrest length	550mm±20mm
Seat height	550mm±20mm
Armrest Dimension	L600*W170*D750mm±20mm
Height of armrest and seat	180~245mm±20mm
Chassis Dimension	1040mm×680mm±20mm
Castor	4xφ100mm swivel castors with separate brakes
Pillow	400 mm×230 mm×80 mm±20mm
Safe Maximum Load	240 KGS
Weight	82 KGS±3KGS
Backrest Adjustment	(-12° ~ 75°)±5°
Legrest Adjustment	(-70° ~ 12°)±5°
Leather	PVC leather
Cushion	Sponge
Frame	Q235 steel
Power Supply	AC100V-240V 50/60Hz
Input Power	180~220W
Motor	2

2. Saving Space
Overall chair dimension: L 1980mm x W 600mm x H 550 mm. Smaller overall chair dimension to save up to 40% of floor space.

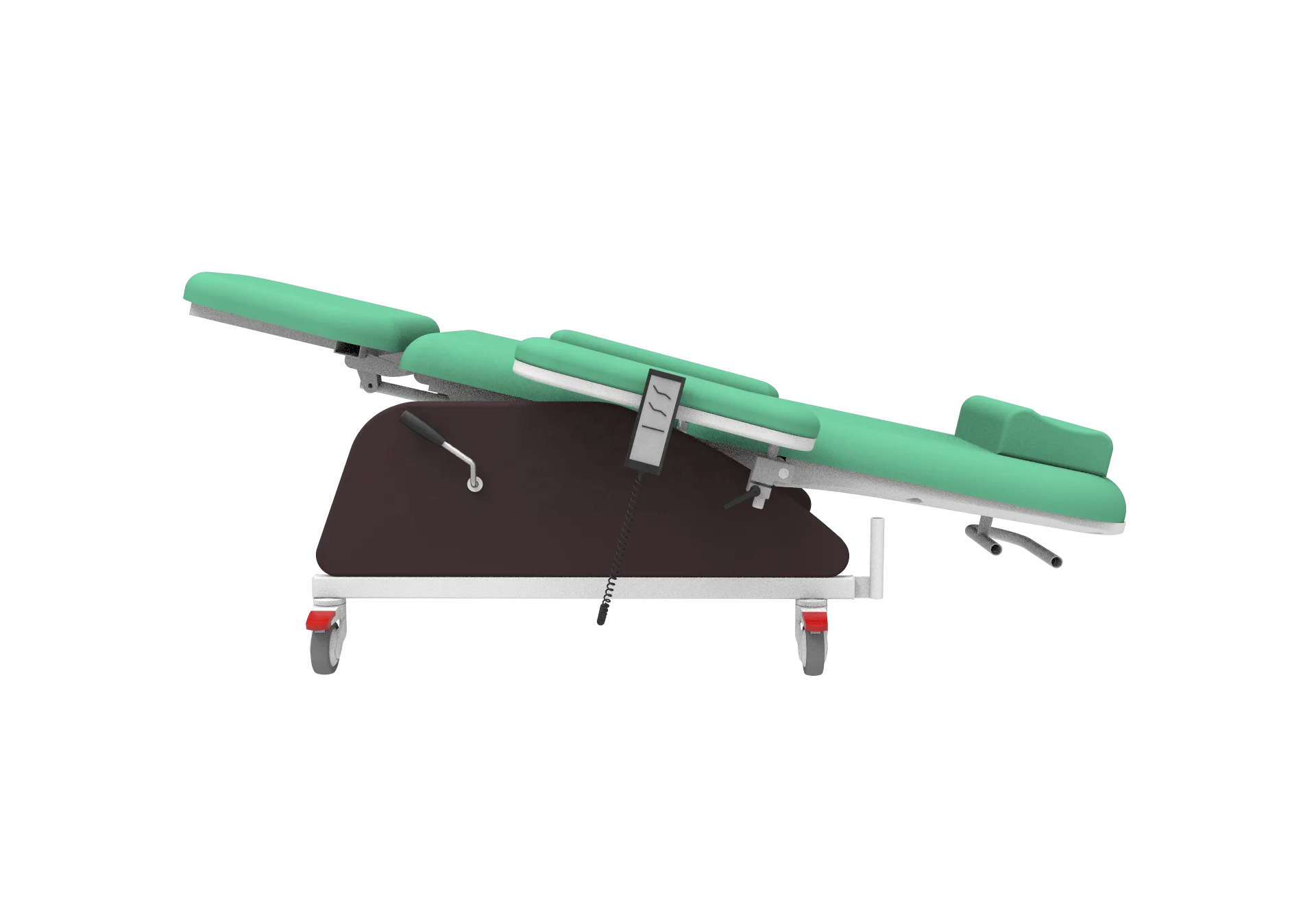

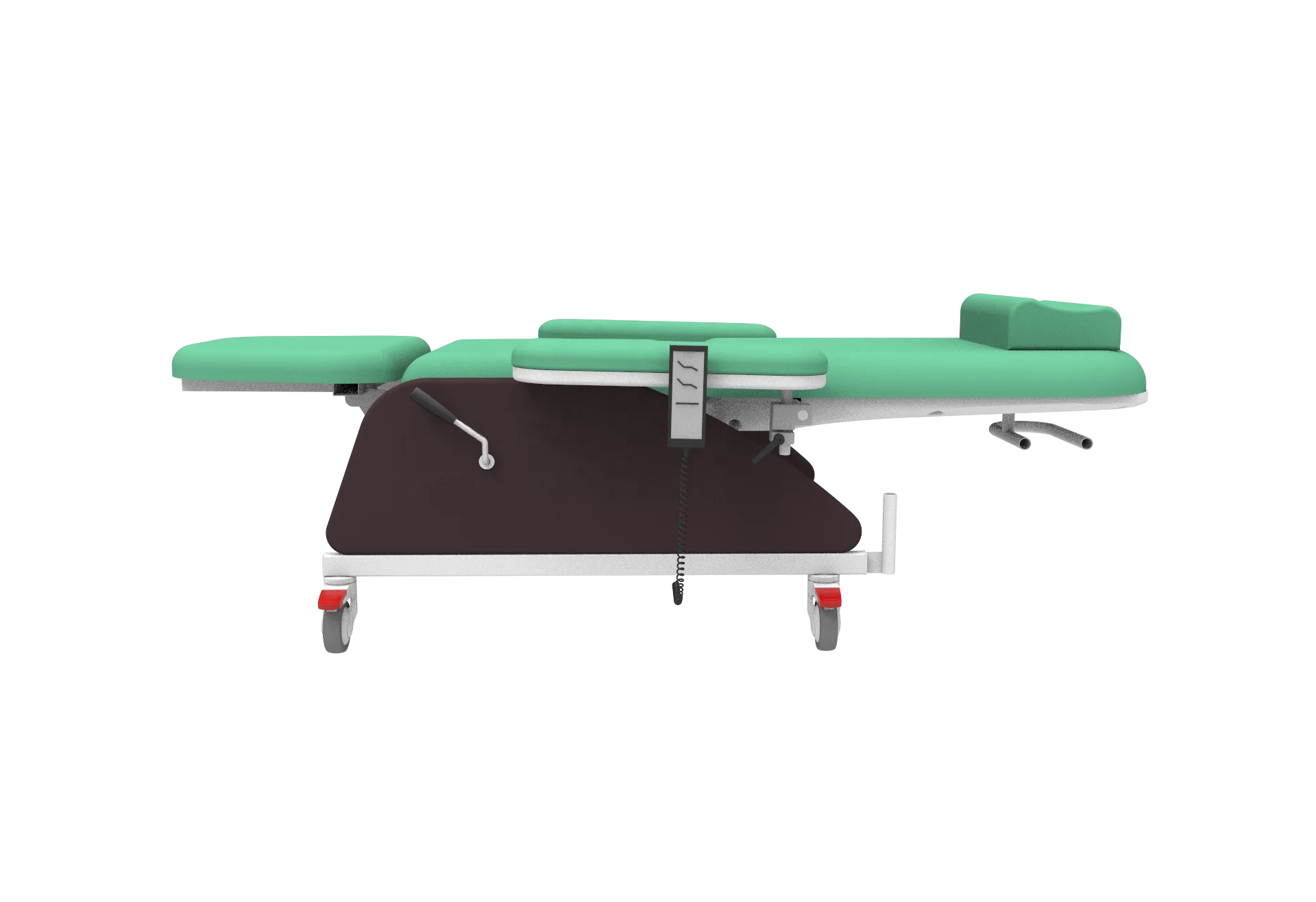

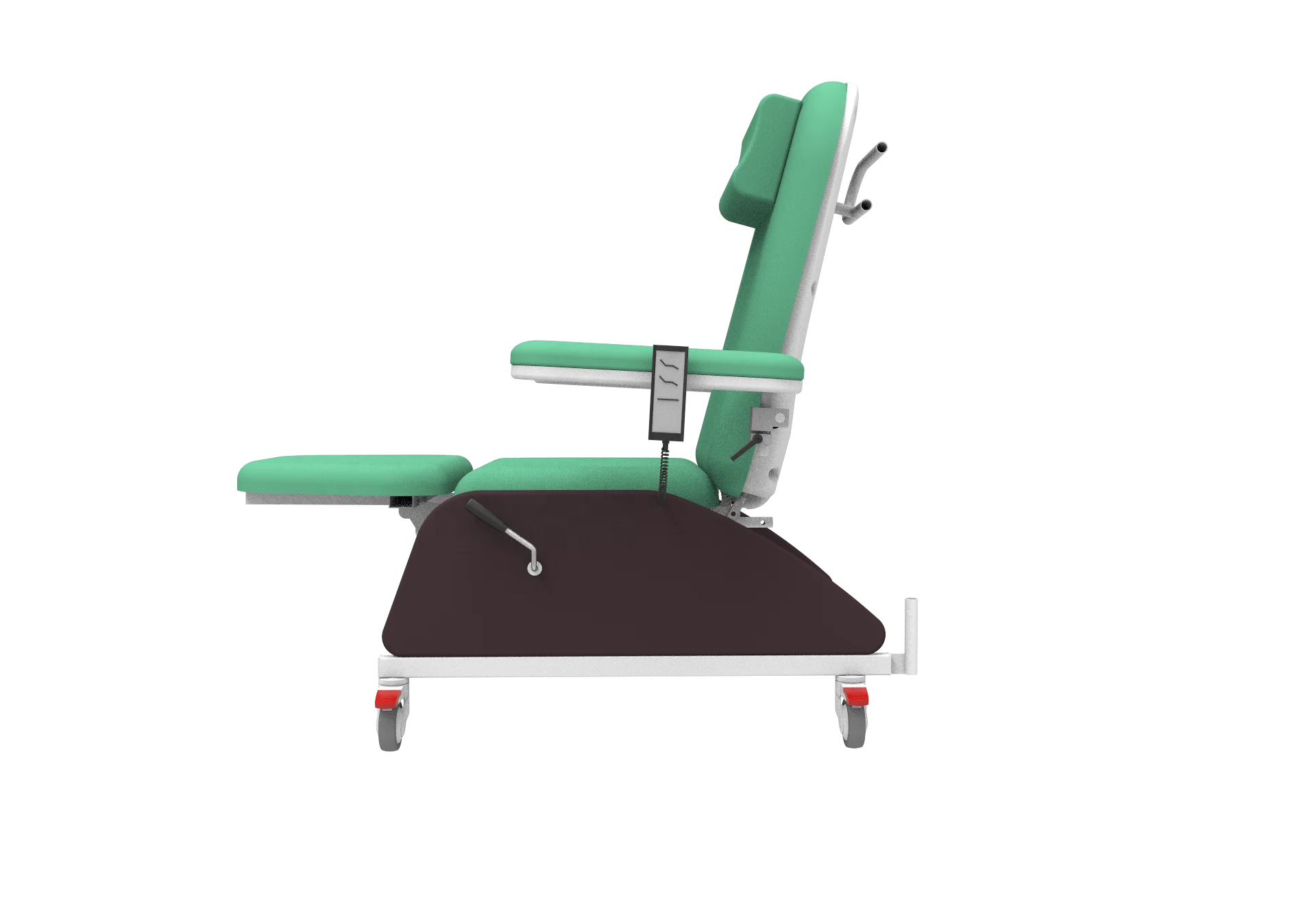

3. Postions
