High Low Voltage Clamp Meter Tester With Measuring High And ALow Voltage AC Current For Substations Power Plants Industrial


Function


Digital Multimeter Clamp Meter H/L Voltage Clamp Current Meter it can be used for current measurement and online current measurement of lines with insulation below 60kV or high-voltage lines with bare conductors below 35kV.
Used in substations, power plants, industrial and mining enterprises


Features

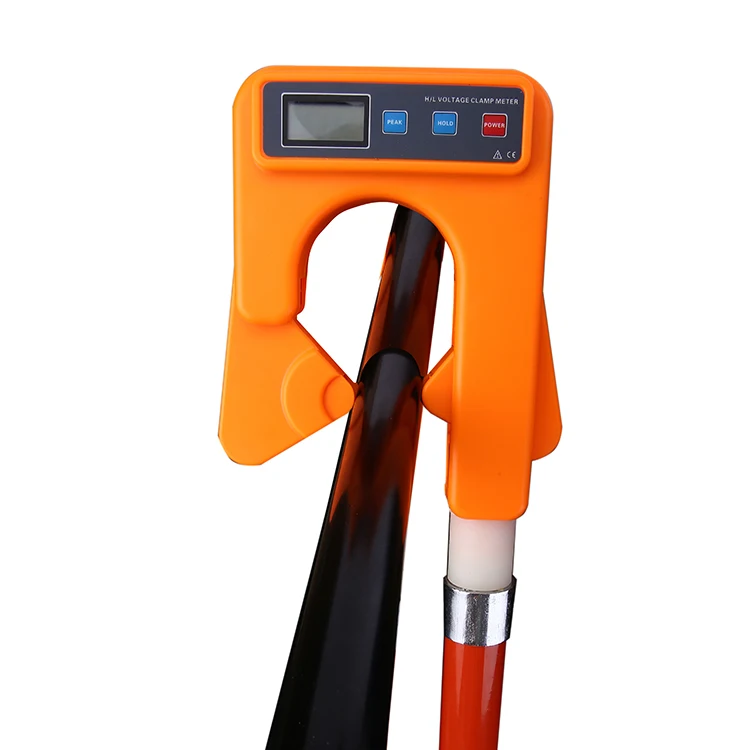

1. Using CT technology and mask digital integration technology, the instrument is composed of a special clamp-type ammeter and a high-voltage insulating rod. If the insulating rod is not used, it can also be used as a high-precision low-voltage clamp ammeter.
2. It can be used for current measurement and online current measurement of lines with insulation skin below 60kV or high-voltage lines with bare wires below 35kV
3. With peak hold, data hold, data storage
4. Its special clamp-type ammeter can easily clamp or evacuate the tested wire by pulling down or pushing the insulating rod forward, saving time and speed.


Details


Range
0.00mA~1200A (50/60Hz automatic)
Resolution
1mA
Current Accuracy (23℃±3℃, below 80%RH)
0mA~100A: ±1%±5dgt
100A~599A: ±1.5%±5dgt
600A~1200A: ±2%±5dgt
Power Supply
6V DC LR03 (1.5V AAA ×4 alkaline dry batteries) Batterys are not included in shapenent
Weight
Detector: 620g (with battery), the total weight of meter: 3720g (including insulation rod and battery)
Dimension
Tester: 218mm×135mm×60mm
Clamp Dimension
68mm
Insulation Rod Dimension
dia 32mm 1m×5 piece
LCD Dimension
47 mm×28.5mm
Sampling Rate
2 times/s
PEAK Hold
Automatically maintain the height of the test value, usually in the test mode press PEAK key, LCD top right corner will display “
PE”, that is, to keep open the PEAK function, then press PEAK key to cancel this function
Data Hold
In usual testing mode, press HOLD key to keep data, shown by “HOLD”
Data Memory
99 sets, memory process is shown by MEM , full storage is shown by blinking “FULL”
Data Access
“MR” indication, can access to all data
Overflow Display
Over-range overflow function: shown in “OL A”
Automatic Shutdown
15 minutes after boot
Battery Voltage
When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement
External Disturbance
Without 315MHz and 433 MHz interference
Structure
Anti-drip type II
