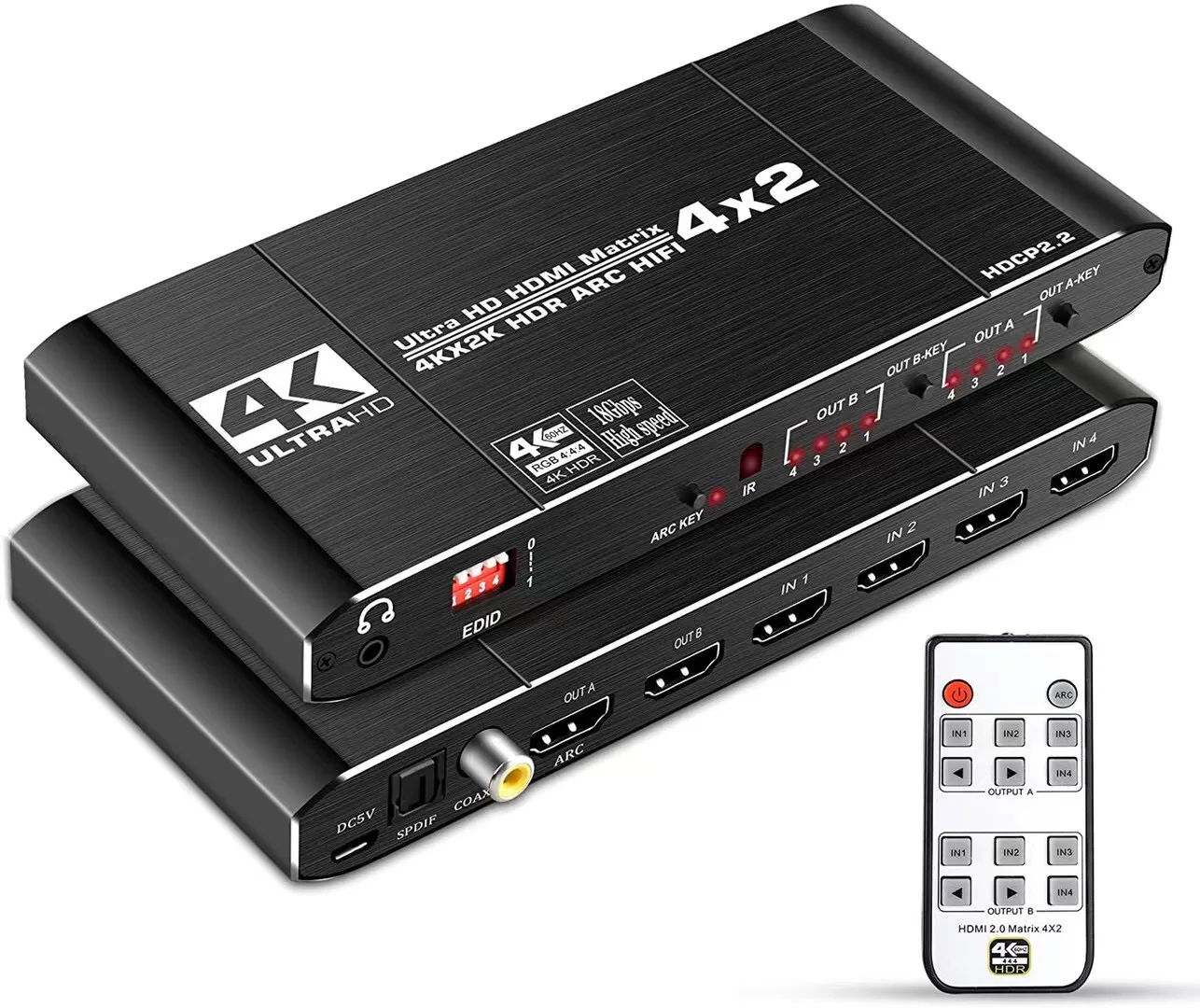

4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF Coaxial 3.5mm ARC Audio
4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF+Coaxial+3.5mm ARC Audio
4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF+Coaxial+3.5mm ARC Audio
4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF+Coaxial+3.5mm ARC Audio
4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF+Coaxial+3.5mm ARC Audio
4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF+Coaxial+3.5mm ARC Audio
4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF+Coaxial+3.5mm ARC Audio

4K HDMI Matrix 4x2 4 in 2 Out HDMI2.0 Audio Extractor Switch Splitter with Optical Toslink SPDIF Coaxial 3.5mm ARC Audio

Share on (1600564866902):


Price:$18.20 - $19.20

Quantity:


Product Overview

Description



Product Description
























































HDMI VersionHDMI2.0b HDCP2.2
HDMI Resolutionup to 3840x2160P/60Hz
Support Video Format8/10/12/24 bit deep color
Support Audio FormatDTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max Bandwidth600MHZ
Max Baud Rate18.5Gbps
Power Adapter FormatOutput: DC5V/2A
MaterialAluminum Alloy
ColorBlack

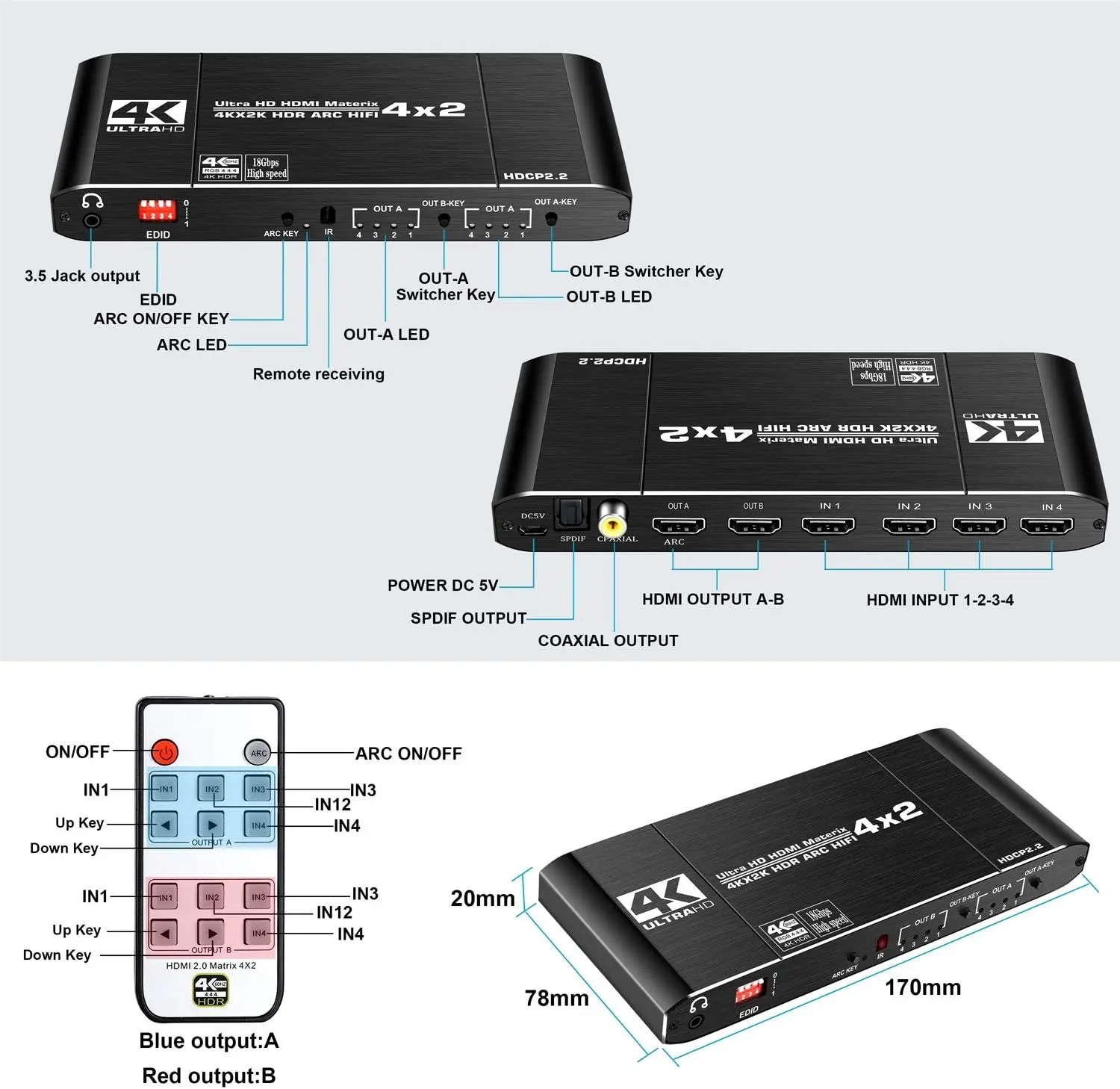

Dimension(LxWxH)170X56X24mm
Weight360g
PackageBox (Remote+User Manual+Power Adapter)

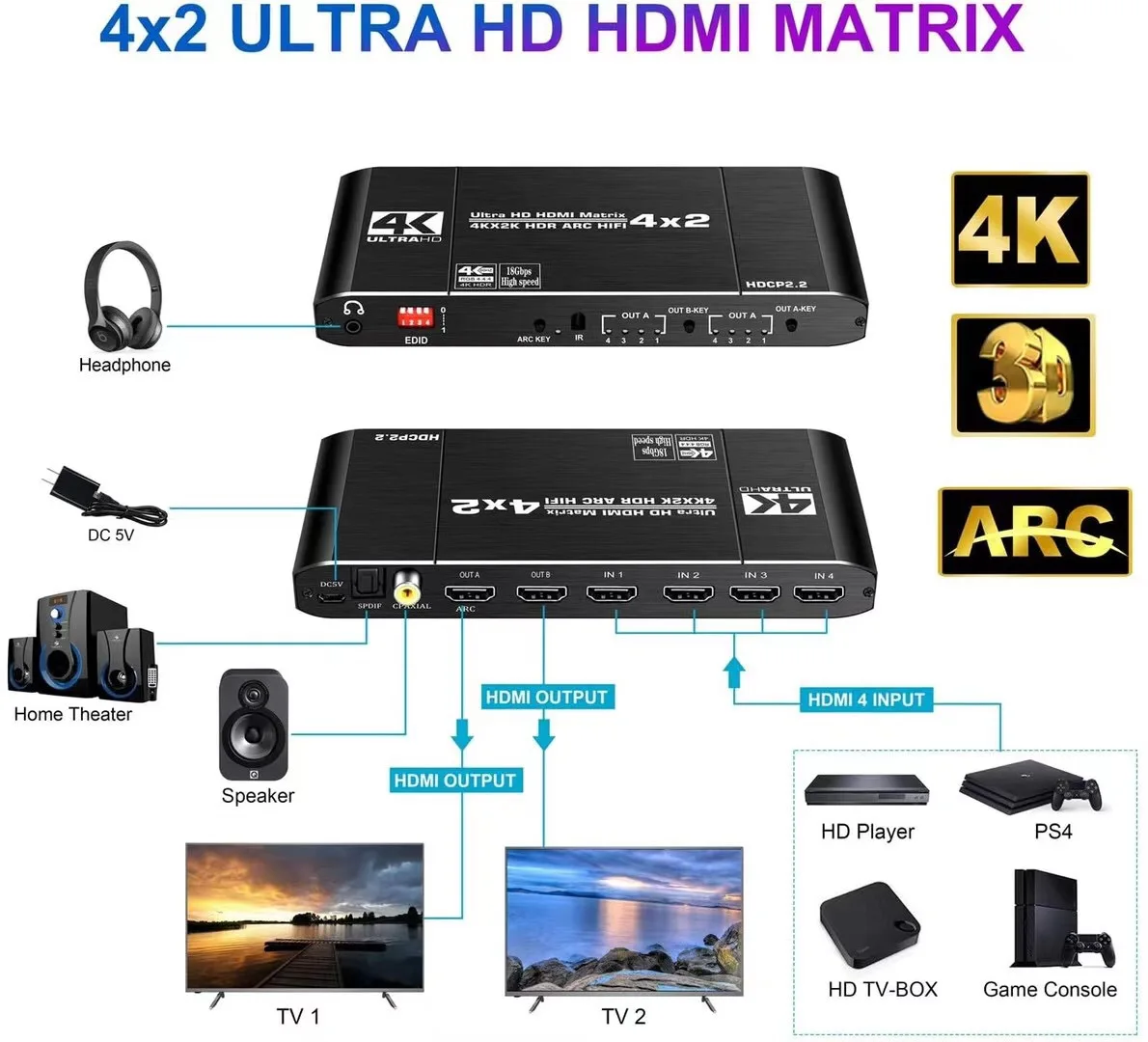

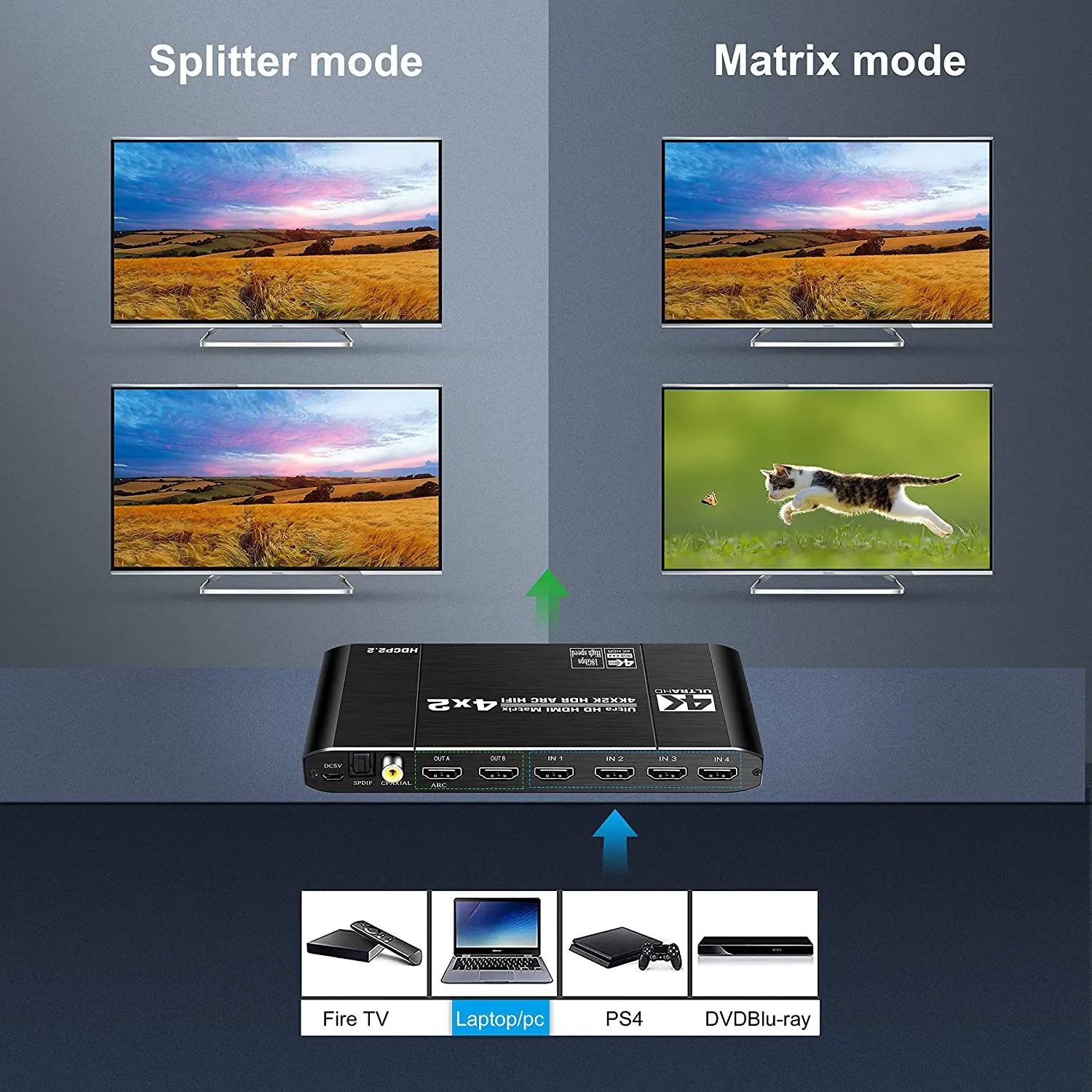

[4K HDMI Matrix Swtich 4 In 2 Out ] This 4x2 HDMI Matrix Switch Splitter routes four HDMI sources to two HDMI displays at the same time. It Combines the functions of HDMI splitter, switch, 4 HDMI Inputs switch or split to two HD Displays. It can display same or different image on your television. It supports up to 4K2K 60Hz YCbCr 4:4:4 and HDCP2.2 resolution(Downward Compatible), Support HDMI V2.0 and HDR.



[4K@60Hz HDMI Audio Extractor] It supports HDMI audio extract and separate by Optical Toslink SPDIF/Coaxial/3.5mm Jack Audio Out, compatible with more audio equipment. Support 2.0/5.1/ADV three kinds of audio mode options. Supports ARC, TV audio will return and out by the Optical Port.(Note: only the OUT A port supports ARC function).

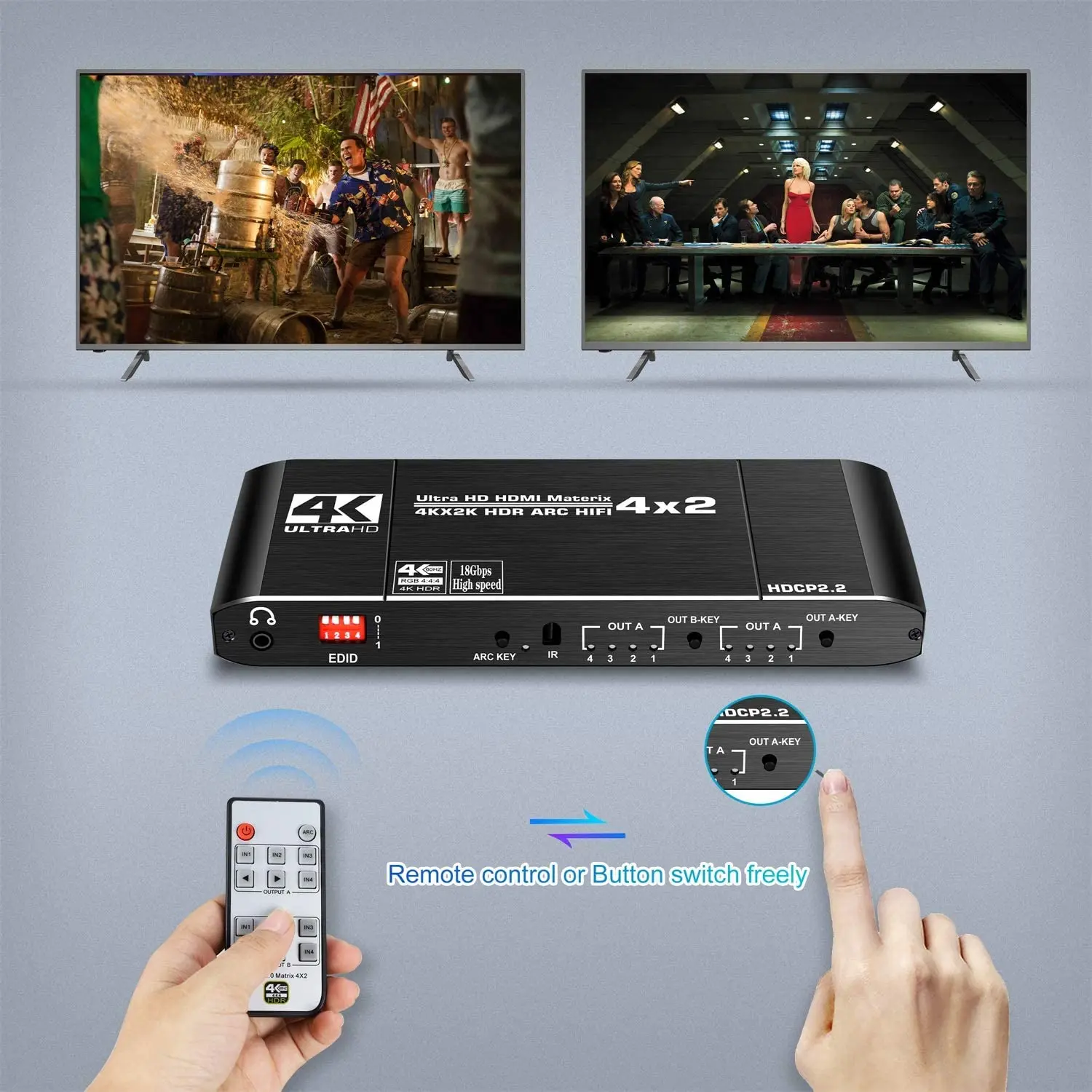

[ Easy to Operate] Inputs can be switched with the IR remote control,also can be controlled by two switch buttons. (The LED indicator clearly shows the current input source of the device you are using, and displays the operating status of the device in real time. The product package is equipped with the latest infrared wireless remote control ).



[ Widely Compatible] With EDID function, make it compatible with most of the HDMI source and sink devices. This 4x2 HDMI Audio Extractor Matix Switch compatible with any HDMI devices such as PS5/PS4 Pro, Xbox 360, PS3, Beamer, DVB Receivers, Blu-ray Player, Laptop and HDTV/HD Monitor etc. It Supports LPCM 7.1, Dollby digital, DTS, DTS-HD, DSD and Dollby True HD Audio.

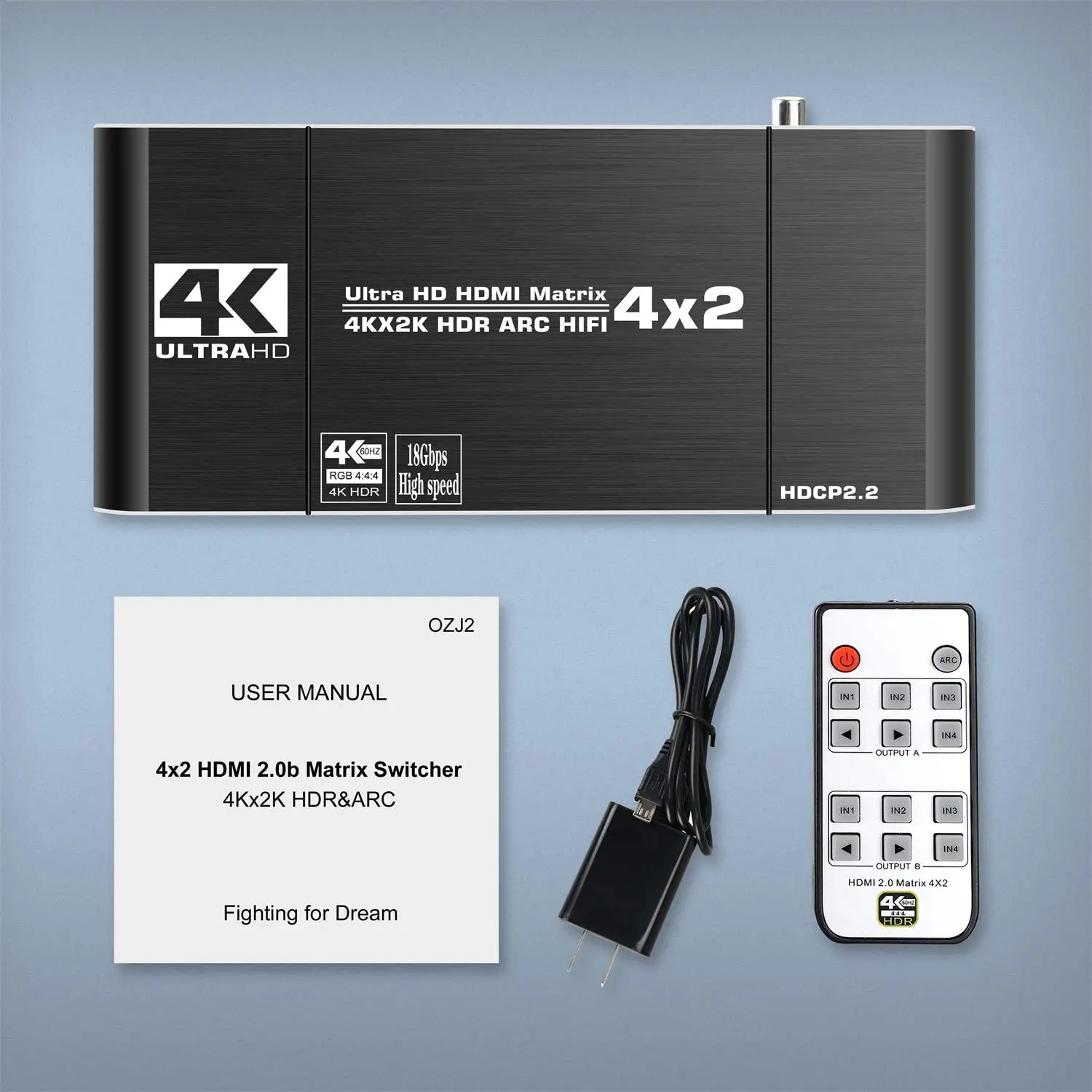

Box Package contents

1x 4K HDMI Matrix

1x 5V Power Adapor

1x Remote Control

1x User Manual









Product Pictures
