Product Description






Product Description
As the name suggests, plastic towline is a type of towline.
According to the structure, it can be divided into bridge plastic towline and fully enclosed plastic towline; according to the model, it can be divided into small towline, general towline and large towline; according to the noise coefficient, it can be divided into ordinary towline and silent towline; according to the form Can be divided into ordinary towline, parallel towline, S-type towline; according to the raw materials are divided into the original package plastic and recycled plastic.


Product parameters
(1) Material: reinforced nylon, with high pressure and tensile load, good toughness, high elasticity and wear resistance, flame retardant, stable performance at high and low temperatures, can be used outdoors, the amount of nylon determines the drag The strength and wear resistance of the chain and the noise level during operation. The nylon content ranges from 5%-17%, but it exceeds 19%. Generally about 30% content.
(2) Resistance: oil resistance, salt resistance, and a certain ability of acid resistance and alkali resistance.
(3) Operating speed and acceleration (specific speed and acceleration depend on operating conditions).
(4) Operating life.
(5) Looking at the structure can not only play a role in mechanics, but also depends on the appearance.


Detailed Images






Usage scenarios for products


Product application
Plastic chain has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and Windows
machinery, injection molding machine, manipulator, lifting transport equipment, automatic warehouse and so on

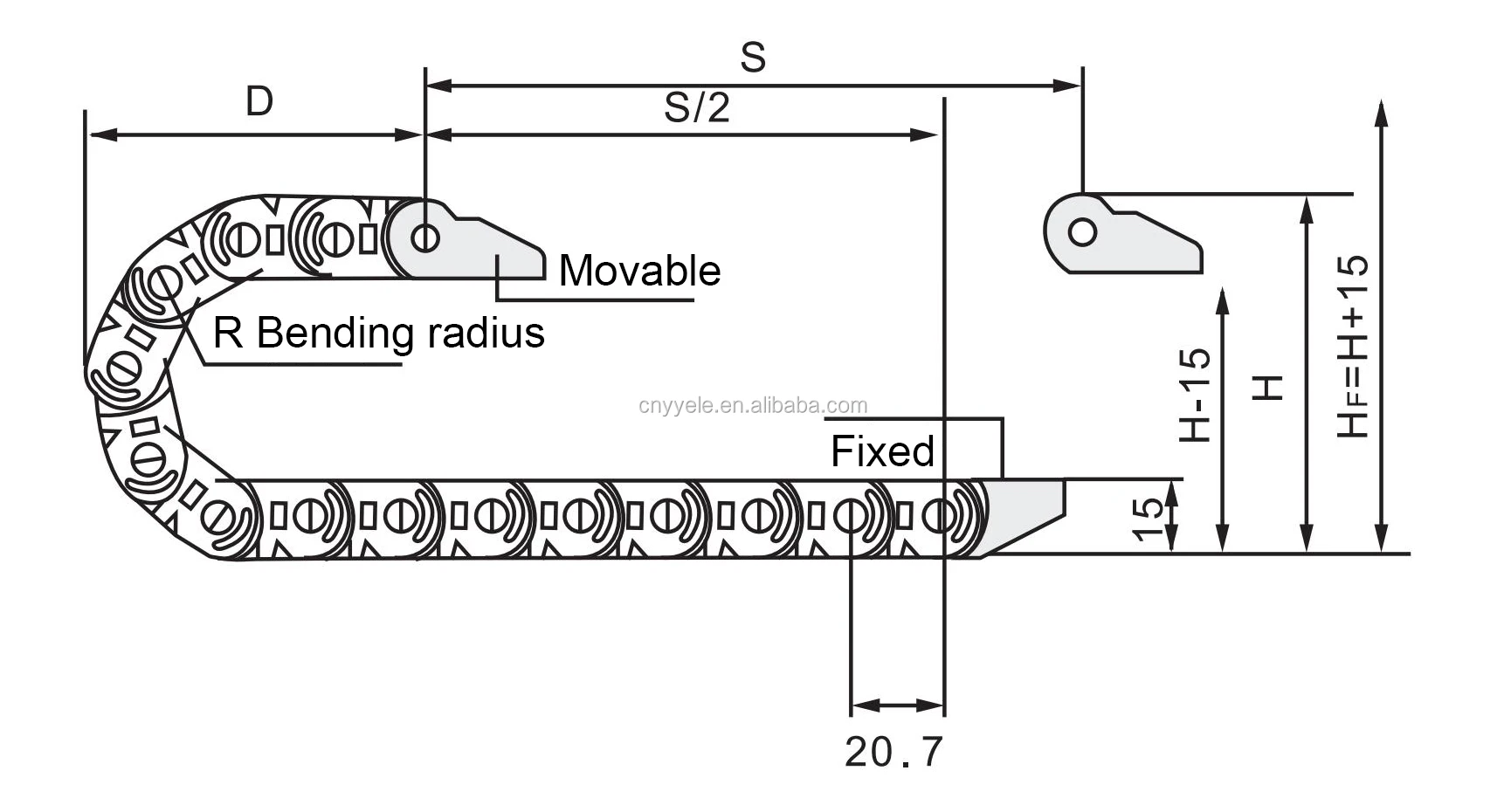

Size Information








10 series

Joints distance=33.7mm,30 pcs joints make up one meter chain (no ends included)


R
28
38
48
55
60
75
100
H
79
99
119
133
143
173
223
D
74
84
94
101
106
121
146
K
158
190
221
243
259
306
384


Series
10 Series

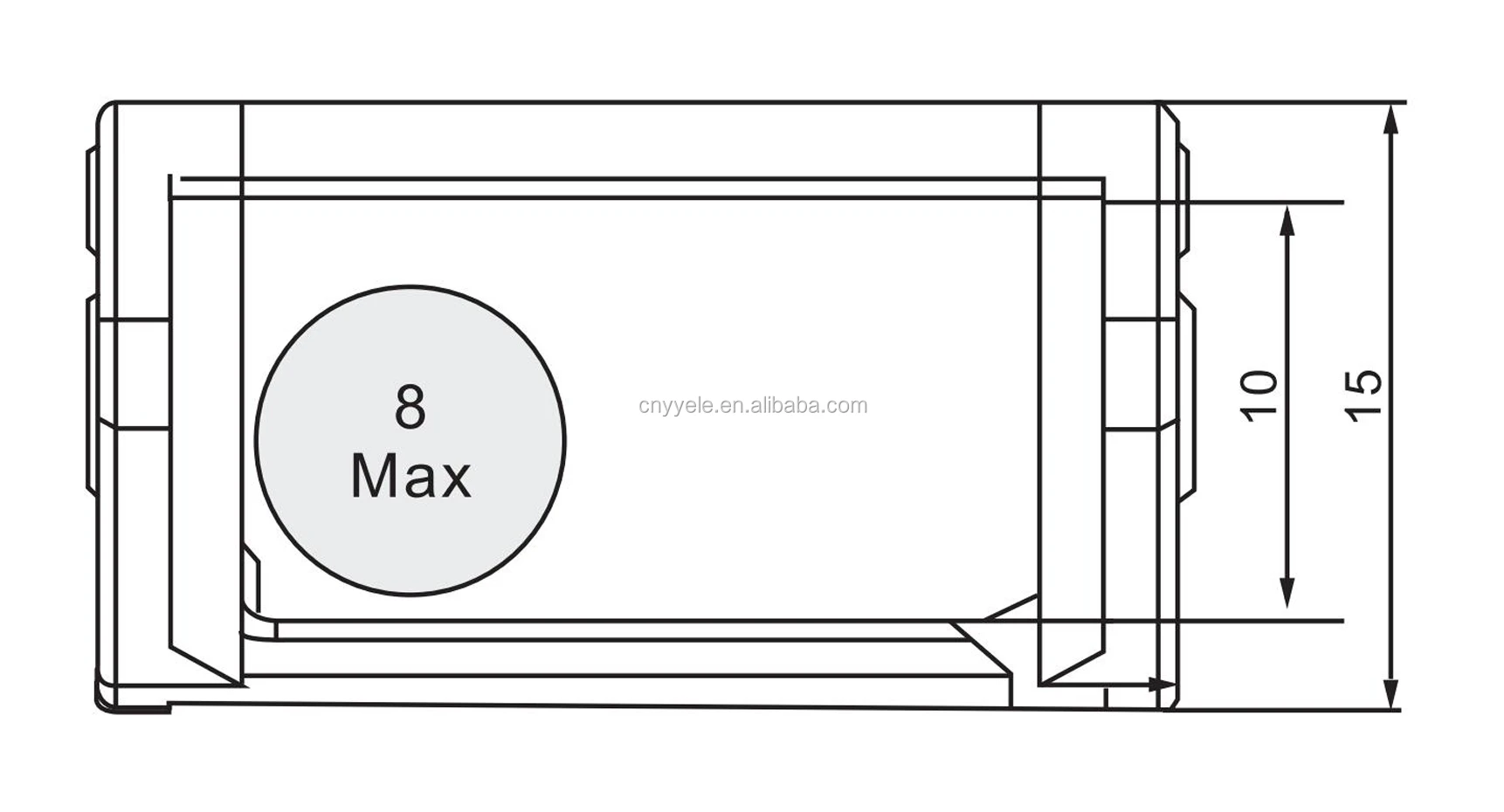

Inner height
18
18
18
18
Inner width
18
25
37
50
outdoor height
23
23
23
23
outdoor width
29
36
47
60
Bending radius
28,38,48,55,60,75,100
Type
Can open
The aperture(mm)
5x7L
5x8.5L
5x9L
5x9L
Hole distance of ends（mm）
A=8 B=11.5 C=9
A=12 B=7.5 C=11
A=24.5 B=7.5 C=7.5
A=37.5 B=8 C=7
Sketch map of ends

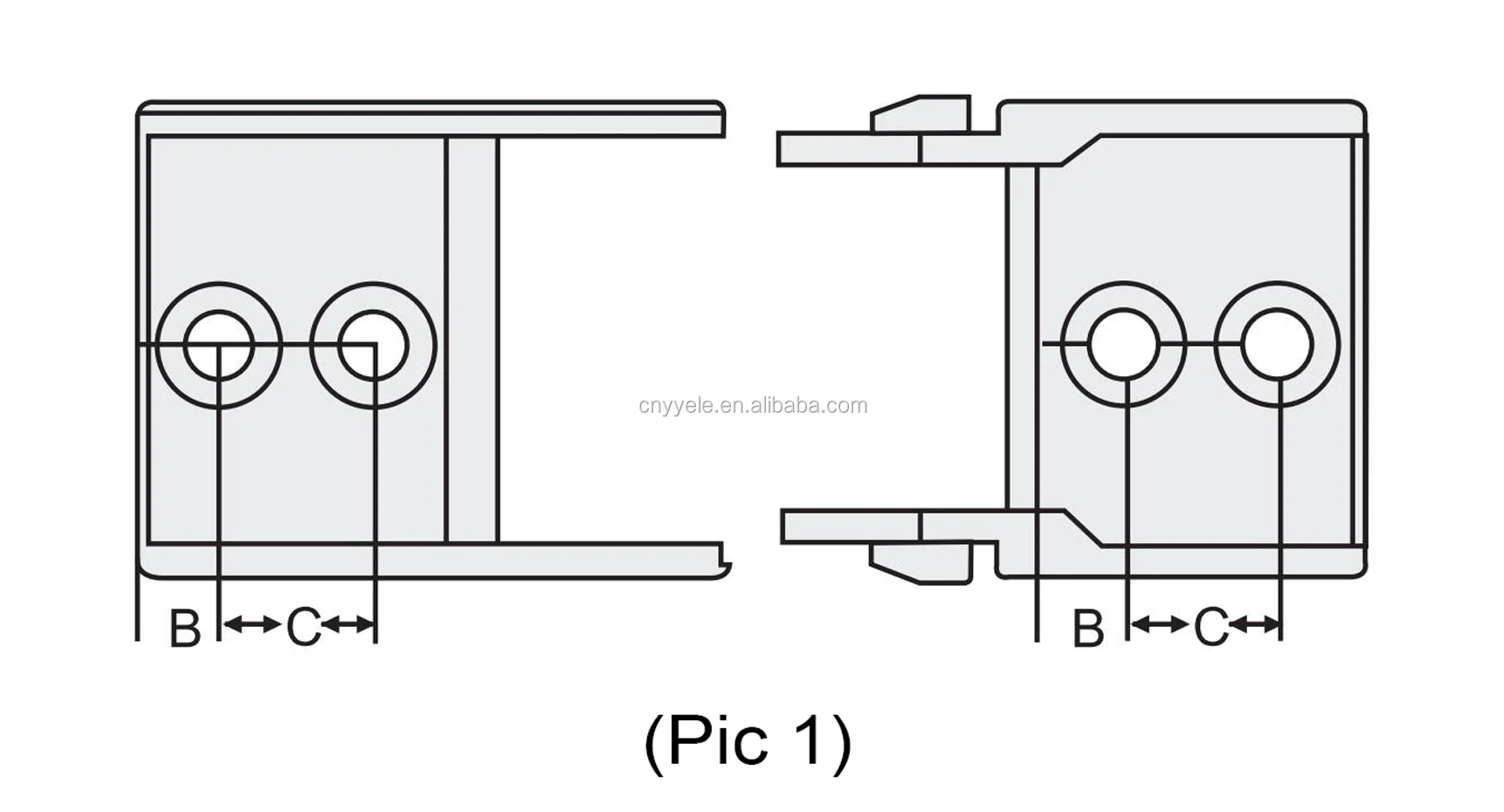

(Pic 1)

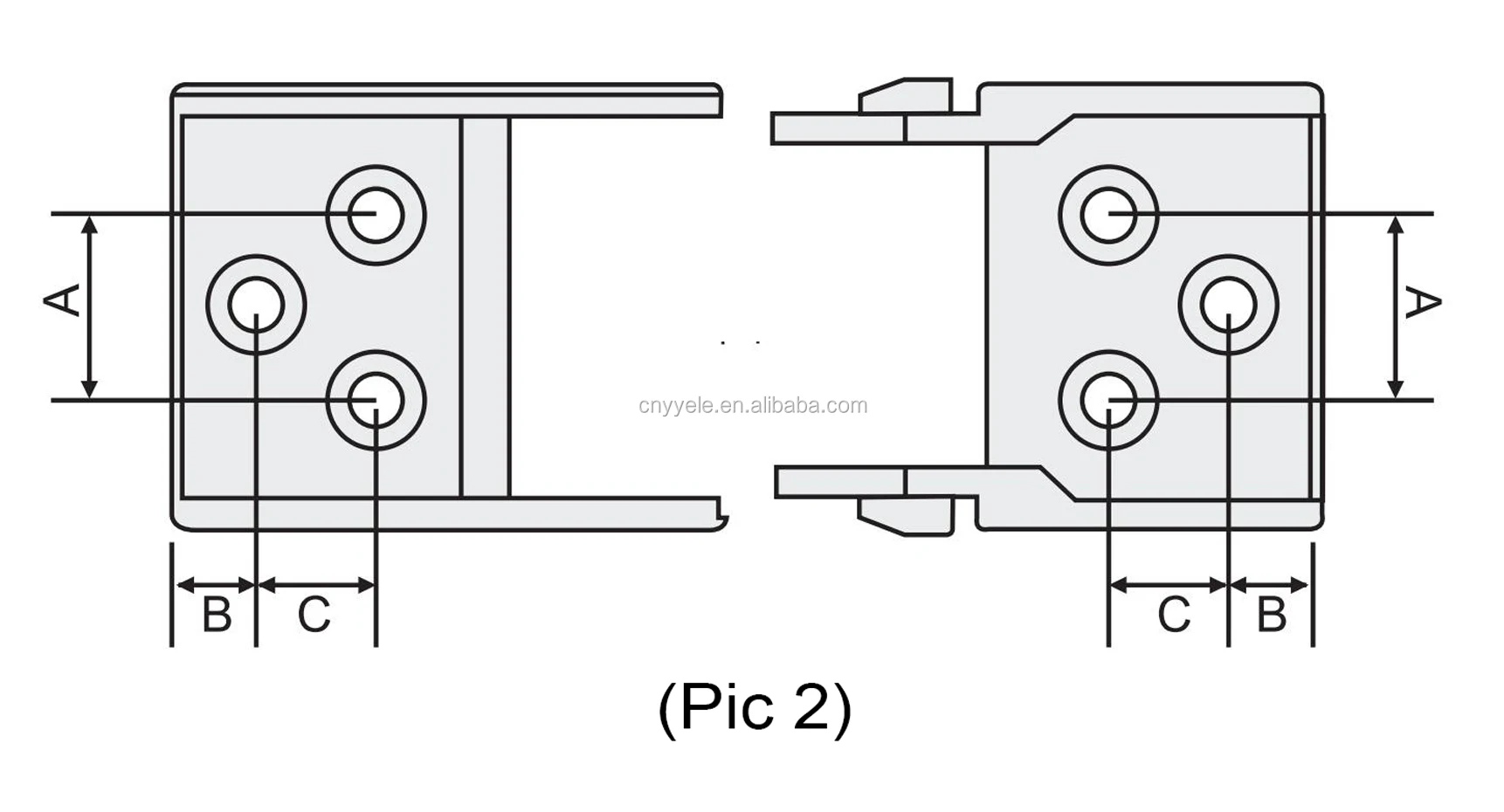

(Pic 2)
(Pic 2)
(Pic 2)


Company Instruction






FAQ




Q: Are you trading company or manufacturer ?

A: We are factory.And produce the goods by ourself.A: We are factory.And produce the goods by ourself.


Q: How long is your delivery time?

A: About the production time :
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
