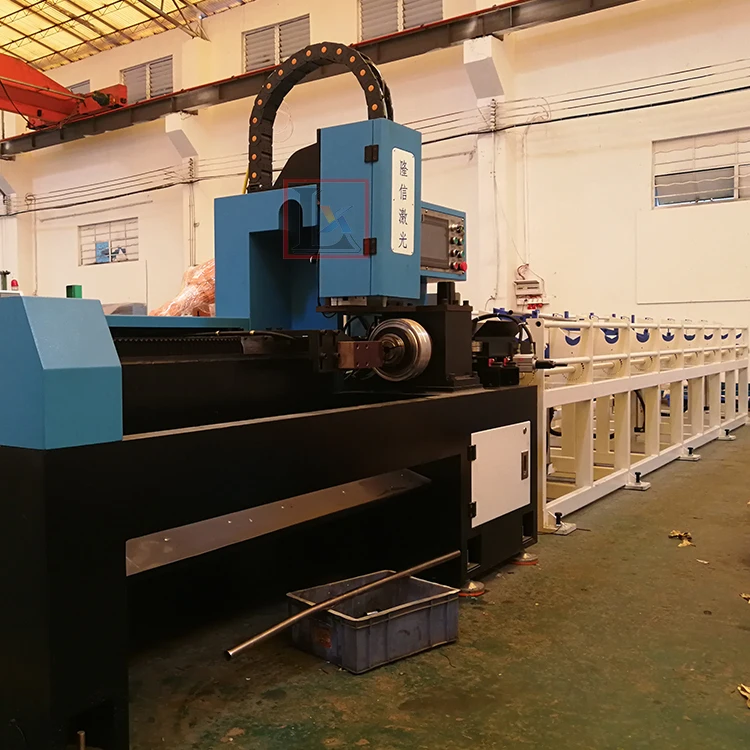

Steel Stainless Aluminum Metal Pipe Tube Chinese Cnc Fiber Laser Cutting Machine Economical
An Expert in Pipe Cutting, Since 2003

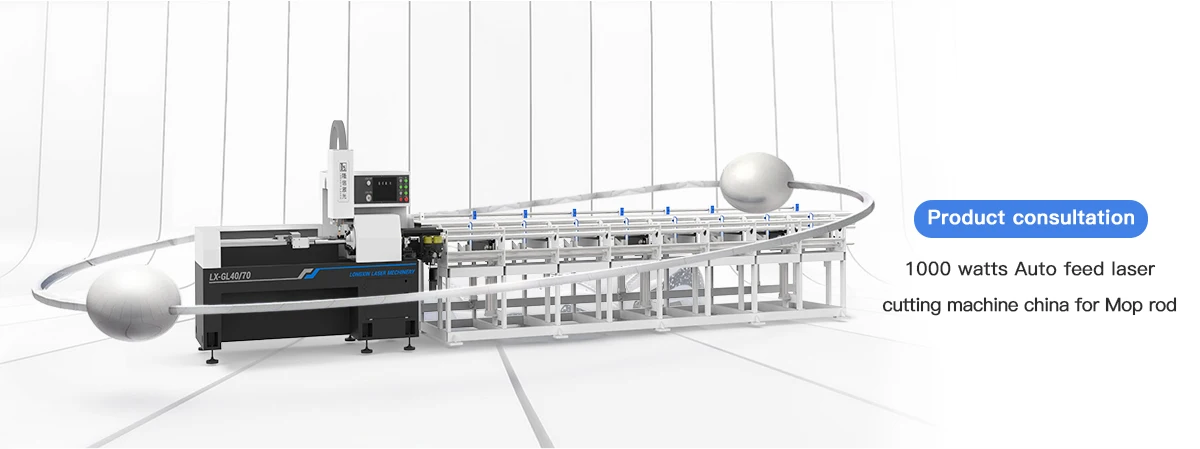

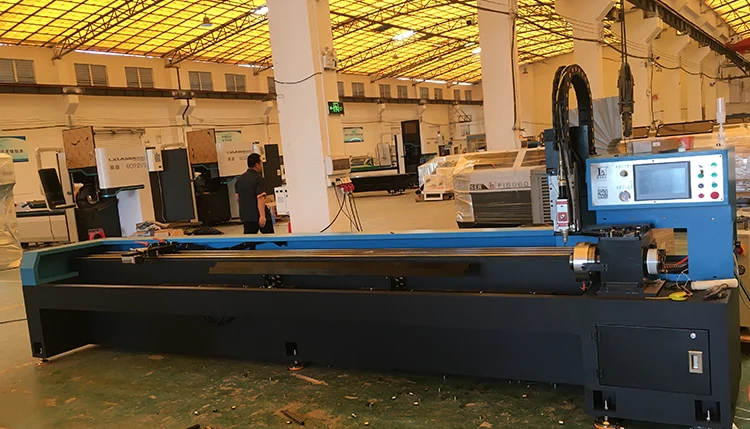

Entry level, Easy operating, 0 Complaint – LX-FL40 / LX-FL70
Item | Parameter |
Pipe size range | Round pipe Φ6-Φ70mm |
Pipe thickness | 0.17-4.0mm(Depends on material) |
Maximum Cutting speed | ≤0.8s/pc( Depends on material thickness) |
Cutting gap | ≤0.1mm |
Feed length | ≤1200mm |
"w" axis adjustment range | 360 |
Machine repeat positioning accuracy | ±0.1mm/1000mm |
Machine positioning accuracy | ±0.1mm |
Electricity demand | 380V 50Hz |
Machine size | 2300*850*1500MM |
Product Description
- Applicable types of tubes: outer diameter 6 - 40 / 6 - 68 mm ( 0.25’’ – 1.5’’ / 0.25’’ – 2.6’’ )
- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…
- Especially for thin-walled tubes
- Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper…
- Especially for thin-walled tubes
- Skip production processes and minimize the labor costs and consumables.
- Each machine can help save 3-5 workers comparing to saw blade cutting machine, greatly reduce the labor cost.
- Each machine can help save 3-5 workers comparing to saw blade cutting machine, greatly reduce the labor cost.

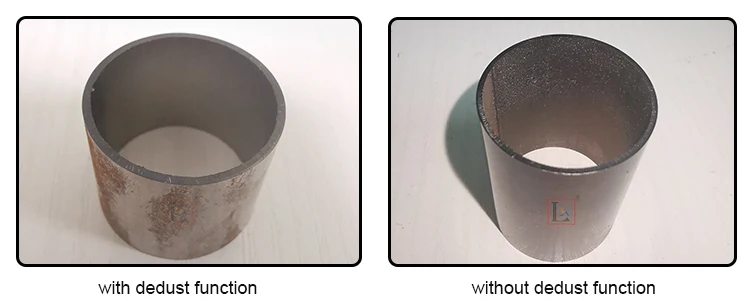

Special spatter reduced function for inner wall cleaning
- The spatter will inevitably adhere to the inner wall of tubes during the laser cut processing. Therefore, we can add an
automatic spatter reduced device to ensure that the inner wall of the finished product remains clean.
- The spatter will inevitably adhere to the inner wall of tubes during the laser cut processing. Therefore, we can add an
automatic spatter reduced device to ensure that the inner wall of the finished product remains clean.

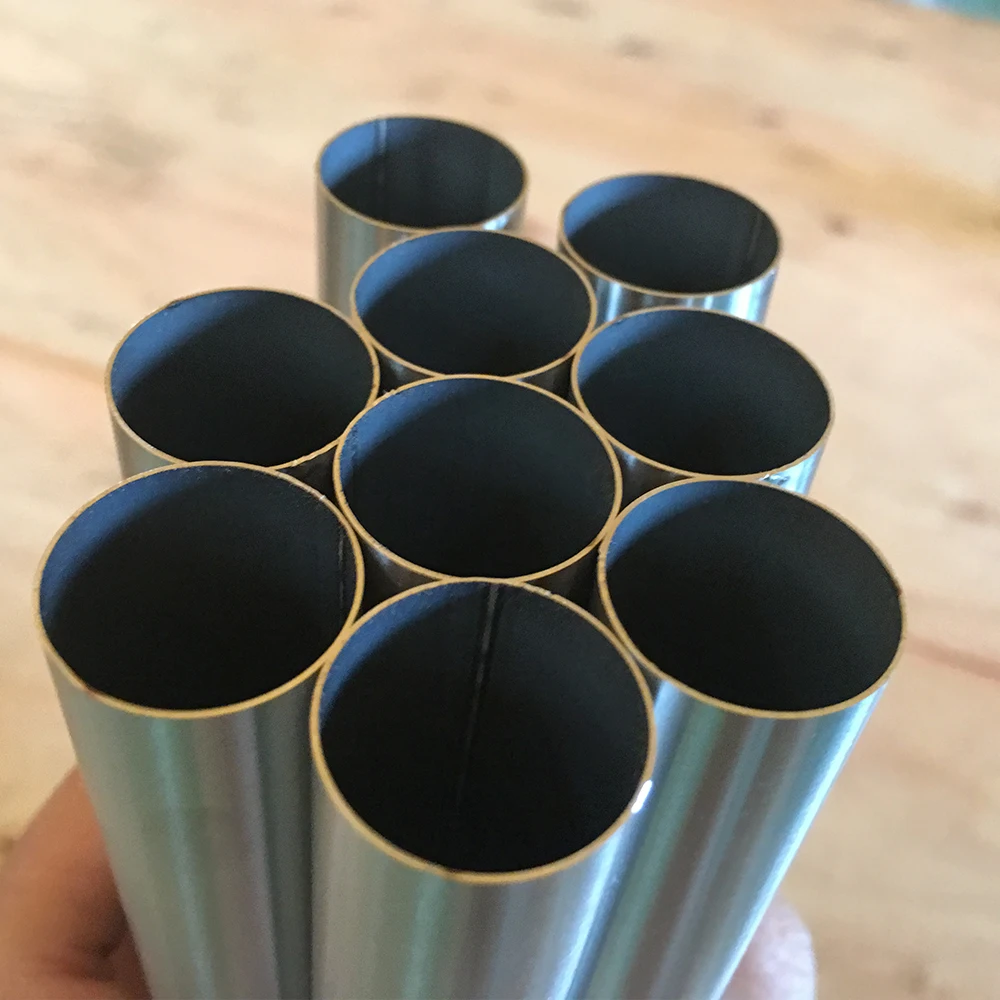

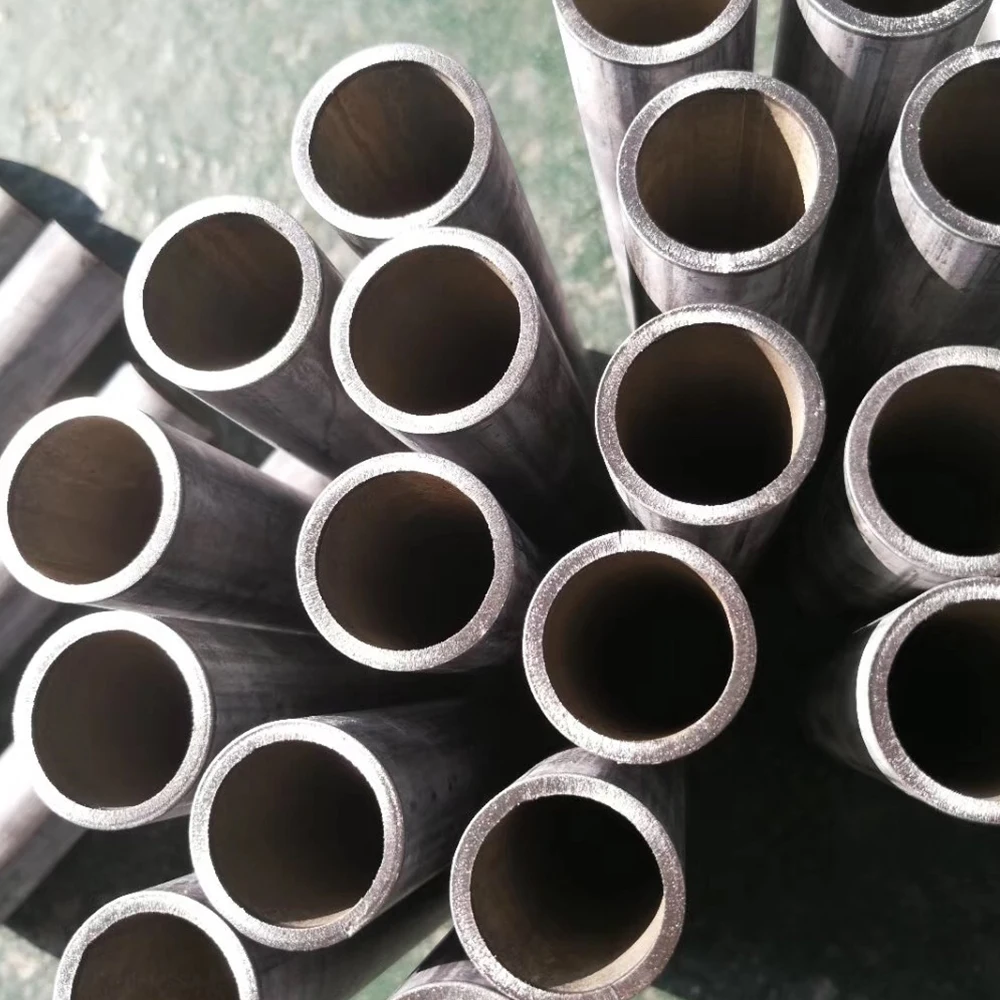

Cutting capacity
Material | Diameter * Thickness * Length | Cutting Capacity |
Stainless Steel | 12*0.4*252mm | 12, 000pcs/8hours |
Carbon Steel | 10*1.0*615mm | 9, 000pcs/8hours |
Carbon Steel | 20*0.4*298mm | 14, 400pcs/8hours |
Customized version, the longest cutting length can reach 4 meters
Steel Stainless Aluminum Metal Pipe Tube Chinese Cnc Fiber Laser Cutting Machine Economical
Certifications
Steel Stainless Aluminum Metal Pipe Tube Chinese Cnc Fiber Laser Cutting Machine Economical
Related Products
Our Company
Foshan Longxin Laser Technology Co.,Ltd. was founded in 2003. We are specialized in pipe processing machines designing and manufacture.
We have our own R&D department and we focus on technology and product innovation .we not only produce machines, but also provide pipe processing solutions including customized design and modification. We also have a professional after-sales team to provide the machine installation, debugging and comprehensive technical support.
We have CE certification and many technology patents. Our machines have been exported to more than 50 countries.
Steel Stainless Aluminum Metal Pipe Tube Chinese Cnc Fiber Laser Cutting Machine Economical
Packing & Delivery
FAQ
1. We have one pipe tube that is mid carbon content(SAE1020), diameter 10mm*1.25mm(wall thickness) , is this ok for machine?
Yes, this pipe is ok for our model LX-FL40. It is suitable for pipe diameter below 42mm, steel / stainless steel thickness within 3mm under 1000W laser power.
2. How many hours of working life has the laser? What is the spare part cost approximately?

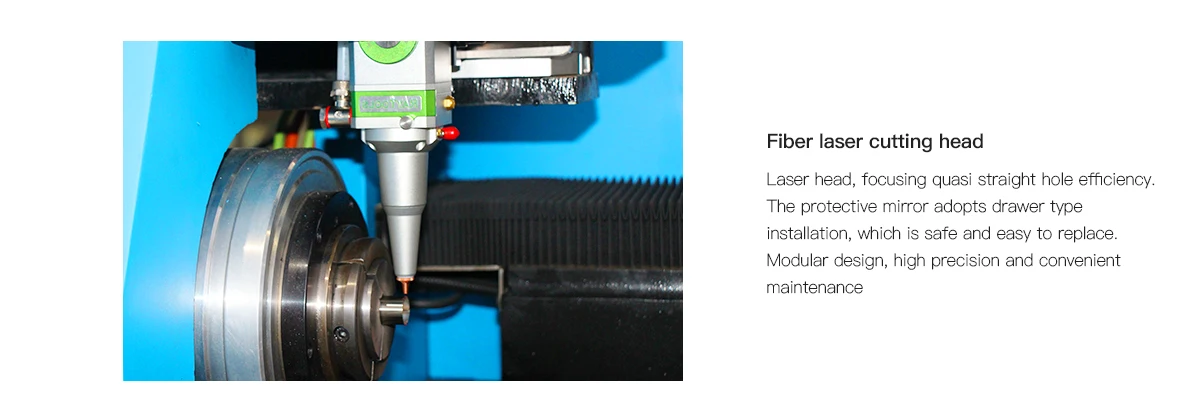

Laser source life 100,000 hours (more than 20 years). Spare part is the protective lens and nozzle of the laser head. Each can use 2-5 months, we offer each 5pcs for spare and free of charge. For additional quantity, each cost 16USD/ pc.
3. Is there a difference between MAX / RAYCUS / IPG?
The quality of lasers made in China is gradually mature and stable. According to our testings, Max and Raycus are similar in performance. IPG is rarely used in the market within 6KW, unless customers concern on the brand and do not care about the cost. This is because IPG does not show obvious difference from the other two within 6KW power.The share of IPG lasers in China is also declining year by year, in 2018 was 48% and went down to 30% 2019. The share of Max and Raycus are similar, both about 20%.In addition, the laser source is only one part of the machine. Customers should pay more attention on the performance and efficiency of the whole equipment.
4. Regarding stabilizing electric transformer, for 220V 60hz e phase, how many KVA is required?
The transformer capacity is depends on the laser power. For laser power 1000W, it requires 40KVA.
5. PLC, has English or maybe Spanish language?
Our touch screen has both English and Chinese language. We can add Spanish or other language with your help for the translation.
6. Can we send you sample of our pipe in order for you to show us cutting of our material?
Yes, we always welcome customer send us their pipe for testing. Kindly send us pipe length ≥600mm, qty ≥ 3pcs for each size. The longer size and the more quantity the better.
7. What is the material loss every time laser cuts? I mean, when laser is cutting what is the length waste for every cut?
The laser cutting loss is very small, only 0.05-0.1mm/cut, while saw cutting loss would be about 2-5mm/cut.
8. After laser cuts, is the edge hardened by the laser temperature? Can we flare pipe easily without problem after cutting?
The hardening effects are different on different pipe materials. We suggest customers send us their tubes for testing and check the result.
9. Under what circumstances should I choose to use a laser machine?
If cutting quantity is more than thousand pieces per day, we suggest laser machine. As it has advantage on the cutting loss, operation cost(0.6USD/hour) and high efficiency(fast and no burr). In long term usage, laser machine can bring you more profits.
10. When can it cover the machine cost and gain profits for me?
According to our surveys, usually it would take about 0.5 to 1.5 years for our customers to cover the machine cost by the profits they obtained on the laser machine.
