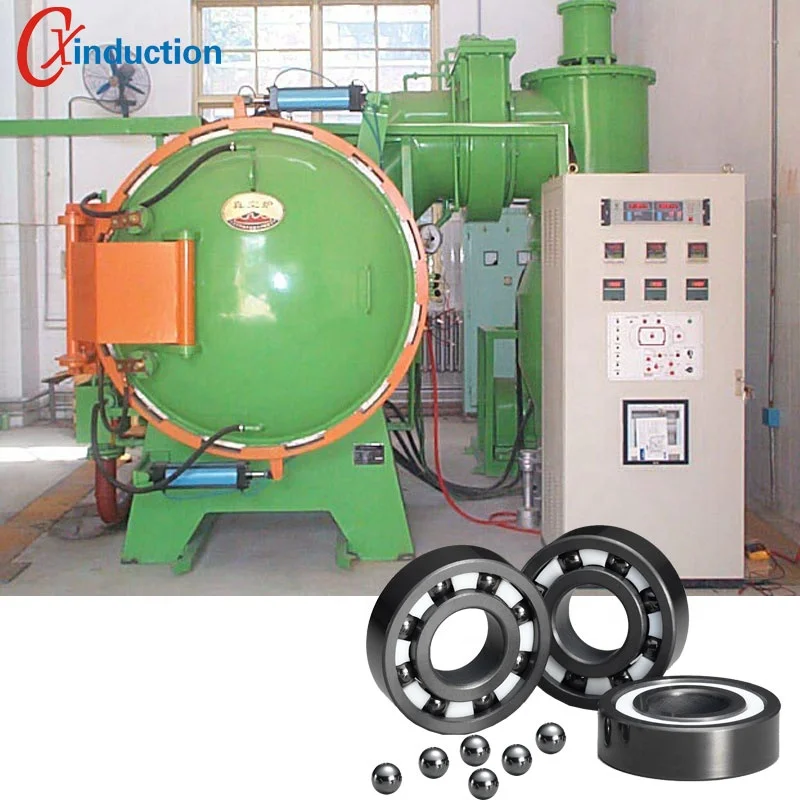

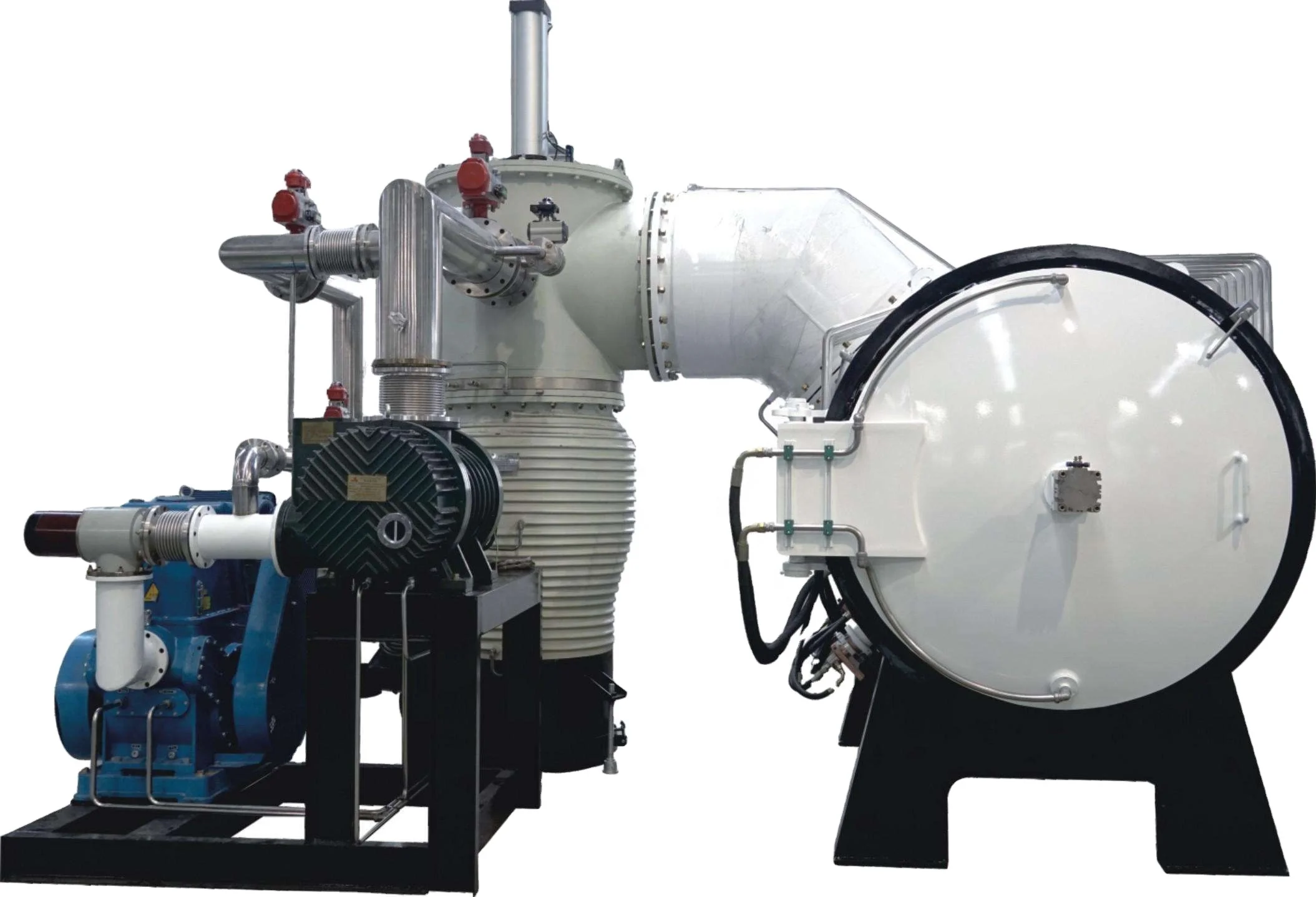

Silicon carbide ceramic vacuum sintering furnace 1600C 2000C 2200C 2400C customize vacuum furnace

CX-SCSF series are top loading batch type induction heating furnaces with the maximum operating temperature from 1600℃-2400°C. These furnaces operate with rough vacuum, partial pressure and micro-positive pressure of protective gases such as Argon and Nitrogen. Oxygen atmosphere is prohibited in these furnaces due to graphite crucible and graphite insulation used inside the furnace.

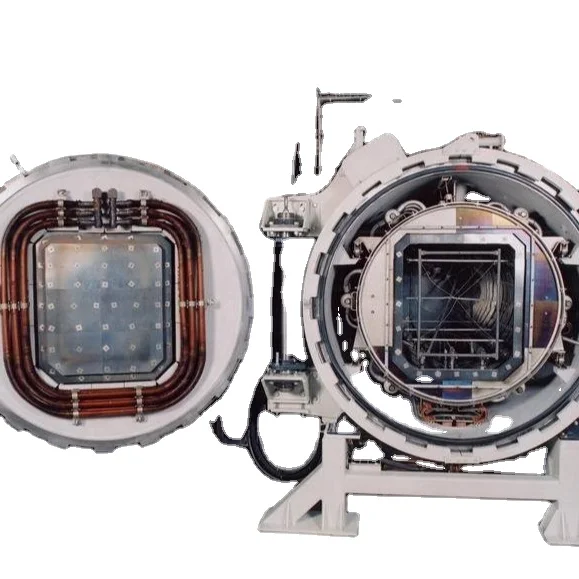

CX-SCSF series use medium frequency induction heating method, however the resistance heating method is optional in case of client demand. A water cooled induction coil installed inside the furnace. At the center of the coil, there is a graphite crucible as the susceptor for induction current, surrounded by carbon felt as the insulation material. Cylindrical hot zone design ensure uniform heating inside the hot zone.

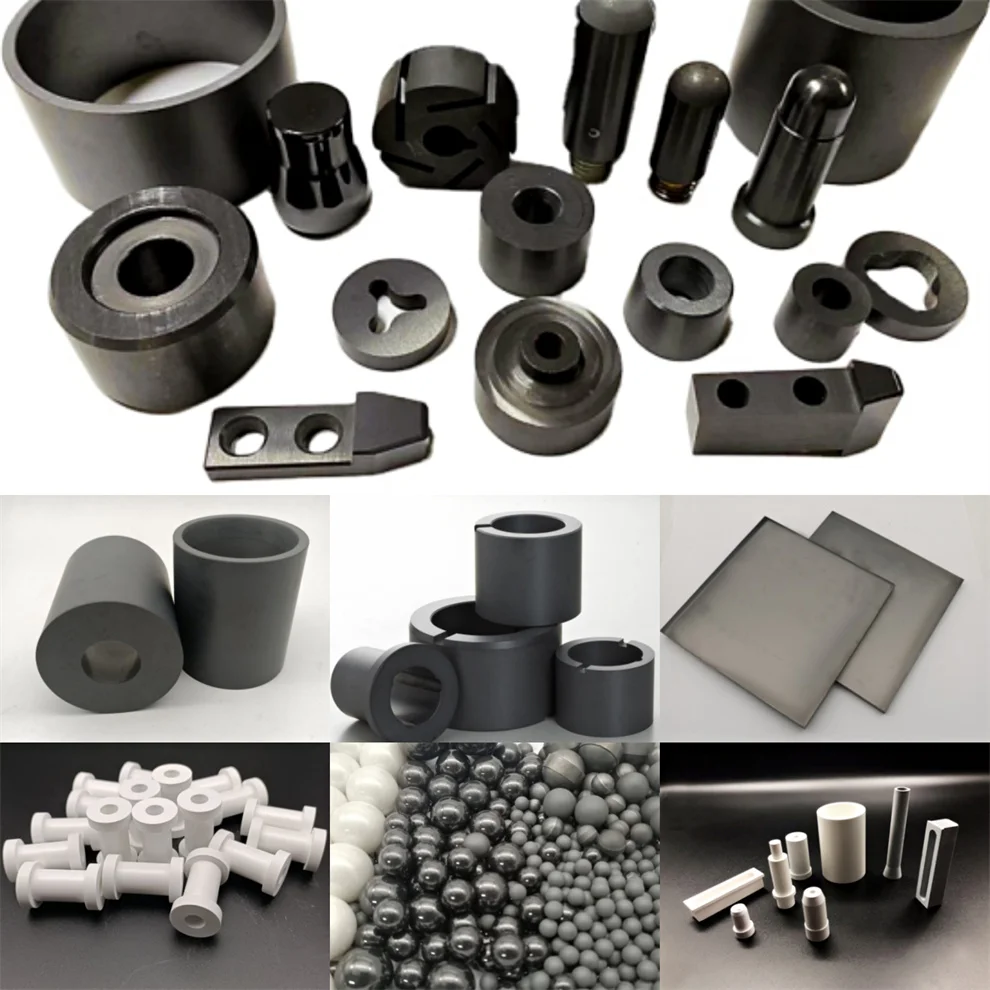

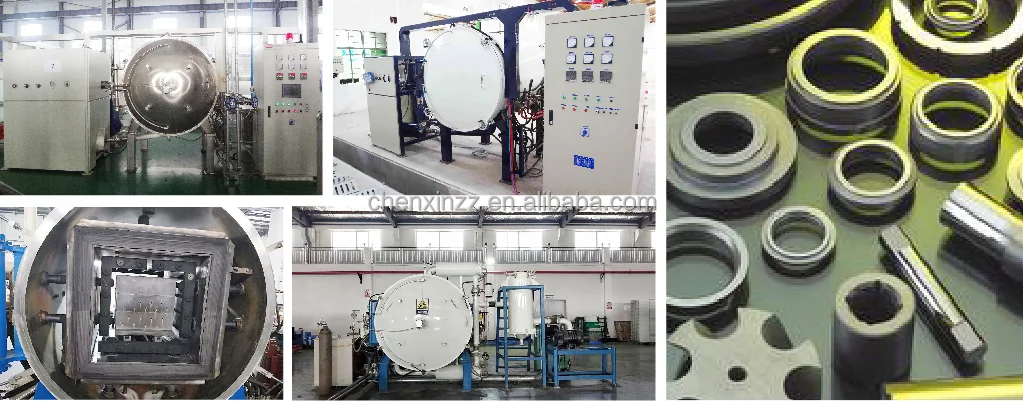

Application: These vacuum Sintering furnaces are suited for silicon carbide seals, bushings, nozzles, petrochemical pipelines, anti-corrosion pipelines and other silicon carbide products.

Features:

1.The ultra-high temperature furnace within 2400, can fully meet the sintering of various materials.

2.Using digital & intelligent temperature control system, with fully automatic and high accuracy to complete the process of temperature control &temperature measurement, the system can according to reference heating curve heating up, 20 & a total of 400 segments of different process heating curve can be stored.

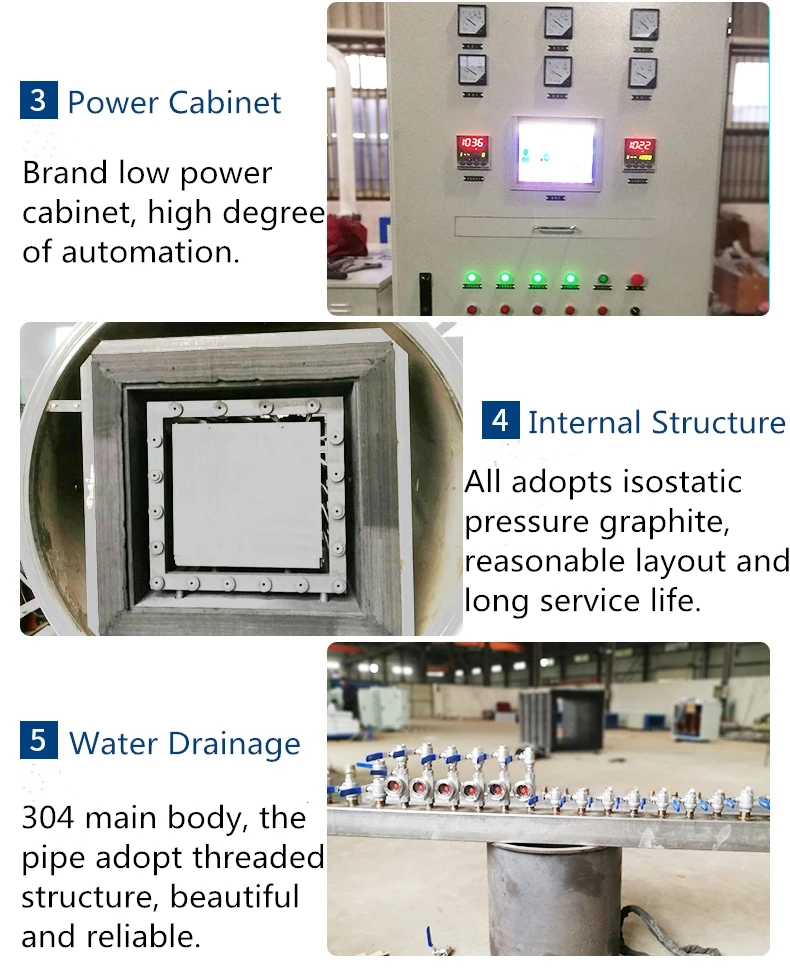

3.Using circulating water cooling system and digital flow control system, furnace conversion using high-performance IF contactor; Comprehensive PLC water, electricity, gas, automatic control and protection systems.

1. Maximum temperature: 1600C, 2000C, 2200C, 2400C can be customize accroding to your process

2. Furnace working atmosphere: Vacuum, hydrogen, nitrogen, inert gases

3. Temperature uniformity: ≤ ± 10

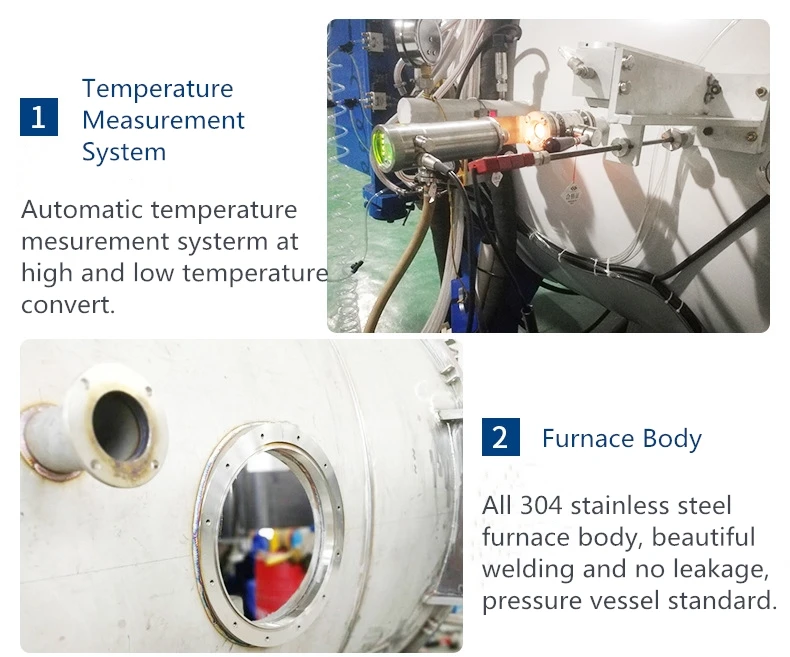

4. Temperature measurement: Infrared optical temperature measurement range is 800 ~ 2400 or 0 ~ 2400;

5. Measurement Accuracy: 0.2 ~ 0.75%

6. Temperature control: Process control and manual control; Control accuracy: ± 1

7. Limit heating rate: 200 / min (air furnace, depending on volume and high temperature furnace structure.)

We have more than ten years of exporting experience;

We have long term cooperation freight forwarding in exporting, customs declaration line.

We can choose the best and economy transport way for you.

Company Information:

Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.

Our Customers:

Customers Visiting:

Question: Are you a factory?

[Cx-induction reply:] Yes. We are the leading company of High Temperature Vacuum Induction Furnace, and we have successfully offered thermal solutions to many companies.

Question: Do you have customization or OEM service?

[Cx-induction reply:] Yes, our furnace can be specialized designed according to your actual needs.

Question: What kind of quality standard does your furnace follow?

[Cx-induction reply:] We are ISO 9001:2015 and CE certificated factory. All the process are strictly following the standard of the metallurgy process.

Question: Can you serve customer oversea like installation and debugging?

[Cx-induction reply:] Yes. We can dispatch our engineer to your city for installation and debugging or other service. Meanwhile, we will offer relevant documents: The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram; Main accessories operating instructions and qualification etc.
