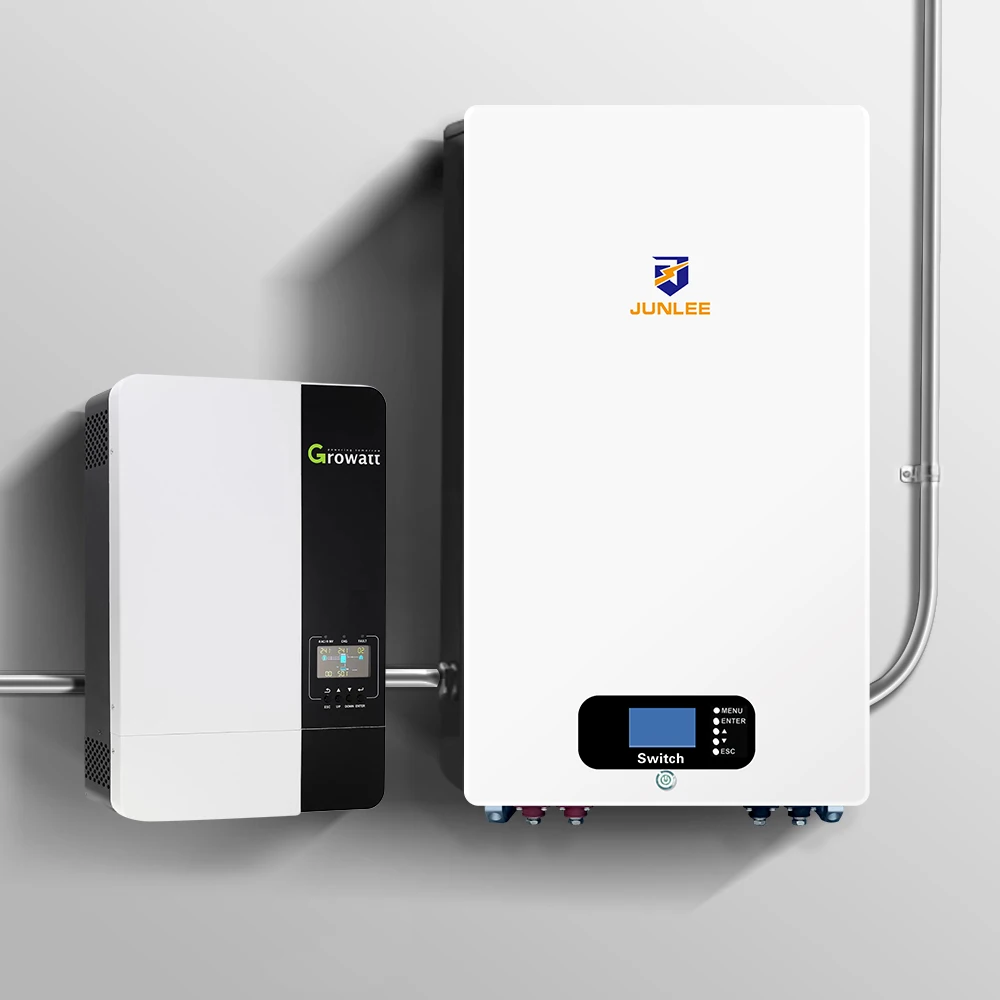

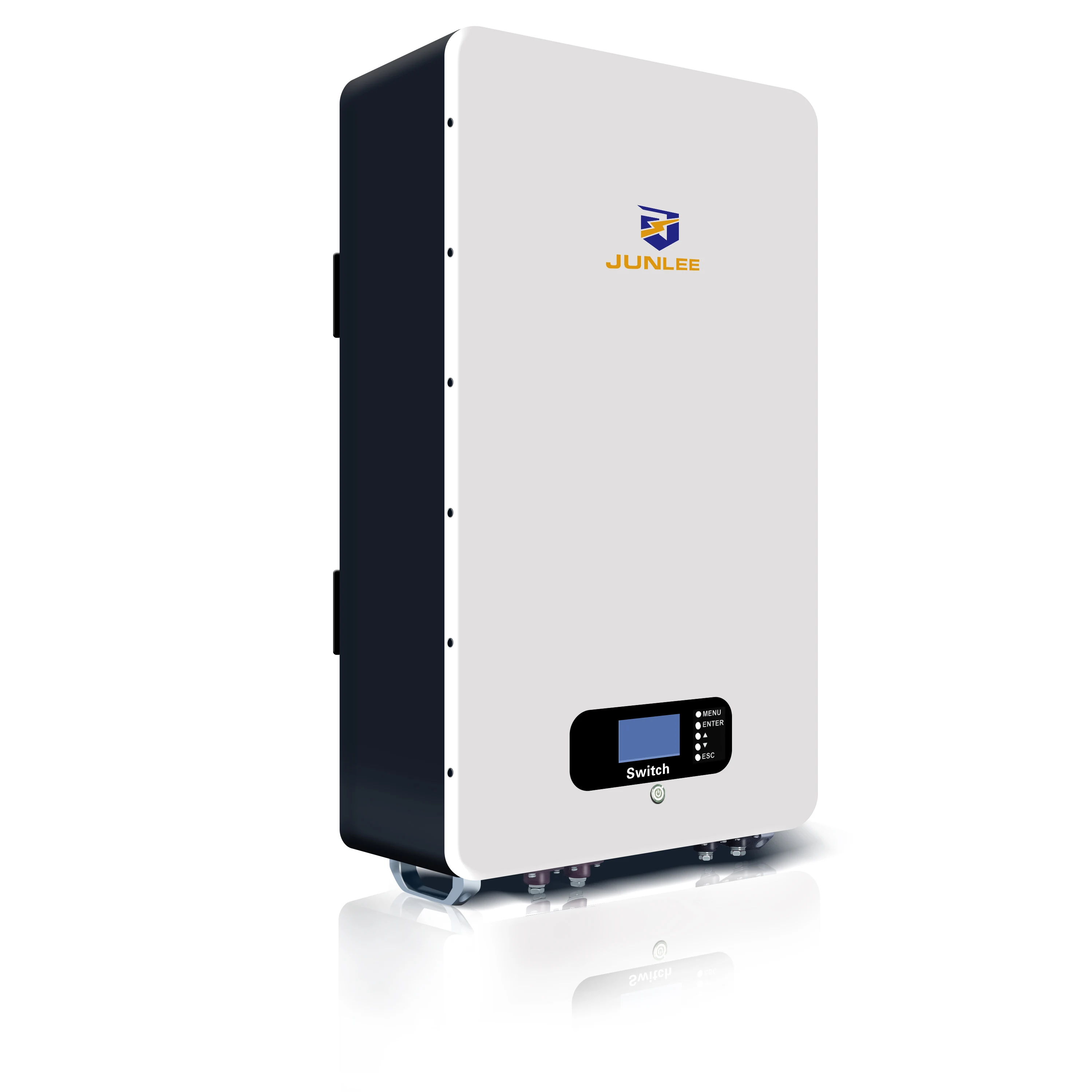

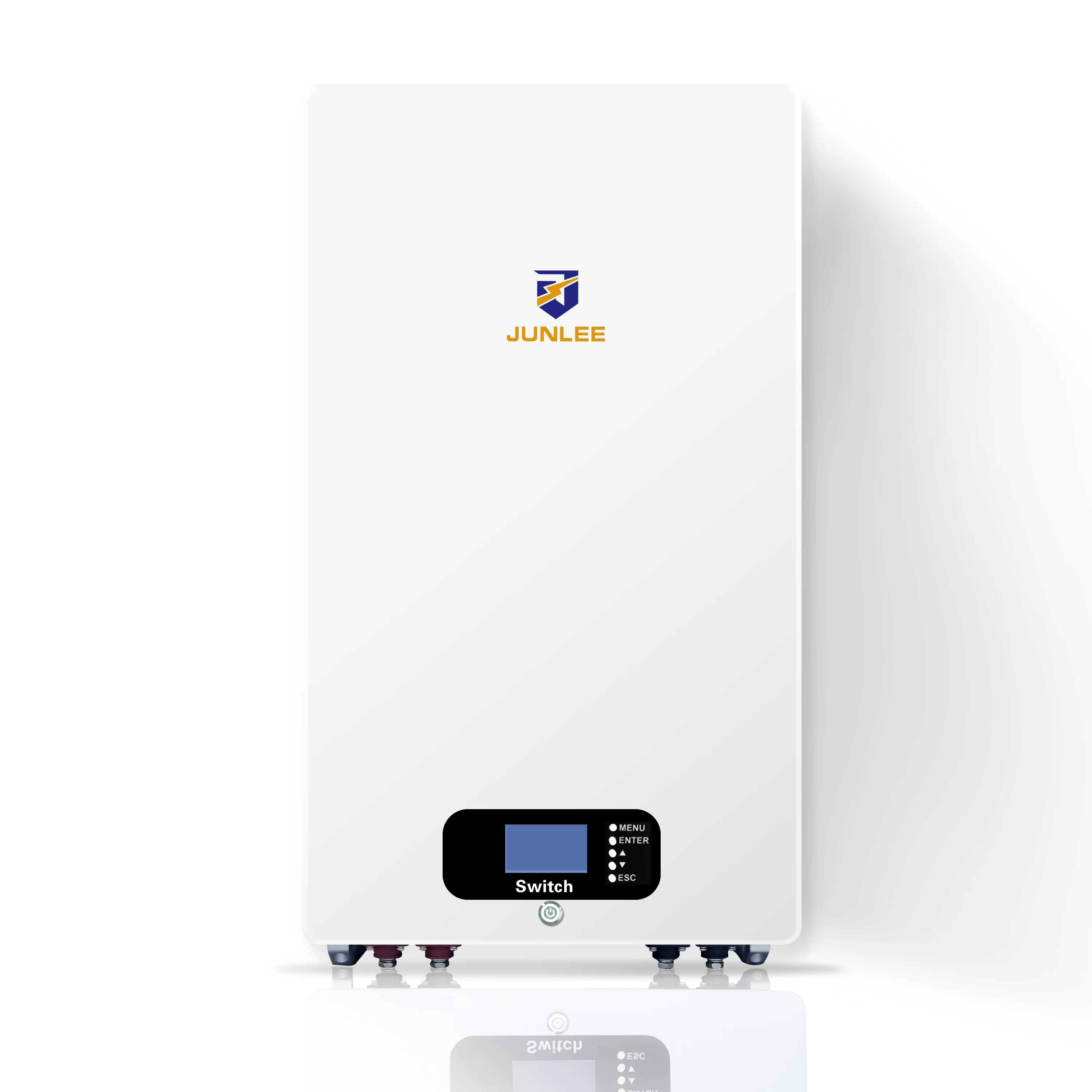

48V 200Ah power wall battery BMS Built in one wall mounted battery 6000 cycle times
- Category: >>>
- Supplier: Guangdong Junlee Energy Technology Co Ltd
Share on (1600564952732):
Product Overview
Description
48V 200Ah power wall battery BMS Built-in one wall mounted battery 6000 cycle times
Charactristics | Nominal Voltage | 48V |
Nominal Capacity | 200Ah | |
Energy | 9600W | |
Internal Resistance | ≤50mQ | |
Cycle Life | ≥4000 cycles @1C 100%DOD | |
Months Self Discharge Rate | ≤3% | |
Efficiency of Charge | 100%@0.2C | |
Efficiency of Discharge | 96-99%@1C | |
Standard Charge | Charge Voltage | 57.6±0.2V |
Charge Mode | 0.2C to 57.6V, then 57.6V,charge current to 0.02C(CC/CV) | |
Charge Current | 50A | |
Max Charge Current | 100A | |
Charge Cut-off Voltage | 57.6V±0.2V | |
Standard Discharge | Continuous Current | 100A |
Max Pulse Current | 300A(＜3s) | |
Discharge Cut-off Voltage | 43.2V | |
Environmental | Charge Temperature | 0℃ to 45℃（32F to 113F)）@60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60 ℃（-4F to 140F）@60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40℃（32F to 104F）@60±25% Relative Humidity | |
Mediancal | Plastic Case | Iron |
Dimension(mm) | 780*600*131 | |
Weight(lbs/.kg) | 54 kg | |
Terminal | 100A though terminal | |
BMS | 15S 100A |
48V 200Ah power wall battery BMS Built-in one wall mounted battery 6000 cycle times
1.（Automotive Grade Lithium Battery）Junlee lithium iron batteries have exceptional quality since they are manufactured by Automotive Grade LiFePO4 cells with higher energy density, more stable performance & greater power. Hightest-level safety based on CE Testing Certificate for the cell inside the battery. With no acid in the battery, you're able to safety mount in any position. This makes li-iron batteries perfect for solar home, RV, Campers,Golf cart, motor homes, off-grid applications.
2.(10 Years lifetime)Junlee LiFePO4 battery provides 4000+ cycles, which is more than 10 times to lead acid with 200-500 cycles. Junlee LiFePO4 battery has a 10-year service life, three times longer than the lead acid's 3-year lifetime.
3.1/3 Lightweight Junlee LiFePO4 Battery weights only 1/3 the weight of lead-acid batteries, which makes it an easy choice for RVS,Marine and off-Grid applications when mounting or mobility is in the consideration.
4.95%*Efficiency Junlee LiFePO4 battery's flat discharge curve holds above 51.2V for up to 95% of its capacity usage, providing astronomical boosts in run-time compared to only 50% in lead acid. This product is your best choice for outdoor camping power and indoor easy installation.
5.100% Protection Junlee LiFePO4 battery has built-in BMS(Battery Management System) to protect it from overcharge,
over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high-tem cut off preventes charging over 167℉（75℃）. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. Junlee LiFePO4 battery is IP65 level waterproof, which set you free from worrying to install indoors or outdoors.
2.(10 Years lifetime)Junlee LiFePO4 battery provides 4000+ cycles, which is more than 10 times to lead acid with 200-500 cycles. Junlee LiFePO4 battery has a 10-year service life, three times longer than the lead acid's 3-year lifetime.
3.1/3 Lightweight Junlee LiFePO4 Battery weights only 1/3 the weight of lead-acid batteries, which makes it an easy choice for RVS,Marine and off-Grid applications when mounting or mobility is in the consideration.
4.95%*Efficiency Junlee LiFePO4 battery's flat discharge curve holds above 51.2V for up to 95% of its capacity usage, providing astronomical boosts in run-time compared to only 50% in lead acid. This product is your best choice for outdoor camping power and indoor easy installation.
5.100% Protection Junlee LiFePO4 battery has built-in BMS(Battery Management System) to protect it from overcharge,
over-discharge, over-current, and short circuit with excellent self-discharge rate. Built-in high-tem cut off preventes charging over 167℉（75℃）. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. Junlee LiFePO4 battery is IP65 level waterproof, which set you free from worrying to install indoors or outdoors.
Junlee Battery Energy Introduction
JUNLEE Group owned three factories, work staff over 3000, is a leading global battery and new energy, solutions provider,
specializes in the research,development, manufacturing and sales of the lead-acid batteries, lithium-phosphate batteries,
and UPS industry solutions.
Providing service for the solar energy storage system, UPS backup enerrgy solutions, all series of Photo-voltavic products and system design.
JUNLEE Group's products cover more than 100 countries for application. We have more than 3000 employess and 100 R& D engineer.Junlee Energy is committed to innovative technology based on global customer needs with new energy,new power and a new world.
specializes in the research,development, manufacturing and sales of the lead-acid batteries, lithium-phosphate batteries,
and UPS industry solutions.
Providing service for the solar energy storage system, UPS backup enerrgy solutions, all series of Photo-voltavic products and system design.
JUNLEE Group's products cover more than 100 countries for application. We have more than 3000 employess and 100 R& D engineer.Junlee Energy is committed to innovative technology based on global customer needs with new energy,new power and a new world.
FAQ
Q:What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.
Q:What is a lithium battery used for?
A:Lithium battery use for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreational vehicle power, golf cart,reliable and light-weight marine,solar power storage, surveillance or alarm systems in remote locations.
Q:What is the difference between a lithium battery and a lithium-ion battery?
A:It mostly comes down to the fact that lithium-ion batteries are rechargeable while lithium batteries are single-use. Lithium battery have a higher energy density than lithium ion batteries.
Q:Are your batteries safe?
A:Our batteries are safe. All Junlee batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS).The BMS protects the cells against excessively high or low voltages, high currents, short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
Q:What is an advantages of lithium batteries?
A:Compared to lead-acid and other lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power LifePO4 batteries often come with a higher price tag, but a much better cost over the life of the product. No maintenance and super long life make them a worthwhile investment and a smart long-term solution.
Q:How do I choose the correct lithium deep cycle battery for my application?
In most standard 12, 24, or 48 volt systems the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate). The voltage of this type of battery is very similar to an AGM and will work great with readily available system components for your RV, boat, or off-grid power system.
Q:What is a lithium battery used for?
A:Lithium battery use for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreational vehicle power, golf cart,reliable and light-weight marine,solar power storage, surveillance or alarm systems in remote locations.
Q:What is the difference between a lithium battery and a lithium-ion battery?
A:It mostly comes down to the fact that lithium-ion batteries are rechargeable while lithium batteries are single-use. Lithium battery have a higher energy density than lithium ion batteries.
Q:Are your batteries safe?
A:Our batteries are safe. All Junlee batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS).The BMS protects the cells against excessively high or low voltages, high currents, short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
Q:What is an advantages of lithium batteries?
A:Compared to lead-acid and other lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power LifePO4 batteries often come with a higher price tag, but a much better cost over the life of the product. No maintenance and super long life make them a worthwhile investment and a smart long-term solution.
Q:How do I choose the correct lithium deep cycle battery for my application?
In most standard 12, 24, or 48 volt systems the best choice of lithium battery is LiFePO4 (Lithium Iron Phosphate). The voltage of this type of battery is very similar to an AGM and will work great with readily available system components for your RV, boat, or off-grid power system.
