AMCC 160 Soft magnetic material Amorphous Inductor C core iron core AMCC 63

Product Overview

Description

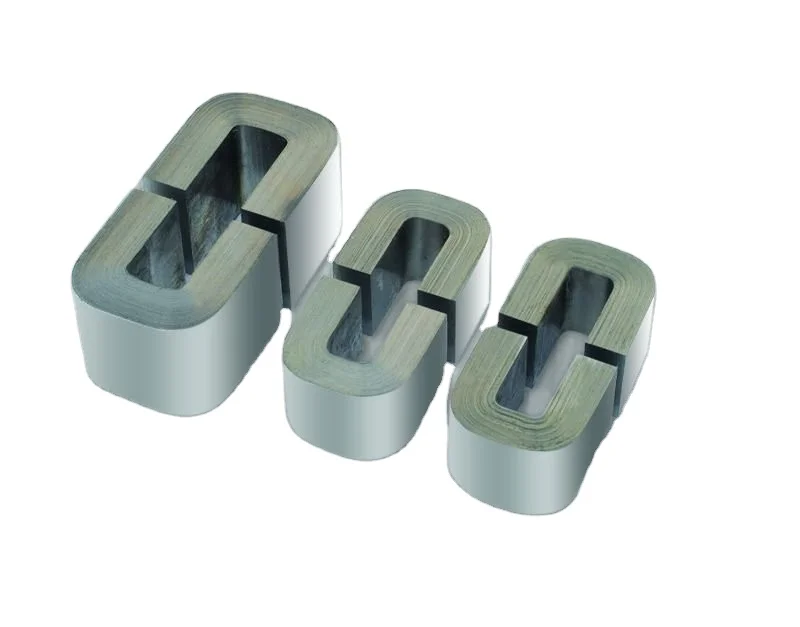

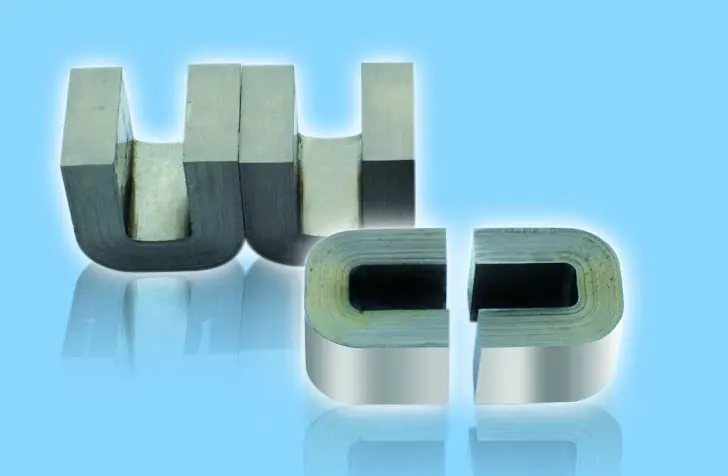

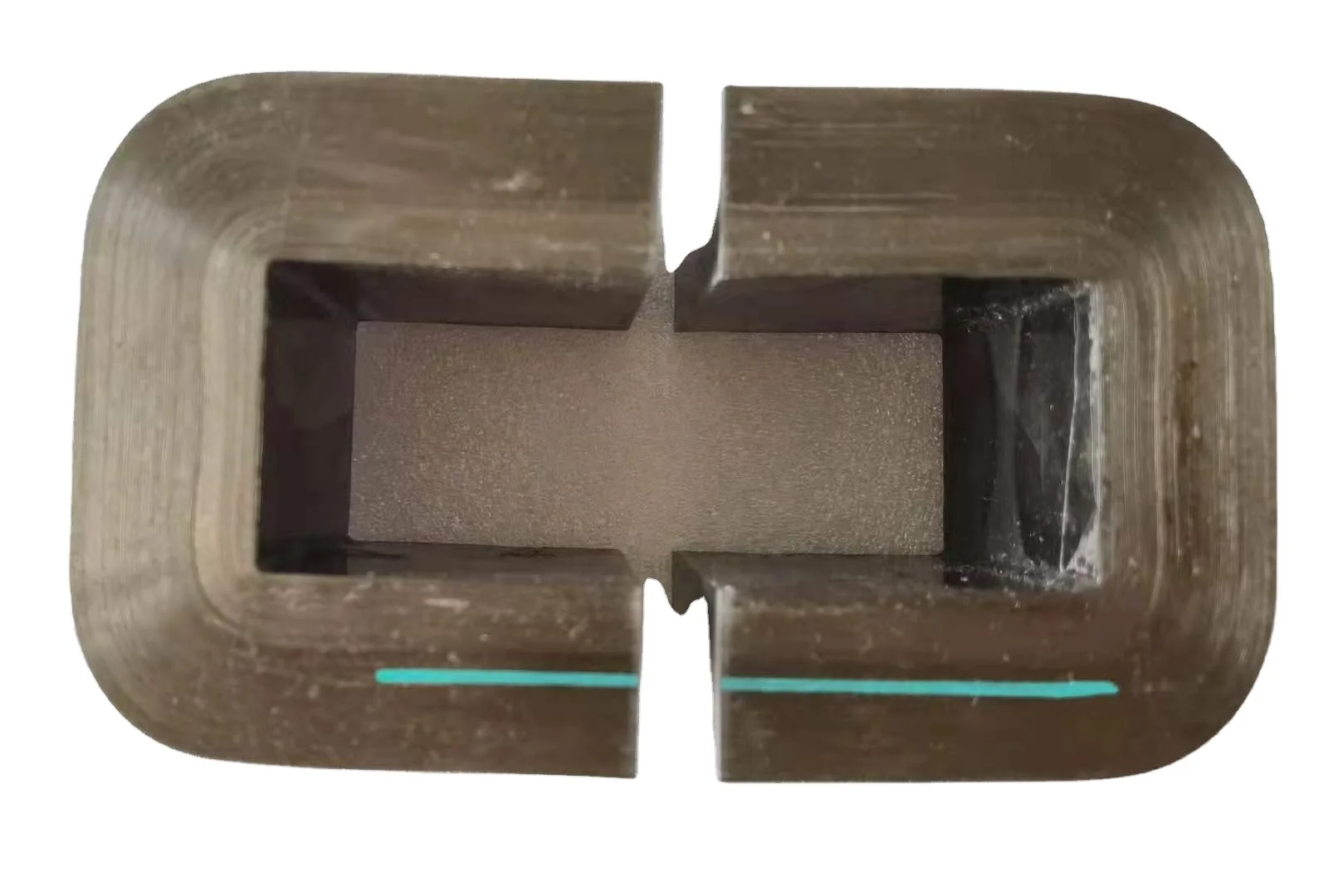

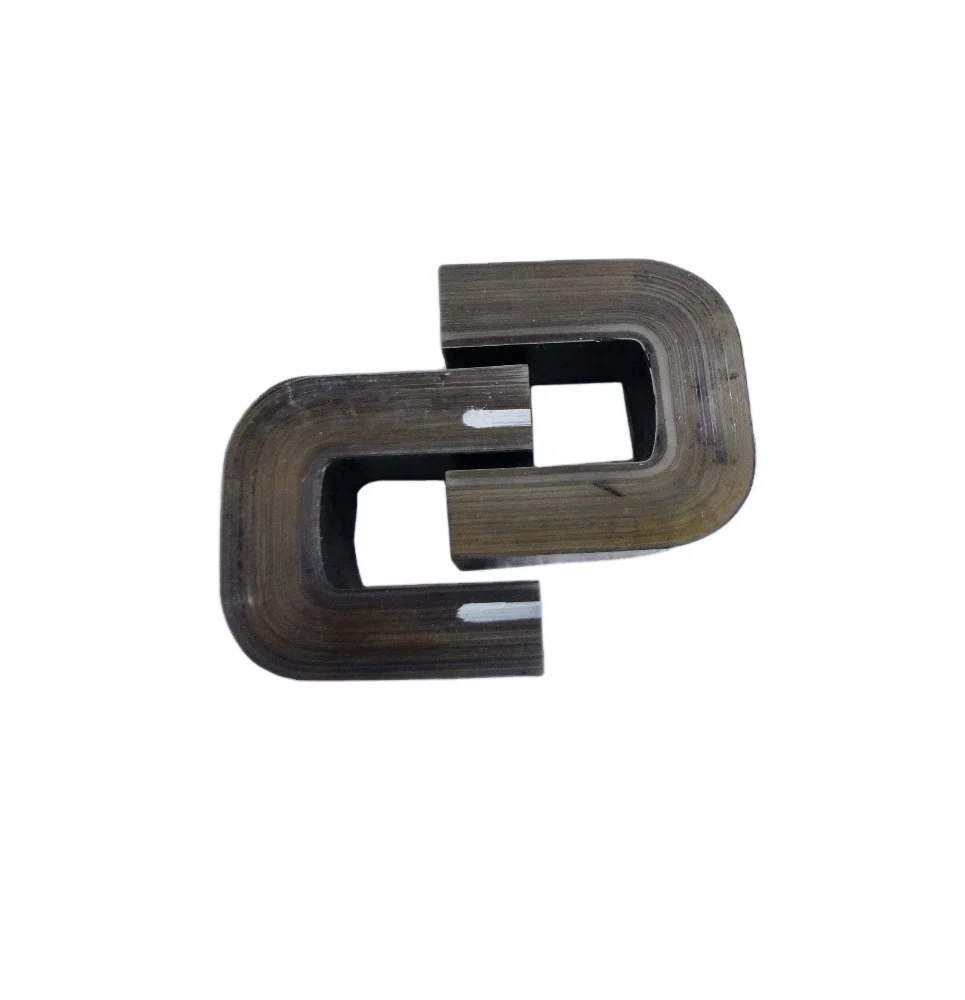

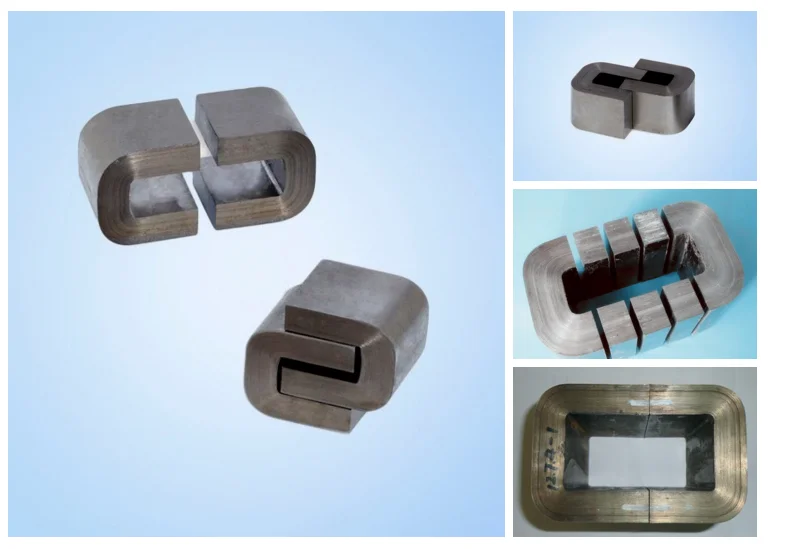

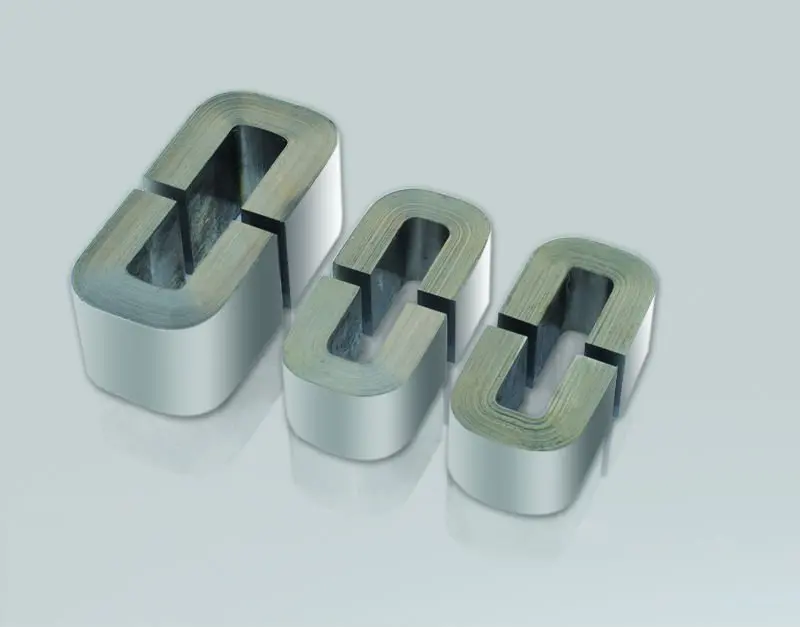

Soft magnetic material Amorphous Inductor C core iron core CFCC-63

Product performance

•High saturate induction--Reducing core volume
• Rectangular form--Easy to mount coils
• With air gap--Excellent anti-bias current ability
• Low core loss--Low temperature rise
• Excellent stability~Keep stable working from -55℃to 130℃



Application Area



• Amorphous reactor core for PV inverter

• Output filter or inductor in high frequency large power supplies

• Mid and high frequency switch power transformer

• Major transformers in UPS power supply



a-core build

b-window width

c-window length

d-core height

e-core width

f-core length



 CFCC Series:

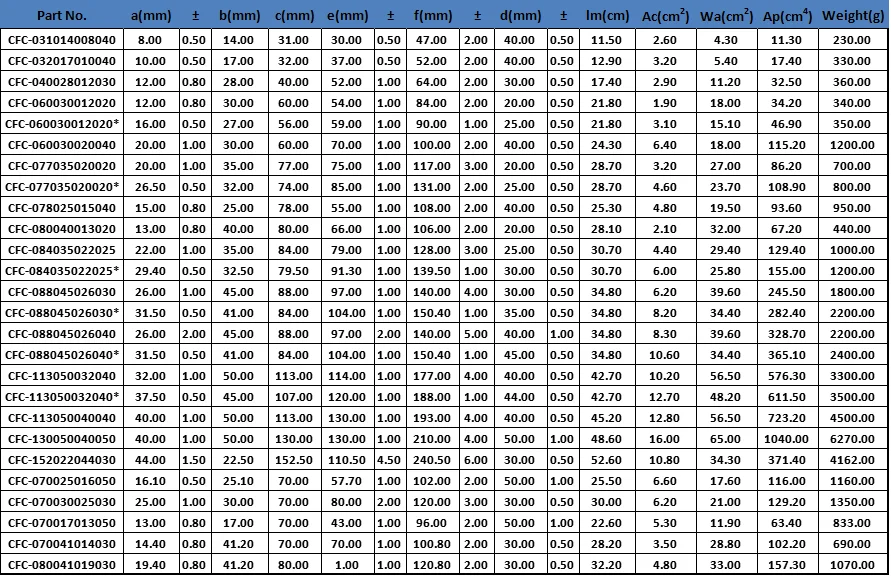

CFC Series:

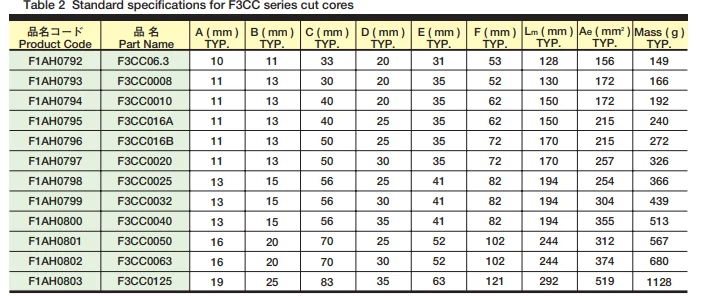

Nanocrystalline Cut Cores F3CC Series:

 Other Spec. can be made by Customer's request







Certification:
