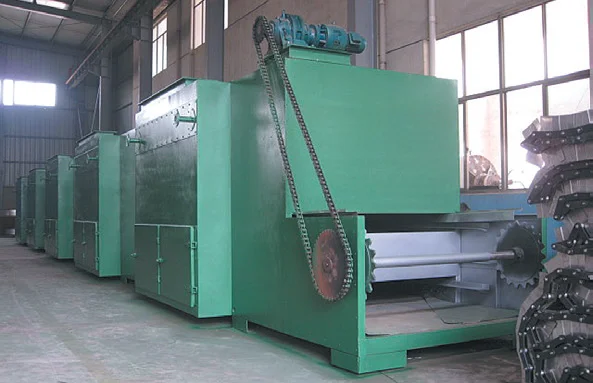

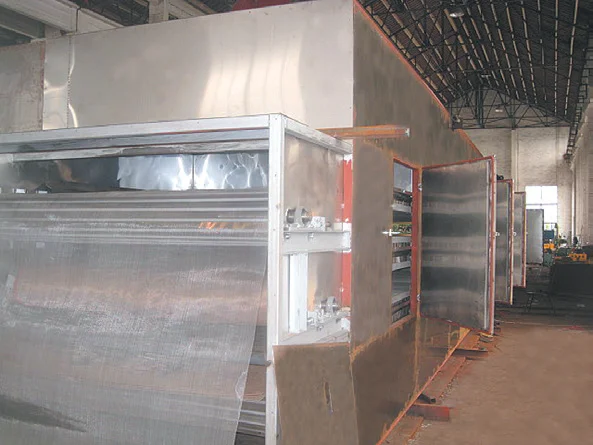

DWF Belt Dryer
- Category: Chemical & Pharmaceutical Machinery >>>
- Supplier: Jiangsu Jinling Drying Technology Co. Ltd.
Share on (1600564978503):
Product Overview
Description
Product Description

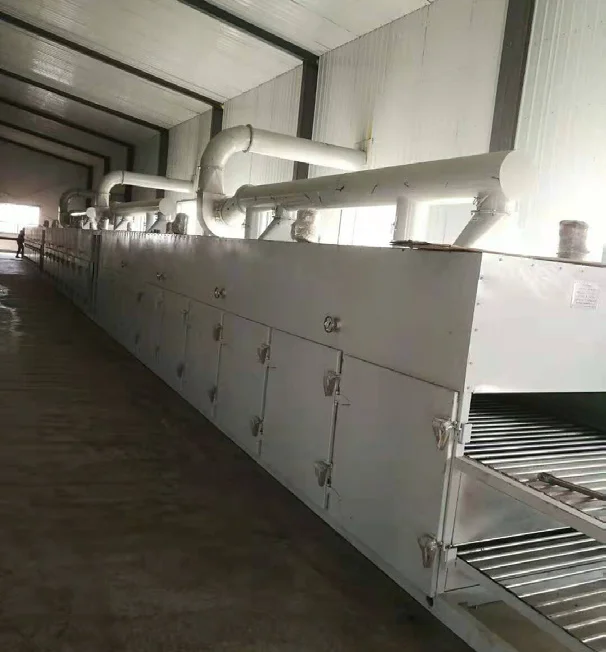

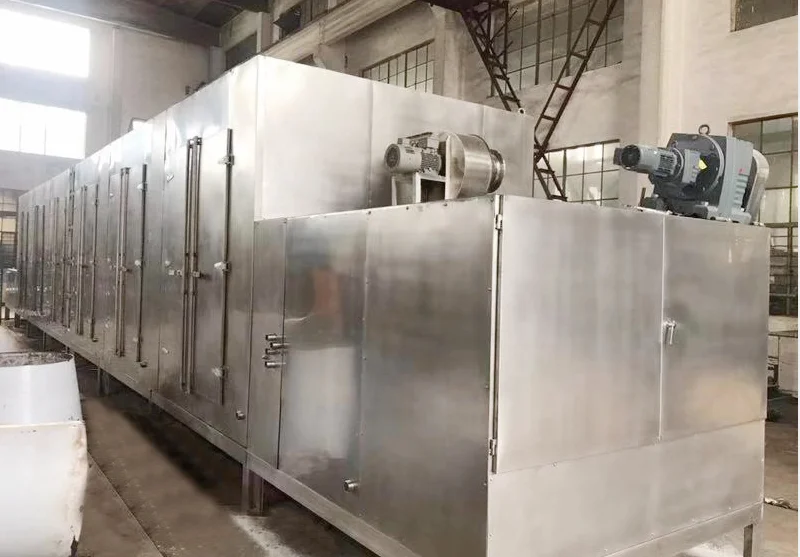

The material is evenly spread on the mesh belt by the feeder and the mesh belt is generally made of 12-60 mesh stainless steel wire and is dragged and moved in the dryer by the transmission device. The dryer is composed of several units and each units is heated independently by the circulation of hot air. The hot air passes the mesh belt covered with material, from top down or from bottom up, to complete the process of heat transfer and mass transfer, removing the water contained in the material, and part of the exhaust gas is discharged by the dehumidifying fan. The mesh belt moves slowly inside the chamber and the moving speed can be adjusted according tho the moisture level of the material. The number of the circulation units for drying and the number of the layers can be determined in line with the customer’s requirement.
●Jinling is a professional manufacturer of belt dryer. The belt dryer specially for producing graphene, designed and produced by our company in 2016, has been put into use with success.
●This kind of machine is widely used for drying materials with good air permeability such as flakes, strips,and granules. Its is particularly suitable for materials that have high water content but require low drying temperature, such as dehydrated vegetables and herbal medicines.
●High speed of drying, high level of automation and low energy consumption.
●Materials such as sludge and filter cakes need to be granulated before being evenly spread and dried.
●For different materials, different methods of heating, air distribution, feeding and circulation will be selected. For mesh belts, there are choices of wire mesh, conveying chain mesh, non-sticky mesh belt, PTFE mesh belt, punched mesh plate,etc.
●Options of cleaning device, sweeping device, spreading device and dust removal device, according to customer’s need.
●Options of different heating methods ( electric, heat pump, hot blast furnace, steam, thermal oil), and loop heating system.

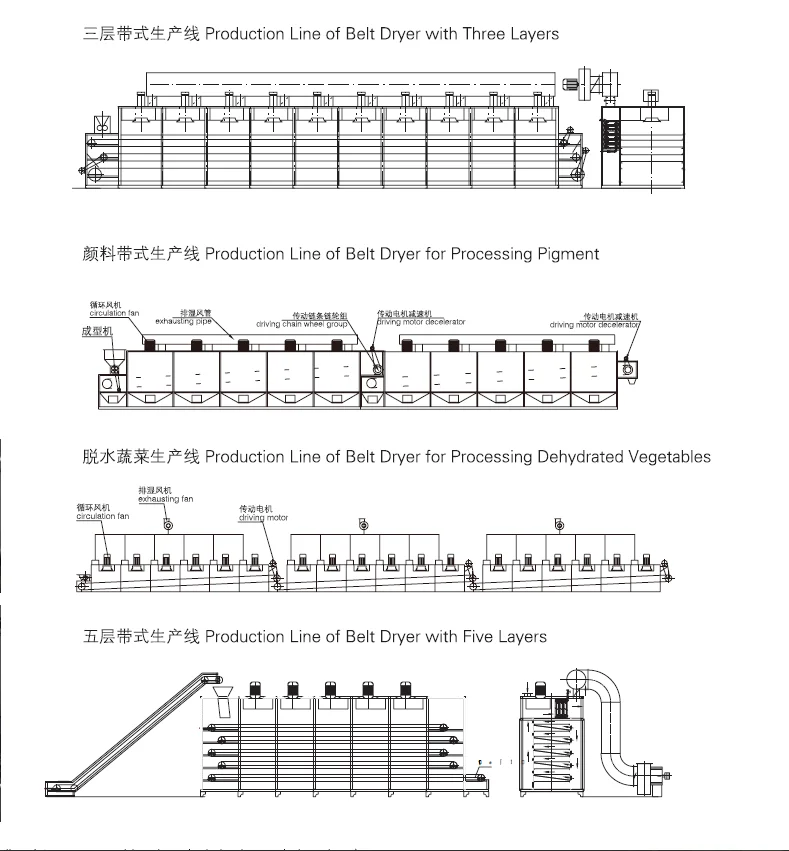

●The length, width and number of layers to be determined according to need.
●Different fans and different structures of air distribution to be selected to increase the permeability and drying speed of the material.
●The drying efficiency will be ensured by adjusting the settings of belt speed, material thickness, air volume and pressure, section temperatures, exhaust volume, etc.
●Options of different mesh holes, mesh plates, baffles, cleaning devices and support structures according to need.
●Options of strong magnetic deironing devices to remove metal effectively.
●This kind of machine is widely used for drying materials with good air permeability such as flakes, strips,and granules. Its is particularly suitable for materials that have high water content but require low drying temperature, such as dehydrated vegetables and herbal medicines.
●High speed of drying, high level of automation and low energy consumption.
●Materials such as sludge and filter cakes need to be granulated before being evenly spread and dried.
●For different materials, different methods of heating, air distribution, feeding and circulation will be selected. For mesh belts, there are choices of wire mesh, conveying chain mesh, non-sticky mesh belt, PTFE mesh belt, punched mesh plate,etc.
●Options of cleaning device, sweeping device, spreading device and dust removal device, according to customer’s need.
●Options of different heating methods ( electric, heat pump, hot blast furnace, steam, thermal oil), and loop heating system.
●The length, width and number of layers to be determined according to need.
●Different fans and different structures of air distribution to be selected to increase the permeability and drying speed of the material.
●The drying efficiency will be ensured by adjusting the settings of belt speed, material thickness, air volume and pressure, section temperatures, exhaust volume, etc.
●Options of different mesh holes, mesh plates, baffles, cleaning devices and support structures according to need.
●Options of strong magnetic deironing devices to remove metal effectively.

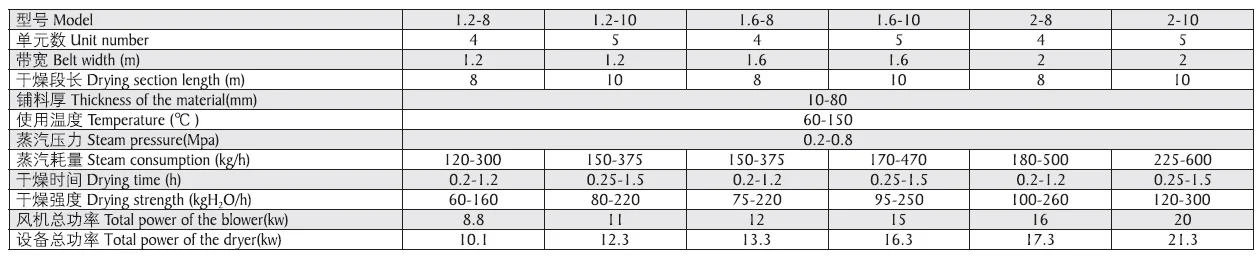

Specification
Packing & Delivery
Packing:

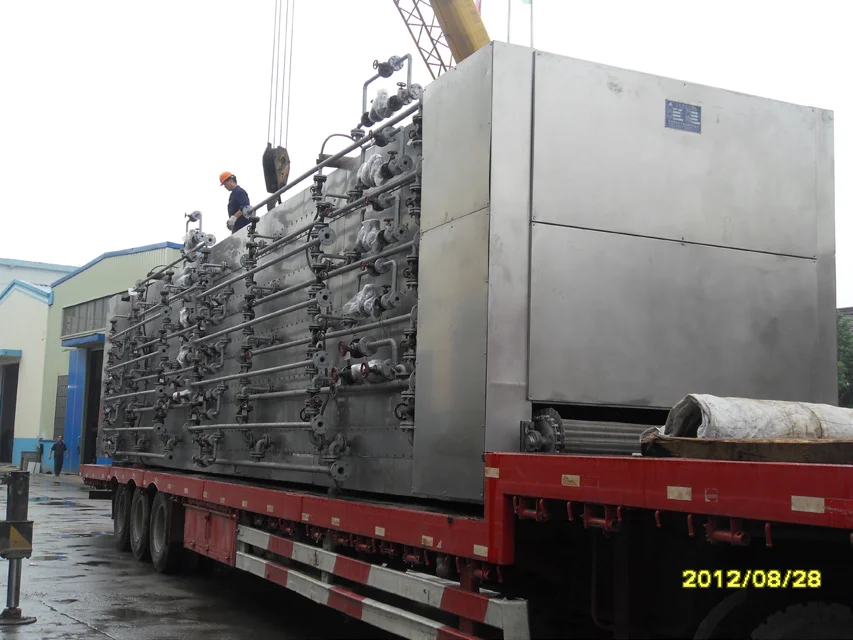

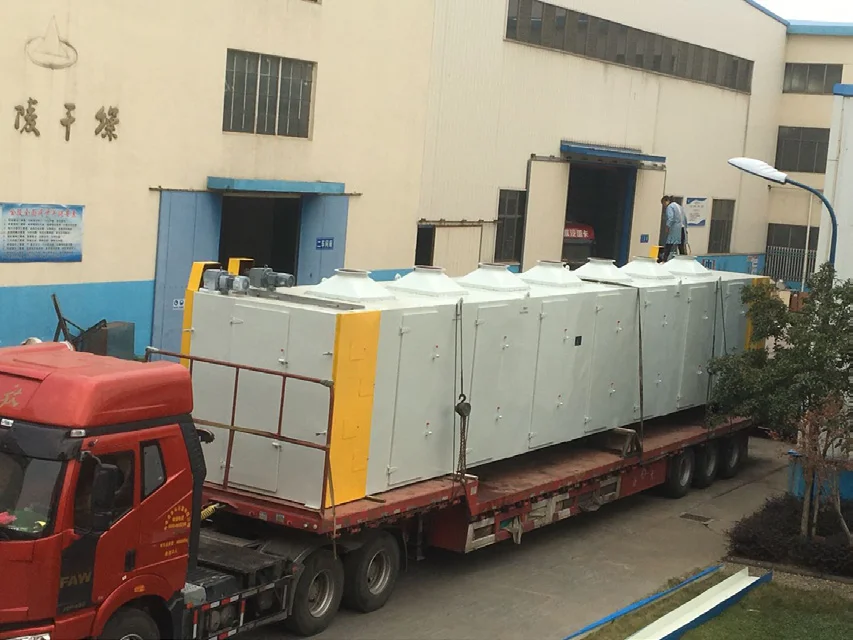

Skid-Mounted in containers or wooden cases.
Delivery Time:
60 days after down payment
Company Profile

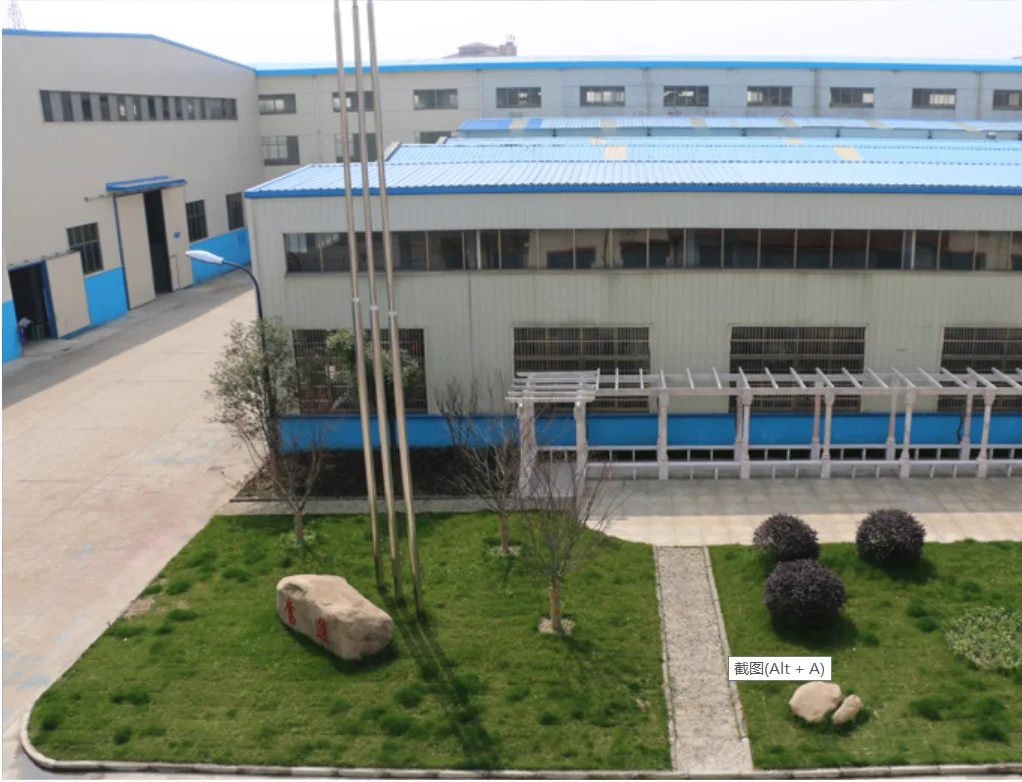

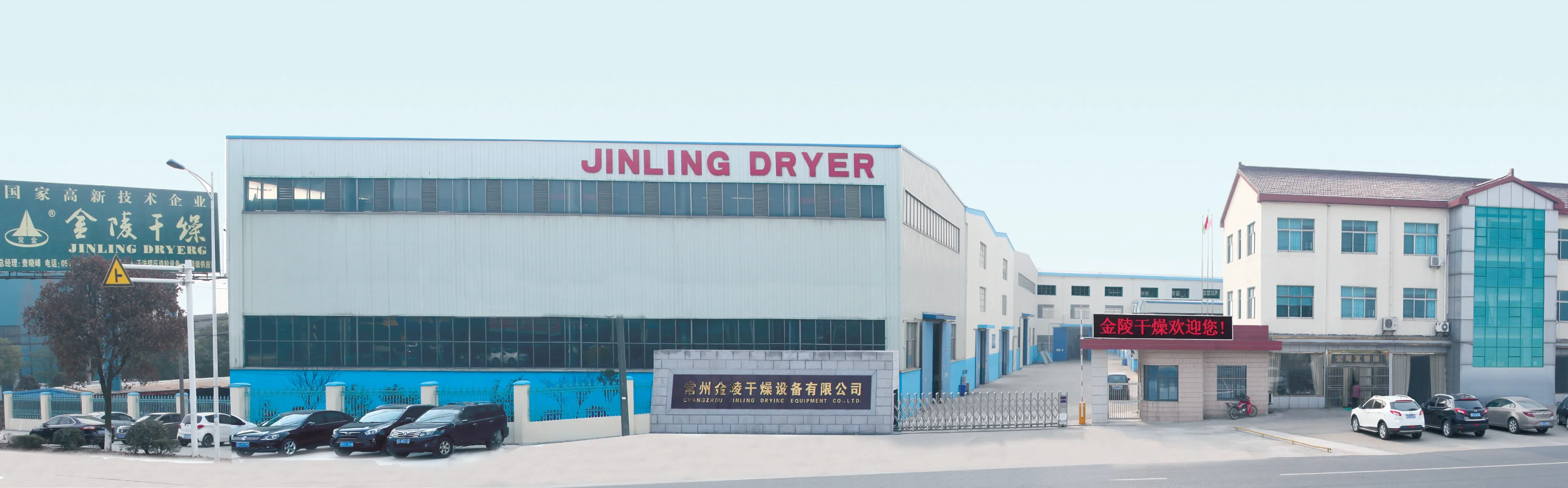

Welcome to Jiangsu Jinling Drying Technology Co., Ltd., a high-quality drying equipment supplier in China.
Jinling Drying Technology is a state level hi-tech company, specializing in R&D, design and manufacturing of drying equipment and accessories, with the qualifications for design and manufacturing of pressure vessels of D category, listed in Jiangsu Provincial Equity Exchange Center. It has two business divisions: Drying and Environmental Protection. After years of innovation, development, integration and application, in cooperation with Tsinghua University, Southeast University, Changzhou University and Sinopec, Jinjing Drying has created a series of advanced equipment and techniques, and obtained more than 50 national patents, boasting more than 10 products pioneering in China, with a total R&D investment of more 4 million US dollars.
Jingling Environmental Technology is dealing in the following fields, offering advanced technologies and equipment with proprietary intellectual property rights:
Comprehensive treatment system with zero emission for sludge drying (internationally advanced, awarded the 2nd Prize of Science & Technology Progress of Jiangsu Province);
Comprehensive treatment system of evaporation and solidification with zero emission for industrial waste water and percolate (with several patents and being one of ten key projects of Sinopec in 2018);
Comprehensive treatment system with zero emission for oily sludge (recognized as the National First Set project, and awarded the 2nd Prize of Science & Technology Progress by China Petrochemical Association and listed as a key project of Sinopec and Changzhou University);
Comprehensive treatment system of pyrolysis and gasification with zero emission for domestic garbage (nationally advanced); and
Design, R&D and sales of other intelligent equipment for environmental protection, pharmaceutic production, biological fermentation, evaporation and concentration, and for energy and chemical industries.
In the meantime, the company has been transformed and upgraded to the business mode of manufacturing + operation and service, optimizing the segmentation of products, customers and the market, to be more focused, stronger and bigger.
Jiangsu Jinling Environmental Technology Co., Ltd., is a separate company based on Jiangsu Jinling Drying Technology Co., Ltd., but with a focus on environmental protection field.
Jinling Drying Technology is a state level hi-tech company, specializing in R&D, design and manufacturing of drying equipment and accessories, with the qualifications for design and manufacturing of pressure vessels of D category, listed in Jiangsu Provincial Equity Exchange Center. It has two business divisions: Drying and Environmental Protection. After years of innovation, development, integration and application, in cooperation with Tsinghua University, Southeast University, Changzhou University and Sinopec, Jinjing Drying has created a series of advanced equipment and techniques, and obtained more than 50 national patents, boasting more than 10 products pioneering in China, with a total R&D investment of more 4 million US dollars.
Jingling Environmental Technology is dealing in the following fields, offering advanced technologies and equipment with proprietary intellectual property rights:
Comprehensive treatment system with zero emission for sludge drying (internationally advanced, awarded the 2nd Prize of Science & Technology Progress of Jiangsu Province);
Comprehensive treatment system of evaporation and solidification with zero emission for industrial waste water and percolate (with several patents and being one of ten key projects of Sinopec in 2018);
Comprehensive treatment system with zero emission for oily sludge (recognized as the National First Set project, and awarded the 2nd Prize of Science & Technology Progress by China Petrochemical Association and listed as a key project of Sinopec and Changzhou University);
Comprehensive treatment system of pyrolysis and gasification with zero emission for domestic garbage (nationally advanced); and
Design, R&D and sales of other intelligent equipment for environmental protection, pharmaceutic production, biological fermentation, evaporation and concentration, and for energy and chemical industries.
In the meantime, the company has been transformed and upgraded to the business mode of manufacturing + operation and service, optimizing the segmentation of products, customers and the market, to be more focused, stronger and bigger.
Contact:
Maxim Li E-Mail: like@jinlingenv.cn Mobile: +86-13671504264
