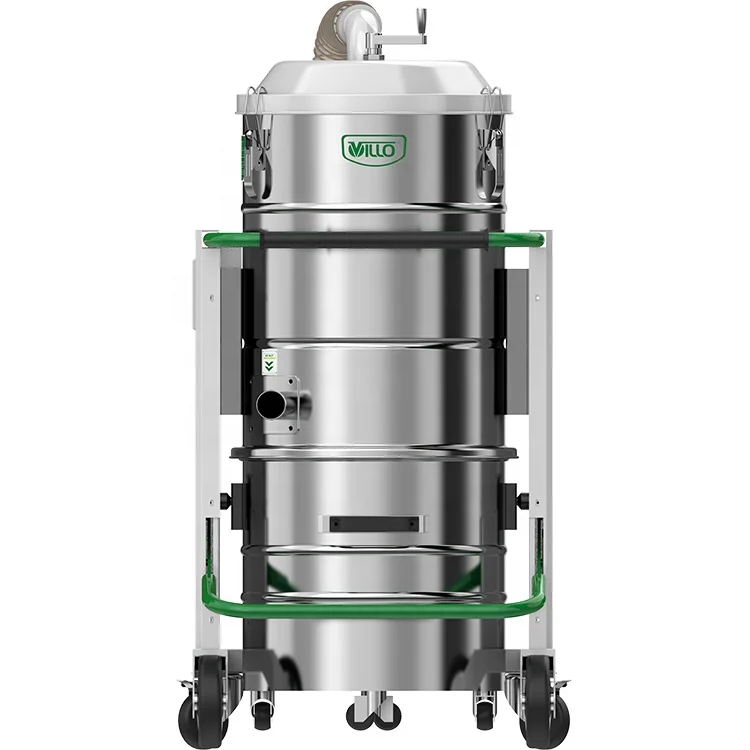

VILLO 4000W High Pressure Dust Collector Machine Industrial Vacuum Cleaner Price
- Category: >>>
- Supplier: Dongguan Villo Technology Inc.
Share on (1600564998109):
Product Overview
Description
VA Series Three phase Industrial Vacuum Cleaners
Product description
VA Series are three phase Vacuum Cleaners with high pressure, very ideal for sucking/absorbing large mixed particles or chips in continuous applications.
Applications
* Suitable for three phase working conditions.
* Ideal solution for continuous working and heavy dust with fine dust condition.
* Industries: Metal Processing (grinding, cutting, drilling, etc.)
* PCB (cutting, drilling, routing, etc.)
* Textile Cleaning
* Machine Cleaning
VA Series are three phase Vacuum Cleaners with high pressure, very ideal for sucking/absorbing large mixed particles or chips in continuous applications.
Applications
* Suitable for three phase working conditions.
* Ideal solution for continuous working and heavy dust with fine dust condition.
* Industries: Metal Processing (grinding, cutting, drilling, etc.)
* PCB (cutting, drilling, routing, etc.)
* Textile Cleaning
* Machine Cleaning
Features
* Customizable voltage
* Power less than or equal to 2.2 kilowatts can be made into single phase.* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Equipped with filter cleaning device for easy filter cleaning.
* Maintenance free powerful turbine motor can work continuously for 24 hours.
* Easy dust container cleaning
Technology Parameters
Model | VA-22J | VA-22J-L | VA-40J | VA-40J-L | ||||
Voltage (V / Hz) | 380 / 50 | 380 / 50 | ||||||
Power (kW) / (HP) | 2.2 / 3.0 | 4.0 / 5.5 | ||||||
Starting current (A) | 30 | 60 | ||||||
Rated current (A) | 5.6 | 9 | ||||||
Max air flow (m³/h) / (CFM) | 210 / 123 | 400 / 235 | ||||||
Max vacuum (mmH₂O)/ (kPa) | 2000 / 19.6 | 2100 / 20.5 | ||||||
Noise dB (A) | 74±2 | 75±2 | ||||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | |||||||
Filter area (m²)/ (sq.ft) | 1.5 / 16.1 | |||||||
Filter efficiency | >99% | |||||||
Capacity of collection barrel (L) / (gal) | 65 / 17.2 | / | 65 / 17.2 | / | ||||
Dimension [L*W*H] (mm) / (in) | 1080*650*1300 / 42.5*25.6*51.2 | 1100*650*1500 / 43.3*25.6*59.1 | 1080*650*1300 / 42.5*25.6*51.2 | 1100*650*1500 / 43.3*25.6*59.1 | ||||
Weight (kg)/(lb) | 90 / 198 | 100 / 220 | ||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||
Product Configuration
PTFE coated filter cartridge
Manual cleaning device
Pressure gauge
