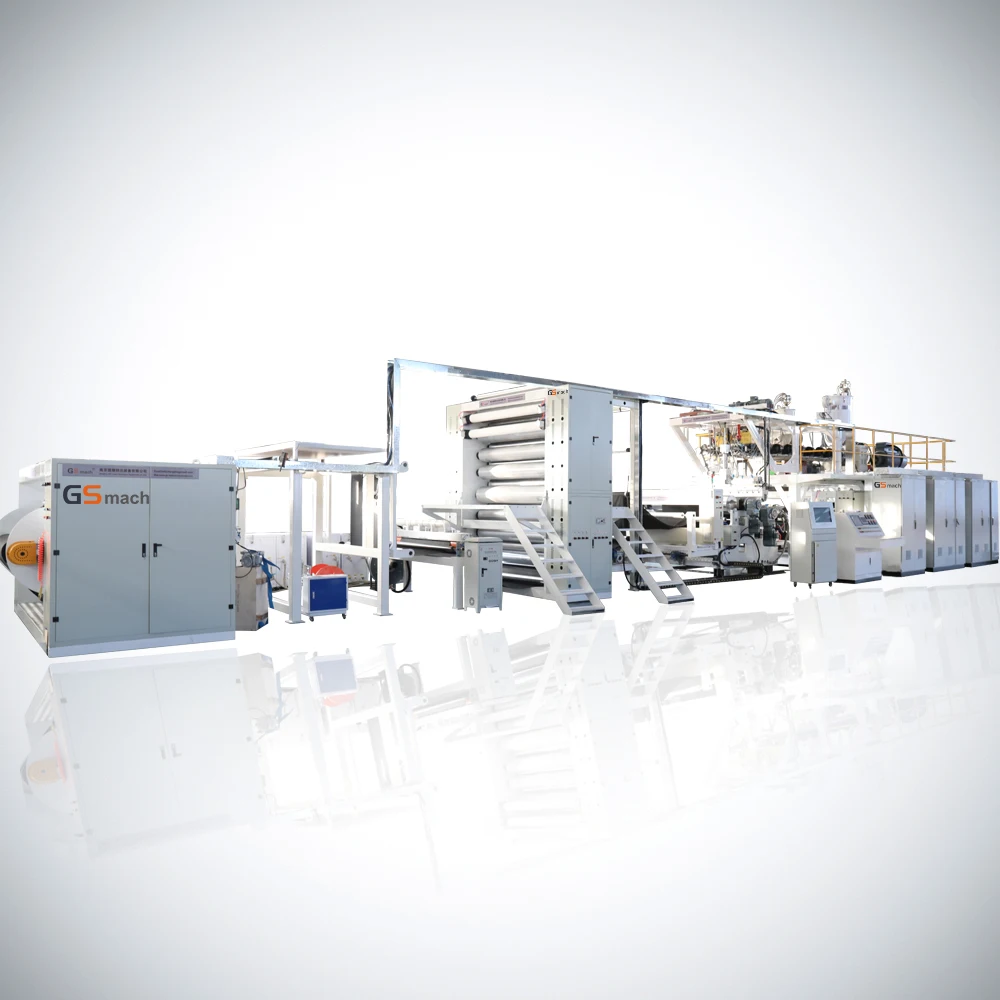

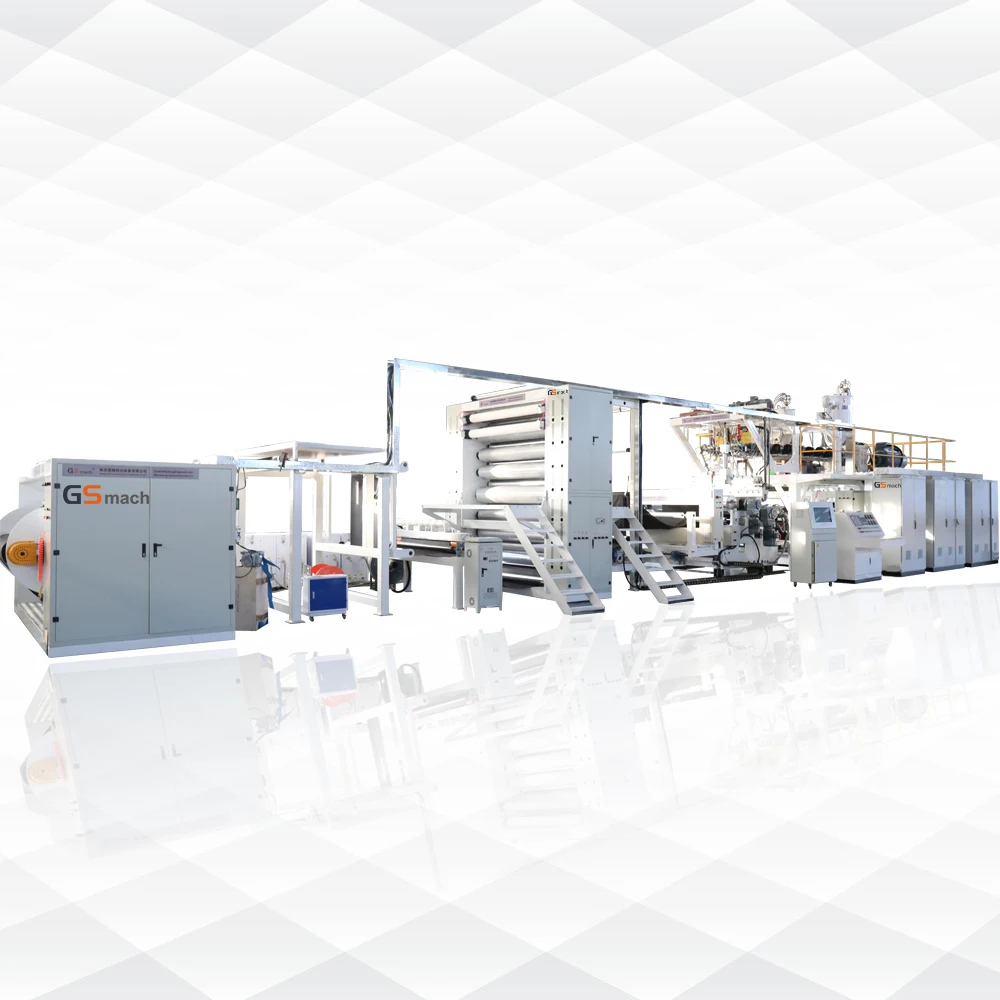

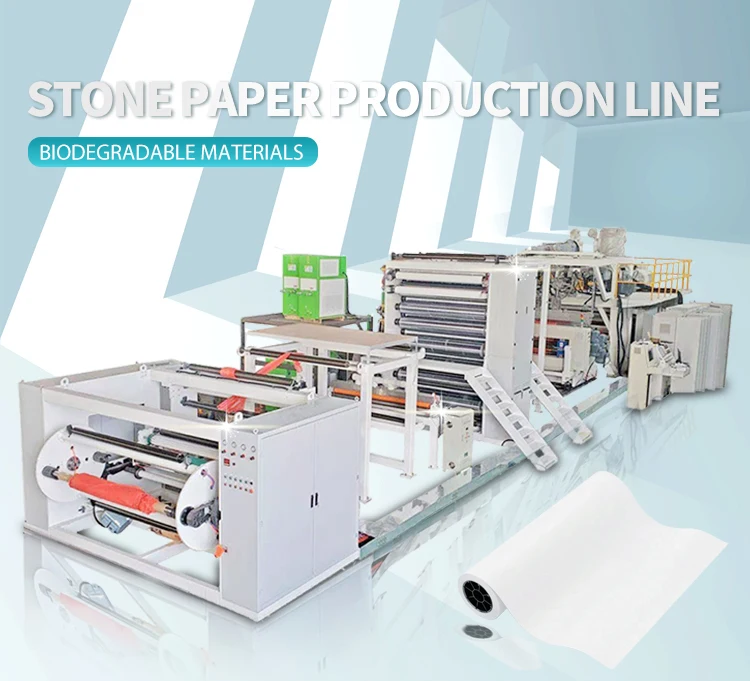

caco3 pe stone paper making machine gsmach stone paper production line machinery
- Category: >>>
- Supplier: Nanjing Gs-Mach Extrusion Equipment Co. Ltd.
Share on (1600565008508):
Product Overview
Description
caco3 pe stone paper making machine gsmach stone paper production line machinery
Video Presentation
Advantage of GS-mach machine
1. The main raw materials of environmental paper are calcite and polyethylene, contain no plasticizers or other toxic substances;
2. Compared with traditional wood pulp paper, environmental paper does not need to cut down trees, no waste water, gas and solid
waste discharge, the production process is environmental friendly;
3. The paper is waterproof, moisture-proof, tearing-resistant, anti-folding, moth-proof and with excellent properties;
4. The paper can be naturally cracked under conditions of sun exposure, wind blowing and rain. It can replace non-degradable
plastics and reduce white pollution;

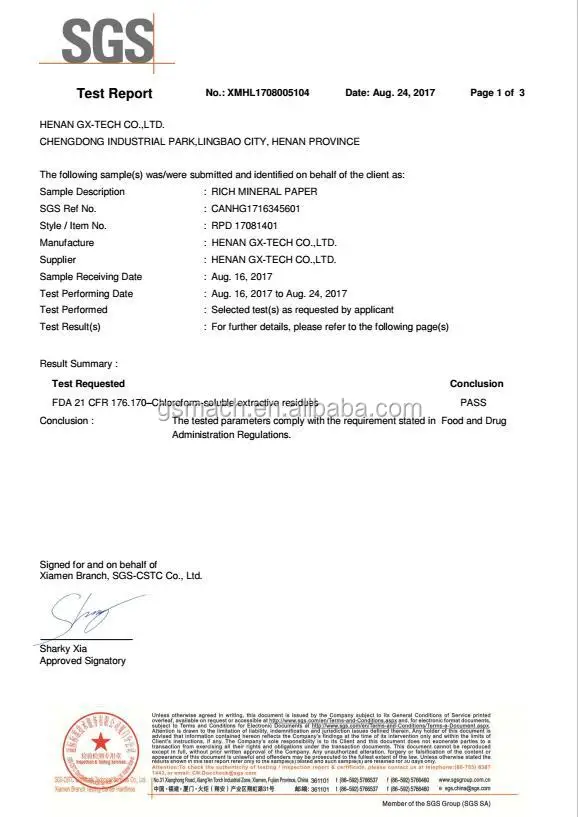

5. The paper through the EU (food grade), REACH, ROHS and other standard testing, is the international standard recognized
environmental protection materials.
2. Compared with traditional wood pulp paper, environmental paper does not need to cut down trees, no waste water, gas and solid
waste discharge, the production process is environmental friendly;
3. The paper is waterproof, moisture-proof, tearing-resistant, anti-folding, moth-proof and with excellent properties;
4. The paper can be naturally cracked under conditions of sun exposure, wind blowing and rain. It can replace non-degradable
plastics and reduce white pollution;
5. The paper through the EU (food grade), REACH, ROHS and other standard testing, is the international standard recognized
environmental protection materials.
Annual output of 8640 tons of equipment configuration as follows:
Equipment Name | Product | Capacity | Sets | Annual Output |
Granulation Line | Master Batch | 800kgs/h | 1 | 7000t |
Casting Paper Machine | 65-500μm Thick Paper | 650-800kgs/h | 1 | 7000t |
Slitting Machine | Paper Roll | 50-100m/min | 1 | / |
LAB Test Machine | / | Mating | 1 | Mating |
Wide Application
Product Description
Step 1:Stone paper Granulation process:
The raw materials calcium carbonate powder, polyethylene (HDPE/LDPE), polypropylene (PP) and auxiliaries are mixed in a certain proportion and then processed by high pressure mixing, extrusion, hot cutting, cooling and air separation to produce E P M raw material granules with uniform appearance.

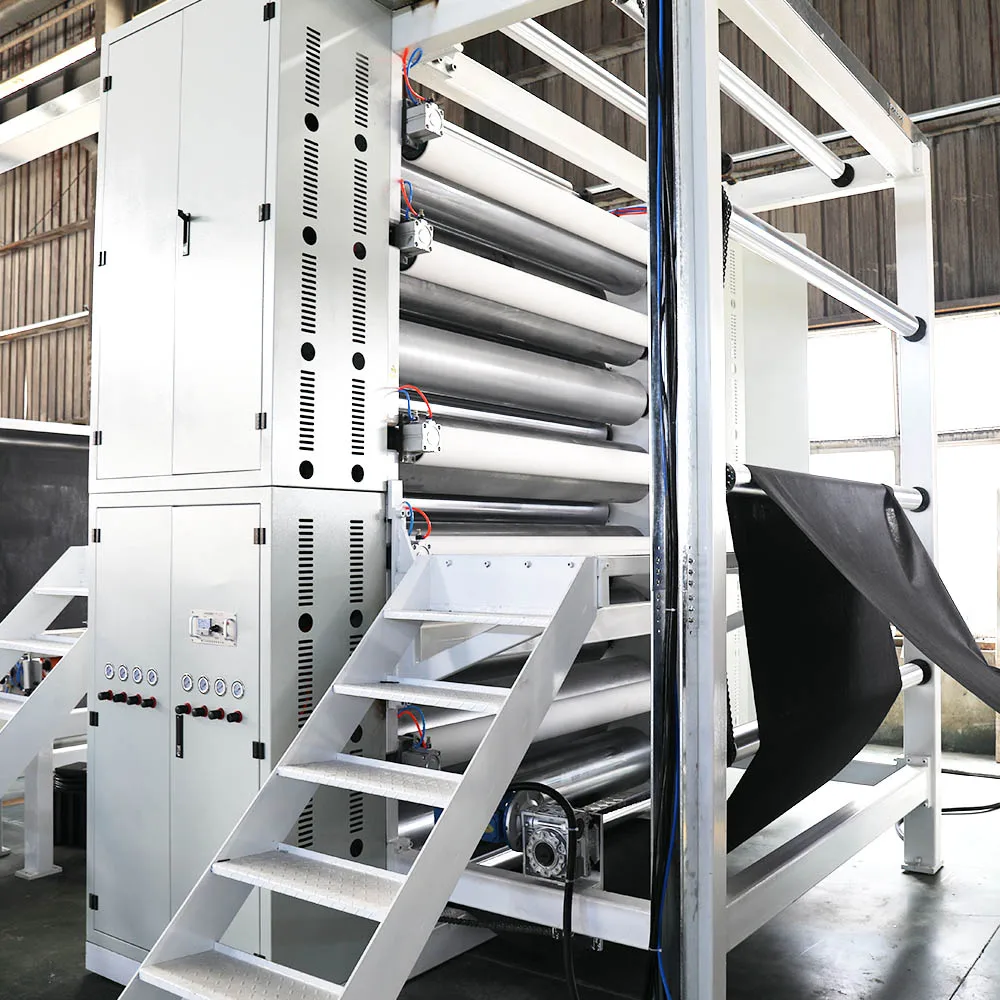

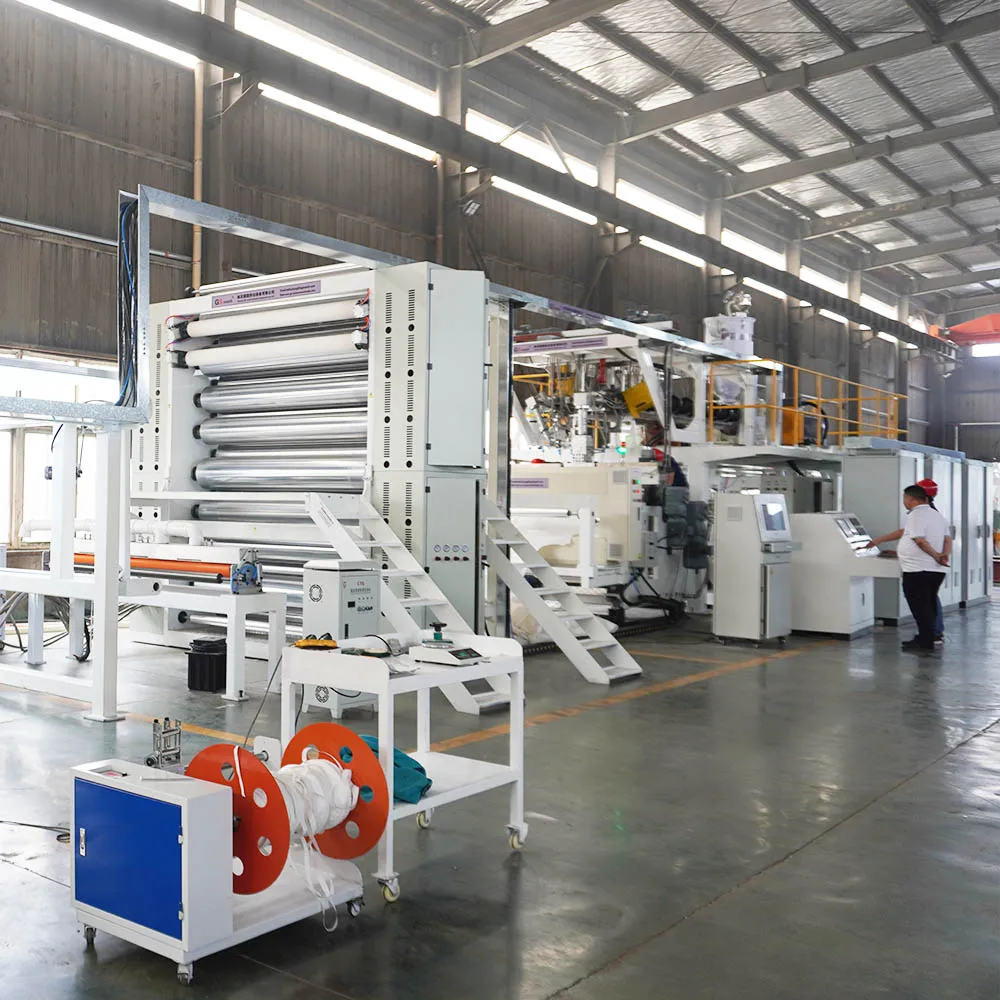

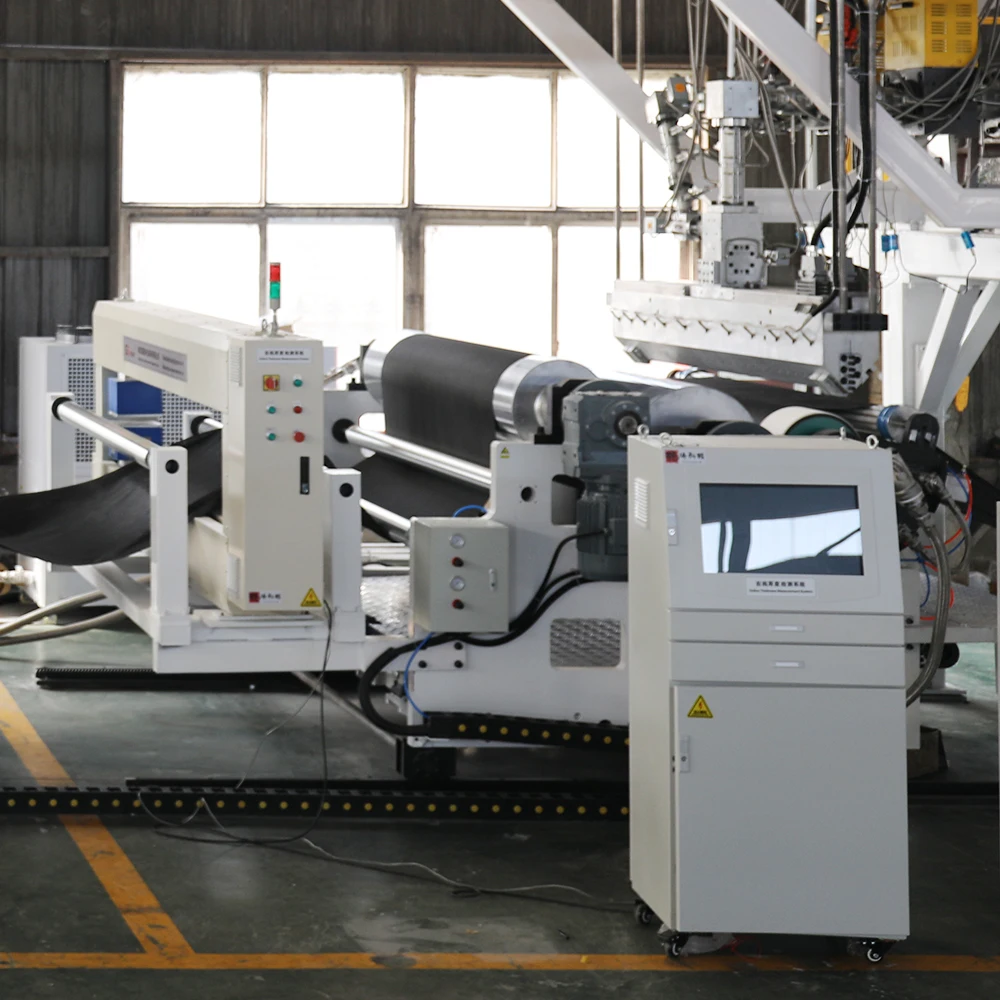

Step 2:stone paper casting machine process:
E.P.M raw material granules are heated to the melting state, and the melted material is conveyed to two calendering rollers by conveyor. After repeated rolling of three to five groups of calendering rollers, the material molecules are evenly arranged into thin sheet shape, and then rolled up after a series of stretching, cooling, setting, thickness measurement and surface treatment.
Thick E P M semi-finished sheet material can be produced. The thickness of the material produced by this process is 200μm-1000μm.
Thick E P M semi-finished sheet material can be produced. The thickness of the material produced by this process is 200μm-1000μm.

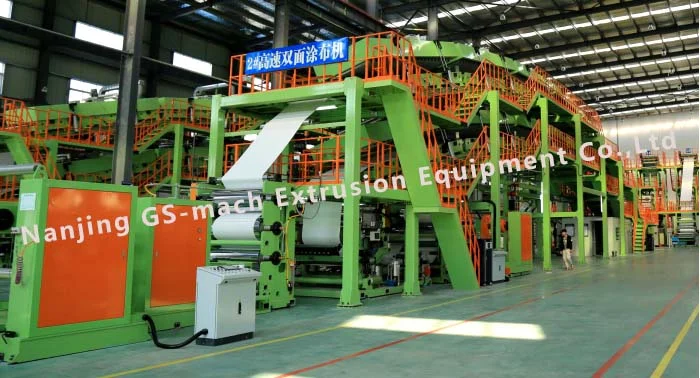

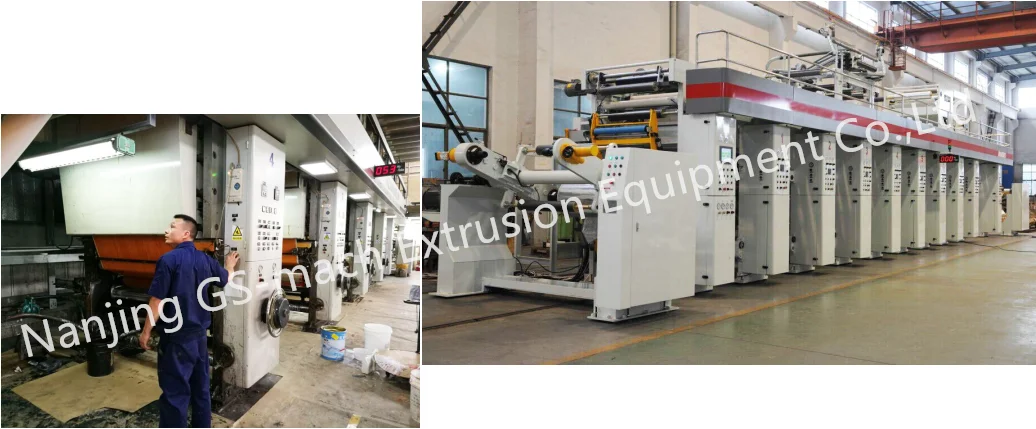

Step 3:stone paper coating machine process:
A variety of inorganic superfine powder, water-soluble latex, synthetic latex and additives are fully stirred and mixed to form E P M special coating liquid, which is used in the production of coating process.

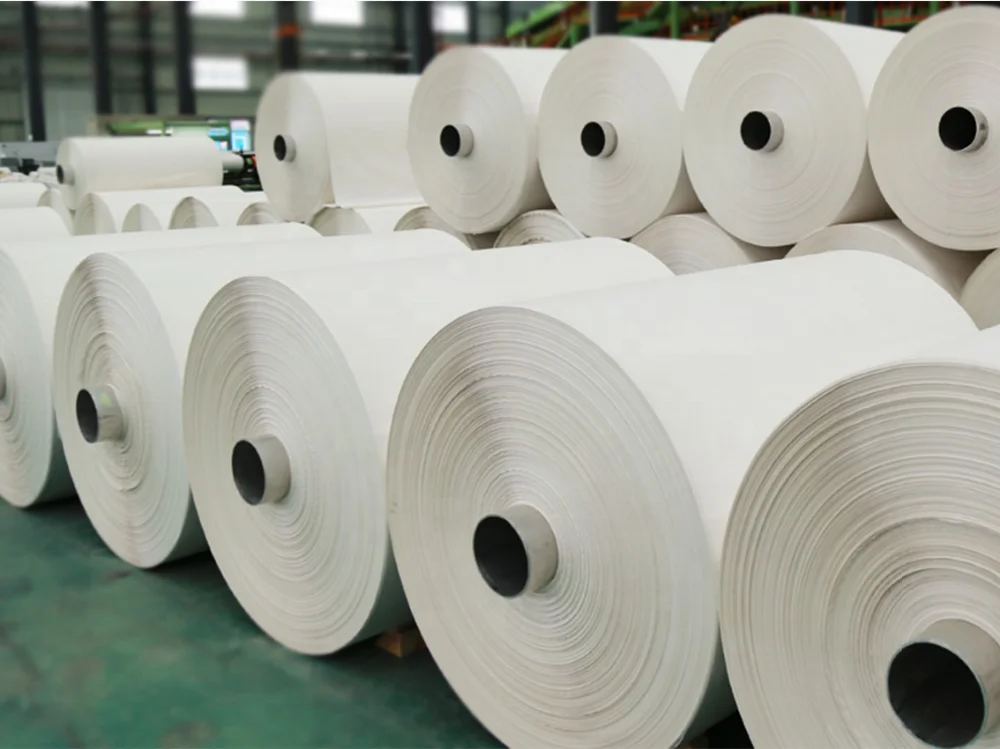

The stone paper base paper produced by the casting method is coated, firstly, the coating liquid is prepared according to the formula and then coated and produced on a coater, and the device is coated by a rotary reverse method. By forming reverse velocity difference between paper surface and coating roll erand coating feeding roller, to achieve uniform coating and stable adhesion to the paper surface. After drying in an oven, repeat the same operation to coat the back side of the paper, and finally stabilize the constant tension. The finished stone paper roll can be obtained by winding up.
Step 4:stone paper printing machine process:
A variety of inorganic superfine powder, water-soluble latex, synthetic latex and additives are fully stirred and mixed to form E P M special coating liquid, which is used in the production of coating process.
The stone paper base paper produced by the casting method is coated, firstly, the coating liquid is prepared according to the formula and then coated and produced on a coater, and the device is coated by a rotary reverse method. By forming reverse velocity difference between paper surface and coating roll erand coating feeding roller, to achieve uniform coating and stable adhesion to the paper surface. After drying in an oven, repeat the same operation to coat the back side of the paper, and finally stabilize the constant tension. The finished stone paper roll can be obtained by winding up.

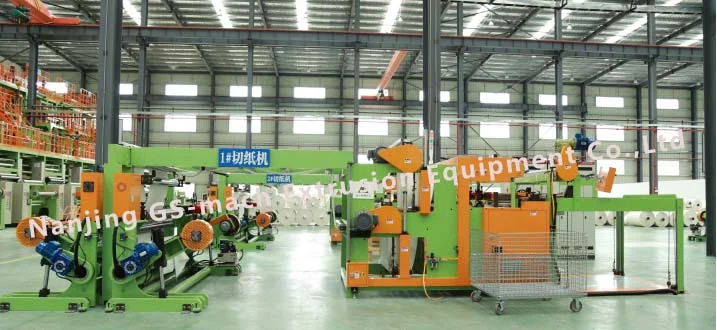

Step 5:stone paper cutting machine process:
The paper cutter adopts PLC touch screen control, servo motor control double-position unwinding, fixed length cutting, pneumatic transmission system. This machine integrates light, electricity and air. Easy operation, high cutting accuracy, low mechanical stability and low noise, etc. Motor frequency conversion speed regulation, automatic counting, alarm parking, magnetic powder tension control. It can be vertical multi-section cutting waste edge using fan automatic elimination and horizontal and vertical cutting by two rolls.

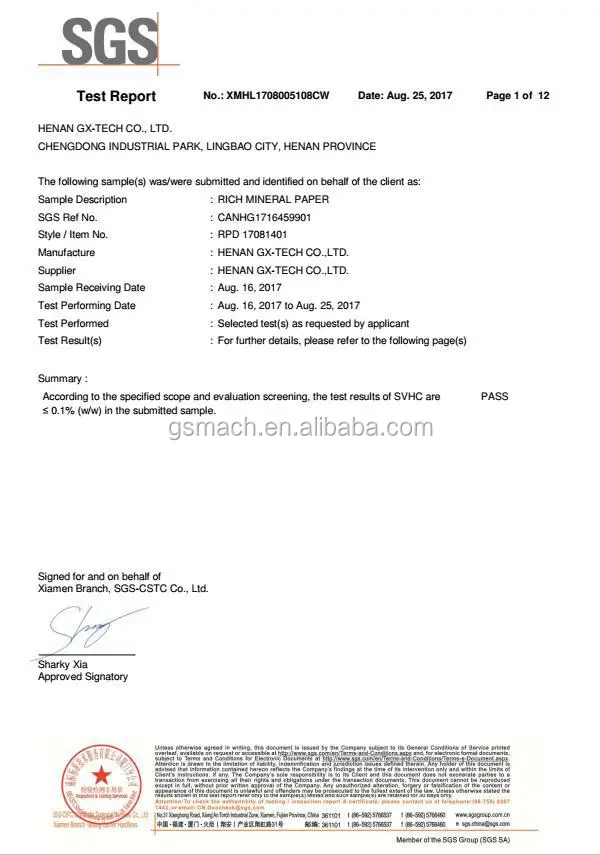

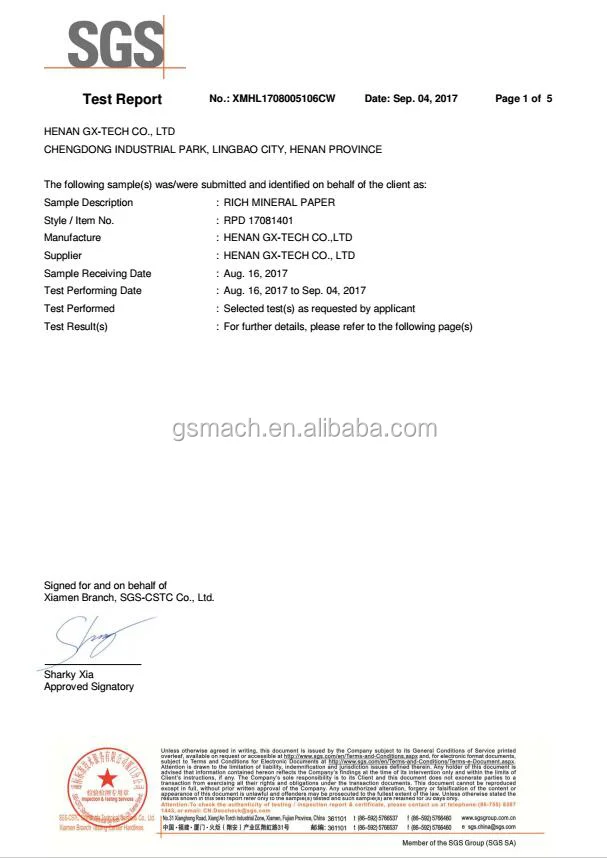

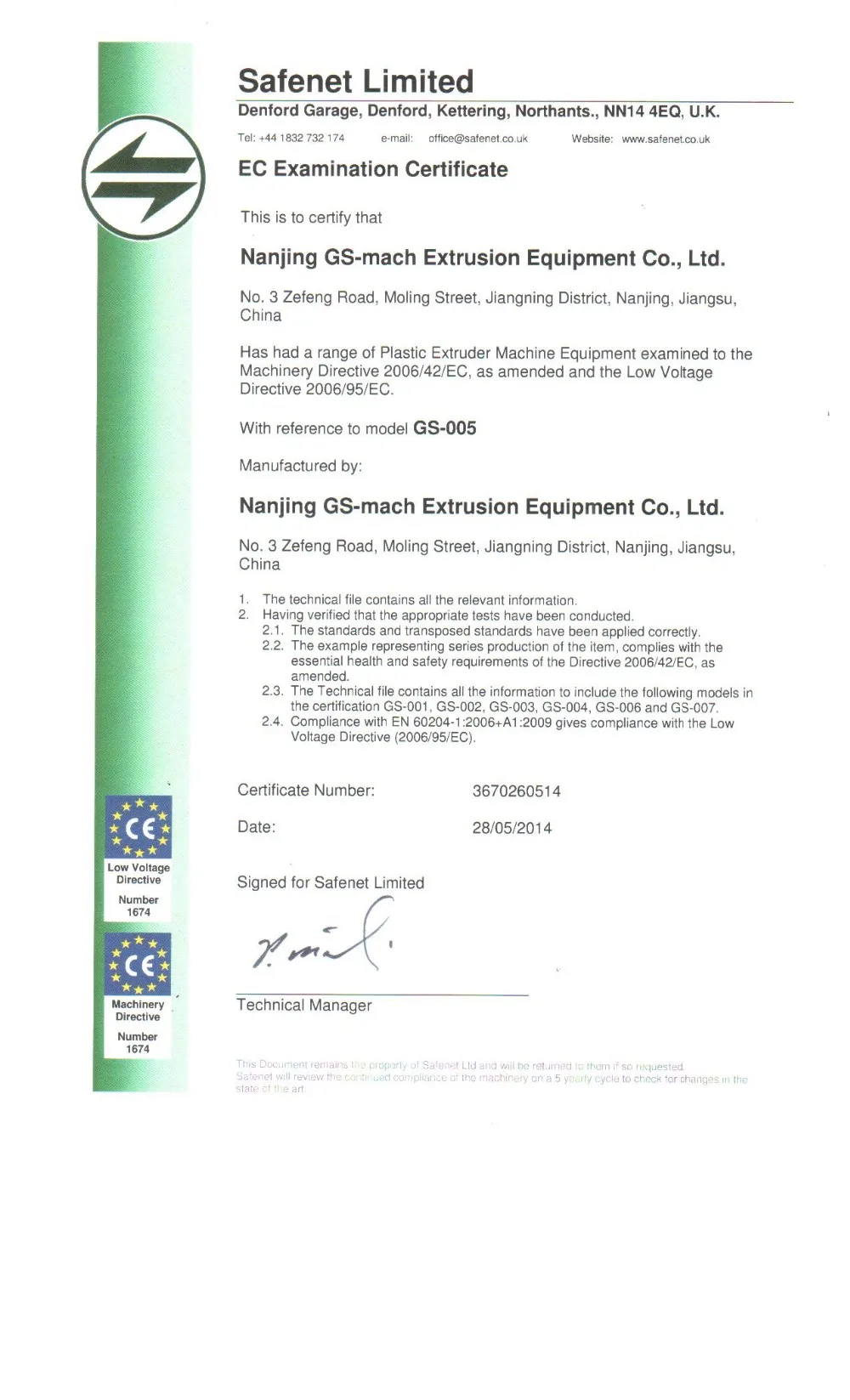

Certifications

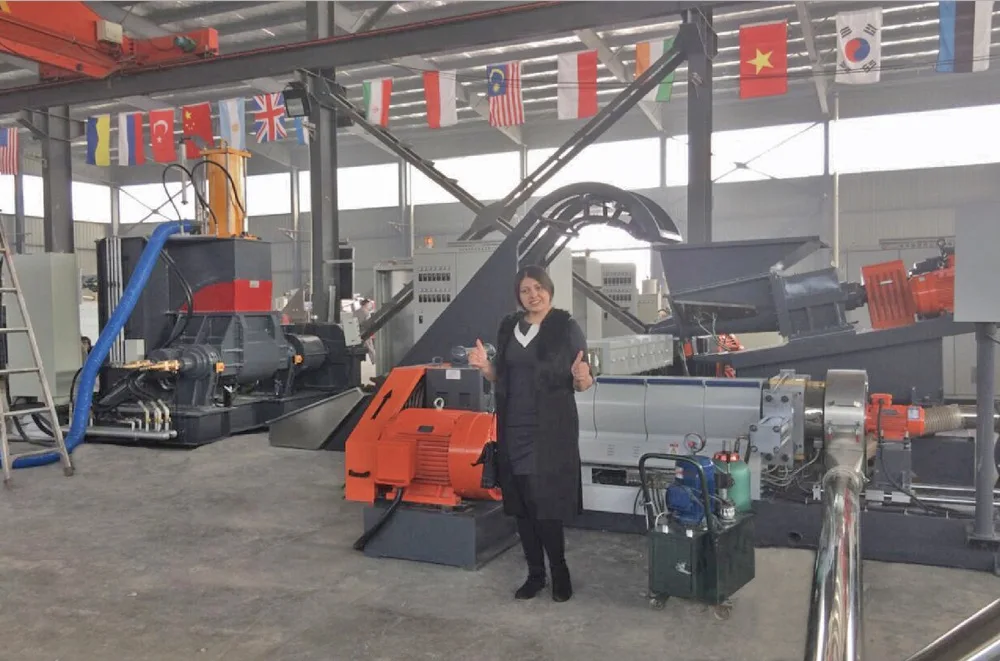

About us
GS-Mach is professional in plastic, rubber, chemical machinery researcher, designer and manufacturer with CE and ISO9001 certificates.
Orientated by the world market, we insist on strengthening our talents, innovating, refining our quality and improving the management, aiming to supply our customer the best products and make the GS-mach a worldwide top machinery manufacturer and supplier.
Our business is consisted of three parts: GS-mach Extrusion, GS-mach Recycle and GS-mach Rubber Tech.
1. GS-mach Extrusion: Specializing in the researching and manufacturing the machinery for plastic extruding, granulating, extrusion molding and extrusion filament.
2. GS-mach Recycle: Specializing in the researching and manufacturing the machinery for waste plastic, rubber and chemicals recycling.
3. GS-mach Rubber Tech: Specializing in the rubber machinery researching and manufacturing.
