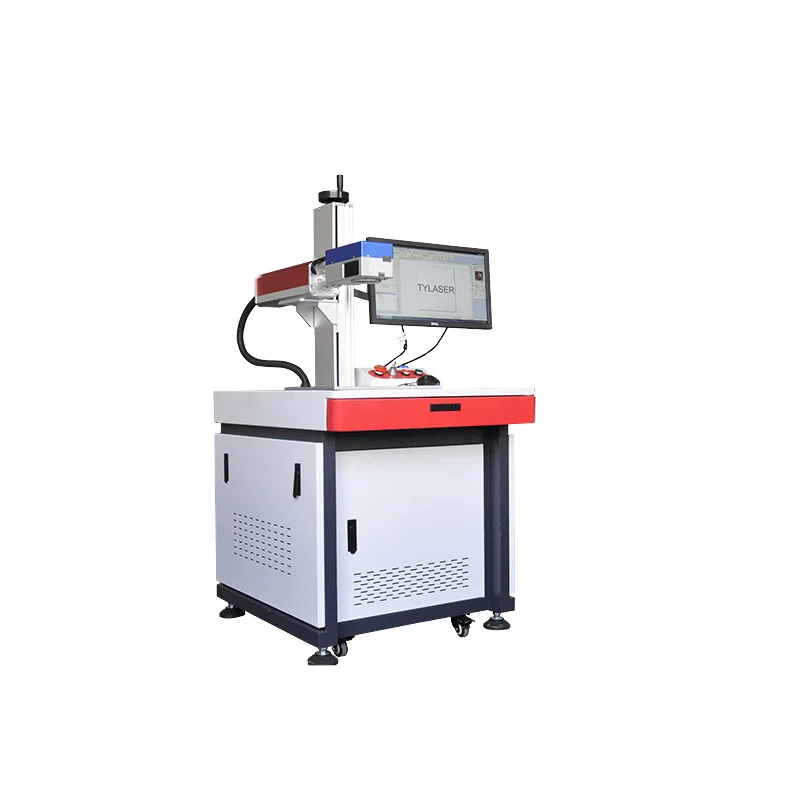

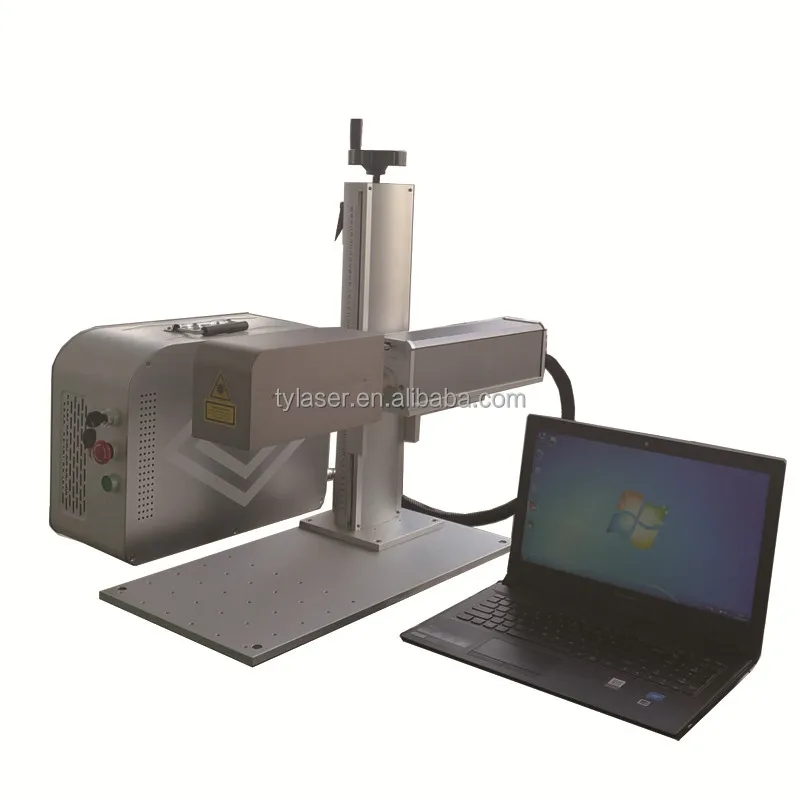

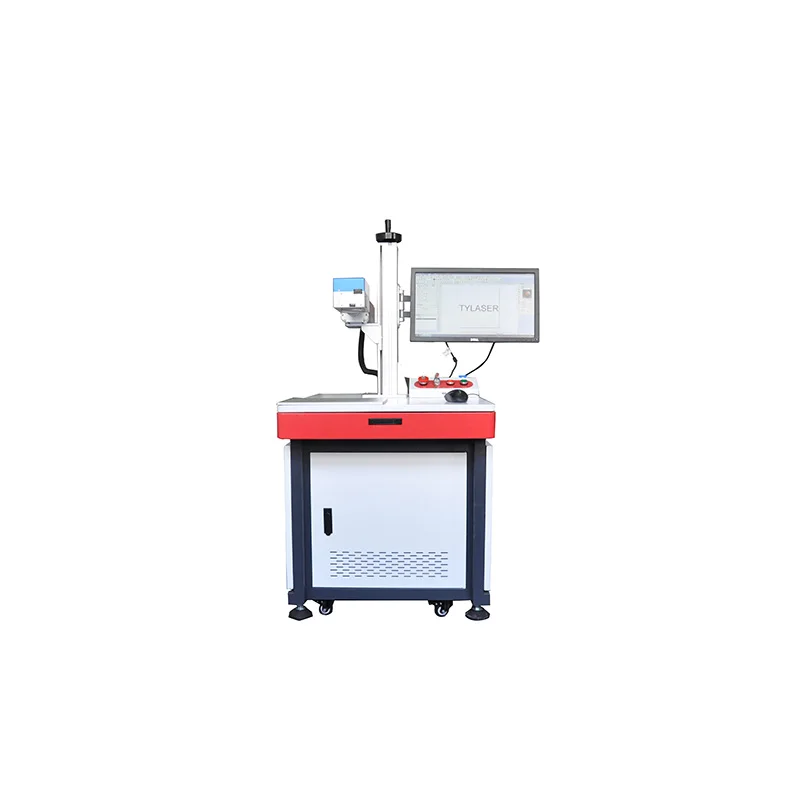

20w/30w/50w/100W H Type 2D/3D UV Big Fiber Laser Marking Machine for Sale Raycus/Max/JPT/IPG
- Category: >>>
- Supplier: Wuhan Maohe Tianyu Laser Equipment Co. Ltd.
Share on (1600565103075):
Product Overview
Description
Related Products
Product Description
Hot sale stainless steel engraving 3d fiber laser marking 50w fiber laser marking machine for sale
Features and Advantage:
1) Advanced design of small spot, the minimum focusing spot is 24 microns.
2) Accurate optical design and processing, large surface and surface processing energy attenuation is small.
3) The response speed of the galvanometer system is faster, and it can satisfy the precision filling of more than 3000mm/s.
4) Maximum marking height is 130mm, which meets the requirement of large drop of customers.

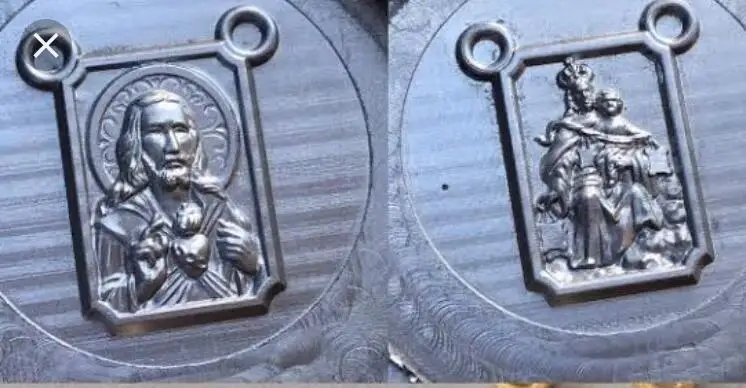

5) Change the position of focus, deep sculpture can be carried out, used in relief and other 3D applications.
6) The focal length of the marking machine is precisely controlled, and the Z-axis range is automatically adjusted when 3D depth marking is carried out, so as to minimize the spot size and ensure the consistency of the graphics after marking.
7) Built-in concave-convex circular tube, concave-convex sphere, inclined plane, vertebral body and other basic models to facilitate the operator to quickly set marking.
8) Supporting the import of 3D models, 2D graphics can be directly covered or projected on commonly used built-in surfaces.
9) No consumable, free maintenance, low operation cost
Specifications:
Max.output power: | 20W | 30W | 50W |
Laser source: | Raycus laser source | ||
Wavelength: | 1064nm | ||
Output power stanility: | <3% | ||
Output beam diameter: | 7±1mm | ||
Mode quality: | M2<1.5 | M2<1.8 | |
Repetition frequency range: | 30-60kHz | 30-60kHz | 50-100kHz |
Pulse width: | 90-130ns | 90-130ns | 90-150ns |
Power consumption: | 170W | 240W | 340W |
Cooling mode: | Air cooling | ||
Minimal character: | 0.15mm*0.15mm | ||
Working area: | 110*110mm(70*70mm~300*300mm optional) | ||
Working condition: | 0-40℃ | ||
Marking format: | Graphics, text, number, date, bar codes, QR code etc. | ||
Graphic format support: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | ||
Communication interface: | USB | ||
Focus assistance: | Red light pointer | ||
Customized Service:
1) Option laser source: Raycus, IPG, JPT, MAX etc.
2) Logo silk-screen printing
3) Double red light positioning assistance
4) Electric lift
5) Automatic focusing
6) Electronic gate
7) Gaiting protection
8) Customized working table
3D Software
1) Powerful editing function
2) Friendly interface
3) Easy to use
4) Support Windows XP,Win 7 syste
5) Support DXF,PLT and other file formats
Configurations
1.Laser Source(IPG/Raycus/JPT/Max 10W/20W/30W/50W/60W)

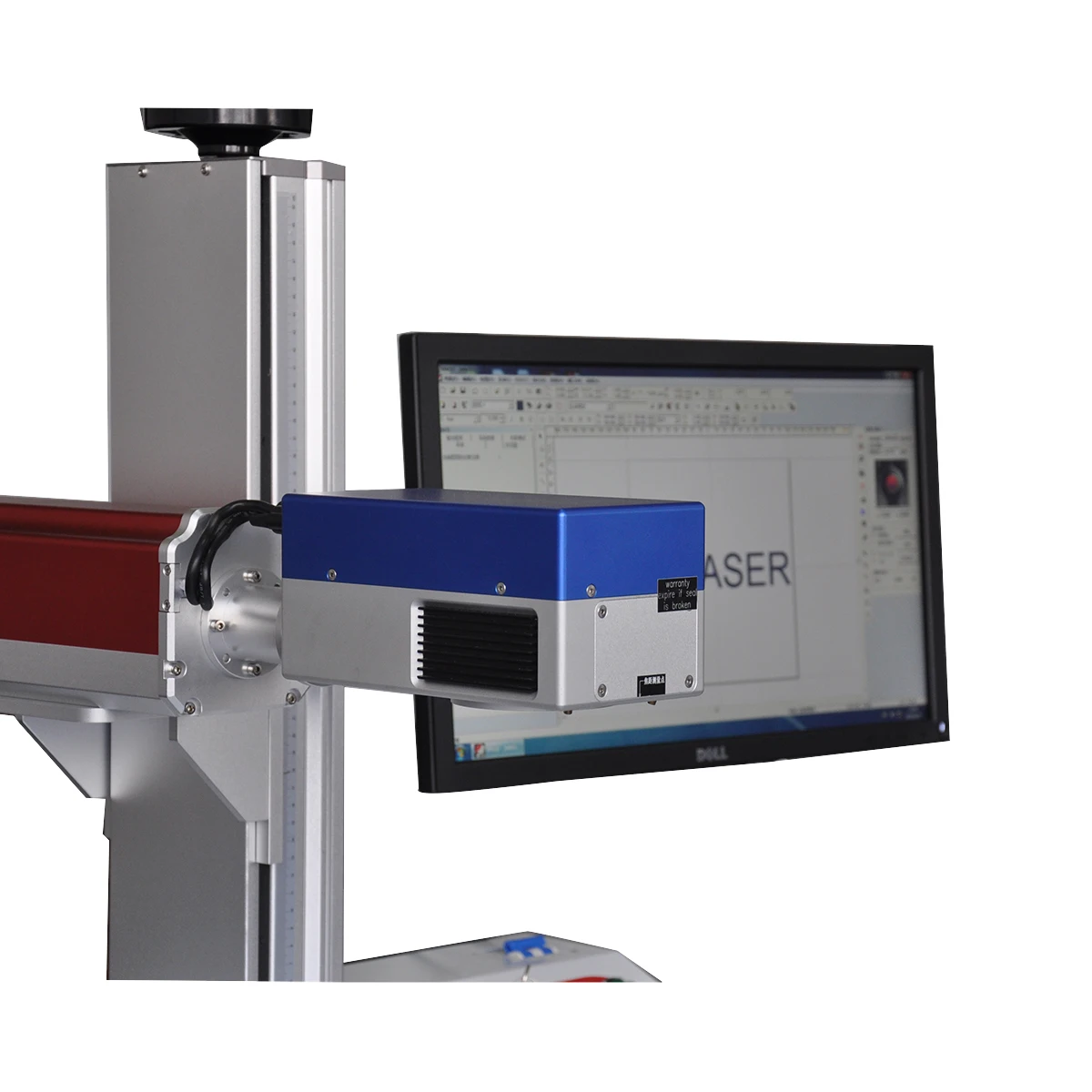

2.Scan Head
3.F-theta Lens
4.Operation System(WIN XP/7/8/10 English Version)
5.Marking Software(EZCAD, Engish Version)

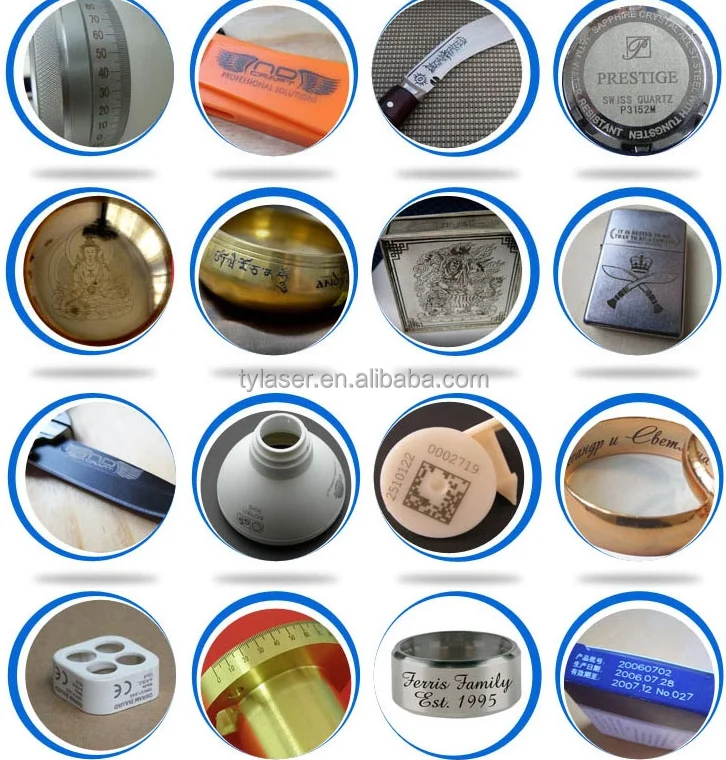

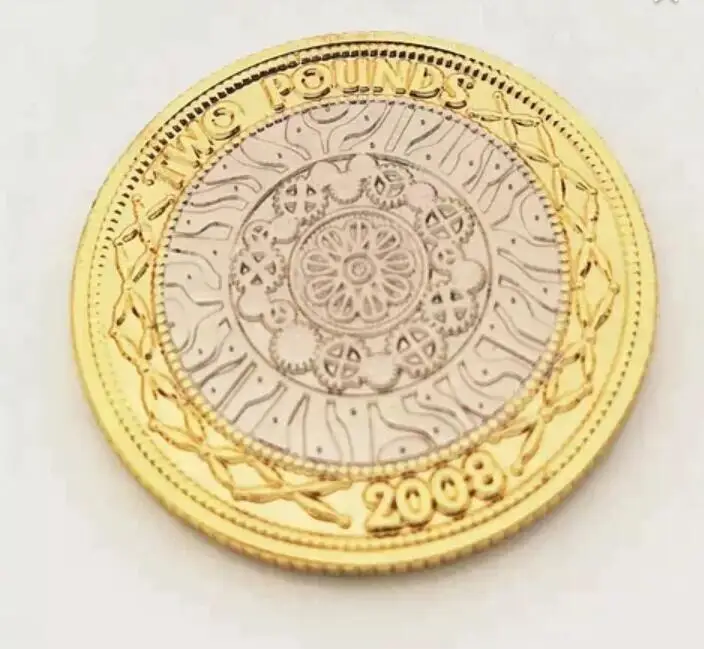

Sample display
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
Pre Sales Service
1. Inquiry and consulting support
2. Sample testing support
3. View our factory
After Sales Service
1. Training how to install and how to use the machine
2. We offer 1 Year warranty for whole machine (except artificial)
3. 24 hour technical support online like Skype, you can calling us if urgent
4. We offer free training in our factory, and our engineers available to service machinery overseas if needed
Contact Us
Dear customer:
Thanks for your inquiry,in order to recommend suitable portable etching machine for you,could you please tell us Which materail do you mark and what's the marking size and application?
Thank you.
