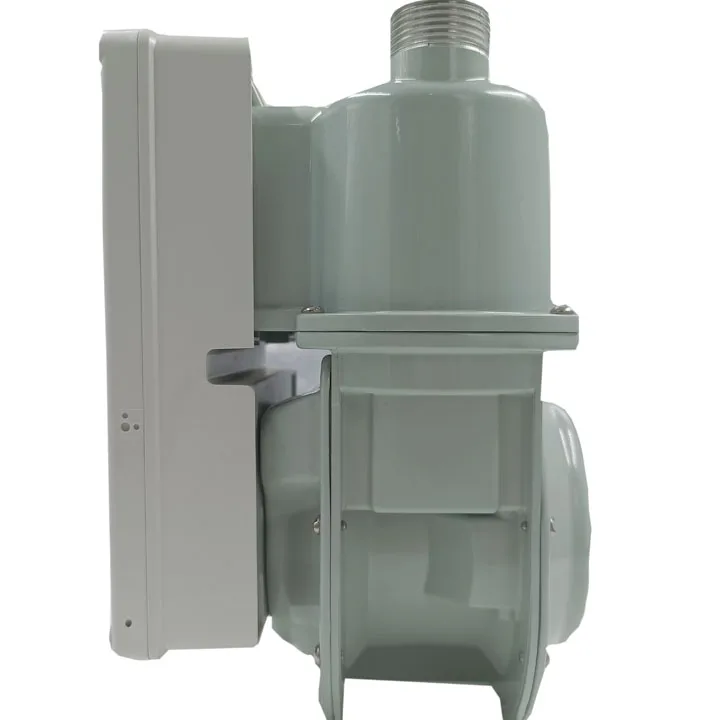

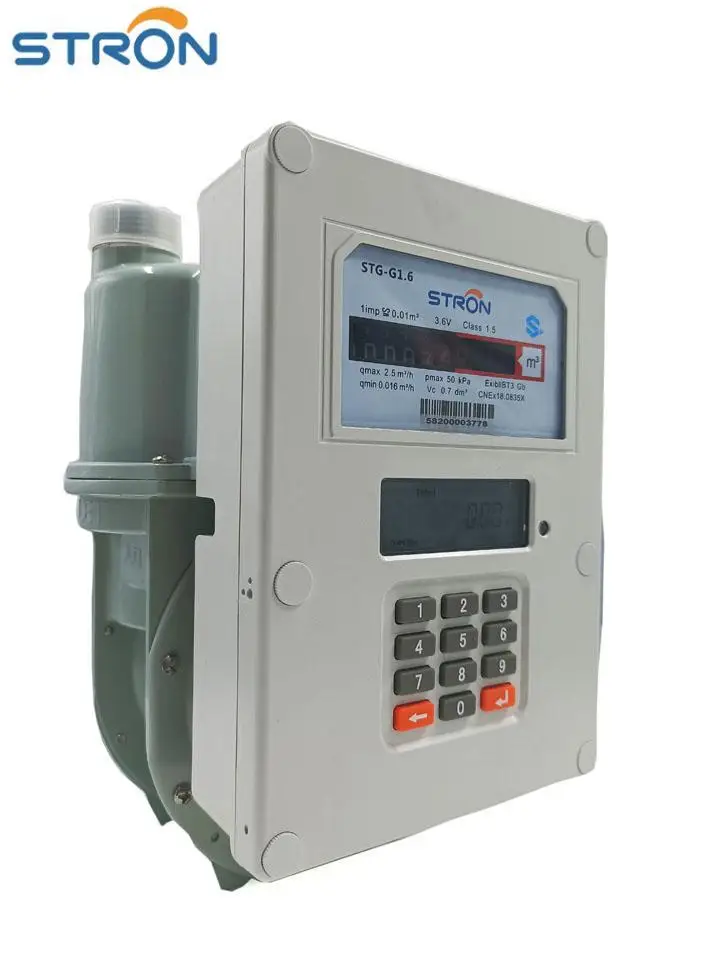

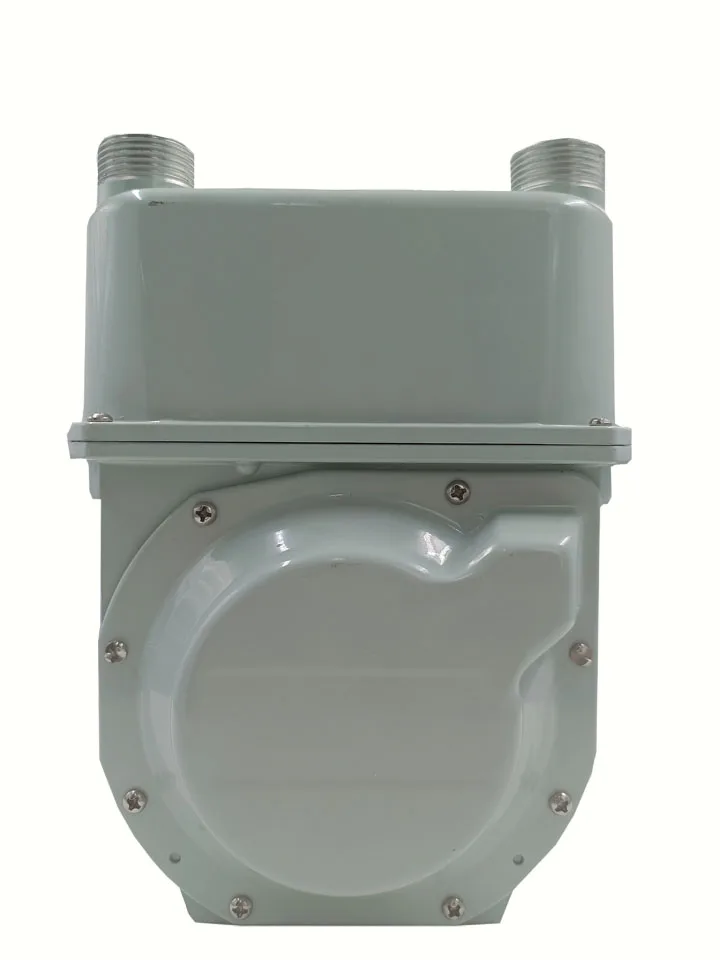

STG16 A Compressed natural gas mass flow meter
- Category: >>>
- Supplier: Hunan Stron Smart Co. Ltd.
Share on (1600565103099):
Product Overview
Description
Products Description
Main Contents

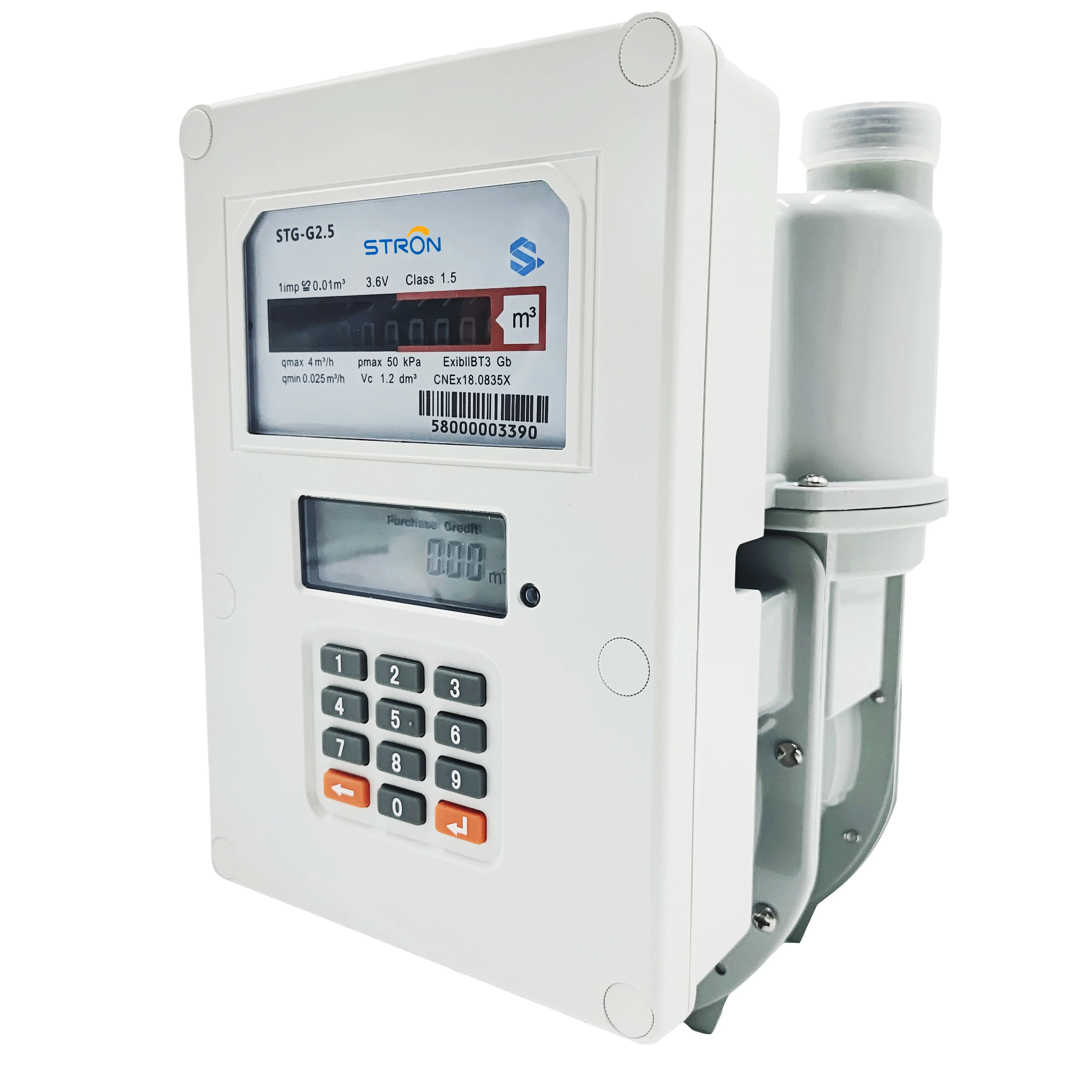

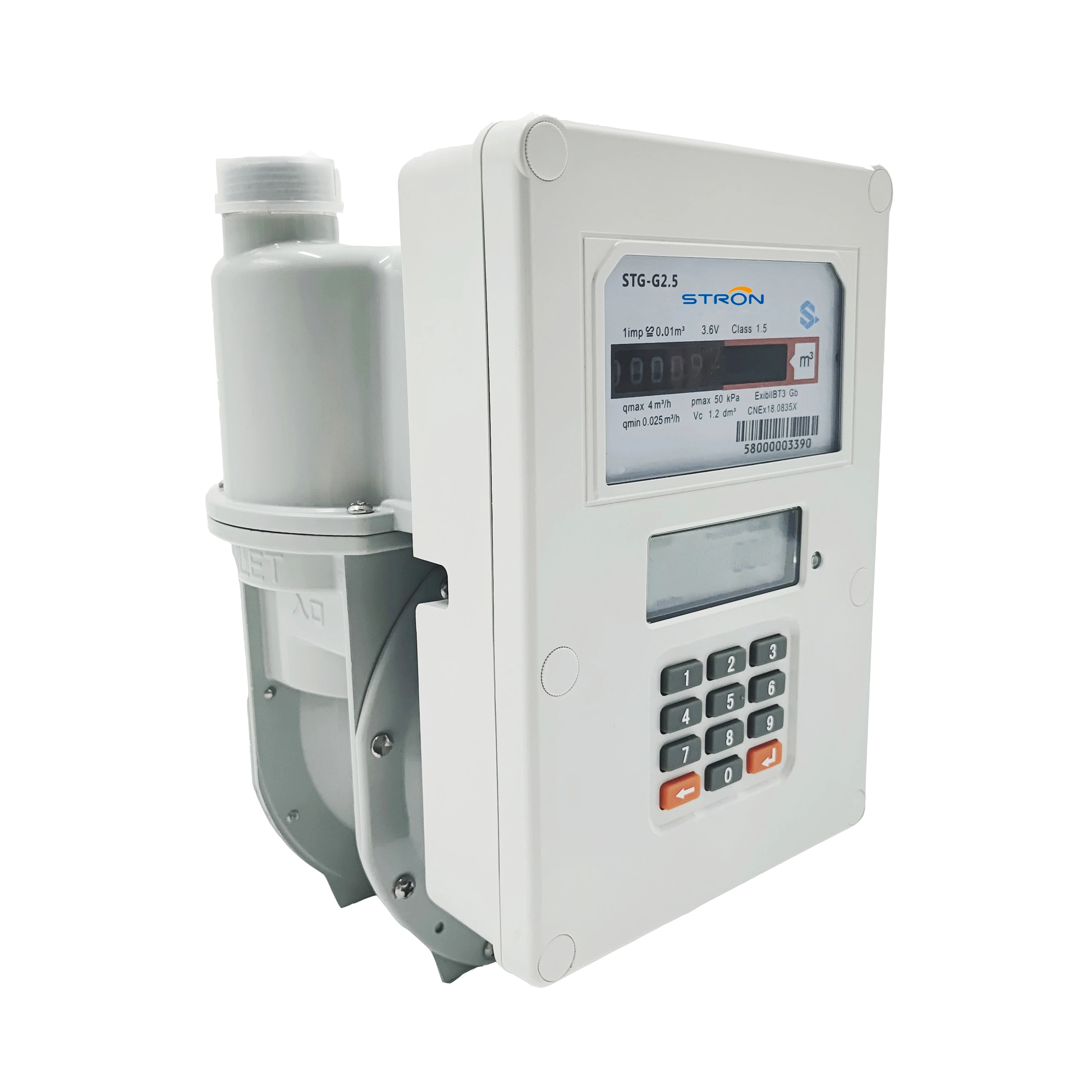

The STG16-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid gas meter. It can be top up with Stronpay vending software directly and communicate with AMI system via LORA-RF or NB-IoT module.
Application:
Measuring the volume of gas through gas pipes.
Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Main Features
1. Automatic valve controlling;
2. Ingress protection IP67 waterproof;
3. Up to 6 years battery life;
4. STS Standard;
5. Real-time clock;
6. Utitlities can set step price into meter on request;
7. Anti-Tamper Magnetic field protection;
8. LORA=RF communication (optional);
9. Pay by mobile payment M-PESA, Alipay, MTN, Airtel, ect.

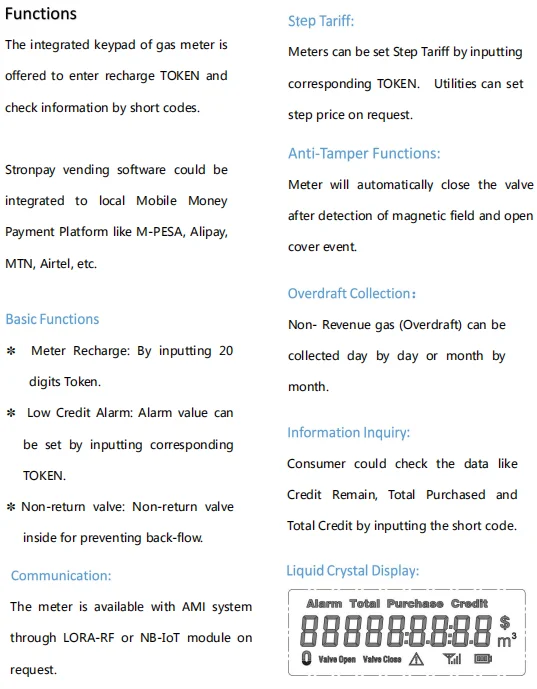

Functions
Metrological Parameters of different size
Size | G1.6 | G2.5 | G4 |
Nominal Flow Rate | 1.6 m3/h | 2.5 m3/h | 4 m3/h |
Maximum Flow Rate | 2.5 m3/h | 4 m3/h | 6 m3/h |
Minimum Flow Rate | 0.016 m3/h | 0.025 m3/h | 0.04 m3/h |
Cyclic Volume | 0.7dm3 | 1.2 dm3 | 2 dm3 |
Maximum working pressure | 0.7 Bar | 0.7 Bar | 0.7 Bar |
Pressure loss | <200 Pa | <200 Pa | <200 Pa |
Maximum reading | 99999 | 99999 | 99999 |
Working temperature | -20-50℃ | -20-50℃ | -20-50℃ |
Storage Temperature | -30-60℃ | -30-60℃ | -30-60℃ |
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax | ±3 | ±3 | ±3 |
±1.5 | ±1.5 | ±1.5 |

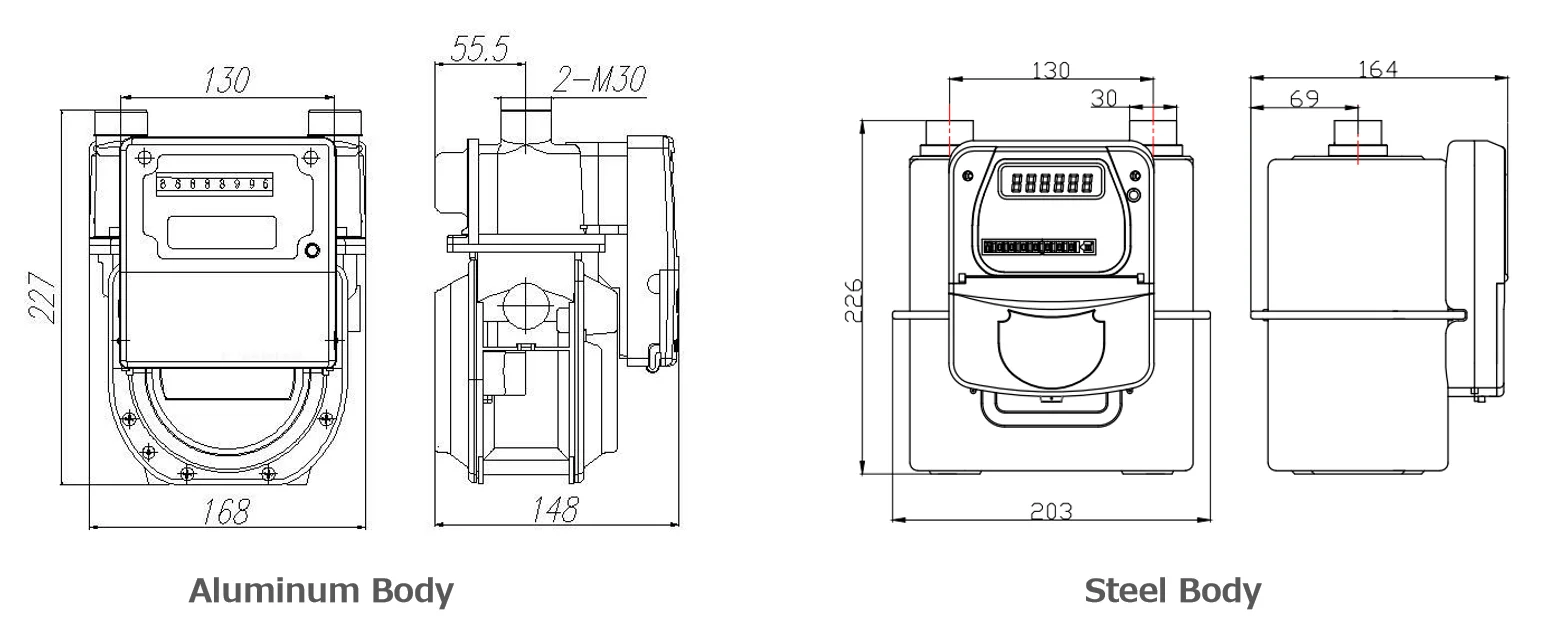

Meter Dimensions
Three solutions to recharge prepaid gas meter

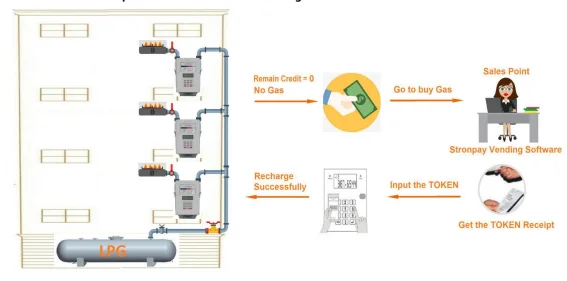

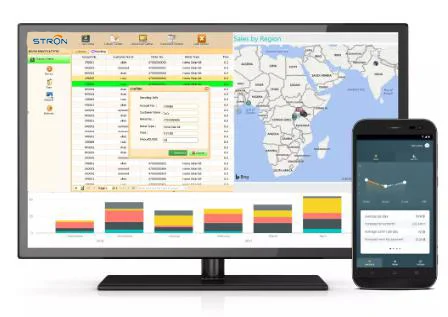

1.By Stronpay vending Software
➯ Via local sales point or handheld mobile vending unit
➯ Via local sales point or handheld mobile vending unit
Operation of vending software
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully

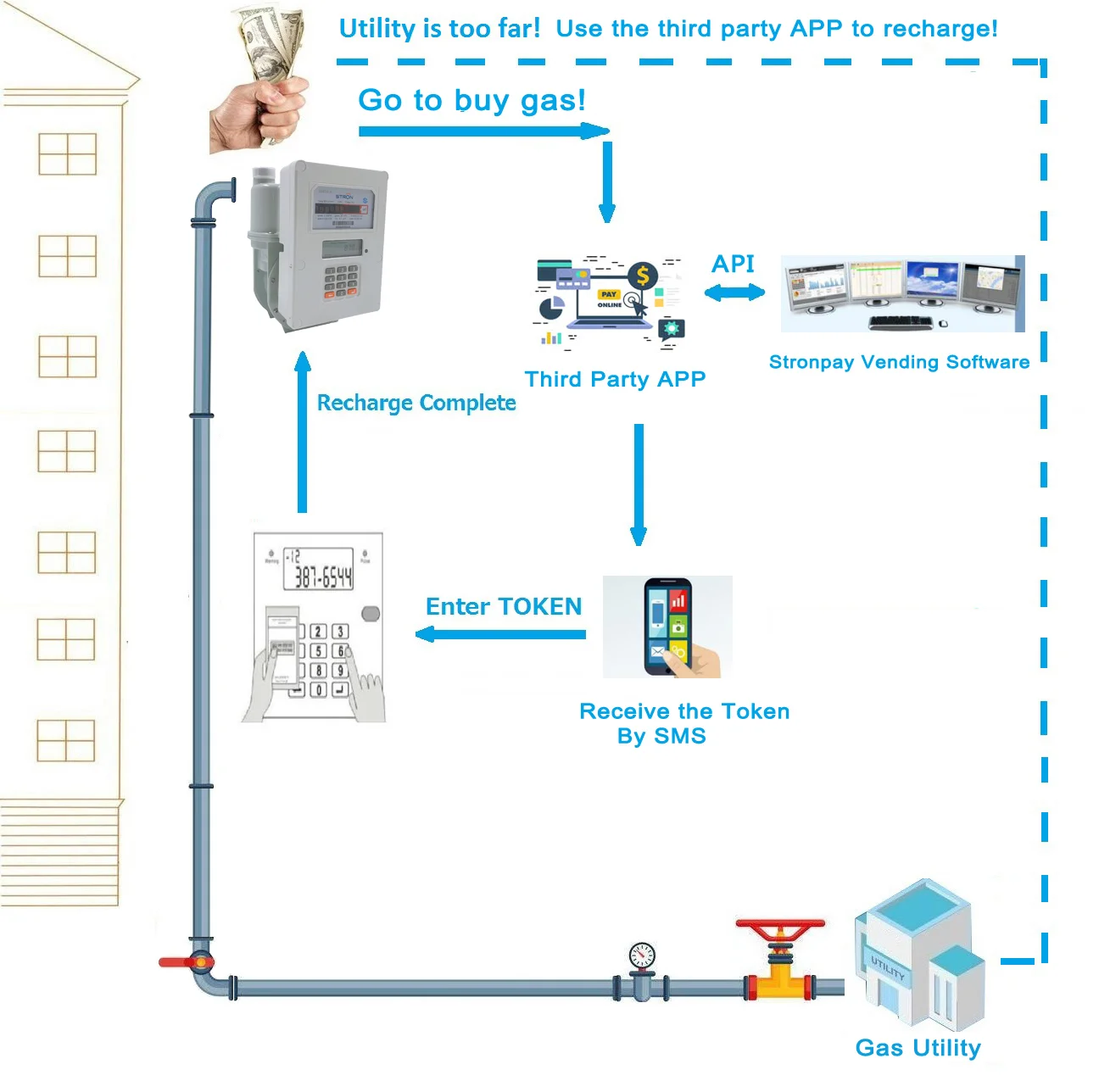

2.By the third party platform or local mobile payment with API
➪ Via mobile phone
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending
software.

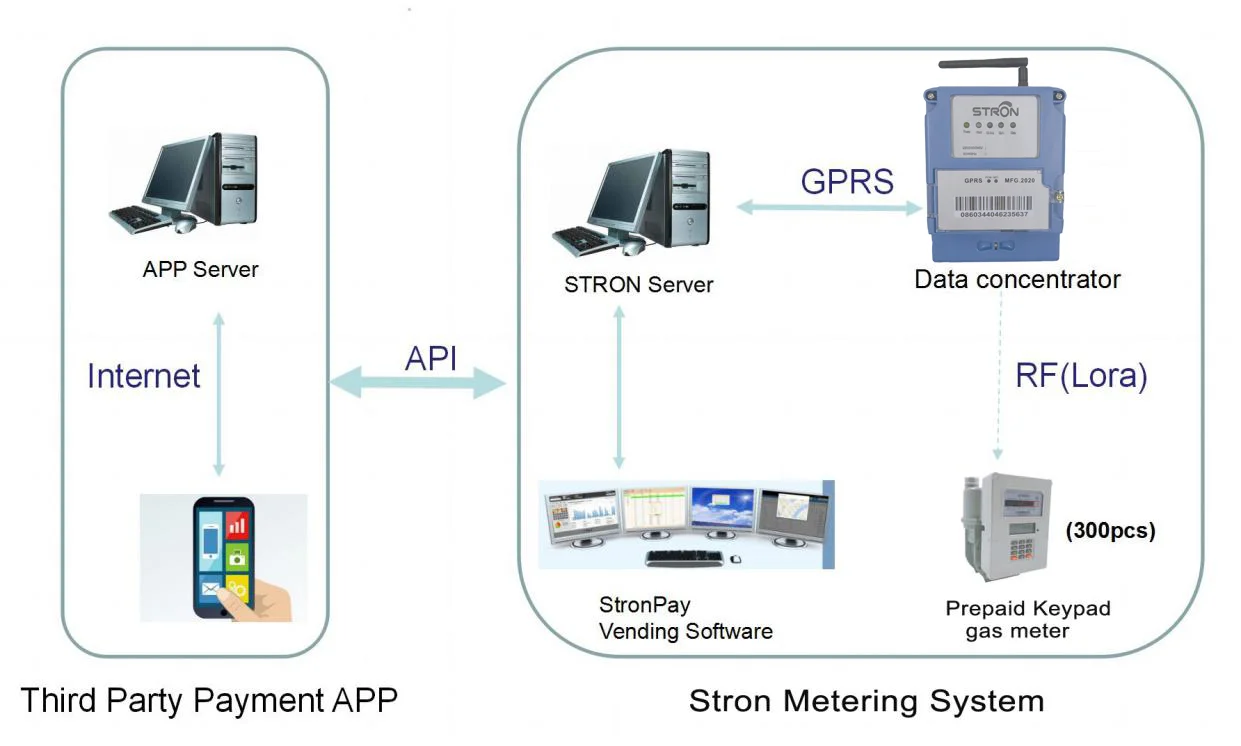

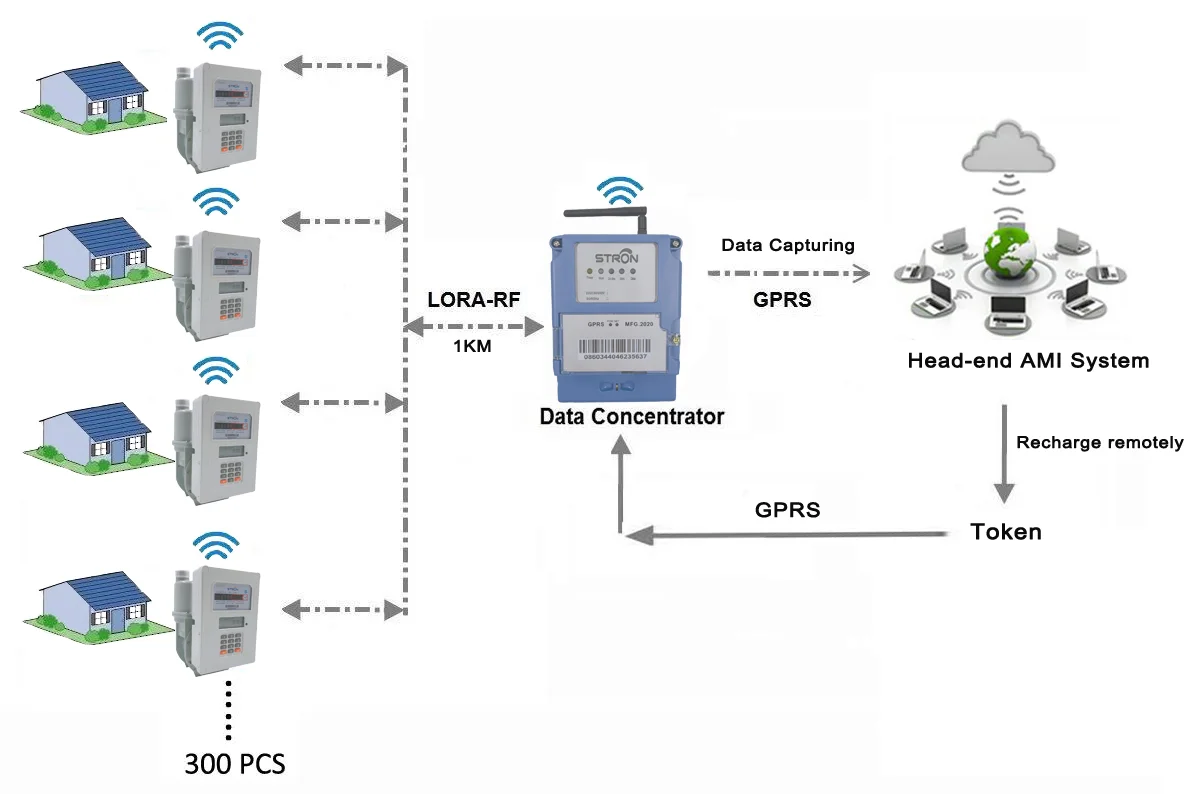

3.By the AMI System
➪ Recharge remotely via DCU and LORA-RF or NB-IoT module
➪ Recharge remotely via DCU and LORA-RF or NB-IoT module
Certifications

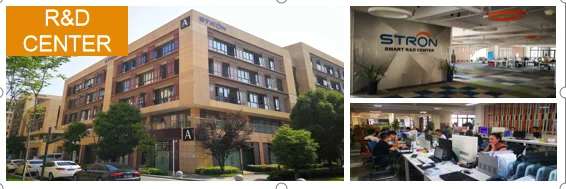

Company Profile
Hunan Stron Smart Co., Ltd founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.
Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.
we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. Our production capacity is 8million smart meters per year, and have a workshop only working for overseas’ order to guarantee the delivery time and quality control. Stron has kept long-term cooperation with partners from over 60 countries andregions including Canada, India, Egypt, South Africa, Nigeria, Tanzania, Kenya, Russia, Bangladesh, Indonesia, etc.

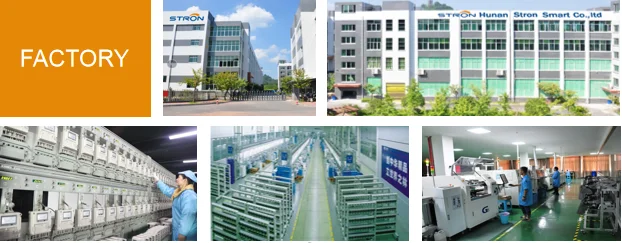

The factory video
FAQ
Q: Can I have a sample to test it?
A: Of course, but we will charge some fees for the sample to cover the cost. However, if your purchasing quantity is large, we will deduct or reduce the cost of your samples from the purchase price.
Q: When Can I receive the goods?
A: Generally 5~10 days, but if you have special requirements, it will take 15 to 30 days.
Q: How many users of your product in the world?
A: Our main market is Africa and South Asia, and we not only produce our own products but also ODM/OEM with other
meter manufacturers, together with vending system, offering solutions it's very difficult to estimate the quantity, a conservative estimate should be 500,000 users in this two main regions
meter manufacturers, together with vending system, offering solutions it's very difficult to estimate the quantity, a conservative estimate should be 500,000 users in this two main regions
