High Quality Wholesale High Transfer Capacity Sidewall Corrugated Belt Conveyor
- Category: >>>
- Supplier: Ningbo Cozy Rubber Co. Ltd.
Share on (1600565103835):
Product Overview
Description

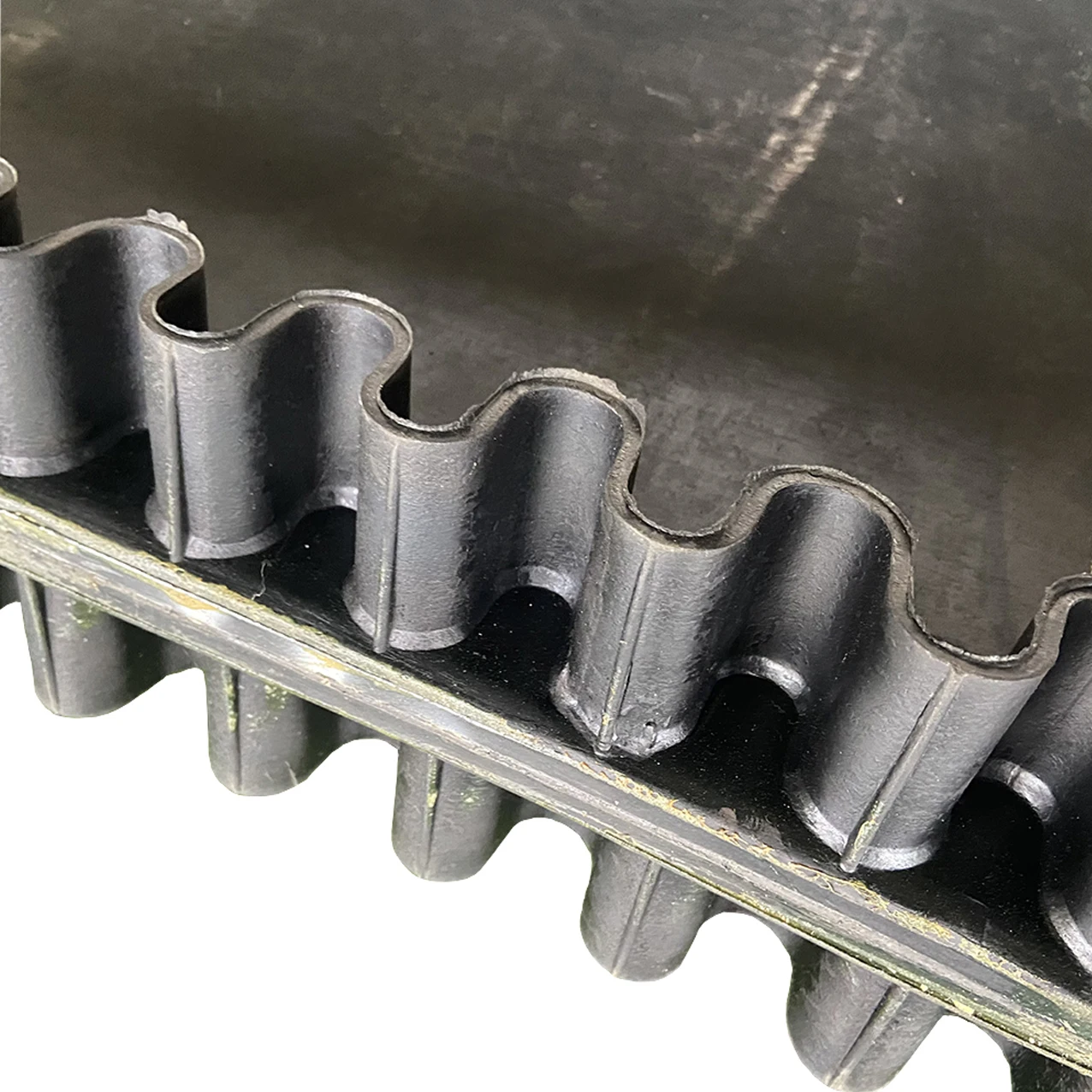

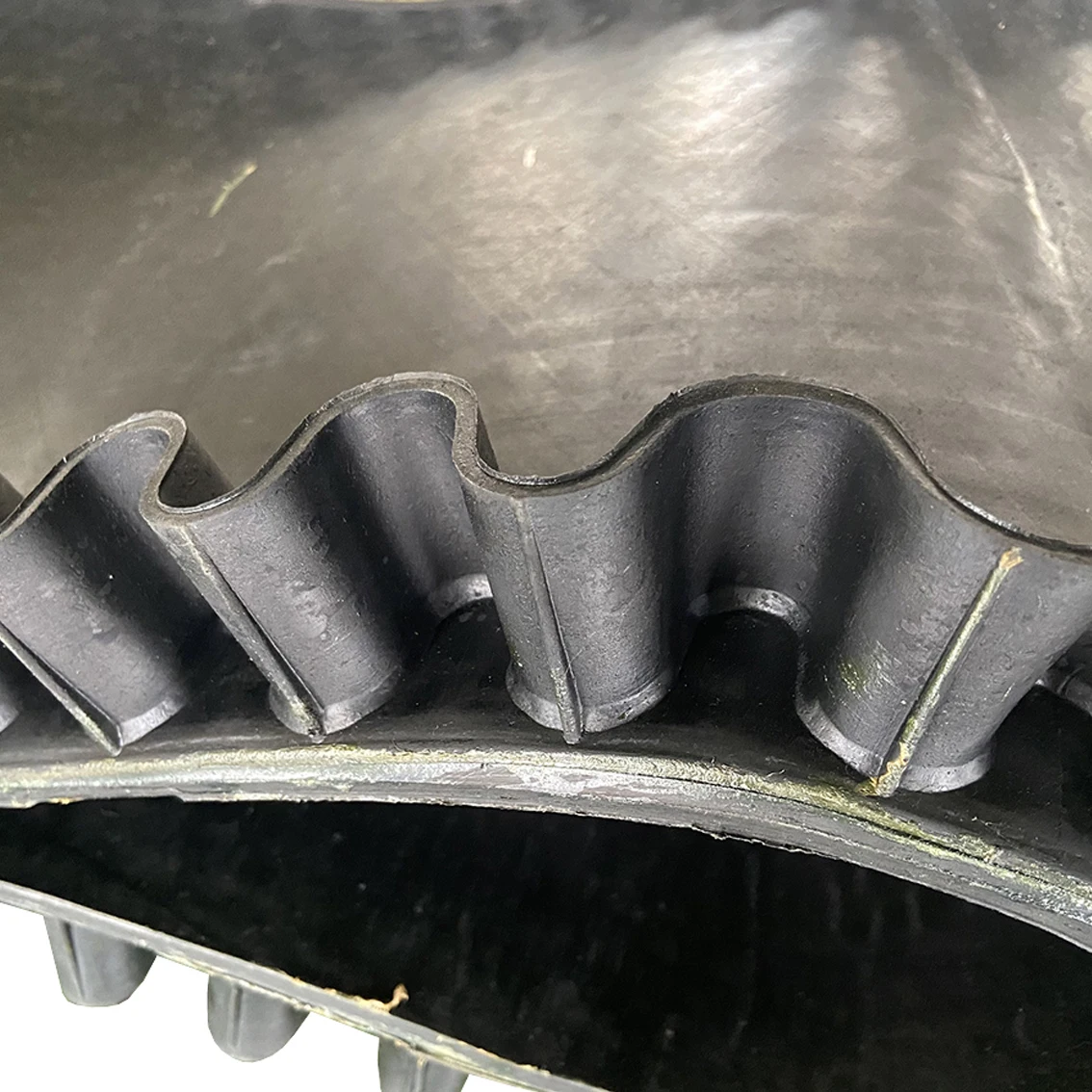

wholesale High Transfer Capacity Sidewall Corrugated Belt Conveyor

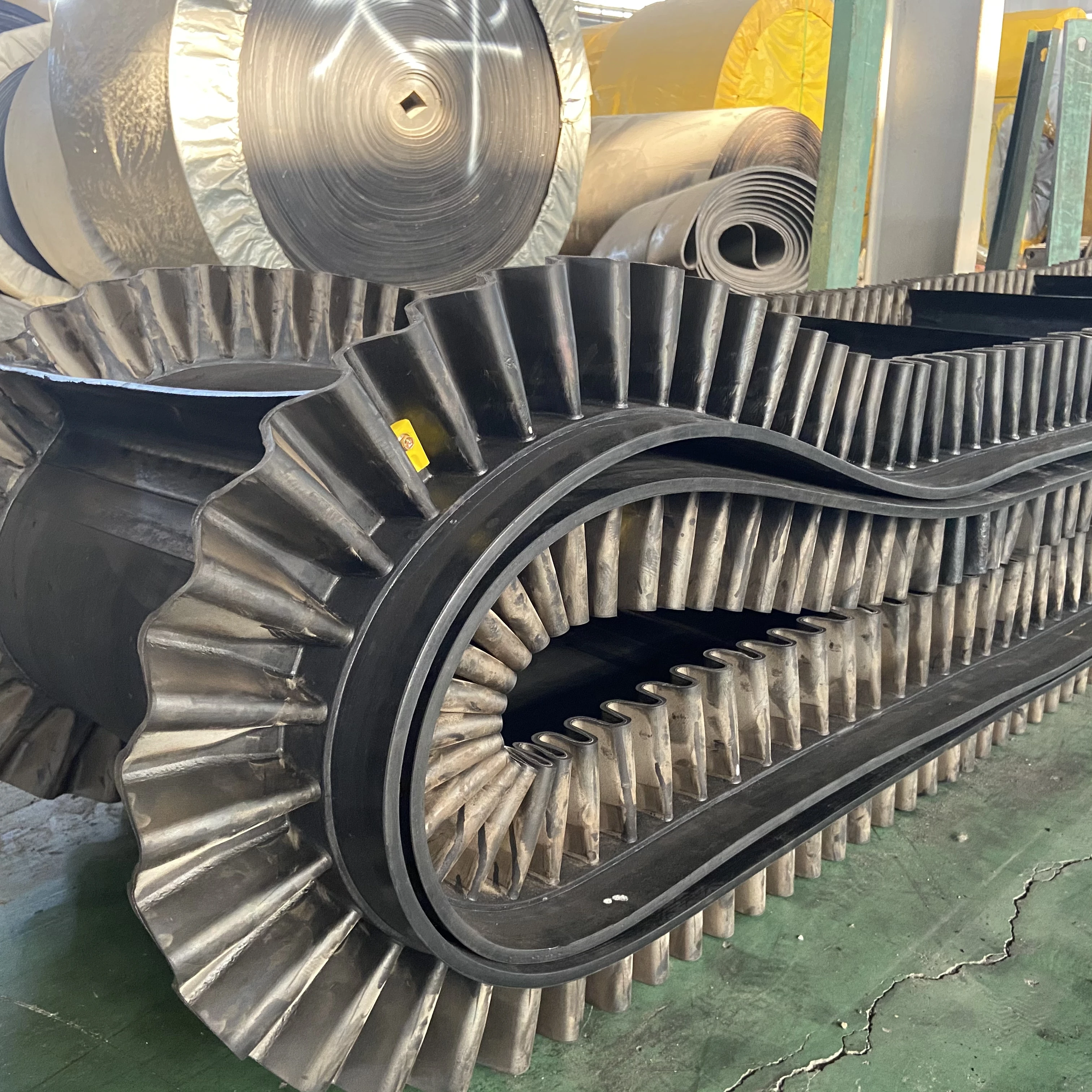

Sidewall Conveyor Belt
-- Special treated steel mesh inserted into both top cover and bottom cover,creating an excellent combination of longitudinal
flexibility and transverse rigidity.
Sidewall
-- Possible to convey at steep angle with big capacity in a limited space
-- The entire steep angle conveyor belts are highly durable,low elongation and long lasting
-- High quality rubber to guarantee sidewall withstand highly stress and repeated flexing
-- The entire steep angle conveyor belts are highly durable,low elongation and long lasting
-- High quality rubber to guarantee sidewall withstand highly stress and repeated flexing

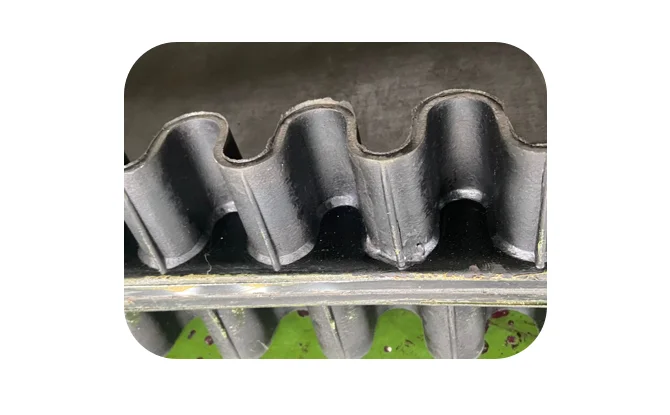

Sidewall
The type and sketch map of conveyor beit with corrugated flange
Cleats
The cleats is made of high-quality rubber with high elastic support.
There are also two types: pure rubber rubber with a fabric reinforcement layer in it
Product details：
Cover Rubber Tensile | 8MPA,10MPA,12MPA,15MPA, 18MPA,20MPA,24MPA,26MPA | ||||||
Belt width/length | 400-2200mm,18-96inch | 10-500m | |||||
Top/Bottom cover thickness | 2+2, 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5,etc | ||||||
Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm, 10mm,12mm,15mm,20mm,25mm | ||||||
Tensile strength options | EP315/3,EP400/3,EP500/3,EP600/3,EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5,EP600/6,EP1200/6 | ||||||
Belt edge | Mound edge or cut edge | ||||||
Step 1:Process Management
Calender process
The automatic celender machine can calend the rubber on 2 sides of the fabric in one time.It can reduce the strength loss of the rubber.
Forming process
The forming tension must be uniformity between different plies,it can avoid fabric be wrinkled,also it can make sure the thickness of the belt.
Step 2:Appearance quality inspection
We have a QC team to inspect the appearance of each conveyor belt roll,and we have to rework the belt if we find out any problem.
Appearance and length inspection
Thickness inspection
Width inspection
Step 3:Physical performance inspection
Tensile strength
Abrasion test
Quality inspection equipment
CozyFlex start in 1986 which is aiming at being the advanced supplier in conveyor belt industry. We creat the value by helping our customers to improve their market position by supplying the conveyor belt.
We have team to supply the One-stop service from the sales to joint, inspection, repair, and consulting of conveyor belts and peripheral products.
Q1. Are you a manufactuer?
Yes, we start to produce the rubber conveyor belt since 1986.
Q2. What about the delivery time?
1) 3 days for sample
2) 15 days for mass production.
2) 15 days for mass production.
Q3. How to pay?
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
2) Select Alibaba Trade Assurance Service
Q4. What are the advantages of our company?
1)Competitive price
1)Strict quality control
1)15 days delivery time
4. ODM and technical support
Q5. How about package?

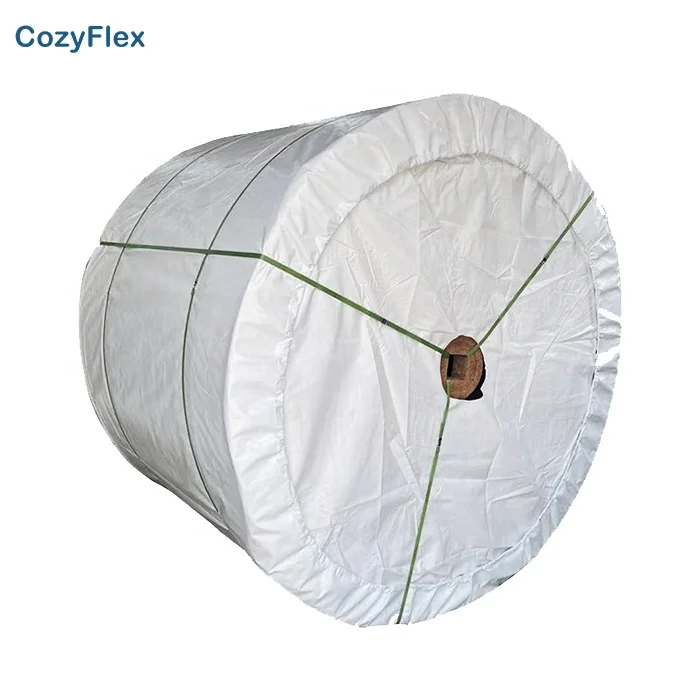

1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
2) Outer is packed with one ply water-proof PP fabric
