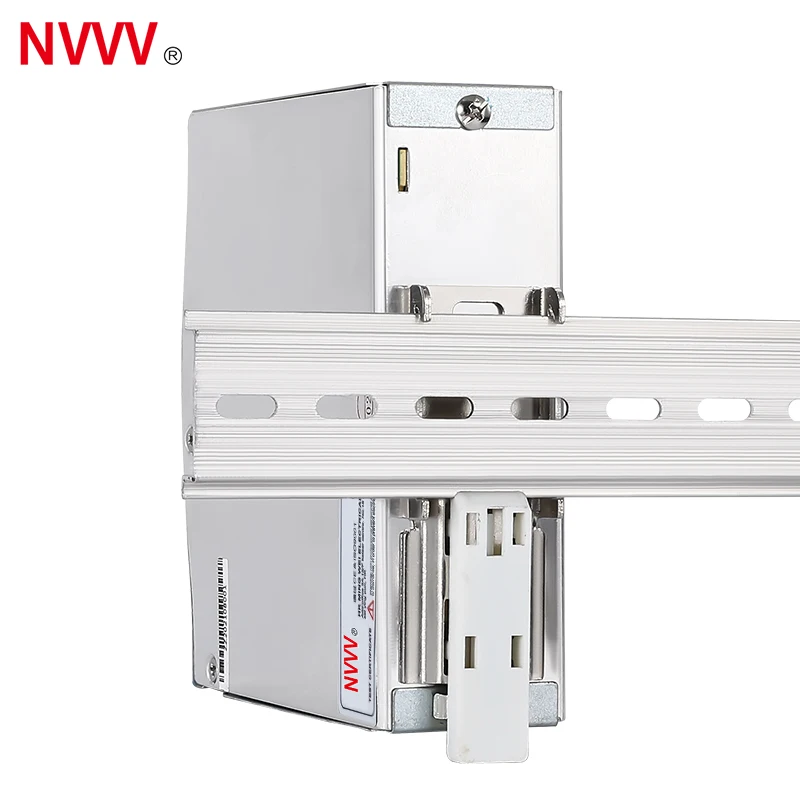

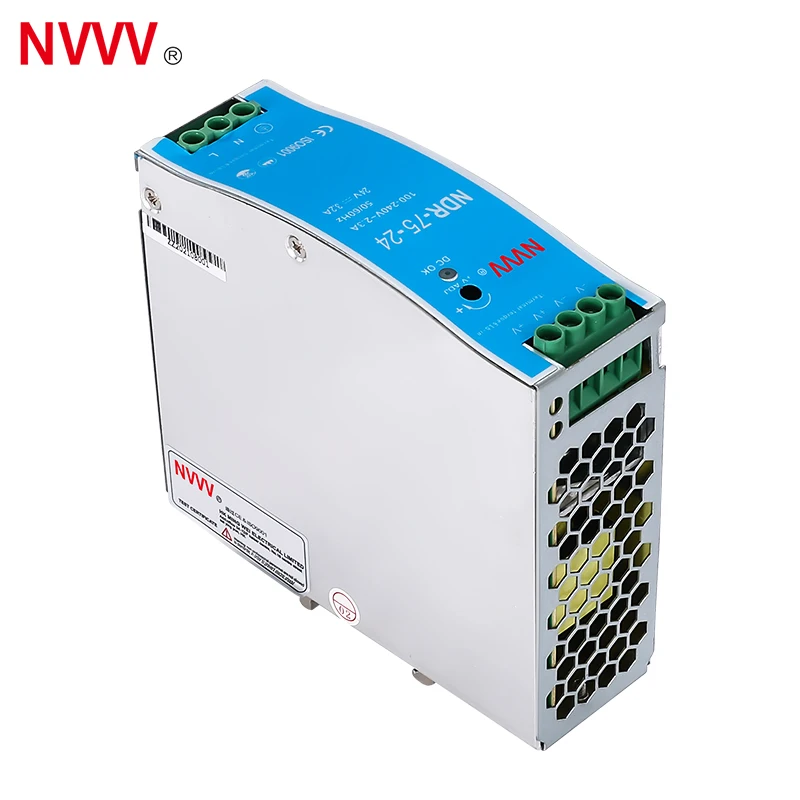

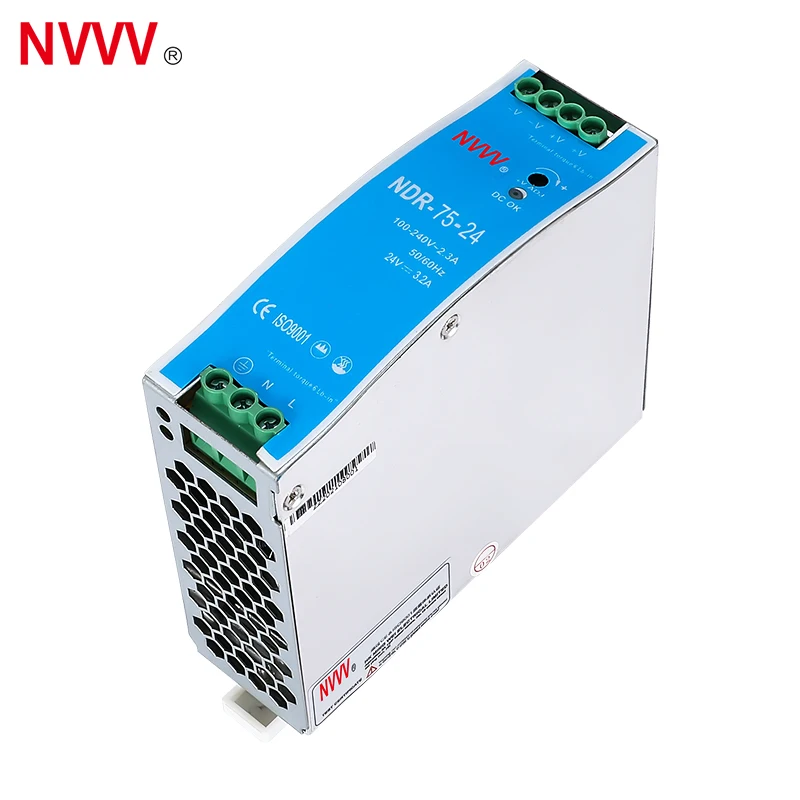

24v dc power supply din rail Slim Type DIN Rail Industrial AC DC Ac Lab Power Supply NDR 75 24
- Category: >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (1600565104466):
Product Overview
Description
Product Description
Specification
NDR-75 75W Rail Type Switching Power Supply | ||||||||
Project | Technical index | |||||||
Output | DC voltage | 12V | 24V | |||||
Rated current | 6.3A | 3.2A | ||||||
Rated power | 75.6W | 76.8W | ||||||
Ripple and noise ① | ＜120mV | ＜120mV | ||||||
Voltage accuracy | ±2% | ±1% | ||||||
Output voltage regulation range | ±10% | |||||||
Load adjustment rate | ±1% | |||||||
Linear adjustment rate | ±0.5% | |||||||
Input | Voltage range | 90-264VAC 47Hz～63Hz (127VDC～370VDC：By connecting AC/L(+),AC/N(-) can realize DC input) | ||||||
Efficiency (typical) ② | ＞85% | ＞87% | ||||||
Working current | ＜1.45A 110VAC ＜0.9A 220VAC | |||||||
Impulse current | 110VAC 20A， 220VAC 35A | |||||||
Start, rise, hold time | 500ms、70ms、32ms ：110VAC/500ms、70ms、36ms ：220VAC | |||||||

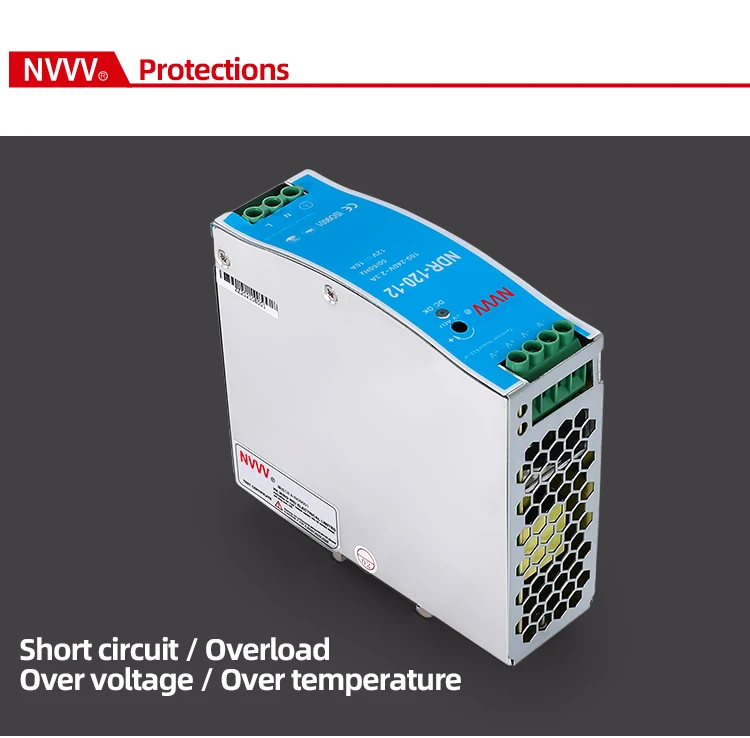

Protect | overload protection | 105%-150% type: constant current output + vaao reduced to undervoltage point cut off output reset: power on again | ||||||
overload protection | ≥ 135% type: constant current output + vaao reduced to undervoltage point cut off output reset: power on again | |||||||
Short circuit protection | VODrop to undervoltage point to close output | |||||||
Environmental Science | Working temperature and humidity | -10℃～+60℃；20%～90RH | ||||||
Storage temperature and humidity | -20℃～+85℃；10%～95RH | |||||||
Safety regulations | Withstand voltage | Input output: 3kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | ||||||
Leakage current | ＜1mA/240VAC | |||||||
Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||||||
Other | Size | 40*125*113mm | ||||||
Net/Gross Weigth | 707/750g | |||||||
Company Profile
Our Team
Packing & Delivery
FAQ
Q1:How many Voltage you can supply?
A: 12v , 24v , 48v , 50v , 60v , 110v (Depend on items).
A: 12v , 24v , 48v , 50v , 60v , 110v (Depend on items).
Q2：Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At the same time, we have overseas warehouses so that you can get the products faster.
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable. At the same time, we have overseas warehouses so that you can get the products faster.
Q3：Do you have any MOQ limited for the order?
A: Low MOQ, 1pc for sample checking is available.
A: Low MOQ, 1pc for sample checking is available.
Q4：How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
A: We usually ship by DHL, UPS, FedEx, or EMS. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5：Do you offer a guarantee for the products?
A: Yes, we offer a warranty on our products.
A: Yes, we offer a warranty on our products.
Q6: How to deal with the faulty?
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less. Secondly, during the guarantee period, we will send new products with new orders for small quantities. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation
