Product Overview
Description
Product Description

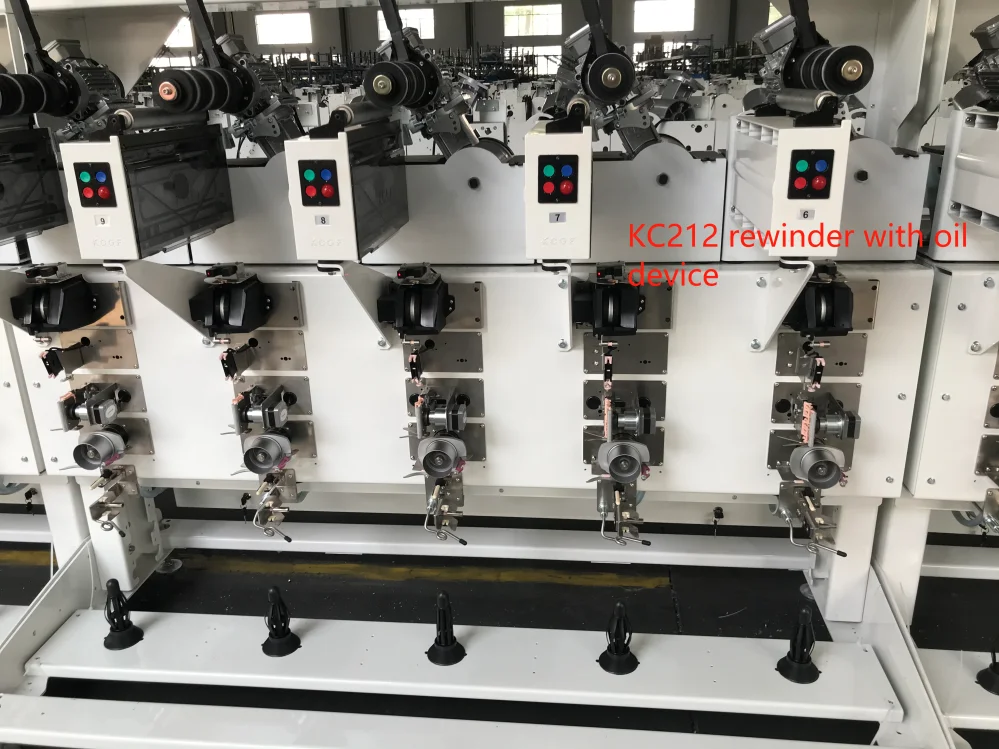

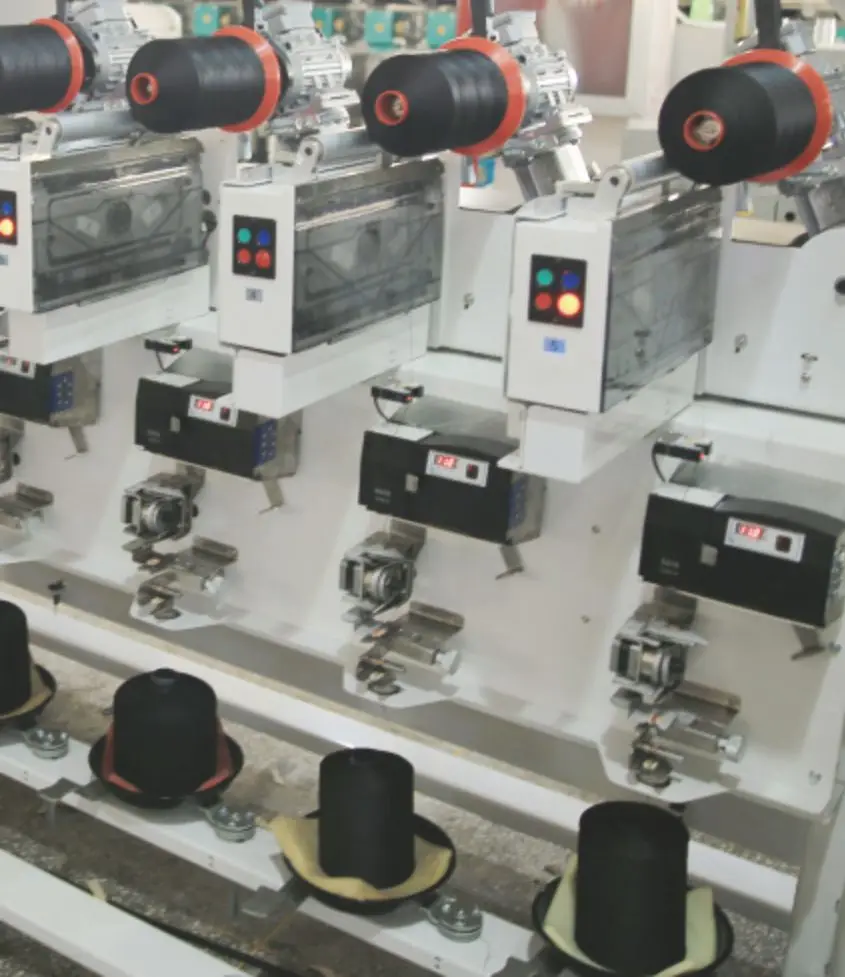

KC212 rewinder /Tight winding machine
yarn path from bottom to packaging bobbin:
yarn guides with ceramic -->overfeeding roller --> electronic tension gate-->tension sensor-->Oil device-->yarn breaking sensor-->traverse units--> packaging adaptor
KC212A hank to cone winder
yarn path from bottom to packaging bobbin:
overfeeding roller --> electronic tension sensor-->Oil device-->yarn breaking sensor--> traverse units--> packaging adaptor.
overfeeding roller --> electronic tension sensor-->Oil device-->yarn breaking sensor--> traverse units--> packaging adaptor.

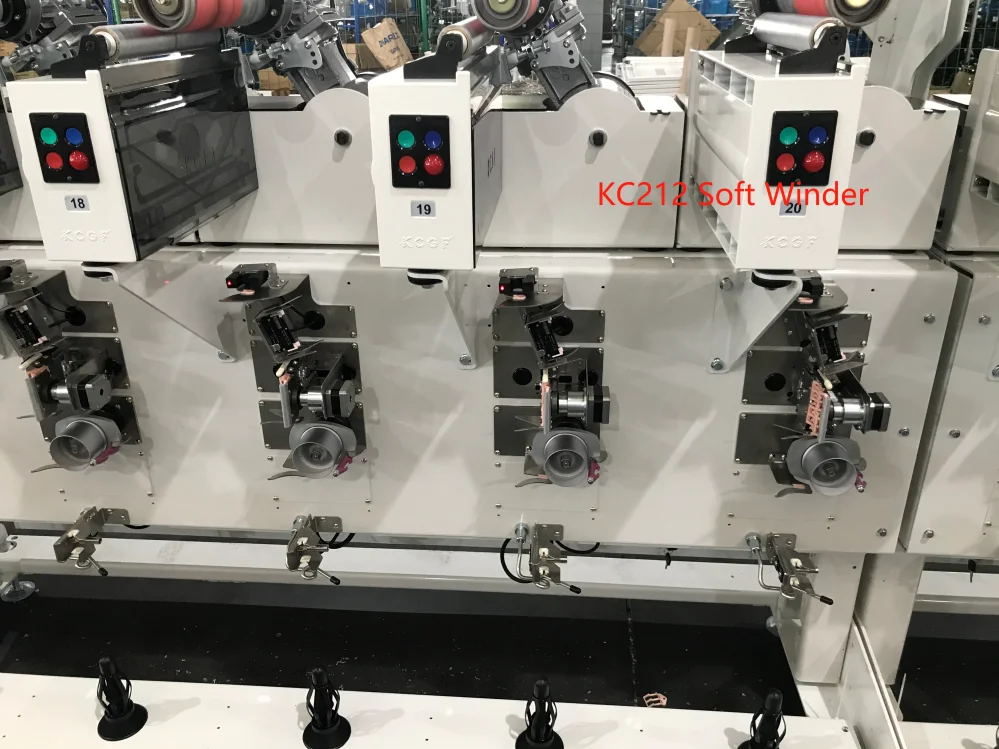

KC212 soft winder / soft winding machine
yarn path from bottom to packaging bobbin:
yarn guides with ceramic -->overfeeding roller --> electronic tension gate-->tension sensor-->yarn breaking sensor--> traverse units--> packaging adaptor
yarn path from bottom to packaging bobbin:
yarn guides with ceramic -->overfeeding roller --> electronic tension gate-->tension sensor-->yarn breaking sensor--> traverse units--> packaging adaptor
ESSENSTIAL SPARE PARTS USED ON WINDING MACHINDE OF BRAND KCGF
Control Board for KC212 winder machine
Programmed &Produced By
Programmed &Produced By
Kaicheng Machinery itself
Tension Sensor
Programmed &Produced By
Kaicheng Machinery itself
traverse motor
Programmed &Produced By Kaicheng Machinery itself
Programmed &Produced By Kaicheng Machinery itself
Yarn Breaking Sensor
Supplied By Kaicheng Itself
Yarn Guide motor
Supplied By Kaicheng Itself
Yarn Guide with different Diameter: 1.0mm/1.6mm/2.0mm/3.4mm Max
Steel Wires: Imported Quality
Steel Wires: Imported Quality
Angle Sensor
Supplied By Kaicheng Itself
Traverse Assembly Unit
Supplied By Kaicheng Itself
Application: Applied for soft winding, rewinding, hard winding, hank or cone yarn initiative unwinding,
Yarn Types: FDY yarns, DTY yarns, ATY yarns, sewing threads, bonded threads, embroidery threads, viscose yarn / rayon yarns, spun polyesters yarns, cotton yarns, BCF yarns, wool yarns, acrylic yarns, blended yarns, fancy yarns and threads etc
Features
① High performance servo motor yarn guide, linear speed can up to 800m/min, even up to 1100m/min, Improve production efficiency and reduce cost;
② Adopt comprehensive intelligent control technology, All parameters related to yarn quality can be adjustable at will . e.g.
Winding shape length, edge Angle, edge width, soft edge density, package shape cross Angle, winding tension, etc;
③Adopting intelligent tension system, active unwinding device and automatic tracking overfeed system, ensure uniform density of winding shape;
④Whole machine with beautiful appearance, low noise, low power consumption and The human-machine interface is optimized , the control is more reasonable.
Technology Parameter
Machine structure | Single size, single layer 4n, 48 spindles/set (It can be changed according to actual needs) |
Spindle gauge | 440mm (It can be changed according to actual needs) |
Type of winding | Digital or precision winding |
Linear speed | Up to 1100m/min (depend on the process parameters) |
Type of tension | Electronic tension and initiative unwinding |
Take-up tubes | Cylindrical or cone |
Traverse length | 130mm~250mm (It can be changed according to actual needs) |
Package shape | Straight edge or incline edge shape (The angle can be adjustable) |
Rated power | 400W/spindle |
Actual consumption | 25-50% of rated power (depend on the process parameters) |
Machine producing standard :
Machine producing standard according to the manufacturer ‘s machine technology standard which has put on records in manufacturer local TSB (technology supervision bureau )Machine warranty period: One Year
Break contract liability: According to Economic Contract Law of the People's Republic of China.
Sample Trials on our machine:we can make trails here for you and send back packaging bobbin to you if you want to make trial use of our machine and send yarn & packaging bobbin samples to our factory ,
Technical Service:
1) If buyer need us technician to your place to install machine ,the buyer takes all charges of cost about technician’s
1) If buyer need us technician to your place to install machine ,the buyer takes all charges of cost about technician’s
flight tickets, traveling expenses, lodging fee, and insurance premium , and also his salary 50usd per day during the business travelling,
2)And also our engineer should be given cares by being picked up from airport when he arrives there and being sent off to the airport when he comes back to China.
2)And also our engineer should be given cares by being picked up from airport when he arrives there and being sent off to the airport when he comes back to China.

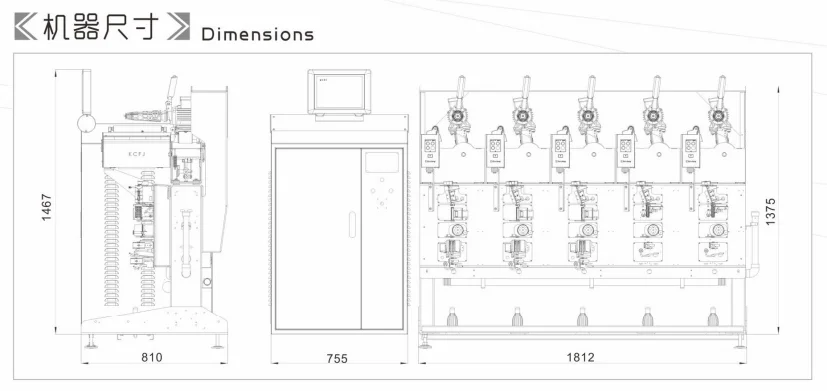

Dimensions
Winder Machine Type 1: rewinder /Tight winding machine / soft winder
Machine head Size : L755*W810*H1467mmMachine Body---One section of 5 spindles: L1812*W810*H1467mm
Overall measure includes machine head: L22500mm×W810mm×H1480mm for one set 60 spindles

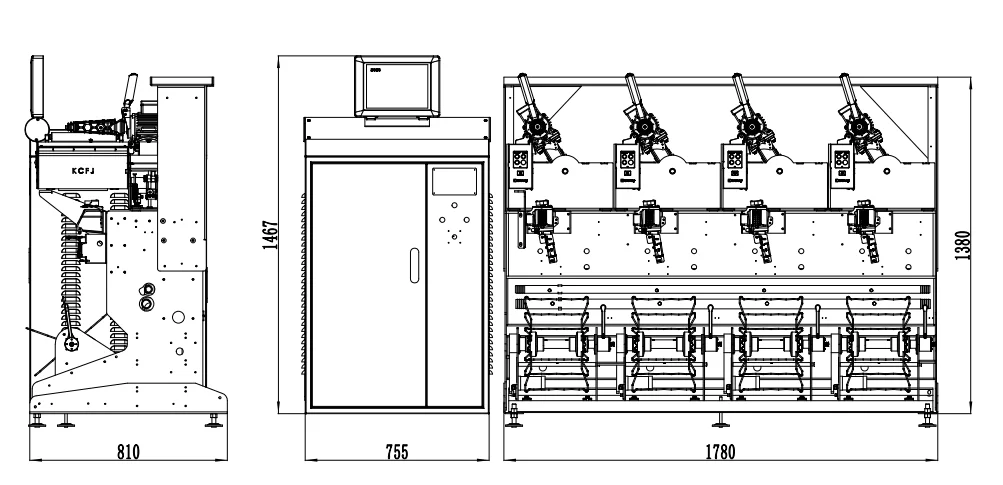

Winder Machine Type 2: KC212A hank to cone winder / muff to cone winder
Machine Size KC212A: Machine head Dimensions : Length 755mm*Width 810mm * Height1467mm
One section(= 4 spindles): Length1780mm* Width:810mm *Height :1380mm
One set Standard machine type (48 spindles) overall measure: length22115mm×width810mm×height1467mm includes machine head

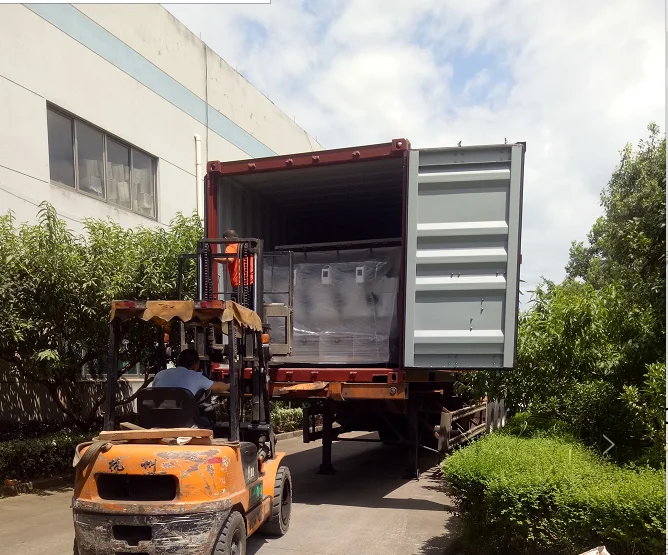

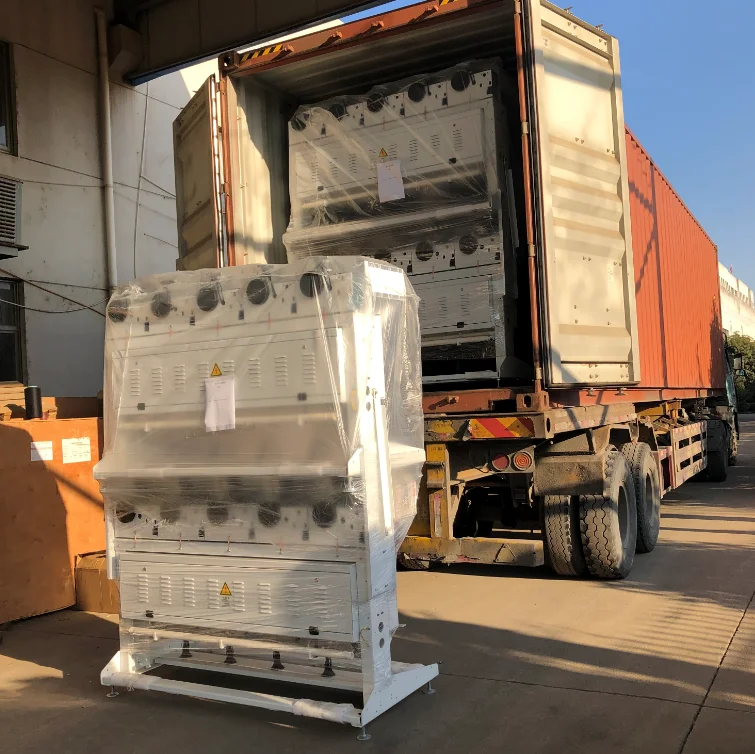

Packing & Delivery
Parking Details : Wooden Case and Pallet(according to customer's request)
Shipping Type : Ocean transportation
Port : Ningbo or Shanghai port
Shipping Type : Ocean transportation
Port : Ningbo or Shanghai port
Our Service
①Training how to install the machine, training how to use the machine.
② Inquiry and consulting support.
③Support sample yarn testing on our machine.
④Online visiting our Factory when you can't come here during COVID-19 pandemic.
⑥ Making Sample Yarns as per customer's technics
⑦ Free spare parts
⑧ Online Technical Service , Online aftersale Service Field maintenance and repair service, training
② Inquiry and consulting support.
③Support sample yarn testing on our machine.
④Online visiting our Factory when you can't come here during COVID-19 pandemic.
⑤Provide photos & videos of our machine running
⑥ Making Sample Yarns as per customer's technics
⑦ Free spare parts
⑧ Online Technical Service , Online aftersale Service Field maintenance and repair service, training
⑨ OEM SERVICE supporting customizing goods as per buyer;s need
Company Profile
Zhejiang Kaicheng Intelligent Machinery Co.,Ltd
Specialized in manufacturing and researching of intelligent textile machinery
Devoted to build up a leading-brand KAICHENG winder & twister in China
Basic Information of Kaicheng:
Zhejiang Kaicheng Intelligent Machinery Co., Ltd. is a state-level high-tech enterprise which integrates automatic control
software, intelligent high-end textile machinery equipment research and development and production.
We have developed our own automation control hardware, software, electronic control device, including detection sensors,
intelligent controllers, high-performance motors and intelligent, high-end textile mechanical equipment.
Our Markets:
At present our machines (twisting machine and winding machine) and spare parts have been sold to more than 30 countries and areas, for example, Brazil, Peru, El Salvador, Argentina, Turkey, Egypt,India, Pakistan, Malaysia, Vietnam, Indonesia, South Africa,etc.
Our Patents:
Our company set up the New Product Research and Development Center in 2011 with a strong research and development technical team of 16 persons. Until 2016, the company has declared 154 national patents, 134 utility model patents, 8 invention patents.
Zhejiang Kaicheng Intelligent Machinery Co., Ltd. is a state-level high-tech enterprise which integrates automatic control
software, intelligent high-end textile machinery equipment research and development and production.
We have developed our own automation control hardware, software, electronic control device, including detection sensors,
intelligent controllers, high-performance motors and intelligent, high-end textile mechanical equipment.
Our Markets:
At present our machines (twisting machine and winding machine) and spare parts have been sold to more than 30 countries and areas, for example, Brazil, Peru, El Salvador, Argentina, Turkey, Egypt,India, Pakistan, Malaysia, Vietnam, Indonesia, South Africa,etc.
Our Patents:
Our company set up the New Product Research and Development Center in 2011 with a strong research and development technical team of 16 persons. Until 2016, the company has declared 154 national patents, 134 utility model patents, 8 invention patents.
Our products have obtained 232 national patent certificates, including 12 invention patents. 14 products won the title of
“Provincial New Product”, and 2 products reached the “International Advanced” level in 2011 and 2015 respectively. (Certificate No. 20110030, 20160005) The continuous investments and developments on new products help us to be a top leading technology company in China.
Warmly welcome to visit our factory and open up the boundaries of communication.
Thank you!
“Provincial New Product”, and 2 products reached the “International Advanced” level in 2011 and 2015 respectively. (Certificate No. 20110030, 20160005) The continuous investments and developments on new products help us to be a top leading technology company in China.
Warmly welcome to visit our factory and open up the boundaries of communication.
Thank you!
