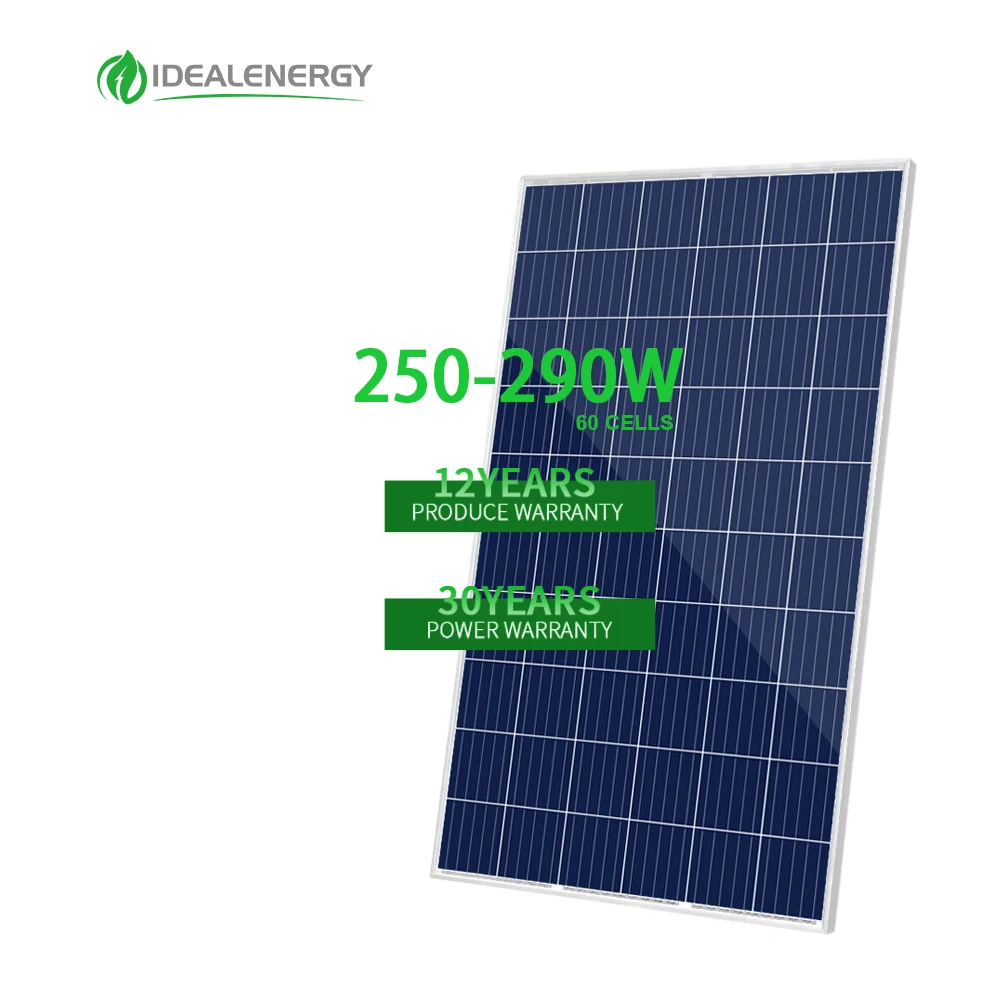

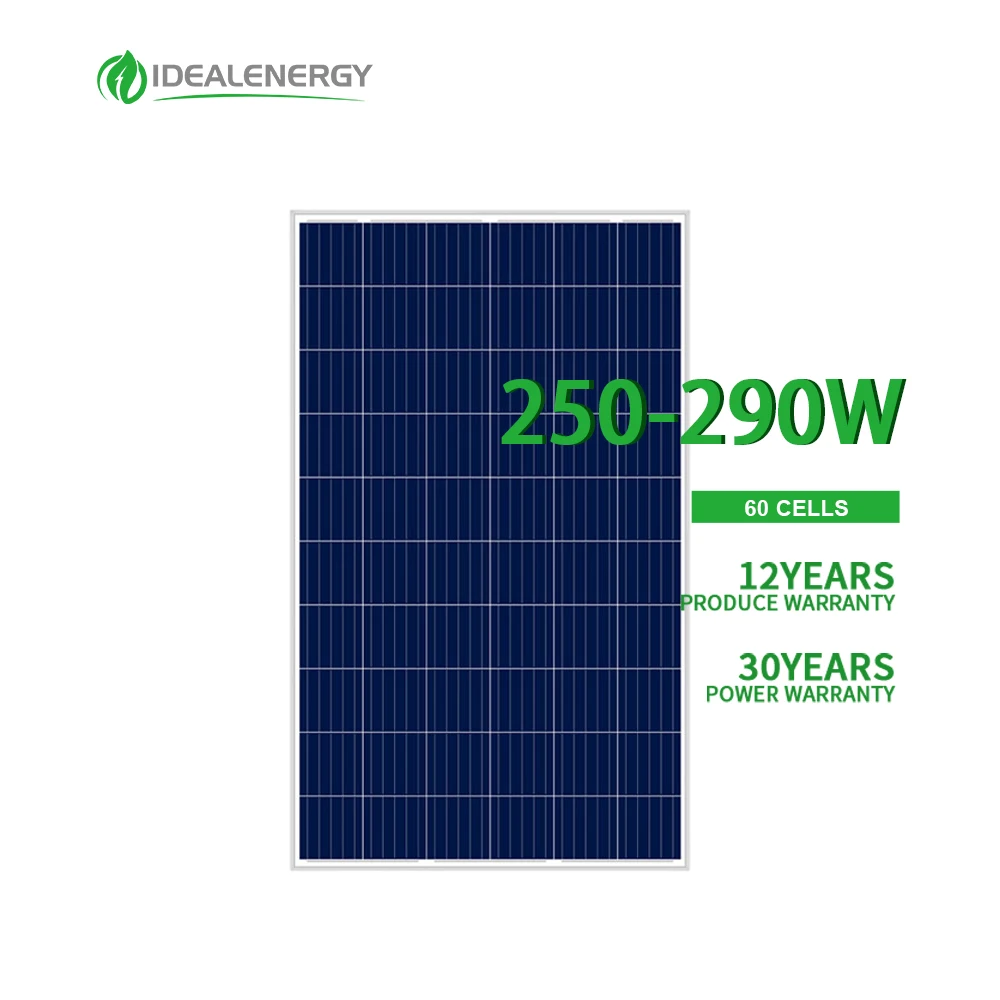

IDEAL japan 250w 250 w 260w 265w 270w 275w 280w 285w paneles solares house stock rotterdam solar panels price turkey cameroon
- Category: >>>
- Supplier: Wuxi Ideal New Energy Co. Ltd.
Share on (1600565126433):
Product Overview
Description
You May Like
Product Description
ELECTRICAL PARAMETERS AT STC
Module Type | INE-270-60P | INE-275-60P | INE-280-60P | INE-285-60P | INE-290-60P |
Rated Maximum Power(Pmax) [W] | 270 | 275 | 280 | 285 | 290 |
Open Circuit Voltage(Voc) [V] | 37.94 | 38.19 | 38.45 | 38.72 | 38.98 |
Maximum Power Voltage(Vmp) [V] | 31.30 | 31.51 | 31.72 | 31.94 | 32.16 |
Short Circuit Current(Isc) [A] | 8.99 | 9.09 | 9.20 | 9.29 | 9.39 |
Maximum Power Current(Imp) [A] | 8.63 | 8.73 | 8.83 | 8.92 | 9.02 |
Module Efficiency [%] | 16.59 | 16.90 | 17.21 | 17.51 | 17.82 |
STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5
ELECTRICAL PARAMETERS AT NOCT
Module Type | INE-270-60P | INE-275-60P | INE-280-60P | INE-285-60P | INE-290-60P |
Rated Maximum Power(Pmax) [W] | 200 | 204 | 208 | 212 | 216 |
Open Circuit Voltage(Voc) [V] | 35.10 | 35.34 | 35.59 | 35.85 | 36.12 |
Maximum Power Voltage(Vmp) [V] | 29.20 | 29.40 | 29.61 | 29.83 | 30.05 |
Short Circuit Current(Isc) [A] | 7.25 | 7.34 | 7.43 | 7.52 | 7.61 |
Maximum Power Current(Imp) [A] | 6.85 | 6.94 | 7.02 | 7.11 | 7.19 |
NOCT: lrradiance 800 W/m2 ambient temperature 20°C wind speed: 1m/s
Grade A Material

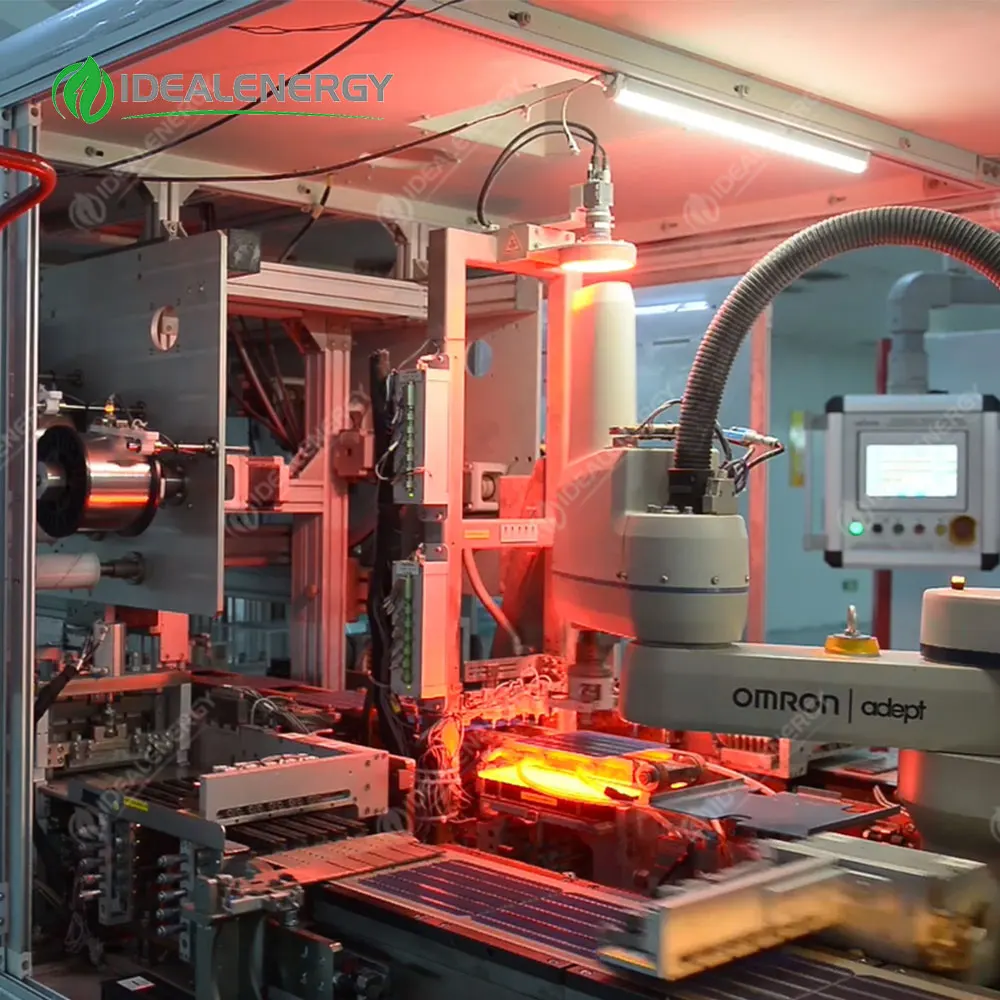

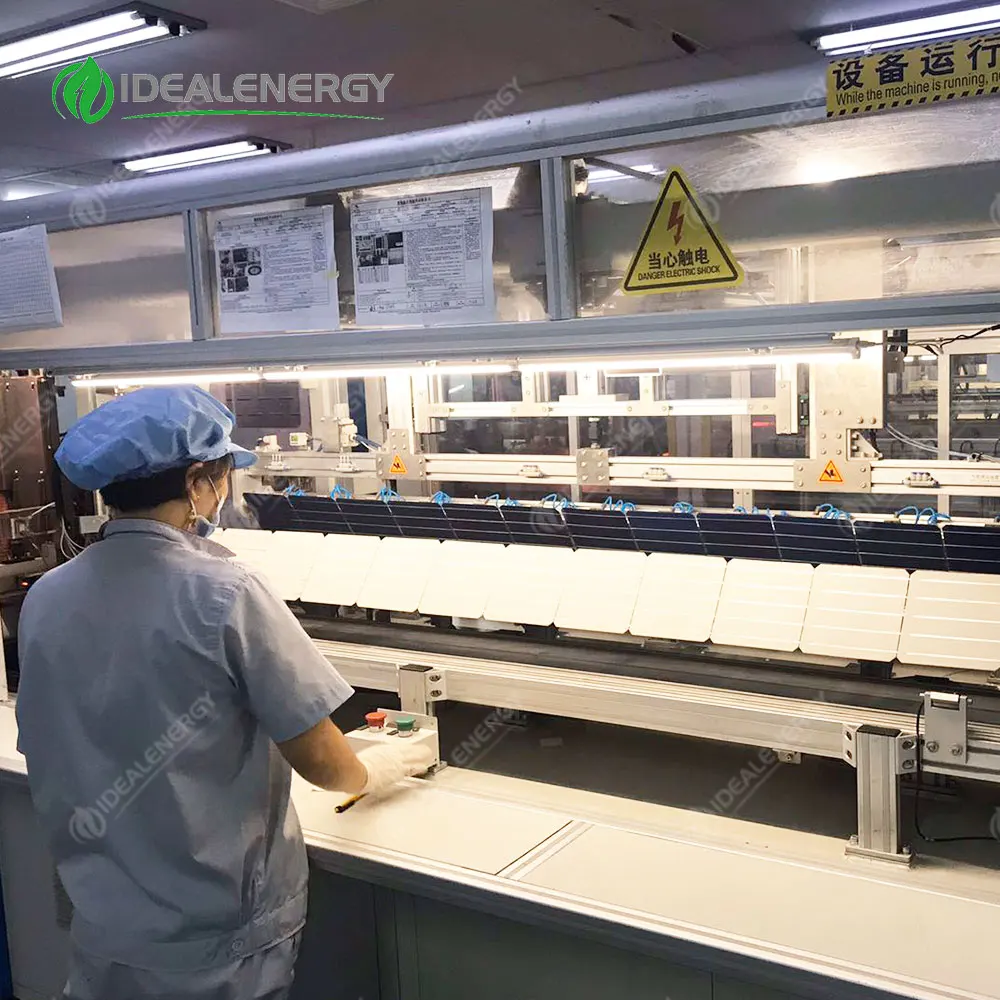

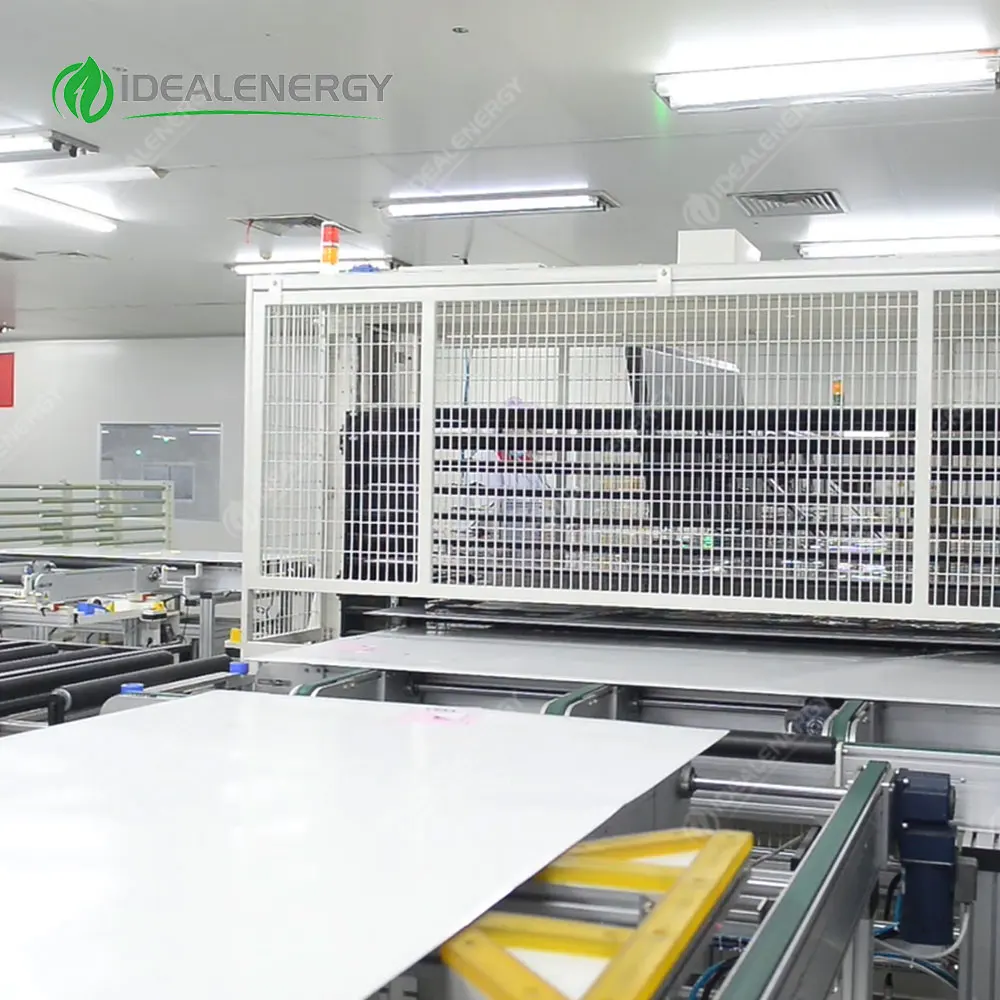

Our Factory
Strict QC System
Professional Packing
Model | INE-XXX-60P |
Quantity/Pallet | 30pcs/pallet |
Pallets/Container | 12pallet/20GP; 28pallet/40HQ |
Quantity/Container | 360pcs/20GP; 952pcs/40HQ |
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
