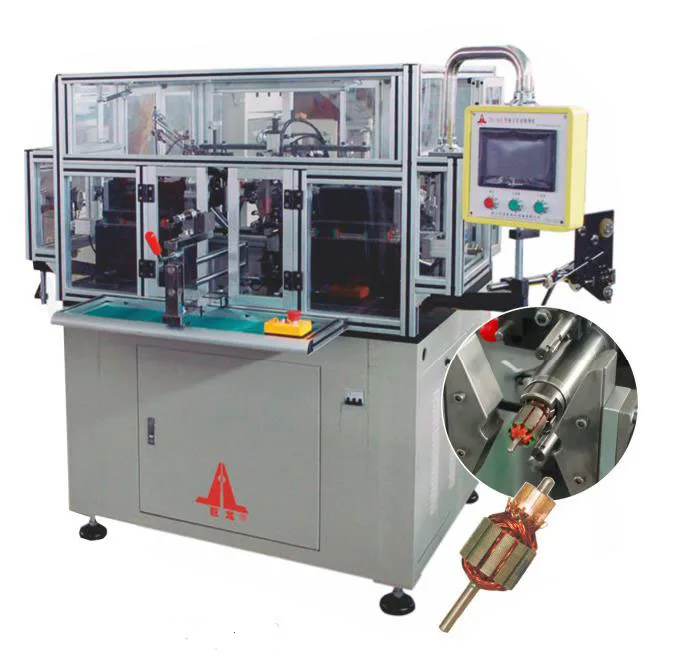

ZB 302 high quality industrial equipment winding machine motor winding price list

Main Technical Parameters:

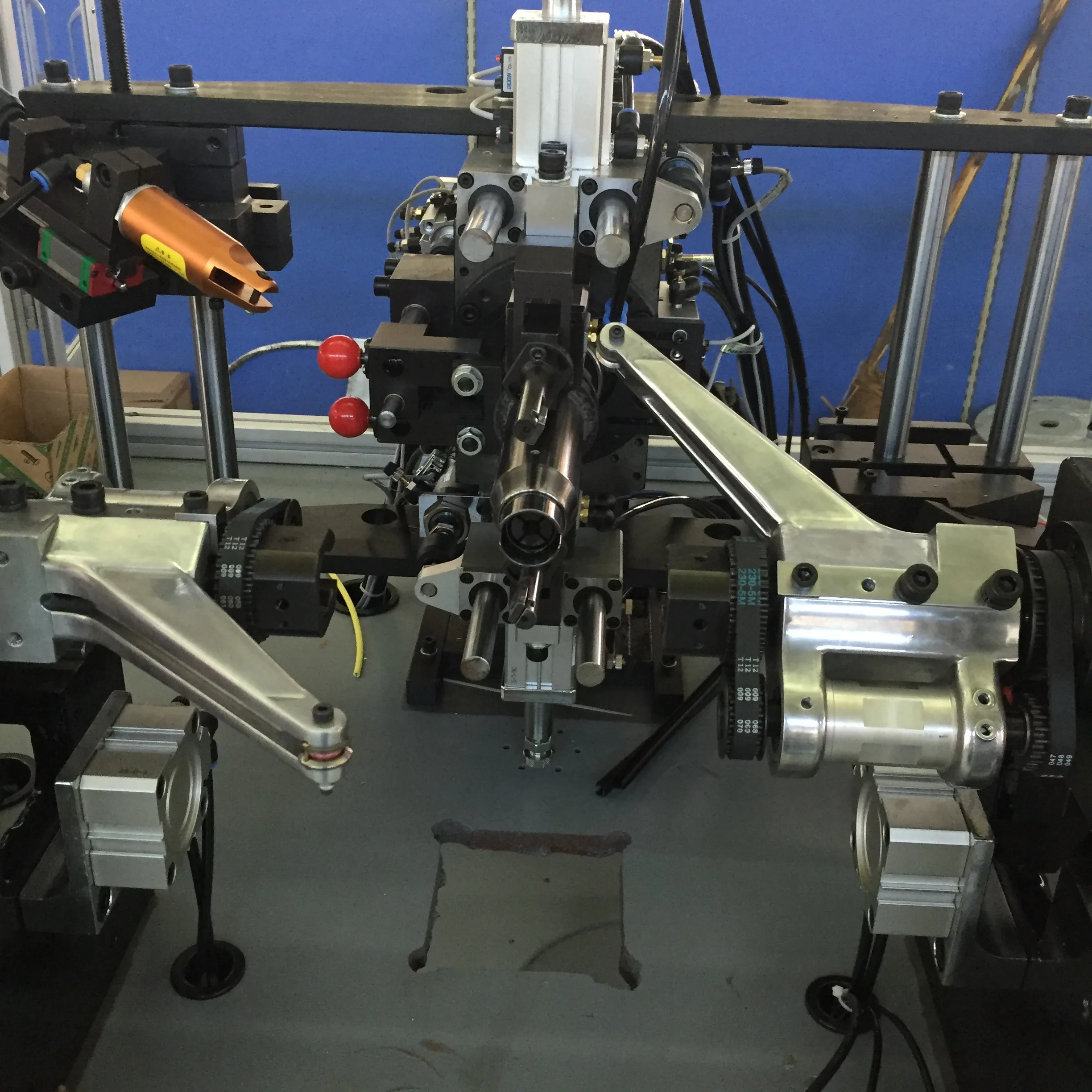

 It is suitable for automatic winding of the rotor of a commutator with slotted motor.Automatic alignment, indexing, winding, hooking, automatic pull off, all processes continuous work, the use of detachable replacement tooling, tension force elastic Adjustable, even winding, manual loading and unloading, high production efficiency.

(1)Technical Parameter:

Wire diameter:Magnetic hysteresis method: 0.16~0.55mm/ Electric control method: 0.30~0.85mm

Armature O.D range:20~60mm

Stack length:25~75mm

Shaft diameter:3~12mm

Shaft length:Less than 300mm

Armature slot:Evenslot

Turn number:0~9999

Commutator diameter:20~50mm

Winding speed:0~2000rpm

Winding motor power:1.5KW* 2

Angle detecting speed:0~2000rpm

Angle detecting motor power:0.75KW*1

The machine total power:3.0KW

Voltage:Three phase AC380V50/60Hz

Weight:895Kg

Dimension:1780(length)X1380(width)X1740(height)mm
