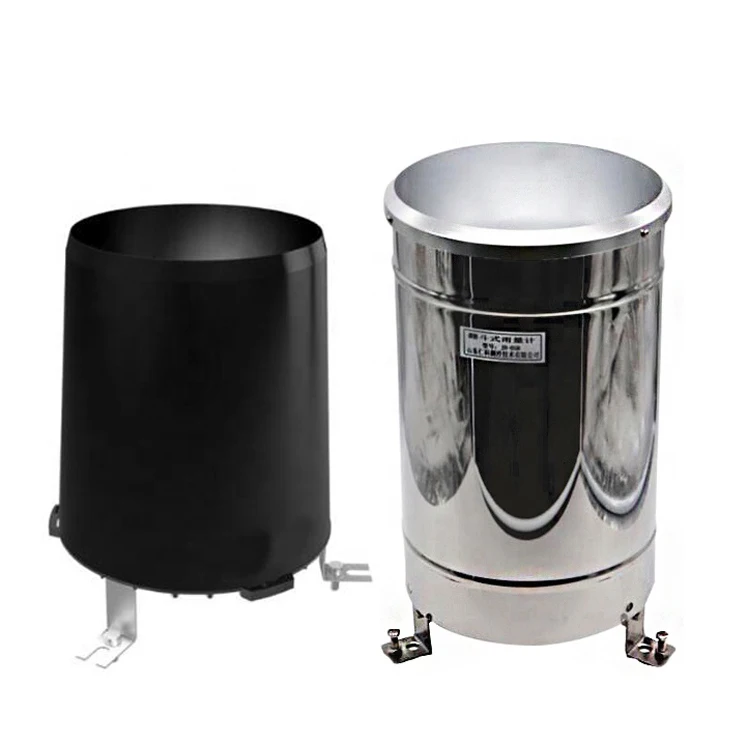

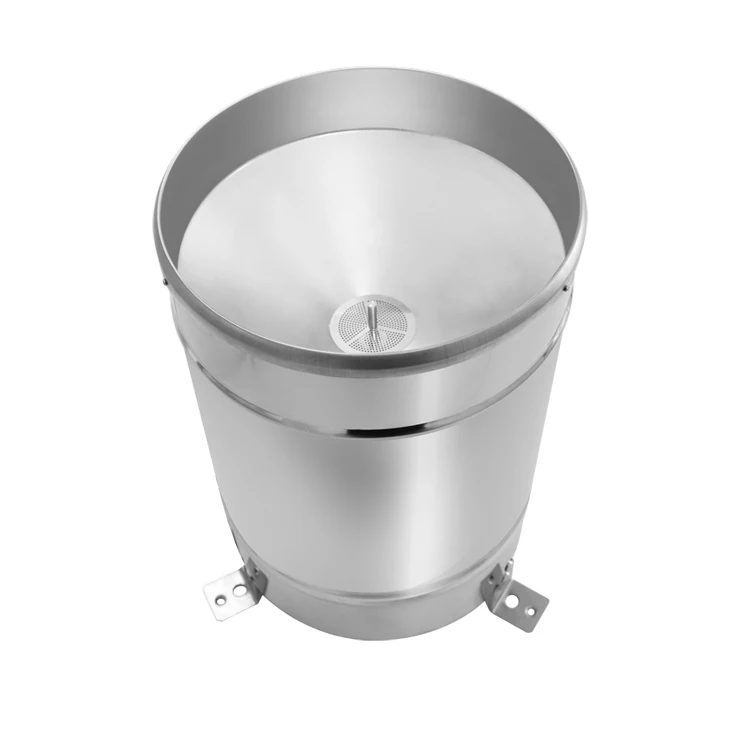

Meteorological resolution 0.5mm RS485 Pulse all stainless steel tipping bucket rain gauge
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1600565163536):
Product Overview
Description

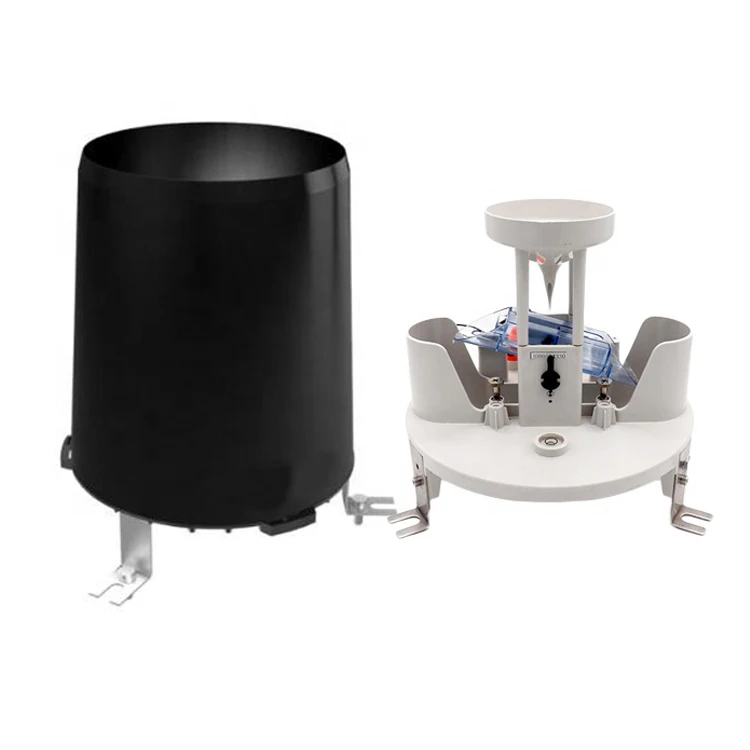

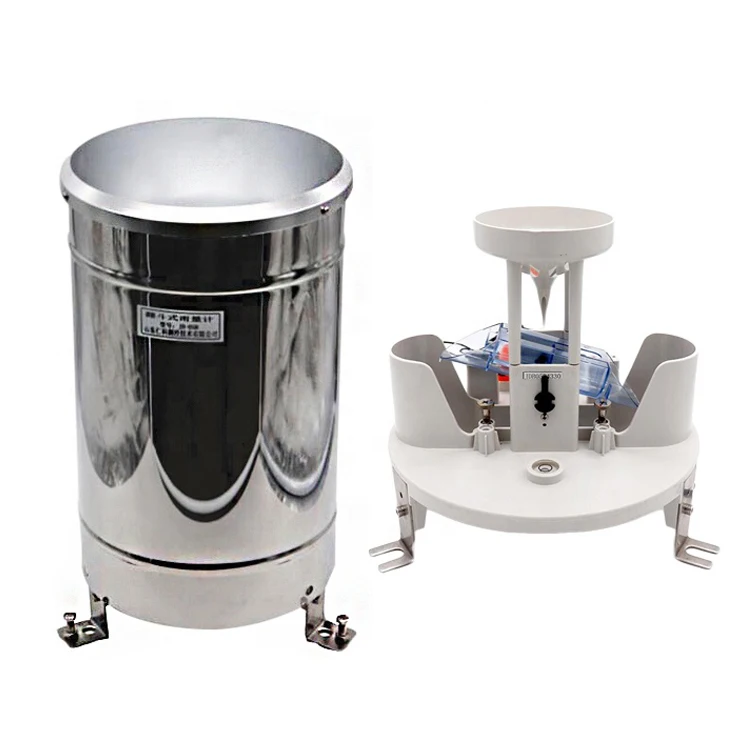

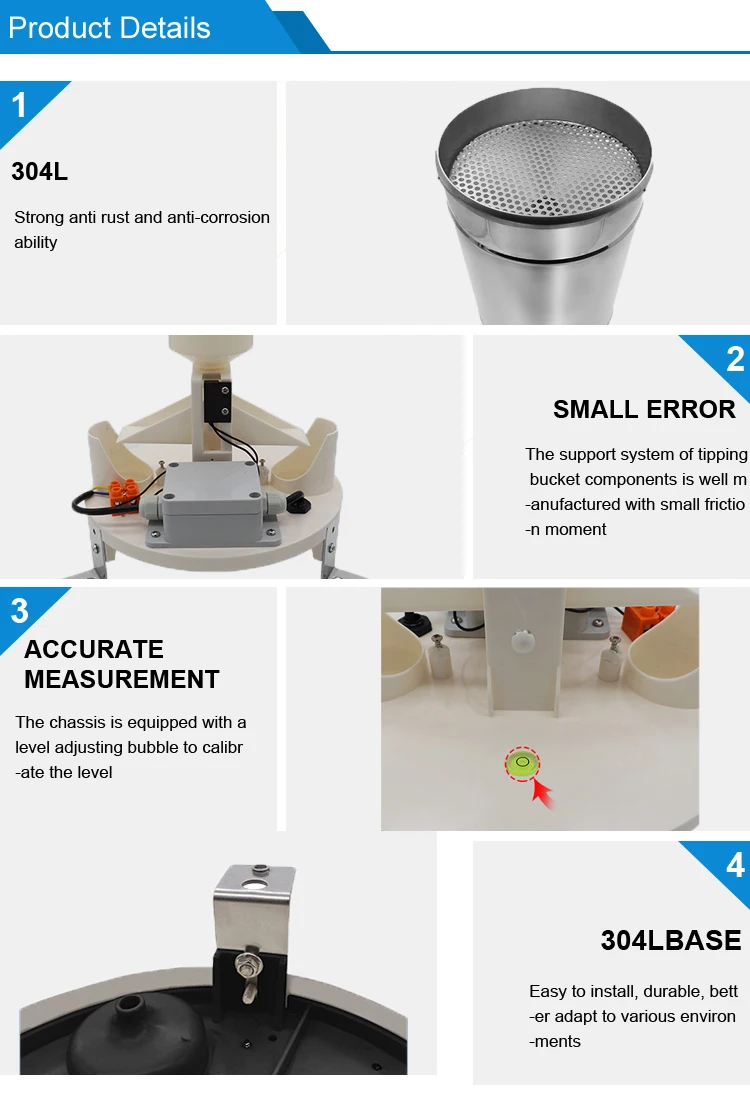

The bucket shaft sleeve is an integrated rotary positioning structure, and the bucket 5 is installed in the jewel bearing of the two sleeves through the bucket shaft, which makes the loading and unloading of the bucket more convenient, and does not need to adjust the distance between the two sleeves, the installation is more convenient.
The water guiding funnel and the dump bucket bracket are tightly fitted, and it is generally unnecessary to remove the water guiding funnel.
The bucket shaft sleeve is an integrated rotary positioning structure, and the bucket 5 is installed in the jewel bearing of the two sleeves through the bucket shaft, which makes the loading and unloading of the bucket more convenient, and does not need to adjust the distance between the two sleeves, the installation is more convenient.
The water guiding funnel and the dump bucket bracket are tightly fitted, and it is generally unnecessary to remove the water guiding funnel.
The water guiding funnel and the dump bucket bracket are tightly fitted, and it is generally unnecessary to remove the water guiding funnel.
The bucket shaft sleeve is an integrated rotary positioning structure, and the bucket 5 is installed in the jewel bearing of the two sleeves through the bucket shaft, which makes the loading and unloading of the bucket more convenient, and does not need to adjust the distance between the two sleeves, the installation is more convenient.
The water guiding funnel and the dump bucket bracket are tightly fitted, and it is generally unnecessary to remove the water guiding funnel.

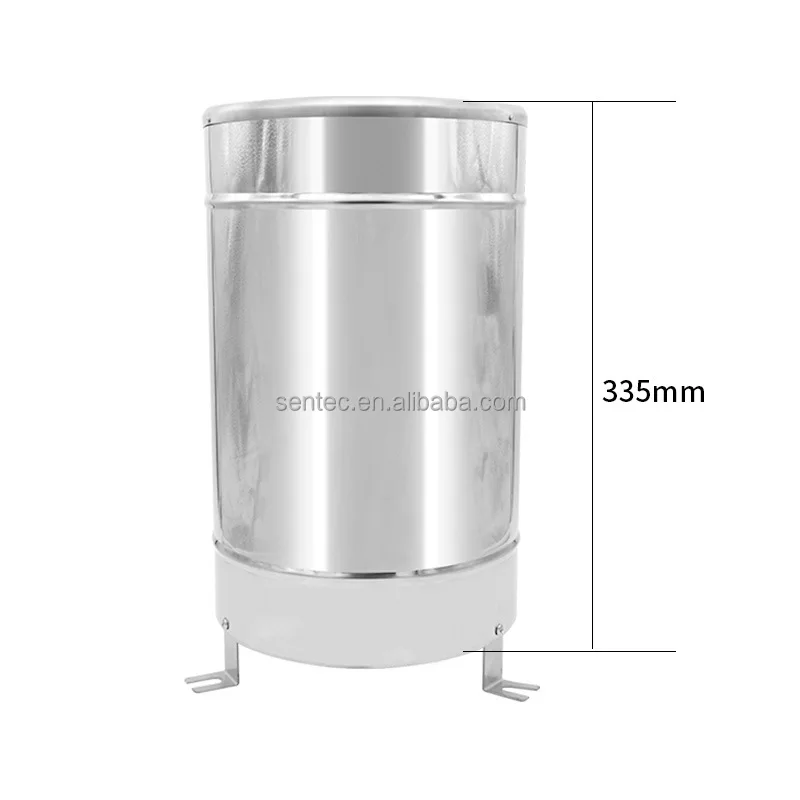

Rain gauge cylinder diameter | Φ200mm |
Resolution | 0.2mm |
Sharp edge | 40°~45° |
Output method | Pulse/RS485 |
Operating temperature | 0 ~ 50 ° C |
Working humidity | <95% (@40°C) |
Storage temperature | -40~125°C |
Storage humidity | <80% (no condensation) |
Measurement accuracy | ≤±2% |
Rain intensity range | 0mm~4mm/min (Allow maximum rain intensity of 8mm/min) |
Withstand voltage | ≤16V |
Withstand current | ≤50mA |
Power supply | 10~30VDC |

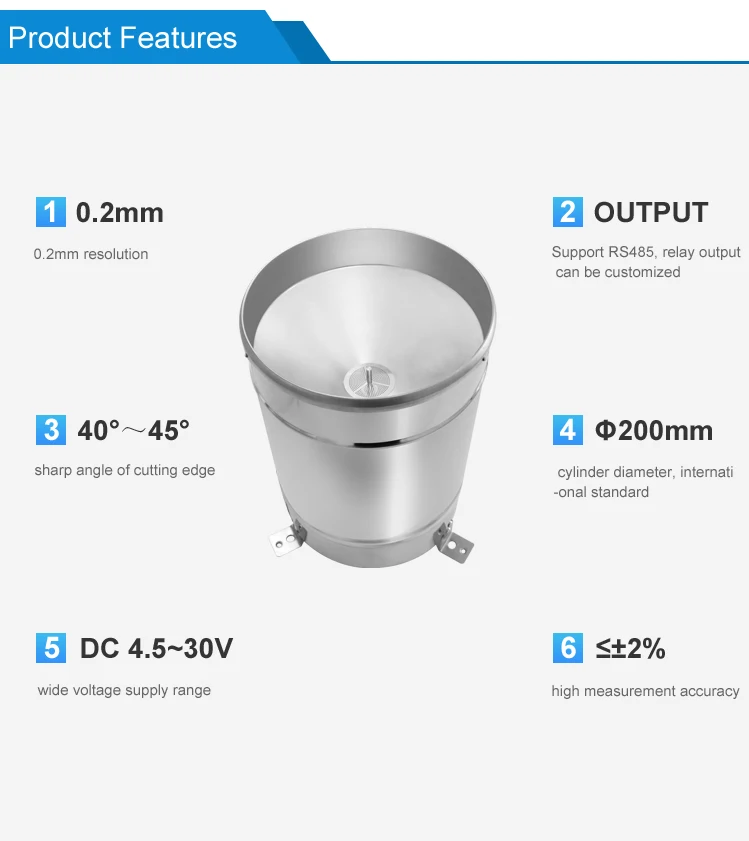

MAIN FEATURES
*One of the two signal outputs is used for on-site counting and the other is used for telemetry reporting;
*The water guiding funnel and the dump bucket bracket are tightly fifitted, and it is generally unnecessary to remove the water guiding funnel;
*The dump bucket is designed as a three-dimensional streamlined design, and is designed with a drooping curved surface guide tip, which is beautiful in appearance, smooth in water turning performance and easy to clean and maintain;
*When connecting with the telemetry terminal, it should be equipped with a matching interface circuit to prevent counting and reporting errors caused by the reed switch jitter and the rebound of the bucket;
*The water channel funnel, the dump bucket and the drainage funnel are made of imported high-quality transparent materials, which makes the observation of the dynamic working process of the instrument more obvious;
*According to the relevant requirements of the manual, the bucket is installed in the two sleeves on the bucket bracket and the bucket bracket is leveled so that the horizontal bubble is at the center position, and the dumper inclination angle is not required to be adjusted on site.
*One of the two signal outputs is used for on-site counting and the other is used for telemetry reporting;
*The water guiding funnel and the dump bucket bracket are tightly fifitted, and it is generally unnecessary to remove the water guiding funnel;
*The dump bucket is designed as a three-dimensional streamlined design, and is designed with a drooping curved surface guide tip, which is beautiful in appearance, smooth in water turning performance and easy to clean and maintain;
*When connecting with the telemetry terminal, it should be equipped with a matching interface circuit to prevent counting and reporting errors caused by the reed switch jitter and the rebound of the bucket;
*The water channel funnel, the dump bucket and the drainage funnel are made of imported high-quality transparent materials, which makes the observation of the dynamic working process of the instrument more obvious;
*According to the relevant requirements of the manual, the bucket is installed in the two sleeves on the bucket bracket and the bucket bracket is leveled so that the horizontal bubble is at the center position, and the dumper inclination angle is not required to be adjusted on site.
