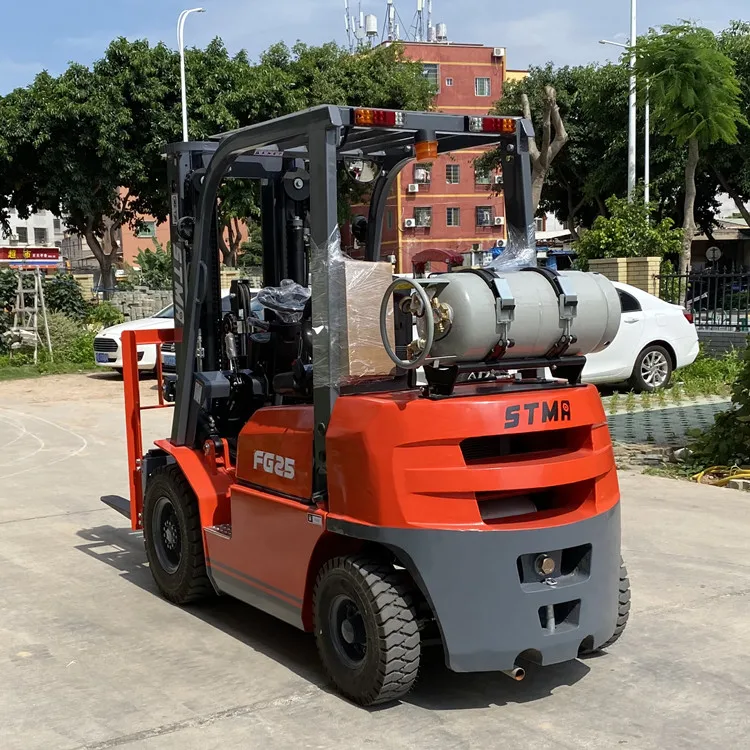

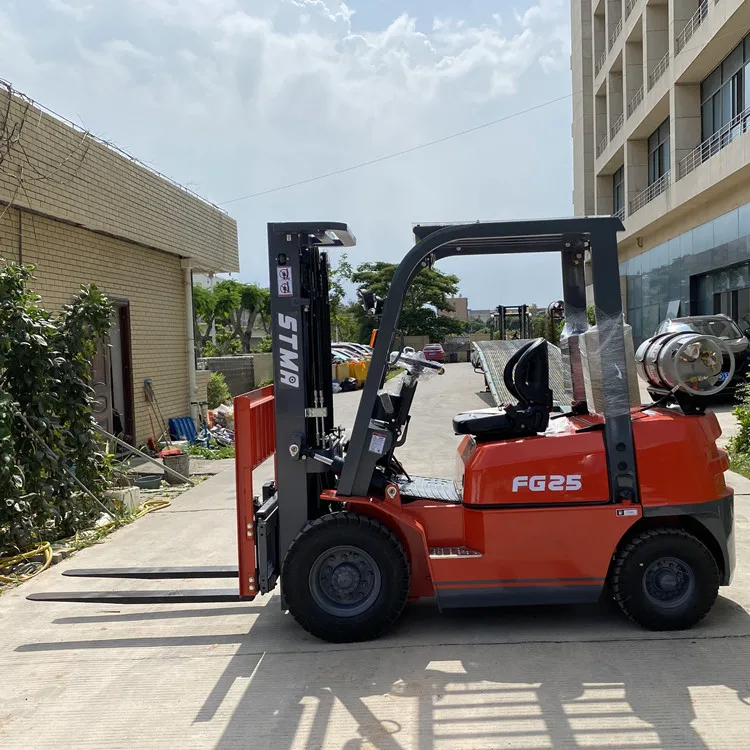

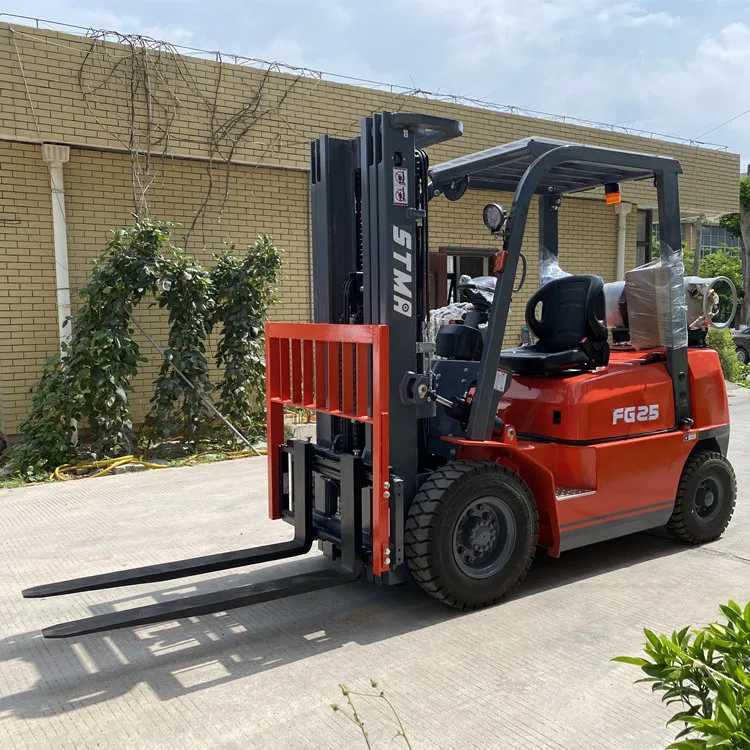

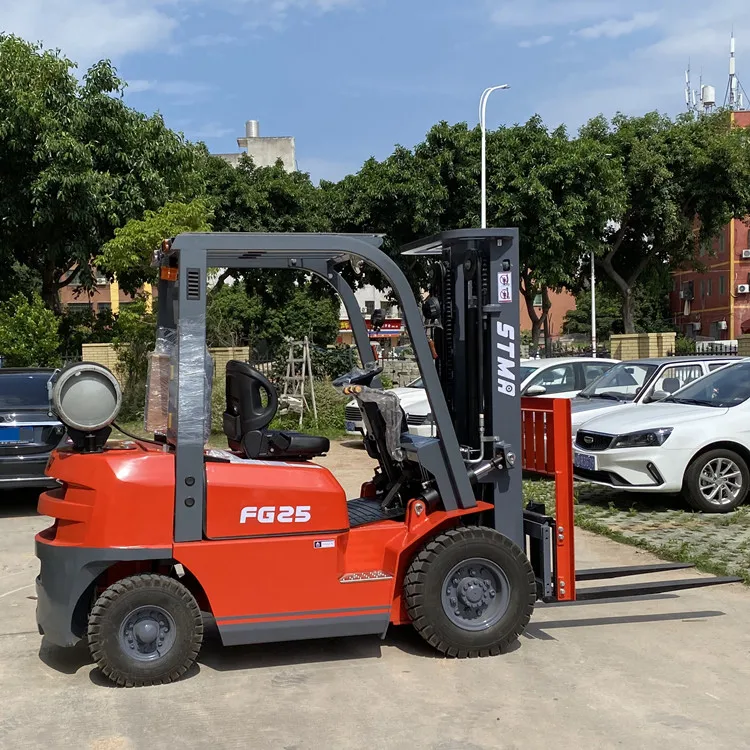

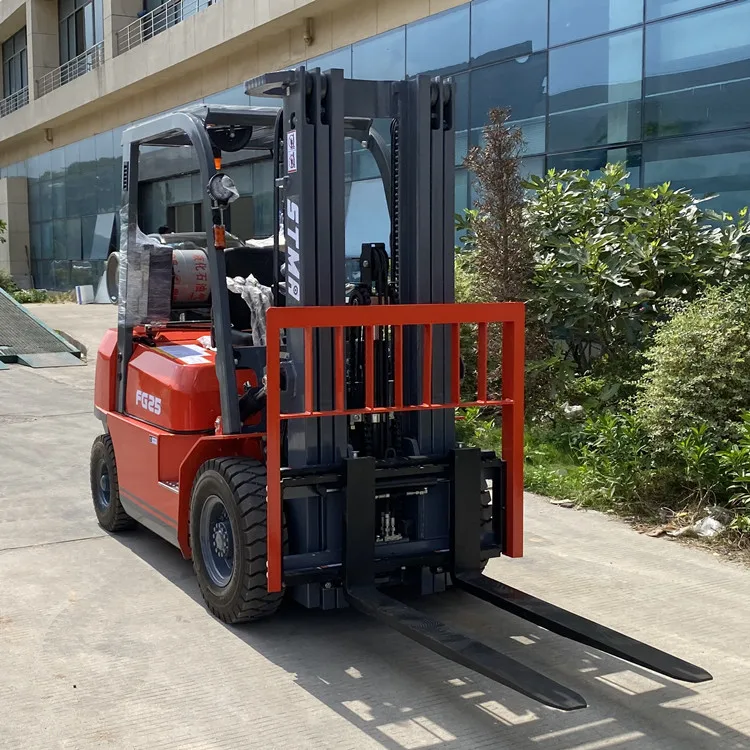

STMA brand gasoline forklift fg25 2.5tonne gas forklift truck with Nissan K21 engine
- Category: >>>
- Supplier: STMA Industrial (Xiamen) Co. Ltd
Share on (1600565167928):
Product Overview
Description
Product Description
STMA brand gasoline forklift fg25 2.5tonne gas forklift truck with Nissan K21 engine
gas forklift truck

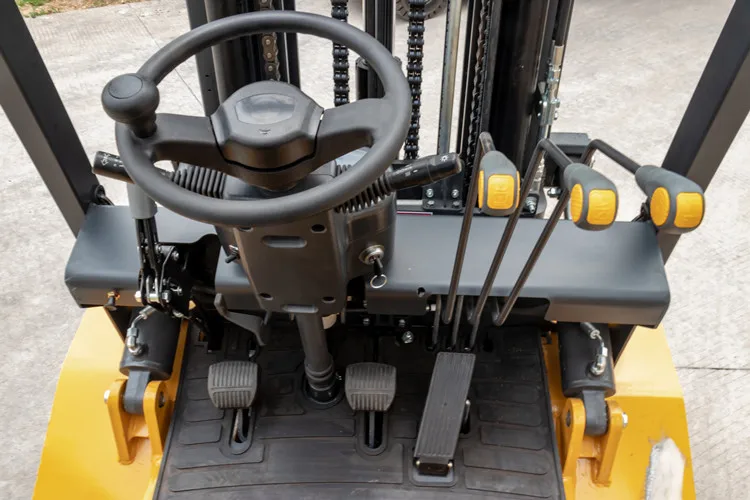

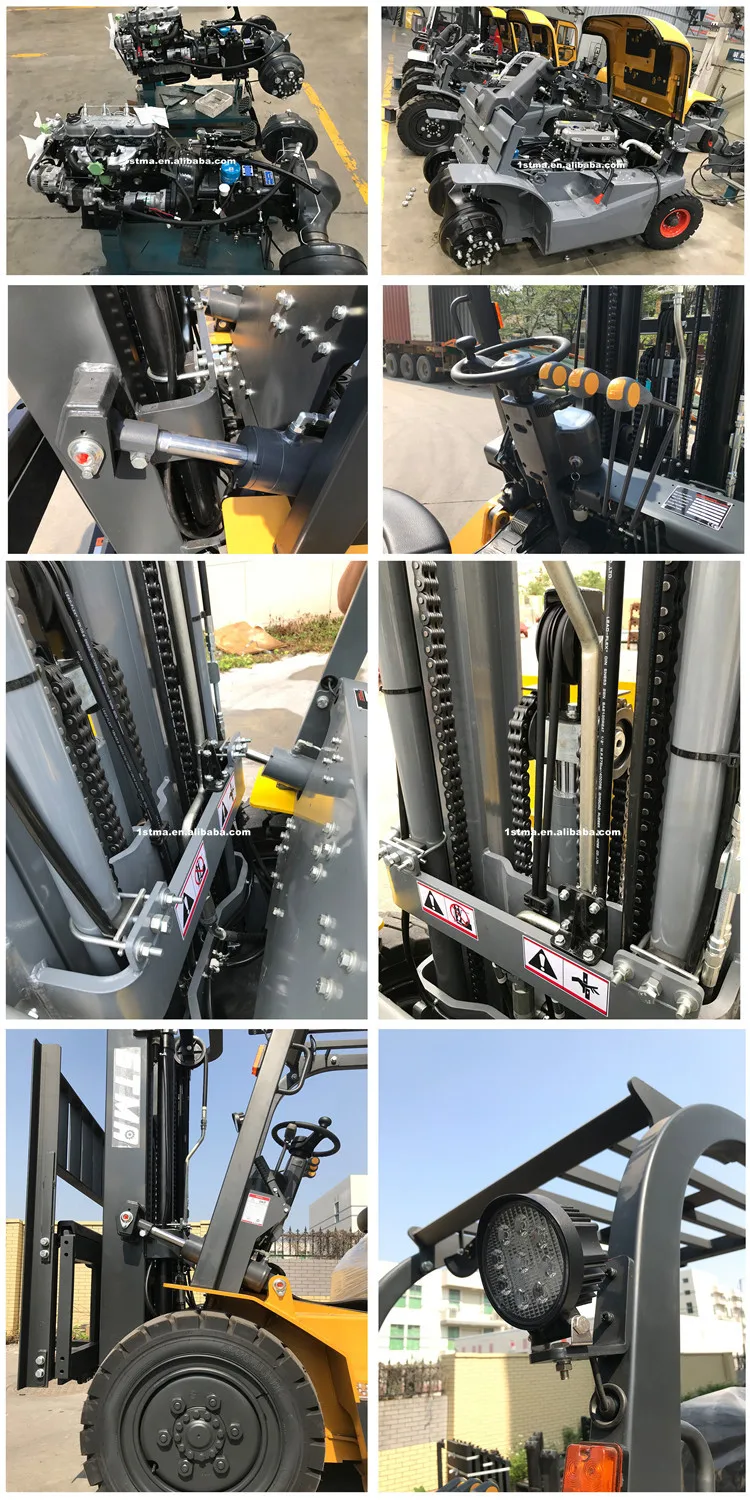

Details Images
SPECIFICATIONS FOR 2.5 TON LPG FORKLIFT TRUCK | ||||||
Model | FY25 | |||
1 | Power Type | Gasoline/LPG | ||
2 | Rated Capacity | kg | 2500 | |
3 | Load Centre | mm | 500 | |
4 | Lift Height | mm | 3000 | |
5 | Fork Size (L×W×T ) | mm | 1070×120×40 | |
6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
7 | Front Overhang (Wheel center to fork face) | mm | 470 | |
8 | Ground Clearance(Bottom of mast) | mm | 120 | |
9 | Turning Radius (outside) | mm | 2310 | |
10 | Min. Intersecting aisle | 2380 | ||
11 | Max.Gradeability (No load/Full load) | % | 20 | |
12 | Wheelbase | mm | 1600 | |
13 | Service weight | kg | 3560 | |
14 | Battery (Voltage/Capacity) | V/Ah | 12/80 | |
15 | Overall Dimension | Length to face of fork(Without fork) | mm | 2600 |
16 | Speed | Overall Width | mm | 1150 |
17 | Mast Lowered Height | mm | 2055 | |
18 | Mast Extended Height(With backrest) | mm | 4050 | |
19 | Overhead Guard Height | mm | 2070 | |
20 | Travel (No load) | km/h | 19 | |
21 | Lifting(Full load) | mm/s | 530 | |
22 | Tire | Front | mm | 7.00-12-12PR |
23 | Rear | mm | 6.00-9-10PR | |

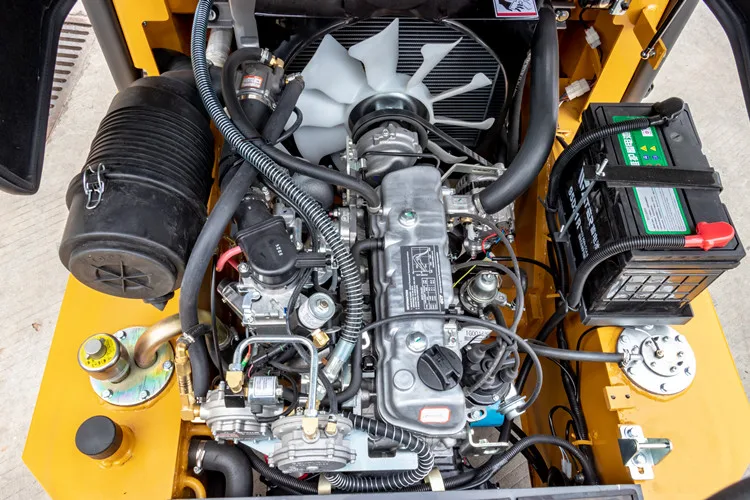

24 | Engine | Model | K25 | |
25 | Manufacture | Nissan | ||
26 | Rated output/r.p.m. | kw | 37.4/2300 | |
27 | Rated torque/r.p.m. | N·m | 176.5/1600 | |
28 | No.of Cylinder | 4 | ||
29 | Bore×Stroke | mm | 89×100 | |
30 | Displacement | cc | 2488 | |
31 | Fuel Tank Capacity | L | 60 | |
32 | Transmission | Type | Hydraulic | |
33 | Stage FWD/RVS | 43101 | ||
34 | Operating Pressure for Attachment | Mpa | 17.5 |

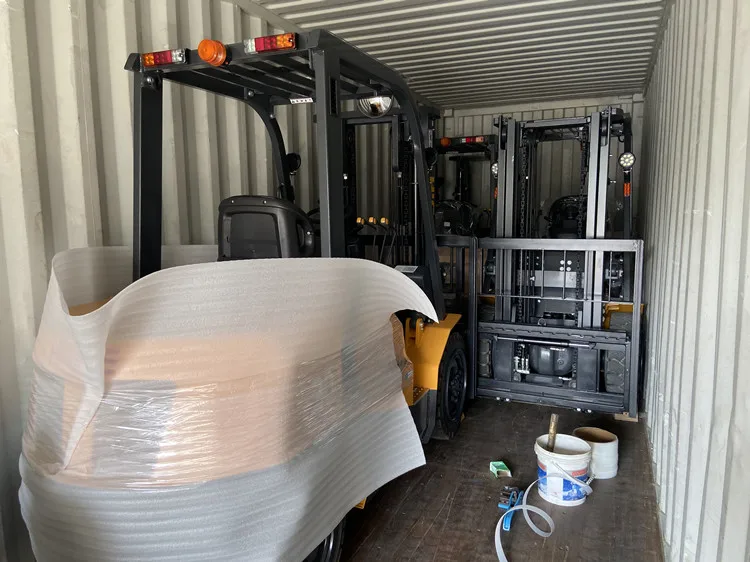

Packing & Delivery
