Product Overview

Description



Product Description

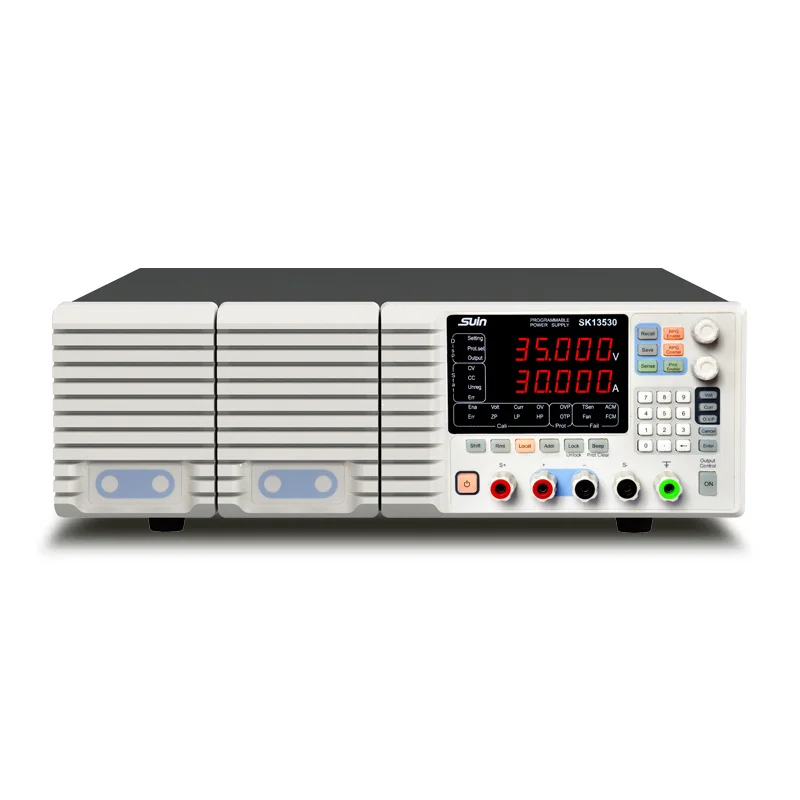

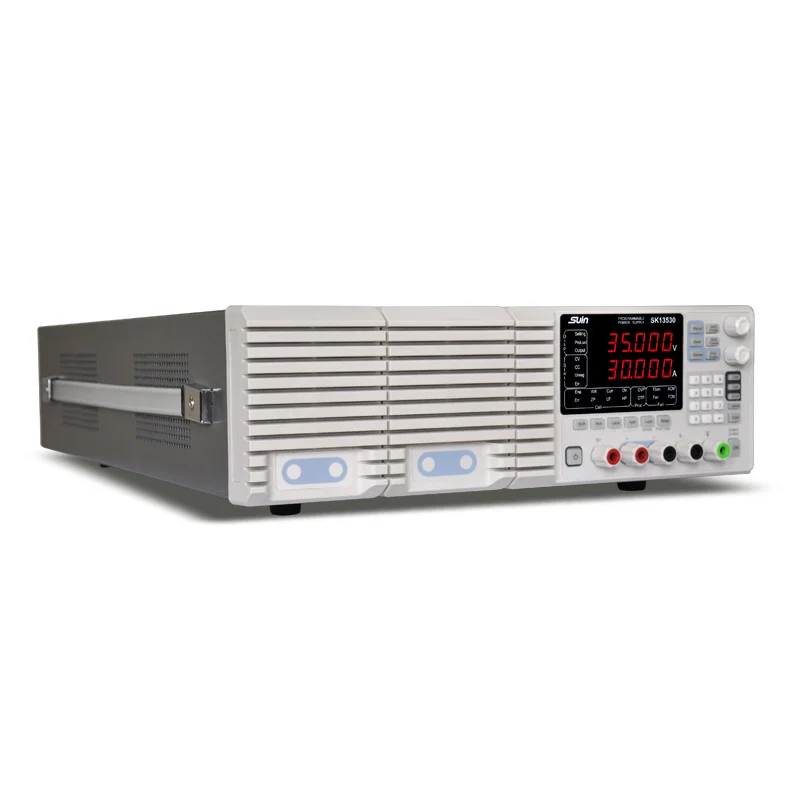

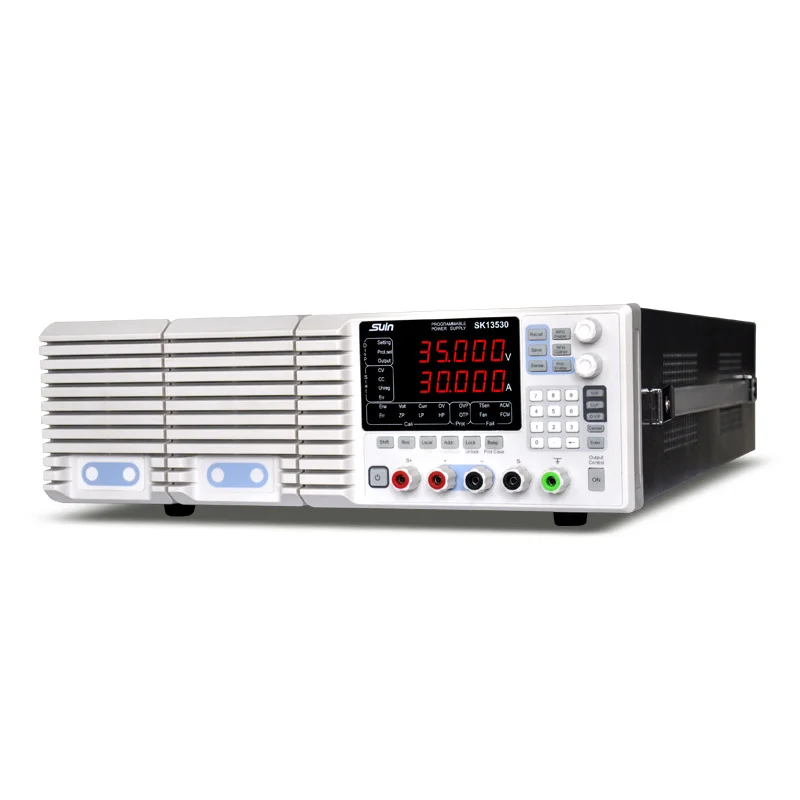

SK13530 programmable power supply is a new generation of programmable DC power supplies. It protects itself by warning and cutting off output once fun controlling module gets fault, transistor over-heating, and internal bus gets fault. It is of programmable CV/ CC adjustable step. The two working states, CV and CC, can be switched varying with the load. Meantime, the external voltage sampling terminal is supplied to output stable voltage for user load within the range of wire voltage drop.
SK13530 programmable power supplies are widely applied in national defense, institution, university and factory, especially in the areas of computer measuring and automatic control system as DC power supply.

Features
All digital controlled, output 1mV/1mA step
High stability, Low drift
LED display the voltage/current and working status visually
Intelligent temperature controlled fun with low noise
Storage and recall function
OVP (Over Voltage Protection) function
Keypad locked function to avoid the misoperation
Standard RS232 interface, optional USB Device




Specification


Model
SK13530
Output Range
35V/30A
Output Power
1000W
Resolution
1mV/1mA
Source Effect
CV
≤1*10-5+1mV
CC
≤1*10-5+3mA
Load Effect
CV
≤1*10-4+3mV
CC
≤1*10-4+3mA
Period and Random Deviation(PARD)
CV
≤1mV
CC
≤6mA
Accuracy
Voltage
≤±(0.05%+10mV)
Current
≤±(0.2%+50mV)
OVP
≤±(0.5%+0.5V)
General Characteristics
Power
AC220V(1±10%)V,50(1±5%)Hz
Interface
RS-232(standard) USB Device(option)
Dimension & Weight
425*150*665mm,34kg
Standard Accessories
Power Cord
1
RS-232 cable
1
CD(Software+User's Guide)
1


Packing & Delivery
