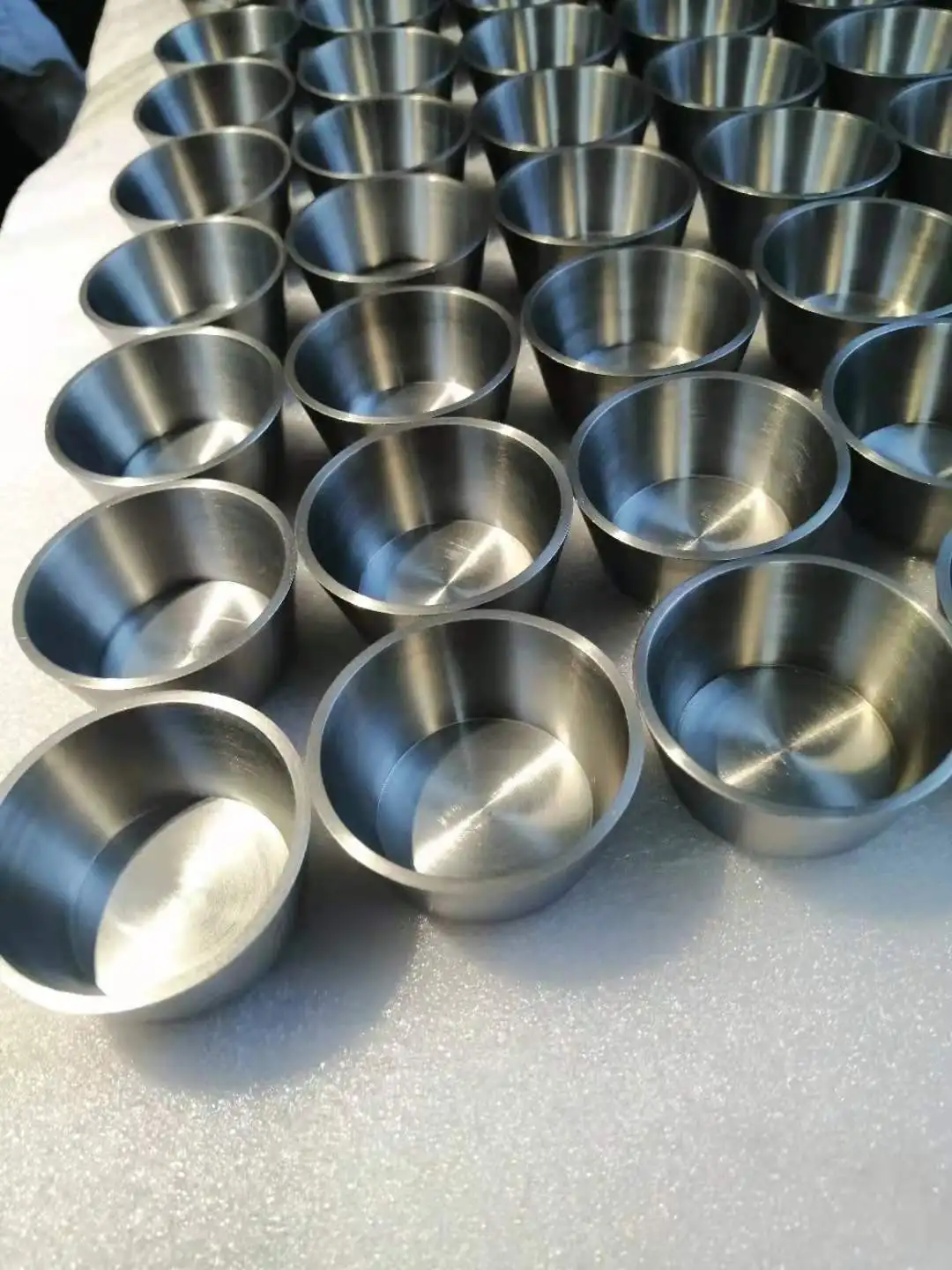

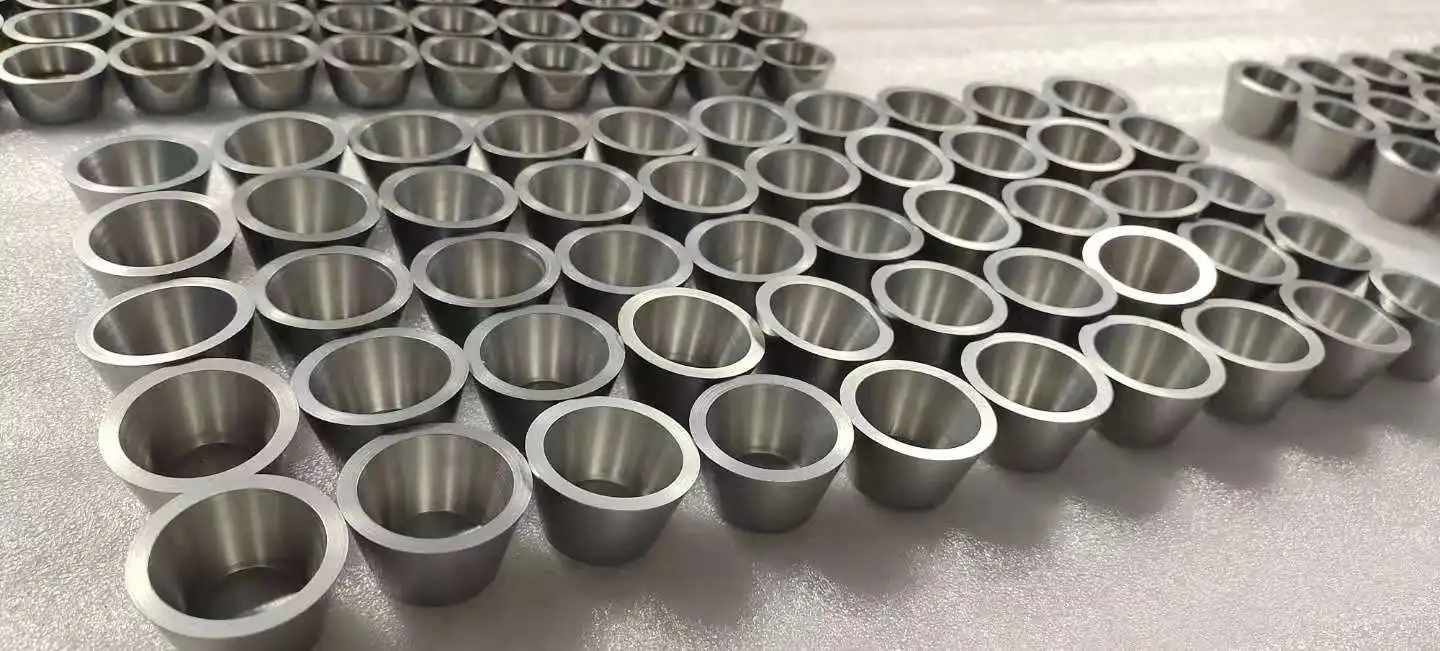

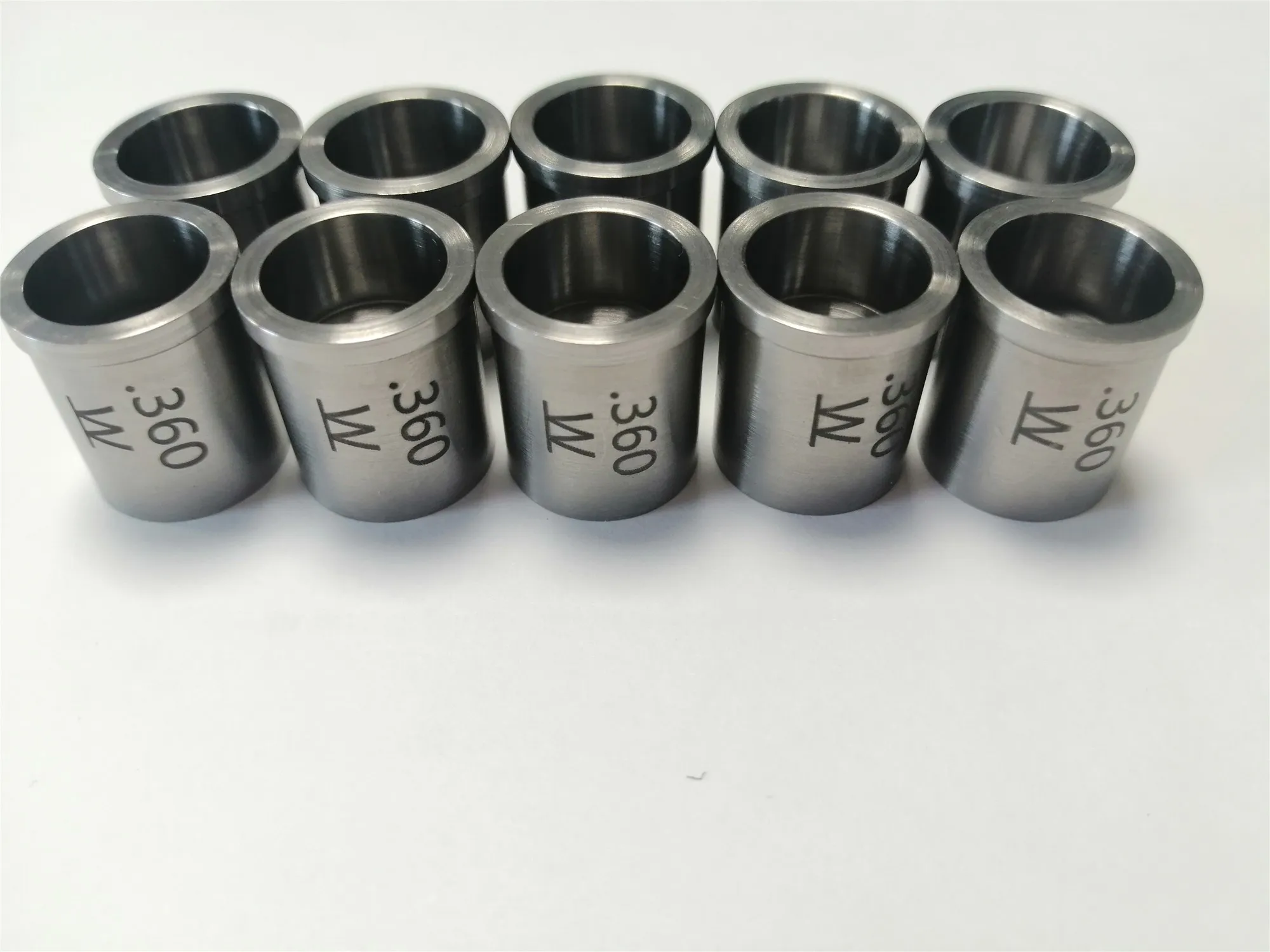

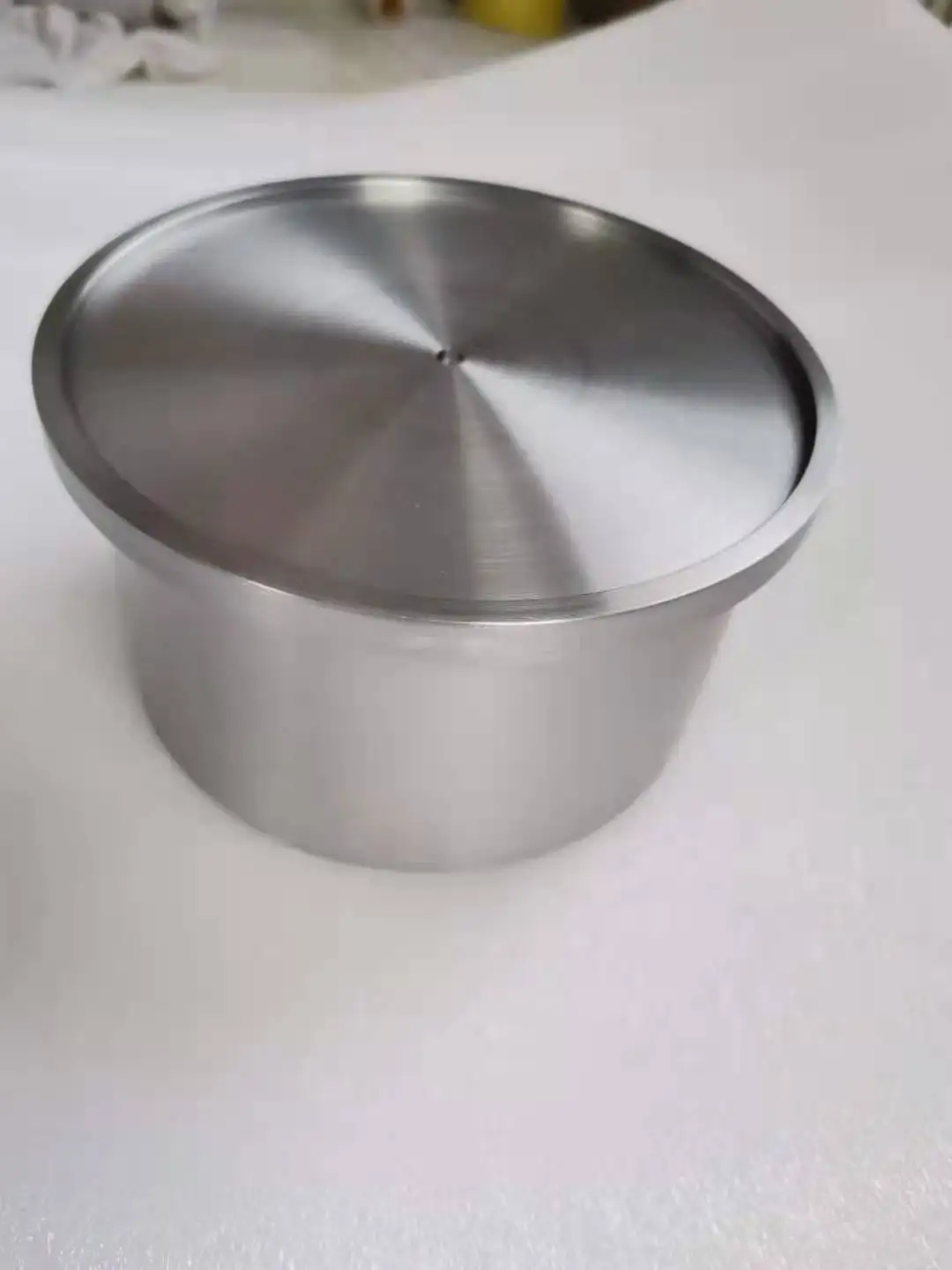

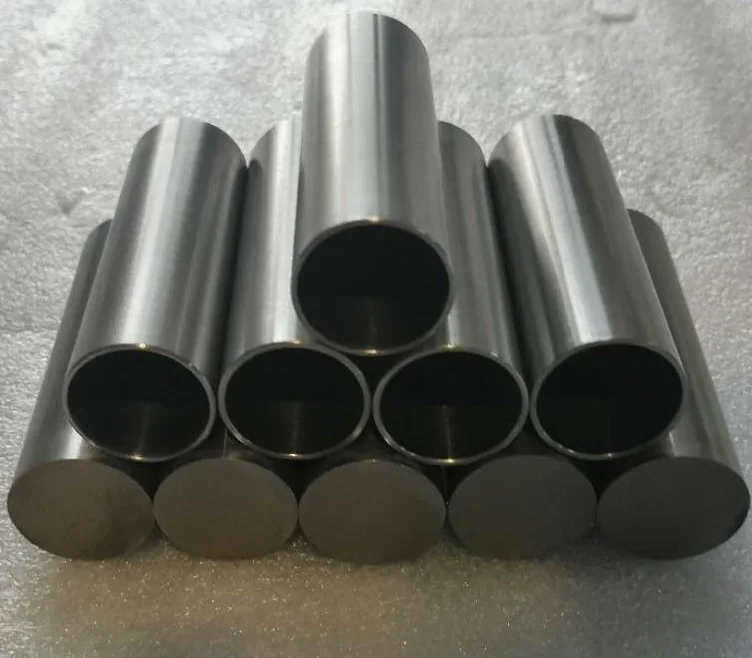

High temperature tungsten crucibles price per kg

Share on (1600565170857):


Price:$85.00

Quantity:


Product Overview

Description



Product Description


1). Sintering tungsten crucible
Density: 18.0 - 18.7 g/cm3
Working temperature: 1800 - 2, 600 DC
Diameter: 100 - 600mm (max. )
Cubage: 0.5 - 100 litres
2). Forging tungsten crucible
Density: 18.5 - 19.0 g/cm3
Working temperature: 1800 - 2, 600 DC
Diameter: 18 - 120mm (max. )
Cubage: 20 - 500 ml



Technical specifications




Diameter(mm)
Thickness(mm)
Height(mm)
Surface finish
inner surface finish
inner bottom finish
30-50
2-10
≤200
≤Ra2.0
≤Ra2.4
≤Ra2.8
50-100
3-15
≤300
≤Ra2.0
≤Ra2.4
≤Ra2.8
100-150
3-15
≤350
≤Ra2.0
≤Ra2.4
≤Ra2.8
150-200
5-20
≤400
≤Ra2.0
≤Ra2.4
≤Ra2.8
200-300
8-25
≤500
≤Ra2.0
≤Ra2.4
≤Ra2.8
300-400
8-30
≤600
≤Ra2.0
≤Ra2.4
≤Ra2.8
400-450
8-30
≤650
≤Ra2.0
≤Ra2.4
≤Ra2.8
450-600
8-35
≤800
≤Ra2.0
≤Ra2.4
≤Ra2.8


Specifications

1.According to different processing methods, tungsten crucibles for vacuum coating can be mainly divided into sintered molding, press molding, spinning molding, turning forming and welding forming.
2.Turning forming is mainly applied. We recommend the working temperature of the tungsten crucible for vacuum coating should be controlled below 2600℃.
3.We can produce tungsten crucible for vacuum coating according to the customer drawing.
