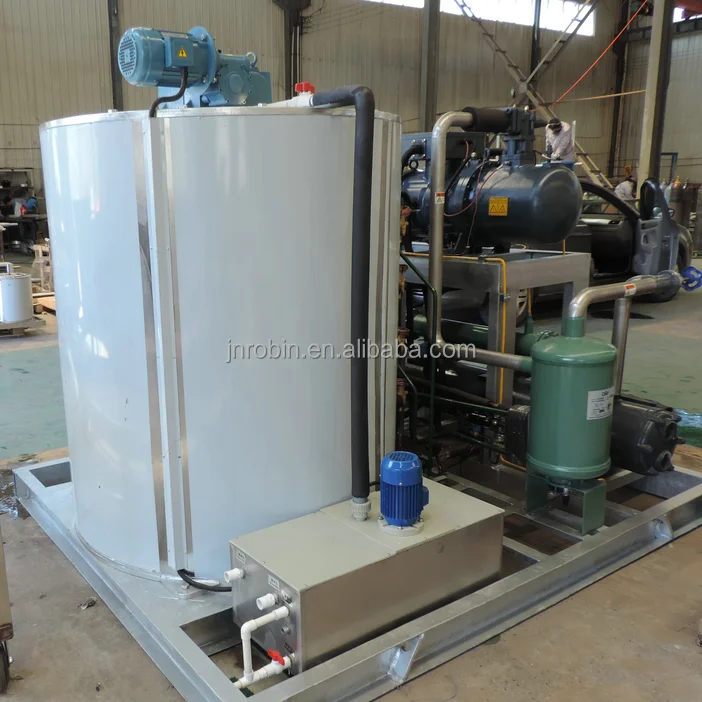

Industrial ice flake making machine 10 ton per day with factory price
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1600565194479):
Product Overview
Description

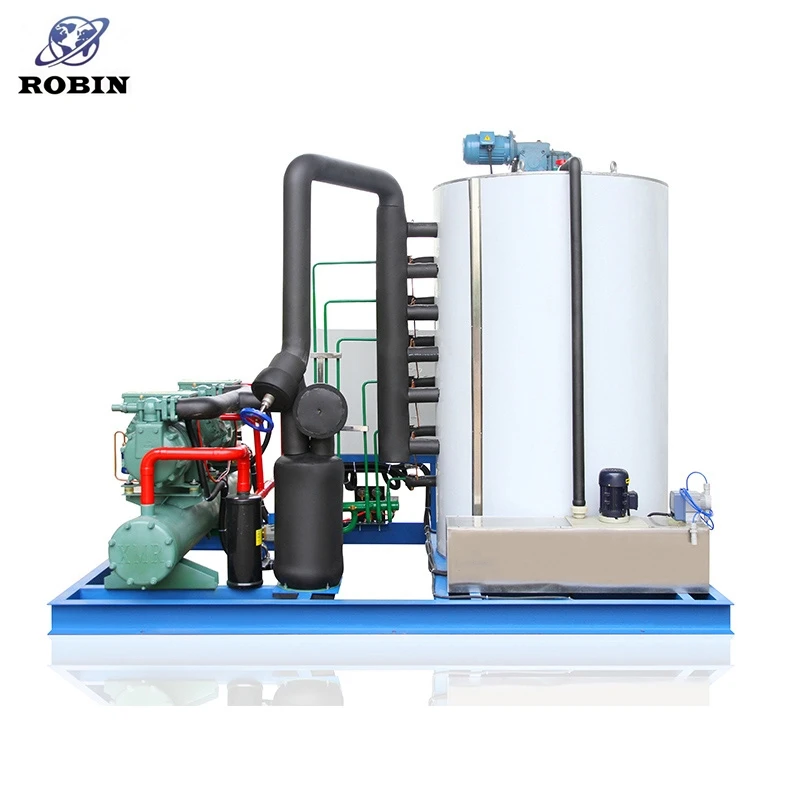

Industrial ice flake making machine 10 ton per day with factory price
Product Description
Flake Ice Machine produces flake ice , which can be widely used in many industries. We have two types: fresh water type and seawater type. The daily capacity ranges from 500kg to 20tons in 24 hours(Or we can custom made as per your requests). Customers can choose the type according to their sites and supply water.
1.Excellent performance
High efficiency. Under the set working conditions, the actual ice making output is 5%-10% more than that labeled on the machine.
2.High-precision evaporator
Evaporator adopts the advanced vertical lathe processing, no deformation and ice droing off completely.
3.Refrigeration system
The whole refrigeration system is clean, smooth, and no leakage at all welds; Long lifetime of the whole machine is up to 10 years.
4.PLC intelligent control.
Timing switch, remote control. Fault informtion is shown and recorded on the screen, and sent to the server automatically, to send Real-time Fault Alarm Information to Engineering Departments.
5.Ice skates
Ice skates with stainless steel 304, which is low-noisy, stable and durable.

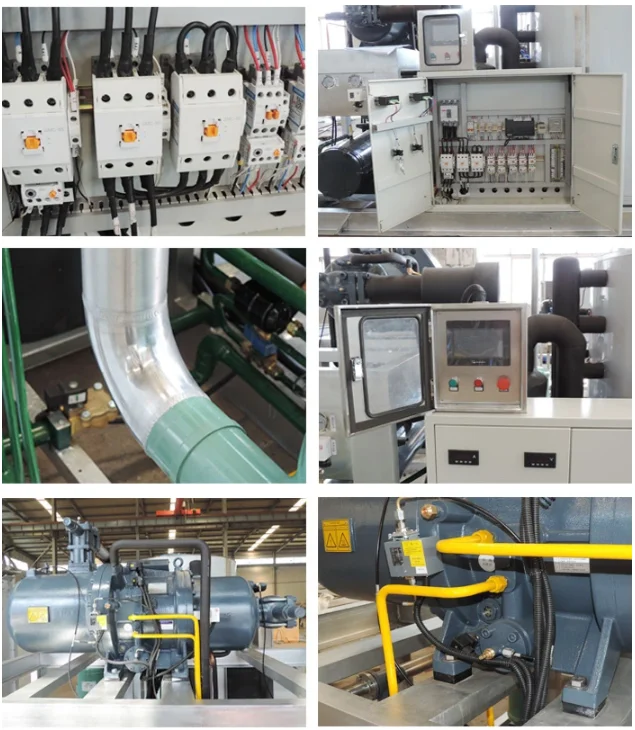

6.High quality configuration
The world famous components ensure to long using time and stable operation.
High efficiency. Under the set working conditions, the actual ice making output is 5%-10% more than that labeled on the machine.
2.High-precision evaporator
Evaporator adopts the advanced vertical lathe processing, no deformation and ice droing off completely.
3.Refrigeration system
The whole refrigeration system is clean, smooth, and no leakage at all welds; Long lifetime of the whole machine is up to 10 years.
4.PLC intelligent control.
Timing switch, remote control. Fault informtion is shown and recorded on the screen, and sent to the server automatically, to send Real-time Fault Alarm Information to Engineering Departments.
5.Ice skates
Ice skates with stainless steel 304, which is low-noisy, stable and durable.
6.High quality configuration
The world famous components ensure to long using time and stable operation.

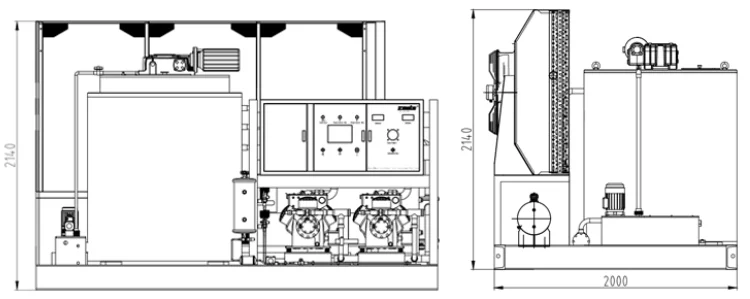

Technical Parameters
Model | RBF10T-R4A |
The technical data based on | 25℃ambient temp;20℃water inlet temp. |
The evaporating temperature | -20℃ |
The condensing temperature | 38℃ |
Power supply | 3P/380V/50Hz |
The ice thickness | 1.6-2.3mm |
Refrigerant | R404A |
Daily Output(Ton/24hrs) | 10tons |
Cooling Capacity(kw) | 76.5 |
General Power(kw) | 45.5 |
Compressor Input(kw) | 40.7 |
Reductor Power(kw) | 0.75 |
Cooling Mode | Air Cooling |
Water Inlet/ Drain Pipe | 3/4”;1/2" |
Weight(kg) | 2020 |
Dimension(mm) | 2200*1900*1750 |
Cooling Tower(m³/h) | 45 |
Functions

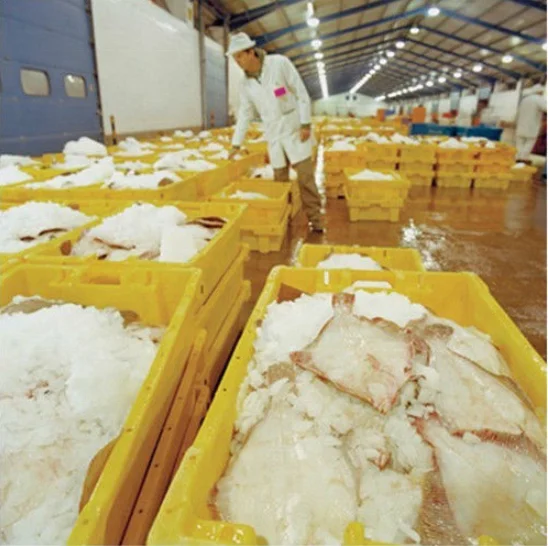

Suit for refreshing vegetable, fruit, food stuff in supermarket; blast cooling for processing of fishery products and butchery; cooling process in fermentation, dairy production; chemical dyes; cooling in concrete and mining, etc.;

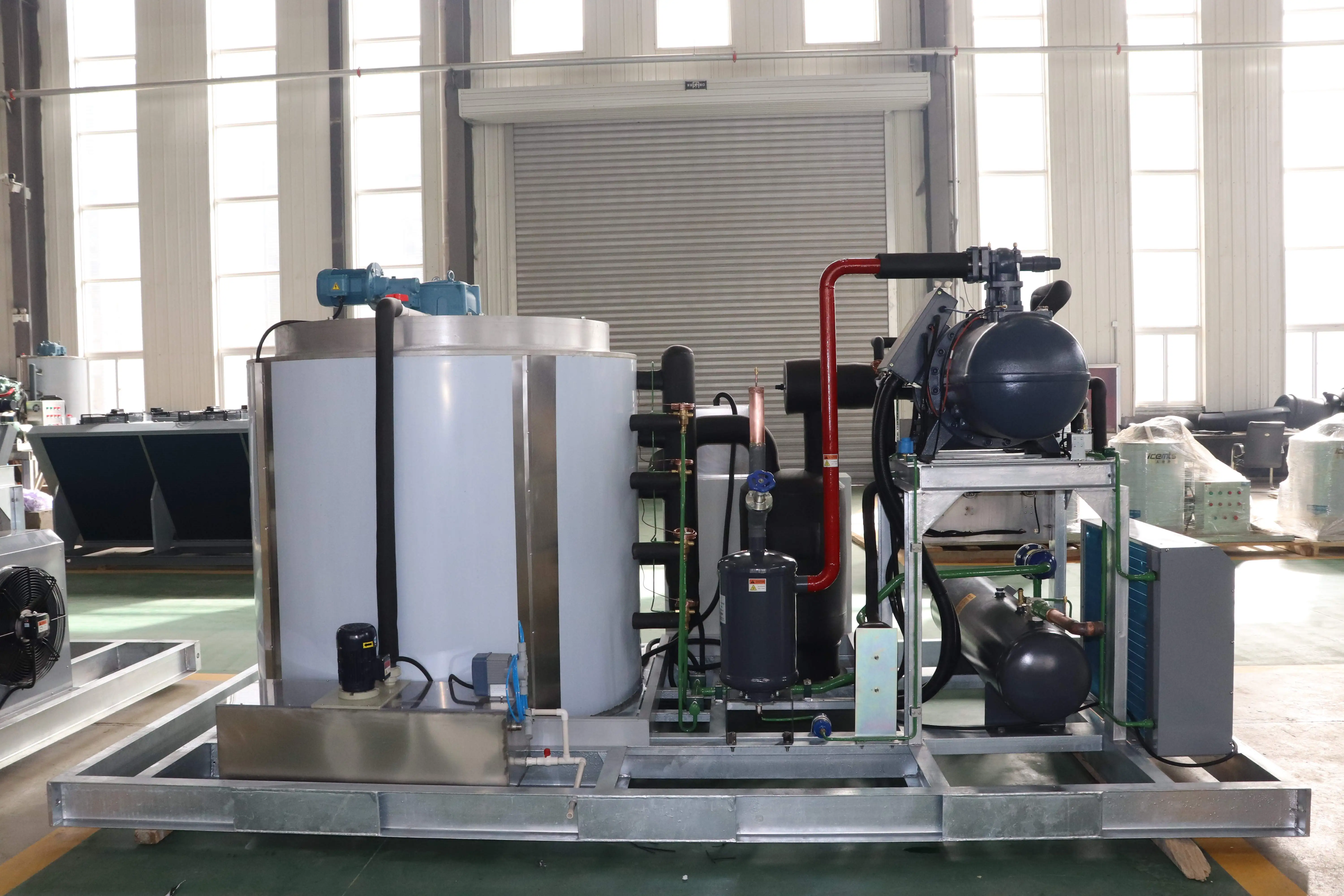

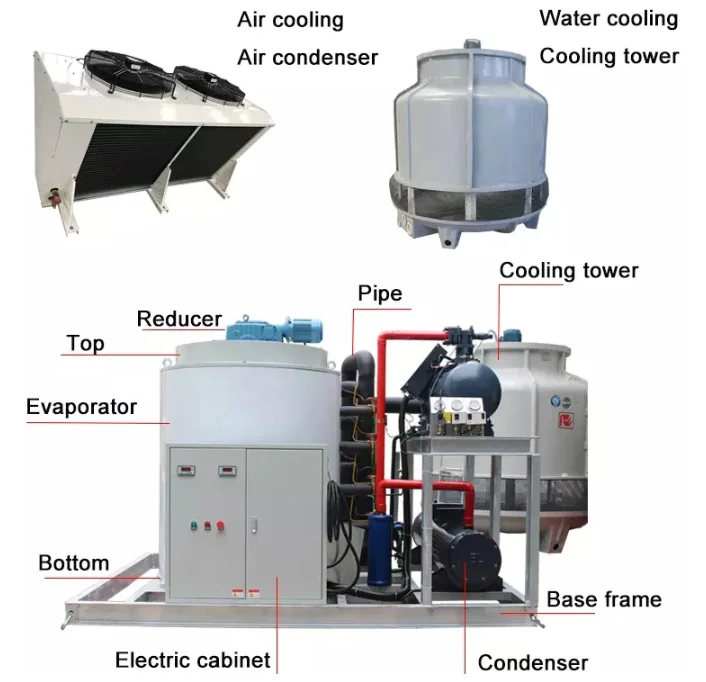

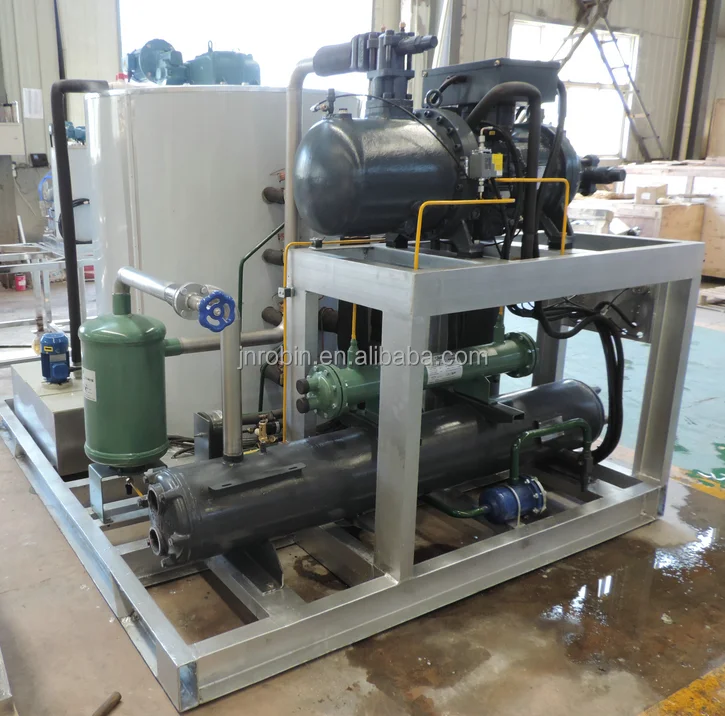

Detailed Images
Company Information
Product Description
Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design, production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine, tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coal mine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Certificate
Exhibition
Customer visit
Our Services
All ice machines come out with 12 months full warranty. If the machine breaks down in 12 months, Robin will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. | |
Process: | Please provide the copy of Sales Contract and describe the problems appeared. |
Problems confrimation: | |
Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
Serious problem: |
|
A | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
B | Have a negotiation of the compensation and sign agreements |
C | Our After-Sales Department will perform the duties as the agreement |

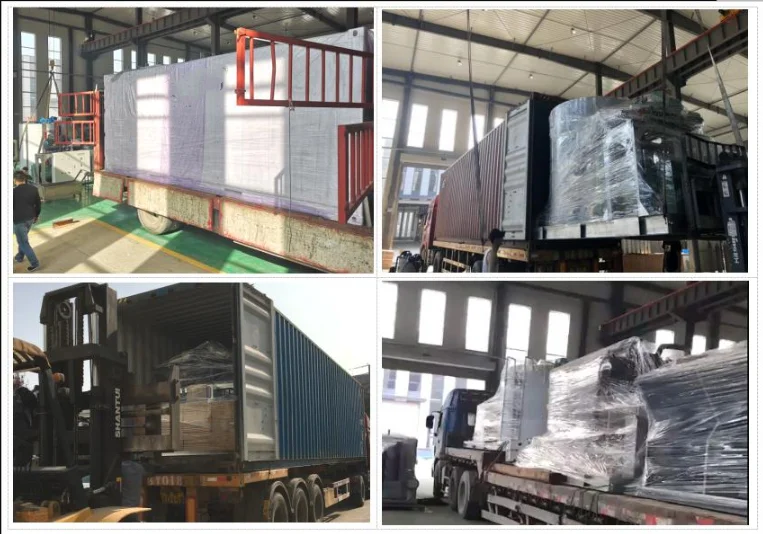

Packaging & Shipping
It will packed in the or 20 feet or 40feet container according to situation.
FAQ
1.Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2.Q:do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3.Q: can you load ice machine into container?
A: we have containerized ice machine. Our export ice machine is designed based on the standard of container, it is easily to load.
4.Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abroad? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
Main Products
 |  |  |

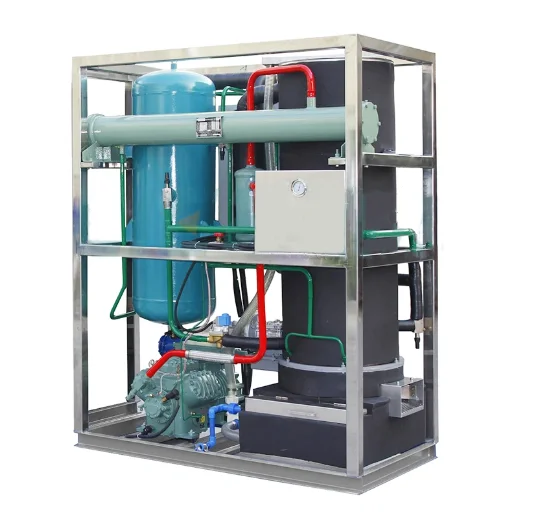

| Flake ice machine | Block ice machine | Tube ice machine |
 |  |  |
