quick fixing white electronic potting glue 5 minutes set time steel epoxy resin ab glue for electronic potting
- Category: >>>
- Supplier: Zhengzhou Huayu Technology Co. Ltd.
Share on (1600565200229):
Product Overview
Description
Product Description

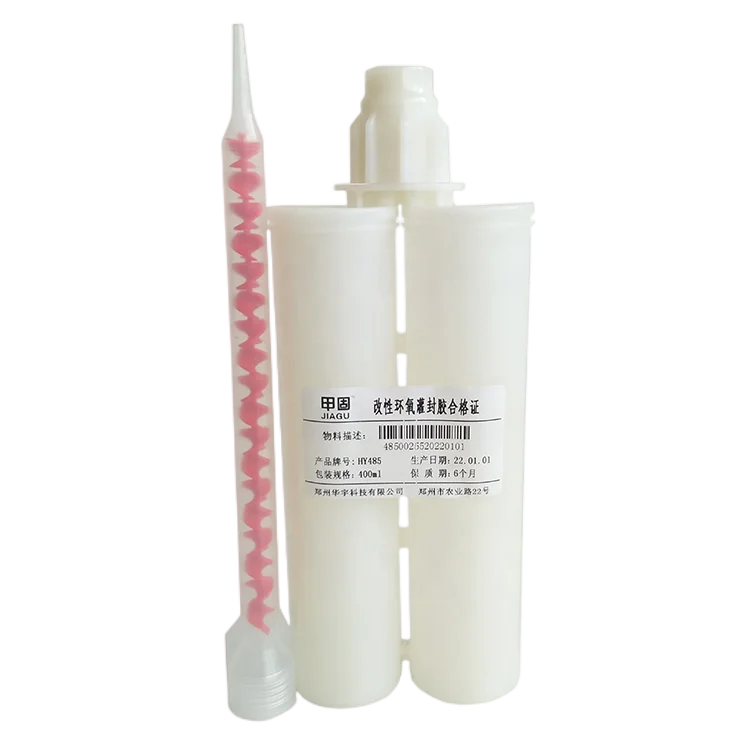

HY485 toughened epoxy adhesive is a two-component, fast curing epoxy resin material at room temperature. It has excellent aging resistance, moisture resistance, electrical insulation, elastic shock resistance and high breakdown voltage. It’s suitable for all kinds of casting bonding and sealing of electronic components.
Product Features
1. 1:1 ratio, easy to use
2. Solvent-free, non-corrosive, environmentally friendly and low-carbon
3. Fast curing in 10 minutes, non-smoke gel, flexible
4. It has insulation, moisture-proof, anti-vibration and flame-retardant properties.
Applications

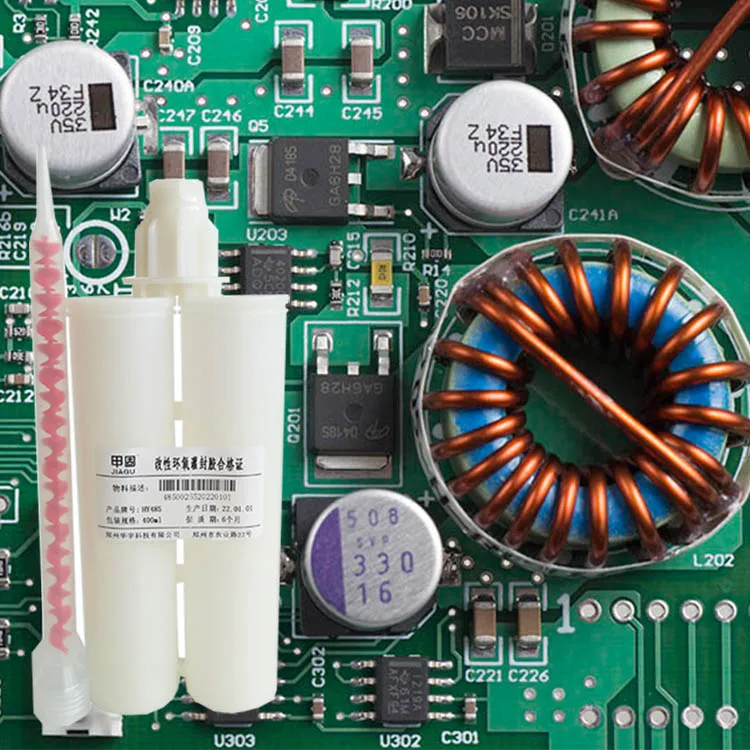

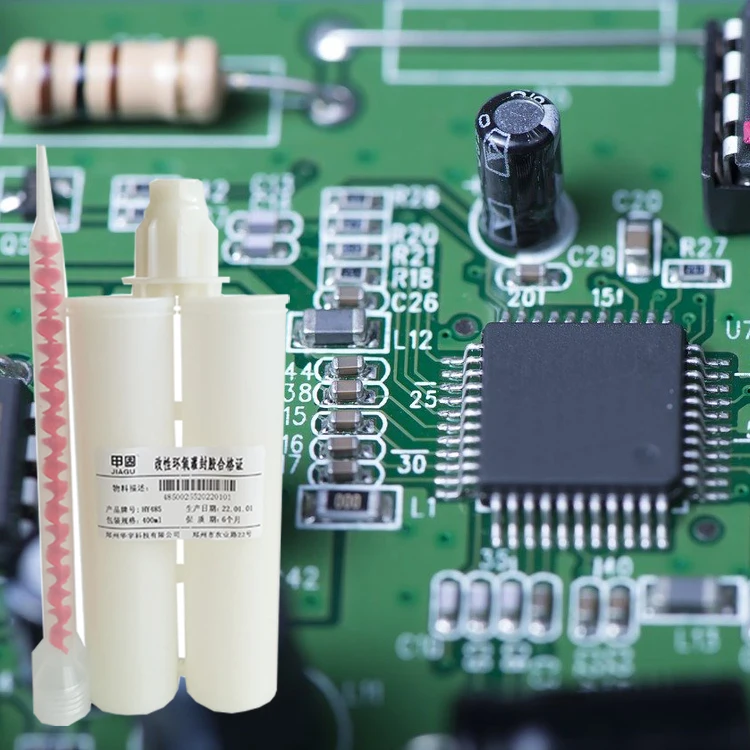

1. Used for electronic components such as transformers, coils, magnetic cores, etc.
2. Bonding and fixing of metals, steel plate, ceramics, plastics, rubber, glass, fiber products, handicrafts, gems, etc.
3. Various repair potting, etc.
Product Features
1. 1:1 ratio, easy to use
2. Solvent-free, non-corrosive, environmentally friendly and low-carbon
3. Fast curing in 10 minutes, non-smoke gel, flexible
4. It has insulation, moisture-proof, anti-vibration and flame-retardant properties.
Applications
1. Used for electronic components such as transformers, coils, magnetic cores, etc.
2. Bonding and fixing of metals, steel plate, ceramics, plastics, rubber, glass, fiber products, handicrafts, gems, etc.
3. Various repair potting, etc.
Performance indicators | HY485T | HY485B | ||
Before curing | Appearance and color | Transparent | Gray-black | |
Viscosity (Pa•s, 23℃) | 15~50 | 25~60 | ||
Density (g/cm3, 23℃) | 1.05±0.2 | 1.5±0.2 | ||
Volume ratio (A:B) | 1:1 | 1:1 | ||
Operation time (min, 23℃) | 5 | 5 | ||
Initial fixation time (min, 23℃) | 10~15 | 10~15 | ||
After curing | Shore hardness (S.D) | 75~85 | 75~85 | |
Shear strength (MPa) | 15~25 | 15~25 | ||
Elongation (%) | 5~20 | 5~20 | ||
Flame retardant grade (UL94) | HB | V0 | ||
Operating temperature range (℃) | -50~120 | -50~120 | ||
Packaging specification
400ml/group; 20kg/set
Company Profile
Quality inspection
Obtained a number of patent certificates
Latest IOS 9001-2020; UV: CE and other international safety certification
Latest IOS 9001-2020; UV: CE and other international safety certification
Exhibition Exchange
FAQ
Q1. Are you manufacturer or trading company?
A: Yes, we are manufacturer, founded in 1997. We can provide you direct prices.
Our plant site is in Baofeng High-tech Zone, covers an area of 50000 square meters. The annual production capacity is 50,000 tons. Our plant is 1.5 hours away from Zhengzhou City, in the central China. Welcome to visit our factory.
Q2. Can I get a sample before order?
A: Yes, of course. Generally we offer free samples with freight collect, and will send sample within 2 days, you can get it within 5~7 days.
Q3. What’s the delivery time?
A: It’s about 5~10days according to order quantity after payment. For example, the producing time is 5 days for 1000 tons sealant.
Q4. How do you guaranty the quality?
A: Our products meet the standard CE, Rosh, UL, etc. And we test the each batch of goods before delivery and keep all the order retention samples for 6~12 months.
Q5. Do you accept Private Label?
A: Yes. OEM or ODM orders are accepted.
Q6. Can I be your agent?
A: Sure, we are looking for agent all over the world.
A: Yes, we are manufacturer, founded in 1997. We can provide you direct prices.
Our plant site is in Baofeng High-tech Zone, covers an area of 50000 square meters. The annual production capacity is 50,000 tons. Our plant is 1.5 hours away from Zhengzhou City, in the central China. Welcome to visit our factory.
Q2. Can I get a sample before order?
A: Yes, of course. Generally we offer free samples with freight collect, and will send sample within 2 days, you can get it within 5~7 days.
Q3. What’s the delivery time?
A: It’s about 5~10days according to order quantity after payment. For example, the producing time is 5 days for 1000 tons sealant.
Q4. How do you guaranty the quality?
A: Our products meet the standard CE, Rosh, UL, etc. And we test the each batch of goods before delivery and keep all the order retention samples for 6~12 months.
Q5. Do you accept Private Label?
A: Yes. OEM or ODM orders are accepted.
Q6. Can I be your agent?
A: Sure, we are looking for agent all over the world.
