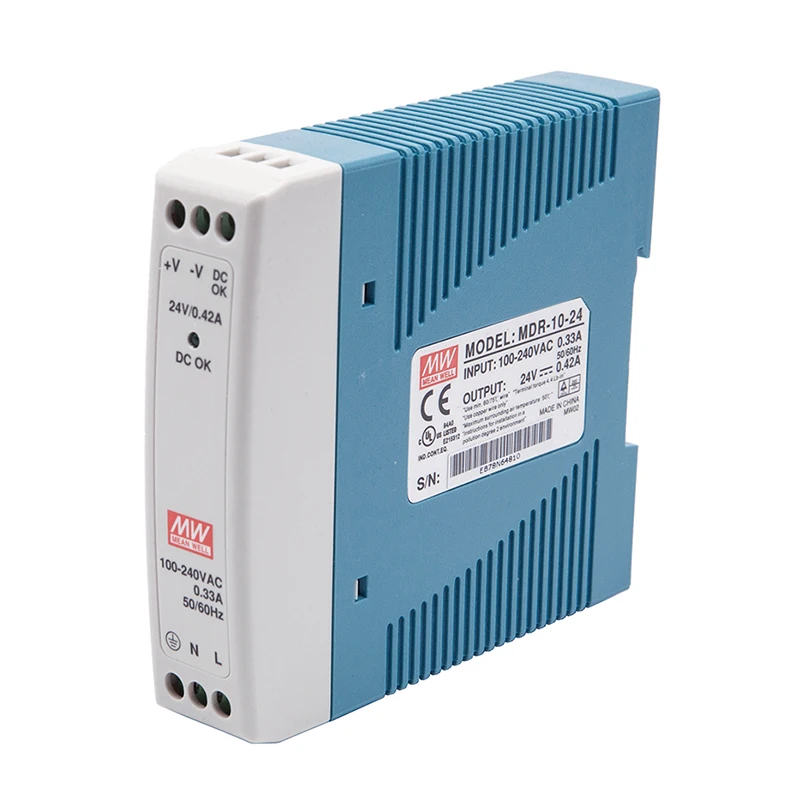

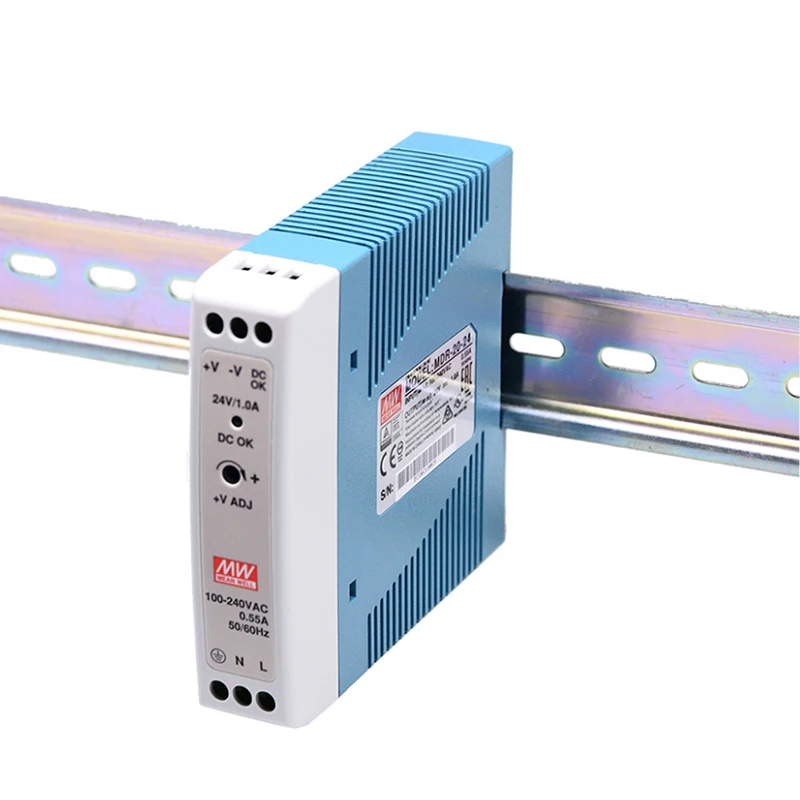

Product Overview

Description



Products Description












Specification


Features:
* Universal AC input/Full range
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection

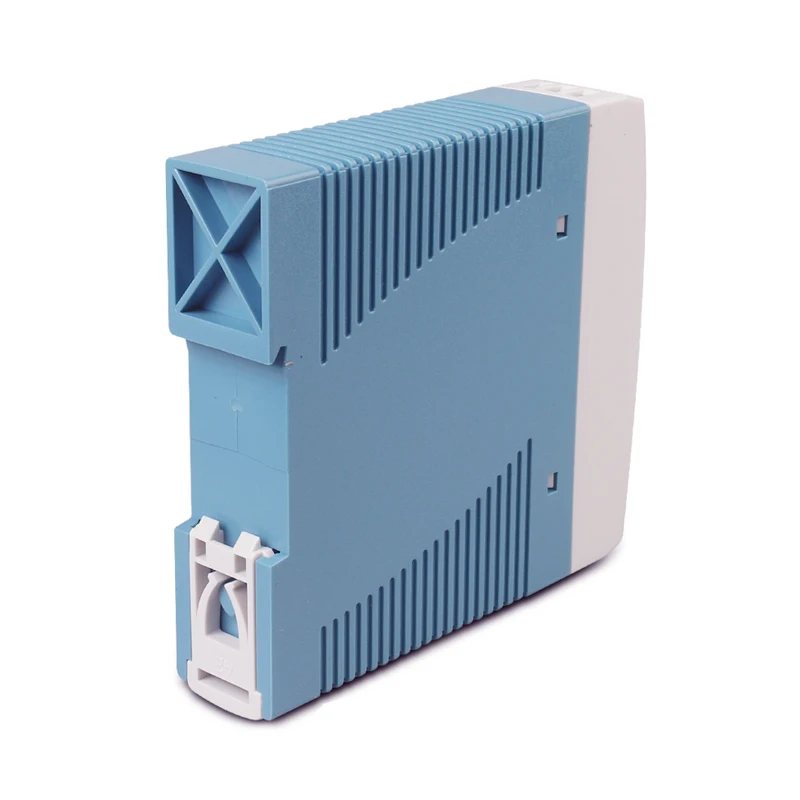

* Can be installed on DIN rail TS-35/7.5 .or 15
* NEC class 2 / LPS compliant
* Built in DC OK active signal
* LED indicator for power on
* No load power consumption<0.75W
* 100% full load burn-in test
* 3 years warranty


MODEL
MDR-10-5
MDR-10-12
MDR-10-15
MDR-10-24








OUTPUT
DC VOLTAGE
5V
12V
15V
24V
CURRENT RANGE
0 ~ 2A
0 ~ 0.84A
0 ~ 0.67A
0 ~ 0.42A
RATED CURRENT
2A
0.84A
0.67A
0.42A
RATED POWER
10W
10W
10W
10W
RIPPLE & NOISE (max.) Note.2
80mVp-p
120mVp-p
120mVp-p
150mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
10.8 ~ 13.2V
13.5 ~ 16.5V
21.6 ~ 26.4V
VOLTAGE TOLERANCE
NOTE.3
5.0%
3.0%
3.0%
2.0%
LINE REGULATION
1.0%
LOAD REGULATION
5.0%
3.0%
3.0%
2.0%
SETUP, RISE TIME NOTE.5
500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
120ms/230VAC 25ms/115VAC at full load



INPUT
VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
77%
81%
81%
84%
AC CURRENT (Typ.)
0.33A/115VAC 0.21A/230VAC
INRUSH CURRENT (Typ.)
COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC




PROTECTION
OVER LOAD
Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V
13.8 ~ 16.2V
17.25 ~ 20.25V
27.6 ~ 32.4V
Protection type : Shut down o/p voltage, re-power on to recover
DC OK ACTIVE SIGNAL(MAX.)
3.75 ~ 6V / 50mA
9 ~ 13.5V / 40mA
11.5 ~ 16.5V / 40mA
18 ~ 27V / 20mA



ENVIRONMENT
WORKING TEMP.
-20 ~ +70 (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85 , 10 ~ 95% RH
TEMP. COEFFICIENT
0.03%/ (0 ~ 50 )
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6







SAFETY &EMC
SAFETY STANDARDS
UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATION
Compliance to EN55011,EN55022 (CISPR22), EN61204-3 Class B
HARMONIC CURRENT
Compliance to EN61000-3-2,-3
EMS
IMMUNITY
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024,EN61000-6-1,EN61204-3, light industry level, criteria A

OTHERS
MTBF
584K hrs min. MIL-HDBK-217F (25 )

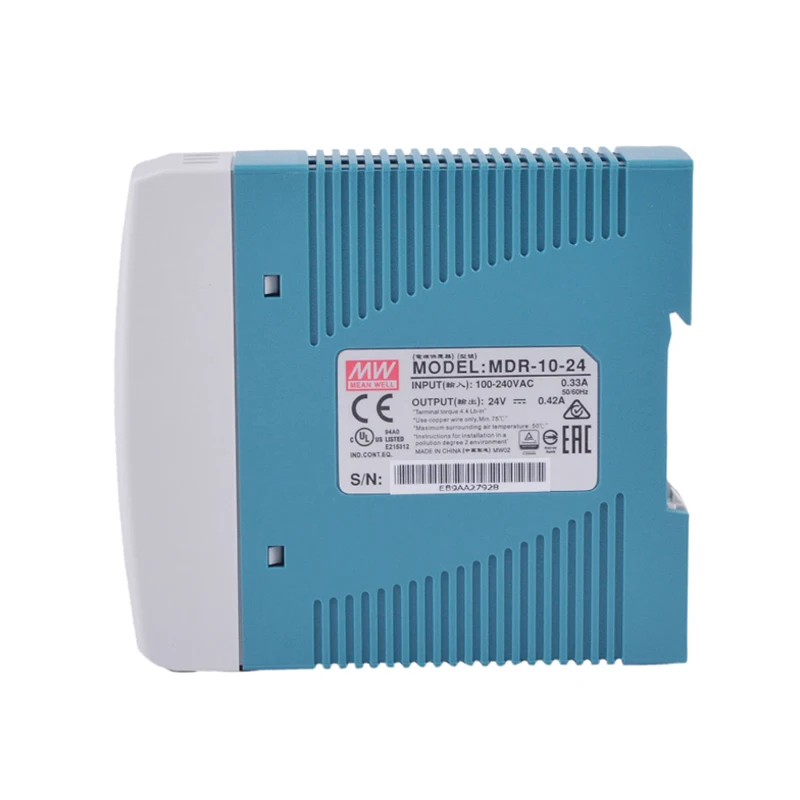

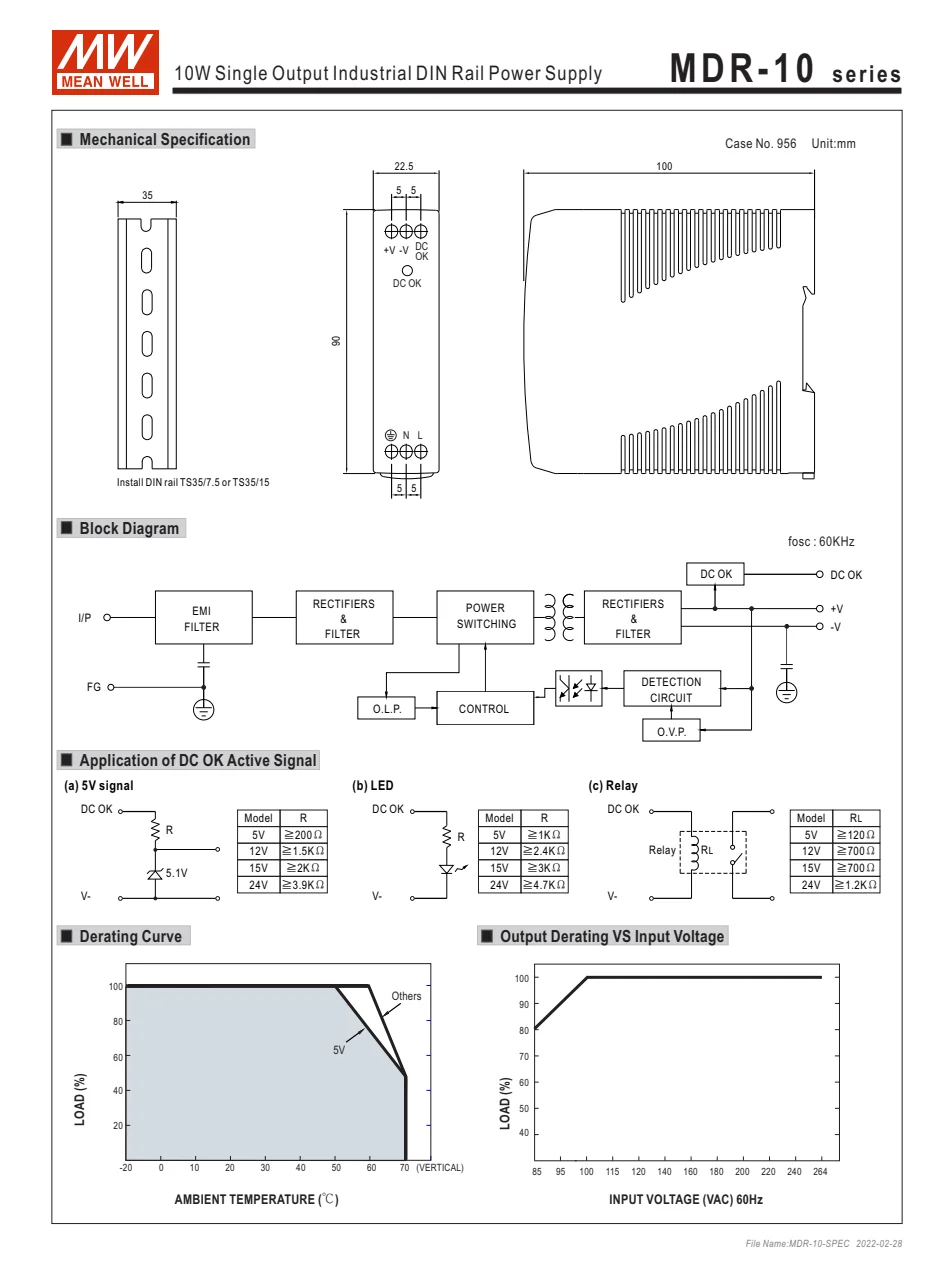

DIMENSION

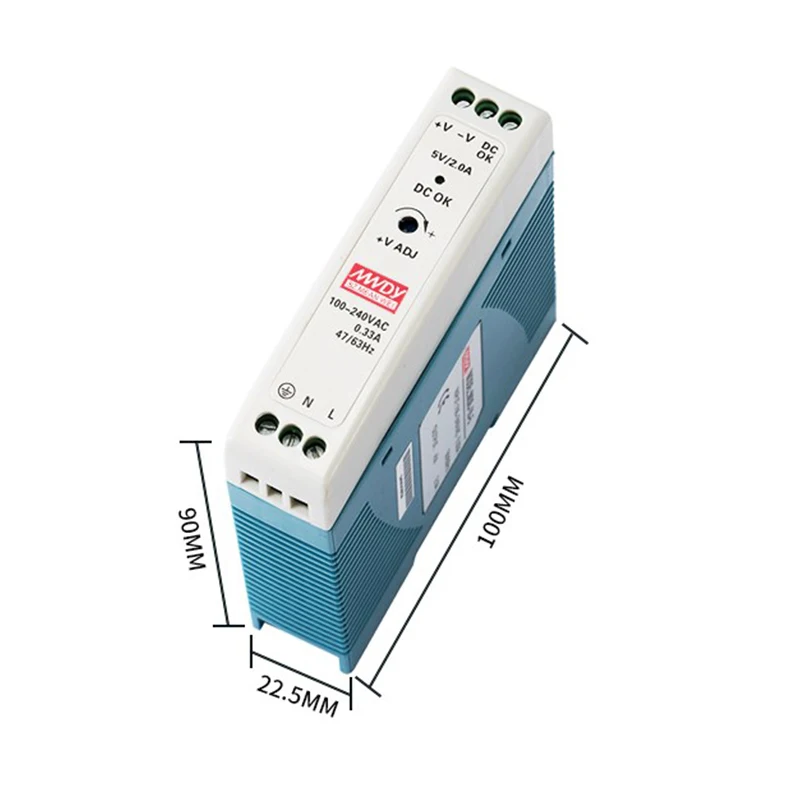

22.5*90*100mm (W*H*D)
PACKING
0.17Kg; 72pcs/13.2Kg/0.91CUFT
