Small Scale Flame Laminating Machine for Car Interiors
- Category: >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (1600565212585):
Product Overview
Description
Product Description
It is applied to laminating sponge with fabrics or non-woven products.
Features:
1.Using sponge as the sticky material,melt by spraying flame,can bond other material,it aslo bond any other two kinds of material with melted sponge by spraying flame.
2.Laminated fabrics are good integration and touch,washable,dry-clean and have many features.
3.This machine is especially suitable for the lamination of plush and abrasive.
4.The water cooling system well enhances the lamination effect.

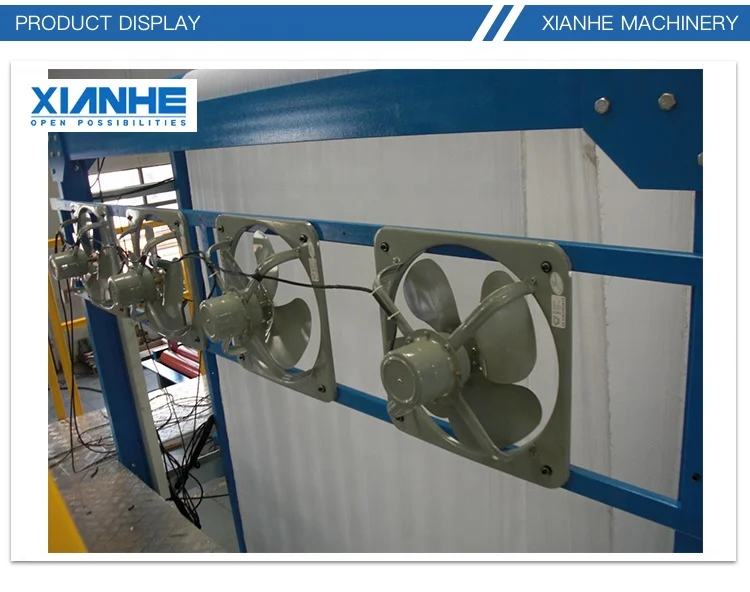

5.The air exhaust diaphragm will exhaust the odor.
Main technical specifications:
| Power supply | 380V 50HZ Three phase |
| Effective width of material | 1600mm(selected according to material width) |
| Heating method | Electric heating, heat conduction oil heating or steam heating |
| Electric heating roller diameter | 1200mm.1500mm |
| Heating power | About 40.5kw |
| Roller width | 1800mm(selected according to material width) |
| Coating | Scraping |
| Installed capacity | About 50KWA(adjusted according to different width) |
| Compound design speed | 5-45m/min |
| Outline size(L*W*H) | Approx. 9200*2350*2600mm |
| Whole weight | About 5000kg |
Packaging & Shipping
Inner Package: Protective Film, etc
External Package: Standard Exportd Container
- Machines well packed with protective film and loaded in export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Our Services
- Free Installation Training
- Spare Parts Replacement
- Free Machine Knowledge Update
- We according to customer needs,providing tailored services to design laminating equipment of satisfying requirements.
- Ordering process as follows:
