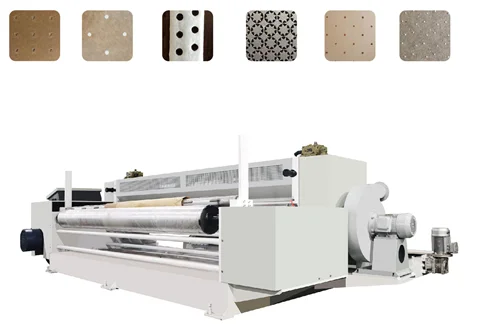

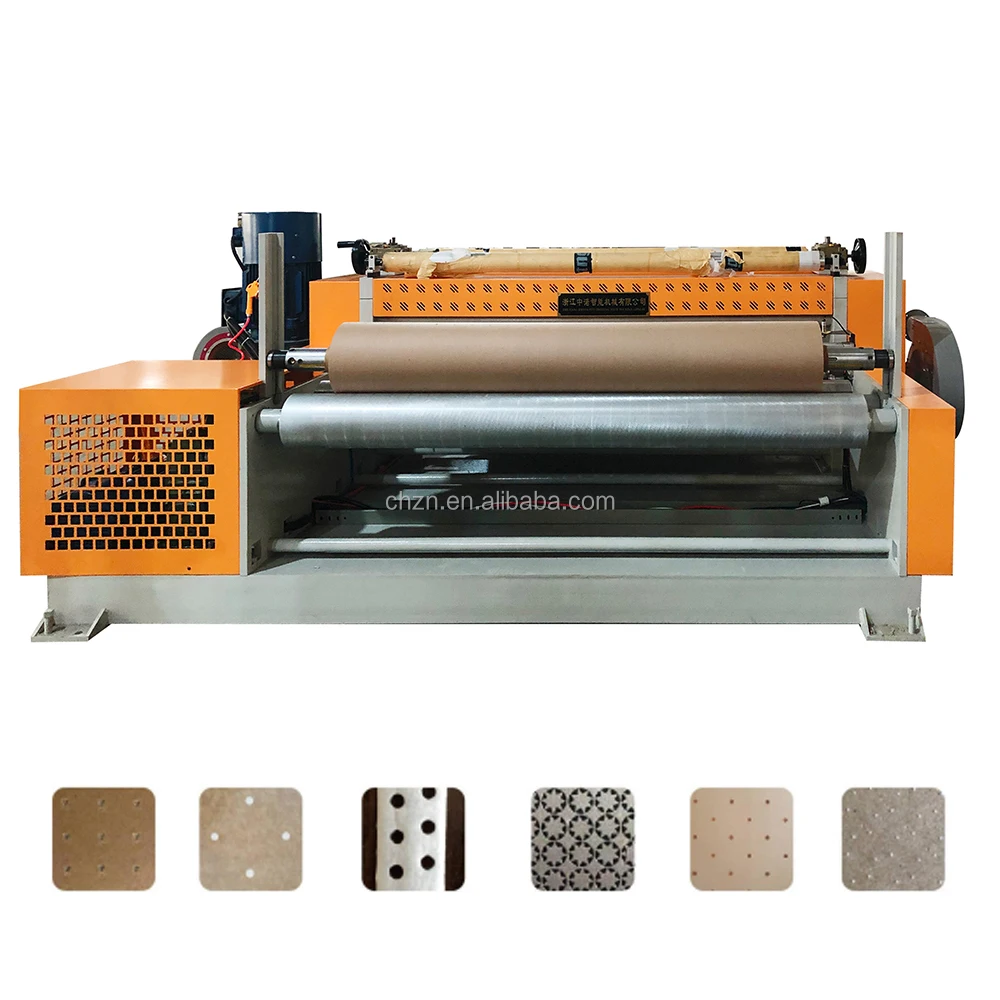

production line for film punching machine
- Category: >>>
- Supplier: Zhejiang Zhongnuo Intelligent Machinery Co. Ltd.
Share on (1600565212956):
Product Overview
Description
The main technical parameters:
1. Neddle roller material: forged steel
2. The thickness of the pressed material: within 0.6-1.2mm(according to your request)
3. Width of pressed material: 1200mm(according to your request)
4. Speed: 0-40m/min
5. Punch shape:Hole(according to your request)
6. perforating Material : packaging plastic film,paper,composite membrane,cooper foil, aluminum foil,nonwoven fabric,car soundproof board,etc.
7. Punch size: 0.03-20mm,can be adjustable
8. neddler roller specification: ø180*1300mm
9. Width of the finished product of the pressed material: ≤1200mm
10. Roll structure: integral forging
11. Heat treatment of rolls: finishing, quenching and tempering of forgings, power frequency quenching of rolls
12. Roll hardness: HRC55-58
13. Rolling mill stand: steel plate combined structure
14. Rolling mill drive: adopts frequency conversion speed regulation
15. Pressure regulating method: reducer electric pressure regulating
16. Voltage power: 15 KW (1.5 KW per group, 8 groups in total)
17. Center height (between the ground and the two rollers): 750mm
18. Electric control part: independent control cabinet
19. Between the rolls: the gap can be adjusted
20. Cycloidal pinwheel reducer: XWD96-15
21. Frequency conversion motor power: 15KW/380V(50Hz)
22. Dimension (L x W x H): 3800mm*1200mm*1700mm (take the actual product as the standard)
23. Net Weight: 6500Kg (based on the actual weight)
Technical Specification
| needle Roller Size | Φ500mmx1600mm width |
| Pattern | custom |
| perforating material | packaging plastic film, paper, aluminum foil,fabric,etc. |
| needle Roller Material | Alloy steel solid forging. |
| needle roller | needle center distance error is not more than 0.001mm,tip surface concentricity<0.005MM |
| Pressure Adjustment | Turbine worm reducer pressurize |
| Transmission Mode | Universal joint transmission |
| Voltage and Power | 380V/50HZ, 3P; 15KW (speed 0-15m/min.) |
Technological Process:
uncoiler--> feeding guide--> punching forming-->discharging guide-->winding

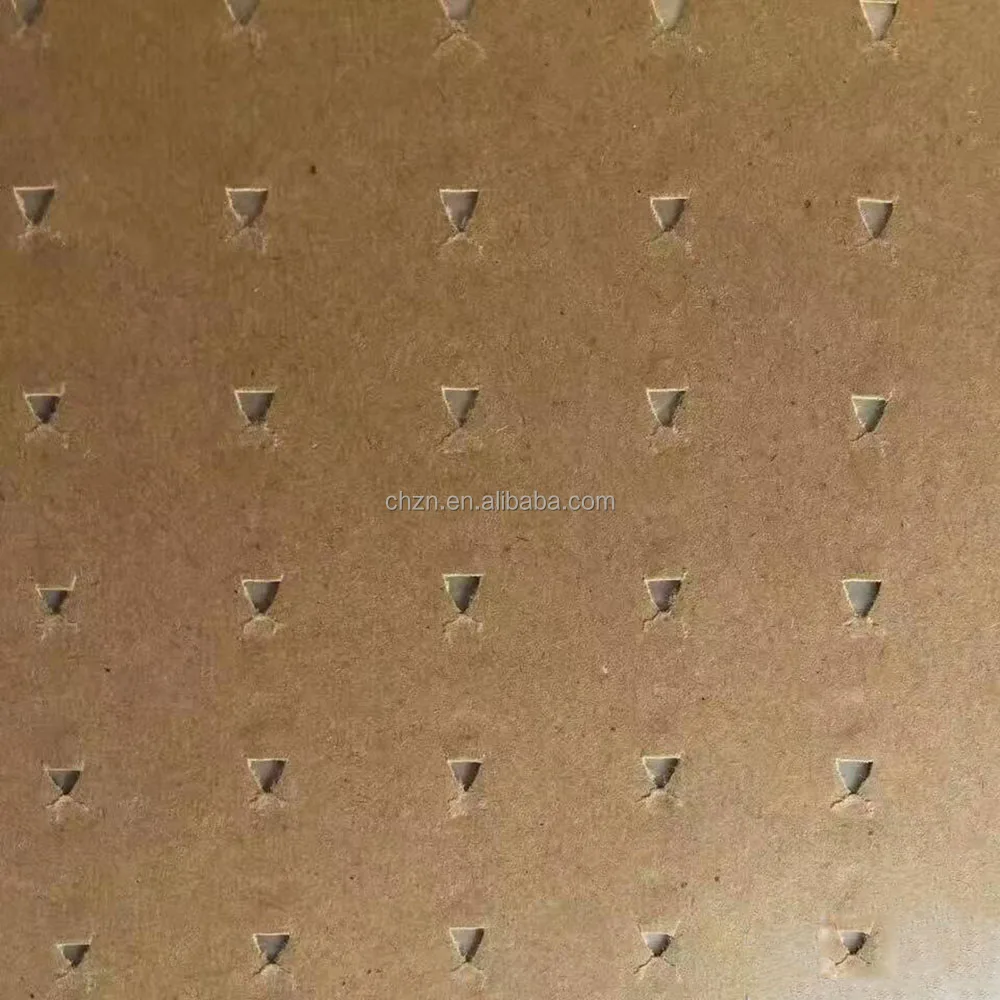

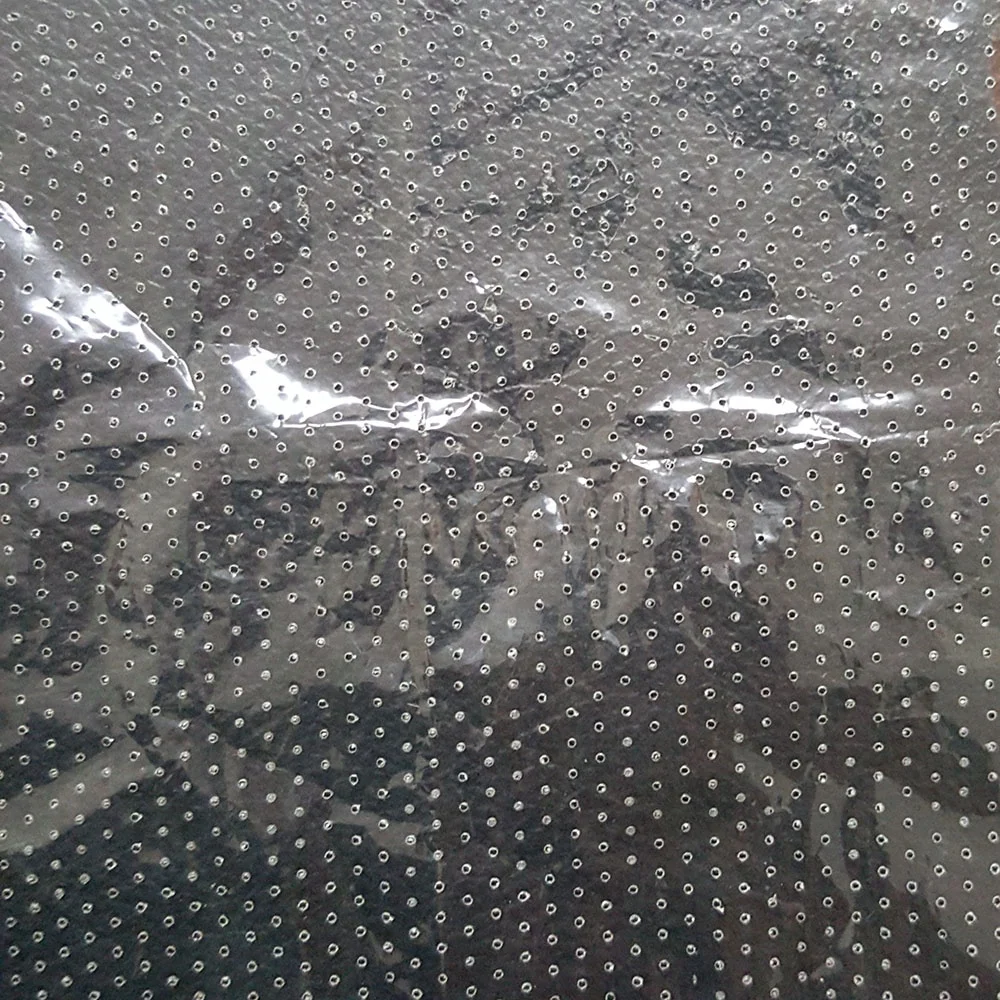

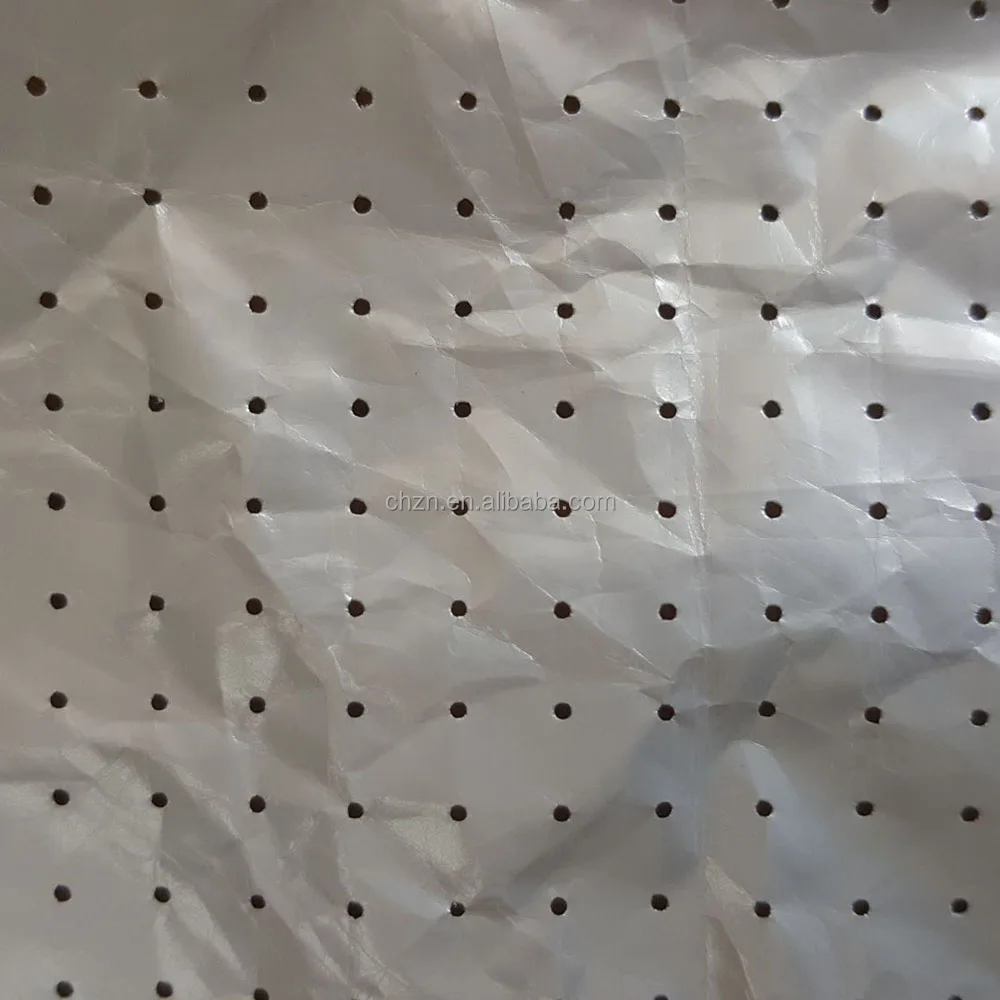

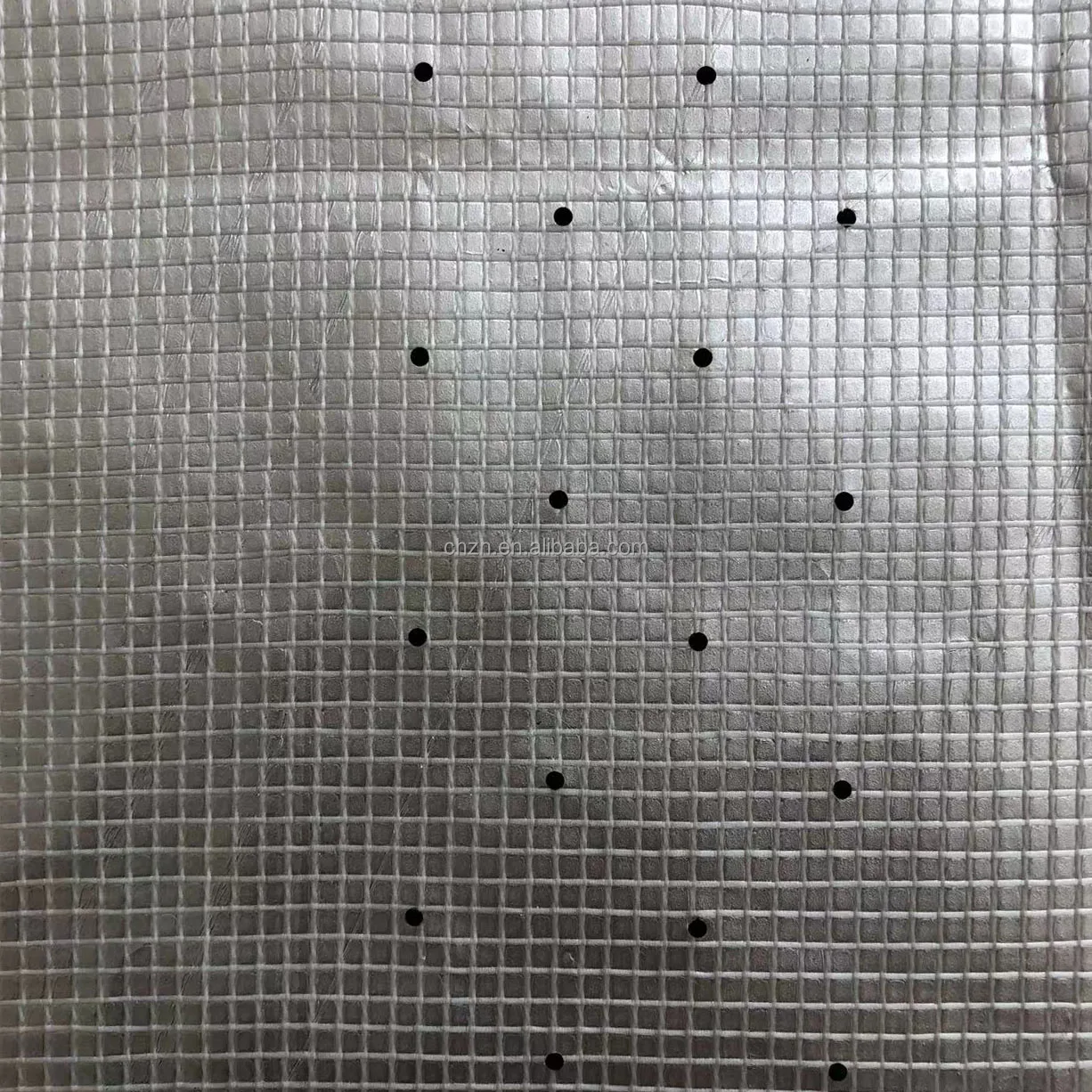

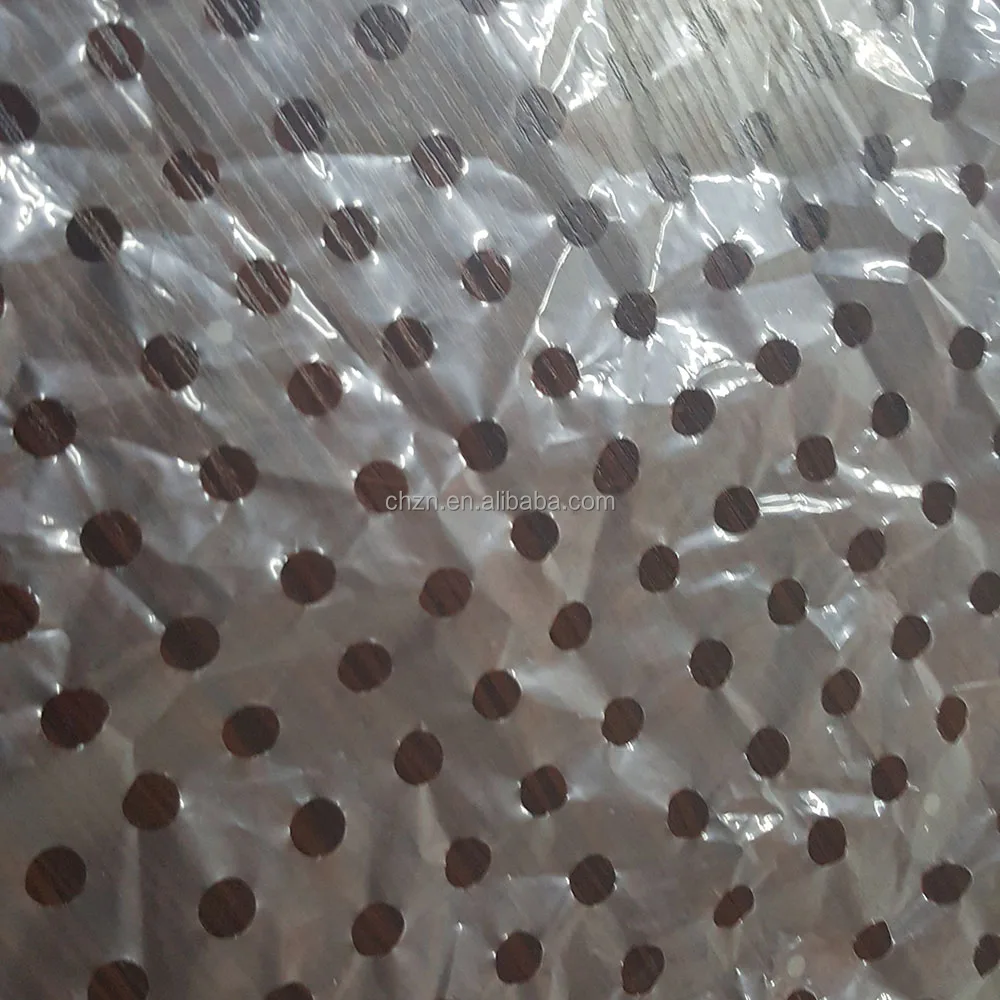

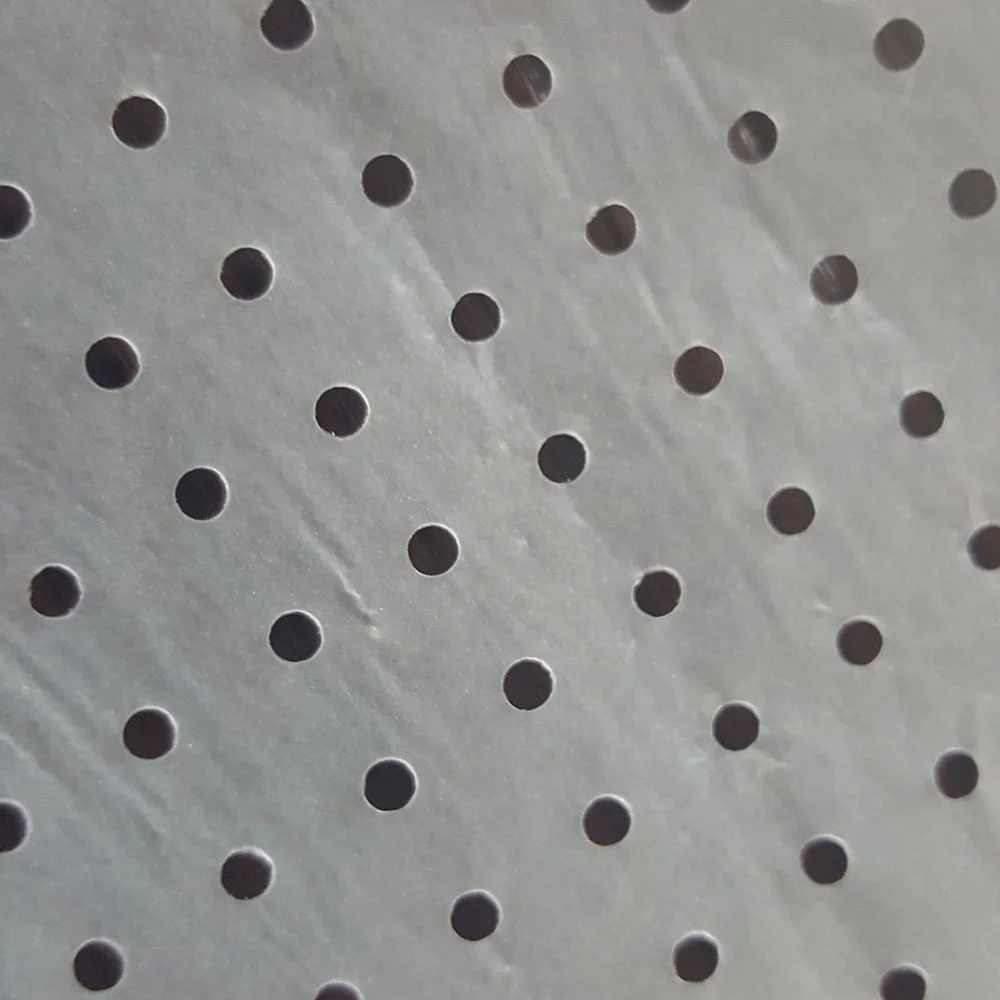

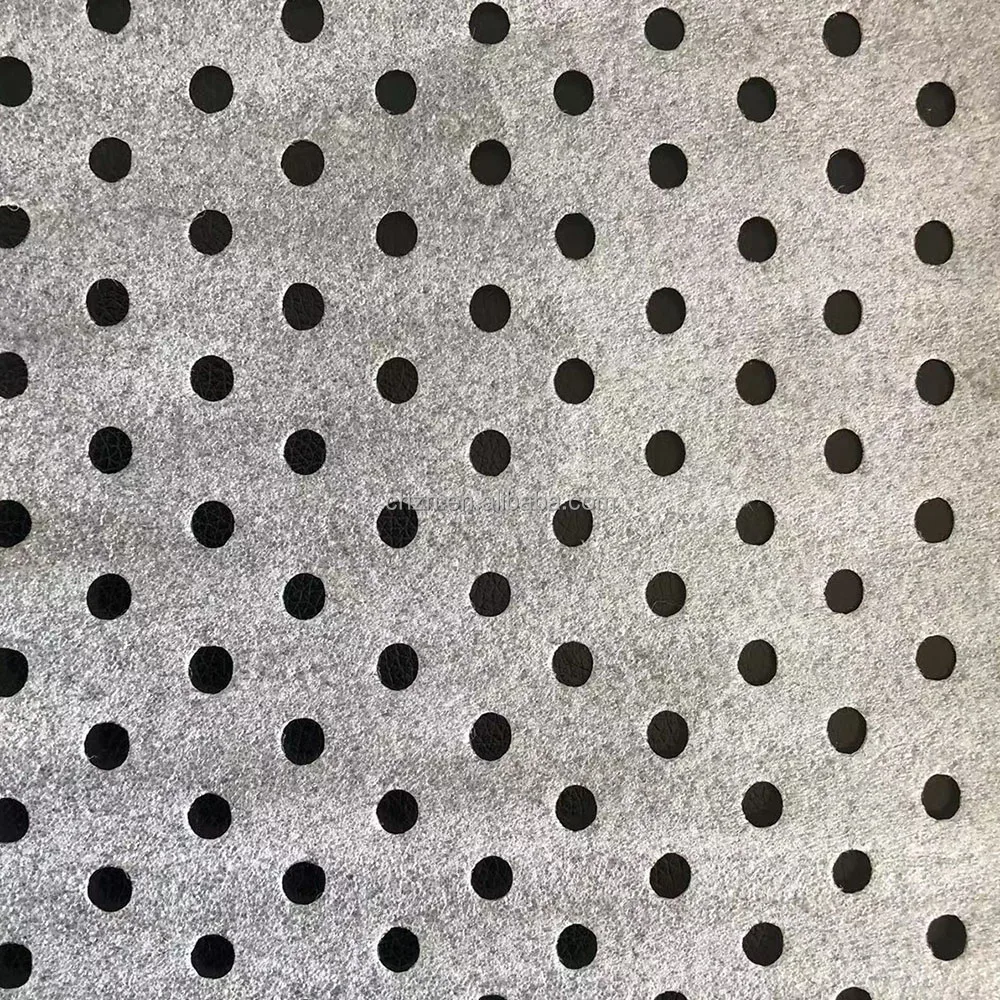

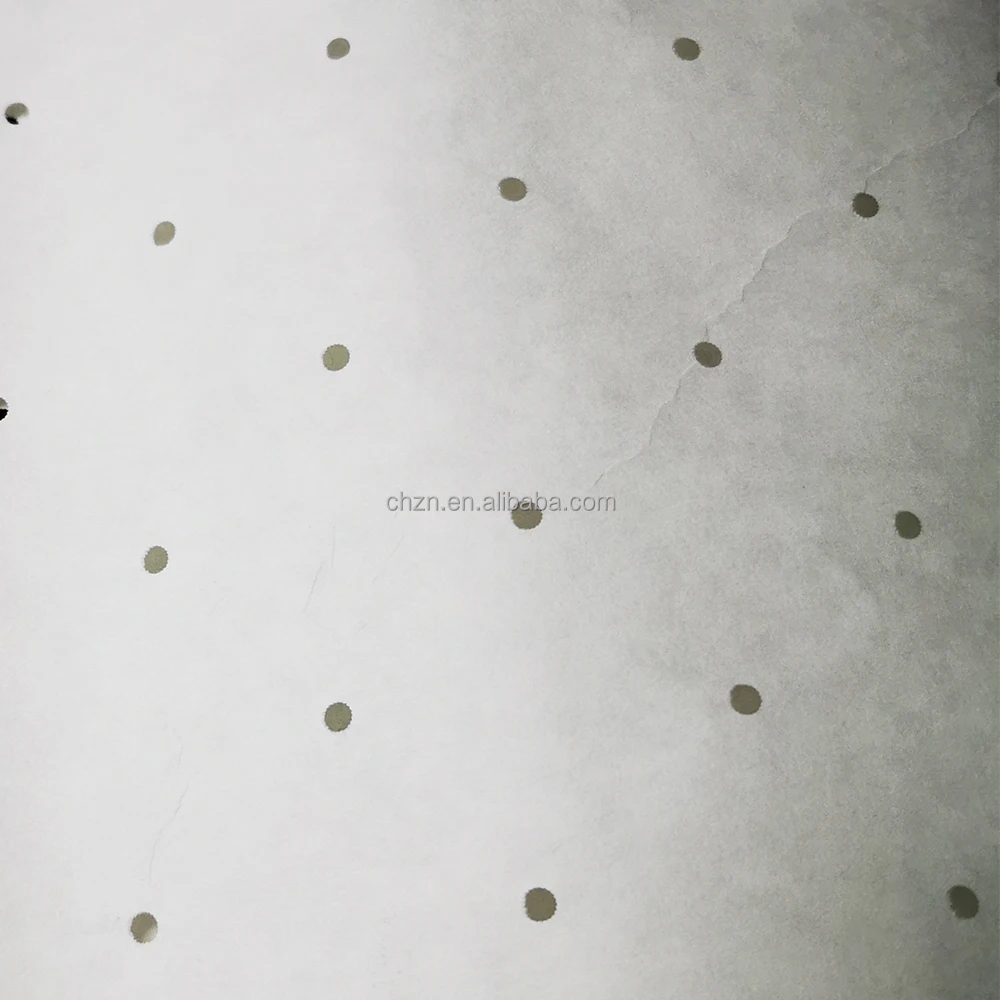

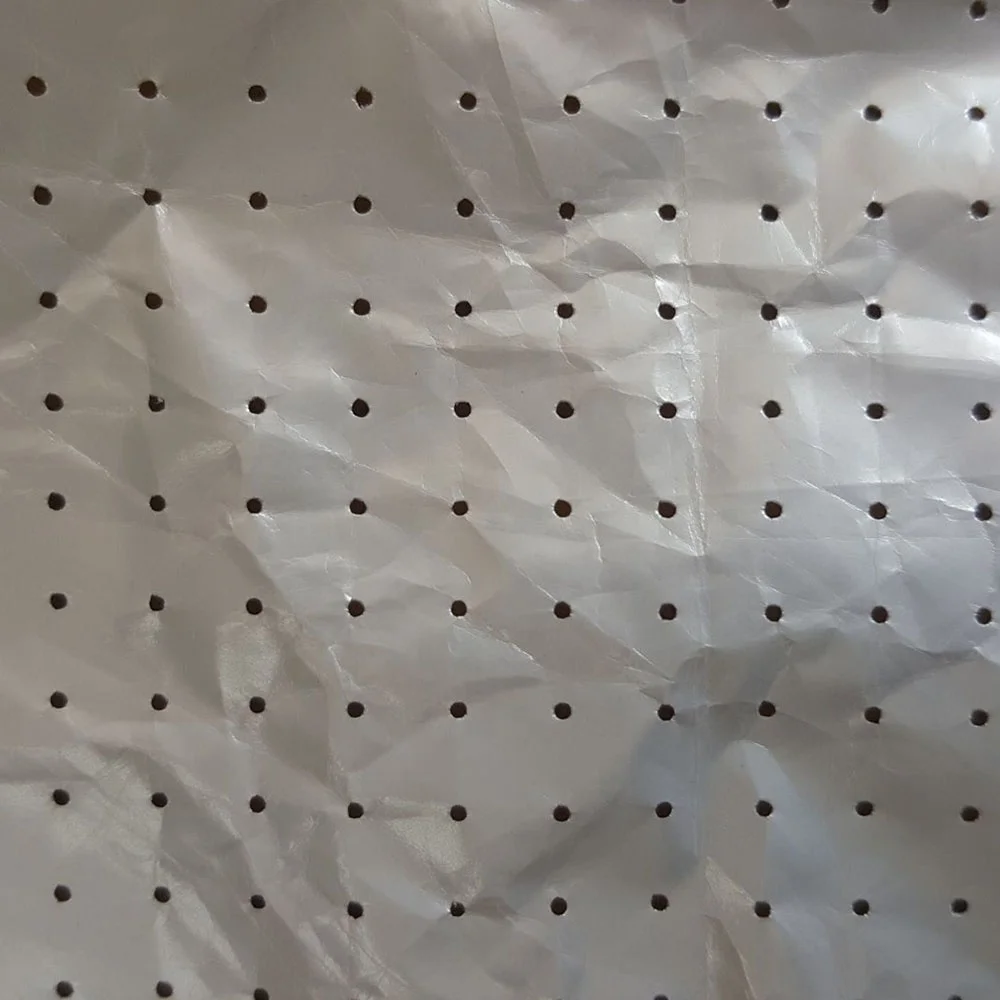

Embossed sample photos:
