k120m Full HD 4K Over Cat6 Ethernet Cable HDMI Video Transmitter Extender Adapter with IR HDMI loop Out
- Category: >>>
- Supplier: Dongguan Ouzheng Technology Co. Ltd.
Share on (1600565216165):
Product Overview
Description
Product Description
| HDMI Input | 4K |
| HDMI Output | 4K/30Hz |
| Support Audio Format | DTS/Dolby/LPCM |
| Max Bandwidth | 340MHZ |
| Max Baud Rate | 3.4Gbpsx3 |
| Power Supply Format | DC5V/1A |
| Material | Aluminum Alloy |
| Color | Black |
| Dimension (LxWxH) | 97x82x22mm |
| Weight | 780g |
| Package | Giftbox (User Manual+IR Cable+Power Adapter) |

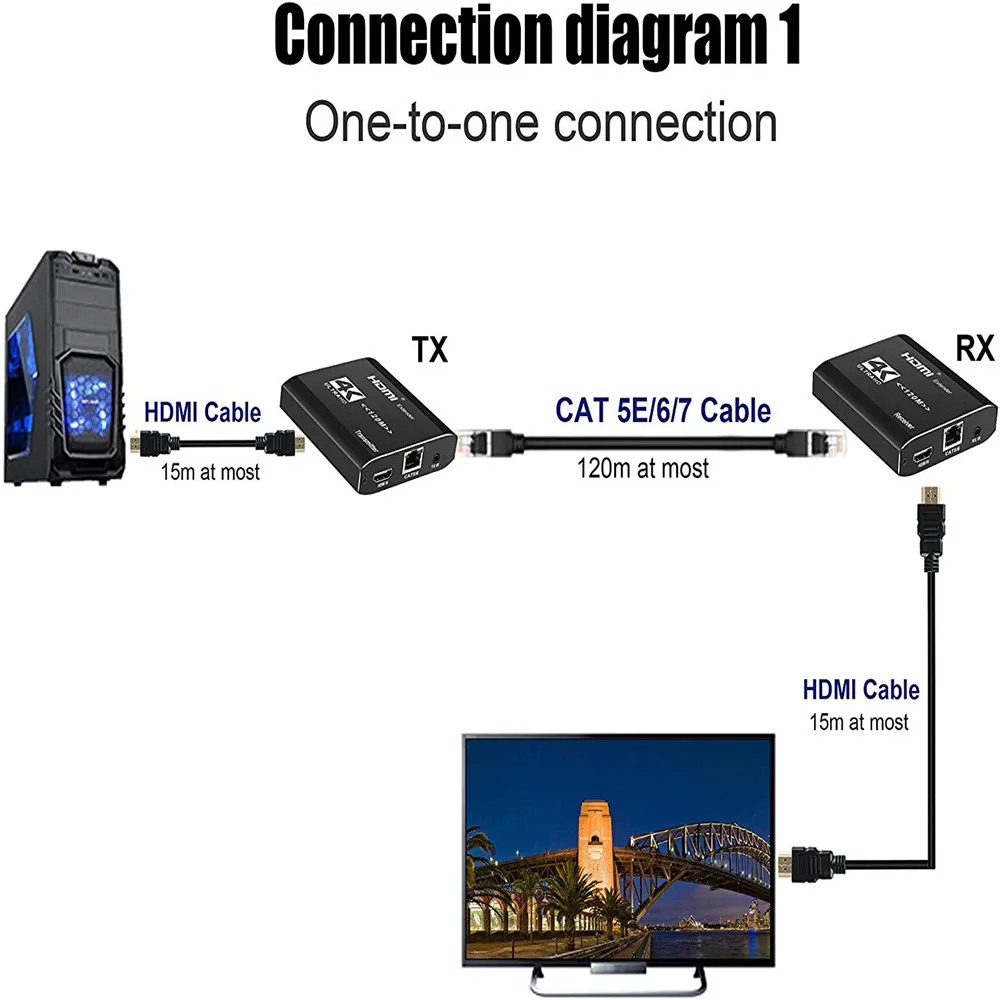

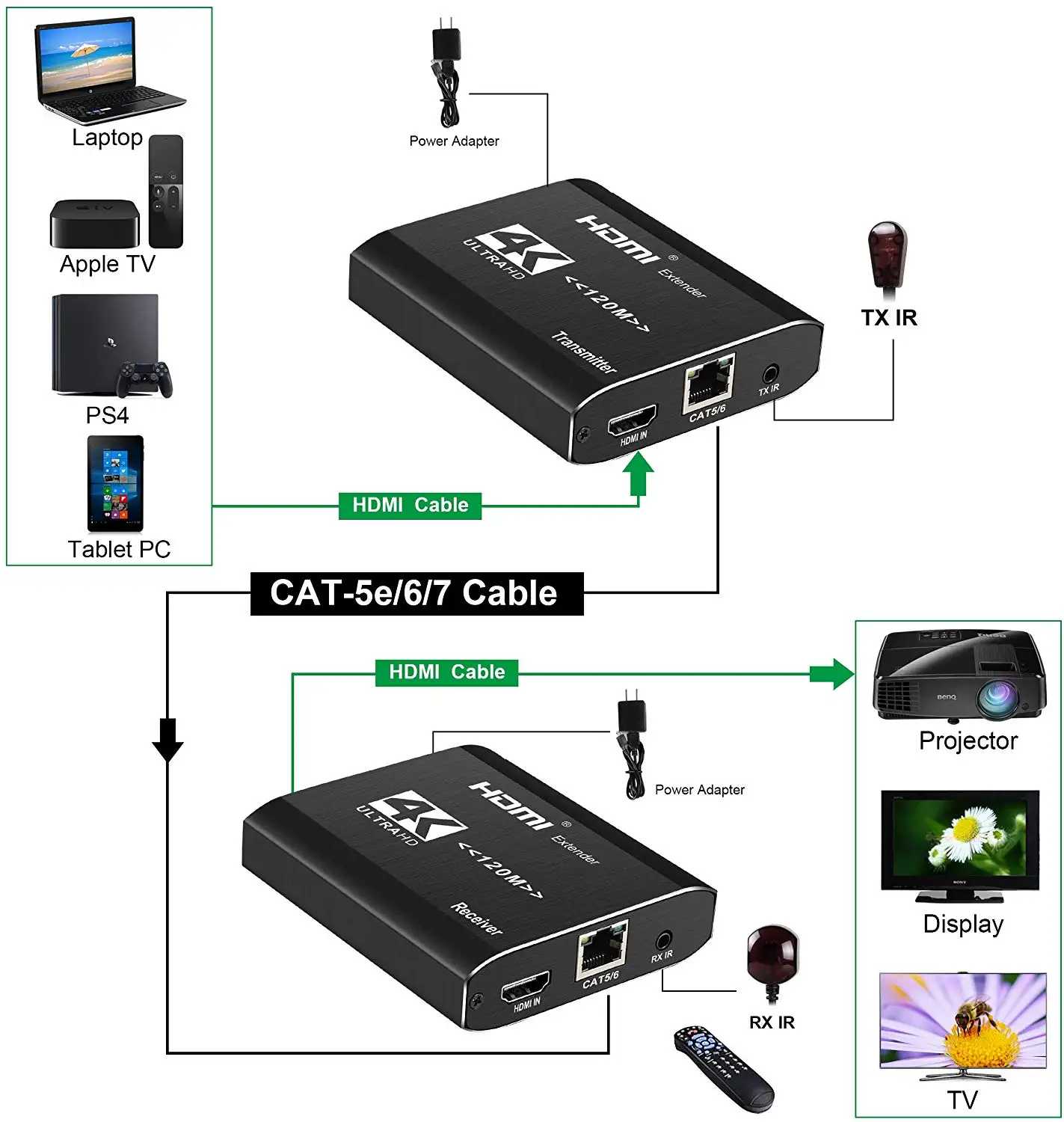

Connection and operation:
1.Connect hDMI source device with transmitter by one HDMI cable, the cable max length is 15 meters.
2.Connect HDMI display device with receiver by one HDMI cable, the cable max length is 15 meters.
3.Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 120 meters.

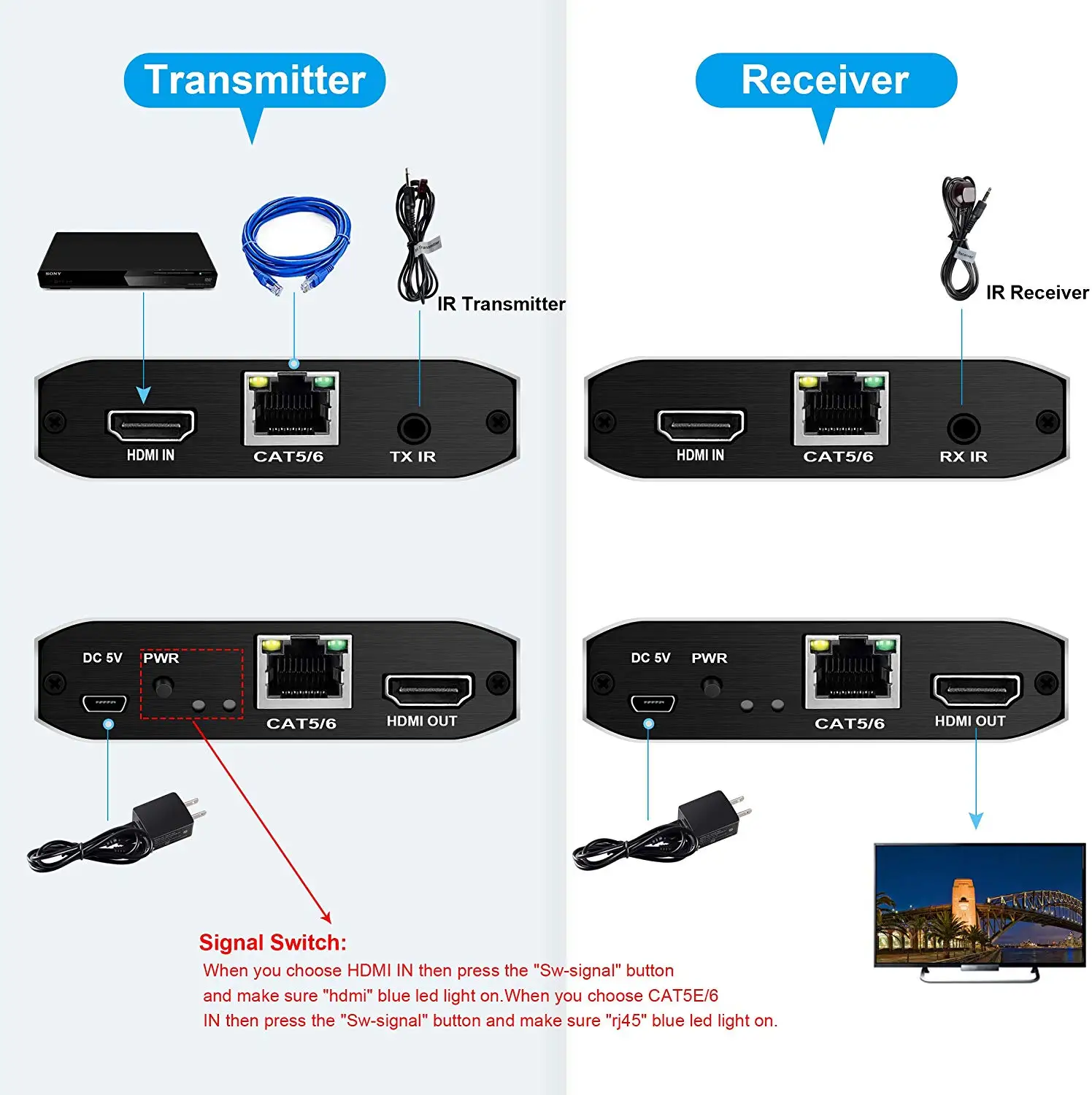

4.One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5.Connect the power supply to the TX and RX.
6.LED indicator:When a signal is input to work, steady blue light.

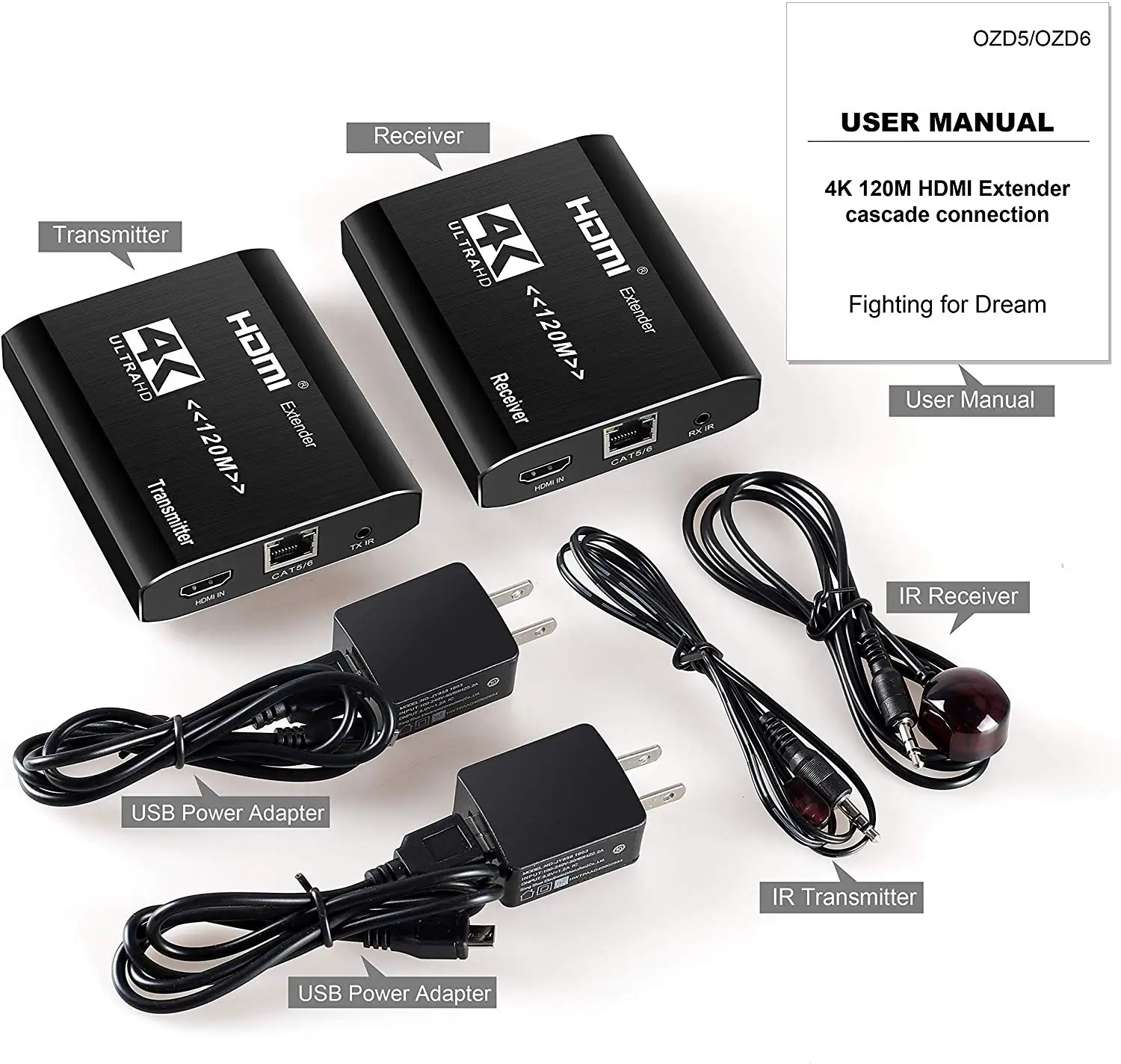

Giftbox Package included:
Transmitter 1pc
Receiver 1pc
DC 5V Power adapter x 2pcs
IR cable x 1pair
User Manual x 1pc
