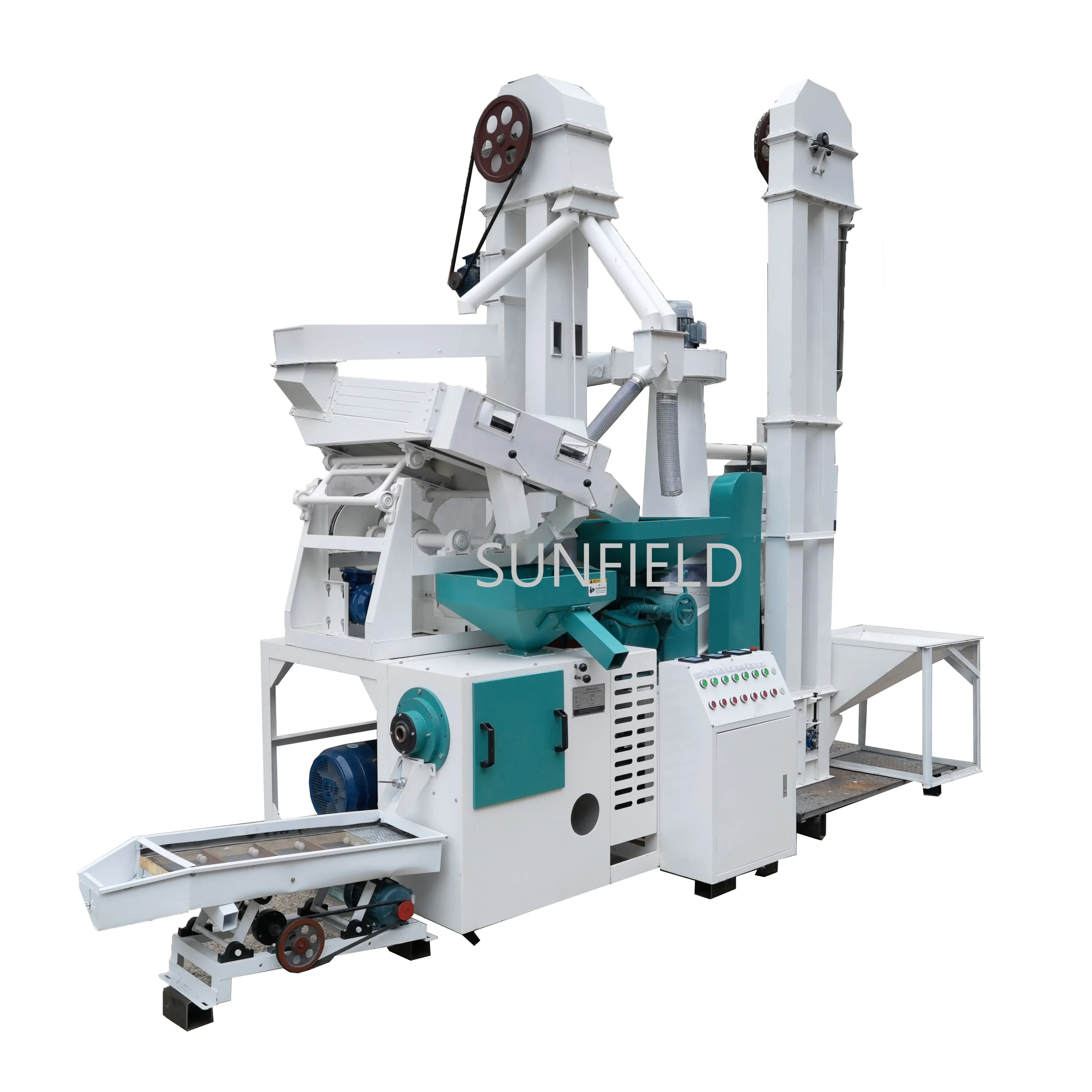

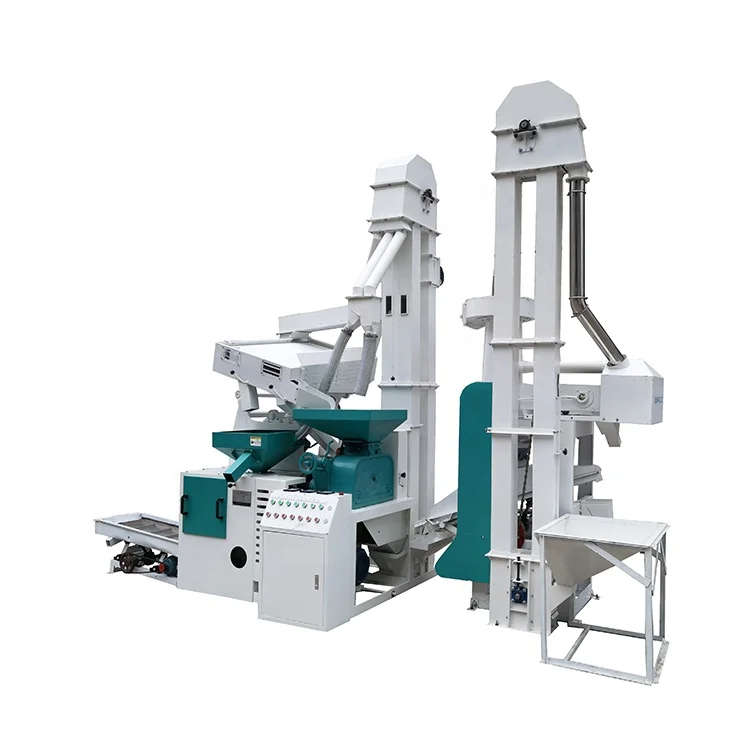

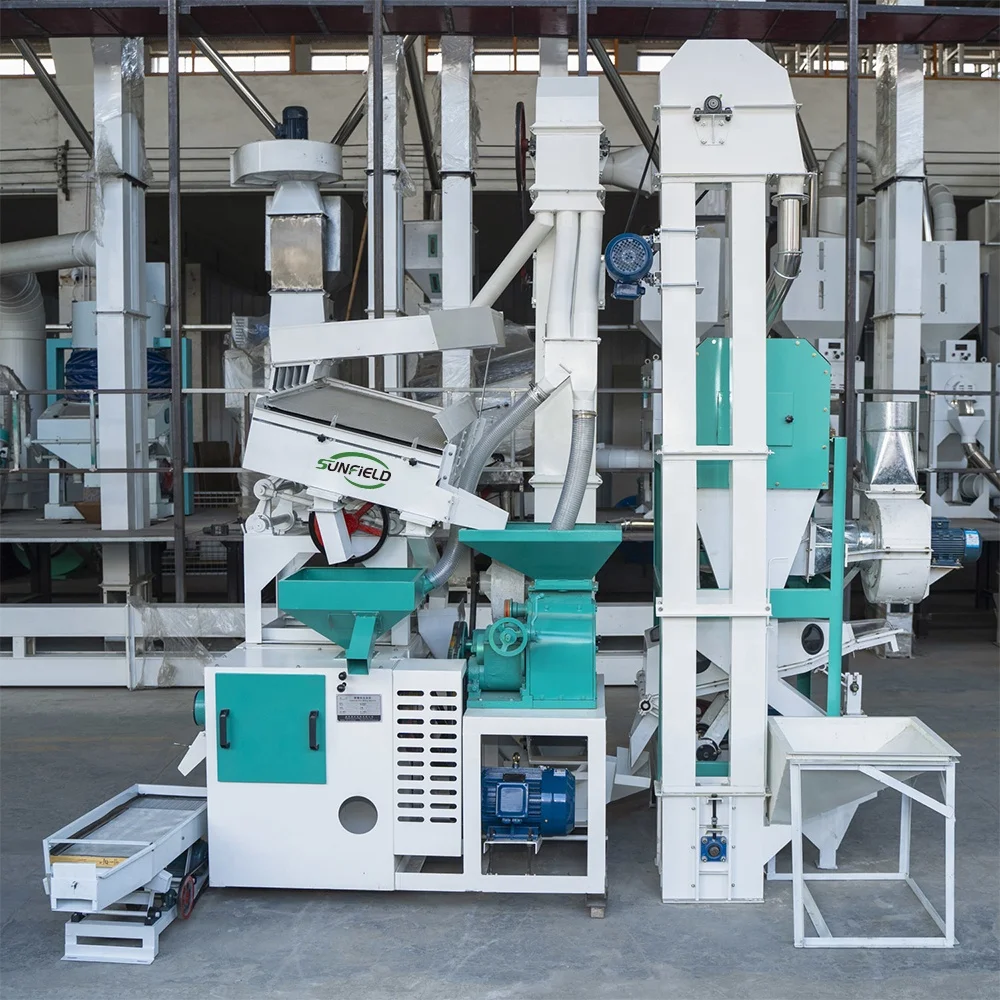

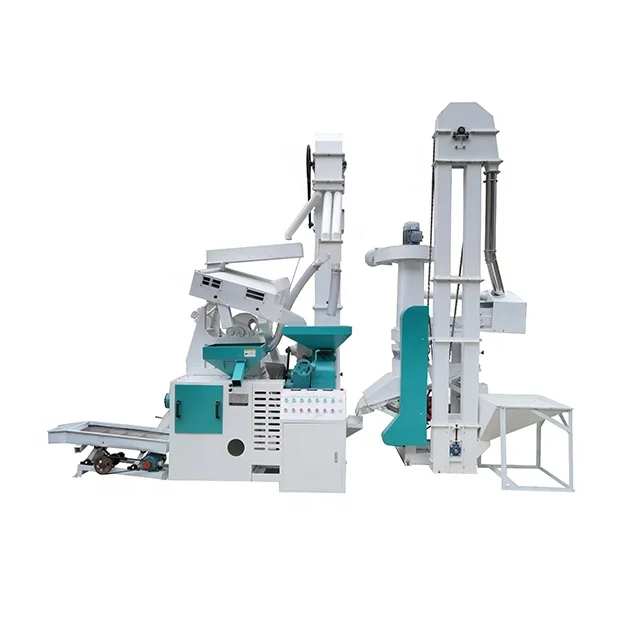

Sunfield Manufacturer Selling Automatic Paddy Rice Processing Machine 15 ton/day Combined Rice Milling Miller Machine
- Category: Grain Processing Machinery >>>
- Supplier: Hunan Sunfield Machinery Co. Ltd.
Share on (1600565248465):
Product Overview
Description
Product Description
6LN-15/15SD

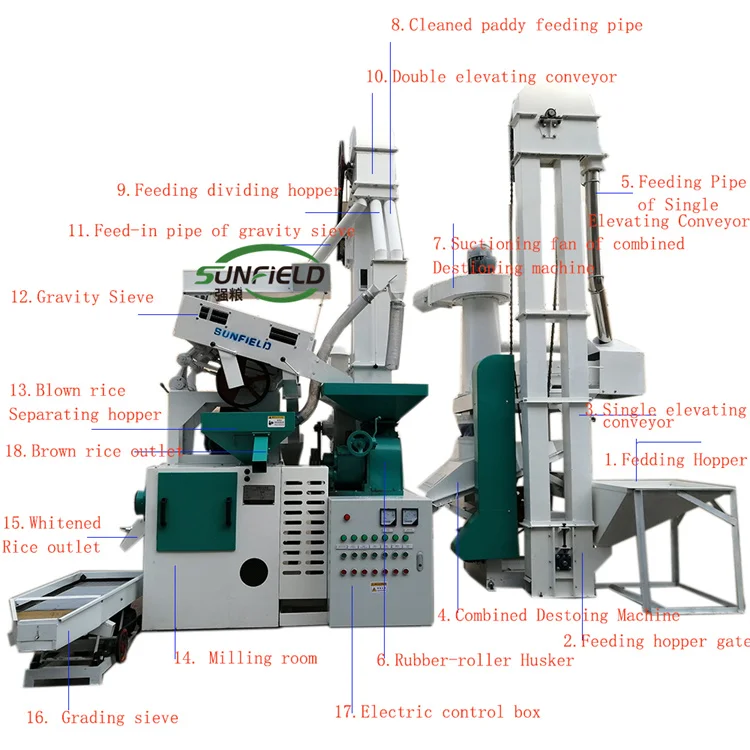

It is combined Rice Milling Machine combined with:> TQLQ45 combined paddy cleaner and de-stoner;
> 6-inch rubber roller husker;
> Gravity paddy separator;
> Inhale-air emery roller rice mill;
> Rice grader;
> Elevators.
It features great brown rice separating and rice whitening performance, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level; with direct optional brown rice outlet, provides users with a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc, to improve the milling performance or extending its functions.
> 6-inch rubber roller husker;
> Gravity paddy separator;
> Inhale-air emery roller rice mill;
> Rice grader;
> Elevators.
It features great brown rice separating and rice whitening performance, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level; with direct optional brown rice outlet, provides users with a flexible multifunctional rice milling solution. At the meantime, we reserved the possibility to match the follow up equipment such as multi-layer rice grader, rice polisher, color sorter etc, to improve the milling performance or extending its functions.
Product Parameters
Model | 6LN-15/15SD |
Rated output ( kg/h) | 600-800 |
Matched power (kW) | 19.87-24.62 kW |
Rice milling rate | 68-72% |
Small broken rice rate | <2% |
Rubber roller dimension(mm) | φ225*152 |
Emery roller dimension(mm) | φ150*400 |
Overall weight（kg） | 1350 |
Overall dimension(L*W*H)(mm) | 3400*1500*2900 |
Packing Size(L*W*H)(mm) | 1530*1320*2280 1200*750*2000 |
Product Advantages
Uniquely Dedicated Combined Paddy Cleaner and De-stoner
* Interference-free independent structures for paddy cleaning and de-stoning, greatly improved the performance from traditional unibody design.
* Multi-layer reciprocating vibrating separation mechanism with high impurity cleaning efficiency, reduced leftovers;
* Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
* High-intensity shock absorption bearing configuration strengthened the main machine by high stability, low vibration, low noise and less dust while working.
* Multi-layer reciprocating vibrating separation mechanism with high impurity cleaning efficiency, reduced leftovers;
* Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
* High-intensity shock absorption bearing configuration strengthened the main machine by high stability, low vibration, low noise and less dust while working.

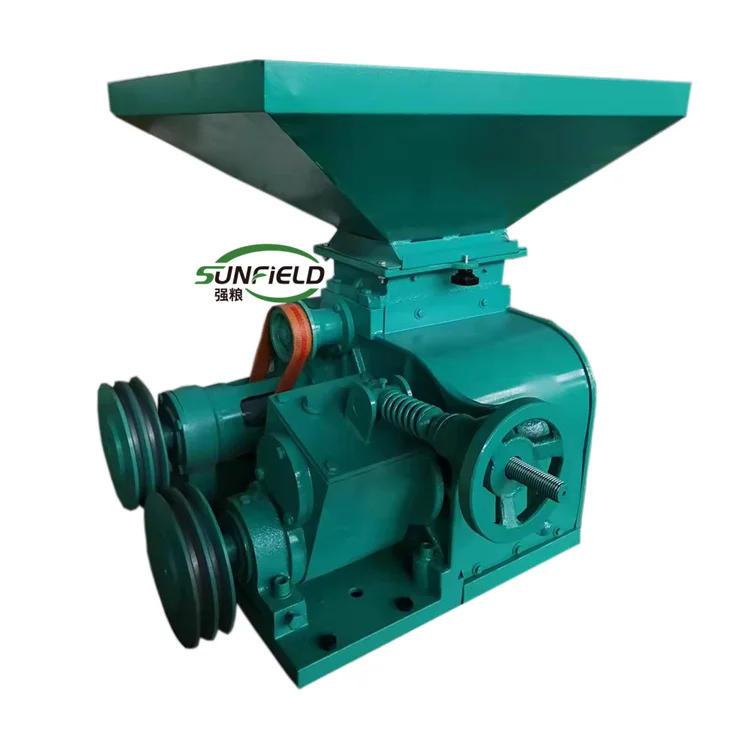

High Efficiency, Low Noise Husker
* Double support mobile gearbox husker integrated reversing gearbox and mobile tightening device, efficiently avoided discoordination between swinging gears.
* Over 90% deshell rate for one-time operation.
* Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.
* Over 90% deshell rate for one-time operation.
* Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.

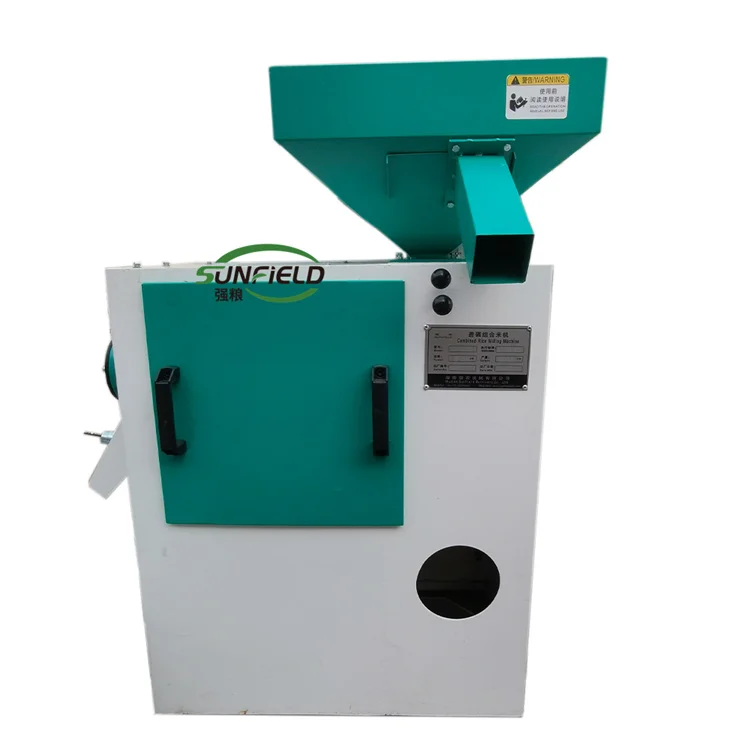

Innovated inhale-air Emery Rice Mill
* Emery rice mill equipped with a large diameter hollow spindle and innovative Emery roller whitening mechanism design.
* Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.
* Lower operation platform, more convenient operation and daily maintenance.
* Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.
* Lower operation platform, more convenient operation and daily maintenance.

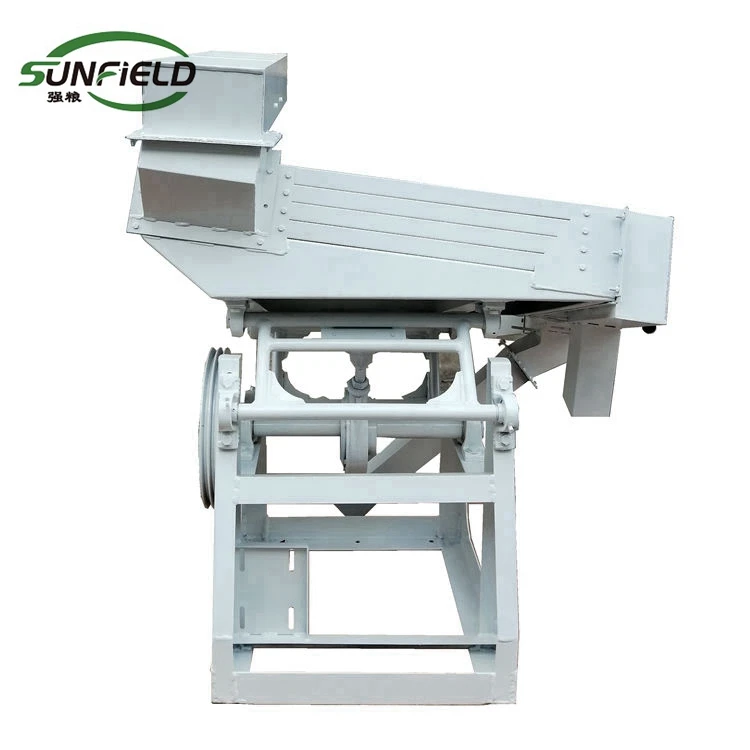

Stable Gravity Paddy Separator
* Bigger screen with high separation speed and even paddy distribution.
* The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
*Low left paddy for re-husking, reduce the broken rate efficiently.
* The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
*Low left paddy for re-husking, reduce the broken rate efficiently.

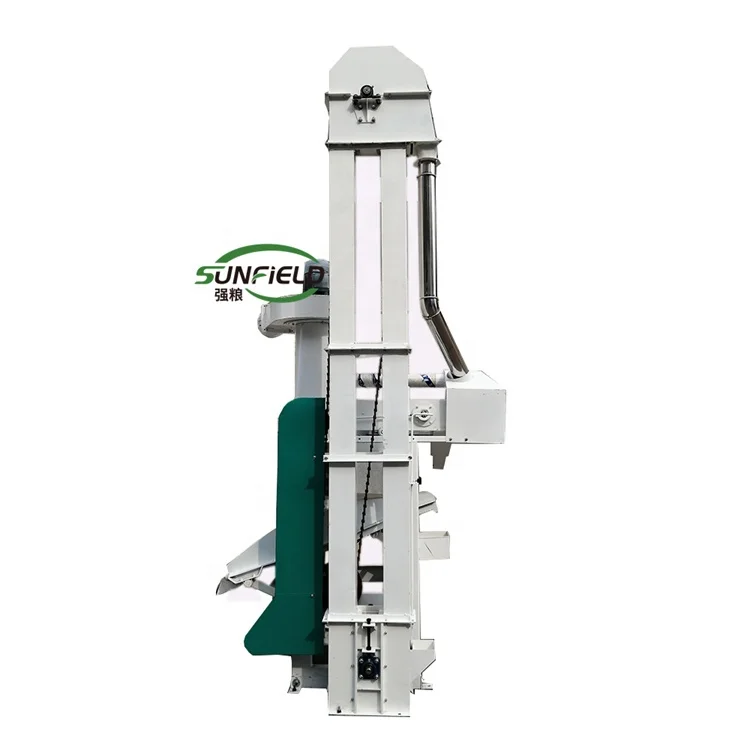

Details Images

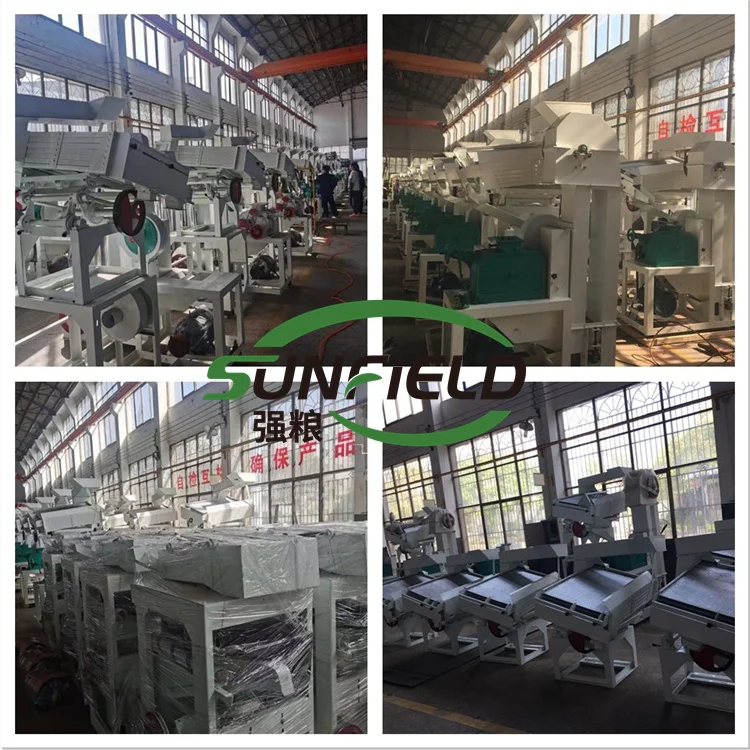

Packing & Delivery
Company Profile
Hunan Sunfield Machinery Co., Ltd.
Located in Changsha, China, Hunan Sunfield Machinery Co., Ltd. is a high-tech and professional manufacturer of Combined Rice
Milling Machines and Complete-set Rice Milling Equipment, covering the whole paddy-to-rice processing procedures from paddy
cleaning, de-stoning, husking, separation, rice milling, polishing, grading to color sorting. As a Chinese leading manufacturer
and exporter of rice milling machines, Sunfield owns dozens of product patents in design and technology. Our products include:
***400kg per hour to 1,000kg per hour Combined Rice Milling machines;
***20 ton per day to 120 ton per day Complete-set Rice Milling Equipment;
which are multifunctional, user-friendly, cost-effective and good performance.
Milling Machines and Complete-set Rice Milling Equipment, covering the whole paddy-to-rice processing procedures from paddy
cleaning, de-stoning, husking, separation, rice milling, polishing, grading to color sorting. As a Chinese leading manufacturer
and exporter of rice milling machines, Sunfield owns dozens of product patents in design and technology. Our products include:
***400kg per hour to 1,000kg per hour Combined Rice Milling machines;
***20 ton per day to 120 ton per day Complete-set Rice Milling Equipment;
which are multifunctional, user-friendly, cost-effective and good performance.
